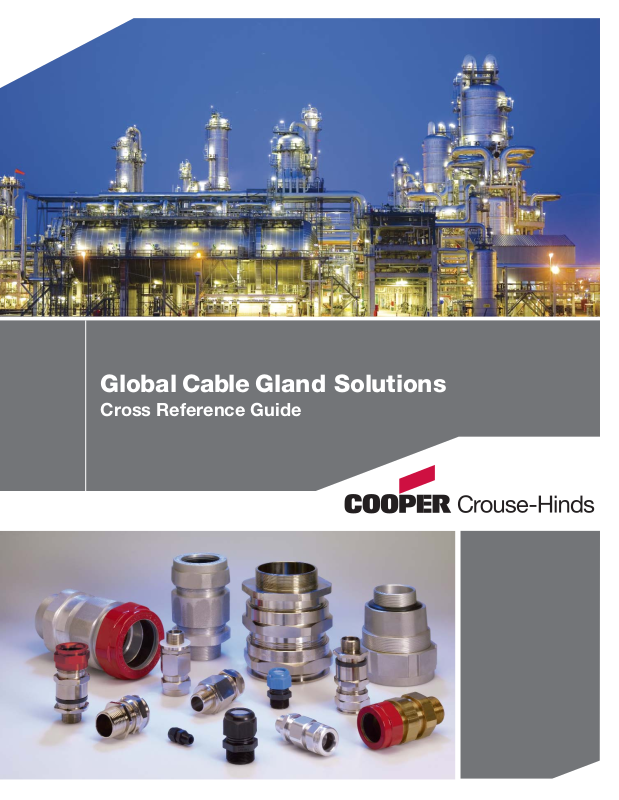

Global Cable Gland Solutions

Cross Reference Guide

Global Cable Gland Solutions - Summary Overview

Cable Type/Application Cooper Crouse-Hinds Hawke CMP Peppers

Non-Armoured, EExe/EExd ADE 1F 501/421 A2F A2LF

Armoured (SWA, SWB, STA), EExe/EExd ADE 4F 501/453/RAC P2K, E1XF/E1WF E1XF/E1WF

Armoured, EExe/EExd - Deluge, cold flow protection ADE 6F 501/453/UNIV T3CDS CR-1

Armoured, EExe/EExd - Compound, deluge
protection

ADE 6FC* ICG 653/UNIV PX2K CR-C

Conduit connection EExe/EExd- Compound TCCF CSB 656 PXSS2K CR-S

Non-Armoured, EExe/EExd - Compound ADE 1FC ICG 623 PXRC CR-U

MC cable - Wet location - aluminum TMC 701 (alum) MCRA NA

MC cable - Wet location - nickel-plated brass TMC-BR-NP 701 MCR NA

MC-HL cable - Explosionproof - aluminum TMCX 711 (alum) MCXA NA

MC-HL cable - Explosionproof - nickel-plated brass TMCX-BR-NP 711 MCX NA

Non-Armoured - explosionproof (Class I, Div 2) TULU 710 PXSS2K UL-U

Armoured & sheathed marine shipboard ­Cl I, Div 1

ADE 6FC* 753 PX2KX UL-C

Armoured & sheathed marine shipboard ­Wet location

ADE 4F 153/X C2KX E1XF**

International and North American Standards
Summary Overview

*Coming Soon
** No UL Listing

Time-tested, quality cable glands
from Cooper Crouse-Hinds offer:

• Complete termination solution for global cable applications

• Ease of cable termination providing labor and time management
productivity

• Explosion-protected connections contributing to safe operation
in harsh & hazardous environments

• Delivery meeting installation and project coordination schedules

NOTE: This document is intended for general reference. All cable dimensions should be confirmed before placing any orders to insure cable gland fit.

Global Cable Gland Solutions - TMCX / TMC

TMCX Entry Cooper Crouse-Hinds Hawke Appleton/CMP Thomas & Betts

OD Sealing Range* Thread TMCX 711 TMCX** STEX

0.490 - 0.781 1/2" NPT TMCX165 711/A/050NPT TMCX050A STX050-462(464)

0.650 - 1.000 3/4" NPT TMCX285 711/B/075NPT TMCX075A STEX075

0.850 - 1.313 1" NPT TMCX3112 711/C/100NPT TMCX100A STEX100

1.150 - 1.625 1 1/4" NPT TMCX4140 711/C2/125NPT TMCX125A STEX125

1.380 - 1.781 1 1/2" NPT TMCX5161 711/C2/150NPT TMCX150A STEX150

1.630 - 2.313 2" NPT TMCX6206 711/D/200NPT TMCX200(S)A STEX200

1.990 - 2.719 2 1/2" NPT TMCX7247 711/E/250NPT TMCX250(S)A STEX250

2.525 - 3.281 3" NPT TMCX8302 711/F/300NPT TMCX300A STEX300

3.025 - 3.781 3 1/2" NPT TMCX9352 711/H/350NPT TMCX350A STEX350

3.585 - 4.281 4" NPT TMCX10402 711/J/400NPT TMCX400A STEX400

TMCX

North American Standards
Explosionproof; Metal Clad Cable

* All dimensions are shown in inches unless noted.
** Please note that Appleton has a marketing agreement with CMP and is now selling the CMP connector in place of their own model.

TMC Entry Cooper Crouse-Hinds Hawke Appleton/CMP Thomas & Betts

OD Sealing Range* Thread TMC 701 TMC** STE

0.490 - 0.781 1/2" NPT TMC165 701/A/050NPT TMC050A ST050(462)

0.650 - 1.000 3/4" NPT TMC285 701/B/075NPT TMC075A STE075

0.850 - 1.313 1" NPT TMC3112 701/C/100NPT TMC100A STE100

1.150 - 1.625 1 1/4" NPT TMC4140 701/C2/125NPT TMC125A STE125

1.380 - 1.781 1 1/2" NPT TMC5161 701/C2/150NPT TMC150A STE150

1.630 - 2.313 2" NPT TMC6206 701/D/200NPT TMC200(S)A STE200

1.990 - 2.719 2 1/2" NPT TMC7247 701/E/250NPT TMC250(S)A STE250

2.525 - 3.281 3" NPT TMC8302 701/F/300NPT TMC300A STE300

3.025 - 3.781 3 1/2" NPT TMC9352 701/H/350NPT TMC350A STE350

3.585 - 4.281 4" NPT TMC10402 701/J/400NPT TMC400A STE400

TMC

North American Standards
General Purpose; Metal Clad Cable
