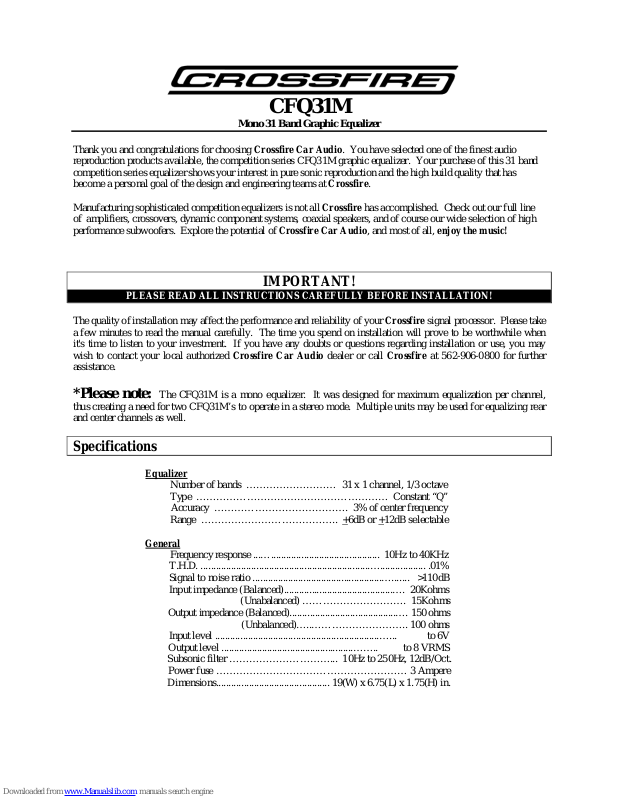

CFQ31M
Mono 31 Band Graphic Equalizer
Thank you and congratulations for choosing Crossfire Car Audio. You have selected one of the finest audio
reproduction products available, the competition series CFQ31M graphic equalizer. Your purchase of this 31 band
competition series equalizer shows your interest in pure sonic reproduction and the high build quality that has
become a personal goal of the design and engineering teams at Crossfire.
Manufacturing sophisticated competition equalizers is not all Crossfire has acco mpl ished. Check out our full line
of amplifiers, crossovers, dynamic component systems, coaxial speakers, and of course our wide selection of high
performance subwoofers. Explore the potential of Crossfire Car Audio, and most of all, enjoy the music!
IMPORTANT!
PLEASE READ ALL INSTRUCT IONS CAREFULLY BEFORE INSTALLATION!
The quality of installation may affect the performance and relia bility of your Crossfire signal processor. Please take
a few minutes to read the manual carefully. The time you spend on installation will prove to be worthwhile when
it's time to listen to your investment. If you have an y doubts or que stions regardi ng installatio n or use, you ma y
wish to contact your local authorized Crossfire Car Audio dealer or call Crossfire at 562-906-0800 for further
assistance.
*Please note: The CFQ31M is a mono equalizer. It was designed for maximum equalization per channel,
thus creating a need for two CFQ31M’s to operate in a stereo mode. Multiple units may be used for equalizing rear
and center channels as well.
Specifications
Equalizer
General
Number of bands ……………………… 31 x 1 channel, 1/3 octave
Type ………………………………………………… Constant “Q”
Accuracy …………………………………. 3% of center frequency
Range ………………………………….. +6dB or +12dB selectable
Frequency response ...…........................................... 10Hz to 40KHz
T.H.D. ...................................................................….................. .01%
Signal to noise ratio ...................................................…....... >110dB
Input impedance (Balanced)...........................................…. 20Kohms
(Unabalanced) …………………………. 15Kohms
Output impedance (Balanced)..........................................…. 150 ohms
(Unbalanced)…..……………………….. 100 ohms
Input level .................................................................…... to 6V
Output level ....................................................…….. to 8 VRMS
Subsonic filter …………………………... 10Hz to 250Hz, 12dB/Oct.
Power fuse ………………………………………………… 3 Ampere
Dimensions............................................. 19(W) x 6.75(L) x 1.75(H) in.
Features
1. 31 Band Equalizer, 1/3 Octave
These 31 slider pods adjust the frequency indicated up to +12dB.
2. Range
Depressing this button switches the slider pods to +6 dB or +12dB of adjustment.
3. +6dB, +12dB Range and Power Indicator
These LED’s illuminate indicating the range setting of the equalizer and the power up of the unit.
4. Bypass
Depressing this button allows you to bypass the equalizer section.
5. Bypass LED
This LED illuminates indicating the bypass button is being utilized.
6. Clip
This indicator illuminates when the outp ut level is reaching the maximum of 8VRMS and the output is clipping.
7. Subsonic Filter
This knob adjusts the variable 12dB subsonic filter to eliminate energy wasting ultra low frequency resonance
caused by preceding components as well as picked up through cables.
8. Output Level Control
This adjusts t he output level voltage o f the CFQ31M to match the input level of the next processor or amplifier.
9. Input Level Control
This gain control is used to adjust the input sensitivity of the CFQ31M to match the rad io's output.
10. ¼” TRS Input
This input accepts balanced line signal from the source uni t utilizing TRS (Tip, Ri ng, Sleeve) s tyle connectors.
11. XLR Input
This input accepts balanced line signa l from the source unit utilizing XLR style connectors.
12. ¼” TRS Output
Use this output if the next component accepts balanced line TRS style connectors.
13. XLR Output
Use this output if the next component accepts balanced line XLR style connectors.
14. RCA Line Level Input
This input accepts unbalanced signal from the output of the source unit via RCA patch cables.
15. RCA Line Level Output
Use this output if the next component accepts unbalanced RCA patch cables.
16. Chassis Ground
This switc h is used to di s connect the signal ground from the main chassis ground if nois e is present due to a
possible ground-loop.
17. Power Input Terminals
B+ : connect to the vehicle's positive 12 volt suppl y (+ 12 volts DC)
B- : connect to the vehicle's chassis (-12 volts DC)
Remote turn-on : connect to the remote turn-on lead of the so urce unit
Delayed Remote turn-on : co nnect to the remote turn-on leads of all signal processors and amplifiers
following the C FQ31M. This will delay the turn on of these units by 2 seconds a ft er the sourc e unit
is powered up.
18. Fuse
This 3amp fuse will help protect the CFQ31M from damage in case of a short.
Mounting
Find a sturdy secure area to mount the CFQ31M. Be sure it is accessible, but not in an area where the equalizer
sliders or any other adjustments may be accidentally altered. Use the faceplate of the CFQ31M as a template and
mark the location of the mounting holes with a pen or pencil. Remove the unit from the mounting location to predrill the mounting holes. Use lar ge eno ugh screws to mount the equalizer tightly in place.
Power Connections
Before co nnecting an ything, be sure to disc onnect the gr ound te rminal fro m your batter y to pre vent any damage to
the audio components. Leave disconnected until all components are hooked up and the system is ready to play.
Remove the Molex power plug from the CFQ31M before fastening the wires into the correct slots as a precaution.
Make sure to you are looking at the terminal with the set-screws facing upwards while following the instructio ns
(see diagram).
B+
The first slot from the left is the B+ or positive 12volt terminal. Connect to this terminal a positive 12volt lea d using
the same source of power used to power your amplifiers. This should eliminate noise due to voltage differences.
Whether you decide to run the power wire for the equalizer to a power distribution block or to the batter y, be sure to
protect both the stereo s ystem and the vehicle ’s e lectrica l s yste m from a p ossible d a ngero us shor t. T his c an be d one
by placing a 3amp fuse in your power distribution block or within a few inches of the battery. Use a minimum of 16
awg stranded copper wire for this application and be sure to apply grommets whenever the power wire is ran
through any metal wall.
B-
The second slot from the left is the B- or grou nd terminal. Locate a metal area of the vehicle’s chassis a s close to
the Crossfire CFQ31M as possible that is a good source of ground (preferably the floor). Investigate the area you
wish to use for electrical wires, vacuum lines, and brake or fuel lines. Using either a wire brush or sandpaper,
eliminate unwanted paint to supply a better contact when grounding. The same gauge wire should be used for
ground as is for the power. T ermina te the gr ound wire usi ng the co rrect s ize ring t ermina l and a ttach it t o the b are
metal using a #8 sheet metal screw. It is important for this connection to be solid. Silicon should now be spread
over the screw and bare metal to prevent rust and moisture from entering the vehicle.
R
Moving on to the third termin al from the le ft is the remote t urn-on ma rked R. This ter minal must b e connected to a
switched +12 volt source. Most source units provide a remote turn-on lead, which a re used to turn o n and off all
processors in correspondence with the source. If a radio does not have a remote turn-on, then a p ower a nte nna wire
may be used.
Use a minimum of 18-gauge wire to connect the CFQ31M to the source of the switched +12 volt lead. If possible,
route this wire on the same side of the vehicle as the power wire. Be cautious not to run the wire near sharp edges
that may easily cut through the insulation. Make sure all connections are secure.
DR
On the far right is the last terminal marked DR. DR is the abbre viation for delayed-remote . Connect this output to
the remoter turn-on input terminal of the a mplifier. This output provides a delay of 2 seconds in the turn-on and off
to help eliminate pop or thump noises when the source is turned on or off.
Once all the wires are in place, return to the location of the CFQ31M. Cut the power, ground, and remote input and
output leads to the desired length. Strip o ff app ro ximatel y 1/4" o f the insulatio n o n the wire s. Pla ce eac h wire i n its
appropriate slot and tighten the set-screws securely.
Signal Connections
Choose the inp ut and output t hat work best i n your application (balanced line XLR or TRS, or unbalanced RCA).
When using XLR or ¼” TRS cables, be sure the signal wires have adequate shielding. If RCA style connectors are
chosen, make sure the cables have either multiple layers of shielding or twisted pair wiring for the best noise
rejection (consult your dealer).
Be extra careful when running the signal cables. Car environments are notorious for poorly insulated wires. This
means that hiss, engine noise, and fan noise can easily be picked up if ran incorrectly. As a precaution, avoid
placing the signal cables near large wire looms and electric fans whenever possible.
Starting at the source, connect the signal cables to the source output. Run the cables to the location of the CFQ31M
avoiding entanglement between the signal cables and the power wires. Connect the signal cables to the inputs
making sure you maintain correct balance (red is right and black or white is left) on both the radio and the crossover
By now you have finished installing the unit(s) into the vehicle. Reconnect your b attery and install a 3-amp fuse
into the fuse holder.
Level Adjustments
By now you're probably really anxious to listen to your stereo system. Before you switch on that radio, you have to
complete some very important adjustments in order to fine-tune your system.
1. Check the manuals of the processor (s) followi ng the CFQ3 1M for their maximum inp ut levels (l isted as inp ut
sensitivity). Most signal processors and amplifiers do not accept the 8volts RMS of input this processor can
produce so signal shoul d never reach peak output.
2. Adjust the input level of the CFQ31M to 0.
3. Preset the output level of the CFQ31M slightly above minimum gain.
4. Depress the EQ bypass switch to the off position. Set the equalizer bands flat to zero
5. Set the input levels of all processors and amplifiers to 1/4 maximum.
6. Activate the radio power. Set the tone controls, balance and fader controls to the center or flat position.
These next steps are best accomplished with the following ite ms: a test disc or cassette with a 1Khz test tone, a
digital volt meter, and a couple of very dynamic tracks on your favorite CD or cassette. Follow the level
adjustment s below.
1. Plug in the test CD or cassette and play the 1Khz tone. If you are using a CD, you may wish to turn on the track
repeat function. If you do not have a test CD, skip to step 3 b.
2. Unplug the o utput signal c able of the C FQ31M(s) goi ng into the foll owing compo nent(s). Co nnect your volt
meter to the output cable as shown below a nd turn the volt meter to AC voltage.
3. a. Turn the radio on and adjust the volume to ¾ of maximum. Adjust the output of the CFQ31M unit the volt
meter meets the maximum rated input acceptable into the next unit. Repeat with a ll CFQ 31Ms maki ng sure to
maintain the same output voltage between each. Finish by placing the output signal cables back into the next
component.
b. Turn the radio on and adjust the volume to ¾ of maximum while playing your favorite CD or cassette.
Adjust the output of the CFQ31M until t he onset of dis tortion is hear d, then reduc e the output le vel slightly.
Repeat with all CFQ31Ms.
4. Set the levels for all following compone nts as suggested by that manufacture.
5. Take a few minutes now to li sten to the system using your favorite music tracks to determine if the volume is
satisfactory. At ¾ maximum volume, the system should be at maximum and distortion should be faintly
audible.
6. Check the clip indicator on the CFQ31M at ¾ volume. Make sure the LED is not illuminating. If the clip
indicator is illuminating, reduce the output level until it completely shuts off. The level controls on the
following processors or amplifiers may need adjustment as well.
Equalization
How does an equalizer work?
Simply put, an equalizer corrects deviations in frequency over a given bandwidth. The slider knobs on the CFQ31M
are each numbered with the center of the frequency "Q" they adjust. By sliding these knobs you can boost or cut a
particular frequency to smooth the response of your system and acquire a more desired sound.
Adjusting Your equaliz e r
Adjusting your CFQ31M is not an easy task. For this reason, Crossfire recommends the use of a RTA, or Real
Time Analyz er . If you a re not using a RTA, it will b e hard to distinguish the dips and peaks and know how much to
adjust each. Although we highly recommend using a Real Time Analyzer, it is possible to adjust the CFQ31M by
ear to your own taste. However you go about tuning your system, please follow some basic steps.
1. Always start with the frequencies that need to be cut or reduced. Reason: boosting frequencies up 3,6,12 dB is
often accompanied by boosted system noise of equal amount. Cutting frequencies will cut noise.
2. Remember to adjust no more than two fre quency bands a t one time when tun ing by ear. Thi s makes it much
easier to distinguish whether the changes made an improvement or not. Since the CFQ31M is typically mounted in
the trunk its important to listen to the changes in the response after each setting.
3. Always use extreme caution when boosting frequencies. For every 3dB of boost, twice the power is demanded
from the amplifier at that p articular frequency. For example, if your a mplifier is supplying 25 watts at 0dB at a
particular frequency, then at 3dB of boost it will need to supply 50 watts, and at 6dB of boost it requires 100 watts or
4 times the power. If too much boost is applied, the chances are your amplifier will clip at these frequencies and
possibly damage your speakers and amplifier.
4. Avoid equalizing more than +/- 6dB. If you have this large of a deviation the chances are you have a phase
problem. This could be in part due to the location of the speaker or as simple as a polarity problem with one or more
speakers.
Check the Level Settings
Now that yo u've had your f un with eq ualizi ng, chec k the ou tput le vel of the CFQ31M once a gain. Eve ry time you
made an adjustment the output level was adversely affected. Simply insert the compact disc or cassette tape used to
make your ini tial settin gs. Turn the volu me to 3/4 maxi mum setting o n the radio while playing t he dynamic tr ack
chosen earlier. Adjust the ou tput level accordingl y; if distortion is heard or the clip indicator LED is ill uminating,
turn the out p ut s down; if volu me is lo st you may wish to in cre ase the outp uts as lo ng a s the p eak indic ator light s are
not illuminating. Be careful not to overdrive your processors and amplifiers.
Enjoy the music!
Crossfire Limited Warranty
This warranty gives you sp eci fic legal ri ght s, an d you ma y also ha ve o th er righ ts whi ch var y fro m st ate to stat e. Thi s warr ant y is
only valid on Crossfire products purchased in the U.S.A. from an authorized Crossfire dealer. All Crossfire amplifiers are
warranted to be free from defects in materials and workmanship under normal use and serviced for a period of (2) years when the
unit is installed by an authorized Crossfire dealer. Non-authorized dealer installed products carry a (1) year parts and labor
limited warranty. The extent and conditions of Crossfire’s limited warranty are as follows:
i. Crossfire will either repair or replace (at its option) any unit which crossfire has examined and found to be defective
and under warranty, to the original purchaser, provided the defect occurs within (2) years of the date of purchase when the unit is
installed by an authorized
only.
ii. Crossfire will either repair or replace (at its option) any unit which crossfire has examined and found to be
defective and under warranty, to the original purchaser, provided the defect occurs within (1) year of the date of purchase when
the unit is installed by a non-authorized
original purchaser only.
iii. This warranty will be void to any unit found with the original factory serial number removed, altered or defaced.
All units received by Crossfire for warranty with their original serial numbers removed will not be repaired and returned to
sender freight collect.
iv. The provisions of this warranty shall not apply to products used for any industrial, professional or commercial
purposes or any other uses for which it was not designed.
v. This warranty does not cover costs for removal of product for repair or reinstallation of the product after repair, nor
does it cover the cost of returning the product to Crossfire’s service center for repair.
vi. This warranty does not apply to repairs or replacements necessitated by any cause beyond the control of Crossfire.
Including, but not limited to, any malfunction, defect or failure caused by or resulting from unauthorized service or parts,
improper maintenance, operation contrary to furnished instructions, shipping or transit accidents, incorrect power line voltages,
fire, flood or any other acts of nature, or normal wear and tear.
vii. The foregoing is in lieu of all other expressed warranties and Crossfire does not assume or authorize any party to
assume for it any other obligation or liability. the duration of any warranties which may be implied by law (including the
warranties of merchantability and fitness) is limited to the term of this warranty. In no event shall Crossfire be liable for special,
incidental or consequential damages arising from obligations under this warranty due to causes beyond its control. Some states do
not allow limitations on how long an implied warranty lasts and/or do not allow the exclusions or limitation of consequential
damages, so the above limitations and exclusions may not apply to you.
viii. Return policy
Your unit will be serviced free of charges on an in-warranty basis only. If improper operation occurs, contact your autho rized
Crossfire dealer for assistance with the return and factory repair of your Crossfire product. If an authorized Crossfire dealer is
not available, the following procedure must be followed: phone (562-906-0800) or fax (562-941-2284) in your name, address,
telephone number and the model number of the item to be returned to receive a return authorization number. Your return
authorization number must be clearly written on the outside of the packing box returned to Crossfire. All returned products must
be accompanied with a dated purchase invoice or the product may be subject to costs of parts and labor. Return the unit, prepaid
postage, in the o rigi nal prot ective cart on o r a cart on with ample p r o tect io n. P lease i ncl ude a b ri ef description of the problem and
send your repair to:
Crossfire dealer. This warranty includes both parts and labor and applies to the original purchaser
Crossfire dealer. This (1) year warranty includes both parts and labor and applies to the
12222 Bell Ranch Dr.
Santa Fe Springs, CA 90670
Loading...
