Page 1
..
,
..
..
.
Anode of power connection terminals Connect to the anode of car battery
Terminal to be connected with Remote cable which comes from the source and which
controls the amplifier switching on Applied voltage must be between 7 and 15VDC
Ground terminal Connect to the car chassis keep the length of the ground cable
to a minimum
REM
GND
+12V
Connect to 12V of battery
with appropriate FUSE value.
+

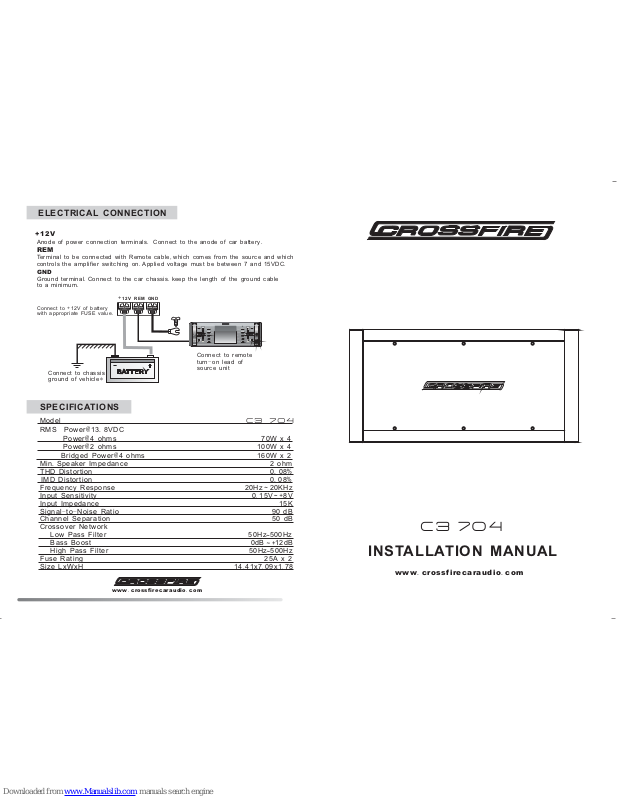

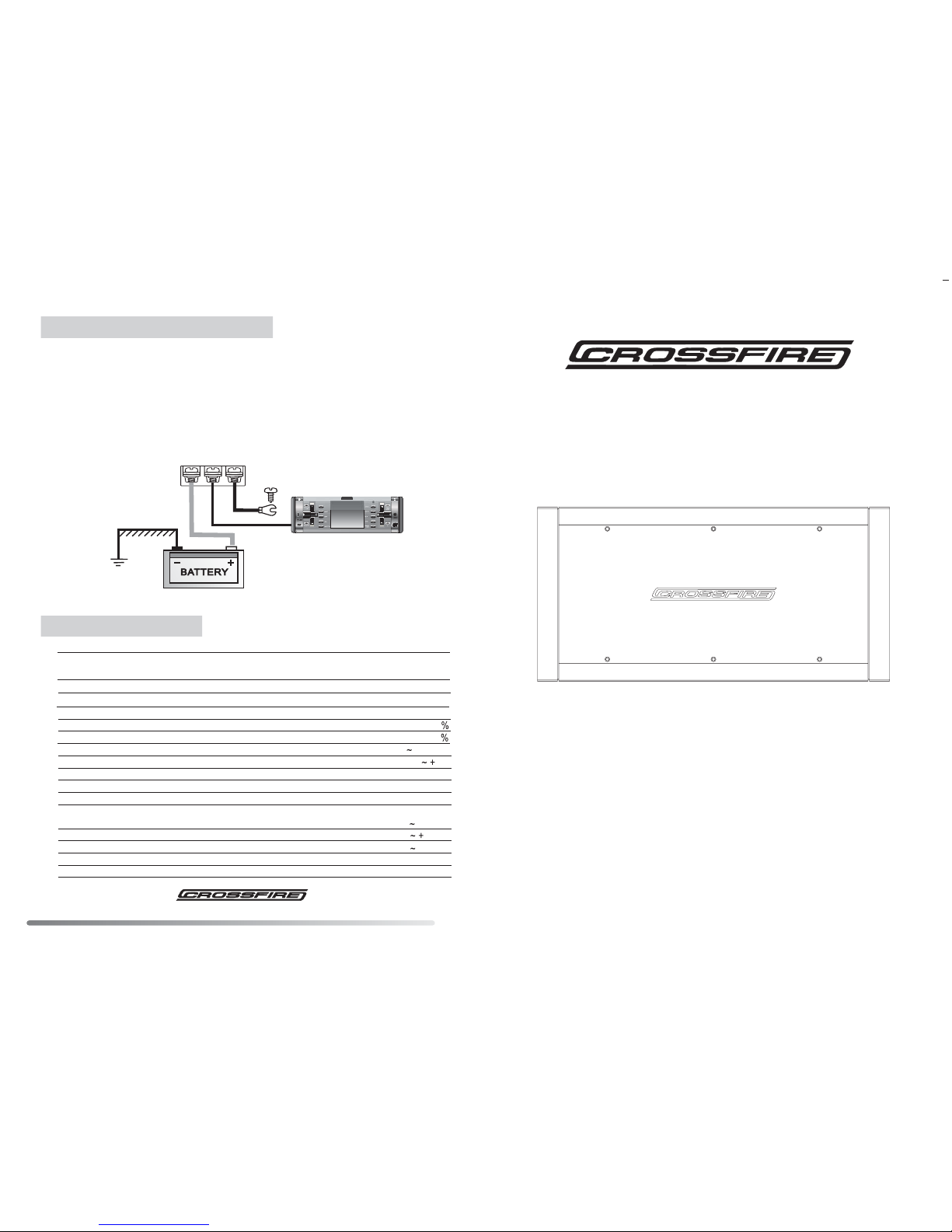

ELECTRICAL CONNECTION
SPECIFICATIONS
Connect to chassis
ground of vehicle*
Connect to remote
turn on lead of
source unit
-
www crossfirecar audio com..
www crossfirecaraudio com..
C3 704
INSTALLATION MANUAL
+12V
REM GND
Model
RMS Power 13 8VDC
Power 4 ohms 70W x 4
Power 2 ohms 100W x 4
Bridged Power 4 ohms 160W x 2
Min Speaker Impedance 2 ohm
THD Distortion 0 08
IMD Distortion 0 08
Frequency Response 20Hz 20KHz
Input Sensitivity 0 15V 8V
Input Impedance 15K
Signal to Noise Ratio 90 dB
Channel Separation 50 dB
Crossover Network
Low Pass Filter 50Hz 500Hz
Bass Boost 0dB 12dB
High Pass Filter 50Hz 500Hz
Fuse Rating 25A x 2
Size LxWxH 14 41x7 09x1 78
C3 704
@
@
@
@
.
.
.
.
--
...
.
Page 2
+
+
_
_
+
_
+
_
+
_
+
+
_
_
+
+
_
_
Page 1
Page 2
Speaker Impedance 2 4 ohm
~
Speaker Impedance 4 8 ohm~
Speaker Impedance 2 4 ohm~
Speaker Impedance 2 4 ohm~
Speaker Impedance 4 8 ohm~
Speaker Impedance 4 8 ohm~
Connect to remote
turn on Iead of
source unit
-

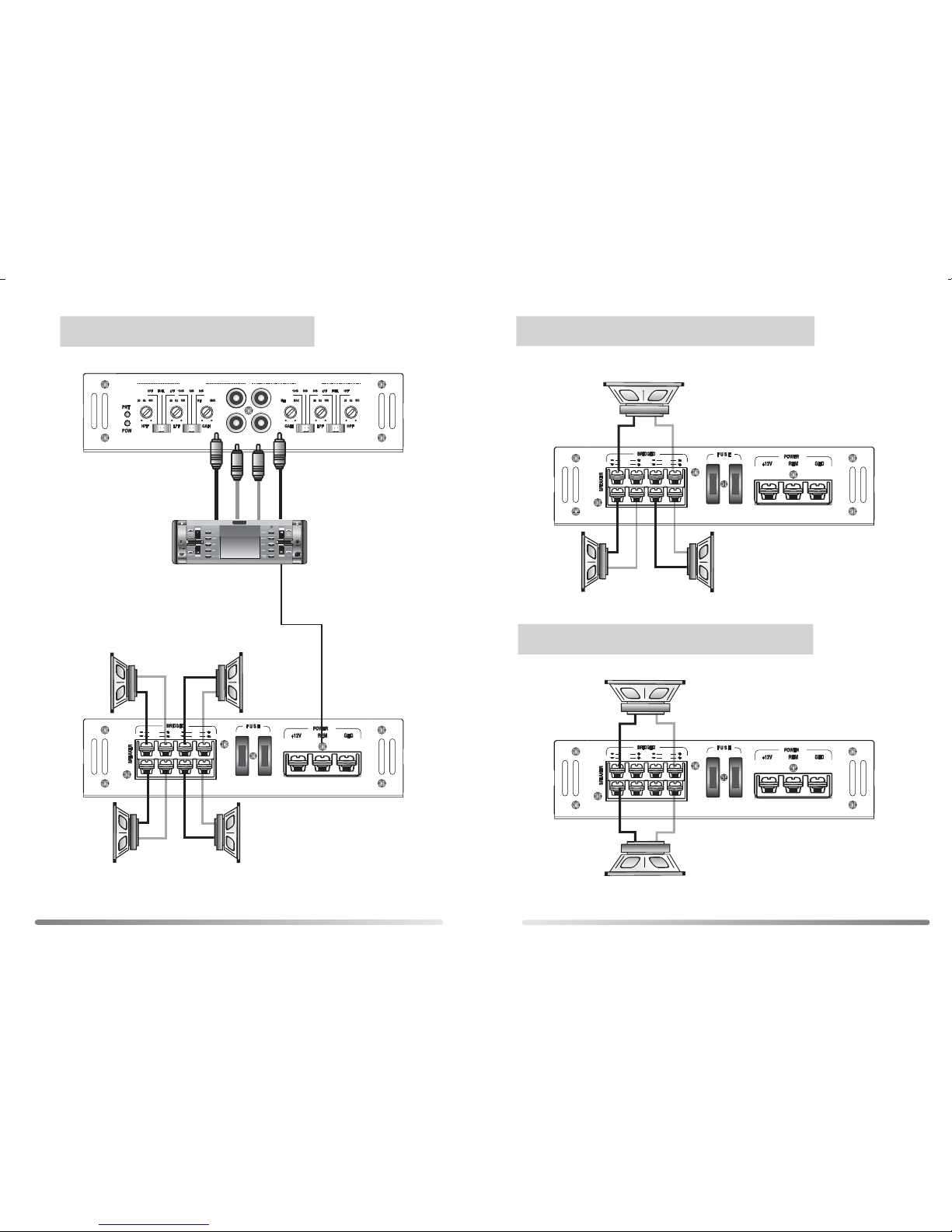

SYSTEM WIRING
4 CHANNEL STEREO CONFIGURATION
SYSTEM WIRING
3 CHANNEL BRIDGED MODE CONFIGURATION
SYSTEM WIRING
2 CHANNEL BRIDGED MODE CONFIGURATION
C3 704
CH1 CH2/
CH3 CH4/
CH1
CH3
CH2
CH4
CH1
CH3
CH2
CH4
CH1
CH3
CH2
CH4
CH1
CH3
CH2
CH4
