CAUTION
Read all precautions and instructions in this manual before
using this equipment. Save this
manual for future reference.
Model No. WECCSY53931
Serial No.
Write the serial number in the
space above for future reference.
USER’S MANUAL
Serial Number Decal (under seat)
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, please call:
1-888-936-4266
Mon.–Fri. 8h00 until 18h30 EST
(excluding holidays).
Visit our website at
www.TheCrossBow.com
2
WARNING DECAL PLACEMENT
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
CABLE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the center of
this manual. Remove the PART IDENTIFICATION CHART and PART LIST/EXPLODED DRAWING before beginning assembly.
CrossBow by WEIDER is a trademark of ICON Health & Fitness, Inc.
TABLE OF CONTENTS
The decals shown here have been
placed on the resistance system. If a
decal is missing or illegible, please call
1-888-936-4266 to order a free replacement decal. Apply the decal in the location shown.
Keep hands and
fingers clear of
this area.
ATTENTION
Gardez vos mains
et vos doigts
éloignés de cet
endroit.
3
1. Read all instructions in this manual before
using the resistance system. Use the resistance system only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the resistance system are
adequately informed of all precautions.
3. The resistance system is intended for home
use only. Do not use the resistance system in
any commercial, rental, or institutional setting.
4. Use the resistance system only on a level
surface. Cover the floor beneath the resistance system to protect the floor.
5. Make sure that all parts are properly tightened each time you use the resistance system. Replace any worn parts immediately.
6. Keep children under 12 and pets away from
the resistance system at all times.
7. Keep hands and feet away from moving parts.
8. Always wear athletic shoes for foot protection while exercising.
9. The lat tower crossbar is not designed to be
used for pull-up exercises. Do not hang on
the crossbar.
10. The resistance system is designed to support
a maximum user weight of 135 kg (300 lbs).
11. Pull on the low pulley cable only while sitting
on the bench or standing on the base plate.
Pull on the high pulley cables only while sitting on the bench, with the seat in one of the
three positions closest to the upright base,
or while standing on the base plate.
12. The resistance system is designed to be
used with the included resistance, and the
resistance included with a CrossBow by WEIDER
™
Power Pak. Do not use the resistance
system with any other type of resistance.
13. When adding resistance, both ends of the
crossbows must rest under the two “U”channels. Add and remove crossbows from
the “U”-channels one crossbow at a time.
14. Keep clear of the area around the “U”-channels while the resistance system is in use.
Do not add or remove crossbows from the
“U”-channels while the end of the long cable
is pulled out.
15. Always adjust the crossbow assembly to the
horizontal position and make sure the fulcrum knob is secure before using the resistance system.
16. Make sure the rings on the crossbows are
pushed against the crossbow spacer before
using the resistance system.
17. Always disconnect the lat bar from the short
cables when performing an exercise that
does not require it.
18. Make sure the storage knob is in place and
fully tightened each time you use the resistance system.
19. Make sure that the cables remain on the pulleys at all times. If the cables bind as you are
exercising, stop immediately and make sure
that the cables are on the pulleys.
20. If you feel pain or dizziness while exercising,
stop immediately and begin cooling down.
WARNING:
Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the resistance system.
IMPORTANT PRECAUTIONS
4
Crossbar
High Pulley
Lat Tower
Backrest
Storage Knob
Fulcrum Knob
Upright
Low Pulley
Base Plate
Leg Lever
Lat Bar
Seat Knob
Seat
Foot Plate
Crossbows
“U”-Channel
BEFORE YOU BEGIN
Thank you for selecting the innovative CrossBow by
WEIDER
™
ADVANTAGE resistance system. The resistance system offers a selection of stations designed to
develop every major muscle group of the body. Whether
your goal is to tone your body, build dramatic muscle
size and strength, or improve your cardiovascular system, the resistance system will help you to achieve the
specific results you want.
For your benefit, read this manual carefully before
using the resistance system. If you have additional
questions, please call our toll-free customer service
department at 1-888-936-4266, Monday through Friday
8h00 until 18h30 eastern time (excluding holidays. To
help us assist you, please note the product model number and serial number before calling. The model number is WECCSY53931. The serial number can be found
on a decal attached to the resistance system (see the
front cover of this manual for the location of the decal).
Before reading further, please review the drawing below
and familiarize yourself with the parts that are labeled.
ASSEMBLED DIMENSIONS:
Height: 208 cm (82 in.)
Width: 167.6 cm (66 in.)
Depth: 203 cm (80 in.)
5
Before beginning assembly, carefully read the
following information and instructions:
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• For help identifying small parts, use the PART
IDENTIFICATION CHART. Note: Some small
parts may have been pre-attached for shipping. If
a part is not in the parts bag, check to see if it
has been pre-attached.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the resistance system, make
sure all parts are oriented as shown in the drawings.
The included Allen wrenches and the following tools (not included) are required for assembly:
• Two adjustable wrenches
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
• Lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Make Things Easier for Yourself
This manual is designed to ensure that the resistance system can be assembled successfully by
most people. However, it is important to realize
that the versatile resistance system has many
parts and that the assembly process will take
time. Most people find that by setting aside plenty
of time, assembly will go smoothly.
ASSEMBLY
1
1.

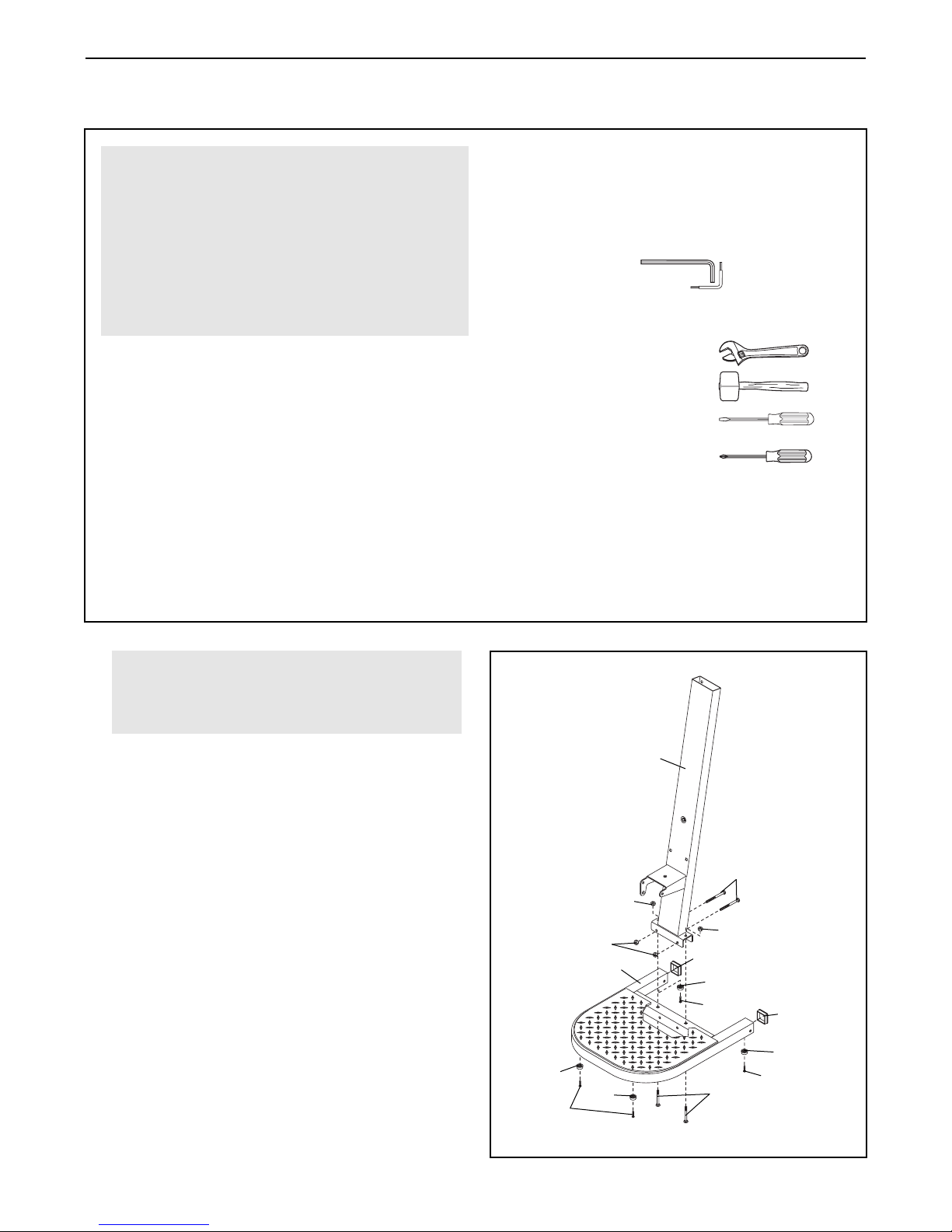

Press two 50mm Square Inner Caps (98) into the
Base (1).
Attach two Plastic Feet (53) and two Large Plastic
Feet (102) to the Base (1) with four M4 x 16mm
Screws (62).
Attach the Upright (3) to the Base (1) with two
M10 x 66mm Carriage Bolts (83), two M10 x
72mm Bolts (64), and four M10 Nylon Locknuts
(76) as shown. Note: This step will be easier to
complete if the Upright and Base are tipped
on their sides.
Before beginning assembly, make sure that
you have read and understand the information in the box above.
76
76
76
64
3
62
1
53
53
62
102
62
102
98
98
83
75
6
2. Attach a Wheel (31) to the outside of the Base (1)
with an M10 x 108mm Bolt (81), three M10
Washers (75), and an M10 Nylon Locknut (76).
Do not overtighten the Nylon Locknut; the
Wheel must be able to turn easily.
Attach the other Wheel (not shown) in the
same manner.
2
1
31
75
76
75
81
3. Press a 38mm x 64mm Inner Cap (41) into each
end of the Cross Tube (11).
Orient the Cross Tube (11) as shown, with the
welded tubes at the bottom. Attach the Foot Plate
(23) and the Cross Tube to the Upright (3) with
two M10 x 140mm Carriage Bolts (73), two M10
Washers (75), and two M10 Nuts (47). Do not
insert a bolt into the top hole in the Foot Plate
yet.
3
4
41
3
73
41
Welded
Tube
11
47
23
5. See the inset drawing. Snap the Seat Knob (45)
into the Seat Carriage (12) and attach it with two
M6 x 16mm Screws (82) and two M6 Black Nylon
Locknuts (69). Make sure the slot in the Knob
is aligned with the slot in the Seat Carriage.
Orient the Seat (13) and Seat Backing (9) as
shown. Attach the Seat and Seat Backing to the
Seat Carriage (12) with four M6 x 16mm Screws
(82).
4. Press two 57mm Round Outer Caps (27) onto the
ends of the Front Leg (6).
Orient the Bench Rail (5) as shown. Slide the Rail
Bracket (105) into the indicated end of the Bench
Rail, and align the holes in the Bracket with the
holes in the Bench Rail.
Orient the Front Leg (6) as shown. Attach the
Front Leg to the Bench Rail (5) with the Rail
Bracket (105), four M8 x 25mm Button Screws
(46), and four M8 Split Washers (52).
5
5
105
Holes
6
46
52
52
46
27
27
13
9
Round
End
Slot
12
12
45
69
82
82
82
7

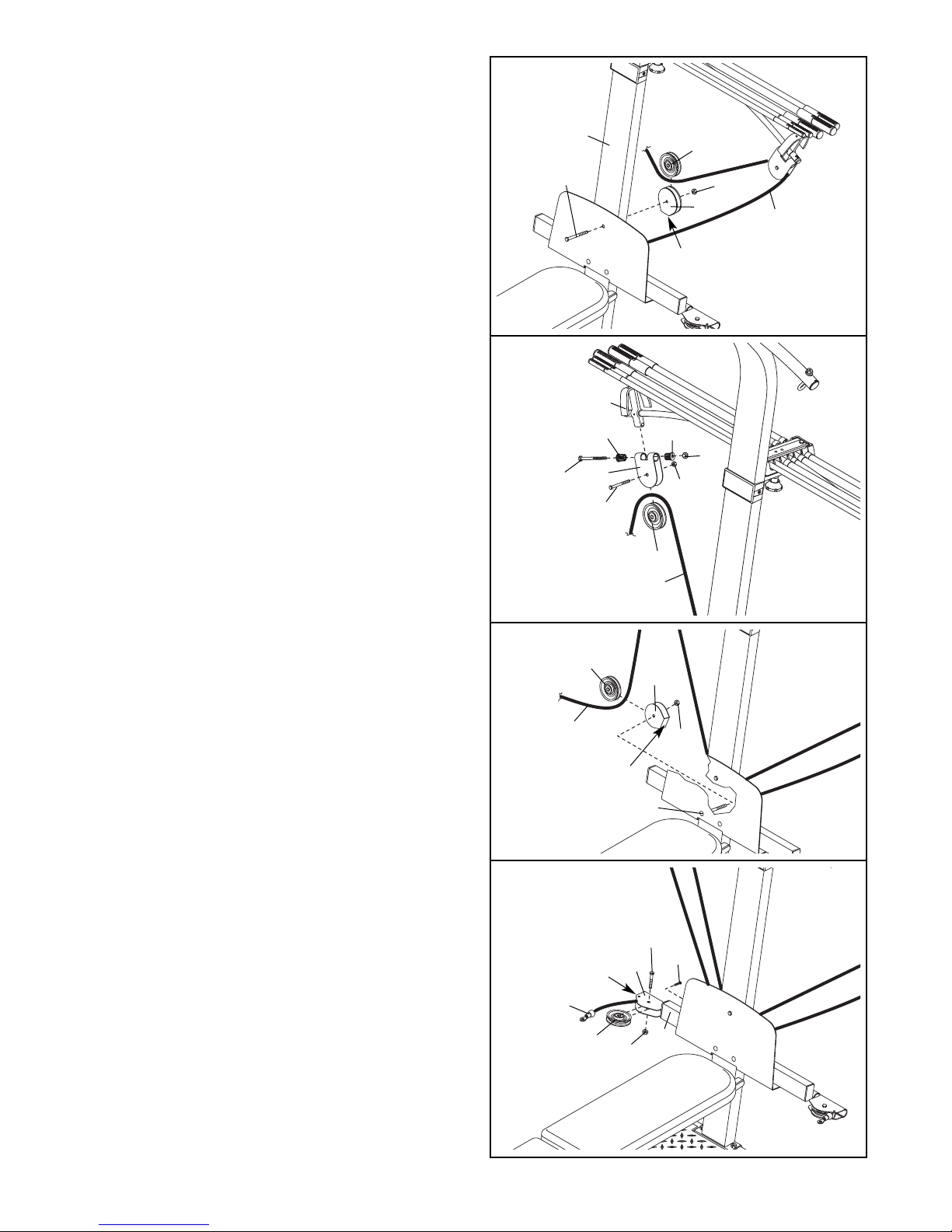

8. Attach the Lat Tower (4) to the Upright (3) with
four M10 x 25mm Button Head Screws (87) and
four M10 Split Washers (103).
Attach the Name Plate (89) to the Lat Tower (4)
with two M4 x 16mm Screws (62).
4
3
89
62
62
87
87
103
103
106
7. Attach the Bench Rail (5) to the Upright (3) with
an M10 x 132mm Bolt (66), a 19mm Spacer (17),
a 22mm Spacer (106), and an M10 Nylon
Locknut (76). Fully tighten the Storage Knob (30)
into the Upright and Rail.
7
8
5
76
17
66
3
30
6. Pull the Seat Knob (45, not shown) out as far as
it will go, and slide the Seat Carriage (12) onto
the Bench Rail (5). Engage the Seat Knob into
the third hole from the end of the Bench Rail.
See the inset drawing. Attach a Hook (104) to
the bottom of the Bench Rail (5).
Press the two Rail Inner Caps (99), with the wide
ends on the top or bottom (as indicated), into the
ends of the Bench Rail (5). Attach the Caps with
four M4 x 16mm Screws (62).
Locate the Leg Lever Cable (32), which has three
ends connected in the middle with a bracket.
Route the end of the Cable with the eyebolt under
a “V”-pulley (92). Attach the Pulley to the Front
Leg (6) with an M10 x 107mm Bolt (97) and an
M10 Nylon Locknut (76). Slide the other two
ends of the Cable onto the Hook (104).
6
Third
Hole
99
Wide
End
Eyebolt
Wide
End
62
45
62
62
62
99
104
12
97
92
76
32
6
5
5
8
9. Press two 38mm Round Inner Caps (38) into the
ends of the Lat Tower Crossbar (10).
Attach two Eyebolts (34) to the Lat Tower
Crossbar (10) with two M8 Washers (59) and two
M8 Nylon Locknuts (65). Do not overtighten the
Locknuts; the Eyebolts must be able to rotate
freely.
Attach the Lat Tower Crossbar (10) to the Lat
Tower (4) with two M10 x 65mm Button Head
Screws (70), two M10 Washers (75), and the
Crossbar Cover (93). Be sure that the Eyebolts
(34) are oriented as shown in the inset drawing. If they are not, turn the Lat Tower
Crossbar around and reattach it.
9
38
65
65
10
34
59
34
70
59
93
75
4
38
34
10
4
Side View
10. Attach the two 10-pound Short Crossbow Caps
(20) to the 10-pound Center Crossbow (44) with
two M4 x 12mm Flat Head Screws (85).
Using ten M4 x 12mm Flat Head Screws (85),
attach the two 10-pound Crossbow Caps (101) to
the 10-pound Removable Crossbow (67), the two
20-pound Crossbow Caps (88) to the 20-pound
Removable Crossbow (36), the four 80-pound
Crossbow Caps (100) to the two 80-pound
Crossbows (95), and the two 40-pound Crossbow
Caps (79) to the 40-pound Crossbow (96).
10
79
88
101
20
100
67
36
95
96
85
85
85
85
85
44
11
86
72
Rings on
this side
96
95
95
44
36
67
18
Rods
Edges
up
35
18
4
11. Locate the Crossbow Fulcrum (18) on the Lat
Tower (4) (see the inset drawing). Slide the
Crossbow Spacer (35) onto the rods on the
Crossbow Fulcrum. Make sure the Spacer is
oriented as shown in the drawing.
Set the Crossbows into the Crossbow Spacer (35)
in the following order: the 10-pound Removable
Crossbow (67), the 20-pound Removable
Crossbow (36), an 80-pound Crossbow (95), the
10-pound Center Crossbow (44), an 80-pound
Crossbow (95), and the 40-pound Crossbow (96).
Make sure the indicated rings are on the side
shown and the arrows point toward the Spacer.
Attach the Crossbow Cover Plate (72), with the
edges up, to the Crossbow Spacer (35) with two
M8 x 19mm Button Head Screws (86).
9
13. Insert the rod on the Backrest Frame (15) into the
slot in the Seat Carriage (12). Hold the Backrest
Frame vertically over the Seat Carriage and
slide the rod into the slot, as shown in the
inset drawing.
15
15
12
12
Rod
Slot
Rod
13
8
58
58
14
12. Press two 25mm Square Inner Caps (54) into the
indicated end of the Backrest Frame (15).
Attach a Plastic Foot (53) to the Backrest Frame
(15) with an M4 x 16mm Screw (62).
Orient the Backrest (14) and the Backrest
Backing (8) as shown. Attach the Backrest and
the Backrest Backing to the Backrest Frame (15)
with four M6 x 45mm Screws (58).
12
53
62
15
54
14. Press two 50mm Round Inner Caps (57) into the
top and bottom of the Leg Developer (19). Press
two 45mm Round Inner Caps (56) into the top
and bottom of the Leg Lever (7).
Lubricate an M10 x 69mm Bolt (60) with grease.
Attach the Leg Lever (7) to the Leg Developer
(19) with the Bolt and an M10 Nylon Locknut (76).
Do not overtighten the Locknut; the Leg Lever
must be able to pivot easily.
Press two 19mm Round Inner Caps (78) into the
tube on the Leg Lever (7). Slide two Foam Pads
(26) onto the tubes. Repeat with the tube on the
Leg Developer (19).
14
Lubricate
7
19
57
78
26
Tube
Tube
76
60
78
56
56
57
10
18. Attach a Pulley Housing (94) to the indicated “U”channel on the 10-pound Center Crossbow (44)
with an M10 x 102mm Button Head Bolt (24), two
Pivot Bushings (74), and an M10 Nylon Locknut
(76).
Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley inside of the Pulley
Housing (94) with an M10 x 42mm Button Head
Bolt (71) and an M10 Nylon Locknut (76).
18
24
94
28
80
44
76
76
71
74
74
17. Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley and a Pulley Guard (29) to
the indicated M10 x 140mm Carriage Bolt (73)
with an M10 Nylon Locknut (76). Make sure the
flat edge of the Pulley Guard is on the side
shown.
17
76
28
80
73
29
Flat
Edge
16. Locate the Long Cable (80). Insert one end of
the Cable through the welded tube on the indicated end of the Cross Tube (11) and then through a
Swivel Arm (22). If necessary, use the tip of a
screwdriver to pull the end of the Cable out of the
Swivel Arm. Make sure the Cable is on the indi-
cated side of the welded rod in the Swivel Arm.
Insert the Swivel Arm (22) into the welded tube
on the Cross Tube (11). Secure the Swivel Arm
with an M4 x 5mm Screw (107).
Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley inside of the Swivel Arm
(22) with an M10 x 42mm Button Head Bolt (71)
and an M10 Nylon Locknut (76).
16
71
22
107
28
80
11
76
Rod
“U”-Channel
15. Slide the Leg Developer (19) into the Bench Rail
(5). Align the hole in the Leg Developer with a
hole in the Front Leg (6). Tighten the Bench Knob
(42) into the hole in the Leg Developer.
Connect the eyebolt on the Leg Lever Cable (32)
to the indicated side of the Leg Lever (7) with an
M8 Nylon Locknut (65).
42
6
19
5
65
Eyebolt
7
32
15
11
22
80
Rod
28
71
76
11
20. Attach a Pulley Housing (94) to the indicated “U”channel on the 10-pound Center Crossbow (44)
with an M10 x 102mm Bolt (24), two Pivot
Bushings (74), and an M10 Nylon Locknut (76).
Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley inside of the Pulley
Housing (94) with an M10 x 42mm Button Head
Bolt (71) and an M10 Nylon Locknut (76).
21. Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley and a Pulley Guard (29) to
the indicated M10 x 140mm Carriage Bolt (73)
with an M10 Nylon Locknut (76). Make sure the
flat edge of the Pulley Guard is on the side
shown.
19. Wrap the Long Cable (80) under a 90mm Pulley
(28) as shown. Attach the Pulley and a Pulley
Guard (29) to the Upright (3) with an M10 x
113mm Button Head Bolt (40) and an M10 Nylon
Locknut (76). Make sure the flat edge of the
Pulley Guard is on the bottom.
19
20
21
80
29
40
28
3
76
28
74
94
74
76
76
80
71
28
80
Flat
Edge
29
76
73
24
44
Flat
Edge
22
107
22. Make sure there are no Crossbows (not shown)
under the “U”-channels on the 10-pound Center
Crossbow (not shown). Have a second person
pull on the Long Cable (80) to create slack in the
Cable.
Insert the end of the Long Cable (80) through the
welded tube on the indicated end of the Cross
Tube (11) and then through the remaining Swivel
Arm (22). Make sure the Cable is on the indicat-
ed side of the welded rod in the Swivel Arm.
Insert the Swivel Arm (22) into the welded tube
on the Cross Tube (11). Secure the Swivel Arm
with an M4 x 5mm Screw (107).
Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley inside of the Swivel Arm
(22) with an M10 x 42mm Button Head Bolt (71)
and an M10 Nylon Locknut (76).
12
24.
Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in
ADJUSTMENTS, beginning on the following page.
Before using the resistance system, pull the long cable a few times to be sure that it moves smoothly over
the pulleys. If the cable does not move smoothly, find and correct the problem. IMPORTANT: If the cables
are not properly installed, they may be damaged when heavy resistance is used. See the CABLE
DIAGRAM on page 16 for proper cable routing.
23. Locate the two Short Cables (33). Wrap one of
the Cables around a 90mm Pulley (28). Attach
the Pulley to a High Pulley Housing (21) with an
M10 x 42mm Button Head Bolt (71) and an M10
Nylon Locknut (76).
Repeat this step with the other Short Cable
(33).
23
76
71
21
28
33
This section explains how to adjust the resistance system. See the EXERCISE GUIDELINES on page 17 for
important information about how to get the most benefit from your exercise program. Also, refer to the accompanying exercise guide to see the correct form for each exercise.
Make sure all parts are properly tightened each time you use the resistance system. Replace worn parts immediately. The resistance system can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use
solvents. The crossbows can be cleaned with a vinyl and rubber protectant, available at an automotive or department store.
13
ADJUSTMENTS
ADJUSTING THE SEAT
The Seat (13) can be secured in any of five positions
on the Bench Rail (5). To move the Seat, pull the
Seat Knob (45) out as far as it will go, and slide the
Seat to the desired position. Engage the Seat Knob
into an adjustment hole in the Bench Rail.
To perform row exercises, the leg press strap must be
attached to the long cable (see ATTACHING THE
ACCESSORIES, on page 14), and the Seat Carriage
(12) must be able to roll along the Bench Rail (5).
First, remove the Backrest (14) from the Seat
Carriage (see ADJUSTING THE BACKREST on page
15). Then, pull the Seat Knob (45) out as far as it will
go, and turn the Knob so that the pin rests at the end
of the “L”-shaped slot (see the inset drawing).
13
14
12
5
12
45
Pin
“L”-Slot
Ball
ATTACHING THE HIGH PULLEYS AND LEG LEVER
To use a high pulley, slide the hook on the High
Pulley Housing (21) onto an Eyebolt (34). Attach the
end of the Short Cable (33) without the ball to the end
of the Long Cable (80) with a Cable Clip (51). Attach
the other high pulley in the same manner.
To use the Leg Lever (not shown), attach the two
ends of the Leg Lever Cable (32) to the ends of the
Long Cable (80) with two Cable Clips (51).
Remove the high pulleys, and detach the Leg Lever
Cable (32), when not in use. Store the ends of the
Leg Lever Cable on the Hook (104) under the Bench
Rail (not shown).
33
21
51
51
104
80
32
34
14
49
80
ATTACHING THE ACCESSORIES
To attach a Short Handle (49) to a high pulley, first
attach the high pulley to the resistance system (see
ATTACHING THE HIGH PULLEYS AND LEG LEVER
on page 13). Then, attach the Short Handle to the
Short Cable (33) with a Cable Clip (51).
The Long Handles (not shown) and the Ankle Strap
(not shown) can be attached to the Long Cable (80)
with Cable Clips (51). Attach the Leg Press Strap (not
shown) to both ends of the Long Cable, or the Lat Bar
(not shown) to the Short Cables (33), with two Cable
Clips.
33
51
44
35
67
36
80
“U”-Channel
“U”-Channel
Crossbows
ADJUSTING THE RESISTANCE
To add resistance, hold a “U”-channel on the 10pound Center Crossbow (44) firmly and push the end
of a crossbow under it. Repeat with the other end of
the crossbow. If more resistance is needed, add one
crossbow at a time.
Note: When adding resistance, always start with the
heaviest crossbow to be used, and finish with the
lightest crossbow. When removing crossbows from
the “U”-channels, start with the lightest crossbow and
finish with the heaviest.
Note: The CrossBow by WEIDER
™
ADVANTAGE uses
progressive resistance. As the crossbows begin to
bend, the amount of resistance will increase gradually. As the crossbows bend further, the resistance will
increase rapidly.
Additional resistance can be added to the resistance
system. To purchase more resistance, call our Customer Service Department toll-free at 1-888-936-4266
and asking for model number WECCMC06420 (100-
Pound Power Pak) or WECCMC09420 (200-Pound
Power Pak).
Note: 1 pound= 0.454 kilograms.
WARNING: When adding resist-
ance, make sure that both ends of the crossbow rest under the two “U”-channels. The
rings on the Removable Crossbows (36, 67)
must be pushed against the Crossbow Spacer
(35). Do not add or remove crossbows from
the “U”-channels while an end of the Long
Cable (80) is pulled out.
15
30
31
1
Crossbows
6
7
3
43
44
“U”-Channel
“U”-Channel
80
10
13
STORING THE RESISTANCE SYSTEM
To store the resistance system, slide the ends of the
Leg Lever Cable (32) onto the Hook (104). Be sure
the Seat (13) is in the position closest to the Front
Leg (6) (see ADJUSTING THE SEAT on page 13).
Next, remove the Storage Knob (30) from the Upright
(3). Lift the Front Leg toward the Lat Tower Crossbar
(10), and tighten the Storage Knob into the side of
the Upright and the Bench Rail. Remove all of the
crossbows from the “U”-channels on the 10-pound
Center Crossbow (44) (see ADJUSTING THE
RESISTANCE on page 14). Finally, loosen the
Fulcrum Knob (43) and pull it out as far as it will go.
Turn the crossbow assembly vertically and engage
the Fulcrum Knob into the fulcrum on the Lat Tower
(4). Note: Storing the crossbows vertically will
prolong the life of the crossbows.
To move the resistance system, place the toe of your
shoe on the end of the Base (1) and hold the resistance system in the indicated area. Tilt the resistance
system back onto the Wheels (31) and roll it to the
new location. Be careful not to let the Front Leg (6)
or Leg Lever (7) pinch your hands when you tilt
the system back.
WARNING: Be sure that all of the
crossbows are removed from the “U”-channels
before moving the crossbow assembly to the
stored position.
Make sure that the crossbow assembly is in
the horizontal position and that the Storage
Knob (30) is in place and fully tightened each
time the resistance system is used.
32
14
15
12
13
Rod
Slot
5
12
19
7
3
ADJUSTING THE BACKREST
The Backrest (14) can be used in a level position or
one of three inclined positions. To use the Backrest in a
level position, secure the Seat Carriage (12) at the hole
in the Bench Rail (5) closest to the Leg Developer (19)
(see ADJUSTING THE SEAT on page 13).
To use the Backrest (14) in an inclined position,
secure the Seat Frame (12) at one of the three
adjustment holes on the Upright (3) side of the Bench
Rail (5). Rest the Backrest against the Upright (3).
For row exercises and for using the Leg Lever (7),
remove the Backrest (14) from the Seat Carriage
(12). Hold the Backrest vertically over the Seat (13)
and lift the rod out of the slot in the Seat Carriage
(see the inset drawing). To use the Leg Lever (7),
secure the Seat Carriage (12) at the second hole
from the Leg Developer.
Stored Position
104
Hold in
this area
CABLE DIAGRAM
The cable diagram shows the proper routing of the
Long Cable (80). Use the diagram to make sure that
the cable has been assembled correctly. If the cable
has not been correctly routed, the resistance system
will not function properly and damage may occur. The
numbers show the correct route for the cable.
7
4
5
6
1
2
Long Cable (80)
3
16
USING THE REMOVABLE CROSSBOWS
The Removable Crossbows (36, 67) can be used to
exercise apart from the resistance system, as shown in
the video or on the exercise guide. To remove a
Crossbow, pull it out of the Crossbow Spacer (35).
To replace the Removable Crossbows (36, 67), slide
them into the Crossbow Spacer (35) from the side
shown, so that the arrows on the rings point toward
the Crossbow Spacer. Make sure the rings are
pushed against the Crossbow Spacer.
35
19
42
6
5
36
67
Rings
ADJUSTING THE LEG DEVELOPER
To adjust the height of the Leg Developer (19),
remove the Bench Knob (42) from the Front Leg (6).
Align the hole in the Leg Developer with one of the
holes in the Front Leg. Retighten the Knob into the
Front Leg and Leg Developer.
17
EXERCISE GUIDELINES
THE FOUR BASIC TYPES OF WORKOUTS
Muscle Building
To increase the size and strength of your muscles,
push them close to their maximum capacity. Your muscles will continually adapt and grow as you progressively increase the intensity of your exercise. You can
adjust the intensity level of an individual exercise in
two ways:
• by changing the amount of resistance used
• by changing the number of repetitions or sets per-
formed. (A “repetition” is one complete cycle of an
exercise, such as one sit-up. A “set” is a series of
repetitions.)
The proper amount of resistance for each exercise
depends upon the individual user. You must gauge
your limits and select the amount of resistance that is
right for you. Begin with 3 sets of 8 repetitions for each
exercise you perform. Rest for 3 minutes after each
set. When you can complete 3 sets of 12 repetitions
without difficulty, increase the amount of resistance.
Toning
You can tone your muscles by pushing them to a moderate percentage of their capacity. Select a moderate
amount of resistance and increase the number of repetitions in each set. Complete as many sets of 15 to
20 repetitions as possible without discomfort. Rest for
1 minute after each set. Work your muscles by completing more sets rather than by using high amounts of
resistance.
Weight Loss
To lose weight, use a low amount of resistance and
increase the number of repetitions in each set.
Exercise for 20 to 30 minutes, resting for a maximum
of 30 seconds between sets.
Cross Training
Cross training is an efficient way to get a complete and
well-balanced fitness program. An example of a balanced program is:
• Plan strength training workouts on Monday,
Wednesday, and Friday.
• Plan 20 to 30 minutes of aerobic exercise, such as
running on a treadmill or riding on an elliptical or
exercise bike, on Tuesday and Thursday.
• Rest from both strength training and aerobic exercise
for at least one full day each week to give your body
time to regenerate.
The combination of strength training and aerobic exercise will reshape and strengthen your body, plus develop your heart and lungs.
PERSONALIZING YOUR EXERCISE PROGRAM
Determining the exact length of time for each workout,
as well as the number of repetitions or sets completed,
is an individual matter. It is important to avoid overdoing it during the first few months of your exercise program. You should progress at your own pace and be
sensitive to your body’s signals. If you experience pain
or dizziness at any time while exercising, stop immediately and begin cooling down. Find out what is wrong
before continuing. Remember that adequate rest and a
proper diet are important factors in any exercise program.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching
and light exercise to warm up. Warming up prepares
your body for more strenuous exercise by increasing
circulation, raising your body temperature and delivering more oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercises. Select exercises for every major muscle group,
emphasizing areas that you want to develop most. To
give balance and variety to your workouts, vary the
exercises from session to session.
Schedule your workouts for the time of day when your
energy level is the highest. Each workout should be
followed by at least one day of rest. Once you find the
schedule that is right for you, stick with it.
EXERCISE FORM
Maintaining proper form is an essential part of an
effective exercise program. This requires moving
through the full range of motion for each exercise, and
moving only the appropriate parts of the body.
Exercising in an uncontrolled manner will leave you
feeling exhausted. On the exercise guide accompanying this manual you will find photographs showing the
correct form for several exercises, and a list of the
muscles affected. Refer to the muscle chart on page
18 to find the names of the muscles.
The repetitions in each set should be performed
smoothly and without pausing. The exertion stage of
each repetition should last about half as long as the
return stage. Proper breathing is important. Exhale
during the exertion stage of each repetition and inhale
during the return stroke. Never hold your breath.
Rest for a short period of time after each set. The
ideal resting periods are:
• Rest for three minutes after each set for a muscle
building workout.
• Rest for one minute after each set for a toning work-
out.
• Rest for 30 seconds after each set for a weight loss
workout.
Plan to spend the first couple of weeks familiarizing
yourself with the equipment and learning the proper
form for each exercise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching.
Include stretches for both your arms and legs. Move
slowly as you stretch and do not bounce. Ease into
each stretch gradually and go only as far as you can
without strain. Stretching at the end of each workout
is an effective way to increase flexibility.
STAYING MOTIVATED
For motivation, keep a record of each workout. The
chart on page 19 of this manual can be photocopied
and used to schedule and record your workouts. List
the date, the exercises performed, the resistance
used, and the numbers of sets and repetitions completed. Record your weight and key body measurements at the end of every month. Remember, the key
to achieving the greatest results is to make exercise a
regular and enjoyable part of your everyday life.
18
A
B
C
D
E
F
G
H
I
J
K
L
M

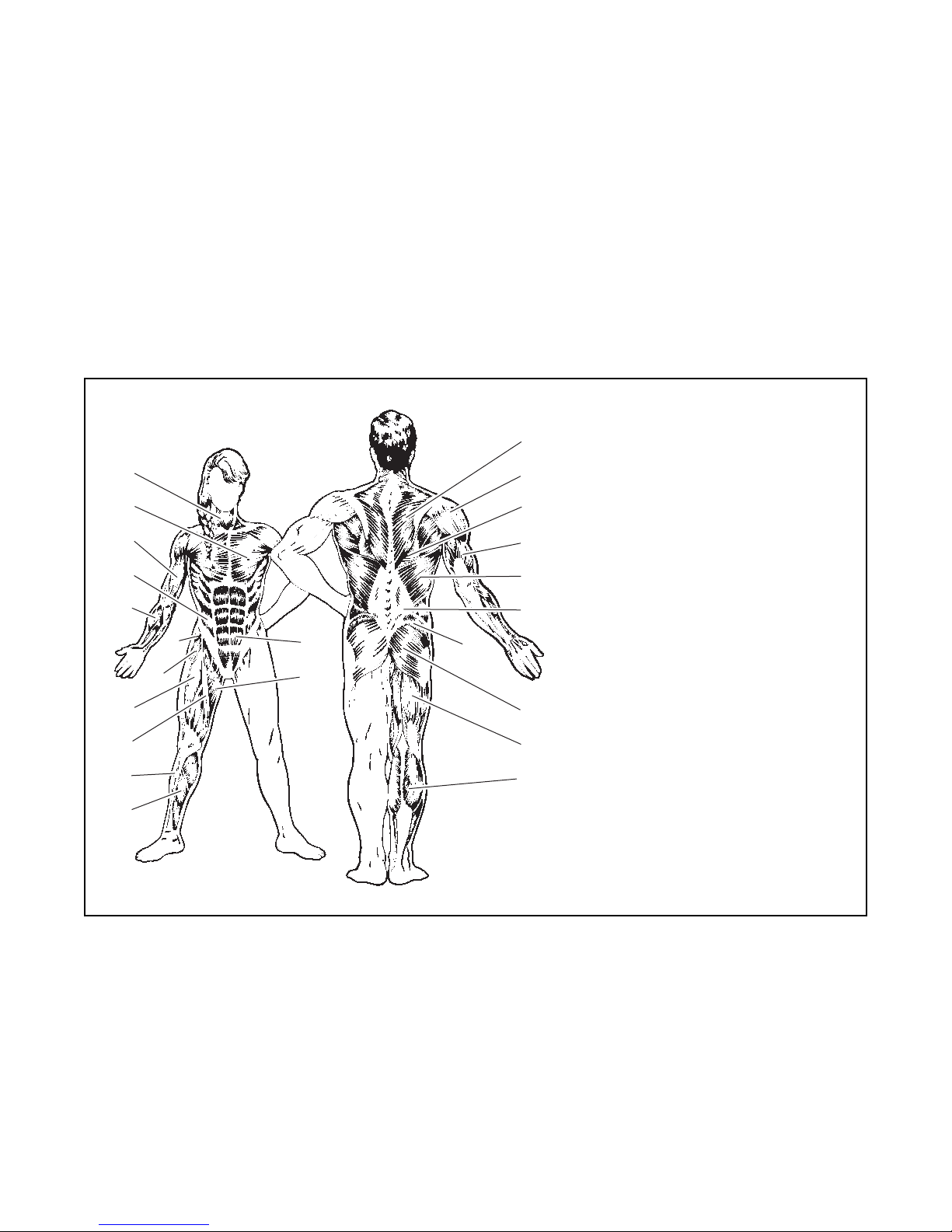

MUSCLE CHART
N
O
P
Q
R
S
T
U
V
W
A. Sternomastoid (neck)
B. Pectoralis Major (chest)
C. Biceps (front of arm)
D. Obliques (waist)
E. Brachioradials (forearm)
F. Hip Flexors (upper thigh)
G. Abductor (outer thigh)
H. Quadriceps (front of thigh)
I. Sartorius (front of thigh)
J. Tibialis Anterior (front of calf)
K. Soleus (front of calf)
L. Rectus Abdominus (stomach)
M. Adductor (inner thigh)
N. Trapezius (upper back)
O. Rhomboideus (upper back)
P. Deltoid (shoulder)
Q. Triceps (back of arm)
R. Latissimus Dorsi (mid back)
S. Spinae Erectors (lower back)
T. Gluteus Medius (hip)
U. Gluteus Maximus (buttocks)
V. Hamstring (back of leg)
W. Gastrocnemius (back of calf)
19
MONDAY
Date:
/ /
EXERCISE RESISTANCE SETS REPS
EXERCISE RESISTANCE SETS REPS
EXERCISE RESISTANCE SETS REPS
AEROBIC EXERCISE
AEROBIC EXERCISE
TUESDAY
Date:
/ /
WEDNESDAY
Date:
/ /
THURSDAY
Date:
/ /
FRIDAY
Date:
/ /
Make photocopies of this page for scheduling and recording your workouts.
Part No. 199310 R0603A Printed in China © 2003 ICON OF/DU CANADA, INC.
ORDERING REPLACEMENT PARTS
To order replacement parts, call toll-free 1-888-936-4266, Monday through Friday 8h00 until 18h30 Eastern Time
(excluding holidays). When ordering parts, please be prepared to give the following information:
• The MODEL NUMBER of the product (WECCSY53931)
• The NAME of the product (CrossBow by WEIDER
™
ADVANTAGE resistance system)
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING in the
center of this manual)
ICON OF CANADA, INC., (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. ICON warrants the resistance crossbows for the lifetime of the product. Shipping of the resistance crossbows is not covered. ICON warrants all other parts
for one (1) year. Labor is covered for one (1) year. This warranty extends only to the original purchaser.
ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product
through one of its authorized service centers. All repairs for which warranty claims are made must be preauthorized by ICON. This warranty does not extend to any product or damage to a product caused by or
attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an
ICON authorized service center; products used for commercial or rental purposes; or products used as
store display models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some provinces do not allow the exclusion or limitation of
incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some provinces do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from province to
province.
ICON OF CANADA, INC., 900 de l’Industrie, St. Jerôme, QC J7Y 4B8
LIMITED WARRANTY
PART IDENTIFICATION CHART
Refer to the drawings below to identify small parts used in assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST on the reverse side of this page. Important: Some
parts may have been pre-assembled for shipping purposes. If you cannot find a part in the parts bags,
check to see if it has been pre-assembled. If a part is not in the parts bag, check to see if it has been preattached. If a part is missing, call toll-free 1-888-936-4266.
M10 Washer (75)
38mm Round
Inner Cap (38)
45mm Round
Inner Cap (56)
M10 Split Washer (103)
19mm Round Inner Cap (78)
M8 Washer (59)
19mm Spacer (17)
50mm Round
Inner Cap (57)
M8 Split Washer (52)
22mm Spacer (106)
25mm Square Inner Cap (54)
50mm Square
Inner Cap (98)
38mm x 64mm Inner Cap (41)
57mm Round Outer Cap (27)
M10 Washer (75)
M10 Split Washer (103)
M8 Split Washer (52)
M8 Washer (59)
38mm Round
Inner Cap (38)
45mm Round
Inner Cap (56)
50mm Square
Inner Cap (98)
19mm Spacer (17)
19mm Round Inner Cap (78)
50mm Round
Inner Cap (57)
22mm Spacer (106)
25mm Square Inner Cap (54)
38mm x 64mm Inner Cap (41)
57mm Round Outer Cap (27)
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of the user’s manual for information about ordering replacement parts.
Key No. Qty. Description Key No. Qty. Description
1 1 Base
2 1 Base Plate
3 1 Upright
4 1 Lat Tower
5 1 Bench Rail
6 1 Front Leg
7 1 Leg Lever
8 1 Backrest Backing
9 1 Seat Backing
10 1 Lat Tower Crossbar
11 1 Cross Tube
12 1 Seat Carriage
13 1 Seat
14 1 Backrest
15 1 Backrest Frame
16 1 Backrest Cap
17 1 19mm Spacer
18 1 Crossbow Fulcrum
19 1 Leg Developer
20 2 10-pound Short Crossbow Cap
21 2 High Pulley Housing
22 2 Swivel Arm
23 1 Foot Plate
24 2 M10 x 102mm Button Head Bolt
25 4 Arm Bushing
26 4 Foam Pad
27 2 57mm Round Outer Cap
28 9 90mm Pulley
29 3 Pulley Guard
30 1 Storage Knob
31 2 Wheel
32 1 Leg Lever Cable
33 2 Short Cable
34 2 Eyebolt
35 1 Crossbow Spacer
36 1 20-pound Removable Crossbow
37 2 Fulcrum Bushing
38 2 38mm Round Inner Cap
39 1 Bench Rail Bracket
40 1 M10 x 113mm Button Head Bolt
41 2 38mm x 64mm Inner Cap
42 1 Bench Knob
43 1 Fulcrum Knob
44 1 10-pound Center Crossbow
45 1 Seat Knob
46 4 M8 x 25mm Button Head Screw
47 2 M10 Nut
48 1 Leg Press Strap
49 2 Short Handle
50 1 Ankle Strap
51 5 Cable Clip
52 4 M8 Split Washer
53 3 Plastic Foot
54 2 25mm Square Inner Cap
55 1 45mm Round Inner Bushing
56 2 45mm Round Inner Cap
57 2 50mm Round Inner Cap
58 4 M6 x 45mm Screw
59 2 M8 Washer
60 1 M10 x 69mm Bolt
61 6 Seat Wheel
62 15 M4 x 16mm Screw
63 6 M6 Zinc Nylon Locknut
64 2 M10 x 72mm Bolt
65 3 M8 Nylon Locknut
66 1 M10 x 132mm Bolt
67 1 10-pound Removable Crossbow
68 2 Long Handle
69 2 M6 Black Nylon Locknut
70 2 M10 x 65mm Button Head Screw
71 6 M10 x 42mm Button Head Bolt
72 1 Crossbow Cover Plate
73 2 M10 x 140mm Carriage Bolt
74 4 Pivot Bushing
75 10 M10 Washer
76 20 M10 Nylon Locknut
77 6 M6 Shoulder Bolt
78 4 19mm Round Inner Cap
79 2 40-pound Crossbow Cap
80 1 Long Cable
81 2 M10 x 108mm Bolt
82 12 M6 x 16mm Screw
83 2 M10 x 66mm Carriage Bolt
84 1 Fulcrum Endcap
85 12 M4 x 12mm Flat Head Screw
86 2 M8 x 19mm Button Head Screw
87 4 M10 x 25mm Button Head Screw
88 2 20-pound Crossbow Cap
89 1 Name Plate
90 6 11mm Spacer
91 1 Retainer Ring
92 1 “V”-pulley
93 1 Crossbar Cover
94 2 Pulley Housing
95 2 80-pound Crossbow
96 1 40-pound Crossbow
97 1 M10 x 107mm Bolt
98 2 50mm Square Inner Cap
99 2 Rail Inner Cap
100 4 80-pound Crossbow Cap
101 2 10-pound Crossbow Cap
102 2 Large Plastic Foot
103 4 M10 Split Washer
104 1 Hook
105 1 Rail Bracket
106 1 22mm Spacer
107 2 M4 x 5mm Screw
108 1 Storage Knob Bracket
109 1 Lat Bar
110 2 Handgrip
# 2 User’s Manual
# 2 Exercise Guide
# 1 Exercise Decal
# 1 Large Allen Wrench
# 1 Small Allen Wrench
# 1 Grease
PART LIST—Model No. WECCSY53931 R0603A
EXPLODED DRAWING—Model No. WECCSY53931 R0603A
8
54
99
27
76
15
78
65
105
46
26
56
62
52
6
78
56
55
14
58
76
58
7
62
46
82
90
61
26
42
62
57
26
78
77
19
45
63
57
92
58
82
27
61
52
77
53
62
53
69
5
97
90
82
63
13
60
1
61
32
81
38
62
62
77
82
75
59
78
82
53
62
65
34
16
63
63
61
26
17
106
31
102
90
82
12
83
70
63
77
40
73
98
71
62
10
9
61
62
28
63
62
21
39
77
90
75
75
75
83
23
30
102
93
33
108
76
62
76
71
62
89
76
82
104
76
98
21
33
62
2
100
85
34
62
31
99
85
85
101
3
80
75
20
81
76
28
28
76
68
76
65
59
38
29
66
41
85
103
103
71
88
67
28
64
22
29
51
100
71
4
87
87
76
107
44
76
110
25
74
11
79
95
36
28
25
28
94
35
28
48
37
76
18
74
29
75
72
76
24
109
24
80
86
100
85
47
41
43
71
75
28
74
49
50
85
37
25
96
101
94
76
91
74
76
28
107
79
85
20
88
84
76
110
71
22
Loading...
