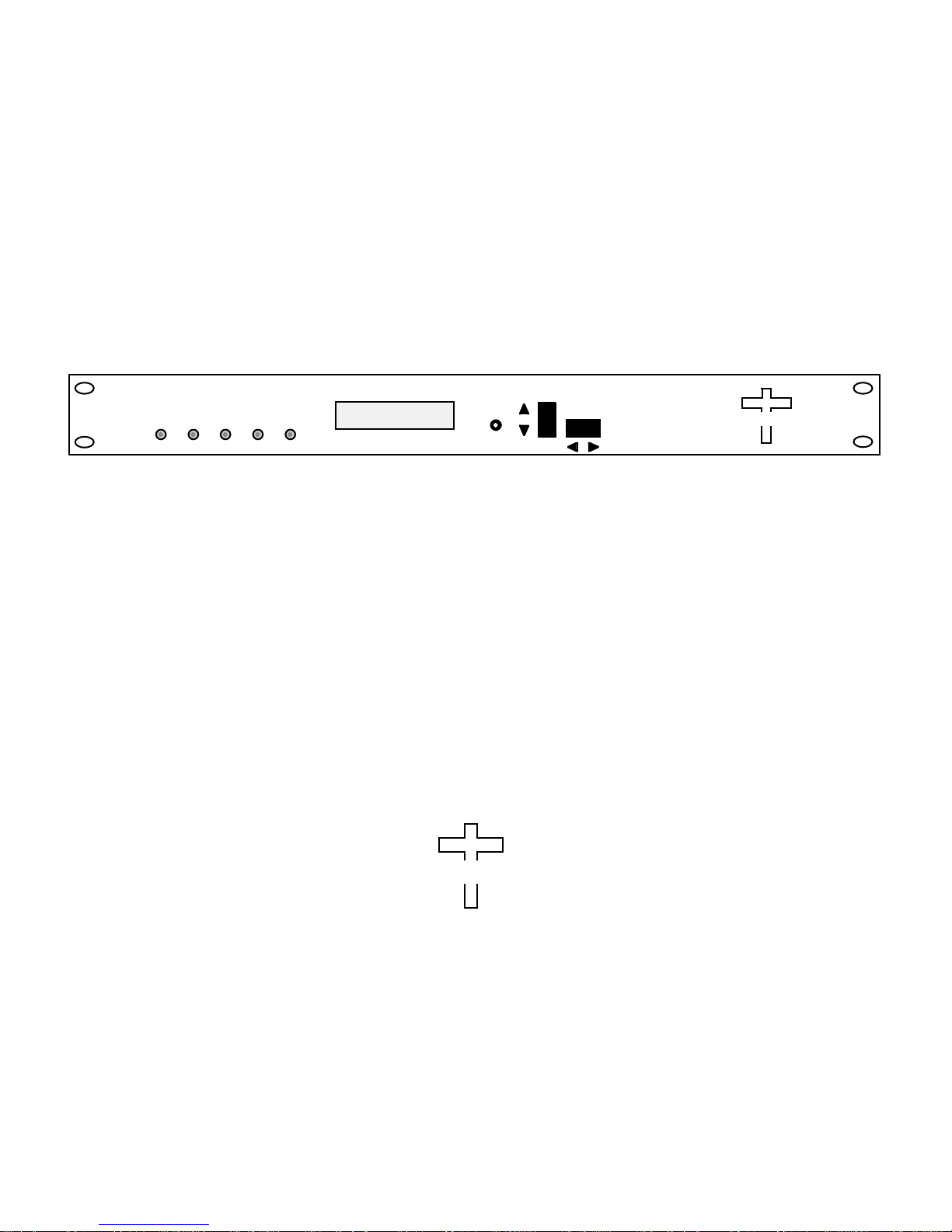

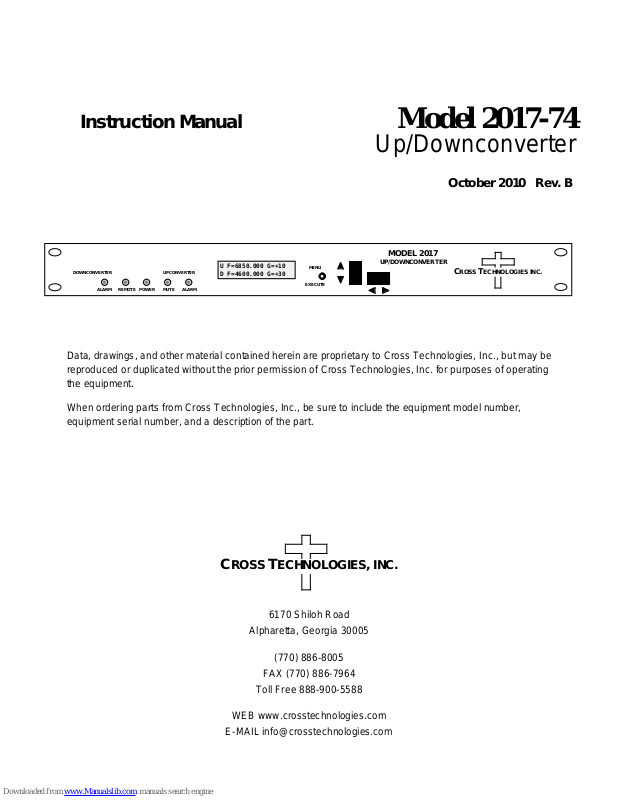

Instruction Manual

Model 2017-74

Up/Downconverter

October 2010 Rev. B

MODEL 2017

UPCONVERTERDOWNCONVERTER

REMOTEALARM POWER ALARM

Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc., but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc. for purposes of operating the equipment.

When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number, equipment serial number, and a description of the part.

MUTE

U F=6850.000 G=+10 D F=4600.000 G=+30

EXECUTE

UP/DOWNCONVERTER

CROSS TECHNOLOGIES INC.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

Page 2

Instruction Manual

MODEL 2017-74 Up/Downconverter

TABLE OF CONTENTS PAGE Warranty 2

1.0 General 3

1.1 Equipment Description 3

1.2 Technical Characteristics 4

1.3 Monitor & Control Interface 5

1.4 Use Information 8

2.0 Installation 9

2.1 Mechanical 9

2.2 Rear I/O’s 10

2.3 Front Panel Controls, Indicators 11

2.4 Operation 12

2.5 Menu Settings 13

WARRANTY - The following warranty applies to all Cross Technologies, Inc. products. All Cross Technologies, Inc. products are warranted against defective materials and

workmanship for a period of one year after shipment to customer. Cross Technologies, Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall not be liable for any special, indirect, or consequential damages. This warranty does not cover parts or equipment which have been subject to misuse, negligence, or accident by the customer during use. All s hipping costs for warranty repairs will be prepaid by the customer. There are not other warranties, express or implied, except as stated herein.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

2017-74 Manual, Rev. B Page 2 10/27/10

WEB www.crosstechnologies.com

E-MAIL [email protected]

Page 3

Model 2017-74 Up/Downconverter

1.0 General

1.1 Equipment Description

The 2017-74 C-band Up/Downconverter converts 70 M Hz to 6.7 - 7.025 GHz (Up) and 4.5 - 4.8 GHz to 70 MHz (Down) in 0.125 MHz steps with low group delay and flat frequency response. A common synthesized local oscillator (LO) provides frequency selection for the Up and Down converter simultaneously. Multifunction push button switches select the RF frequency, gain, and other parameters. Front pane l LEDs provide indication of DC power (green), PLL alarm for up and downconverters (red), remote operation (yellow), and Upconverter mute (yellow). Gain can be manually controlled over a 0 to +30 dB range for the upconverter and over a +30 to + 50 dB range for the downconverter as adjusted by the front panel multi-func tion push-button switches. Remote operation allows selection of frequency and gain. Parameter selection and frequency and gain settings appear on the LCD display. Connectors are BNC female for IF and the optional external reference input and output, and N female for RF. A high stability (±0.01ppm) option is also available. It is powered by a 100240 ± 10% VAC power supply and housed in a 1.75” X 19” X 16” 1RU chassis.

MODEL 2017

UP/DOWNCONVERTER

10 MHZ

EXT REF

15 234

6789

UPCONVERTER

IF IN

J4J3J18

CROSS TECHNOLOGIES INC.

RF OUT

J5J2

REMOTEALARM POWER ALARM

GND

UPCONVERTERDOWNCONVERTER

MUTE

RF IN

U F=6850.000 G=+10 D F=4600.000 G=+30

DOWNCONVERTER

IF OUT

EXECUTE

FRONT PANEL

10 MHZ REF

OUTPUT INPUT

CONTROL

REAR PANEL

MONITOR

AND

J10

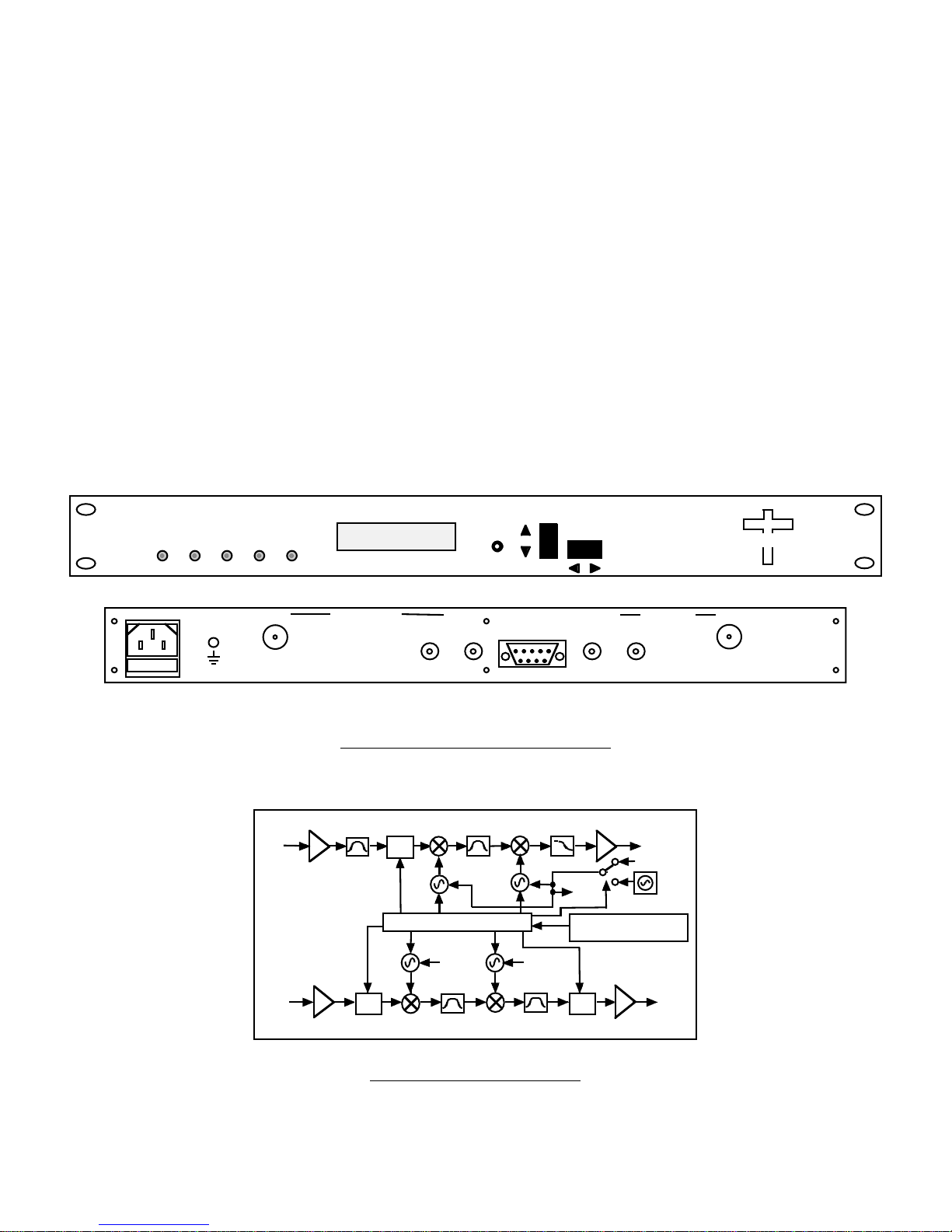

Figure 1.1 Front and Rear Panels

4.5 to

4.8

GHz

MHz

*OPTIONAL

var

atten

var

atten

CONTROLLER

REF

REF TO UP VCOS

U F=6850.000 G=+10 D F=4600.000 G=+30

var

atten

MHz OUT

EXT

10MHz*

7.025 GHz OUT

INT

10MHz

6.7 to

Figure 1.2 Block Diagram

2017-74 Manual, Rev. B Page 3 10/27/10

Page 4

1.2 Technical Characteristics

TABLE 1.0 Equipment Specifications*

--------UPCONVERTER-------Input Characteristics (IF)

Impedance/Return Loss 75  /18 dB Frequency 70 ± 18 MHZ Input Level -40 to -10 dBm

Output Characteristics (RF)

Impedance/Return Loss 50 /14 dB Frequency 6.7 to 7.025 GHz Output level -20 to 0 dBm Output 1 dB compression +10 dBm

Channel Characteristics

Gain range (adjustable) 0 dB to +30 dB Frequency Sense Non-inverting

--------DOWNCONVERTER-------Input Characteristics (RF)

Impedance/Return Loss 50  /14 dB Frequency 4.5 to 4.8 GHz Noise Figure (max) 15 dB @ max gain Input Level -60 to -30 dBm Input 1 dB compression -10 dBm @ min gain

Output Characteristics (IF)

Impedance/Return Loss 75 /18 dB Frequency 70 ± 18 MHz Output level range -10 to 0 dBm Output 1 dB compression +10 dBm

Channel Characteristics

Gain range (adjustable) +30 dB to +50 dB

--------UP AND DOWNCONVERTER-------Channel Characteristics

Image rejection > 50 dB, min Freq Sense (selectable) Non-inverting

Frequency Response ±1.5 dB, in band; ± 0.5 dB, 36 MHz BW Spurious Response <-50 dBC in band

Group Delay (max) 0.015 ns/MHz2 parabolic; 0.05 ns/MHz linear; 1 ns ripple

Synthesizer Characteristics

Frequency Accuracy ± 0.01 ppm max over temp internal reference Frequency Step 1 MHz (125 kHz Frequency Steps (option X) 10 MHz Level (In/Out) +3 dBm ± 3 dB (option -E)

Phase Noise

Fre

1MHz100kHz10kHz1kHz100 Hz

dBC/Hz

-100-90-80-70-60

Controls, Indicators

Frequency Selection direct readout LCD; manual or remote selection Gain Selection direct readout LCD; manual or remote selection Power Green LED Down/Up Alarm Red LEDs Up Mute Yellow LED Remote Yellow LED; RS232C, 9600 baud (RS485, option -Q)

Other

RF Connectors Type N (female), (see Table 2.2 for connector options) IF Connectors BNC (female), (see Table 2.2 for connector options) 10 MHz Connectors BNC (female), 50/75 (option -E) Alarm/Remote Connector DB9 (female), NO or NC contact closure on Alarm Size 19”1RU standard chassis, 1.75”H X 16.0”D Power 100 - 240 ±10% VAC, 47-63 Hz, 45 watts max

Options

E External 10 MHz Reference with RF insertion O Frequency Reference Offset Adjust L LNB Voltage, +24VDC, 0.4 amps V SSPB Voltage, +24VDC, 2.5 amps Q RS485 Remote Interface T PCB Temperature Sensor W8 Ethernet M&C Remote Interface with Web Browser W18 Ethernet M&C Remote Interface with Web Browser & SNMP X 125 kHz Frequency Steps X1 100 kHz Frequency steps Connectors/Impedance See Table 2.2, Page 10

*+10˚C to +40˚C; Specifications subject to change without notice

2017-74 Manual, Rev. B Page 4 10/27/10

Page 5

1.3 Monitor and Control Interface

J10 Pinouts

Pin Function

A) Remote serial interface Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.

(RS-232C, RS-422, or RS-485 - option -Q)

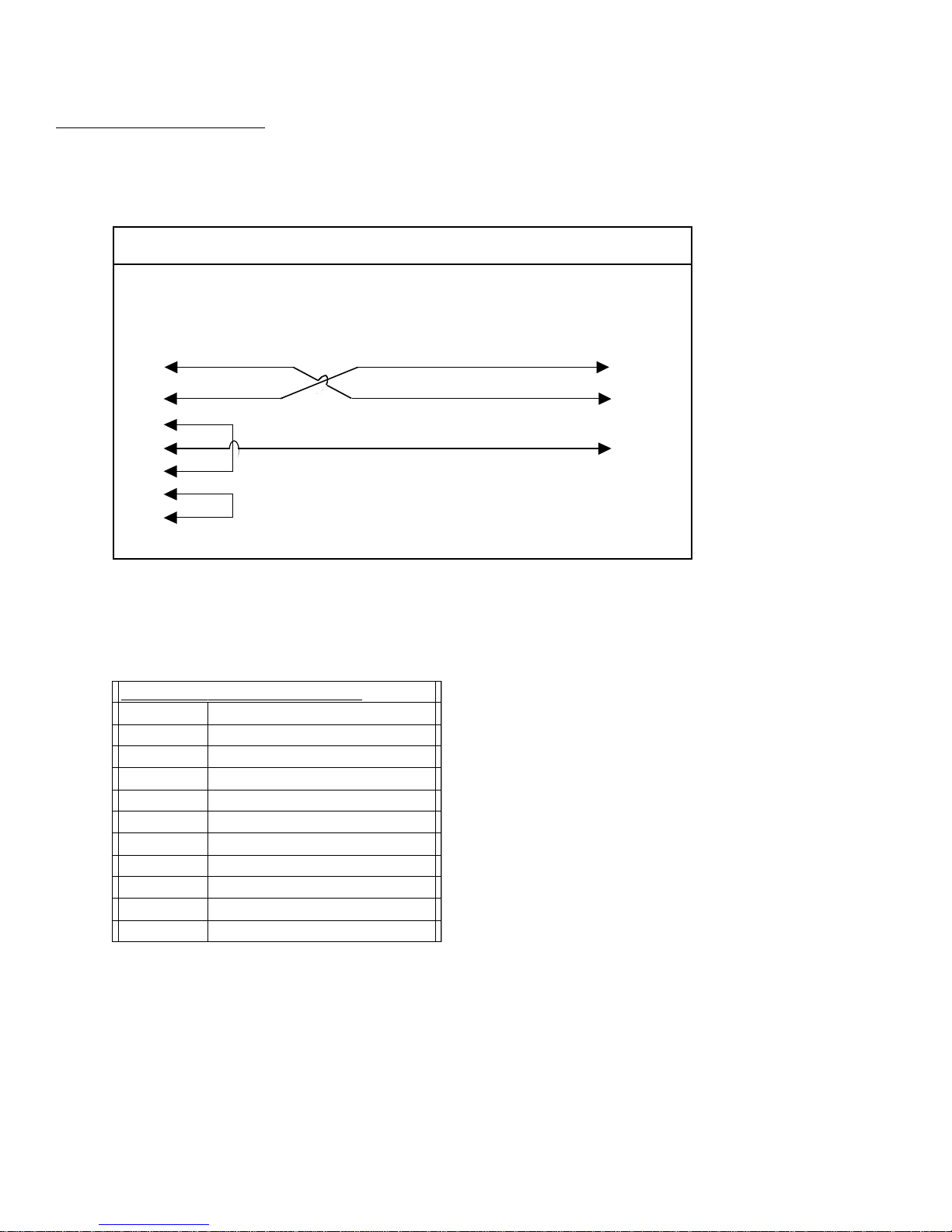

M&C Cable Diagram - Cross Technologies Frequency Converters

Female DB-9 PC Com Port

1 2 3 4 5 6 7 8 9

Connector: Rear panel, DB-9 female

Male DB-9

2015/16/17 M&CPort

1 2 3 4 5 6 7 8 9

1Rx2 Rx+ (RS-232C) 3 Tx+ (RS-232C) 4Tx5GND 6 Alarm Relay: Common 7 Alarm Relay: Normally Open 8Not Used 9 Alarm Relay: Normally Closed

2017-74 Manual, Rev. B Page 5 10/27/10

Page 6

B) Status Requests

* PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when R

S-485, (OPTION-Q), is selected.

Table 1.1 2017-74 Status Reequests

Command Syntax* Description

Table 1.1 lists the status requests for the 2017-74 and briefly describes them.

Command Status {aaS1} Returns {aaS1bbbbccccddeeffLMNOP} where:

• bbbb = Tx frequency (bbbbbbb, option -X) 4 characters - standard (7 characters - Option-X)

• cccc = Rx frequency (ccccccc, option -X) 4 characters - standard (7 characters - Option-X)

• dd = Tx gain (00 to 30)

• ee = Rx gain (00 to 50)

• ff = Tx input level (10 to 40 => -10 to -40 dBm)

• M = 0 - Receiver synth alarm

• N = 0 - Transmitter synth alarm

• O = 0 - Summary alarm

• P = 0 - Transmit signal disabled (muted)

External 10MHz (option -E) {aaS2} Returns {aaS2bcd} where:

LNB Current (option -L) {aaS3} Returns {aaS3bb} where:

SSPB Current (option-V) {aaS4} Returns {aaS4bbb} where:

• b = 1 - External 10MHz selected

• c = 1 - 10MHz inserted on upconverter RF (J5)

• d = 1 - 10MHz inserted on downconverter RF (J2)

• bb = LNB current, range 00 to 50 (0 to 500 ma)

• bbb = SSPB current, range 000 to 250 (0 to 2500 ma)

2017-74 Manual, Rev. B Page 6 10/27/10

Page 7

C) Commands

* PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when

RS-485, (OPTION-Q), is selected.

Table 1.2 2017-74 Commands Command Syntax* Description

Table 1.2 lists the commands for the 2017-74 and briefly describes them. After a command is sent the 2017-74 sends a return “>” indicating the command has been received and executed.

General Command Format - The general command format is {aaCND...}, where:

{ = start byte aa = address (RS-485 only option -Q) C = 1 character, either C (command) or S (status) N = 1 character command or status request D = 1 character or more of data (depends on command) } = stop byte

Set Transmitter Frequency {aaC1xxxxxxx} where:

Set Transmitter Input Level

Set Receiver Frequency {aaC2xxxxxxx} where:

Set Transmit Gain {aaC3xx} where:

Set Receiver Gain {aaC4xx} where:

Enable Tx {aaCAx} where x =:

External 10MHz (option -E only) {aaCEx} where x =:

Reference Offset (option - O only) {aaC8xxxx} where xxxx =:

Enable Remote # Just # sign Disable Remote {aaCR0} {CR and zero}

{aaCIxx}

• xxxxxxx = 7 characters

• Range: 6700000 to 7000000 kHz where:

• xx = 2 characters

• Range: 10 to 40 (-10 to -40 dBm)

• xxxxxxx = 7 characters

• Range: 4500000 to 4800000 kHz

• xx = 2 characters

• Range: 0 to +30 (00 dB to 30 dB, in 1 dB steps)

• xx = 2 characters

• Range: 30 to 50 (30 dB to 50 dB, in 1 dB steps)

• 0 to disable Tx signal

• 1 to enable Tx signal

• 0 for Internal 10MHz Reference signal

• 1 for External 10MHz Reference signal

• 2 for Auto 10MHz Reference

• -2000 to +2000

2017-74 Manual, Rev. B Page 7 10/27/10

Page 8

1.4 Use Information

A. Elevated operating ambient temperature - if installed in a closed or multi-unit rack assembly,

the operating ambient temperature of the rack may be greater than room ambient temperature. Therefore, consideration should be given to Tmra.

B. Reduced air flow - Installation of the equipment in a rack should be such that the amount of air flow

required for safe operation of the equipment is not compromised. Additional space between unit may be required.

C. Mechanical loading - Mounting of equipment in a rack should be such that a hazardous condition

does not exist due to uneven weight distribution.

D. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply

circuit and the effect that overloading of circuits could have on over current protection and supply wiring. Appropriate consideration of equipment name plate rating should be used, when addressing this concern.

E. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular

attention should be given to supply connections other than direct connection to the Branch (use of power strips).

F. Top Cover - There are no servicable parts inside the product so, the Top Cover should not be removed.

If the Top Cover is removed the ground strap and associated screw MUST BE RE-INSTALLED prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS emission problems.

2017-74 Manual, Rev. B Page 8 10/27/10

Page 9

2.0 Installation

2.1 Mechanical

The 2017-74 consists of one RF/Controller PCB housed in a 1 RU (1 3/4 inch high) by 16 inch deep chassis. A switching, ± 12, +5, +24 VDC power supply provides power for the assemblies. The 2017-74 can be secured to a rack using the 4 holes on the front panel. Figure 2.0 shows how the 2017-74 is assembled.

POWER

SUPPLY

2017-74 Manual, Rev. B Page 9 10/27/10

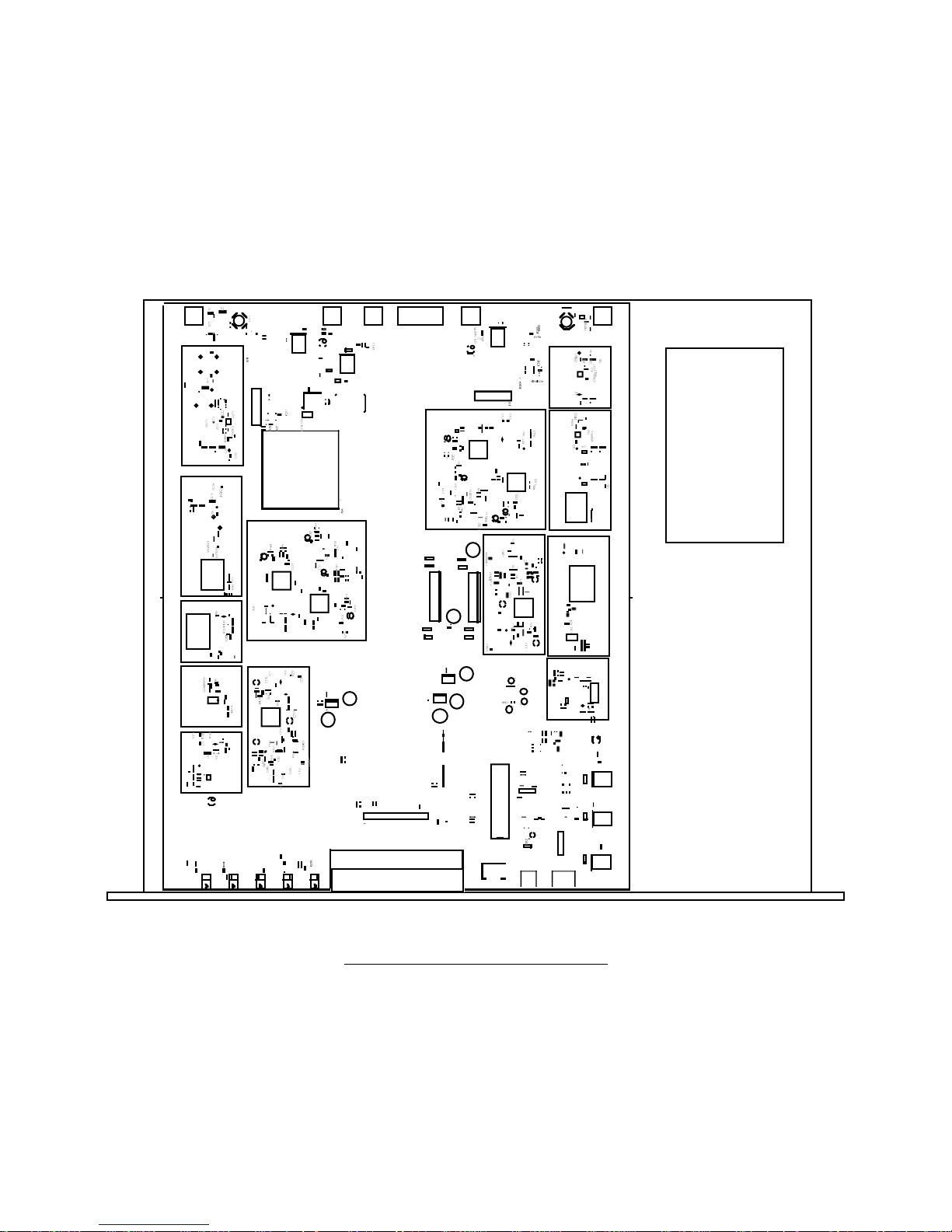

Figure 2.0 Mechanical Assembly

Page 10

2.2 Rear Panel Input/Output Signals and Control

TABLE 2.1 JJ10

Pin Function

TABLE 2.2 IIF/RF

Options

Option IF RF

Figure 2.1 shows the input and output connectors on the rear panel.

AC1 - POWER IN

AC input for switching power supply. 100-240 ±10% VAC, 47-60 Hz.

J3 - 10 MHz EXT REF INPUT (Option -E)

10 MHz external reference input, 3 ± 3 dBm, 50/75, BNC female connector.

J2 - RF IN

6700-7025 MHz input, -60 to -30 dBm, see Table 2.2.

GND

10 MHZ

EXT REF

INPUT

J4 - IF IN

70 MHz input, -40 to -10 dBm in, see Table 2.2.

J1 - IF OUT

70 MHz output, -10 to 0 dBm, see Table 2.2.

RF IN

UPCONVERTER

IF IN

DOWNCONVERTER

RF OUT

IF OUT

J18 - 10 MHz REF OUTPUT (option -E)

10 MHz reference output. +3 dBm ± 3 dB 50/75 BNC female connector.

J5 - RF OUT

4500-4800 MHz output, 0 to -20 dBm out, see Table 2.2.

J10 - MONITOR AND CONTROL

DB9 female connector. see Table 2.1.

10 MHZ REF

OUTPUT

J18

MONITOR

AND

CONTROL

J10

15 234

678

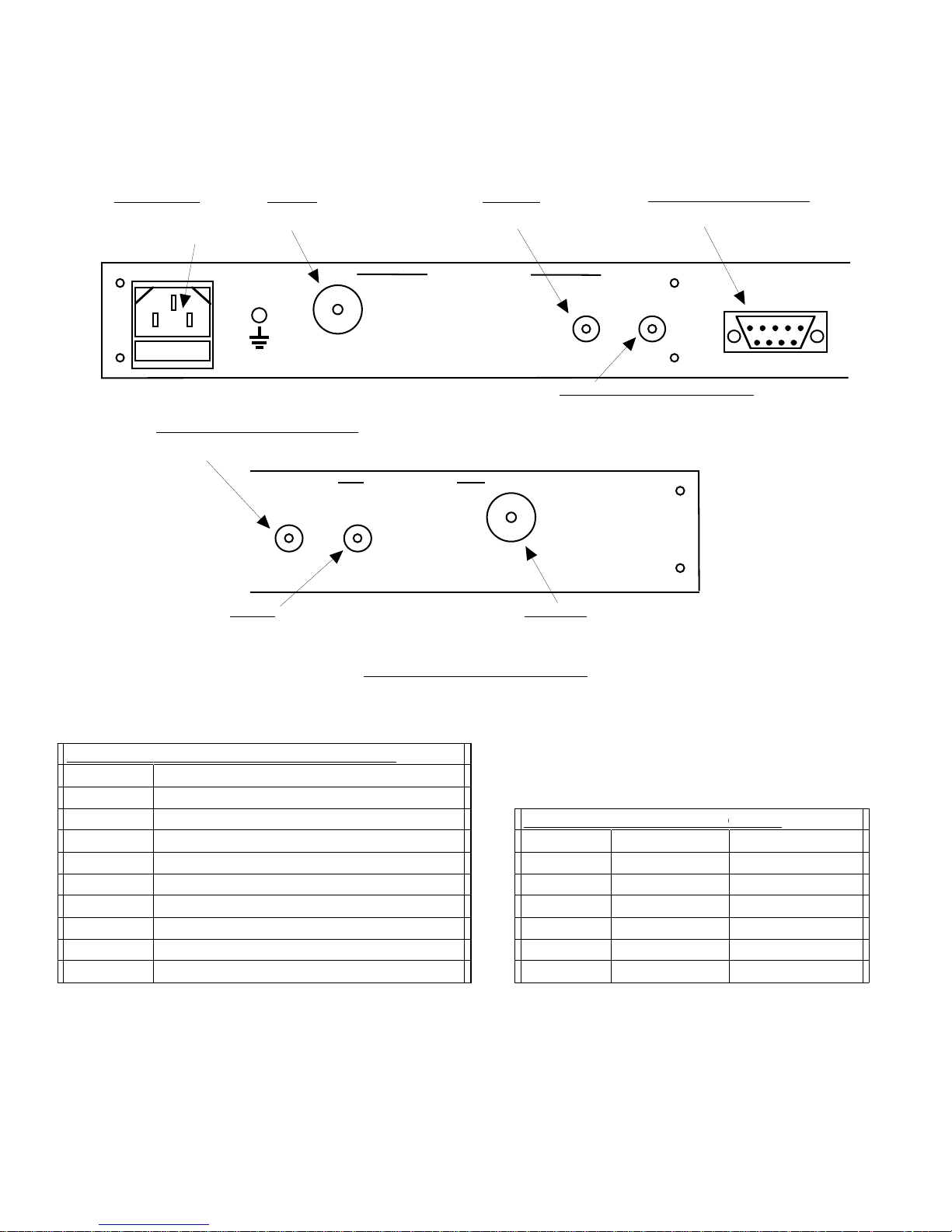

Figure 2.1 Rear Panel I/O’s

1Rx2 Rx+ (RS-232C) 3 Tx+ (RS-232C) 4Tx5GND 6 Alarm Relay: Common 7 Alarm Relay: Normally Open 8Not Used 9 Alarm Relay: Normally Closed

*Remote Serial Interface

Interface: DB-9 Female Protocol: RS-232C (RS-232C/422/485 option -Q), 9600 baud rate, no parity, 8 data bits, 1 start bit, 1 stop bit.

STD BNC, 75 Type N, 50

-M BNC, 50 Type N, 50

-B BNC, 75 BNC, 75

-C BNC, 75 BNC, 50

-D BNC, 50 BNC, 50

-N BNC, 75 Type N, 50

2017-74 Manual, Rev. B Page 10 10/27/10

Page 11

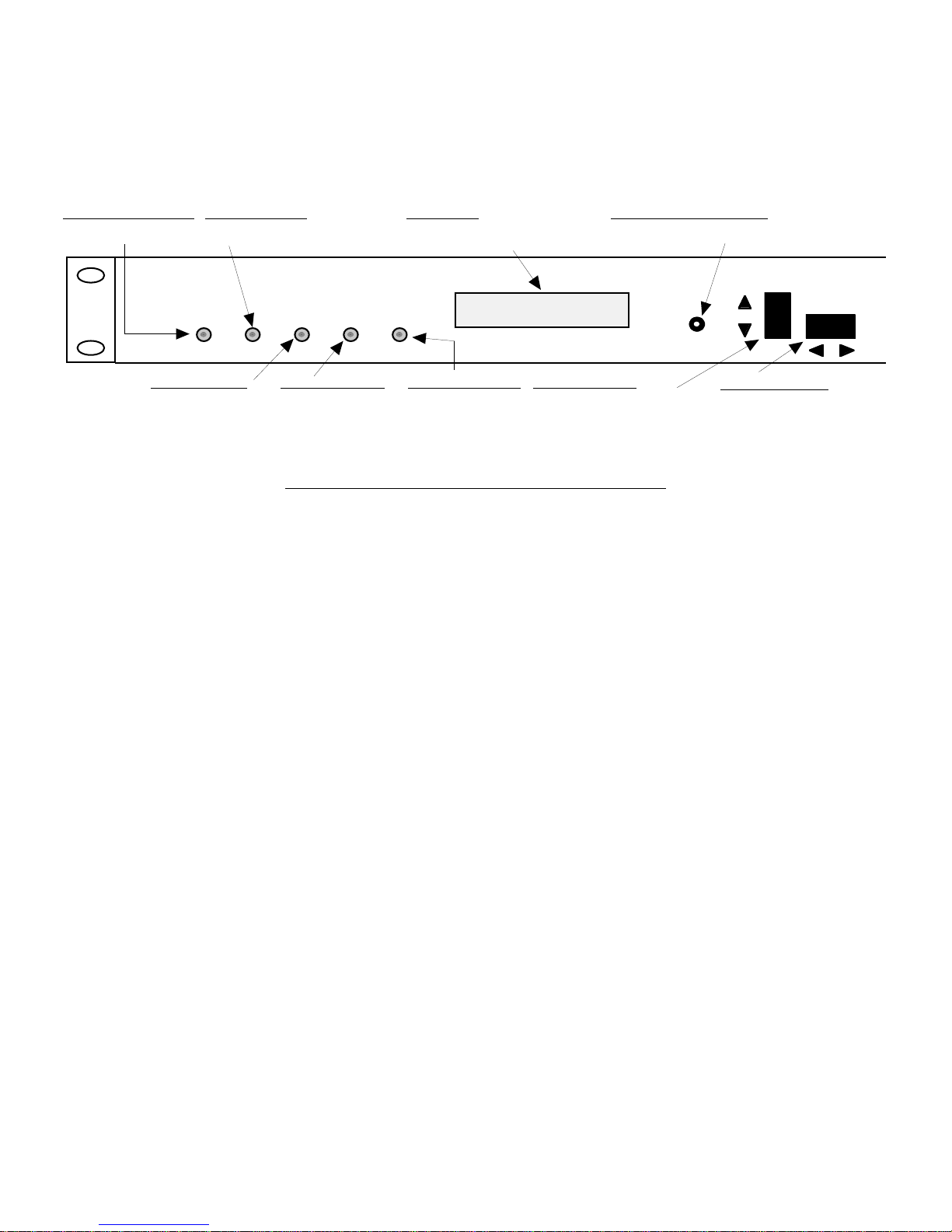

2.3 Front Panel Controls and Indicators Figure 2.2 shows the front panel controls and indicators.

DS3 - DOWN ALARM LED

Red LED indicates downconverter alarm.

DOWNCONVERTER

DS6 - POWER LED

Green LED indicates presence of DC power.

DS1 - REMOTE LED

Yellow LED indicates remote operation.

DS5 - UP MUTE LED

Yellow LED indicates upconverter mute.

Figure 2.2 Front Panel Controls and Indicators

UPCONVERTER

MUTE REMOTEALARM POWER

ALARM

LCD DISPLAY

Display shows Up and Downconverter frequency in MHz and Gain in dB

U F=6800.000 G=+10 D F=4600.000 G=+30

DS2 - UP ALARM LED

Red LED indicates upconverter alarm.

S2 - VERT. TOGGLE

Vertical toggle switch that controls values in the Menu items when in program mode. Does not function in the normal display mode

S1 - MENU/EXECUTE BUTTON

Press this to get into Program mode and to execute any changes.

EXECUTE

S3 - HORIZ. TOGGLE

Horizontal toggle switch that controls which values are being adjusted. Does not function in the normal display mode

2017-74 Manual, Rev. B Page 11 10/27/10

Page 12

2.4 Installation / Operation

2.4.1 Installing and Operating the 2017-74, Upconverter Section

1. Connect a -10 dBm to -40 dBm signal to IF In, J4 (Figure 2.1).

2. Connect the RF OUT, J5, to the external equipment.

3. Connect 100 - 240 ±10% VAC, 47 - 63 Hz to AC on the back panel.

4. Set the desired output frequency.

5. Set the input level (See Section 2.5 Menu Settings).

6. Set the gain (See Section 2.5 Menu Settings).

7. Be sure DS6 (green, DC Power) is on and DS2 (red, Downconverter Alarm) is off (Figure 2.2).

2.4.2 Installing and Operating the 2017-74, Downconverter Section

1. Connect a -60 dBm to -30 dBm signal to RF In, J2 (Figure 2.1).

2. Connect the IF OUT, J1, to the external equipment.

3. Connect 100 - 240 ±10% VAC, 47 - 63 Hz to AC on the back panel.

4. Set the desired input frequency.

5. Set the gain to get an output level in the -15 to +5 dBm range (See Section 2.5 Menu Settings).

6. Be sure DS6 (green, DC Power) is on and DS3 (red, Upconverter Alarm) is off (Figure 2.2).

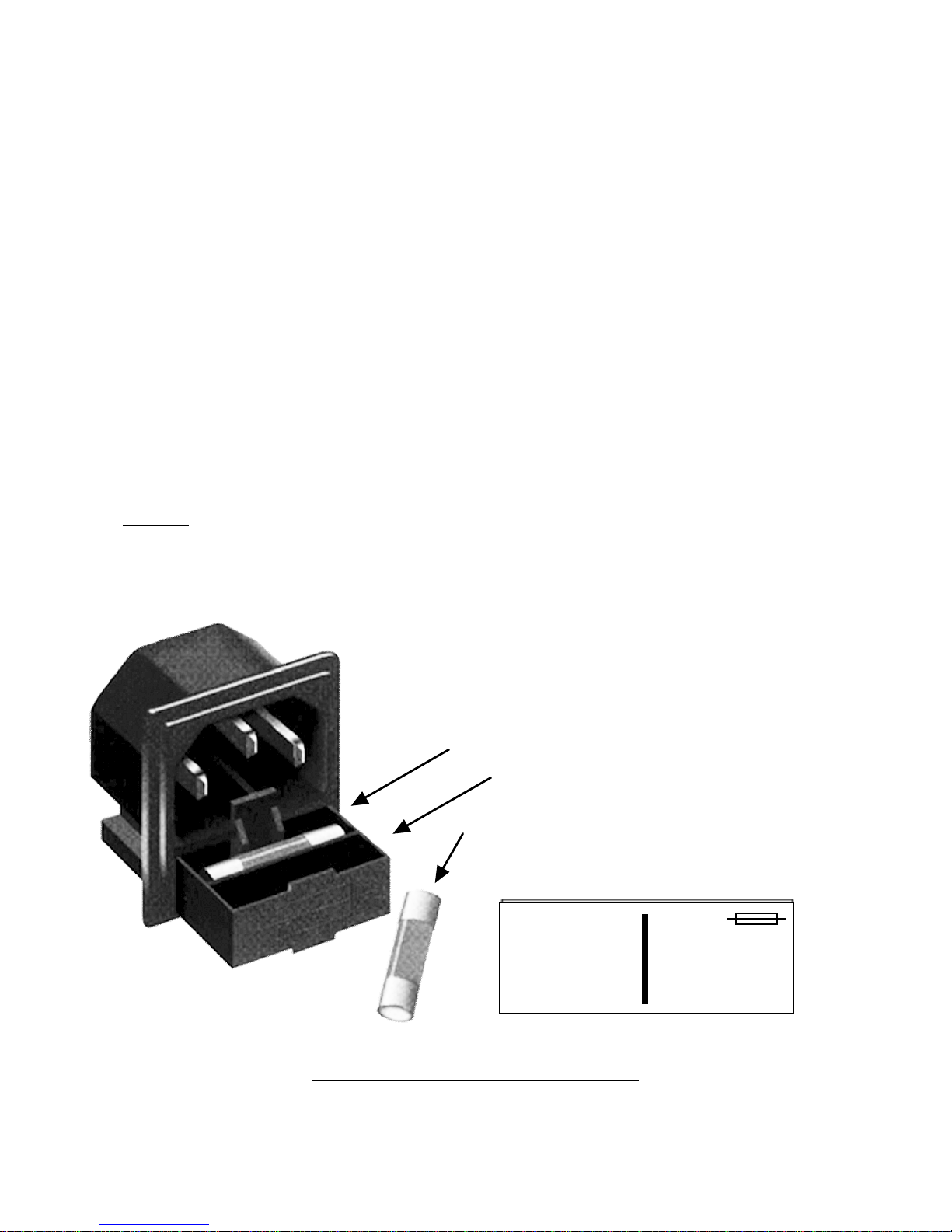

7. AC Fuse - The fuse is a 5 mm X 20 mm, 2 amp slow blow (Type T) and is inserted in the far slot

in the drawer below the AC input as shown in Figure 2.3. There is a spare fuse in the near slot. If a fuse continues to open, the power supply is most likely defective.

FUSE DRAWER

SPARE FUSE DRAWER

AC Fuse - 2 amp slow blow (Type T 2A GDC), 5 mm X 20 mm

INPUT

100-240± 10%VAC

47-63 Hz

2A MAX

FUSE

TYPE T 2A GDC

250 VOLT

FOR 100 - 240 V~

Figure 2.3 Fuse Location and Spare Fuse

2017-74 Manual, Rev. B Page 12 10/27/10

Page 13

2.5 Menu Settings

2.5.1 Functions

This section describes operation of the front panel controls. There are three operator switches, the LCD display and alarm indicator LEDs. All functions for the equipment are controlled by thes e components. The functions are (see Figure 2.4):

Power Up Normal Display

Menu 1 Upconverter Frequency in MHz Menu 2 Up Input Level (Set from -40 to -10) Menu 3 Up Gain (0 to +30) Menu 4 Downconverter Frequency in MHz Menu 5 Down Gain (set +30 to +50 for -15 to +5 dBm out range) Menu 6 Up Mute Menu 7 Set Unit to Remote Operation Menu 8 Select Internal or External, 10 MHz Ref (option -E) Menu 9 Frequency Reference Offset (option -O) Menu 10 Set Remote mode (option -Q) Menu 11 Set RS-485 address (option -Q)

Save Menu When “R” is selected in any above menu or after last menu.

Alarm indications appear on the LEDs (see figure 2.2).

All program changes must start with the operation of the Menu/Execute switch and must also end with the operation of the Menu/Execute switch verified by the “SAVE SETTINGS?” Menu. If this sequence is not followed, none of the changes will take effect. No program changes (except for gain adjustments) will be evident until they are verified at the “SAVE SETTINGS?” Menu.

2017-74 Manual, Rev. B Page 13 10/27/10

Page 14

2.5.2 Power-On Settings

NOTE: THE LAST STATUS OF A UNIT IS RETAINED EVEN WHEN POWER IS REMOVED. WHEN POWER IS RESTORED, THE UNIT WILL RETURN TO IT'S PREVIOUS SETTINGS.

When power is first applied, the LCD display goes through three steps.

1. The LCD goes black to show all segments are functioning.

2. The software version will be displayed.

REV 1.00

3. The present frequency and gain of the up and downconverter is shown.

U F=6850.000 G=+00 D F=4600.000 G=+30

The unit is now operational and ready for any changes the operator may desire.

2.5.3 Control Switches

1. Menu/Execute - Any change to the programming of the unit must be initiated by pressing the Menu/Execute switch and completed by pressing the Menu/Execute switch.

2. Horizontal Switch - This switch is mounted so its movement is horizontal and moves the cursor left or right.

3. Vertical Switch - This switch is mounted so its movement is vertical and has two functions:

a. During frequency , gain, input level changes, the vertica l movement will raise or lower the

number in the direction of the arrows.

b. For other functions such Mute on/off, the vertical switch will alternately turn the function on or

off regardless of the direction operated.

2017-74 Manual, Rev. B Page 14 10/27/10

Page 15

2.5.4 Frequency Changes

At any time during the modification process, if you have made a mistake and do not wish to save the changes you have made, scroll to “R” and push the Menu/Execute switch and select “NO” in the “SAVE SETTINGS?” menu.

To change the FREQUENCY:

Operate the Menu/Execute switch until you get to the menu item you want to change (see Figure 2.4 for the sequence of menu options). The following display is for changing the upconverter frequency:

U F=6850.000 G=+00 D F=4600.000 G=+30

Pressing the Up/Down switch down will toggle the frequency (the Downconverter frequency will track linearly with the Upconverter frequency) to:

UP F= 6850.000

DN F= 4600.000

By using the horizontal rocker switch the cursor can be moved left or right.

U F=6850.000 G=+00 D F=4600.000 G=+30

NOTE: CHANGES DO NOT TAKE PLACE ON FREQUENCY UNTIL YOU GO TO THE SAVE MENU AND INDICATE YOU WANT TO SAVE THE CHANGES.

When the display indicates the value desired you can push the Menu/Execute switch to the next item:

UP INLVL= -20 R

NOTE: CHANGES DO NOT CHANGE OR GET SAVED UNTIL YOU GO TO THE SAVE MENU AND INDICATE YOU WANT TO SAVE THE CHANGES.

OR you can scroll to “R”, push the Menu/Execute switch to get to:

SAVE SETTINGS? Y N

Selecting Y will save the new settings. Selecting N will revert to the previous settings. Pushing the Menu/Execute switch then takes you to the :

U F=6850.000 G=+00 D F=4600.000 G=+30

Figure 2.4 shows all the menu items and how to make changes.

2017-74 Manual, Rev. B Page 15 10/27/10

Page 16

2.5.5 Gain Changes

When you get to this menu note that the gain changes will be made as you make them but if you do not wish to save the changes you have made, scroll to “R” and push the Menu/Execute switch and select “NO” in the

“SAVE SETTINGS?” menu.

2.5.5.1 Upconverter Gain

To set the upconverter gain, first push the Menu/Execute switch to get to the gain setting:

Operate the Menu/Execute switch until you get to the menu item you want to change see Figure 2.4 for the sequence of menu options.

The following display is for changing the upconverter input level. This is an important setting to optimize spurious and should be made as accurately as possible:

UP INLVL= -20 R

Pressing the Up/Down switch to change the level in 1 or 10 dB steps (depending on the character that is selected), and then push the Menu/Execute switch to get to the Gain setting:

UP G= +00 R

By using the horizontal rocker switch the cursor can be moved left or right . Pressing the Up/Down switch down will toggle the display digit selected until you have the desired gain.

When the display indicates the value desired you can push the Menu/Execute switch to the next item OR you can scroll to “R”, push the Menu/Execute switch to get to:

SAVE SETTINGS? Y N

Selecting Y will save the new settings. Selecting N will revert to the previous settings. Pushing the Menu/Execute switch then takes you to the :

U F=6850.000 G=+00 D F=4600.000 G=+30

Figure 2.4 shows all the menu items and how to make changes.

2017-74 Manual, Rev. B Page 16 10/27/10

Page 17

2.5.5.2 Downconverter Gain

To set the downconverter gain, first push the Menu/Execute switch to get to the gain setting:

Operate the Menu/Execute switch until you get to the menu item you want to change see Figure 2.4 for the sequence of menu options.

The following display is for changing the downconverter gain. This is an important setting to optimize spurious and should be made as accurately as possible to provide an output in the -15 to +5 dBm level range:

DN G= +30 R

Pressing the Up/Down switch to change the level in 1 or 10 dB steps. By using the horizontal rocker switch the cursor can be moved left or right. Pressing the Up/Down switch down will toggle the display digit selected until you have the desired gain.

When the display indicates the value desired you can push the Menu/Execute switch to the next item OR you can scroll to “R”, push the Menu/Execute switch to get to:

SAVE SETTINGS? Y N

Selecting Y will save the new settings. Selecting N will revert to the previous settings. Pushing the Menu/Execute switch then takes you to the :

U F=6850.000 G=+00 D F=4600.000 G=+30

Figure 2.4 shows all the menu items and how to make changes.

2017-74 Manual, Rev. B Page 17 10/27/10

Page 18

2.5.5 Alarm Indications

ON POWER UP

NORMAL DISPLAY

PUSHING MENU/EXECUTE SEQUENCE

REV 1.00

U F=6850.000 G=+00 D F=4600.000 G=+20

SCROLL <> SCROLL

REMOTE OFF

INT REF

UP MUTE OFF

SCROLL <> SCROLL

DN G = +30.0

SCROLL <> SCROLL

UP INLVL = -20

UP G = +00.0

SCROLL <> SCROLL

SAVE SETTINGS? Y N

SCROLL <>

R R R R R

RS 232

SCROLL <> SCROLL

ADDRESS = 00

SCROLL <> SCROLL

FREQ ADJUST Offset = +

0000

SCROLL <> SCROLL

U F=6850.000 DN F = 4600.000

SCROLL <> SCROLL

An alarm condition for will occur if any local oscillator phase lock loop (PLL) comes out of lock.

Power Up

Normal Display

PUSH BUTTON

Menu 1 Up Frequency

PUSH BUTTON

Menu 2 Up Input Level (Set from

-40 to -10)

Menu 3 Up Gain (0 to +30)

Menu 4 Downconverter

Frequency in MHZ Menu 5 Down Gain (set +30 to +50

for -15 to +5 dBm out level)

Menu 6 Up Mute

Menu 7 Set Unit to Remote

Operation Menu 8 Select Internal or External,

10 MHz Ref (option - E) Menu 9 Reference Offset

(option -O) Menu 10 Set Remote Mode

(option -Q)

PUSH BUTTON

Menu 11 Set RS-485 Address (option -Q)

Save? When “R” is selected in any above menu or at the end

2017-74 Manual, Rev. B Page 18 10/27/10

Figure 2.4 Menu Display and Sequence

PUSH BUTTON

Page 19

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

Printed in USA

2017-74 Manual, Rev. B Page 19 10/27/10
