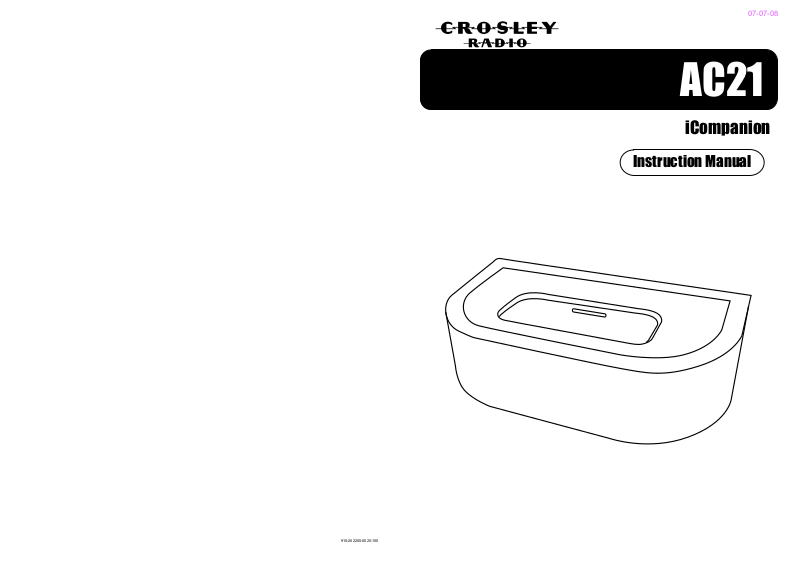

Crosley Radio AC21 User Manual

Instruction Manual
910-262200-0020-100
AC21
iCompanion
07-07-08
Using your iPod
5
that fits your iPod. Your iPod should fit snuggle into the correct adapter. Gently press the adapter until it snaps firmly in place.
2 Connect one end of the supplied 3.5mm stereo
cable to the auxiliary output jack (2). Connect the other end of the cable to an auxiliary input on your stereo.
3 Connect your iPod as shown in the illustration
below.
4 Browse your iPod for songs and press the
Play/Pause button. Your music should begin to play.
5 Adjust the volume to your desired listening level.
6 To remove the dock adapter, push your fingernail
into the slot in the back of the adapter and lift up.
The exclamation point within an equilateral triangle is intended to alert user to the presence of important operating and maintenance (servicing) instruction in the literature accompanying the appliance.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
The lighting flash with arrowhead symbol, within an equilateral triangle, is intended to alert user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute risk of electric shock to persons.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER - SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Specification
Power Supply : AC Adaptor DC7.5V 700mA Power Consumption : 5W
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DO NOT REMOVE COVER. PILOT LAMPS SOLDERED IN PLACE. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
* DESIGN AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
Troubleshooting
There is no Power
1 Make sure the power adaptor is connected to
the iCompanion and to a power outlet.
Basic Operation
Power Source
1 Unwind the power adaptor. First connect the
small end of the adaptor to AC Adaptor Jack(3), then the other end to an AC power outlet.
