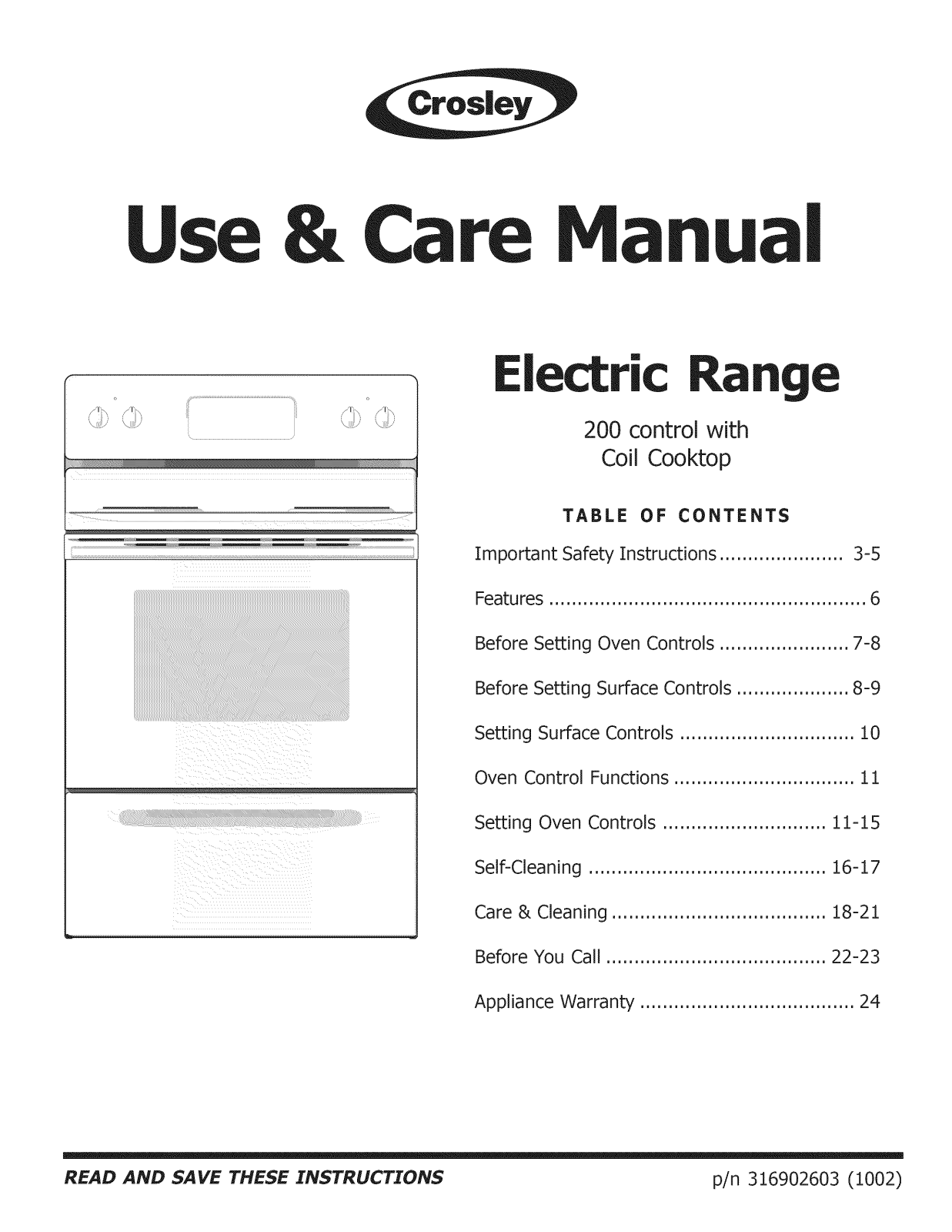

Crosley Range User Manual

Use & Care Hanual

Electric

200 control with

Coil Cooktop

TABLE OF CONTENTS

Important Safety Instructions......................3-5

i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_ii_ii!ii!ii!!ii!i

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiilililiiii!i!!!iiii

Features........................................................6

BeforeSettingOven Controls.......................7-8

BeforeSettingSurfaceControls....................8-9

SettingSurface Controls...............................10

Oven ControlFunctions................................11

SettingOven Controls.............................11-15

Self-Cleaning..........................................16-17

Care & Cleaning......................................18-21

BeforeYou Call.......................................22-23

Appliance Warranty ...................................... 24

READ AND SAVE THESE INSTRUCTIONS p/n 316902603 (1002)

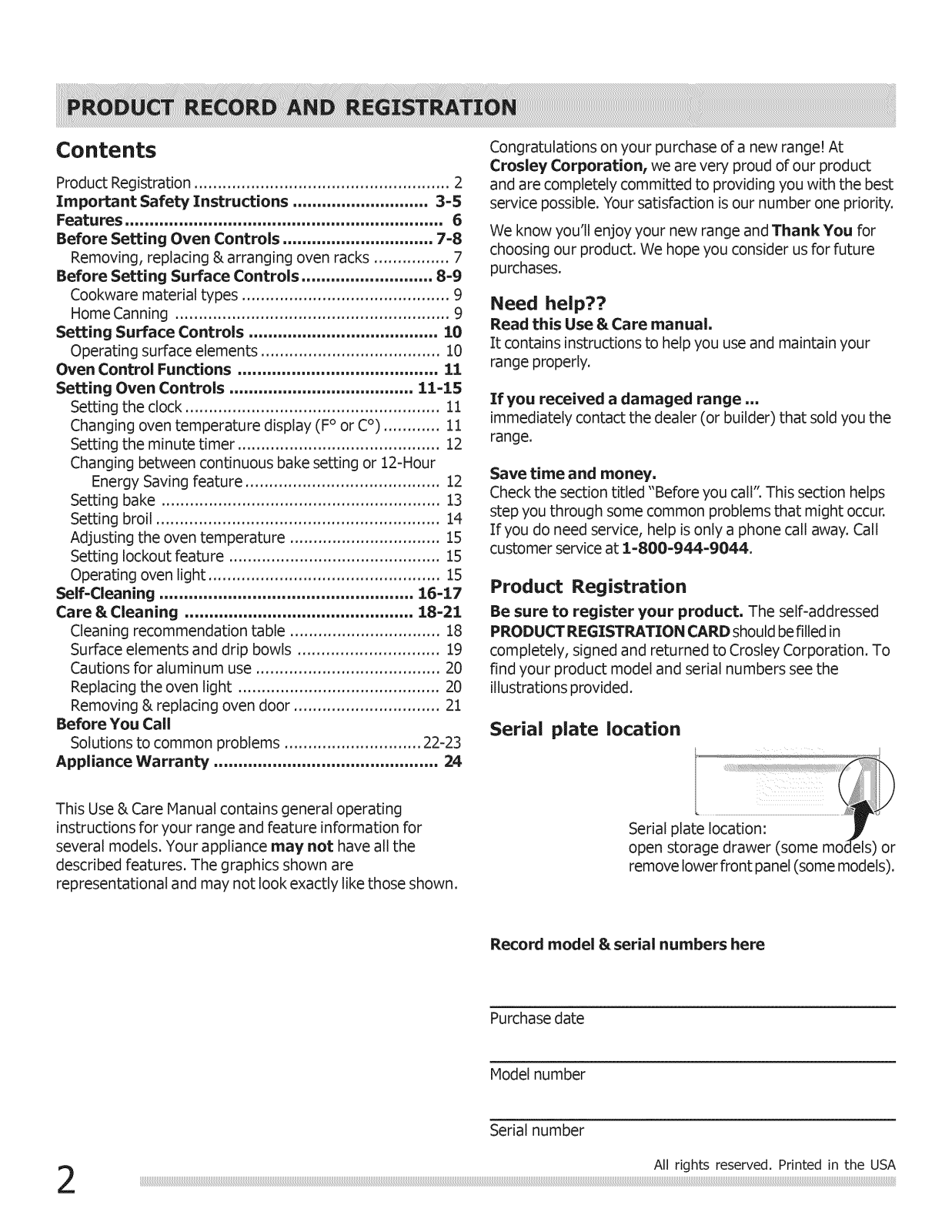

Contents

Product Registration ...................................................... 2

Important Safety Instructions ............................ 3-5

Features ................................................................. 6

Before Setting Oven Controls ............................... 7-8

Removing, replacing & arranging oven racks ................ 7

Before Setting Surface Controls ........................... 8-9

Cookware material types ............................................ 9

Home Canning .......................................................... 9

Setting Surface Controls ....................................... 10

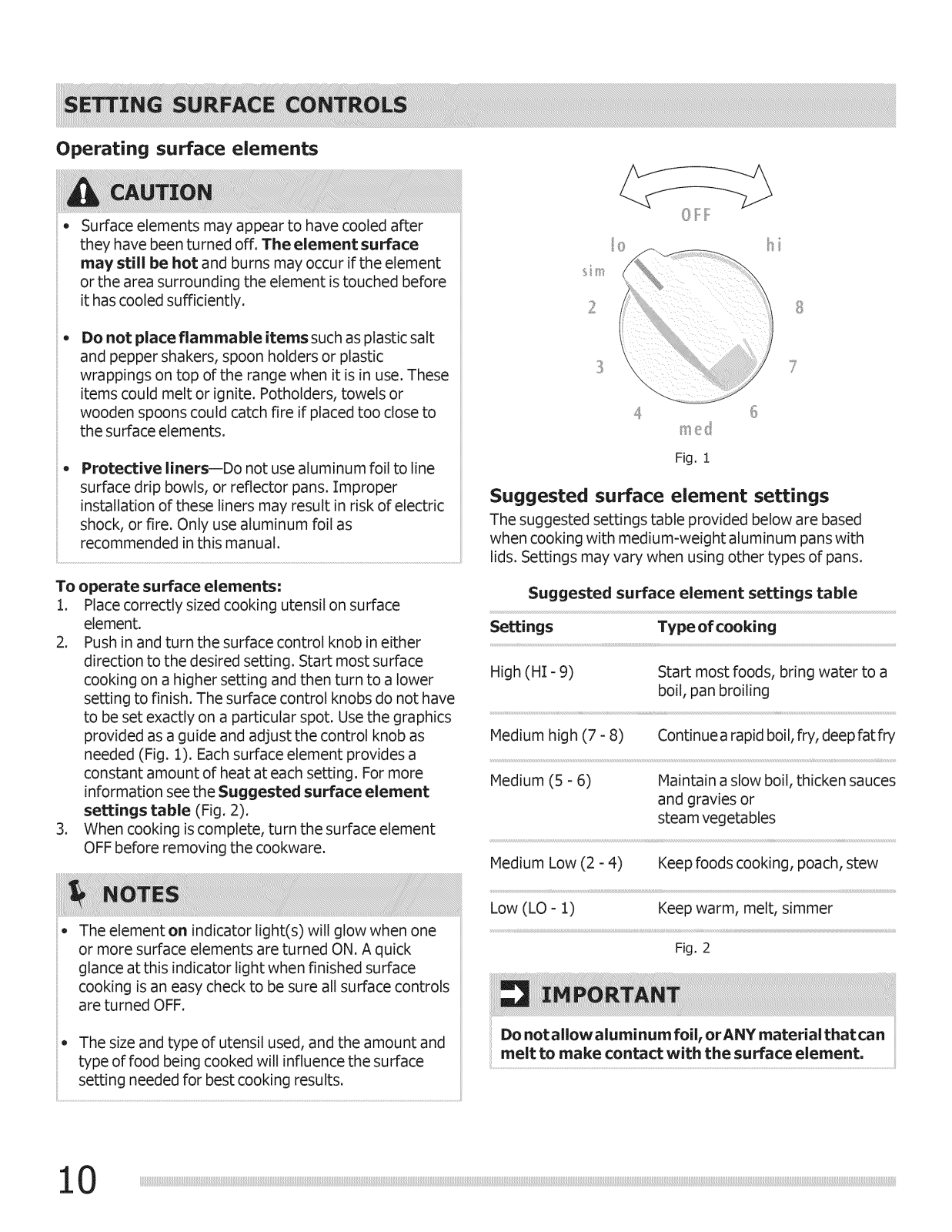

Operating surface elements ...................................... 10

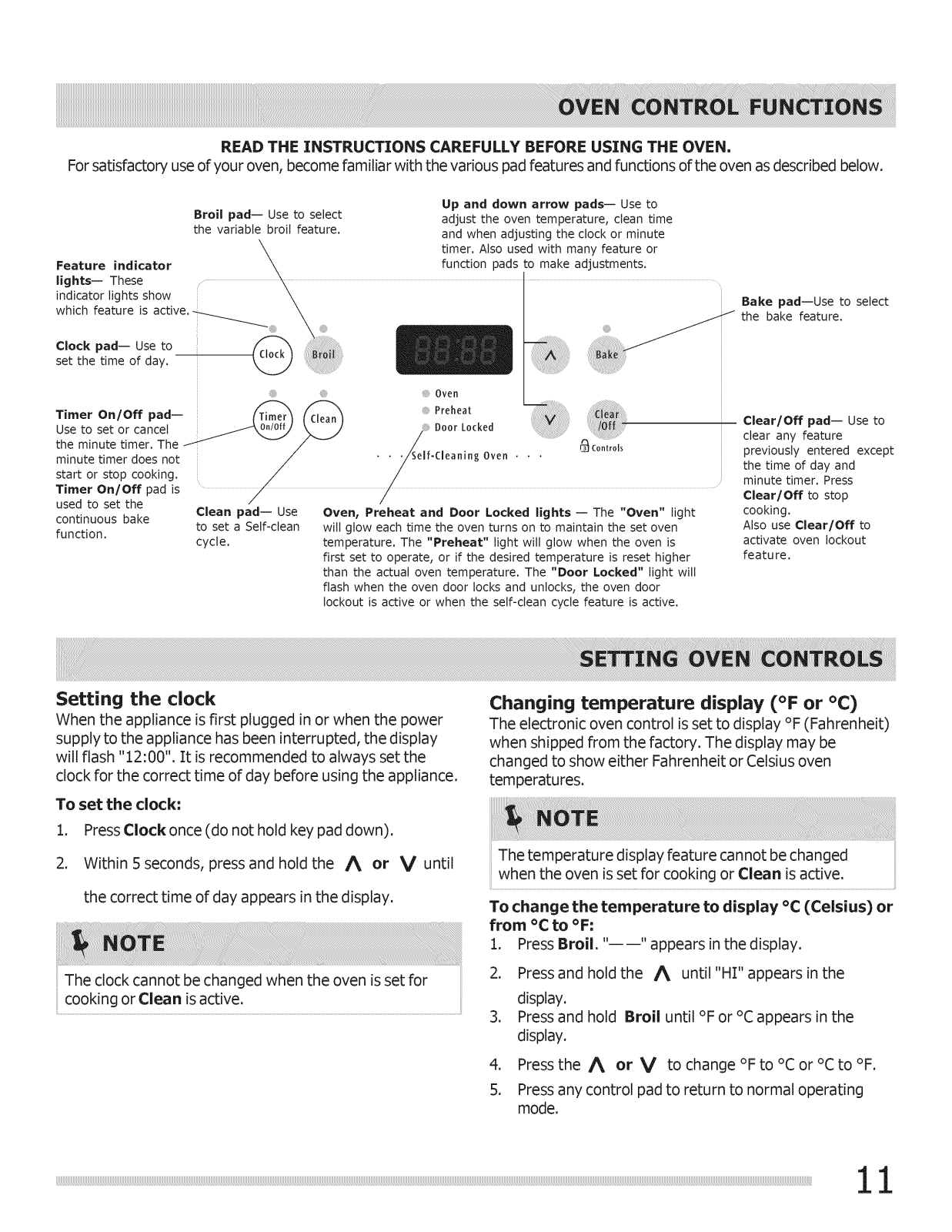

Oven Control Functions ......................................... 11

Setting Oven Controls ...................................... 11-15

Setting the clock ...................................................... 11

Changing oven temperature display (F° or C°) ............ 11

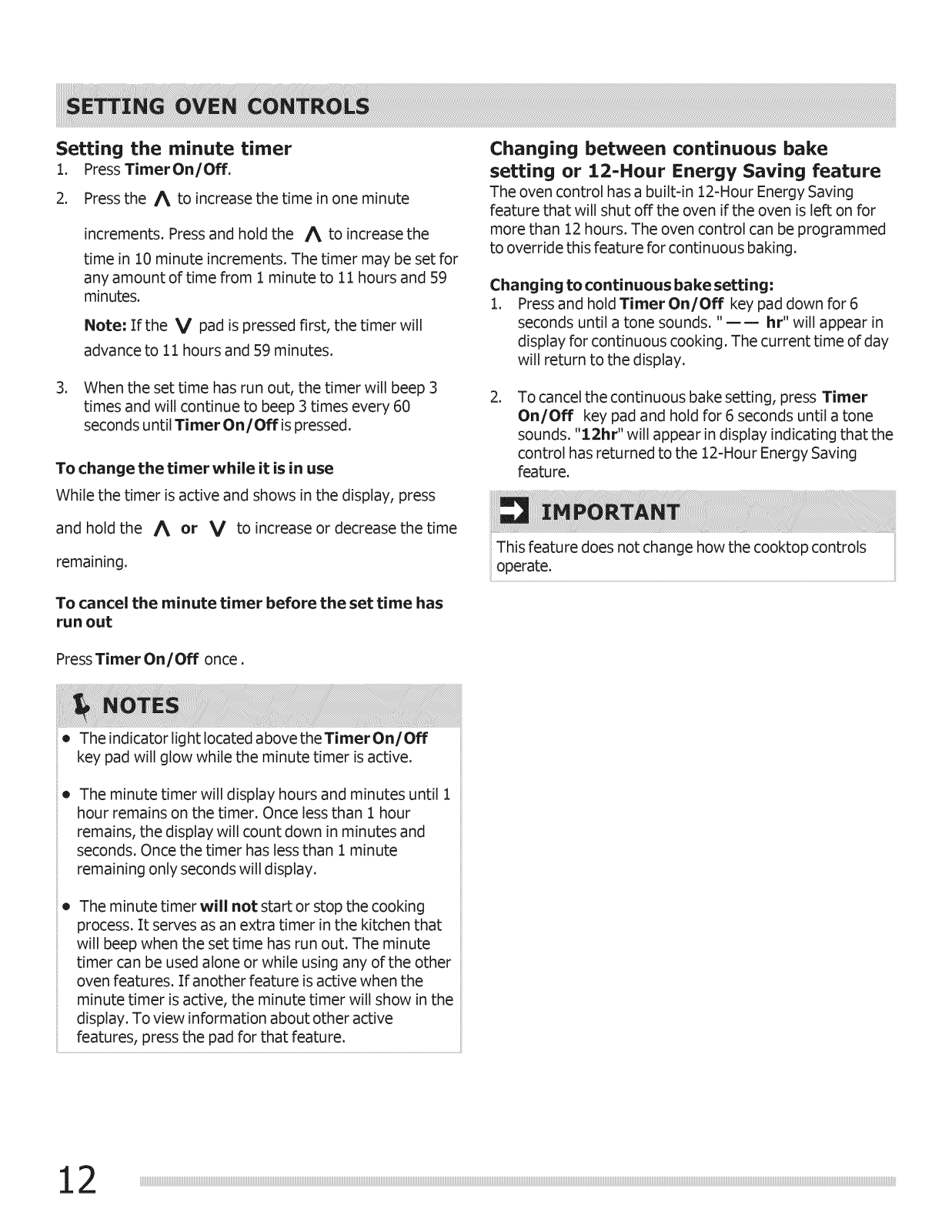

Setting the minute timer ........................................... 12

Changing between continuous bake setting or 12-Hour

Energy Saving feature ......................................... 12

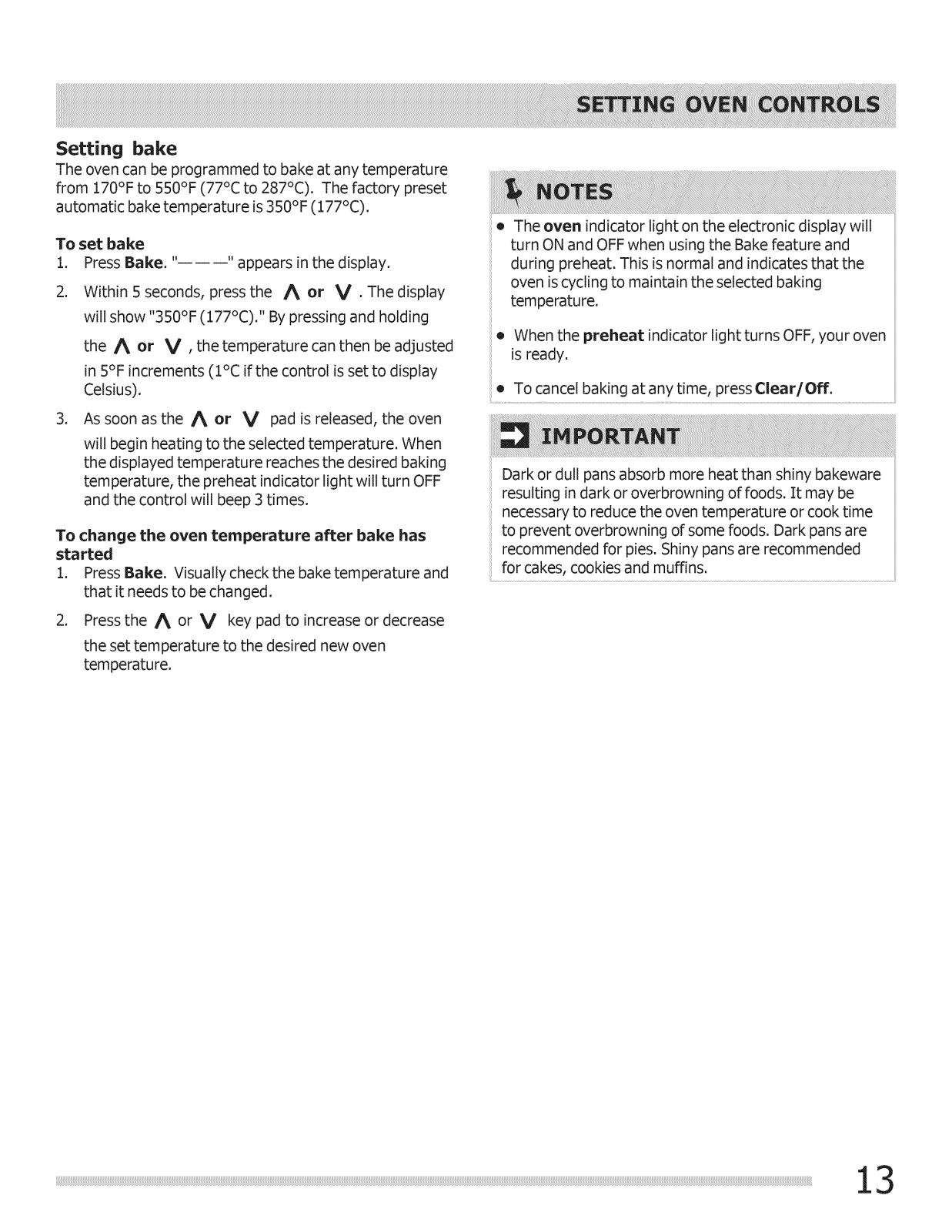

Setting bake ........................................................... 13

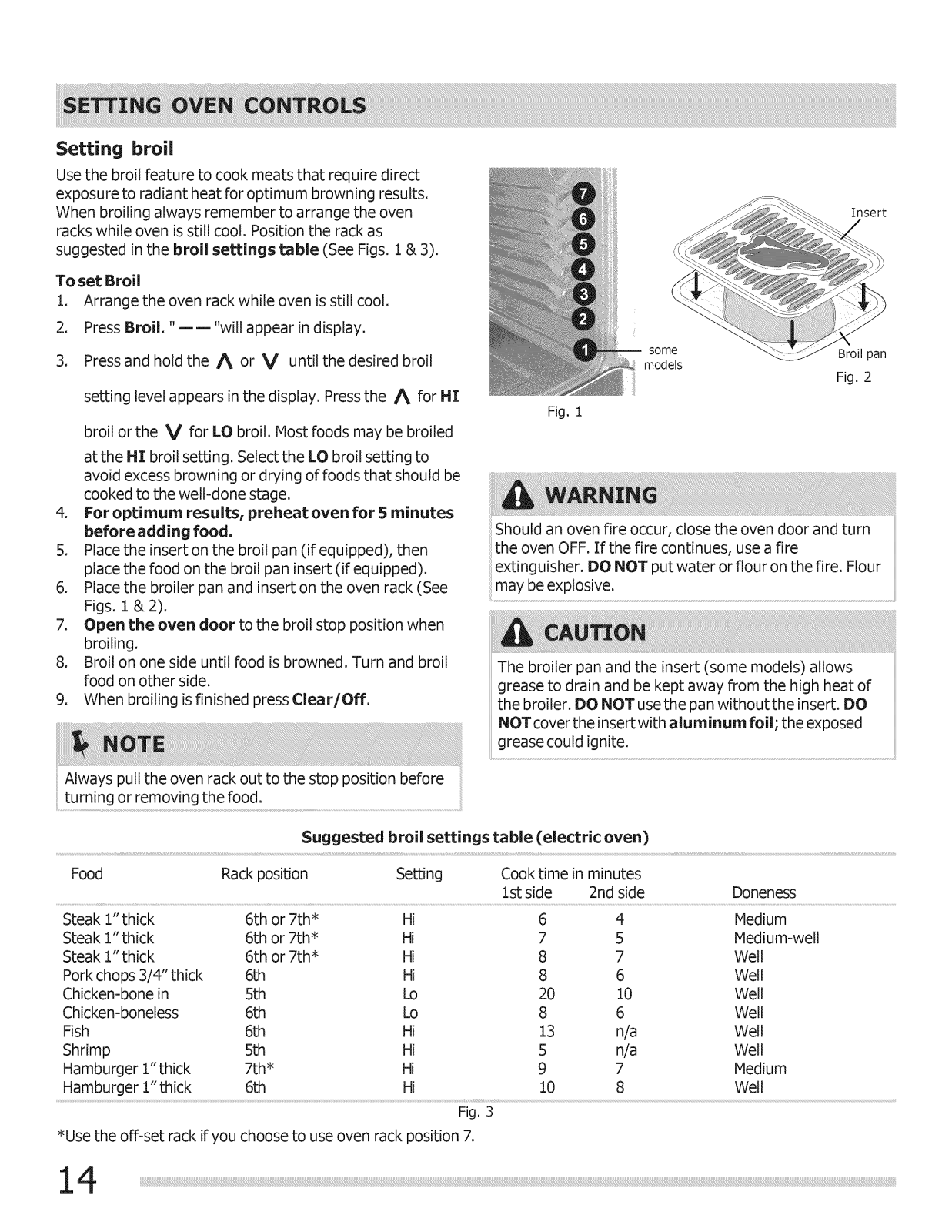

Setting broil ............................................................ 14

Adjusting the oven temperature ................................ 15

Setting lockout feature ............................................. 15

Operating oven light ................................................. 15

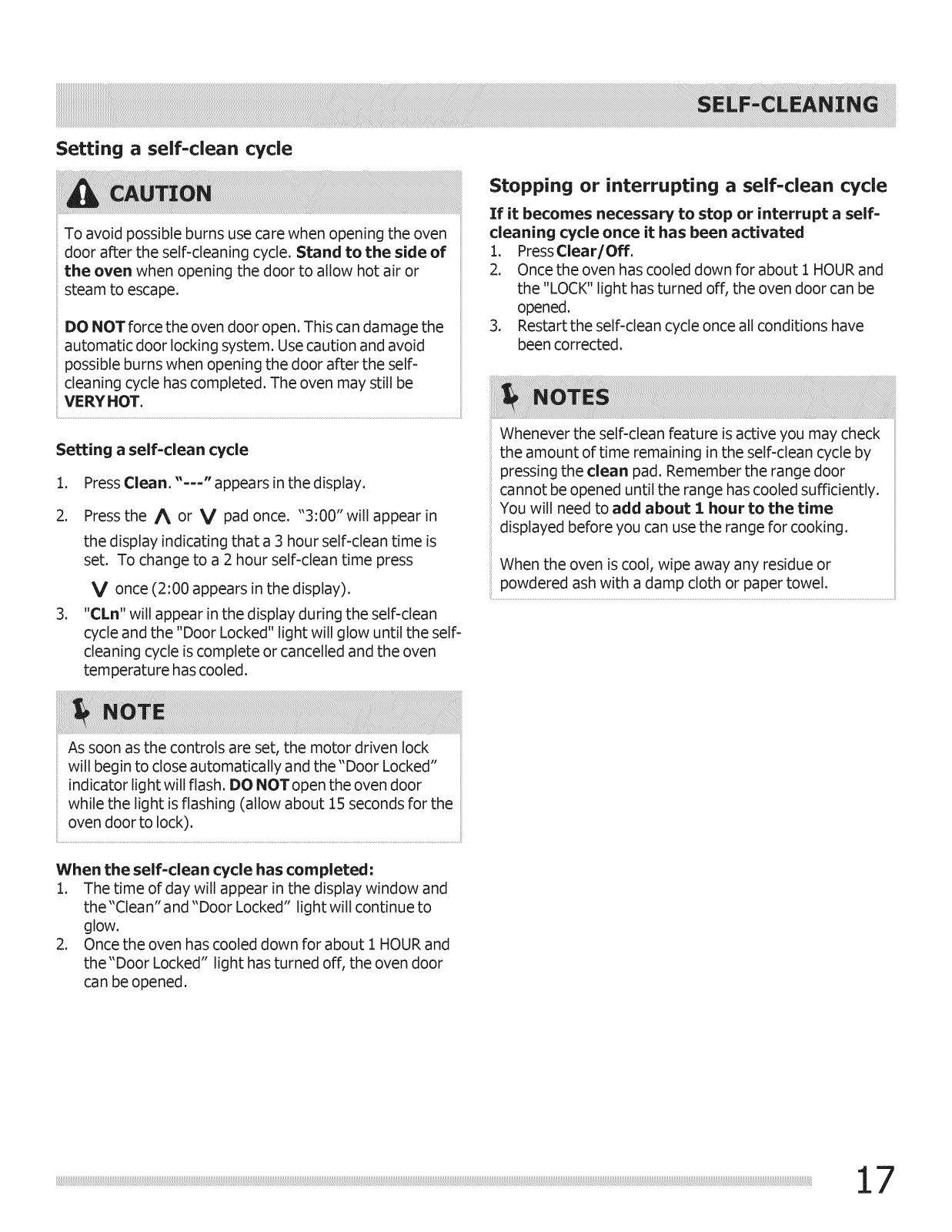

Self-Cleaning .................................................... 16-17

Care &Cleaning ............................................... 18=21

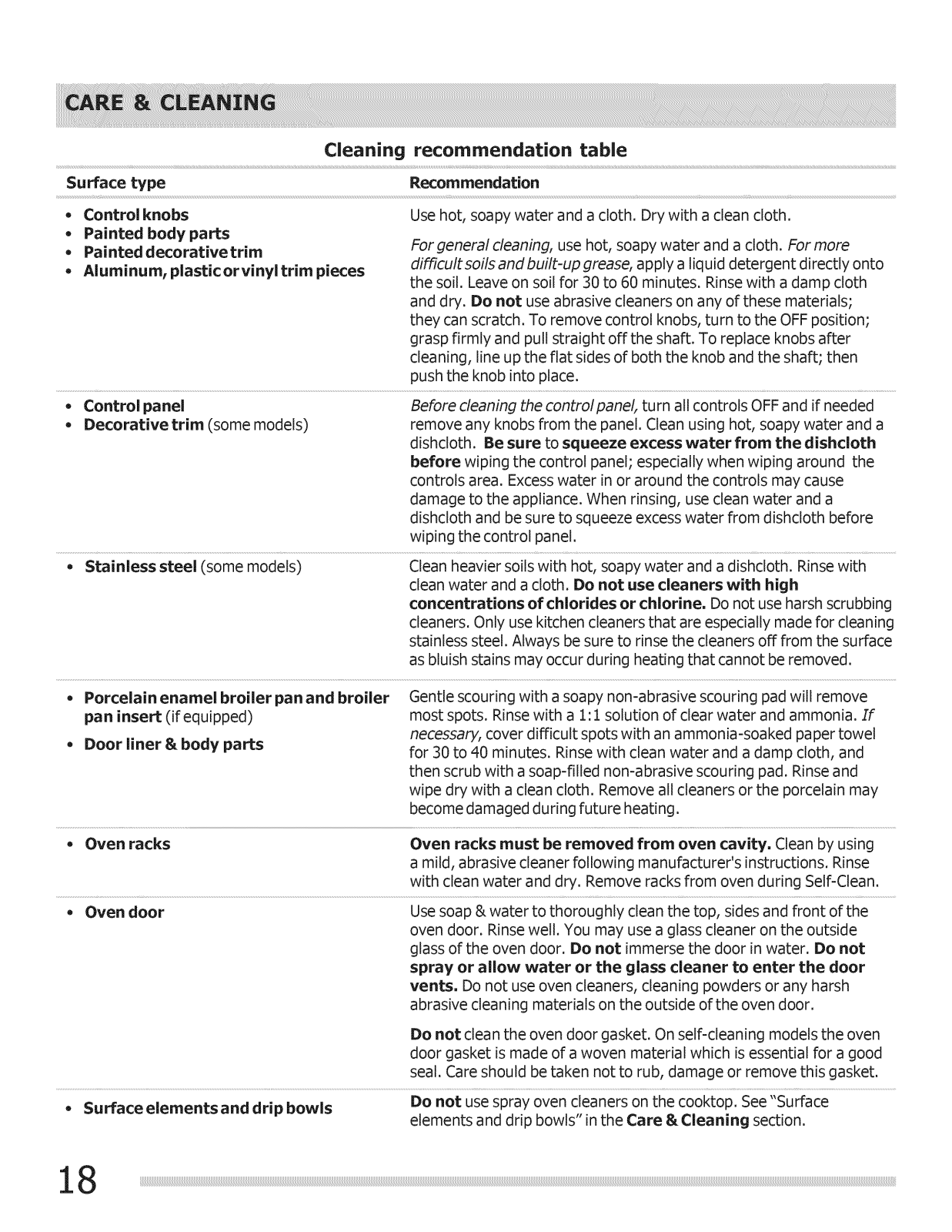

Cleaning recommendation table ................................ 18

Surface elements and drip bowls .............................. 19

Cautions for aluminum use ....................................... 20

Replacing the oven light ........................................... 20

Removing & replacing oven door ............................... 21

Before You Call

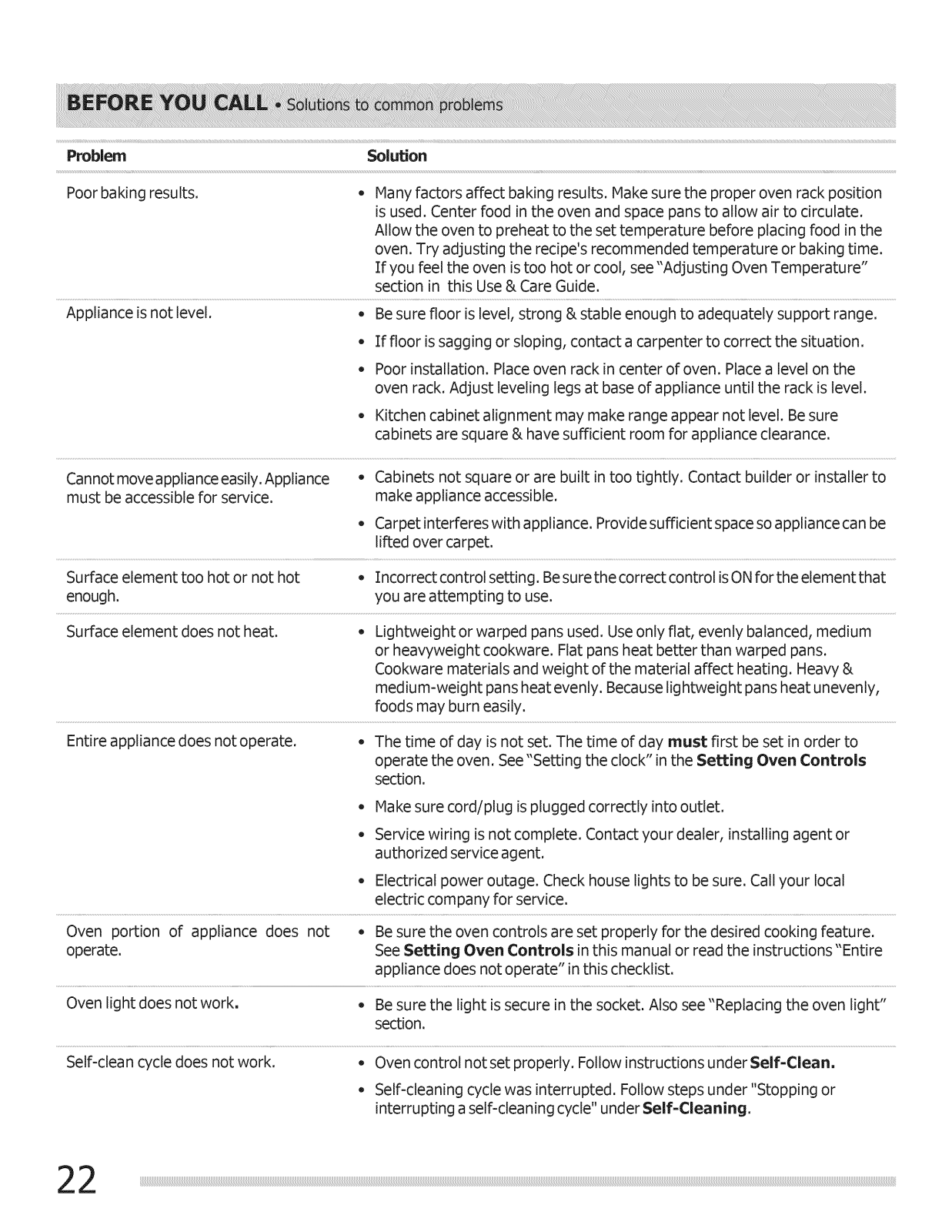

Solutions to common problems ............................. 22-23

Appliance Warranty .............................................. 24

Congratulations on your purchase of a new range! At Crosley Corporation, we are very proud of our product and are completely committed to providing you with the best service possible. Your satisfaction is our number one priority.

We know you'll enjoy your new range and Thank You for choosing our product. We hope you consider us for future purchases.

Need help??

Read this Use & Care manual,

It contains instructions to help you use and maintain your range properly.

If you received a damaged range ... immediately contact the dealer (or builder) that sold you the range.

Save time and money. Check the section titled "Before you call". This section helps step you through some common problems that might occur. If you do need service, help is only a phone call away. Call

customer service at 1=800=944=9044.

Product Registration

Be sure to register your product. The self-addressed PRODUCT REGISTRATION CARD should be filled in

completely, signed and returned to Crosley Corporation. To find your product model and serial numbers see the illustrations provided.

Serial plate location

This Use & Care Manual contains general operating instructions for your range and feature information for several models. Your appliance may not have all the described features. The graphics shown are representational and may not look exactly like those shown.

remove lower front panel (some models).

Record model & serial numbers here

Purchase date

Model number

Serial number

All riohts reserved. Printed in the USA

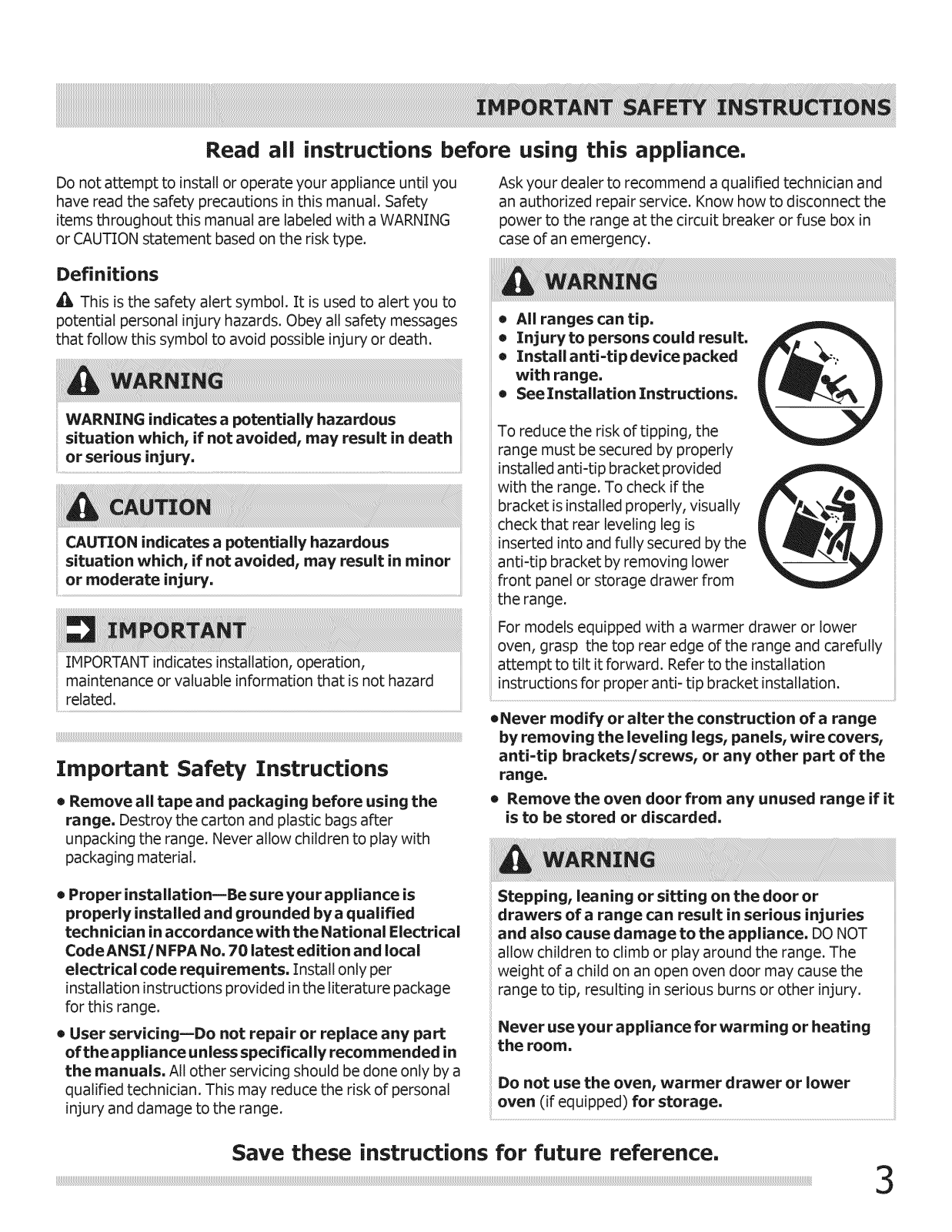

Read all instructions before using this appliance,

Do not attempt to install or operate your appliance until you have read the safety precautions in this manual. Safety items throughout this manual are labeled with a WARNING or CAUTION statement based on the risk type.

Definitions

_:_ This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages

that follow this symbol to avoid possible injury or death.

WARNING indicates a potentially hazardous

situation which, if not avoided, may result in death

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor

or moderate injury.

IMPORTANT indicates installation, operation, maintenance or valuable information that is not hazard

related.

Important Safety Instructions

• Remove all tape and packaging before using the range, Destroy the carton and plastic bags after unpacking the range. Never allow children to play with packaging material.

Ask your dealer to recommend a qualified technician and

an authorized repair service. Know how to disconnect the power to the range at the circuit breaker or fuse box in case of an emergency.

= All ranges can tip. = Injuryto persons could result. = Install anti=tipdevice packed

with range.

= See Installation Instructions.

To reduce the risk of tipping, the range must be secured by properly

installed anti-tip bracket provided with the range. To check if the

bracket is installed properly, visually check that rear leveling leg is inserted into and fully secured by the anti-tip bracket by removing lower front panel or storage drawer from

the range. For models equipped with a warmer drawer or lower

oven, grasp the top rear edge of the range and carefully attempt to tilt it forward. Refer to the installation instructions for proper anti- tip bracket installation.

=Never modify or alter the construction of a range

by removing the leveling legs, panels, wire covers, anti=tip brackets/screws, or any other part of the

range.

= Remove the oven door from any unused range if it

is to be stored or discarded.

= Proper installation=Be sure your appliance is

properly installed and grounded bya qualified technician in accordance with the National Electrical

Code ANSI/N FPA No, 70 latest edition and local electrical code requirements, Install only per

installation instructions provided inthe literature package for this range.

= User servicing=Do not repair or replace any part

of the appliance unless specifically recommended in the manuals. All other servicing should be done only by a qualified technician. This may reduce the risk of personal injury and damage to the range.

Save these instructions for future reference,

Stepping, leaning or sitting on the door or drawers of a range can result in serious injuries and also cause damage to the appliance. DO NOT

allow children to climb or play around the range. The weight of a child on an open oven door may causethe range to tip, resulting in serious burns or other injury.

Never use your appliance for warming or heating the room.

Do not use the oven, warmer drawer or lower oven (if equipped) for storage.

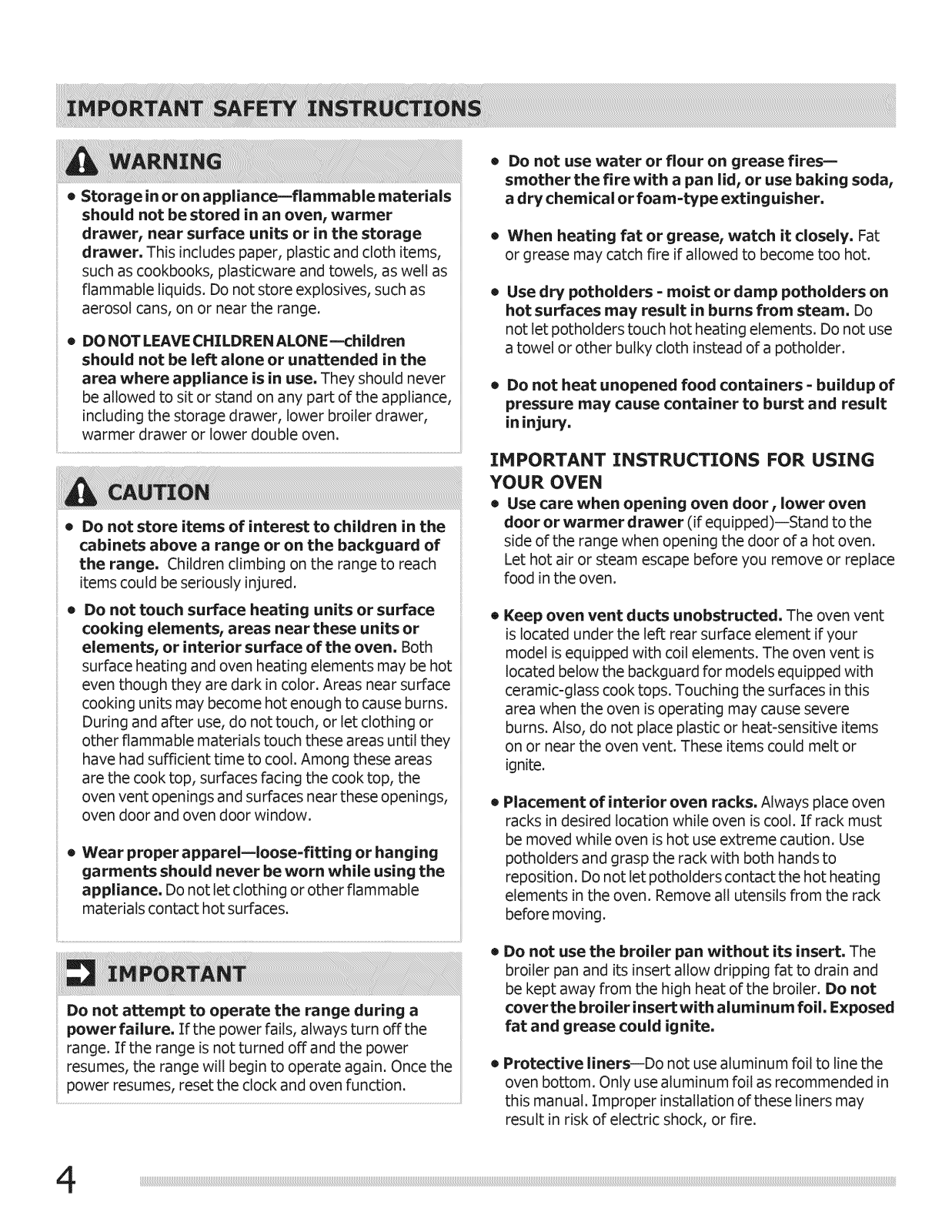

= Storage in or on appliance--flammable materials

should not be stored in an oven, warmer drawer, near surface units or in the storage drawer, This includes paper, plastic and cloth items,

such as cookbooks, plasticware and towels, as well as flammable liquids. Do not store explosives, such as aerosol cans, on or near the range.

• DO NOT LEAVE CHILDREN ALONE--children should not be left alone or unattended in the

area where appliance is in use. They should never be allowed to sit or stand on any part of the appliance, including the storage drawer, lower broiler drawer,

warmer drawer or lower double oven.

= Do not store items of interest to children in the

cabinets above a range or on the backguard of the range. Children climbing on the range to reach items could be seriously injured.

= Do not use water or flour on grease fires=

smother the fire with a pan lid, or use baking soda, a dry chemical or foam=type extinguisher.

= When heating fat or grease, watch it closely. Fat

or grease may catch fire if allowed to become too hot.

Use dry potholders =moist or damp potholders on

hot surfaces may result in burns from steam. Do

not let potholders touch hot heating elements. Do not use a towel or other bulky cloth instead of a potholder.

= Do not heat unopened food containers =buildup of

pressure may cause container to burst and result in injury.

IMPORTANT INSTRUCTIONS FOR USING YOUR OVEN

• Use care when opening oven door, lower oven door or warmer drawer (if equipped)--Sta nd to the

side of the range when opening the door of a hot oven. Let hot air or steam escape before you remove or replace

food in the oven.

= Do not touch surface heating units or surface

cooking elements, areas near these units or elements, or interior surface of the oven. Both

surface heating and oven heating elements may be hot even though they are dark in color. Areas near surface cooking units may become hot enough to cause burns.

During and after use, do not touch, or let clothing or

other flammable materials touch these areas until they

have had sufficient time to cool. Among these areas

are the cook top, surfaces facing the cook top, the oven vent openings and surfaces near these openings,

oven door and oven door window.

• Wear proper apparel=loose=fitting or hanging garments should never be worn while using the

appliance. Do not let clothing or other flammable materials contact hot surfaces.

Do not attempt to operate the range during a power failure. If the power fails, always turn offthe

range. If the range is not turned off and the power resumes, the range will begin to operate again. Once the

power resumes, reset the clock and oven function.

Keep oven vent ducts unobstructed. The oven vent

is located under the left rear surface element if your model is equipped with coil elements. The oven vent is located below the backguard for models equipped with ceramic-glass cook tops. Touching the surfaces in this area when the oven is operating may cause severe burns. Also, do not place plastic or heat-sensitive items

on or near the oven vent. These items could melt or ignite.

Placement of interior oven racks. Always place oven

racks in desired location while oven is cool. If rack must be moved while oven is hot use extreme caution. Use

potholders and grasp the rack with both hands to reposition. Do not let potholders contact the hot heating

elements in the oven. Remove all utensils from the rack before moving.

Do not use the broiler pan without its insert. The

broiler pan and its insert allow dripping fat to drain and be kept away from the high heat of the broiler. Do not cover the broiler insert with aluminum foil. Exposed

fat and grease could ignite.

Protective liners--Do not use aluminum foil to line the

oven bottom. Only use aluminum foil as recommended in

this manual. Improper installation of these liners may

result in risk of electric shock, or fire.

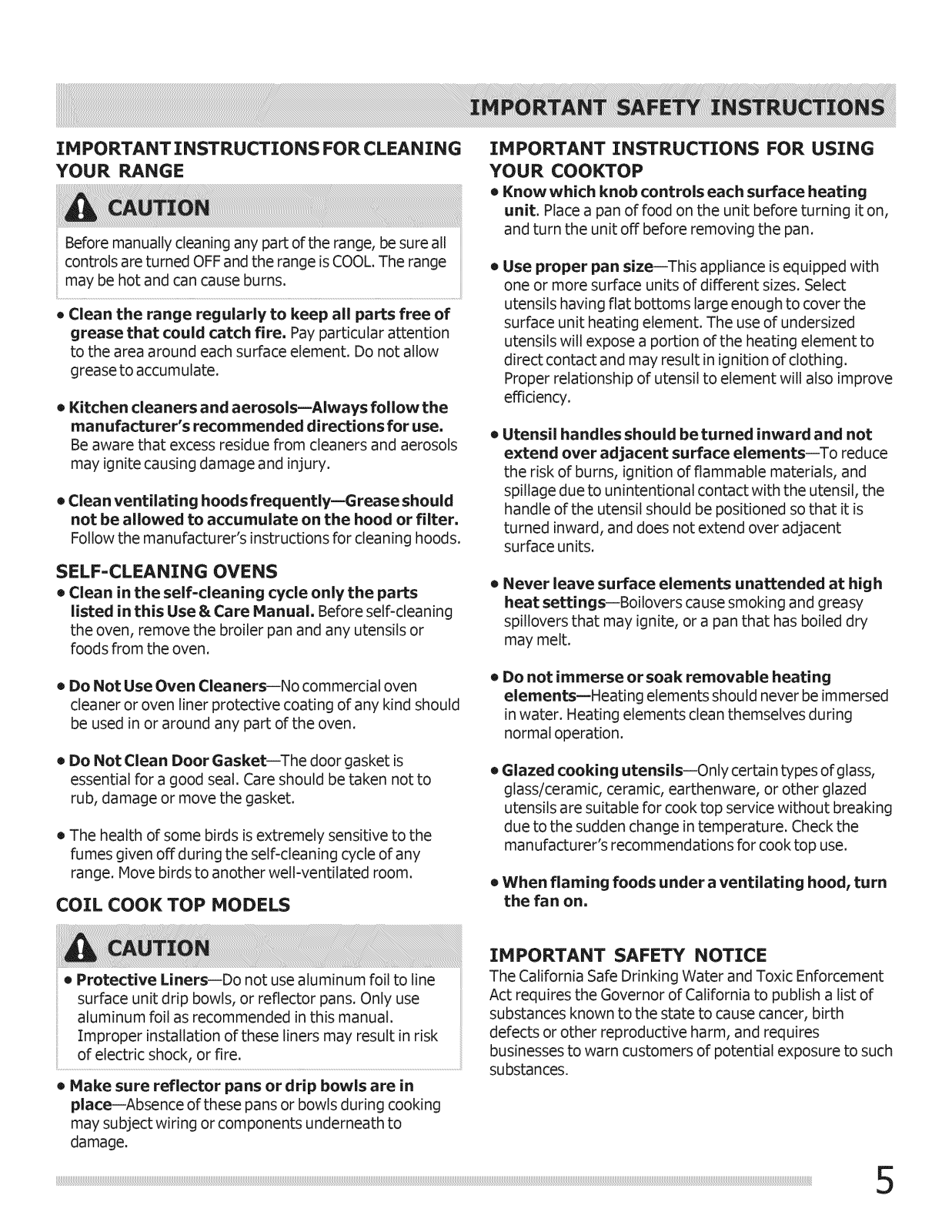

IivIPORTANTINSTRUCTIONS FOR CLEANING YOUR RANGE

Before manually cleaning any part of the range, be sure all controls are turned OFF and the range is COOL.The range

may be hot and can cause burns.

• Clean the range regularly to keep all parts free of grease that could catch fire, Pay particular attention

to the area around each surface element. Do not allow grease to accumulate.

• Kitchen cleaners and aerosolsmAIways follow the

manufacturer's recommended directions for use, Be aware that excess residue from cleaners and aerosols

may ignite causing damage and injury.

= Clean ventilating hoods frequently=Grease should

not be allowed to accumulate on the hood or filter. Follow the manufacturer's instructions for cleaning hoods.

SELF-CLEANING OVENS

• Clean in the self=cleaning cycle only the parts

listed in this Use &Care Manual. Before self=cleaning

the oven, remove the broiler pan and any utensils or foods from the oven.

IMPORTANT INSTRUCTIONS FOR USING

YOUR COOKTOP

• Know which knob controls each surface heating unit. Place a pan of food on the unit before turning it on,

and turn the unit off before removing the pan.

Use proper pan size--This appliance isequipped with one or more surface units of different sizes. Select

utensils having flat bottoms large enough to cover the surface unit heating element. The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing. Proper relationship of utensil to element will also improve efficiency.

Utensil handles should be turned inward and not

extend over adjacent surfaceelements--To reduce

the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the utensil, the handle of the utensil should be positioned so that it is turned inward, and does not extend over adjacent

surface units.

Never leave surface elements unattended at high heat settings--Boilovers causesmoking and greasy spillovers that may ignite, or a pan that has boiled dry may melt.

• Do Not Use Oven Cleaners--No commercial oven cleaner or oven liner protective coating of any kind should

be used in or around any part of the oven.

• Do Not Clean Door Gasket--The door gasket is essential for a good seal. Care should be taken not to

rub, damage or move the gasket.

• The health of some birds is extremely sensitive to the fumes given offduring the self-cleaning cycle of any

range. Move birds to another well-ventilated room.

COIL COOK TOP MODELS

• Protective Liners--Do not use aluminum foil to line surface unit drip bowls, or reflector pans. Only use

aluminum foil as recommended in this manual. Improper installation of these liners may result in risk

of electric shock, or fire.

• Hake sure reflector pans or drip bowls are in place--Absence of these pans or bowls during cooking may subject wiring or components underneath to

damage.

Do not immerse or soak removable heating

elements_Heating elements should never be immersed in water. Heating elements clean themselves during normal operation.

Glazed cooking utensils--Only certain types of glass,

glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for cook top service without breaking due to the sudden change in temperature. Check the manufacturer's recommendations for cook top use.

= When flaming foods under a ventilating hood, turn

the fan on.

IHPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of

substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such

substances.

Left 00

Rear O0

4 6

reed

Left oo

Front oo

4 reed O

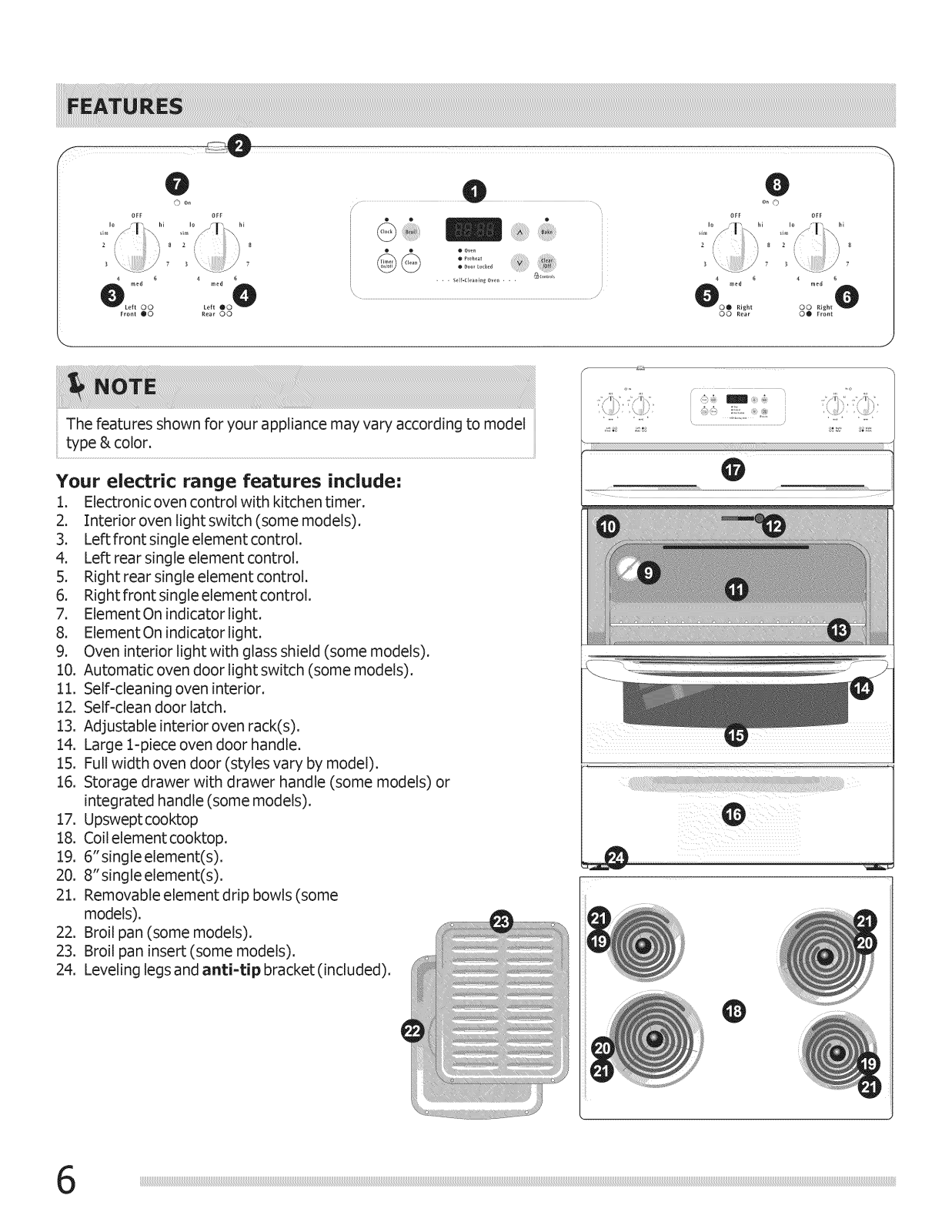

The features shown for your appliance may vary according to model type & color.

Your electric range features include'

1, Electronicoven control with kitchen timer.

2, Interior oven light switch (some models), 3, Left front single element control, 4, Left rear single element control, 5, Right rear single element control, 6, Right front single element control,

7. Element On indicator light,

8. Element On indicator light,

9, Oven interior light with glass shield (some models),

10, Automatic oven door light switch (some models), 11, Self-cleaning oven interior,

12, Self-clean door latch, 13, Adjustable interior oven rack(s),

14, Large 1-piece oven door handle, 15, Full width oven door (styles vary by model), 16, Storage drawer with drawer handle (some models) or

integrated handle (some models), 17, Upswept cooktop 18, Coil elementcooktop,

19. 6"single element(s),

20, 8"single element(s), 21, Removable element drip bowls (some

models),

22, Broil pan (some models), 23, Broil pan insert (some models).

24. Leveling legs and anti-tip bracket (included),

,,_oo,_ock,,, a9;o,,,_

, . , Self-clean,bigOve_ ,

OFF

ou,

ii_iF¸¸¸¸ _;_iJ_;;i¸_i;tii______?___i ii ii ii iii ii ii ii iii ii ii iii ii ii ii iii ii ii ii iii ii ii iiii_;ii

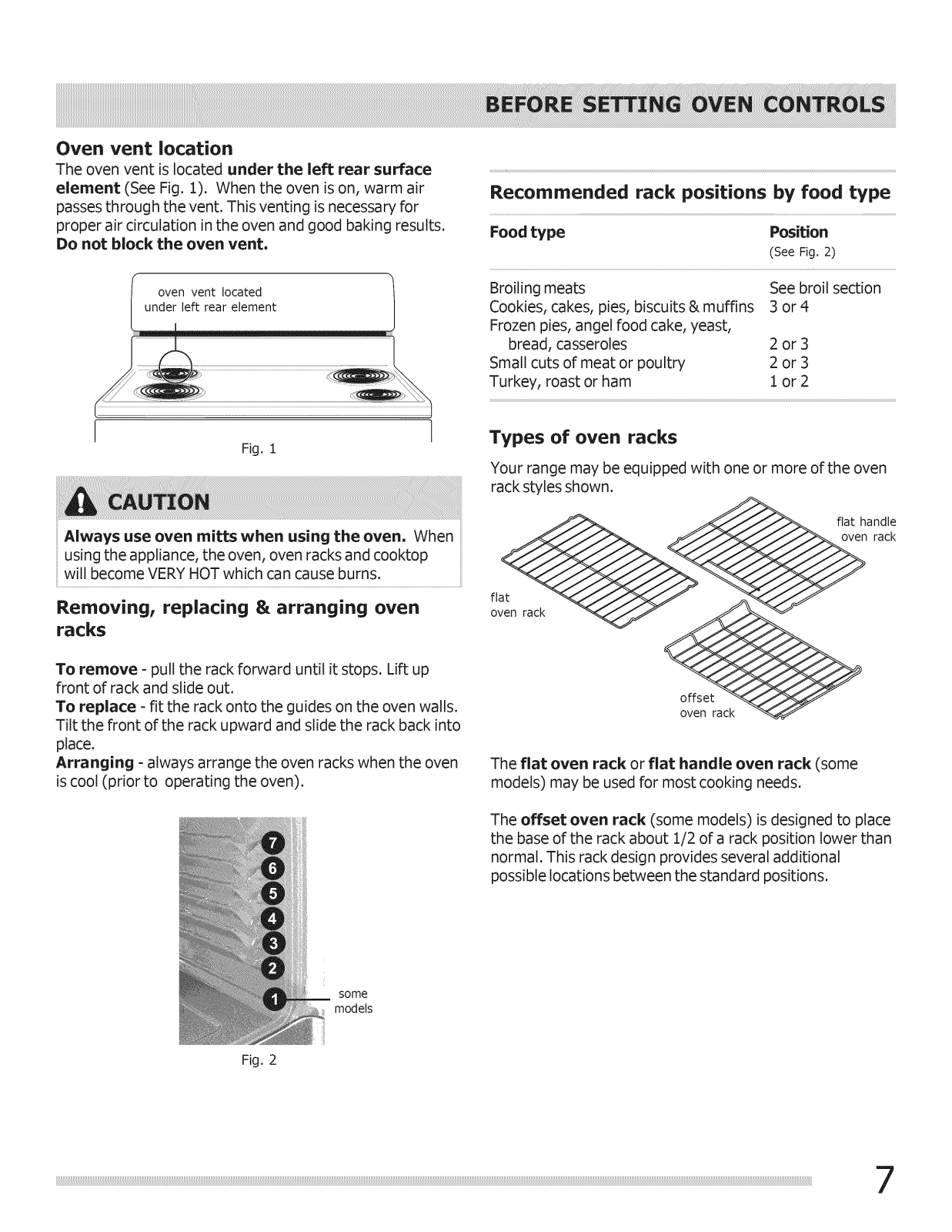

Oven vent location

The oven vent is located under the left rear surface element (See Fig. 1). When the oven is on, warm air

passes through the vent. This venting is necessary for proper air drculation in the oven and good baking results.

Do not block the oven vent.

Recommended rack positions by food type

Food type Position

(See Fig. 2)

oven vent located

under left rear element

Fig. 1

Always use oven mitts when using the oven. When using the appliance, the oven, oven racks and cooktop will become VERY HOT which can cause burns.

Removing, replacing & arranging oven racks

To remove - pull the rack forward until it stops. Lift up front of rack and slide out.

To replace - fit the rack onto the guides on the oven walls. Tilt the front of the rack upward and slide the rack back into place. Arranging - always arrange the oven racks when the oven is cool (prior to operating the oven).

Broiling meats Cookies, cakes, pies, biscuits & muffins Frozen pies, angel food cake, yeast,

bread, casseroles

Small cuts of meat or poultry

Turkey, roast or ham

See broil section 3or4

2or3 2or3 lor2

Types of oven racks

Your range may be equipped with one or more of the oven

rack styles shown.

flat handle

oven rack

The flat oven rack or flat handle oven rack (some

models) may be used for most cooking needs.

rack

Fig. 2

The offset oven rack (some models) is designed to place the base of the rack about 1/2 of a rack position lower than

normal. This rack design provides several additional possible locations between the standard positions.

some

models

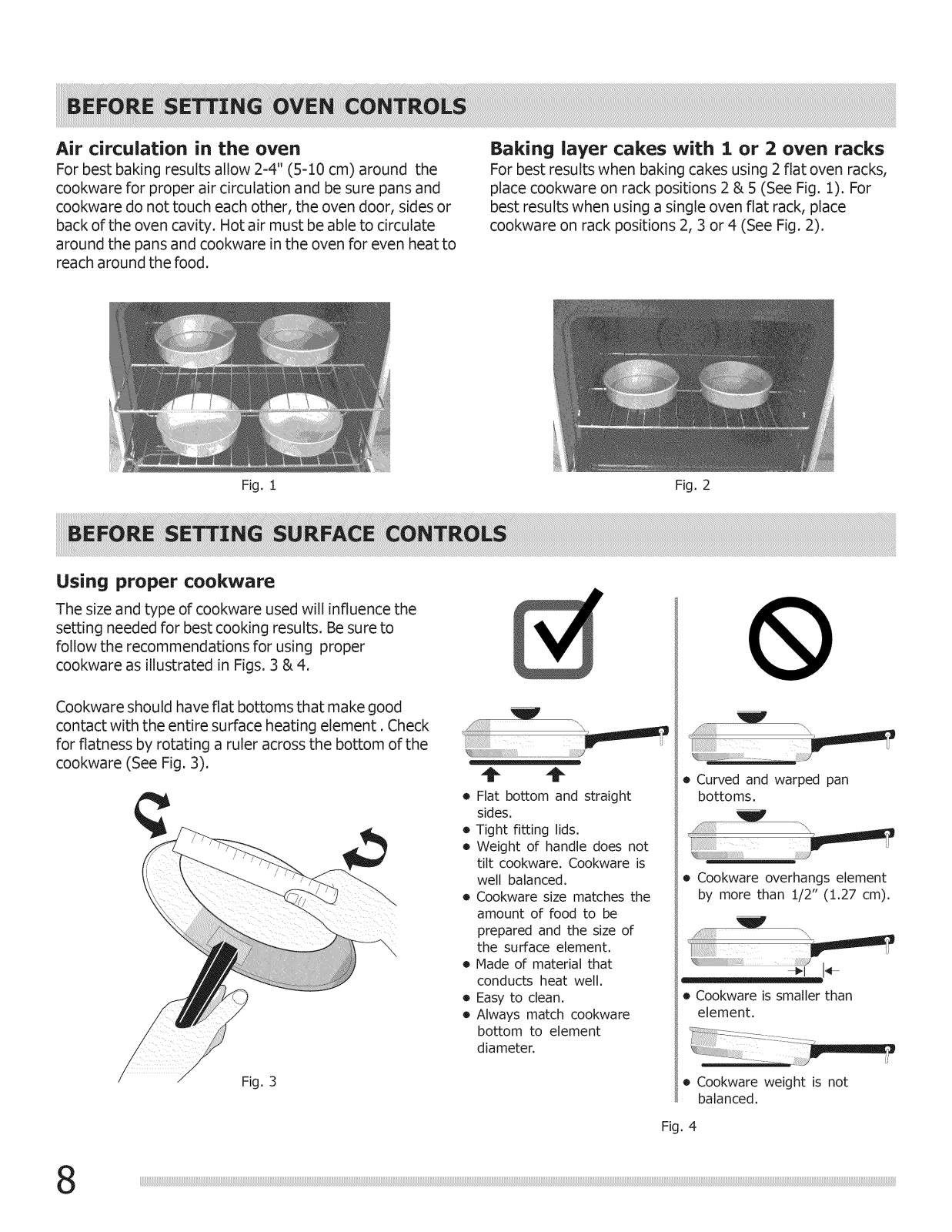

Air circulation in the oven

For best baking results allow 2-4" (5-10 cm) around the cookware for proper air circulation and be sure pans and cookware do not touch each other, the oven door, sides or back of the oven cavity. Hot air must be able to circulate around the pans and cookware in the oven for even heat to

reach around the food.

Baking layer cakes with 1 or 2 oven racks

For best results when baking cakes using 2 flat oven racks, place cookware on rack positions 2 & 5 (See Fig. 1). For best results when using a single oven flat rack, place cookware on rack positions 2, 3 or 4 (See Fig. 2).

Fig. 1

Using proper cookware

The size and type of cookware used will influence the setting needed for best cooking results. Be sure to follow the recommendations for using proper cookware as illustrated in Figs. 3 & 4.

Cookware should have flat bottoms that make good contact with the entire surface heating element. Check for flatness by rotating a ruler across the bottom of the cookware (See Fig. 3).

Fig. 2

iiii_ili_i!_ii!i!ii!i!iiii!i!_i!!i!!!!!i!i!i!!i!!i!ii_i_i!iii

• Flat bottom and straight sides.

• Tight fitting lids.

• Weight of handle does not

tilt cookware. Cookware is

well balanced.

• Cookware size matches the amount of food to be

prepared and the size of

the surface element.

• Made of material that conducts heat well,

• Easy to clean,

• Always match cookware bottom to element

diameter,

• Curved and warped pan

bottoms.

i/i i

• Cookware overhangs element by more than 1/2" (1.27 cm).

• Cookware is smaller than element.

Fig. 3

• Cookware weight is not balanced.

Fig. 4

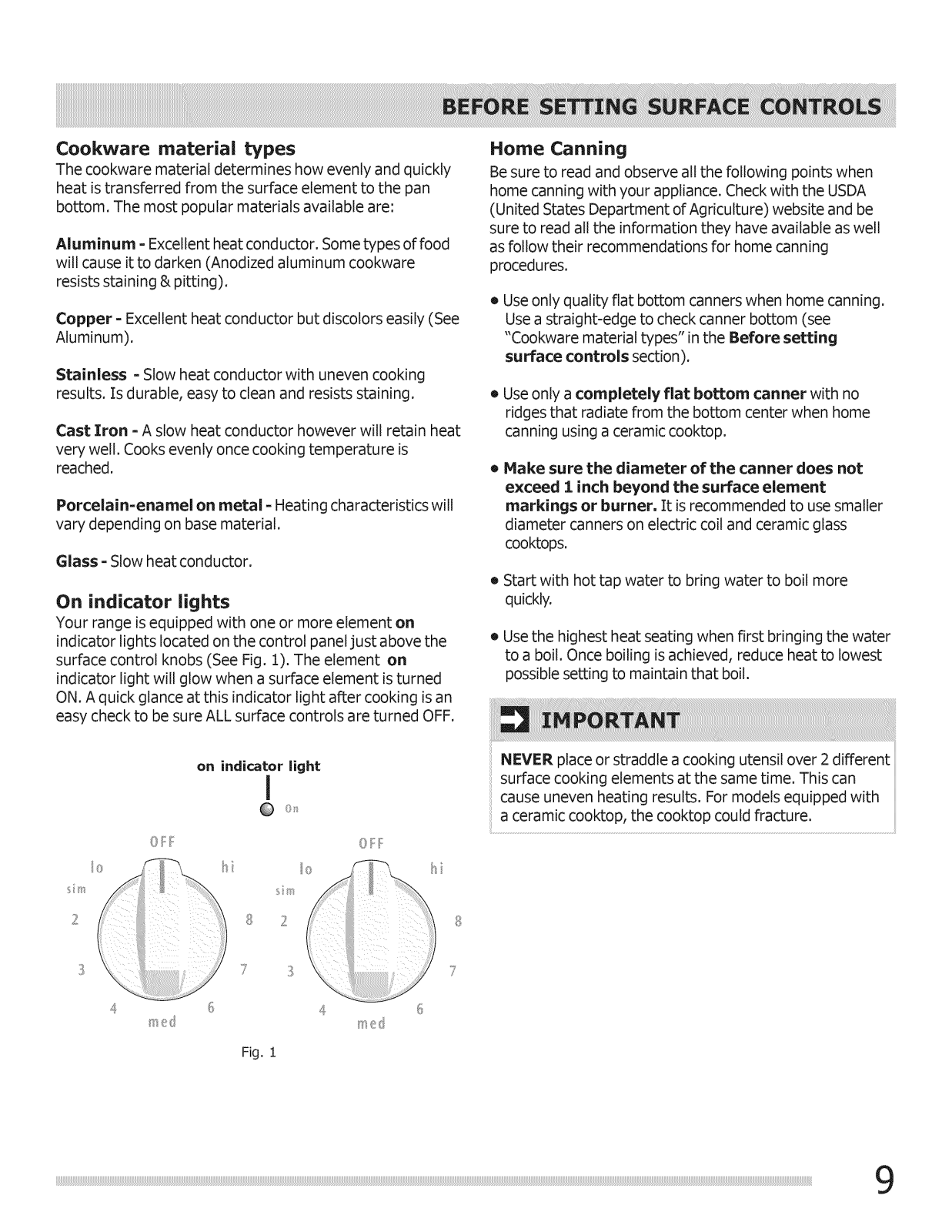

+ 16 hidden pages
