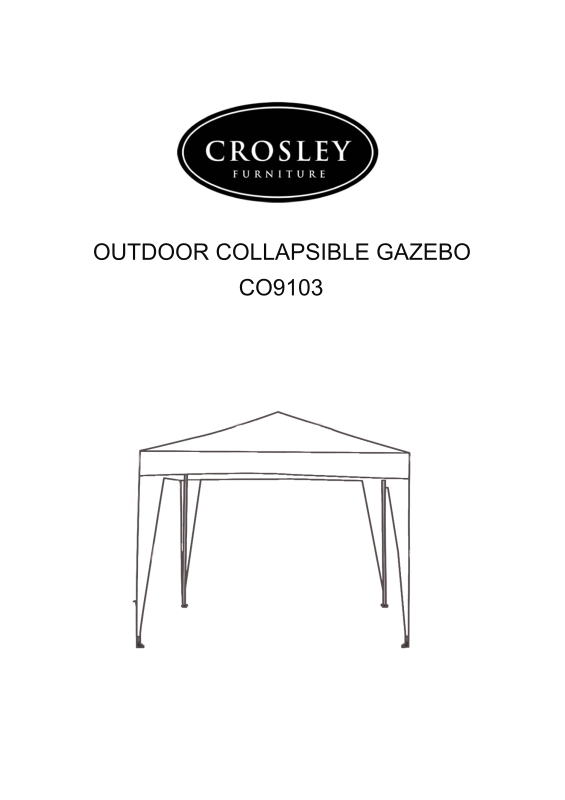

OUTDOOR COLLAPSIBLE GAZEBO
CO9103
A
ADDITIONAL TOOLS(Not Provided)
B
S
Guide Rope
S
C
Note: At least 2 people are required for assembly.
5
Step 1. Stand the Gazebo Frame (Part B) upright immediately. With people at diagonally
opposite corners,carefully pull the Gazebo partly open.Move to each side,carefully
pulling the frame apart until it has expanded as shown.
Step 2. Place the Top Cover (Part C) over the frame and attach to the center pole
especially attach four corners of Top Cover (Part C) to four corners smoothly.Lift the
canopy to reveal the framework.With people at opposite sides,push up and down on the
frames as shown.Move to each side,carefully pushing (compressing) the frame together.
After that,pulling the legs from each side carefully to make the top cover fit the frame
closely.
6
Step 3. In one corner at a time,lock the Gazebo frame in position by sliding the corner
bracket up until the spring clip engages into the bracket. Pull and extend each leg down
until the spring clips engage into the hole in the outer tubes.At the same time tie the
Velcro to side and cross poles.From inside,check that each of the frame sides are as
shown.
7
Step 4. Secure the Gazebo to the ground at each corner. Insert a peg (Part #1) through
the hole in each frame leg into the ground using a rubber mallet. Attach the hooks on
the end of the canopy legs to the holes at the end of the frame legs,the canopy cover
can be tightened by moving the hooks to a lower hole.
Step 5. Attach the end of each guy rope (Part #2) to a fabric ring at each corner of the
canopy cover. Use the pegs (Part #1) to secure the other end of the guy rope to the ground.
#2
#1
8
#1
Taking down the Gazebo
Take care when dismantling the Gazebo and do not force the frame.
a.Remove the guide ropes and pegs.
b.Unhook the canopy from the frame legs and remove the pegs.
b
c.Push in the spring clips and slide the frame legs up.
d.Push in the spring clips and (slightly) lower the corner brackets.
e.Undo the Velcro and take off the top cover.
f.With people at diagonally opposite corners,carefully lift and push the Gazebo together.
a
g.Store all of the components and fittings in the Carry Bag (Part A) provided.
9
