Crosley CGDS1043VQ0, CGDS1043VQ1, CGDS563RQ1, CGDS832VQ0, CGDS832VQ1 Installation Guide

...

29" (73.7 CM) GAS DRYERINSTALLATIONINSTRUCTIONS

Table of Contents

DRYER SAFETY ................................................ 1

INSTALLA'I10 N INSTRUCTIONS .................... 3

Tools and Parts .............................................. 3

Location Requirements ................................. 3

Electrical Requirements ................................. 5

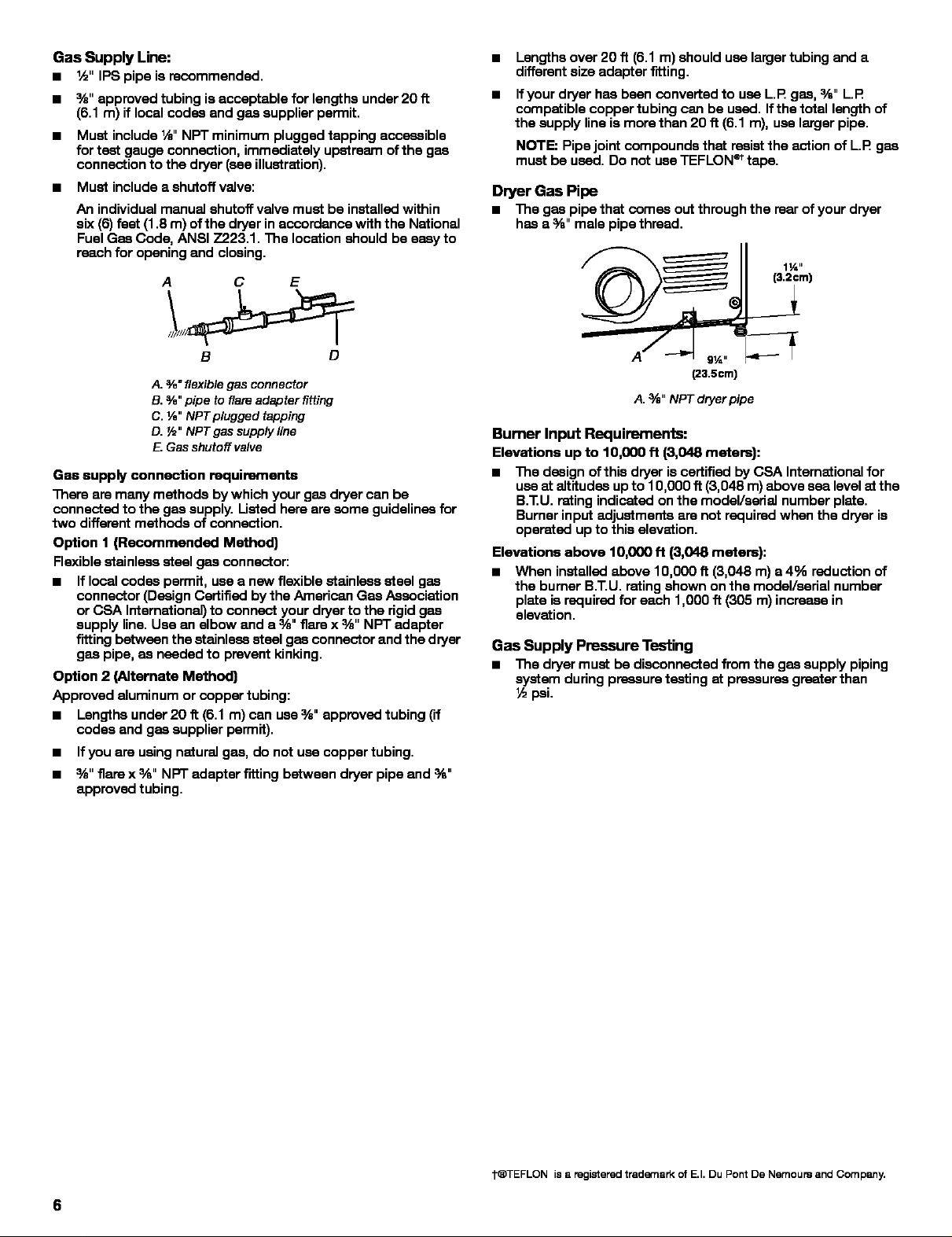

Gas Supply Requirements ............................. 5

Venting Requirements .................................... 7

Plan Vent System ........................................... 7

Install Vent System ........................................ g

Install Leveling Legs ....................................... g

Level Dryer ..................................................... g

Make Gas Connection ................................. 10

Connect Vent ............................................... 10

Reverse Door Swing (Optional) ................... 10

Complete Installation ................................... 11

DRYERSAFETY

Your safety and the safety of others are very important.

We have provided many important sarety messages inthis manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurtyou and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

You can be killed or serlousty Injured If you don't Immedlatel_ follow Instructions.

You can be killed or seriously Injured If you don't follow Instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance or injury, and tell you what can

happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

Whendiscardingor storingyouroldclotheedryer,removethe door.

SAVE THESE INSTRUCTIONS

_62_9

WARNING: For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, or to prevent property damage, personal injury, or death.

- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

-WHAT TO DO IFYOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Clear the room, building, or area of all occupants.

• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's

instructions.

• If you cannot reach your gas supplier, call the fire department.

- Installation and service must be performed by a qualified installer, service agency, or the gas supplier,

In the State of Massachusetts, the following installation instructionsapply:

• Installations and repairs must be performed by a qualified or licensed contractor, plumber, or gasritter qualified or licensed by the State of Massachusetts.

• If using a ball valve, it shall be a T-handle type.

• A flexible gas connector, when used, must not exceed 3 feet.

INSTALLATIONINSTRUCTIONS

Toolsand Parts

Check that you have everything necessary for correct installation.

Proper installation isyour responsibility.

8" or 10" pipe wrench

8" or 10" adjustable

wrench (forgas

connections) Flat-blade screwdriver a

a a

Adjustable wrench that

opens to 1" (2.5 cm) or = hex-head socket wrench

(for adjusting dryer feet) Level a

1A"nut driver or socket =

wrench

Parts supplied: Remove parts package from dryer drum. Check that all parts were

included.

4 leveling legs

Parts needed:

Check local codas and consult gas supplier. Check existing gas supply, electrical supply and venting, and read "Electrical

Requirements," "Gas Supply Requirements" and "Venting Requirements" before purchasing parts.

Mobile home installations require special parts (listed following)

that may be ordered by calling the dealer from whom you purchased your dryer. Forfurther information, please reference the front page of your "Dryer User Instructions."

a Mobile home installation kit.Ask for Part Number 345764. a Metal exhaust system hardware.

= Knife a Safety glasses

a Vent clamps

Pipe-joint compound resistant to L.P gas

Caulking gun and compound (for installing new exhaust vent)

Gloves Pliers

Location Requirements

Explosion Hazard

Keep flammable materials and vapors, such as

gasoline, away from dryer, Place dryer at least 18 Inches (46 cm) above the floor

for a garage Inefallatlon, Fallura to do so can result In death, explosion, or flra,

You will need m A location that allows for proper exhaust installation. A gas

dryer must be exhausted to the outdoors. See "Venting

Requirements."

A grounded electrical outlet located within 2 ft (61 cm) of either side of the dryer. See "Electrical Requirements."

A sturdy floor to support the dryer and a total weight (dryer and load) of 200 Ibs (90.7 kg). The combined weight of a companion appliance should also be considered.

A level floor with a maximum slope of 1" (2.5 cm) under entire dryer. (Ifslope isgreater than 1" [2.5 cm], install Extended

Dryer Feet kit, Part No. 279810.) Clothes may nottumble

properly and models with automatic sensor cycles may not operate correctly if dryer is not level.

Do not operate your dryer at temperatures below 4S°F (7°C). At

lower temperatures, the dryer might not shut offat the end of an automatic cycle. Drying times can be extended.

The dryer must not be installed or stored inan area where it will be exposed to water and/or westher.

Check code requirements. Some codas limit, or do not permit, installation of the dryer in garages, closets, mobile homes, or

sleeping quarters. Contact your local building inspector.

NOTE: No other fuel-burning appliance can be installed inthe

same closet as a dryer.

Installation Clearances

The location must be large enough to allow the dryer door to open fully.

Dryer Dimensions

43%

(110cm

(38_Z74cm)

• Companion appliance spacing should also be considered.

_f3"

F.Scm)

22_"

_(57.8cm)

*,81

166=ml

(73.66cm)

13_"

43%

(110cm

•27_ 1

(70.5cn

22_" 0__,!I

"2(770.5cn

A. Small Opening Side-Swing Door B. Large Opening Side-Swing Door C, Wide Opening Side-Swing Door D, Wide Opening Hamper Door

*Most installations require a minimum 5½" (14 cm) clearance

behind the dryer for the exhaust vent with elbow. See "Venting Requirements."

Minimum installation spacing for recessed area or closet installation

The dimensions shown following are forthe minimum spacing

allowed.

• Additional spacing should be considered for ease of

installation and servicing.

• Additional clearances might be required for wall, door and

floor moldings.

• Additional spacing of 1" (2.5 cm) on all sides of the dryer is

recommended to reduce noise transfen

For closet installation,with e door, minimum ventilation

openings inthe top and bottom of the door are required.

Louvered doors with equivalent ventilation openings are

acceptable.

,9=ml

_ 3"

F3o11)

A. Recessed area B. Side view- closet or confined area C. Closet door with vents

Mobile Home - Addiffonal Installation Requirements

This dryer is suitable for mobile home installations. The installation must conform to the Manufactured Home

Construction and Safety Standard, Title 24 CFR, Part 3280 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD Part 280).

Mobile home installations require:

• Metal exhaust system hardware which is available for purchase from your dealer.

• Mobile Home Installation Kit Part #346764, see "Tools and

Parts" section for ordering information.

• Special provialons must be made in mobile homes to introduce outside air into the dryer. The opening (such as a nearby window) should be at least twice as large as the dryer exhaust opening.
