Crosley CDG5000FW1, SAGQ7000FS1, AEQ6400HE0, AEQ6400HS0, AGQ8700FE1 Installation Guide

...
I stallati I structi
Instrucci instal
I
www.frigidaire.com P/N 134759900A (0709)
CONTENTS
Pre-lnstallation Requirements ...........................................................................................................................................
Exhaust System Requirements ...................................................................................................................................... 3-4
Gas Supply Requirements ............................................................................................................................................ 4-5
Grounding Requirements .............................................................................................................................................. 9
Electrical Connections--4-wire ........................................................................................................................................ 10
Gas Connection ............................................................................................................................................................ 10
General Installation ....................................................................................................................................................... 10
Replacement Parts........................................................................................................................................................ 10
Espahol .................................................................................................................................. 11-20
SAFETY INSTRUCTIONS
Clothes dryer installation and service must be performed by a qualified installer, service agency or the gas supplier. install the clothes dryer according to the manufacturer's instructions and local codes. Before beginning installation, carefully read these instructions. This will simplify the installation and ensure the dryer is installed correctly and safely, Leave these instructions near the Dryer after installation for future reference.
NOTE: The electrical serviceto the Dryer must conform with local codes and ordinances and the latest edition of the National Electrical
Code, ANSI/NFPA70, or in Canada, the Canadian electrical code C22.1 part I. NOTE: The gasserviceto the Dryer must conform with local codes and ordinances and the latest edition of the National FuelGasCode
ANSI Z223.1, or in Canada, CAN/ACG B149.1-2000 NOTE: The Dryer is designed under ANSIZ 21.5.1 or ANSI/UL 2158 - CAN/CSA C22.2 No. 112 (latest editions) for HOME USE only.
This Dryer isnot recommended for commercial applications such as restaurants or beauty salons, etc.
Your safety and the safety of others is very important.
We have provided many important safety messages in the Use & Care Guide, Operating Instructions, Installation Instructions and on your appliance. Always read and obey all safety messages.
This is the safety alert symbol. This symbol alerts you to hazards that can kill or hurt you or others. All safety messages
will be preceded by the safety alert symbol and the word "DANGER" or "WARNING". These words mean:
_ You will be killed or seriously injured if you don't follow instructions.
You can be killed or seriously injured if you don't follow instructions.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the
instructions are not followed.
RISK OF FIRE For your safety the information in this manual must be followed to minimize the risk of fire or
explosion or to prevent property'damage, personal injury or lossof life. SAVE THESEINSTRUCTIONS,
- Do not store or use gasoline or other flammable vapors and liquid in the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS . Do not try to light any appliance.
, Do not touch any electrical switch; do not use any phone in your building. , Clear the room, building or area of all occupants.
Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions. If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
PRE-INSTALLATION REQUIREMENTS
Tools and Materials Required for installation:
1. Phillips head screwdriver.
2. Channel-lock adjustable pliers.
3. Carpenter's level.
4. Flat or straight blade screwdriver.
5. Duct tape.
6. Rigid or flexible metal 4 inch (10.2 cm) duct.
7. Vent hood.
8. Pipe thread sealer (Gas).
9. Plastic knife. 2
ELECTRICAL REQUIREMENTS
i ELECTRICDryer
CIRCUIT- Individual 30 amp. branch circuit fused with 30 amp. time delay fuses or circuit breakers.
Use separately fused circuits for washers and dryers, and DO NOT operate a washer and a dryer on the same circuit.
EXHA LIST SYSTEM REQUIREMENTS
Use only 4 inch (10.2 cm) diameter (minimum) rigid or flexible metal duct and approved vent hood which has a swing-out damper(s) that open when the dryer is in operation. When the dryer stops, the dampers automatically close to prevent drafts and the entrance of insects and rodents. To avoid restricting the outlet, maintain a minimum of 12 inches(30.5 cm) clearance between the vent hood and the ground or any other obstruction.
POWER SUPPLY- 3 wire or 4-wire, 240 volt, single phase, 60 Hz, Alternating Current.
POWER SUPPLY CORD KIT - The dryer MUST employ a 3- conductor power supply cord NEMA 10-30 type SRDTrated at 240 volt AC minimum, 30 amp., with 3 open end spade lug connectors with upturned ends or closed loop connectors and marked for usewith clothes dryers.
WARNING - Risk of Shock. Appliance grounded to neutral conductor through a link. Grounding through the neutral link is prohibited for (1) New branch circuit installations (2) mobile
homes; (3) recreational vehicles; and (4) areaswhere local codes do not permit grounding through the neutral, (1) disconnect the
link from the neutral, (2) use grounding terminal or lead to ground appliance in accordance with local codes and (3) connect
neutral terminal or lead to branch circuit neutral in usualmanner (if the appliance is to be connected by means of a cord kit, use
4-conductor cord for this purpose). USECOPPERCONDUCTOR ONLY. The dryer MUST employ a 4-conductor power supply cord NEMA 14-30 type SRDTor ST(as required) rated at 240 volt AC minimum, 30 amp., with 4 open end spade lug connectors with upturned ends or closed loop connectors and marked for use with clothes dryers. See ELECTRICAL
CONNECTIONSFORA 4-WIRE SYSTEM. (Canada - 4-wire power supply cord is installed on dryer.)
The following are specific requirements for
proper and safe operation of your dryer, Failure to follow
these instructions can create excessive drying times and fire hazards.
Do not install a clothes dryer with flexible
plastic venting materials. If your present system is made up
of plastic duct or metal foil duct, replace it with a rigid or flexible metal duct. In Canada and the United States if metal (foil type) duct is installed, it must be of a specific type identified by the appliance manufacturer as suitable for use with clothes dryers and in the United States must also comply with the Outline for Clothes Dryer Transition Duct, UL standard 2158A. Flexible venting materials are known to collapse, be easilycrushed and trap lint. Theseconditions will obstruct clothes dryer airflow and increase the risk of fire. Ensure the present duct is free of
any lint prior to installing dryer duct.
OUTLET RECEPTACLE- NEMA 10-30R receptacle to be located
so the power supply cord is accessible when the dryer is in the installed position. (Canada - NEMA 14-30R receptacle.)
NEMA 10-30R NEMA 14-30R
i GASDryer i
CIRCUIT- Individual 15 amp. branch circuit fused with a 15
amp. maximum time delay fuse or circuit breaker.
POWER SUPPLY - 3 wire, 120 volt single phase, 60 Hz, Alternating Current.
POWER SUPPLY CORD - The dryer is equipped with a 120 volt 3-wire power cord.
NOTE: Do not under any _ { _l _ _
circumstances remove
grounding prong from
plug.
G PRONG
I
Correct Incorrect
DO DON'T
© .... C
_- Risk of Fire - A clothes dryer must be exhausted outdoors. Do not exhaust dryer into a chimney, a
wall, a ceilinq, an attic, a crawl space or any concealed space of a building A clothes dryer produces combustible lint. If the
dryer is not exhausted outdoors some fine lint will be expelled into the laundry area. An accumulation of lint in any area of the
home can create a health and fire hazard. The dryer must be connected to an exhaust outdoors. Regularly inspect the
outdoor exhaust opening and remove any accumulation of lint around the outdoor exhaust opening and in the surrounding area.
l
_ Incorrect
Do not allow combustible materials (for
example: clothing, draperies/curtains, paper) to come in contact with exhaust system. The dryer MUST NOT be
exhausted into a chimney, a wall, a ceiling, or any concealed space of a building which can accumulate lint, resulting in a fire
hazard.
Exceeding the length of duct pipe or number
of elbows allowed in the "MAXIMUM LENGTH" charts can
cause an accumulation of lint in the exhaust system. Plugging the system could create a fire hazard, aswell as increase drying
times.
Do not screen the exhaust ends of the vent
system, nor use any screws, rivets or other fastening means
that extend into the duct and catch lint to assemble the
exhaust system. Lint can become caught in the screen, on the screwsor rivets,clogging the duct work and creating afire hazard aswell as increasing drying times. Use an approved vent hood to terminate the duct outdoors, and sealalljoints with duct tape. All male duct pipe fittings MUSTbe installed downstream with
the flow of air.
Explosion hazard. Do not install the dryer
where gasoline or other flammables are kept or stored. If
the dryer is installed in a garage, it must be a minimum of 18 inches (45.7 cm) above the floor. Failure to do so can result in death, explosion, fire or burns.
MAXIMUM LENGTH
of 4" 110.2 cm) Dia. Rigid Metal Duct
VENT HOOD TYPE
Number (Preferred)
110.2 cm) (6.35 cm)
0 60 ft.(l&28 m) 48 ft.114.63 m)
1 52 ft.(15.84 m_ 40 ft.(12.19 m)
2 44 ft.113.41 m) 32 ft. 19.75m) 3 32 ft.(9.75 m) 24 ft. (7.31 m) 4 28 ft.(8.53 m) 16ft. (4.87m)
MAXIMUM LENGTH
Number of 4" (10.2 cm) Dia. Flexible Metal Duct
of (Preferred)
VENT HOOD TYPE
I. Connect an inclined or digital manometer between the
dryer and the point the exhaust connects to the dryer.
2. Set the dryer timer and temperature to air fluff (cool down) and start the dryer.
3. Read the measurement on the manometer.
4. The system back pressure MUSTNOTbe higher than 0.75 inches of water column. If the system back pressure is less than 0.75 inches of water column, the system is acceptable. If the manometer reading is higher than 0.75 inches of water column, the system is too restrictive and the installation is unacceptable.
Although vertical orientation of the exhaust system isacceptable, certain extenuating circumstances could affect the performance of the dryer:
• Only the rigid metal duct work should be used.
• Venting vertical through a roof may expose the exhaust systemto down drafts causing an increase in vent restriction.
• Running the exhaust system through an uninsulated area may cause condensation and faster accumulation of lint.
• Compression or crimping of the exhaust system will cause an increase in vent restriction.
The exhaust system should be inspected and cleaned a minimum of every 18 months with normal usage. The more the dryer is used, the more often you should check the exhaust system and vent hood for proper operation.
EXHAUST DIRECTION
All dryers shipped from the factory are set up for rear exhausting. However, on electric dryers, exhausting can be to the right or left side of the cabinet or the bottom of the dryer. On gas dryers, exhausting can be to the right side of the cabinet or the bottom of the dryer. Directional exhausting can be accomplished by installing Exhaust Kit, P/N 131456800, available through your parts distributor. Follow the instructions supplied with the kit.
EXHAUST DUCT LOCATING DIMENSIONS
_'J_" -/" 57/8"
k _2//- SAMEASOTHERSIDE
4,,F
(10.2 cm) (6.35 cm)
0 30ft. 19.14m) 18ft. IS.49m)
1 22 ft. (6.71 m) 14 ft. (4.27 m)
2 14 ft. (4.27 m) 10 ft. (3.05 m)
3 NOT RECOMMENDED
INSTALL MALE FITTINGS IN CORRECT DIRECTION
In installations where the exhaust system is not described in the charts, the following method must be used to determine if the exhaust system isacceptable:
GAS SUPPLY REQUIREMENTS
Replace copper connecting pipe that is not
plastic-coated. Stainless steel or plastic-coated brass MUST
be used.
I. Installation MUST conform with local codes, or in the absence
of local codes, with the National Fuel GasCode, ANSI Z223.1 (latest edition).
2. The gas supply line should be of 1/2 inch (1.27 cm) pipe.
3. If codes allow, flexible metal tubing may be used to connect
your dryer to the gas supply line. The tubing MUST be
constructed of stainless steel or plastic-coated brass.
4. The gas supply line MUSThave an individual shutoff valve.
4
5. A 1/8 inch (0.32 cm) N.P.T.plugged tapping, accessiblefor test gauge connection, MUST be installed immediately upstream
of the gas supply connection to the dryer.
6. The dryer MUST be disconnected from the gas supply piping system during any pressuretesting of the gas supply piping system at test pressures in excessof I/2 psig (3.45 kPa).
7. The dryer MUSTbe isolated from the gas supply piping system during any pressure testing of the gas supply piping system at test pressures equal to or lessthan
I/2 psig (3.45 kPa).
LOCATION OF YOUR DRYER
DO NOT INSTALL YOUR DRYER:
1. In an area exposed to dripping water or outside weather conditions.
2. In an area where it will come in contact with curtains, drapes, or anything that will obstruct the flow of combustion and ventilation air.
3. On carpet. Floor MUSTbe solid with a maximum slope of 1 inch (2.54 cm).
INSTALLATION IN RECESSOR CLOSET
I. A dryer installed in a bedroom, bathroom, recessor closet, MUST be exhausted outdoors.
2. No other fuel burning appliance shall be installed in the same closet as the Gasdryer.
3. Your dryer needs the space around it for proper ventilation.
DO NOT install your dryer in a closet with a sofid door
4. A minimum of 120 square inches (774.2 square cm) of opening, equally divided at the top and bottom of the door, is required. Air openings are required to be unobstructed when a door is installed. A Iouvered door with equivalent air openings for the full
length of the door is acceptable.
MINIMUM INSTALLATION CLEARANCES - Inches (cm)
SIDES REAR TOP FRONT
Alcove 0(0cm) 0(0cm) Closet 0 (0 cm) 0 (0 cm) 1 (2.54 cm) Closet door ventilation required: 2 Iouvered openings each 60 square inches (387 square centimeters) -- 3 inches (7.6 cm) from
bottom and top of door.
This dryer MUST be exhausted outdoors.
5. The following illustrations show minimum clearance dimensions for proper operation in a recessor closet installation.
II
--_ii*--o" (o cm)
H
ii
0" (0 cm)
II
1" (2.54 cm) _i_ 0" (0 cm)
II ii
II _11 _
CLOSET DOOR
inches (cm)
To front of cabinet
28.25"(71.76)
To clear kobs
28.75"(73.03)
To clear door
29.5"(74.93)
To clear open door
53"(134.62)
25/8"
(6.67)
Dryer Installation Dimensions
Free-Standing & Under Counter
24"
(60.96) Electrical supply
13½"
22%"
(57.79)
24318"
(61,91)
27"
5.875"(14.93)
Tobase
_exhaust
4.375"(11.12) To side
exhausts
: 5.0"(12,7) 5"
Center line (12.70)
, height for rear, __
right, left vent
15/8"
(4.13)
29%"
175.57)
/
(34.29)
To rear and base
exhausts
Gass ,y t2.25,,
pipe on rear of unit
(68.56)
(68.58)
Stacked Dryer installation Dimensions
t 27"
T
72,00"
(172.88)
Gas
supply
pipe on rear of
unit \
I
2.375"1 (6.03)
(34.29) _ \
_ X
J
27"
(68.58)
= : : ? _
35"
(68.90)
34'
(86.:i6)
(5.72)
Electrical
supply on
rear of
_ unit
/
(
\
inches (cm)
41.00"
(97.16)
Center line height for
rear, right,
left vents
38.25"
(97.16)

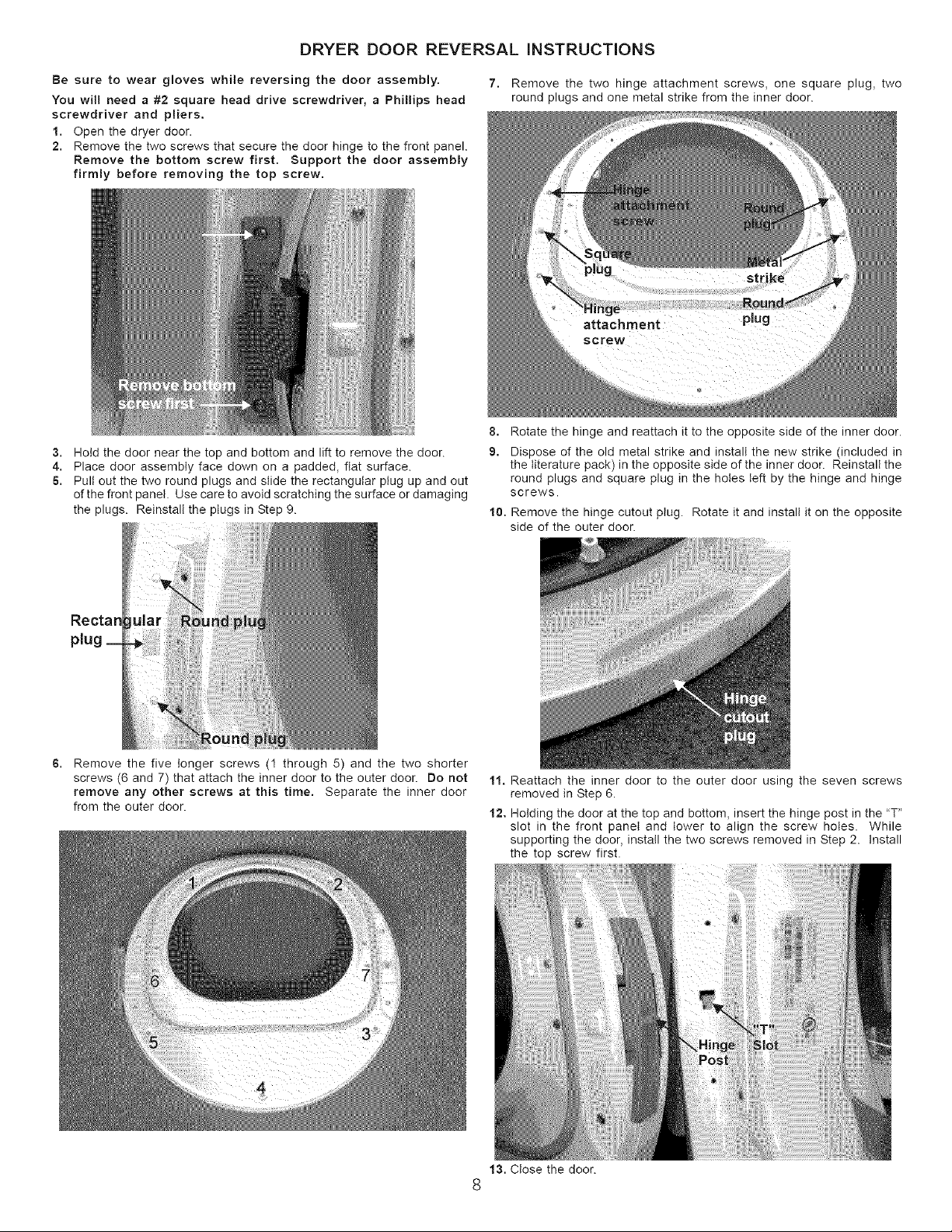

] , , .... ' ,i
%
