TOP AND CABINET PARTS
For Model: CAWS923MQ0
(Designer White)
AUTOMATIC
WASHER
5−03 Litho in U.S.A. (drd)
1
Part No. 8179984
TOP AND CABINET PARTS
For Model: CAWS923MQ0
(Designer White)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
LIT3956025
LIT3955874
LIT3955915
LIT3956287
LIT8542634
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
Installation
Instructions
Use & Care Guide
Feature Sheet
Energy Guide
Wiring Diagram
LIT4313896
2 8271378 Top
3 62750 Spacer, Cabinet To
4 357213 Nut, Push−In (2)
5 63424 Cabinet
6 62780 Clip, Top & Cabinet
7 3362952 Dispenser, Bleach
8 3356311 Screw & Washer,
11 3949237 Switch, Lid
12 3357011 Screw, 10−16 x 1/2
13 3351355 Screw, Lid Hinge
15 54584 Hinge, Lid (L.H.)
16 91770 Hinge, Lid (R.H.)
17 19119 Bumper, Lid Hinge
18 21258 Bearing, Lid
19 3361411 Lid
20 358684 Strike, Lid Switch
22 9724509 Bumper, Lid (2)
28 3390631 Screw, 10−16 x 3/8
31 90016 Clip, Harness
Manual, Washer
Top (4)
& Rear Panel (2)
Lid Switch (2)
Mounting (4)
Hinge (2)
2
8179984
CONTROLS AND REAR PANEL PARTS
For Model: CAWS923MQ0
(Designer White)
8179984
3
CONTROLS AND REAR PANEL PARTS
For Model: CAWS923MQ0
(Designer White)
Illus. Part
No. No. DESCRIPTION
1 3976300 Washer, Water
Inlet Hose (4)
(1−1/16 x 5/8)
2 3400073 Screw, Ground
3 Hose, Water
Inlet (2)
3949374 Blue Coupler
3949375 Red Coupler
4 9740848 Screw
5 8318255 Strap, Console (2)
6 3357978 Panel, Rear
7 62747 Pad, Rear Panel
8 3951609 Hose, Drain
(4 ft.)
661577 Hose, Drain
(9 ft.)
(Not Included)
3357090 Extension
Drain−Hose
(21 Inches)
(Not Included)
9 3951702 Timer, Control
(60 Hz.)
(Motor Not A
Service Part)
Illus. Part
No. No. DESCRIPTION
10 3351614 Screw, Ground
11 90767 Screw, 8−18 x 3/8
12 3366845 Switch, Water Level
13 3948608 Bracket, Control
14 661661 Cord, Power
(Includes Item 15)
15 3952821 Strain Relief,
Power Cord
16 8274437 Cap, End (L.H.)
17 661606 Capacitor,
Motor Start
18 3952164 Valve, Water
Mixing
19 8317975 Retainer, Harness
20 8318201 Clip, Capacitor
21 370451 Clamp, Hose
22 3357328 Hose, Vacuum
Break
23 371503 Clamp, Hose
24 387606 Break, Vacuum
25 303294 Edge Protector
26 8317940 Hose−Corrugated
Assembly
27 3366912 Clamp, Hose
28 3976395 Clamp, Hose
29 3347812 Clip, Harness
Illus. Part
No. No. DESCRIPTION
30 3363366 Clamp, Hose
31 8317496 Clamp, Hose
32 3951449 Hose, Pump To Tub
33 8055003 Clip, Harness
& Pressure Hose
35 661612 Switch, Water
Temperature
36 3400818 Screw, Timer
Mounting
37 3949187 Switch, Rotary
39 3956225 Panel, Console
44 3951026 Knob, Timer
45 3950762 Dial, Timer
47 3950759 Knob, Control
49 388326 Screw, 8−18 x 1.25
(Panel to Top)
50 62863 Screw, 10−16 x 3/8
51 8274434 Cap, End (R.H.)
55 3976286 Shield, Capacitor
58 3366913 Clamp, Drain
Hose
59 3348424 Shield, Suds
60 3357027 Nozzle−Drain
Hose
61 3956539 Wiring Harness
(For Detail See
Pages 9 & 10)
4
8179984
AGITATOR, BASKET AND TUB PARTS
For Model: CAWS923MQ0
(Designer White)
8179984
5
AGITATOR, BASKET AND TUB PARTS
For Model: CAWS923MQ0
(Designer White)
Illus. Part
No. No. DESCRIPTION
1 63580 Dispenser,
Fabric Softener
2 358237 Screw & Washer
(5/16−24 x 1)
3 3348752 Clothes Mover
4 3347288 Agitator
5 8528150 Tub Ring & Gasket
6 3976308 Gasket, Tub Ring
7 3354845 Clip, Agitator
8 3355921 Washer, Agitator
9 3363663 Cam, Driven
10 3366877 Dog, Agitator
Clutch
11 3363661 Bearing, Cam
Driven
12 21366 Nut, Spanner
13 8526016 Basket & Balance
Ring
14 8519788 Balance Ring
16 63849 Tub
17 389140 Block, Basket
Drive
18 383727 Gasket, Centerpost
19 3347780 Hose, Pressure
Switch
20 3348117 Agitator
(Complete)
22 3350389 Spacer, Thrust
23 3347290 Cap, Barrier
24 3348855 Seal, Inner Cap
26 3949550 Washer
6
8179984
BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS
For Model: CAWS923MQ0
(Designer White)
Illus. Part
No. No. DESCRIPTION
1 388952 Brake & Drive
Tube (Complete)
(Refer to Page 11
For Further
Breakdown)
2 63292 Washer, Spin
Tube Thrust
3 62697 Ring, Spin
Tube Support
4 63283 Ring, Retainer
5 3951311 Clutch (Complete)
6 3951308 Band & Lining,
Clutch (Includes
Illus. 7 & 8)
7 62646 Cap, Clutch
Spring (2)
8 3946792 Spring, Clutch
9 3360630 Gearcase
(Complete)
(Refer To Page 12
For Further
Breakdown)
Illus. Part
No. No. DESCRIPTION
10 3357334 Screw, Gearcase
To Base (3)
11 62611 Plate, Motor
Mount To
Gearcase
12 62691 Grommet, Motor (4)
13 285753 Coupling, Motor
& Isolation
15 3355454 Clip,
Anti−Rattle
16 3400516 Screw
17 3349637 Retainer, Motor (2)
18 3362089 Shield, Tub
To Motor
19 8528157 Motor, Main
Drive
20 3952056 Switch, Main
Drive Motor
21 62700 Retainer, Pump (2)
22 3363394 Pump (Complete)
23 3387485 Screw, 10−16 x 5/8
24 3946532 Shield, Motor
8179984
7

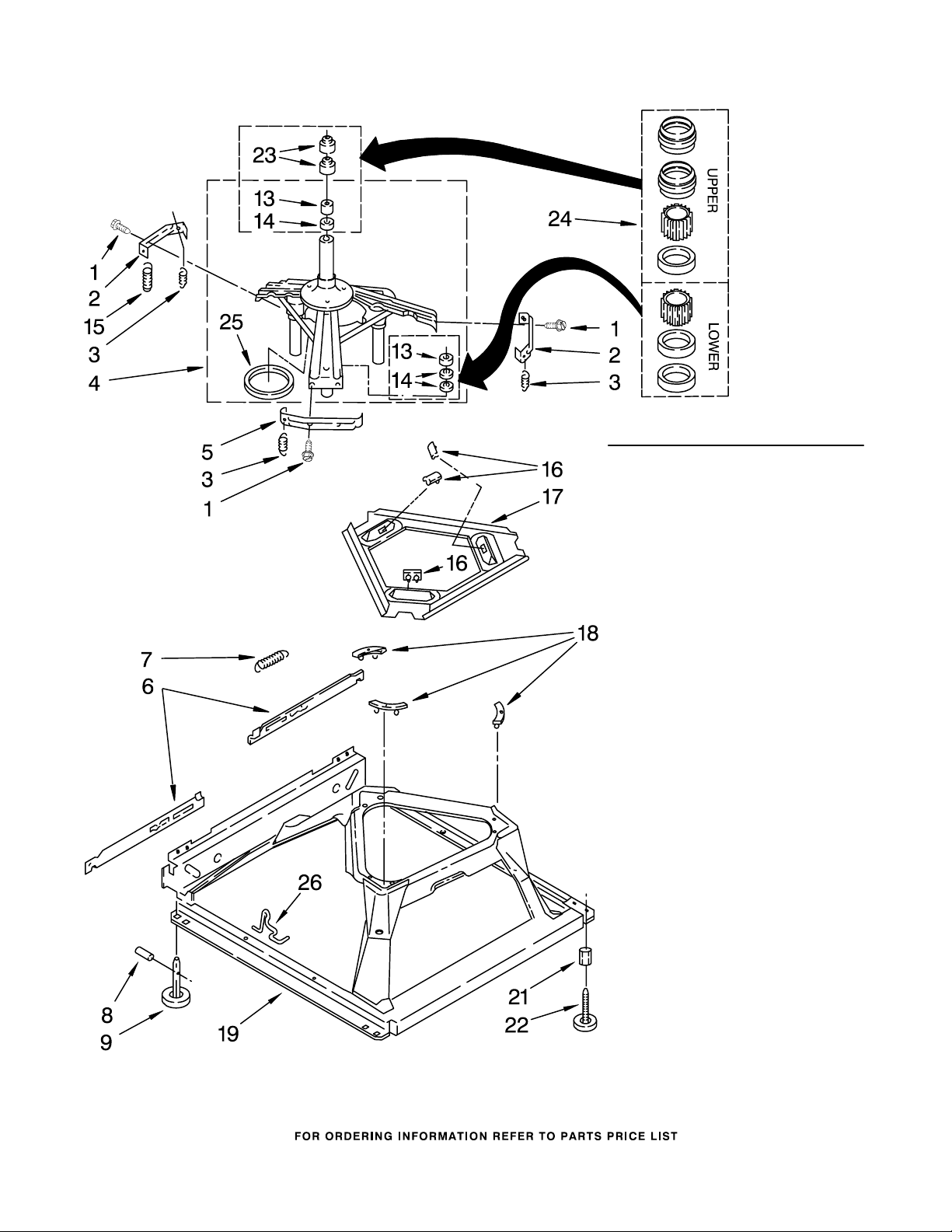

MACHINE BASE PARTS
For Model: CAWS923MQ0
(Designer White)
Illus. Part
No. No. DESCRIPTION
13 3347047 Bearing,
14 357409 Seal, Centerpost (3)
15 388492 Spring,
16 62568 Pad, Plate
17 3946509 Plate, Suspension
18 3363660 Pad, Base
19 3946512 Base Assembly
21 3359452 Nut, Lock
22 389102 Foot, Front (2)
23 356934 Seal, Centerpost (2)
24 285203 Centerpost
25 63134 Ring, Sound
26 63806 Retainer,
1 3400076 Screw, Bracket
Mounting
(10−32 x 5/8)
2 64067 Bracket, Spring
Outer (2)
3 63907 Spring
Suspension,(3)
4 3362087 Support & Brake,
Tub
5 64065 Bracket, Spring
Outer (L.F.)
6 63466 Link, Leveling
Mechanism (2)
7 62597 Spring, Leveling
Mechanism
8 62837 Pin, Knurled
9 62596 Foot, Rear (2)
Centerpost (2)
Counterweight
(Includes Illus. 16)
(Includes Illus, 6,
7, 8, 9, 16, 17
18 & 26)
(3/8−16) (2)
Bearing Kit
(Includes Illus.
13, 14 & 23)
Deadening
Suspension Spring
8
8179984
WIRING HARNESS PARTS
For Model: CAWS923MQ0
(Designer White)
8179984
9
WIRING HARNESS PARTS
For Model: CAWS923MQ0
(Designer White)
Illus. Part
No. No. DESCRIPTION
1 3349557 Clip, Harness
2 388498 Clip, Harness
3 3347812 Clip, Harness
4 3352501 Clip, Harness
5 90016 Clip, Harness
6 3390496 Clip, Harness
7 389379 Retainer,
(Suds Models)
8 352090 Timer, Block
Disconnect
(White)
9 352089 Timer, Block
Disconnect
(Black)
10 62889 Receptacle,
Terminal
(3−Way)
(Lid Switch)
(Use Term.94613)
Or 94614.)
11 353424 Plug, Terminal
(3−Way)
(Power Cord)
(Use Term.94613)
12 62505 Block, Disconnect
(Motor 2 Speed)
(Use Term.352088)
Illus. Part
No. No. DESCRIPTION
13 3348075 Block, Disconnect
(Motor 3 Speed)
(Use Term. 94613
Or 94614.)
14 3347243 Block, Disconnect
(Use Term. 352088)
15 63523 Protector
16 717252 Connector
(2−Way)
(Use Term.94614)
17 387566 Plug, Terminal
(4−Way)
(Power Cord)
(Use M3 Screws)
18 3352944 Clip, Harness
19 3390423 Block, Disconnect
(12−Way)
(Timer)
(Use Term. 94613)
20 3347730 Receptacle
(6−Way)
(Use Term. 94613)
21 388818 Plug, Terminal
(12−Way)
(Use Term. 94613
Or 94614.)
22 3369366 Timer, Block
Disconnect
(Black) (Amp)
(Use Term.3369365)
Illus. Part
No. No. DESCRIPTION
23 3349494 Connector, Etc
24 60687 Connector, Relay
(Use Term.308569)
25 3407125 E.T.C. Control
26 3948617 Connector (T.P.A.)
(3−Circuit)
(Lid Switch)
(Use Term. 3948619
OR 3948620.)
27 3360056 Connector (T.P.A)
(3−Circuit)
(Pressure Switch)
(Use Term.3948619
OR 3948620.)
28 3354925 Block, Connector
(Cold Valve)
(Use Term.693217)
29 3354926 Block, Connector
(Hot Valve)
(Use Term.693217)
30 3948615 Connector (T.P.A.)
(6−Circuit)
(Temp. Switch)
(Use Term.3948619
OR 3948620.)
10
8179984
BRAKE AND DRIVE TUBE PARTS
For Model: CAWS923MQ0
(Designer White)
Illus. Part
No. No. DESCRIPTION
1 388952 Brake And Drive
2 62658 Ring, Thrust
3 91939 Seal, Oil
4 356427 Seal, Drive Tube
5 356937 Spacer, Drive
6 64027 Tube, Basket
7 64035 Ring, Retaining
8 64232 Shoe, Brake
9 62703 "T" Bearing,
10 62648 Cap, Brake
11 387806 Spring, Brake
12 62909 Sleeve, Brake
13 63023 Cam, Brake
14 63022 Sleeve, Cam
15 64194 Driver, Brake
16 90368 Ring, Retaining
Tube (Complete)
Tube
Drive (Includes
Illus. 3, 4, 5 & 9)
Spin Tube
Spring (2)
Spring
Release
Cam
FOLLOWING PARTS
NOT ILLUSTRATED
285208 Lubricant
(Use Only In
Brake Shoe
Assembly On
Roller & Pin)
8179984
11
GEARCASE PARTS
For Model: CAWS923MQ0
(Designer White)
Illus. Part
No. No. DESCRIPTION
1 3360630 Gearcase
(Complete)
2 285202 Cover, Gearcase
3 3349985 Seal, Gearcase
Cover
4 285195 Sealer, Gasket
(.20 Fl. Oz.) (6 ml)
5 63320 Pinion, Spin
(Includes Illus. 25)
6 356427 Seal, Spin
Pinion
7 389387 Shaft, Agitator
(Complete)
8 90369 Ring, Retaining (2)
9 62677 Retainer, Spring
10 62676 Spring, Agitate
11 63273 Gear, Agitate
(Includes 15 and 29)
12 62619 Washer, Agitate
Gear
13 62580 Cam Follower
(Includes 14)
14 62581 Cam, Agitate
(Includes 13)
15 285509 Shaft, Agitator
(Includes 11 and 29)
16 62618 Washer, Cam Thrust
17 16018 Bearing, Thrust
18 85529 Ball, Bearing
19 389230 Bottom and Pinion,
Gearcase
21 285352 Seal, Thrust Plug
22 3351614 Screw, Gearcase
Cover, Mounting (8)
(10−24 x 3/8)
23 3362552 Ring, Retaining
24 285735 Washer Kit,
Thrust
25 62570 Gear, Spin
26 388253 Neutral Assembly
27 3349296 Rack, Connecting
28 62621 Actuator, Shift
29 388815 Washer,
Intermediate
12
8179984
WATER SYSTEM PARTS
For Model: CAWS923MQ0
(Designer White)
Illus. Part
No. No. DESCRIPTION
1 285442 Connector Kit,
Plastic Drain
Hose
2 285321 Sleeve Kit,
(Contains 2
Sleeves)
3 370447 Clamp, Hose
4 16272 Connector,
Straight
5 285320 Siphon Break
Kit
(Not Included)
6 65349 Clamp, Hose
7 367031 Drain Protector
(Not Included)
8179984
13
MISCELLANEOUS PARTS
For Model: CAWS923MQ0
(Designer White)
Illus. Part
No. No. DESCRIPTION
1 3976263 Miscellaneous
2 3976300 Washer, Inlet
3 3366912 Clamp, Hose
4 3359452 Nut, Lock
5 389102 Foot, Front (2)
6 3366913 Clamp, Hose
Parts Bag
Hose
(1−1/16 x 5/8) (4)
(3/8−16)
OPTIONAL PARTS (NOT INCLUDED)
Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
PAINT, PRESSURIZED SPRAY
(12 oz.)
350938 Primer, Gray
350930 White
PAINT, BULK (1 qt.)
799344 White (Uncut)
Illus. Part
No. No. DESCRIPTION
OIL
350572 Oil, Gearcase
(16 Oz.)
LUBRICANT
285208 Lubricant (Use
Only in Brake
Shoe Assembly
On Roller and
Pin)
Illus. Part
No. No. DESCRIPTION
SEALER
285195 Sealer, Gasket
(.20 Fl. Oz.) (6 ml)
ACCESSORY PARTS
367031 Drain Protector
285320 Siphon Break Kit
14
8179984
Loading...
