WASHERINSTALLATIONINSTRUCTIONS
INSTRUCTIONS POUR L'INSTALLATIONDE LALAVEUSE
Table of Contents/Table des matibres
WASHER SAFETY .................................................................................. 1
iNSTALLATiON REQUIREMENTS ......................................................... 2
Tools and Parts .................................................................................... 2
Location Requirements ........................................................................ 3
Drain System ....................................................................................... 3
Electrical Requirements ....................................................................... 4
iNSTALLATiON iNSTRUCTiONS ........................................................... 4
Before You Start .................................................................................. 4
Remove Shipping Materials ................................................................. 4
Connect Drain Hose ............................................................................ 6
Connect the Inlet Hoses ...................................................................... 6
Secure the Drain Hose ......................................................................... 7
Level the Washer ................................................................................. 7
Complete Installation ........................................................................... 8

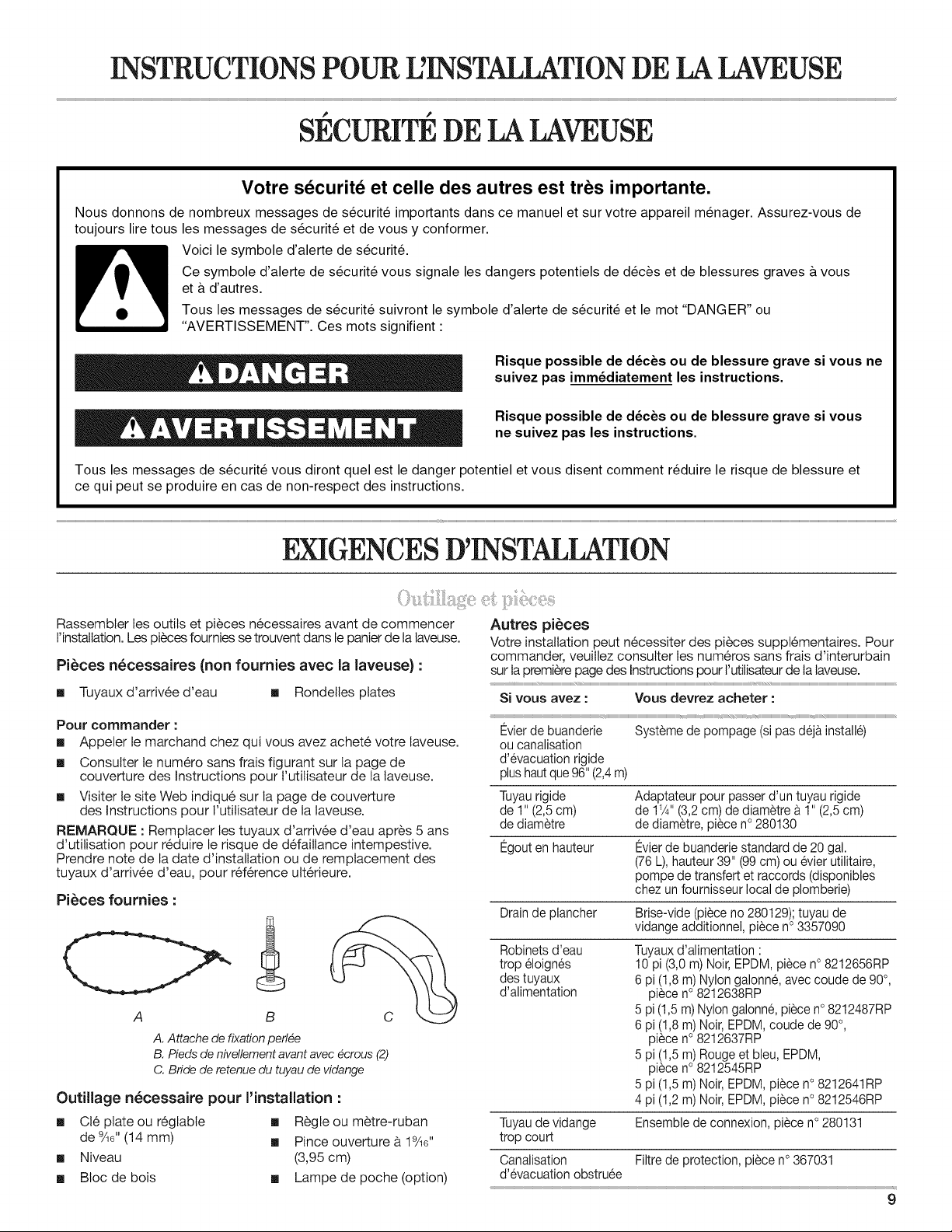

SECURITE DE LA LAVEUSE .................................................................. 9
EXIGENCES D'INSTALLATION .............................................................. 9
Outillages et pieces ............................................................................. 9
Exigences d'emplacement ................................................................ 10
Syst_me de vidange .......................................................................... 10
Sp6cifications 61ectriques ................................................................. 11
iNSTRUCTiONS D'INSTALLATION ..................................................... 11
Avant de commencer ........................................................................ 11
Retrait du mat6riei d'expedition ........................................................ 11
Raccordement du tuyau de vidange ................................................. 13
Raccordement des tuyau× d'arriv6e d'eau ........................................ 13
Immobilisation du tuyau de vidange .................................................. 14
R6giage de I'aplomb de ia laveuse .................................................... 15
Achever I'installation .......................................................................... 16
WASHERSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
W10200331B
INSTALLATIONREQUIREMENTS
Gather the required tools and parts before starting installation.
The parts supplied are in the washer basket.
Parts needed (not provided with washer}:
m Inlet hoses m Flat washers
To order:
m Call the dealer from whom you purchased your washer.
m Reference the toll-free number on the front page of the
Washer User Instructions.
m Visit the website on the front page of the Washer User
Instructions.
NOTE: Replace inlet hoses after 5 years of use to reduce the
risk of hose failure. Record hose installation or replacement dates
for future reference.
Parts supplied:
A B
A. Beaded tie strap
B. Front leveling feet with nuts (2)
C. Drain hose form
Tools needed for installation:
m Adjustable or open end
wrench %6" (14 mm)
m Level
m Wood block
m Ruler or measuring tape
m Pliers that open to 1,%6"
(3.95 cm)
m Flashlight (optional)
Alternate Parts
Your installation may require additional parts. For information on
ordering, please refer to the toll-free phone numbers on the front
page of the Washer User Instructions.
If You Have:
Laundry tub or Sump pump system (if not already
standpipe taller available)
than 96" (2.4 m)
1" (2.5 cm)
diameter
standpipe
Overhead sewer
Floor drain
Water faucets
beyond reach
of fill hoses
You Will Need to Buy:
11A"(3.2 cm) diameter to 1" (2.5 cm)
diameter standpipe adapter,
Part Number 280130
Standard 20 gal. (76 L) 39" (99 cm) tall
drain tub or utility sink, sump pump, and
connectors (available from local
plumbing suppliers)
Siphon break kit, Part Number 280129;
additional drain hose,
Part Number 3357090
Water fill hoses:
10 ft (3.0 m) Black EPDM,
Part Number 8212656RP
6 ft (1.8 m) Braided Nylon with 90° Elbow,
Part Number 8212638RP
5 ft (1.5 m) Braided Nylon,
Part Number 8212487RP
6 ft (1.8 m) Black EPDM with 90 ° Elbow,
Part Number 8212637RP
5 ft (1.5 m) Red & Blue EPDM,
Part Number 8212545RP
5 ft (1.5 m) Black EPDM,
Part Number 8212641RP
4 ft (1.2 m) Black EPDM,
Part Number 8212546RP
Drain hose Kit Part Number 280131
too short
Lint clogged drain Drain protector, Part Number 367031
2
Selecting the proper location for your washer improves
performance and minimizes noise and possible washer "walk".
Your washer can be installed in a basement, laundry room, closet,
or recessed area. See "Drain System."
IMPORTANT: Do not install or store the washer where it will be
exposed to the weather.
Proper installation is your responsibility.
You will need:
m A water heater set to deliver 120°F (49°C) water to the washer.
m A grounded electrical outlet located within 4 ft (1.2 m) of
where the power cord is attached to the back of the washer.
See "Electrical Requirements."
m Hot and cold water faucets located within 3 ft (90 cm) of the
hot and cold water fill valves, and water pressure of 5-100 psi
(34.5-690 kPa). Washers with triple dispensers require
20-100 psi (138-690 kPa) for best performance.
m A level floor with a maximum slope of 1" (2.5 cm) under
entire washer. Installing the washer on carpeting is not
recommended.
m A sturdy floor to support the washer weight (washer, water,
and load) of 315 Ibs (143 kgs).
Do not store or operate your washer in temperatures at or below
32°F (0°C). Some water can remain in the washer and can cause
damage in tow temperatures. See "Washer Care" in the Washer
User Instructions for winterizing information.
Recessed area or closet installation
The washer can be installed using the standpipe drain system
(floor or wall), the laundry tub drain system, or the floor drain
system. Select the drain hose installation method you need.
See "Tools and Parts."
Standpipe drain system--wall or floor (views A & B)
i ,i
The standpipe drain requires a minimum diameter standpipe of
2" (5 cm). The minimum carry-away capacity can be no less than
17 gal. (64 L) per minute. A I_A" (3.2 cm) diameter to 1" (2.5 cm)
diameter standpipe adapter kit is available. See "Tools and Parts."
The top of the standpipe must be at least 39" (99 cm) high
and no higher than 96" (244 cm) from the bottom of the washer.
IMPORTANT: To avoid siphoning, no more than 8" (20.3 cm) of
drain hose should be inside the standpipe. See "Connect drain hose."
The dimensions shown are for the recommended spacing allowed
(A and B), except the closet door ventilation openings. The
dimensions shown for the closet door ventilation openings (C)
are the minimum required.
m
_! _"max. IF-----3 _._0al
(310_
241n._ _ _ I
0"_1 6- _" _16- 0" _"_25,_'_q
__g.6ca)
|
(_o2_)
A B C
A. Front view
B. Side view
C. Closet door with vents
m Additional spacing should be considered for ease
of installation and servicing.
m Additional clearances may be required for wall, door,
and floor moldings.
m Additional spacing of 1" (2.5 cm) on all sides of the washer
is recommended to reduce noise transfer.
If a closet door is installed, the minimum air openings in the
top and bottom of the door are required (C). Louvered doors
with air openings in the top and bottom are acceptable.
m
Companion appliance spacing should also be considered.
Laundry tub drain system (view C)
The laundry tub needs a minimum 20 gal. (76 L) capacity. The top
of the laundry tub must be at least 39" (99 cm) above the floor and
no higher than 96" (244 cm) from the bottom of the washer.
Floor drain system (view D)
The floor drain system requires a siphon break that may be
purchased separately. See "Tools and Parts."
The siphon break must be a minimum of 28" (71 cm) from the
bottom of the washer. Additional hoses might be needed.
Toavoid siphoning, no more than 8" (20.3 cm) of drain hose
should be below the top of the wash tub. Secure drain hose
with beaded tie strap.
(7t crn)
C
[] Do not ground to a gas pipe.
[] Check with a qualified electrician if you are not sure the
washer is properly grounded.
[] Do not have a fuse in the neutral or ground circuit.
GROUNDING INSTRUCTIONS
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
m A 120 volt, 60 Hz., AC only, 15- or 20-amp, fused electrical
supply is required. A time-delay fuse or circuit breaker is
recommended. It is recommended that a separate circuit
serving only this appliance be provided.
m This washer is equipped with a power supply cord having a
3 prong grounding plug.
m To minimize possible shock hazard, the cord must be plugged
into a mating, 3 prong, grounding-type outlet, grounded in
accordance with local codes and ordinances. If a mating outlet
is not available, it is the personal responsibility and obligation
of the customer to have the properly grounded outlet installed
by a qualified electrician.
[] If codes permit and a separate ground wire is used, it is
recommended that a qualified electrician determine that
the ground path is adequate.
For a grounded, cord=connected washer:
This washer must be grounded. In the event of a malfunction
or breakdown, grounding will reduce the risk of electrical
shock by providing a path of least resistance for electric
current. This washer is equipped with a cord having an
equipment-grounding conductor and a grounding plug. The
plug must be plugged intoan appropriate outlet that is
properly installed and grounded in accordance with all local
codes and ordinances.
WARNING: Improper connection of the equipment-
grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in
doubt as to whether the appliance is properly grounded.
Do not modify the plug provided with the appliance -if it will
not fit the outlet, have a proper outlet installed by a qualified
electrician.
For a permanently connected washer:
This washer must be connected to a grounded metal,
permanent wiring system, or an equipment grounding
conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal or lead on
the appliance.
INSTALLATIONINSTRUCTIONS
Excessive Weight Hazard
Use two or more people to move and install washer.
Failure to do so can result in back or other injury.
NOTE: To avoid floor damage, set the washer onto cardboard
before moving across floor.
Removing the shipping material is necessary for proper operation.
If the shipping material is not removed, the washer will make
excessive noise.
1. Move the washer to within approximately 3 ft (90 cm) of its
final location.
2=
The washer must be in the upright position and not tilted
before removing the shipping material.
3.
Locate the yellow shipping materials on the rear of the
machine, near the bottom. Follow the steps for your particular
model, either the one with the straight power cord and cord
restraint or the looped power cord version.
4
Straight power cord
1.
Remove power plug and yellow strap from machine base
to release the rear beveling system.
I
2.
Firmly grasp the power cord and pull to completely remove
the power cord, cord restraint, and pin from the rear panel.
Looped power cord
Looped power cord
1.
Firmly grasp the yellow shipping strap and pull until both ends
are completely removed from washer.
3.
Confirm that the power cord restraint (A) and pin (B)
are removed.
A. Power cord restraint
B. Pin
U
2.
Check that two (2) cotter pins were removed with the shipping
strap.
Loading...
