Crosley CAWE12ERR410A10, CAWE11ERR410A10, FAH086T1T10, FAH08ET1T10, FRA086HT110 Installation Guide

...

READ BEFORE INSTALLING UNIT

For Through-the-Wall Air Conditioners

, Carefully read the installation manual before beginning. , Follow each step as shown.

Observe all local, state, and national electrical codes and by qualified, licensed, authorized personnel only. Pay attention to danger and safety notices.

To avoid risk of personal injury, property damage, or product damage due to the weight of this device and sharp edges that may be exposed:

Air conditioners covered in this manual pose an excessive weight hazard. Two or more people are needed to move and install the unit. Wear protective gloves whenever lifting or carrying the unit. AVOID the sharp metal fins of front and rear coils. To prevent injury or strain, use proper lifting and carrying techniques when moving unit. Carefully inspect location where air conditioner will be installed. Be sure it will support the weight of the unit overan extended

period of time.

, Handle air conditioner with care.

Make sure air conditioner does not fall during installation.

Do This First (for existing sleeve)

Note that the air conditioner dimensions are: 24" wide,14" high, and 19" deep (without front). Install Air Conditioner according to these installation instructions to achieve the best performance. Save these installation instructions for

futu re refe re n ce.

items in Kit

You may not need all parts in the kit. Discard unused parts.

No. Hardware Qty.

1 Tapered Spacer Blocks (17" Long) 2

2 Centering/Support Blocks ( 4_" x 3_" x 11/2") 4

3 Plastic Divider ( _" x 4 _" x 14_" ) 2

4 Stuffer Seat (1" x 1_ "x 84" ) 1

5 seal ( l"x l_"x 25" ) 3

6 seal ( l"x l_"x 14" ) 2

7 seal ( 1" x 3/8" x 25" ) 3

8 seal ( 1" x 3/8" x 14" ) 2

9 seal(1"x314"x14" ) 2

No.

Trim Frame (side legs)

Trim Frame (top & bottom legs)

Ground Wire (green)

Toothed washer for grounding screw

Grounding Screw

Grille (plastic)

Grille Aluminum

Nuts (plastic)

Screw w/washer

Hardware

Qty.

2020213A0734

How to Install

1. Identify the wall-sleeve brand for your installation, from the chart below.

Brand

Wall Sleeve Dimensions

Width

White-Westinghouse

Frigidaire

Carrier (52F Series)

General Etectric/Hotpoint 26 157/8 157/8

Whirlpool 257/8 161½ 171/8or 23

Fedders/Emerson* 27 16Y4 16Y4or 19%

Sears/Kenmore 25Y4 167/8 18%

Emerson/Fedd ers* 26 7/4 15¾ 15

Carrier (51S Series) 25% 167/'8 18%

Friedrich* 27 163//4 163//4

For larger sleeves, an adaptor trim kit (EA120T) is available.

251½ 151/4

251½ 151X

Height

Depth

16, 171½ or22

• All wall sleeves used to mount the new Air Conditioner must be in sound structural condition and have a rear grille that securely attaches to sleeve, or rear flange that serves as a stop for the Air Conditioner.

o For new installations, a Frigidaire Sleeve Kit (EA108T) is recommended.

• When installation is complete, replacement unit MUST have a rearward slope as shown in Fig.1.

2. Remove old Air Conditioner from wall sleeve and prepare wall sleeve as follows: Clean interior (do not disturb seals).

Wall sleeve must be securely fastened in wall before installing Air Conditioner. Drive more nails or screws through sleeve, into wall, if needed.

Retouch wall sleeve painted surface if needed.

If not existing, drill a 3/16" clearance hole for grounding screw through left side of wall sleeve, in a clear area about 3 inches maximum back from front edge of sleeve, using grounding screw and toothed washer. Pull loose end of ground wire out front of sleeve, and temporarily bend it down and around lower edge of sleeve (Fig.2). This

ground wire will later be attached to frame of air conditioner once it is installed.

1/4" to 5/16"

Walt _ II

sleeve _1_--

Wallsleeve to unit lh I /16

sleeve grounding !1t IS Hole

REAR

__ LEVEL

Fig.1 Fig.2

4. Prepare the wall sleeve for installation of the new unit per the following Brand instructions. #1 Emerson 15" Deep

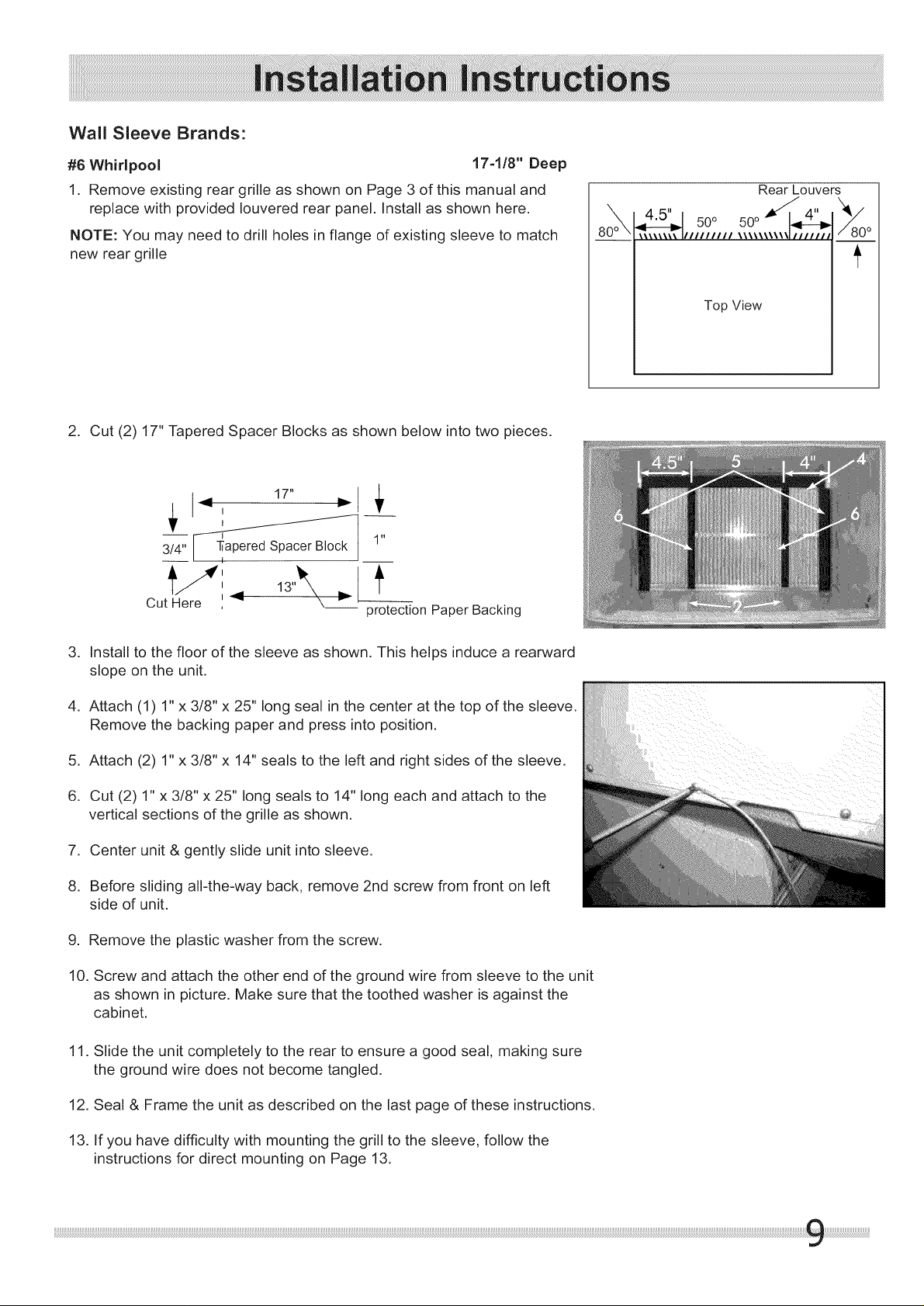

#2 Fedders 193/4'' Deep #3 Fedders or Friedrich 16¾" Deep #4 General Electric/Hotpoint 16W' Deep #5 Sears or Carrier(51S Series) 18%" Deep #6 Whirlpool 171A"Deep #7 Whirlpool 23" Deep #8 White-Westinghouse/Frigidaire/ 16" + 171/Y' Deep

Carrier(52F Series)

#9 White-Westinghouse/Frigidaire 22" Deep

5. Identify your wall sleeve type and follow the instructions for that type in the following pages.

• This unit's increased performance characteristics result from having two rear air intakes.

• It is very important that these installation instructions are followed so your unit can operate at maximum efficiency.

o If there is an existing sleeve, and there is an existing rear grille, it needs to be replaced by one that has been

shipped with the unit in the accessory kit.

FOR iNCREASED EFFiCiENCY, UTiLiZE THE PROVIDED LOUVERED REAR PANEL Installation of new grille provided with unit

1. Remove the existing grille.

2. Place the grille included with the new air conditioner towards the rear of the sleeve.

3. Mark through the hole positions.

4. Drill through the sleeve flanges with a 1/8" drill bit.

5. Attach the new grille with self-threading screws and washers(not included).

6. It is VERY IMPORTANT that the grille is placed exactly as shown.

7. Most decorative exterior grilles may be left in place as long as the proper interior air direction grille is installed.

Wall Sleeve Brands:

#1 Emerson 15" Deep

1. Remove existing rear grille as shown on Page 3 of this manual and replace with provided Iouvered rear panel. Install as shown here.

NOTE: You may need to drill holes in flange of existing sleeve to match new rear grille

2. Attach(I)1" x 3/8" x 25" long seal in the center at the top of the sleeve. Remove the backing paper and press into position.

3. Attach(2)1" x 3/8" x 14" seals to the left and right sides of the sleeve.

4. Cut(2)1" x 3/8" x 25" long seals to 14" long each and attach to the vertical sections of the grille as shown.

5. Attach (2) 4 ½" x 3 ½" x 1½" centering/support blocks one on each side wall. Place in center of side wall with the tapered end facing the opening.

45" "

,,,,,,,,,.,,,,.,

80 ° k

50° o

Top View

Rear Louvers

6. Gently slide unit into sleeve.

7. Before sliding all-the-way back, remove 2nd screw from fron on left side of unit.

Remove the plastic washer from the screw.

Screw and attach the other end of the ground wire from sleeve to the unit as shown in picture. Make sure that the toothed washer is against

the cabinet.

10. Slide the unit completely to the rear to ensure a good seal, making

sure the ground wire does not become tangled.

11. Seal & Frame the unit as described on the last page of these

instructions.

12. If you have difficulty with mounting the grill to the sleeve, follow the

instructions for direct mounting on Page 13.

Wall Sleeve Brands:

#2 Fedders

1. Remove existing rear grille as shown on Page 3 of this manual and replace with provided Iouvered rear panel. Install as shown here.

NOTE: You may need to drill holes in flange of existing sleeve to match new rear grille

2. Attach (2) 4 ½" x 3 ½" x 1½" centering/support blocks one on each side wall. Place in center of side wall with the tapered end facing the opening.

3. Cut (2) 17" Tapered Spacer Blocks as shown below into two pieces.

1 7"

3/4"

i 4"

Cut Here _ _ \

protectionPaper Backing

19=3/4" Deep

,,,,,,,,,,,,,,,,,,

80°______

500

45" "

Top View

Rear Louvers

The 4" section is placed in front of the rib on base with the tapered

end facing the back of the sleeve. The remaining portion will be placed behind the rib again sloping toward the rear of the sleeve. This helps induce a rearward slope on the unit.

5. Attach (1) 1" x 3/8" x 25" long seal in the center at the top of the sleeve. Remove the backing paper and press into position.

6. Attach (2) l"x 3/8" x 14" seals to the left and right sides of the sleeve.

7. Cut (2) 1" x 3/8" x 25" long seals to 14" long each and attach to the vertical sections of the grille as shown.

8. Gently slide unit into sleeve.

9. Before sliding all-the-way back, remove 2nd screw from front on left

side of unit.

10. Remove the plastic washer from the screw.

11. Screw and attach the other end of the ground wire from sleeve to the unit

as shown in picture. Make sure that the toothed washer is against the cabinet.

12. Slide the unit completely to the rear to ensure a good seal, making sure

the ground wire does not become tangled.

13. Seal & Frame the unit as described on the last page of these instructions.

14. If you have difficulty with mounting the grill to the sleeve, follow the

instructions for direct mounting on Page 13.
