Crosley CAR30WCS0, CA15WYS0, CA18WYS0 Owner’s Manual

AIRCONDITIONER

For questions about features, operation/performance, par[s,

accessories or service call: 1-800-253-1301

Table of Contents ................................................ 2

1188226B

TABLEOF CONTENTS

AIR CONDITIONER SAFETY ......................................................... 2

INSTALLATION REQUIREMENTS ................................................ 3

Tools and Parts ............................................................................ 3

Location Requirements ................................................................ 3

Electrical Requirements ............................................................... 4

INSTALLATION INSTRUCTIONS .................................................. 5

Unpack the Air Conditioner .......................................................... 5

Window Installation ...................................................................... 6

Prepare Air Conditioner for Window Installation ......................... 8

Position the Air Conditioner in Window ....................................... 9

Through-the-Wall Installation ..................................................... 10

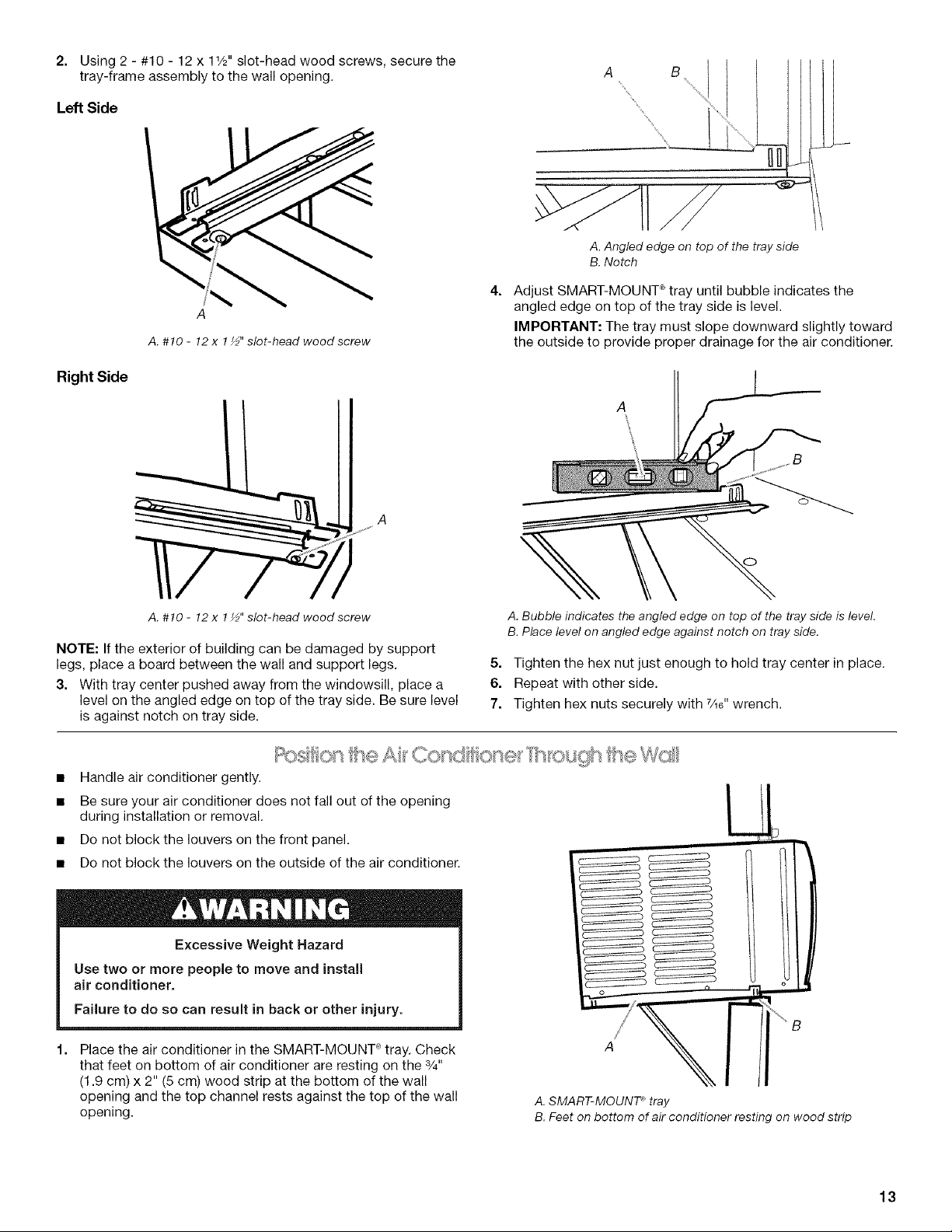

Position the Air Conditioner Through the Wall .......................... 13

AIR CONDITIONER USE.............................................................. 15

Starting Your Air Conditioner-- Digital Control .......................... 15

Starting Your Air Conditioner-- Rotary Control .......................... 18

Changing Air Direction ............................................................... 19

Normal Sounds ........................................................................... 19

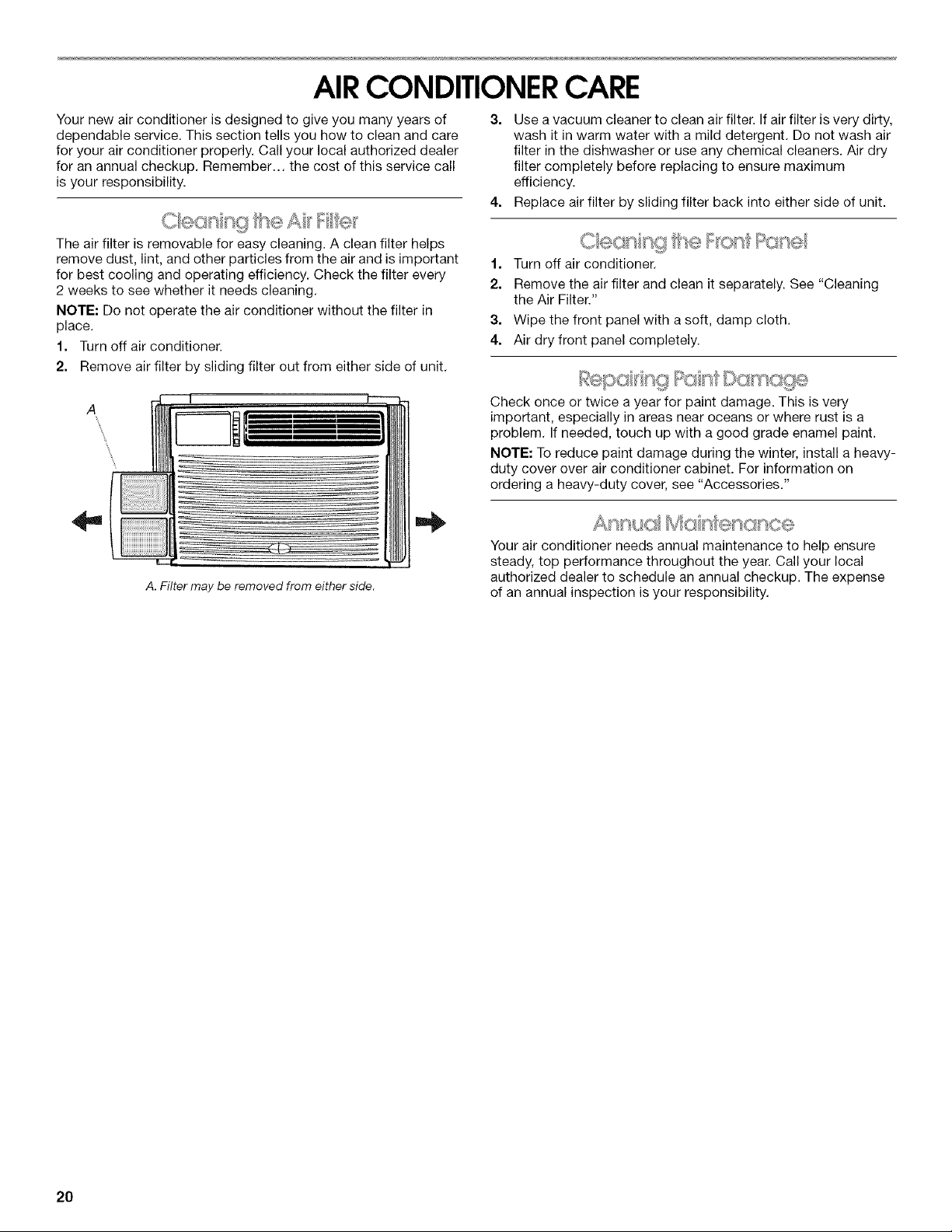

AIR CONDITIONER CARE ........................................................... 20

Cleaning the Air Filter ................................................................. 20

Cleaning the Front Panel ............................................................ 20

Repairing Paint Damage ............................................................ 20

Annual Maintenance ................................................................... 20

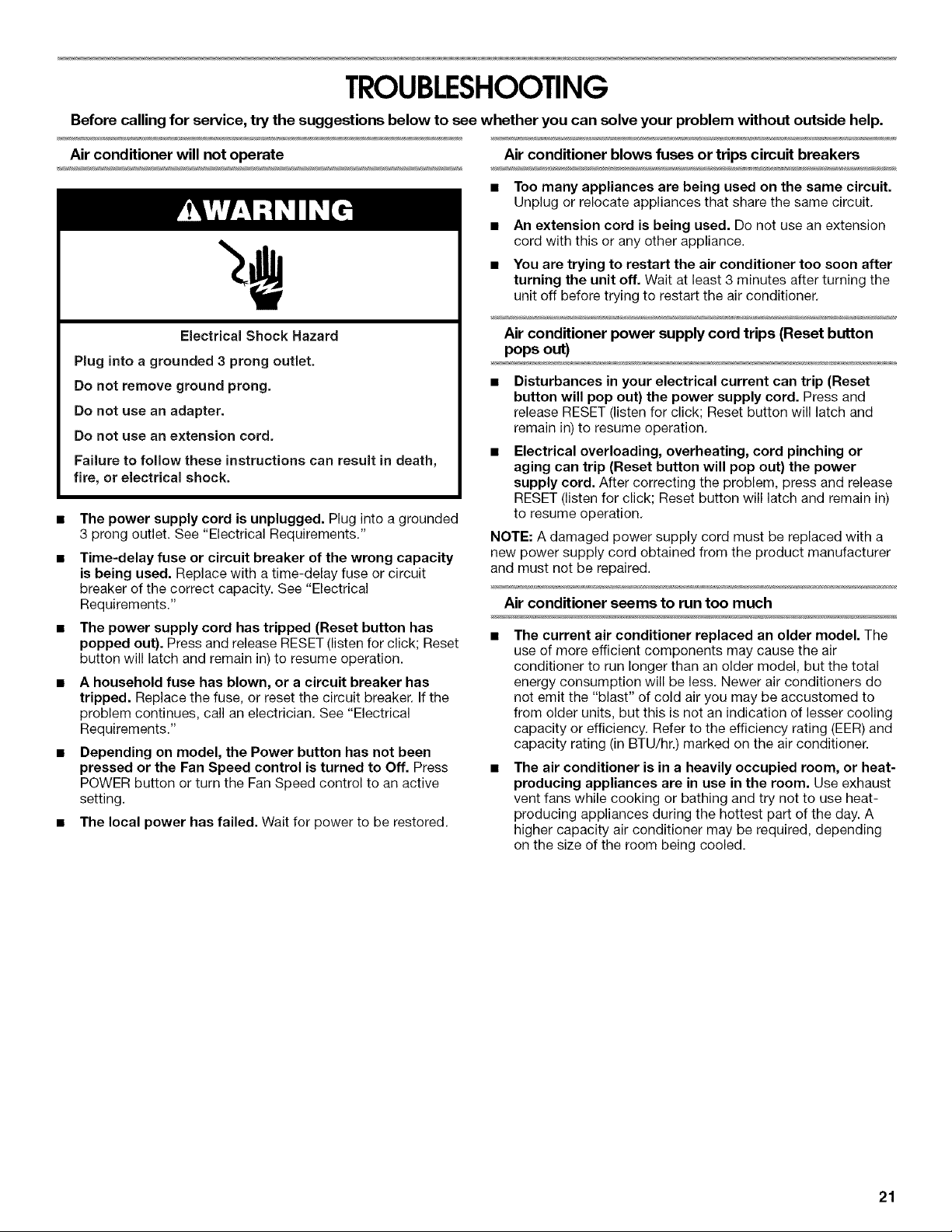

TROUBLESHOOTING .................................................................. 21

ASSISTANCE OR SERVICE ......................................................... 23

In the U.S.A................................................................................ 23

Accessories ................................................................................ 23

AIRCONDITIONERSAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

You can be killed or seriously injured if you don't immediately

follow instructions.

You can be killed or seriously injured if you don't follow
instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.

IM PORTANT SAFETY iNSTRUCTiONS

WARN ING: To reduce the risk of fire, electrical shock or injury when using your air conditioner, follow these basic precautions:

[] Plug into a grounded 3 prong outlet. [] Do not use an extension cord.
[] Do not remove ground prong. [] Unplug air conditioner before servicing.
[] Do not use an adapter. [] Use two or more people to move and install air conditioner.

SAVE TH ESE iNSTRUCTiONS

INSTALLATIONREQUIREMENTS

SMART-MOUNT _ tray assembly installation

Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed

here,

Tools needed

• Flat-blade and Phillips
screwdrivers

• 1/4"nut driver

• 7/16" wrench

• Scissors

• Pencil

• Tape measure

• Level

• Drill

• %2" or smaller drill bit

Through-the-Wall Installation
In addition to the tools listed above, the following tools are

needed for through-the-wall installation.

• Saw • Caulk

• Wood preservative • 1" (2.5 cm) or thicker

lumber

Parts supplied

Check that all parts are included in parts package.
Air conditioner installation

B C D

A. Window-lock bracket
B. #8 x @" pan-head screws (6)

C. #8 x ¾" round-head screws (3)
D. #10 x %" pan-head screws (3)

E.Side curtains (2)
F Top channel

G. Foam seal
H. Side curtain frames (2)

A_

B _ ........... 4

E F G H / J

A. Tray back
B. Tray center
C. Tray sides (2)
D. Support legs (2)

E.#8-18x ¼"hex- H. Hexnuts(4)

head screws (4) L Carriage bolts (4)

F. Flatwashers(4) J.#10-12x1½"slot-

G. Lock washers (4) head wood screws (2)

IMPORTANT: Observe all governing codes and ordinances.
Check the location where the air conditioner will be installed.

Make sure you have everything necessary for correct installation.
The location should provide:

• Grounded electrical outlet within 4 ft (122 cm) of where the
power cord exits the air conditioner.

NOTE: Do not use an extension cord.

• Free movement of air in room to be cooled.

• A large enough opening for the air conditioner. Installation
parts are supplied for double-hung windows.

• Adequate wall support for weight of air conditioner. Air
conditioner weighs 80 Ibs (36.3 kg) to 125 Ibs (56.7 kg).

NOTE: Cabinet louvers must not be obstructed. Air must be able
to pass freely through the cabinet louvers.

A. Cabinetlouvers

Window Installation

Window opening measurements:

• 27" (68.6 cm) minimum to 40" (101.6 cm) maximum opening
width.

• 19" (48.3 cm) minimum opening height.

HH

B

h _l

I J

A.27" (68.6cm) minimum, 40" (101.6cm)maximum
B. !9" (48.3 cm) minimum

Through-the-Wall Installation

The wall opening measurements should be:

• Height: 18" (45.7 cm) plus twice the thickness of wood used
to build frame.

• Width: 26" (66 cm) plus twice the thickness of wood used to
build frame.

• Depth: 2" (5 cm) minimum to 8" (20.3 cm) maximum.

V

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.
Do not use an adapter.

Do not use an extension cord,

Failure to follow these instructions can result in death,
fire, or electrical shock.

The electrical ratings for your air conditioner are listed on the
model and serial number label. The model and serial number

label is located on the right-hand side of the cabinet.
Specific electrical requirements are listed in the chart below.

Follow the requirements for the type of plug on the power supply
cord.

Power supply
cord Wiring requirements

• 115-volt (103.5 min. - 126.5 max.)

• 15-amp time-delay fuse or circuit
breaker

• 0-12 amps

• Use on single outlet circuit only.

t

C

A. 18" (45.7cm) C. Wood thickness

B.26" (66 cm) D. 2" (5 cm) minimum to 8" (20.3 cm)maximum

• 230-volt (207 min. - 253 max.)

(0.6cm) • 0-12 amps

breaker

_ • 15-amp time-delay fuse or circuit

Recommended grounding method

This air conditioner must be grounded. This air conditioner is
equipped with a power supply cord having a grounded 3 prong
plug. To minimize possible shock hazard, the cord must be
plugged into a mating, grounded 3 prong outlet, grounded in
accordance with all local codes and ordinances. If a mating outlet
is not available, it is the customer's responsibility to have a
properly grounded 3 prong outlet installed by a qualified electrical

installer.
It is the customer's responsibility:

• To contact a qualified electrical installer.

• To assure that the electrical installation is adequate and in
conformance with National Electrical Code, ANSI/NFPA 70 -
latest edition, and all local codes and ordinances.

Copies of the standards listed may be obtained from:

National Fire Protection Association
One Batterymarch Park

Quincy, MA 02269

• Use on single outlet circuit only.

Power Supply Cord

NOTE: Yourunit's device may differ from the one shown.

INSTALLATIONINSTRUCTIONS

A

A. Test button
B. Reset button

This room air conditioner is equipped with a power supply cord
required by UL. This power supply cord contains state-of-the-art
electronics that sense leakage current. If the cord is crushed, the
electronics detect leakage current and power will be

disconnected in a fraction of a second.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.

Do not use an extension cord.
Failure to follow these instructions can result in death,

fire, or electrical shock.

i_ _d ¸_

Excessive Weight Hazard

Use two or more people to move and install
air conditioner.

Failure to do so can result in back or other injury.

Remove packaging materials

• Remove and properly dispose of packaging materials,

Remove tape and glue residue from surfaces before turning
on the air conditioner. Rub a small amount of liquid dish soap
over the adhesive with your fingers. Wipe with warm water
and dry.

Do not use sharp instruments, rubbing alcohol, flammable
fluids, or abrasive cleaners to remove tape or glue. These

products can damage the surface of your air conditioner.
Handle air conditioner gently.

1.

Locate provided bag of pan-head screws.

2.

Place the top channel on top of the air conditioner, lining up
the holes in top channel with the holes on top of air

conditioner.

3.

Using 3 - #10 x %" pan-head screws, attach top channel to
air conditioner.

B A B

To test your power supply cord:

1. Plug power supply cord into a grounded 3 prong outlet,

2. Press RESET.

3. Press TEST (listen for click; Reset button will trip and pop
out),

4. Press and release RESET (listen for click; Reset button will
latch and remain in), The power supply cord is ready for
operation,

NOTES:

• The Reset button must be pushed in for proper operation,

• The power supply cord must be replaced if it fails to trip when
the test button is pressed or fails to reset.

• Do not use the power supply cord as an off/on switch. The
power supply cord is designed as a protective device.

• A damaged power supply cord must be replaced with a new
power supply cord obtained from the product manufacturer
and must not be repaired.

• The power supply cord contains no user serviceable parts.
Opening the tamper-resistant case voids all warranty and
performance claims.

A. Top channel
B. #10 x _" pan-head screw

Using the tray back as a template, center in windowsill
against outside edge of stool.

A. Tray back

B. Windowsill

C. Outside edge of stool

1. To assemble the tray frame, insert tab on tray back into slot
on tray side. Check to see that the tab is engaged and the
2 pieces are aligned. Insert 2 - #8 - 18 x ¼" hex-head screws

to secure.

2. Repeat with other tray side.

C

/

2. Using the 2 inside screw holes in tray back, mark
screw locations on windowsill for mounting the
SMART-MOUNT _tray.

3. Remove tray back. Using these marks, drill %2" pilot holes in
the windowsill approximately 11/2"(3.8 cm) deep.

Assemble SMART-MOUNT _ Tray

A. Tray back
B. #8 - 18 x _" hex-head screws

C. Tray side

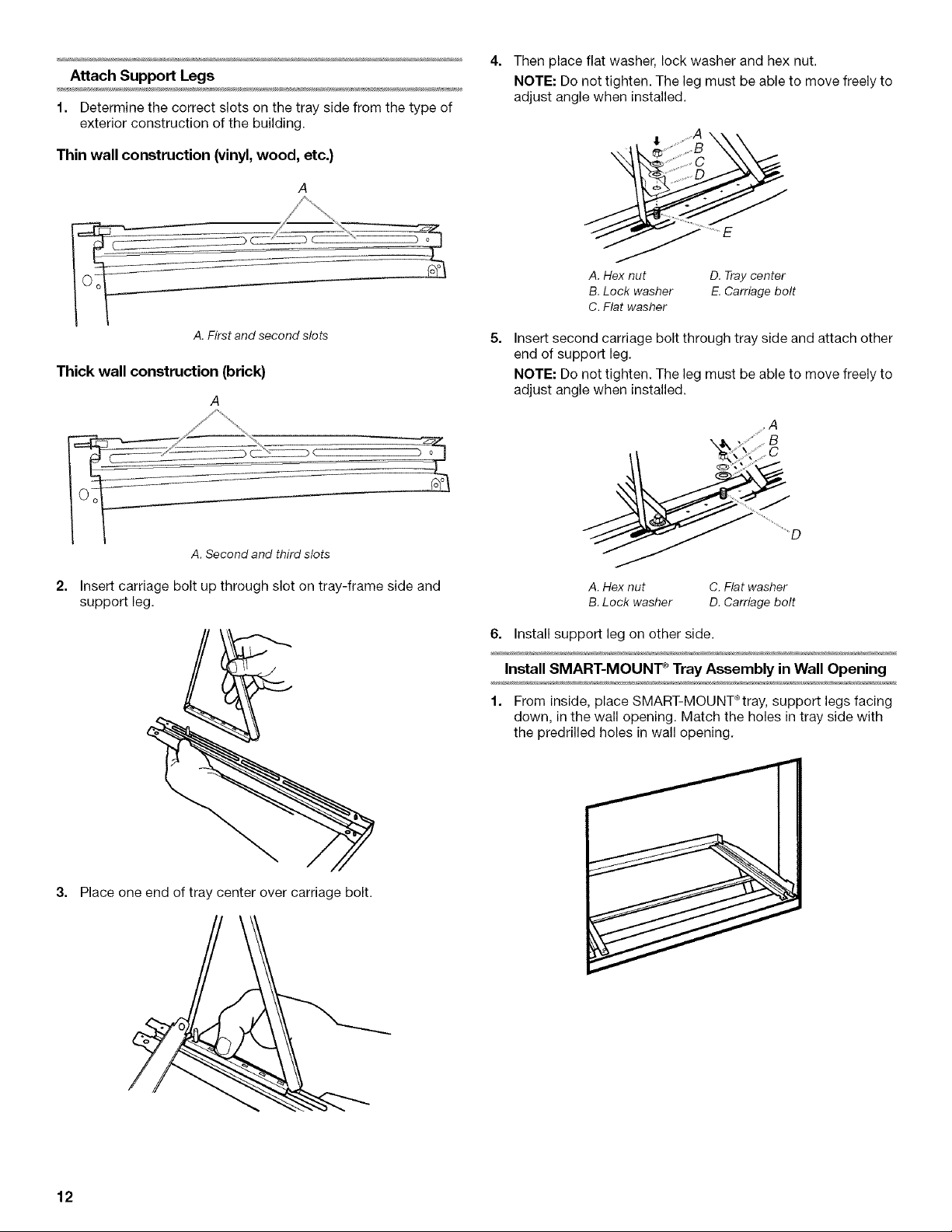

Attach Support Legs

1. Determine the correct slots on the tray side from the type of
exterior construction of the building.

Thin Wall Construction (vinyl,wood, etc.)

A.First and second slots

Thick Wall Construction (brick)

A

A, Second and third slots

2=

Insert carriage bolt up through slot on tray-frame side and
support leg. Install SMART-MOUNT _Tray Assembly in Window

1. From inside, place SMART-MOUNT _ tray, support legs facing
down, in the window. Match the holes in tray side with the
predrilled holes in windowsill.

2. Using 2 - #10 - 12 x 11/2"slot-head wood screws, secure the
tray frame to the window.

3. Place one end of tray center over carriage bolt.

A. #10 - 12x 1_" slot-head wood screws

NOTE: If the exterior of building can be damaged by support
legs, place a board between the wall and support legs.

3. With tray center pushed away from the windowsill, place a
level on the angled edge on top of the tray side. Be sure level

is against notch on tray side.

4=

Then place flat washer, lock washer and hex nut.
NOTE: Do not tighten. The leg must be able to move freely to

adjust angle when installed.

• _y'?sB

............fC

_iiiiiiiiii.........

A. Hex nut D. Tray center
B. Lock washer E.Carriage bolt

C. Flat washer

5=

Insert second carriage bolt through tray side and attach other
end of support leg.

NOTE: Do not tighten. The leg must be able to move freely to
adjust angle when installed.

_ A

A.Angled edge on top of the tray side
B. Notch

4=

Adjust SMART-MOUNT _tray until bubble indicates the
angled edge on top of the tray side is level.

IMPORTANT: The tray must slope downward slightly toward
the outside to provide proper drainage for the air conditioner.

A. Hex nut C. Flat washer
B. Lock washer D. Carriage bolt

6. Install support leg on other side.

A. Bubble indicates the angled edge on top of the tray side is leveL
B. Place level on angled edge against notch on tray side.

5. Tighten the hex nut just enough to hold tray center in place.

6. Repeat with other side.

7. Tighten hex nuts securely with 7A6"wrench.

,*_,,,_,_ ,,_, _,, _'_ o,',_,,_

P_',.+.,£_1% Corse" "l_OtS@l__"_ _' "_"

Install Side Curtains

NOTE: Attach curtains to unit before placing unit in window.

1. Insert curtain into curtain frame. Make sure curtain end locks
into curtain frame.

TopView

Side View

Top View

Bottom View

2. Push curtain in all the way.

3. Pull curtain toward open end of curtain frame.

4=

Insert top and then bottom of right-hand curtain frame in top
and bottom curtain guides on air conditioner.

5=

Extend right-hand curtain outward so you may insert the first
screw through the middle hole of the curtain. Using a #8 x %"
pan-head screw, screw curtain to middle hole in air

conditioner cabinet.
NOTE: This screw is required to correctly attach curtain (top

to bottom) to the air conditioner cabinet.

I

g

!

m

A

A.#8 x _" pan-head screw

6. While the right-hand curtain is still extended, insert screws
into top and bottom slots of curtain. Using #8 x %" pan-head
screws, screw curtain to the top and bottom holes in air

conditioner cabinet.

7. Slide curtain housing into guides as far as it will go.

8. Repeat above steps for left-hand curtain.

• Handle air conditioner gently.

• Be sure your air conditioner does not fall out of the opening
during installation or removal.

• Do not block the louvers on the front panel.

• Do not block the louvers on the outside of the air conditioner.

Excessive Weight Hazard

Use two or more people to move and install

air conditioner.

Failure to do so can result in back or other injury.

Put air conditioner on SMART-MOUNT _ tray. Check that feet
on bottom of air conditioner are behind and against back side

of windowsill. Lower window sash.

i .....

A _

B

Incorrect Installation

A. Window sash
B. Top channel

C. Air conditioner

3=

If the bottom of the air conditioner does not sit against the
bottom of the SMART-MOUNT ° tray, remove air conditioner
and adjust angle of tray until air conditioner sits against the
bottom of the tray.

IMPORTANT: The tray must slope downward slightly toward
the outside to provide proper drainage for the air conditioner.

O

A. Windowsash
B.Feet on bottom of air conditioner

behind back side of windowsill

2=

If window sash does not close flush against rear
surface of top channel, remove air conditioner and
adjust SMART-MOUNT ®tray until window sash closes
flush against rear surface of top channel.

IMPORTANT: The tray must slope downward slightly toward
the outside to provide proper drainage for the air conditioner.

Correct Installation

B

] A

C

A. Window sash

B.Top channel

C.Air conditioner

A. Air conditioner sitting on SMART-MOUNT _ tray
B. SMART-MOUNT _tray

Attach Side Curtains to Window

1. Pull left-hand curtain frame out until it fits into the window
channel. Repeat with right-hand curtain frame.

2. Insert one of the #8 x %" round-head screws through left-
hand curtain frame and into the window channel to fasten the

curtain frame to the window.

3. Repeat for right-hand curtain frame.

Front View

A "_

If your air conditioner looks like either of the illustrations in the
"Incorrect installation" graphic, SMART-MOUNT ° tray needs
adjustment.

A.Hole for #8x _" round-head screw
B.Side curtain

TopView

B ....................E1

C

A. Side curtain against window channel
B. Window channel

C, #8 x _" round-head screw

Complete Installation

1. Insert foam seal behind the top of the lower window sash and
against the glass of the upper window.

A.Lower window sash
B.Foam seal

2,

Place window-lock bracket on top of lower window and
against upper window sash.

3.

Use a 3/32,,drill bit to drill a starter hole through the hole in the
bracket into the window sash.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.
Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,
fire, or electrical shock.

4,

Attach window-lock bracket to window sash with #8 x 3/4"
round-head screw to secure window in place.

A II

B ...........

A. Upper window sash

B, Window-lock bracket

5. Plug into a grounded 3 prong outlet.

6. Press RESET on the power supply cord plug.

Option 1--Wood, Metal or Plastic Molding

When you are using a wood, metal or plastic molding, the wood
frame should line up with inside wall as shown.

ABC

A. Molding
B. Inside wall

C. Wood frame
D.Louvers

Option 2--Plaster Wall With No Molding
If the plastered wall is to be flush with the cabinet and no molding

is used, the wood frame must be set _&" (13 mm) into the inside
wall.

AB C

A. Plastered wall C. Wood frame
B. Inside wall D. Louvers

10

Install Wood Frame

1. Construct wood frame, See "Location Requirements" for

dimensions.

2. Measure outside width and height of frame to determine wall
opening dimensions.

3. Cut opening through the wall. Remove and save insulation.

NOTES:

• Dimension for depth depends on wall thickness and type

of molding.

• Do not block louvers in air conditioner cabinet,

• Use 1" (2.5 cm) or thicker lumber for wood frame.

A -_

A. Outside width
B. Outside height

C. Depth

4.

Apply wood preservative to the outside exposed surface,

5.

Insert the frame in the wall opening. Square and level frame.

6.

Attach frame securely to the wall.

7.

Place a 3/4"(2 cm) thick by 2" (5cm) wide wood strip on the
bottom of the opening against the inside edge.

A. Inside screw holes
B. Indoor side of wall opening

9. Remove the tray back. Using these marks, drill %2" pilot holes
approximately 11/2"(3.8 cm) deep.

Assemble SMART-MOUNT _Tray

A. 17¼" (43.8 cm)

B. 2" (5 cm) wide

8=

Center the tray back in the opening and align it with the inside

C. _" (2 cm) thick
D. Indoor side of wall opening

edge of the opening. Using the 2 inside screw holes in the
tray back, mark screw locations for mounting the
SMART-MOUNT _tray.

A. Flush with inside wall

1. To assemble the tray frame, insert tab on tray back into slot
on tray side. Check to see that the tab is engaged and the
2 pieces are aligned. Insert 2 - #8 - 18 x 1/4"hex-head screws

to secure.

2. Repeat with other tray side,

C

/

A. Tray back
B. #8 - 18 x ¼" hex-head screws

C. Tray side

11

Attach Support Legs

1. Determine the correct slots on the tray side from the type of

exterior construction of the building.

Thin wall construction (vinyl, wood, etc.)

A

4. Then place flat washer, lock washer and hex nut.
NOTE: Do not tighten. The leg must be able to move freely to

adjust angle when installed.

.......A

,,_s,, y,, C

......iii:ii:...........

A. Hex nut D. Tray center
B. Lock washer E.Carriage bolt

C. Flat washer

A.First and second slots

Thick wall construction (brick}

A

A. Second and third slots

2. Insert carriage bolt up through slot on tray-frame side and
support leg.

5=

Insert second carriage bolt through tray side and attach other
end of support leg.

NOTE: Do not tighten. The leg must be able to move freely to
adjust angle when installed.

......A

..........

o

_D

A. Hex nut C. Flat washer
B. Lock washer D. Carriage bolt

6. Install support leg on other side.

Install SMART-MOUNT _ Tray Assembly in Wall Opening

1. From inside, place SMART-MOUNT_tray, support legs facing
down, in the wall opening. Match the holes in tray side with
the predrilled holes in wall opening.

3. Place one end of tray center over carriage bolt.

12

2. Using 2 - #10 - 12 x 11/2"slot-head wood screws, secure the
tray-frame assembly to the wall opening.

Left Side

A

A.#10 - 12x 1_" slot-head wood screw

Right Side

A.Angled edge on top of the tray side
B. Notch

4.

Adjust SMART-MOUNT _tray until bubble indicates the
angled edge on top of the tray side is level.

IMPORTANT: The tray must slope downward slightly toward
the outside to provide proper drainage for the air conditioner.

//,f

A. #10 - 12x 1½" slot-head wood screw

NOTE: If the exterior of building can be damaged by support
legs, place a board between the wall and support legs.

3. With tray center pushed away from the windowsill, place a
level on the angled edge on top of the tray side. Be sure level
is against notch on tray side.

• Handle air conditioner gently.

• Be sure your air conditioner does not fall out of the opening
during installation or removal.

• Do not block the louvers on the front panel.

• Do not block the louvers on the outside of the air conditioner.

Excessive Weight Hazard

Use two or more people to move and install

air conditioner.

Failure to do so can result in back or other injury.

A. Bubble indicates the angled edge on top of the tray side is level.
B. Place level on angled edge against notch on tray side.

5. Tighten the hex nut just enough to hold tray center in place.

6. Repeat with other side.

7. Tighten hex nuts securely with 7_6"wrench.

Place the air conditioner in the SMART-MOUNT ° tray. Check
that feet on bottom of air conditioner are resting on the 3/4"
(1.9 cm) x 2" (5 cm) wood strip at the bottom of the wall
opening and the top channel rests against the top of the wall
opening.

A. SMART-MOUNT ®tray
B. Feet on bottom of air conditioner resting on wood strip

13

2= If the feet on the bottom of the air conditioner do not rest on

the wood strip, remove the air conditioner and adjust the
SMART-MOUNT _tray until feet rest on the wood strip.

vN

I I .......................C

and adjust angle of tray until air conditioner sits against the
bottom of the tray.

IMPORTANT: The tray must slope downward slightly toward
the outside to provide proper drainage for the air conditioner.

O

A. Air conditioner

B. Feet on bottom of air conditioner

C. _" (!.9 cm) x 2" (5 cm) wood strip

3=

If top channel does not rest against the top of the wall
opening, remove air conditioner and adjust SMART-MOUNT °
tray until top channel rests against wall.

IMPORTANT: The tray must slope downward slightly toward
the outside to provide proper drainage for the air conditioner.

B

A. Top of wall opening
B. Top channel

C. Air conditioner

A. Air conditioner sitting on SMART-MOUNT _tray
B, SMART-MOUNT _tray

5. Install screws through the top channel to secure the air
conditioner into the wall opening.

Complete Installation

1. Trim and seal around the air conditioner on the inside and the
outside.

NOTE: Allow for removal of the air conditioner at a later time
for routine annual maintenance.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.
Do not use an adapter.

Do not use an extension cord,

Failure to follow these instructions can result in death,
fire, or electrical shock.

4=

If the bottom of the air conditioner does not sit against the
bottom of the SMART-MOUNT ° tray, remove air conditioner

14

2. Plug into a grounded 3 prong outlet.

3. Press RESET on the power supply cord plug.

AIR CONDITIONERUSE

Operating your air conditioner properly helps you to obtain the
best possible results.

This section explains proper air conditioner operation.

IMPORTANT:

• If you turn off the air conditioner, wait at least 3 minutes
before turning it back on. This prevents the air conditioner
from blowing a fuse or tripping a circuit breaker.

_ _ _ _ ,, _ _ _ , ,, ,, , % _ _ ,%

Fan_fZ_', II 0 _. _. TEMPI

U Spee t.. )H'gnll ! ,J TiME

I FILTER Timer

MODE Auto _,

owU

00, Fan0nly _OavW[/ _'

Do not try to operate your air conditioner in the cooling mode
when outside temperature is below 65°F (18°C). The inside
evaporator coil will freeze up, and the air conditioner will not
operate properly.

NOTE: In the event of a power failure, your air conditioner will
operate at the previous settings when the power is restored.

• Cool--Cools room. You can adjust temperature by
pressing the plus or minus button. You can select fan

speed by pressing FAN SPEED.

• Fan Only--Only the fan runs. You can select the fan
speed by pressing FAN SPEED, but you cannot adjust the
Temperature control setting. Display shows the current
room temperature.

• Power Saver--Fan runs only when cooling is needed. You
can select the fan speed by pressing FAN SPEED.

Because the fan does not circulate the room air
continuously, less energy is used, but the room air is not

circulated as often. Use Power Saver when you are
asleep or away from home.

NOTES:

• When the air conditioner is off, the Room indicator light is lit
and the display shows the current room temperature.

• If the room temperature is below 55°F (13°C), the display will
show 55°F (13°C). If the room temperature is above 99°F
(37°C), the display will show 99°F (37°C).

• When the Set indicator light is lit, the display shows the
temperature control setting. See "Temperature."

• When the Hour indicator light is lit, the display shows the time
remaining on the Timer setting. See "Timer Delay."

1. Remove clear protective film from control panel and front
panel badge.

2. Press POWER to turn on air conditioner.

NOTE: When air conditioner is turned on for the first time
after it is plugged in, it will display the default settings: Cool

mode, Turbo fan speed, 72°F (22°C) for 3 seconds. When it is
turned on at all other times, it will display the previous
settings for 3 seconds, and then display the room
temperature.

3. Select mode. See "Mode."

4. Select fan speed. See "Fan Speed."

5. Set temperature. See "Temperature."

0 0 0 0

MODE Auto Cool FanOnly Power

Saver

Fan Speed

NOTE: The Fan Speed button will operate only when Cool, Fan
Only or Power Saver mode has been selected.

1. Press FAN SPEED until you see the indicator light come on
for the setting you desire.

2. Choose Turbo, High or Low.

TurboN

::e°e@ 'ohtI

LowU

Filter Monitor

1. When Filter indicator light is lit or flashing, remove, clean and
replace air filter. See "Cleaning the Air Filter."

2. Press and hold FILTER for 3 seconds after cleaning and
replacing the air filter. This resets the Filter Monitor.

FILTER

Hold to Reset

®

Mode

1. Press MODE until you see the indicator light come on for the
setting you desire.

2. Choose Auto, Cool, Fan Only or Power Saver.

• Auto--Cools room while it automatically controls fan

speed. You cannot change fan speed, but you can adjust
temperature by pressing the plus or minus button.

©

NOTE: After 360 hours of fan operating time, the Filter indicator
light will turn on. It will remain on for 180 hours or until you press
FILTER. After 180 hours, it will flash. It will continue flashing until
you press FILTER.

15

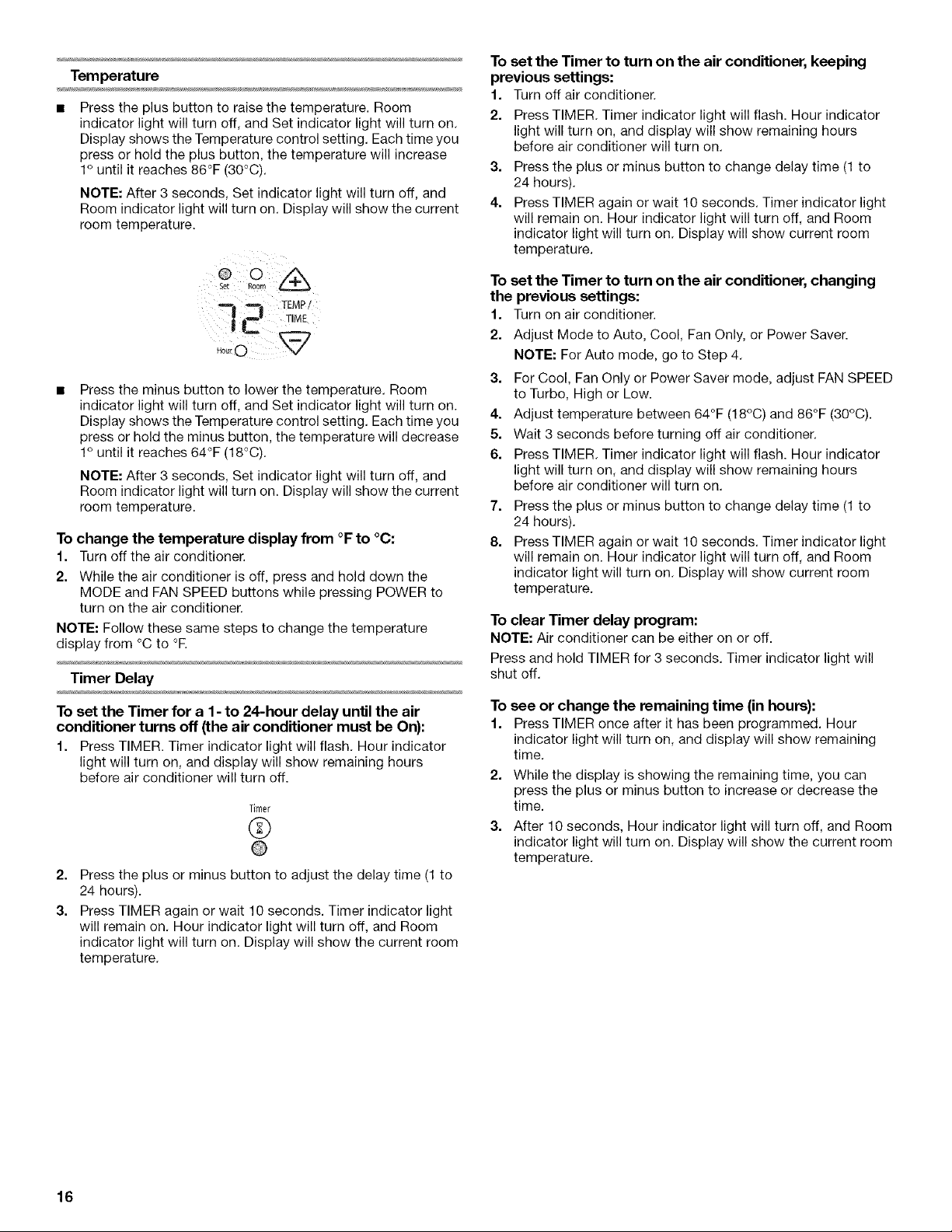

Temperature

Press the plus button to raise the temperature. Room
indicator light will turn off, and Set indicator light will turn on,
Display shows the Temperature control setting, Each time you
press or hold the plus button, the temperature will increase
1° until it reaches 86°F (30°C),

NOTE: After 3 seconds, Set indicator light will turn off, and
Room indicator light will turn on. Display will show the current
room temperature.

_. _ TEMPi

,_ TiME

Press the minus button to lower the temperature. Room
indicator light will turn off, and Set indicator light will turn on.
Display shows the Temperature control setting. Each time you
press or hold the minus button, the temperature will decrease
1° until it reaches 64°F (18°C),

NOTE: After 3 seconds, Set indicator light will turn off, and
Room indicator light will turn on. Display will show the current
room temperature.

To change the temperature display from °F to °C:

1. Turn off the air conditioner.

2. While the air conditioner is off, press and hold down the
MODE and FAN SPEED buttons while pressing POWER to

turn on the air conditioner.

NOTE: Follow these same steps to change the temperature
display from °C to °R

Timer Delay

To set the Timer to turn on the air conditioner, keeping
previous settings:

1. Turn off air conditioner.

2. Press TIMER. Timer indicator light will flash. Hour indicator
light will turn on, and display will show remaining hours

before air conditioner will turn on,

3. Press the plus or minus button to change delay time (1to
24 hours),

4. Press TIMER again or wait 10 seconds, Timer indicator light
will remain on. Hour indicator light will turn off, and Room
indicator light will turn on, Display will show current room
temperature.

To set the Timer to turn on the air conditioner, changing
the previous settings:

1. Turn on air conditioner.

2. Adjust Mode to Auto, Cool, Fan Only, or Power Saver.
NOTE: For Auto mode, go to Step 4,

3. For Cool, Fan Only or Power Saver mode, adjust FAN SPEED
to Turbo, High or Low.

4. Adjust temperature between 64°F (18°C) and 86°F (30°C).

5. Wait 3 seconds before turning off air conditioner.

6. Press TIMER, Timer indicator light will flash. Hour indicator
light will turn on, and display will show remaining hours

before air conditioner will turn on.

7. Press the plus or minus button to change delay time (1to
24 hours).

8. Press TIMER again or wait 10 seconds, Timer indicator light
will remain on. Hour indicator light will turn off, and Room
indicator light will turn on, Display will show current room
temperature.

To clear Timer delay program:
NOTE: Air conditioner can be either on or off.

Press and hold TIMER for 3 seconds, Timer indicator light will
shut off,

To set the Timer for a 1 - to 24-hour delay until the air
conditioner turns off (the air conditioner must be On):

1. Press TIMER. Timer indicator light will flash. Hour indicator
light will turn on, and display will show remaining hours

before air conditioner will turn off.

Timer

®

2,

Press the plus or minus button to adjust the delay time (1 to
24 hours).

3.

Press TIMER again or wait 10 seconds. Timer indicator light
will remain on, Hour indicator light will turn off, and Room
indicator light will turn on. Display will show the current room
temperature,

To see or change the remaining time (in hours):

1. Press TIMER once after it has been programmed. Hour
indicator light will turn on, and display will show remaining

time,

2. While the display is showing the remaining time, you can
press the plus or minus button to increase or decrease the

time.

3. After 10 seconds, Hour indicator light will turn off, and Room
indicator light will turn on. Display will show the current room
temperature,

16

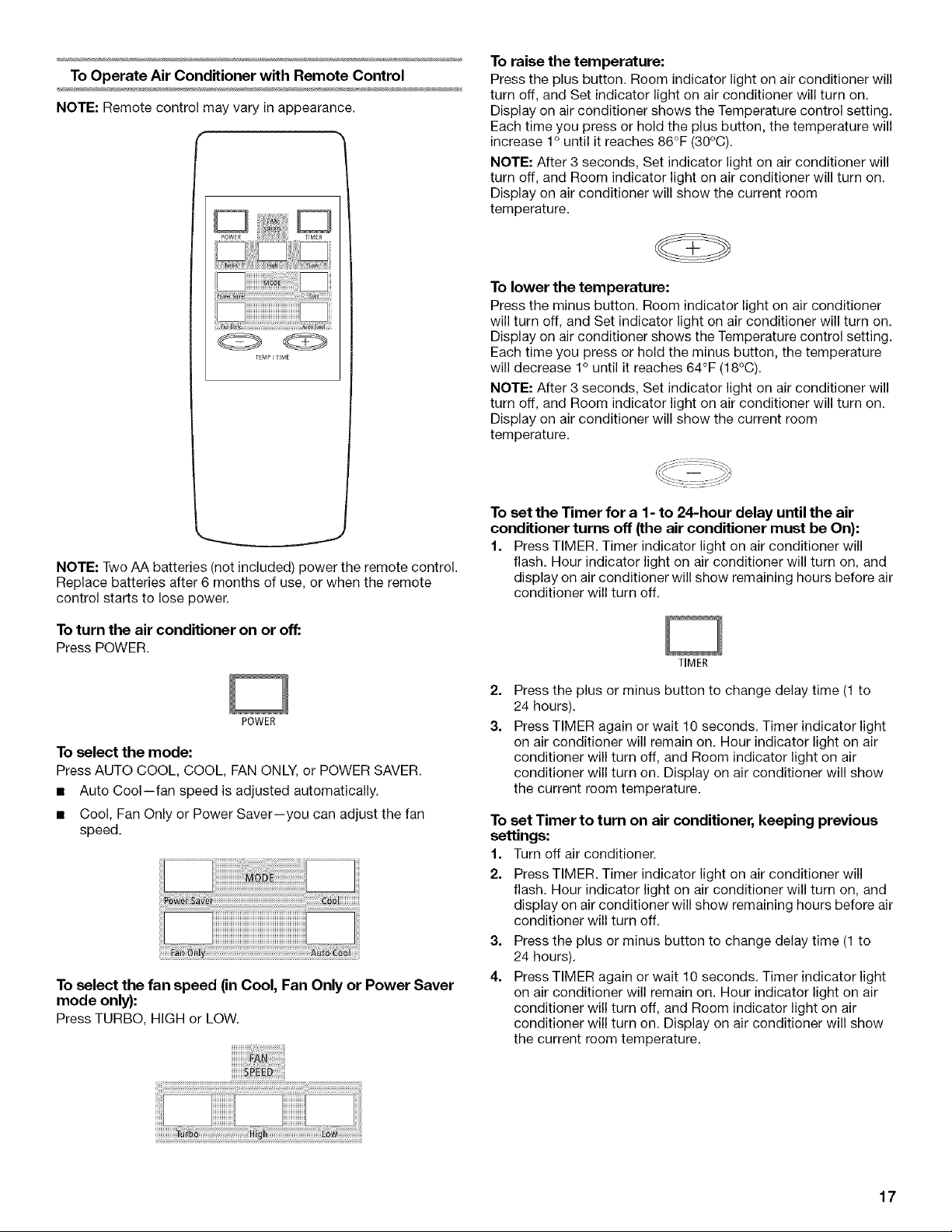

To Operate Air Conditioner with Remote Control

NOTE: Remote control may vary in appearance.

"h

Q Q

TEMP/TIM_

NOTE: Two AA batteries (not included) power the remote control.
Replace batteries after 6 months of use, or when the remote

control starts to lose power.

To raise the temperature:
Press the plus button. Room indicator light on air conditioner will

turn off, and Set indicator light on air conditioner will turn on.
Display on air conditioner shows the Temperature control setting.
Each time you press or hold the plus button, the temperature will
increase 1° until it reaches 86°F (30°C).

NOTE: After 3 seconds, Set indicator light on air conditioner will
turn off, and Room indicator light on air conditioner will turn on.
Display on air conditioner will show the current room
temperature.

To lower the temperature:
Press the minus button. Room indicator light on air conditioner

will turn off, and Set indicator light on air conditioner will turn on.
Display on air conditioner shows the Temperature control setting.

Each time you press or hold the minus button, the temperature
will decrease 1° until it reaches 64°F (18°C).

NOTE: After 3 seconds, Set indicator light on air conditioner will
turn off, and Room indicator light on air conditioner will turn on.
Display on air conditioner will show the current room
temperature.

To set the Timer for a 1- to 24-hour delay until the air
conditioner turns off (the air conditioner must be On):

1. Press TIMER. Timer indicator light on air conditioner will
flash. Hour indicator light on air conditioner will turn on, and
display on air conditioner will show remaining hours before air

conditioner will turn off.

Toturn the air conditioner on or off:
Press POWER.

POWER

To select the mode:
Press AUTO COOL, COOL, FAN ONLY, or POWER SAVER.

• Auto Cool--fan speed is adjusted automatically.

• Cool, Fan Only or Power Saver--you can adjust the fan
speed.

To select the fan speed (inCool, Fan Only or Power Saver
mode only):

Press TURBO, HIGHor LOW.

TIMER

2=

Press the plus or minus button to change delay time (1 to
24 hours).

3.

Press TIMER again or wait 10 seconds. Timer indicator light
on air conditioner will remain on. Hour indicator light on air
conditioner will turn off, and Room indicator light on air
conditioner will turn on. Display on air conditioner will show
the current room temperature.

To set Timer to turn on air conditioner, keeping previous
settings:

1. Turn off air conditioner.

2. Press TIMER. Timer indicator light on air conditioner will
flash. Hour indicator light on air conditioner will turn on, and
display on air conditioner will show remaining hours before air

conditioner will turn off.

3. Press the plus or minus button to change delay time (1to
24 hours).

4. Press TIMER again or wait 10 seconds. Timer indicator light
on air conditioner will remain on. Hour indicator light on air
conditioner will turn off, and Room indicator light on air
conditioner will turn on. Display on air conditioner will show
the current room temperature.

17

To set Timer to turn on air conditioner, changing the
previous settings:

1. Turn on air conditioner.

2. Adjust Mode to Auto Cool, Cool, Fan Only, or Power Saver.
NOTE: For Auto Cool mode, go to Step 4.

3. For Cool, Fan Only or Power Saver mode, adjust Fan Speed
to Turbo, High or Low.

4. Adjust temperature between 64°F (18°C) and 86°F (30°C).

5. Wait 3 seconds before turning off air conditioner.

Models Without Power Saver

FAN SPEED TEMPERATURE

w_ilt_e _ r_ute_ Cooler Warmer

before restarting Fa{1

Turbo

Co01

1

Models With Power Saver

6. Press TIMER. Timer indicator light on air conditioner will
flash. Hour indicator light on air conditioner will turn on, and
display on air conditioner will show remaining hours before air

conditioner will turn on.

7. Press the plus or minus button to change delay time (1to
24 hours).

8. Press TIMER again or wait 10 seconds. Timer indicator light
on air conditioner will remain on. Hour indicator light on air
conditioner will turn off, and Room indicator light on air
conditioner will turn on. Display on air conditioner will show
current room temperature.

Exhaust Control (on some models)

Push the Exhaust control CLOSED for maximum continuous
cooling. Pull the Exhaust control OPEN to allow you to draw stale

or smoky air from the room.

• Open--pull to exhaust room air to the outside

• Closed--push to circulate room air

FAN SPEED TEMPERATURE

VVait t_lee m nutes Coole[ Warmer

bdo_e rest_rtJng Fan

kPower
I Saver

Turbo

Co01 High 4

Cool

Low

Cool

5 3

I

1. Remove clear protective film from front panel badge (on
some models).

2. Set exhaust control. See "Exhaust Control (on some
models)."

3. Select the fan speed. See "Fan Speed."

4. Select temperature. See "Temperature."

NOTE: The Exhaust control will function only when the Fan
Speed control is operating.

Fan Speed

Set FAN SPEED to the desired setting. When the air conditioner
is operating at Low Cool, High Cool, or Turbo Cool, the fan
circulates air continuously.

• Turbo Cool--for maximum cooling

• High Cool--for normal cooling

• Low Cool--for sleeping comfort

• Fan Only--to move air continuously without cooling
NOTE: Fan runs on Turbo speed only.

• Power Saver (on some models)--fan runs only when cooling
is needed.

Because the fan does not circulate the room air continuously,
less energy is used, but the room air is not circulated as
often. Use Power Saver when you are asleep or away from

home.
NOTE: Fan runs on Low speed only.

18

ModelsWithoutPowerSaver

FAN SPEED

Tufb0

C001

Models With Power Saver

FAN SPEED

Wait three minutes F_n

bd0r,__sta__

Roll the wheel to direct the air right or left. Rotate the whole
cartridge to direct air up, down or straight ahead,

A, Wheel

Save[

r_ P°wer

C0ol High

C001

Low

Temperature

Turn the TEMPERATURE control to a mid-setting. Adjust the air
conditioner's performance by turning the Temperature control

clockwise for maximum cooling. For less cooling, turn the
TEMPERATURE control counterclockwise. Experiment to find the

setting that suits you best.

TEMPERATURE

Cooler Warmer

1

4

A. Cartridge

When your air conditioner is operating normally, you may hear
sounds such as:

• Droplets of water hitting the condenser, causing a pinging or
clicking sound. The water droplets help cool the condenser.

• Air movement from the fan.

• Clicks from the thermostat cycle.

• Vibrations or noise due to poor wall or window construction.

• A high-pitched hum or pulsating noise caused by the modern
high-efficiency compressor cycling on and off.

19

AIR CONDITIONERCARE

Your new air conditioner is designed to give you many years of
dependable service. This section tells you how to clean and care
for your air conditioner properly. Call your local authorized dealer
for an annual checkup. Remember... the cost of this service call
is your responsibility.

S _ _ _ ,_ _% ,, "

The air filter is removable for easy cleaning. A clean filter helps
remove dust, lint, and other particles from the air and is important
for best cooling and operating efficiency. Check the filter every
2 weeks to see whether it needs cleaning.

NOTE: Do not operate the air conditioner without the filter in
place.

1. Turn off air conditioner.

2. Remove air filter by sliding filter out from either side of unit.

A

,,€,

A. Filter may be removed from either side.

3. Use a vacuum cleaner to clean air filter. If air filter is very dirty,
wash it in warm water with a mild detergent. Do not wash air
filter in the dishwasher or use any chemical cleaners. Air dry
filter completely before replacing to ensure maximum
efficiency.

4. Replace air filter by sliding filter back into either side of unit.

1. Turnoff airconditioner.

2. Remove the air filter and clean it separately. See "Cleaning
the Air Filter."

3. Wipe the front panel with a soft, damp cloth.

4. Air dry front panel completely.

_?,',s",;J'__" '; ,,,,*

Check once or twice a year for paint damage. This is very
important, especially in areas near oceans or where rust is a
problem. If needed, touch up with a good grade enamel paint.

NOTE: To reduce paint damage during the winter, install a heavy-
duty cover over air conditioner cabinet. For information on
ordering a heavy-duty cover, see "Accessories."

Ann< ,<:xM<s nc}nce

Your air conditioner needs annual maintenance to help ensure
steady, top performance throughout the year. Call your local
authorized dealer to schedule an annual checkup. The expense
of an annual inspection is your responsibility.

2O

TROUBLESHOOTING

Before calling for service, try the suggestions below to see whether you can solve your problem without outside help.

Air conditioner will not operate

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.

Do not use an extension cord.
Failure to follow these instructions can result in death,

fire, or electrical shock.

The power supply cord is unplugged. Plug into a grounded
3 prong outlet. See "Electrical Requirements,"

Time-delay fuse or circuit breaker of the wrong capacity
is being used. Replace with a time-delay fuse or circuit

breaker of the correct capacity. See "Electrical
Requirements."

The power supply cord has tripped (Reset button has

popped out). Press and release RESET (listen for click; Reset
button will latch and remain in) to resume operation.

A household fuse has blown, or a circuit breaker has
tripped. Replace the fuse, or reset the circuit breaker. Ifthe

problem continues, call an electrician. See "Electrical
Requirements."

Depending on model, the Power button has not been
pressed or the Fan Speed control is turned to Off. Press

POWER button or turn the Fan Speed control to an active
setting.

• The local power has failed. Wait for power to be restored.

Air conditioner blows fuses or trips circuit breakers

• Too many appliances are being used on the same circuit.
Unplug or relocate appliances that share the same circuit.

• An extension cord is being used. Do not use an extension
cord with this or any other appliance.

• You are trying to restart the air conditioner too soon after
turning the unit off. Wait at least 3 minutes after turning the
unit off before trying to restart the air conditioner.

Air conditioner power supply cord trips (Reset button
pops out)

Disturbances in your electrical current can trip (Reset
button will pop out) the power supply cord. Press and

release RESET (listen for click; Reset button will latch and
remain in) to resume operation.

Electrical overloading, overheating, cord pinching or
aging can trip (Reset button will pop out) the power

supply cord. After correcting the problem, press and release
RESET (listen for click; Reset button will latch and remain in)
to resume operation.

NOTE: A damaged power supply cord must be replaced with a
new power supply cord obtained from the product manufacturer
and must not be repaired.

Air conditioner seems to run too much

The current air conditioner replaced an older model. The
use of more efficient components may cause the air
conditioner to run longer than an older model, but the total
energy consumption will be less. Newer air conditioners do
not emit the "blast" of cold air you may be accustomed to
from older units, but this is not an indication of lesser cooling
capacity or efficiency, Refer to the efficiency rating (EER) and
capacity rating (in BTU/hr.) marked on the air conditioner.

The air conditioner is in a heavily occupied room, or heat-
producing appliances are in use in the room. Use exhaust

vent fans while cooking or bathing and try not to use heat-
producing appliances during the hottest part of the day. A
higher capacity air conditioner may be required, depending
on the size of the room being cooled.

21

Air conditioner cycles on and off too much or does not

cool

The Mode is set to Power Saver (on some models). Use

Power Saver only when you are asleep or away from home,
since the fan does not circulate the room air continuously.
Use Low, High or Turbo for your best comfort.

The air conditioner is not properly sized for your room.
Check the cooling capabilities of your room air conditioner.
Room air conditioners are not designed to cool multiple

rooms,

• The filter is dirty or obstructed by debris. Clean the filter.

• The inside evaporator and outside condenser coils are

dirty or obstructed by debris. See "Annual Maintenance."
There is excessive heat or moisture (open container

cooking, showers, etc.) in the room. Use a fan to exhaust

heat or moisture from the room, Try not to use heat-
producing appliances during the hottest part of the day.

• The louvers are blocked. Install the air conditioner in a
location where the louvers are free from curtains, blinds,

furniture, etc.

• The outside temperature is below 65°F (18°0). Do not try to
operate your air conditioner in the cooling mode when the
outside temperature is below 65°F (18°C).

• The temperature of the room you are trying to cool is
extremely hot. Allow extra time for the air conditioner to cool
off a very hot room.

• Windows or doors to the outside are open. Close all
windows and doors.

• The Exhaust control is set to OPEN (on some models).
Push the Exhaust control CLOSED for maximum cooling.

• Depending on model, the Tempf'l'ime or Temperature
control is not at a cool enough setting. Adjust the TEMP/
TIME control to a cooler setting by pressing the minus button
to reduce the temperature, or adjust the Temperature control
to a cooler setting by turning the knob clockwise. Set the Fan
Speed control to Turbo or Turbo Cool.

Temperature on display does not match room
temperature

• When the compressor and fan motor turn off during

Power Saver mode, or after you turn off the unit, a lower
temperature reading than the actual room temperature

may be displayed for a short period of time. This lower
temperature reading is caused by the temperature sensor
being located close to the cold evaporator coil. The actual
room temperature will be displayed within a few minutes.

Water drips from cabinet into your house

The air conditioner is not properly leveled. The air

conditioner should slope slightly downward toward the
outside. Level the air conditioner to provide a downward

slope toward the outside to ensure proper drainage. See the
Installation Instructions.

NOTE: Do not drill a hole into the bottom of the metal base
and condensate pan.

22

ASSISTANCEORSERVICE

Before calling for assistance or service, please check
"Troubleshooting." It may save you the cost of a service call. If
you still need help, follow the instructions below.

When calling, please know the purchase date and the complete
model and serial number of your appliance. This information will
help us to better respond to your request.

Call the Customer eXperience Center toll free: 1-800-253-1301.
Our consultants provide assistance with:

• Features and specifications on our full line of appliances.

• Installation information.

• Use and maintenance procedures.

• Accessory and repair parts sales.

• Specialized customer assistance (Spanish speaking, hearing
impaired, limited vision, etc.).

• Referrals to local dealers, repair parts distributors, and
service companies. Our service technicians are trained to

fulfill the product warranty and provide after-warranty service,
anywhere in the United States.

To locate the authorized service company in your area, you
can also look in your telephone directory Yellow Pages.

For further assistance
If you need further assistance, you can write with any questions

or concerns at:

Customer eXperience Center
553 Benson Road

Benton Harbor, M149022-2692

If you need replacement parts

If you need to order replacement parts, we recommend that you
use only factory-authorized replacement parts. These
replacement parts will fit right and work right because they are
made with the same precision used to build every new appliance.

To locate factory-authorized replacement parts in your area, call
our Customer eXperience Center or your nearest designated

service center.

Please include a daytime phone number in your correspondence.

Please record your model's information.

Whenever you call to request service on your appliance, you
need to know your complete model number and serial number.

You can find this information on the model and serial number
label. See "Electrical Requirements" for model and serial number

location.
Please record the model and serial number information below.

Also, record the purchase date of your appliance and the store's
name, address, and telephone number.

Model Number
Serial Number
Purchase Date
Store Name
StoreAddress
Store Phone

Keep this book and the sales slip together for future reference.

You can order the following accessories for your air conditioner from your local authorized dealer or by calling 1-800-253-1301 from
anywhere in the U.S.A.

Replacement air filters Heavy-duty cover

A good, clean air filter is important for best cooling with least
energy consumption. Your air filter should be cleaned regularly.

See "Cleaning the Air Filter" for cleaning instructions. We suggest
you replace your air filter once a year.

For a new electrostatic air filter, order Part Number 1187197.
Airborne particles are attracted to an electrostatic air filter and

remain attached to it until they are rinsed away. For a new
antimicrobial air filter, order Part Number 1187389. In addition to

providing all the benefits of an electrostatic air filter, an
antimicrobial air filter also inhibits the growth of odor-causing

bacteria, fungi, mold and mildew on the filter. Both of these air
filters are sized to fit your air conditioner.

If you decide to leave your air conditioner installed during the
winter, a heavy-duty cover will help protect your air conditioner

and reduce drafts. The outdoor cover protects against cold drafts
through the unit's air passages and protects the cabinet from
snow, rain, sleet, rust, and dust.

For a heavy-duty outdoor cover sized to fit your air conditioner,
order Part Number 484069.

For a heavy-duty indoor cover sized to fit your air conditioner,
order Part Number 4392941.

23

1188226B

© 2005.
AIIrightsreserved.

SMART-MOUNT is a trademark of Whirlpool, U.S.A.

Printed in U.S.A.

12/05
