Crosley BES375ES1, BES375ES3, BES384EB2, BES384EB3, BES384EC3 Owner’s Manual

Welcome .................................. 2

important Safety instructions .. 3=4

installation instructions ...... 5=6

Setting Surface Controls .... 6=9

Surface Cooking .................. 10

Before Setting

Oven Controls ................. 10=11

Setting Oven Controls ......... 11

Cooking Informations ..... 12=13

Care & Cleaning .............. 14=20

Adjusting Your

Oven Temperature ................ 20

Before You Call

Solutions to

Commo.Problems....................... 21 =22

READ AND SAVE THESE INSTRUCTIONS 318200439 (0612) Rev. B

Please attach sales receipt

here for future reference.

Congratulations on your purchase of a new appliance! We are very proud of our
product and are completely committed to providing you with the best service
possible. Your satisfaction is our number one priority.

We know you'll enjoy your new appliance and ThankYou for choosing our product.
We hope you consider us for future purchases.

PLEASE CAREFULLY READ AND SAVE THESE iNSTRUCTiONS
This Use & Care Manual contains general operating instructions for your appliance

and feature information for several models. Your product may not have all the
described features. The graphics shown are representative.The graphics on your
appliance may not look exactly like those shown. These instructions are not
meant to cover every possible condition and situation that may occur. Common
sense and caution must be practiced when installing, operating and maintaining
any appliance.

Please record your model and serial numbers below for future reference.

Model Number:
Serial Number:
Purchase Date:

Serial Plate Location

Serial
Plate Location

Printed in United States

Read all instructions before using this appliance.

Save these instructions for future reference.

This guide contains important safety symbols and instructions. Please pay special attention to these symbols and follow
all instructions given. Here is a brief explanation of these symbols.

This symbo !will he!p alert You to Situations that may cause Serious bodily harm: death 0r property damage.

_ This symbol will help alert you to situations that may cause bodily injury or property damagel

• Remove all tape and packaging wrap before using the
range. Destroy the carton and plastic bags after

unpacking the range. Never allow children to play with
packaging material.

• Proper Installation--Be sure your appliance is properly
installed and grounded by a qualified technician in

accordance with CSA C22.1 PART 1-- latest edition and
local code requirements, install only per installation in-

structions provided inthe literature package for this range.

• Ask your dealer to recommend a qualified technician and
an authorized repair service. Know how to disconnect the

electrical power to the range at the circuit breaker or fuse
box in case of an emergency.

• User Servicing -- Do not repair or replace any part of
the appliance unless specifically recommended in the

manuals. All other servicing should be done only by a
qualified technician to reduce the risk of personal injury

and damage to the range.

• Never modify or alter the construction of a range by
removing panels, wire covers or any other part of the

product.

Stepping, leaning or sitting on the door or

drawer of this range can result in serious injuries and
may also cause damage to the range. Do not allow children

to climb or play around the range. The weight of a child on an
open door may cause the range to tip, resulting in serious

burns or other injury.

Do not use the oven or warmer drawer (if

equipped) for storage.
= Storage in or on Appliance -- Flammable materials

should not be stored in an oven, near surface units orin
the storage drawer. This includes paper, plastic and cloth

items, such as cookbooks, plasticware and towels, as well
as flammable liquids. Do not store explosives, such as

aerosol cans, on or near the range. Flammable materials
may explode and result infire or property damage.

Do not store items of interest to children

in the cabinets above a range or on the backguard of a

range. Children climbing on the range to reach items could
be seriously injured.

• Do not leave children alone. Children should not be
left alone or unattended in the area where an appliance

is in use. They should never be allowed to sit or stand on
any part of the appliance.

• DO NOTTOUCH SURFACE UNITS, AREAS NEARTHESE
UNITS, OVEN HEATING ELEMENTS OR iNTERiOR SUR-

FACES OF THE OVEN OR WARMER DRAWER (if
equipped). Both surface units and oven heating elements

may be hot even though they are dark in color. Areas near
surface units may become hot enough to cause burns.

During and after use, do not touch, or let clothing or other
flammable materials touch these areas until they have had

sufficient time to cool. Among these areas are the cooktop,
surfaces facing the cooktop, the oven vent openings and

surfaces near these openings, oven door and window.

• Wear Proper Apparel -- Loose-fitting or hanging
garments should never be worn while using the

appliance. Do not let clothing or other flammable materials
contact hot surfaces.

Never use your appliance for warming or

heating the room.

• Do Not Use Water or Flour on Grease Fires--Smother
the fire with a pan lid, or use baking soda, a dry

chemical or foam-type extinguisher.

• When heating fat or grease, watch it closely. Fat or
grease may catch fire ifallowed to become too hot.

• Use Only Dry Potholders-- Moist or damp potholders
on hot surfaces may result inburns from steam. Do not

let the potholders touch hot heating surface units or interior
oven elements. Do not use a towel or other bulky cloth

instead of a potholder.

• Do Not Heat Unopened Food Containers--Build-up of
pressure may cause the container to burst and result

in injury.

• Remove the oven door from any unused range if it is to
be stored or discarded.

• IMPORTANT--Do not attempt to operate the oven

during a power failure. If the power fails, always turn
the oven off. If the oven is not turned off and the power
resumes, the oven will begin to operate again. Food left

unattended could catch fire or spoil.

Electronic controllers can be damaged
by cold temperatures. When you use your range for the
first time, or if it has not been used for a long period of

time, make sure that it has been exposed to a tempera-
ture above 0°C/32°F for at least 3 hours before connect-

ing it to the power supply.

iMPORTANT iNSTRUCTiONS FOR USING
YOUR COOKTOP

• Know which knob controls each surface heating unit.

• Use Proper Pan Size -- This appliance is equipped with
one or more surface units of different sizes. Select utensils

having fiat bottoms large enough to cover the surface unit.
The use of undersized utensils will expose a portion of the

surface heating unit to direct contact and may result in
ignition of clothing. Proper relationship of utensil to the

surface unit will also improve efficiency.

• Utensil Handles Should BeTurned inward and Should
Not Extend Over Adjacent Surface Units -- To reduce

the risk of burns, ignition of flammable materials, and
spillage due to unintentional contact with the utensil.

= Never Leave Surface Units Unattended -- Boilovers

cause smoking and greasy spillovers that may ignite, or a
pan that has boiled dry may melt.

• Do Not immerse or Soak Removable Heating Elements

-- Heating elements should never be immersed in water.
Heating elements clean themselves during normal operation.

• Glazed Cooking Utensils -- Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed

utensils are suitable for rangetop service without breaking
due to the sudden change in temperature. Check the

manufacturer's recommendations for rangetop use.

Placement of Oven Racks. Always place oven racks in

desired location while oven iscool. Remove all utensils from
the rack before removing rack. If rack must be moved while

oven is hot, use extreme caution. Use potholders and grasp
the rack with both hands to reposition. Do not let potholders

contact the hot oven element or interiorof the oven.

• Do not use the broiler pan without its insert. The broiler
pan and grid allow dripping fat to drain and be kept away

from the high heat of the broiler.

• Do not cover the broiler grid with aluminum foil.
Exposed fat and grease could ignite.

• Do not touch a hot light bulb with a damp cloth. Doing
so could cause the bulb to break. Disconnect the range or

turn off the power to the range before removing and

replacing light bulb.

• Protective Liners -- Do not use aluminum foil to line oven
bottom or any other part of the range. Only use aluminum foil

as recommended for baking if used as a cover placed on the
food. Any other use of protective liners or aluminum foil may

result in a risk of electric shock or fire or a short circuit.

SELF=CLEANING OVENS

• Clean in the self=cleaning cycle only the parts of the

oven listed in this owner's guide. Before self-cleaning
the oven, remove the broiler pan and any utensils stored in

the oven.

FOR CERAMIC GLASS COOKTOP MODELS

• Do Not Clean or Operate a Broken Cooktop -- if
cooktop should break, cleaning solutions and spillovers

may penetrate the broken cooktop and create a risk of
electric shock. Contact a qualified technician immediately.

• Clean Cooktop with Caution -- Ifa wet sponge or cloth is
used to wipe spills on a hot cooking area, be careful to

avoid a steam burn. Some cleaners can produce harmful
fumes ifapplied to a hot surface.

• Avoid scratching the cooktop glass with sharp objects.

iMPORTANT iNSTRUCTiONS FOR USING

YOUR OVEN

• Use Care When Opening Door-- Stand to the side of the

range when opening the door of a hot oven. Lethot air or steam

escape before you remove or replace food inthe oven.

• Keep Oven Vent Ducts Unobstructed. The oven is vented

between thecooktop and the backguard.Touching the surfaces
in this area when the oven is operating may cause severe

burns. Also, do not place plastic or heat-sensitive itemson or
near the oven vent.These itemscould melt or ignite.

• Do not clean the oven door gasket. Care should be taken
not to rub, damage or move the gasket.

• Do not use oven cleaners. No oven cleaner or oven liner
protectivecoatingofany kindshould be usedinoraroundanypart

of the oven.

• Remove oven racks. Oven racks colour will change if left
inthe oven during a self-cleaning cycle.

The health of some birds is extremely

sensitive to the fumes given off during the self=clean
cycle of any range. Move birds to another well venti=

lated room.

iMPORTANT iNSTRUCTiONS FOR
CLEANING YOUR RANGE

• Clean the range regularly to keep all parts free of grease

that could catch fire. Exhaust fan ventilation hoods and
grease filters should be kept clean. Do not allow grease to

accumulate. Greasy deposits in the fan could catch fire.

Refer to the hood manufacturer's instructions for cleaning.

installation and service must be performed bya qualified technician:

iMPORTANT: Save for the local electrical inspector's use.

Read and save these instructions for future reference.

Clearances and Dimensions

a. Provide adequate clearances between the range and adjacent combustible surface (1.3cm (1/2") to the cabinet side walls

and the rear wall).
b. Location--Check location where the range will be installed. Check for proper electrical supply and the stability of floor.
c. Dimensions that are shown must be used. Given dimensions provide minimum clearance. Contact surface must be solid

and level.

DiMENSiONS

FRONT
VlEW

A I B c

76.2 cm (30") 78.7 cm (31") 76.2 cm (30")

_- A _._cm(26")

Minimum to
wail on either

side of range.

1.3cm

76.2 crn (30") _-
Minimum

C

t Minimum to

45.7 cm cabinets on
(18") either side of

range.

cabinets above
range top.

T

91.4cm

(36">

1

* 76.2 cm (30") Minimum clearance between the top of the cooking surface and the bottom of an unprotected wood or metal

cabinet; or 61 cm (24") Minimum when bottom of wood or metal cabinet is protected by not less than 0.64 cm (1/4") flame
retardant miiiboard covered with not less than 0.038 cm (0.015") stainless steel, 0.061 cm (0.024") aluminum or 0.051 cm
(0.020") copper. 1.3 cm (1/2") clearance is the minimum for the rear and sides of the range. Follow alldimension requirements
provided above to prevent property damage, Potential fire hazard, and incorrectcountertop and cabinet cuts.

To eliminate the risk of burns or fire by reaching over heated surface units, cabinet storage space located above the
surface units should be avoided, if cabinet storage is to be provided, the risk can be reduced by installing a range hood
that projects horizontally a minimum of 12.7 cm (5") beyond the bottom of the cabinets.

Electrical Connection Requirements
Plug the range cable (4 conductors) intoa 4 conductor range outlet. Outlet must be
properly grounded and inaccordance with the Canadian Electrical Code (CSA Stan-
dard (C22.1 Part 1 -- latest edition) -- and any local electrical code requirements.

Location

Set your new range 1.3 cm (1/2") away from the rear wall and lineit up with the kitchen
counters. Make sure there isat least 1.3 cm (1/2") of clearance between each side of
the range and the kitchen counters. Allow 7.6 cm (3") min. clearance between your
range and the refrigerator, if they are side by side.

Circuit Protection (Models with electric oulet(s))
As a protection against surcharge, a 15 amp, 120 volt breaker isprovided for each of the electric outlet(s) (2 max.) located on

top or underneath of the control panel. Models with no electric outlet have no breaker.

Leveling

For good baking results, your range should be level. Screw type leveling legs are provided at each
corner of the range at the base. Remove the storage drawer to adjust the leveling legs. (Refer to
Storage Drawer section).

1. Use a 1-1/4" open end key oran adjustable wrench to equally unscrew
the four leveling legs two to three turns each.

2. install an oven rack in the center of the oven.

_ 3. Move the range to itsfinal position, then put a spirit level on the rack to

check for levelness. Take two readings, one with the level placed

To level the range:

diagonally first in one direction, and then the other.

4. Use the 1-1/4" key or wrench to adjust the levelinglegs.Turn each one

until the range stands firm without wobbling.

5. Some models are supported by smooth glide rollers to facilitate moving.
iffloor is fiat and level, open the drawer and lower the front roller locking levers (some models) to

prevent the range from moving.
iffloor is not fiat or level or if this model has rollers without locking levers, use the 4 leveling legs

to level, support and prevent the range from moving.

s c

Unlock

LOCKING THE FRONT

ROLLERS (some models)

Models with Coil Elements (some models)

INOTE: All knobs shown in this owner's Guide are typical only. ]

1. Place the pan on the surface element.

2. Push in and turn the surface element control knob to desired setting.

3. The Element On indicator lights are located on the control panel between two element Ie

control knobs, one on each side, and will glow when a surface element is turned ON. sire
A quick glance at this indicator light after cooking is an easy check to be sure ALL

surface controls are turned OFF. Always turn the element off before removing the pan. 2

Note: The size and type of utensil used, and the amount and type of food being
cooked will influence the setting needed for best cooking results. 3

Setting Type of Cooking 4
Hi (MAX) Start most foods, bring water to a boil, pan broiling, med

5(MED) Maintain a slow boil, thicken sauces and gravies, steam

vegetables.

2-4(MED-LOW)
LO(MIN)

The suggested settings found inthe chart above are based on cooking in medium thickness aluminum pans with lids. Settings
may vary when using other types of pans.

Do not place items such as salt and pepper shakers, spoon holders or plastic wrappings on top of the

cooktop when it is in use. These items could melt or ignite. Potholders, towels or wood could catch fire ifplaced too close
to the element.

Keep food cooking, poach, stew.
Keep warm, melt, simmer.

Element ON
indicator Light

OFF

DO NOT use the surface element in self-clean mode. During the self-clean cycle, the surface elements,

when used, are subjected to high heat. To ensure maximum element life, do not use the surface element during a self-clean
cycle.

Models with Ceramic Glass Cooktop (Some models)

About the Ceramic Glass Cooktop

The ceramic cooktop has radiant surface elements located below the surface ofthe glass. The design of the ceramic cooktop
outlines the area of the surface element underneath. Make sure the diameter of the pan matches the diameter of the element
outline on the cooktop (See Figure 1).
Heat is transferred up through the surface of the cooktop tothe cookware. Only flat-bottom cookware should be used. The type and
size of cookware, the number of surface elements in use and their settings, are allfactors that will affect the amount of heat that will
spread to areas beyond the surface elements. The areas surrounding the elements may become hot enough to cause burns. The
cooktop should not be used as acutting board or work surface. Dropping heavy or hard objects on the cooktop may crack it. Pans
with rough bottoms may scratch the cooktop surface. Placing foods directly on the smoothtop surface (without cooking utensils) is
not recommended as difficult cleaning will result and foods may smoke and cause a potential fire hazard.

About the Radiant Surface Elements
The element temperature rises gradually and evenly. As the temperature

Element Configuration, appearance and

graphics of cooktops may be different

rises, the element will glow red. To maintain the selected setting, the
element will cycle on and off. The heating element retains enough heat to
provide a uniform and consistent heat during the off cycle. For efficient
cooking, turn off the element several minutes before cooking is complete.
This will allow residual heat to complete the cooking process.

Locations of the Radiant Surface Elements and Controls

Your appliance is equipped with radiant surface elements with different
wattage ratings. The ability to heat food quicker and in larger volumes in-
creases as the element wattage increases.

The example shown (figure 1) describes a model with all kind of elements
you could possibly have, but the element configuration, the appear=
ante and graphics of your cooktop may be different.

NOTE: Due to the high intensity of heat generated by the surface ele-
ments, the glass surface will turn green when the element will be turned
off. This phenomenon is normal and the glass will come back to its
original white color after ithas completely cooled down. (White glass
cooktops only).

NOTE: Please read detailed instructions for ceramic glass cooktop cleaning in the General Care & Cleaning section and

Before You Call checklist section of this Use and Care Guide.

ii iii_

WarmerZone Element (some models) -Figure 1

NOTE: Radiant elements have alimiterthat allows the element tocycle on and off, even at the HI setting. This helps to prevent
damage to the ceramic smooth top. Cycling at the HI setting isnormal and can occur ifthe cookware istoo small for the radiant
element or ifthe cookware bottom is not flat (Refer to page 12 under Selecting Surface Cooking Utensils).

Hot Surface

Element On & Hot Surface Indicator Lights

Surface Chaude

Your range is equipped with two different types of radiant surface control indicator lights that
will glow on your range-- the Element On indicator light and the Hot Surface indicator lights OFF
(See Figure 2). Io hi

The Element On indicator lights are located on the control panel above each radiant element ; // '_ 8

im ....

control knob and will glow when a surface element is turned ON. A quick glance at this indicator
light after cooking is an easy check to be sure ALL surface controls are turned OFF.The Hot

Surface indicator light located on the control panel will glow when any surface cooking area 3 7
heats up and will REMAIN ON until the glass cooktop has cooled to a MODERATE level. 4 Figure 2

rned

NOTE: Radiant elements have a limiter that allows the element to cycle ON and OFF, even at the Hi setting. This helps to
prevent damage to the ceramic smoothtop. Cycling at the Hi setting isnormal and will occur more often ifthe cookware is

too small for the radiant element or ifthe cookware bottom is not flat.

Hot Surface

Models with Ceramic Glass Cooktop (continued)

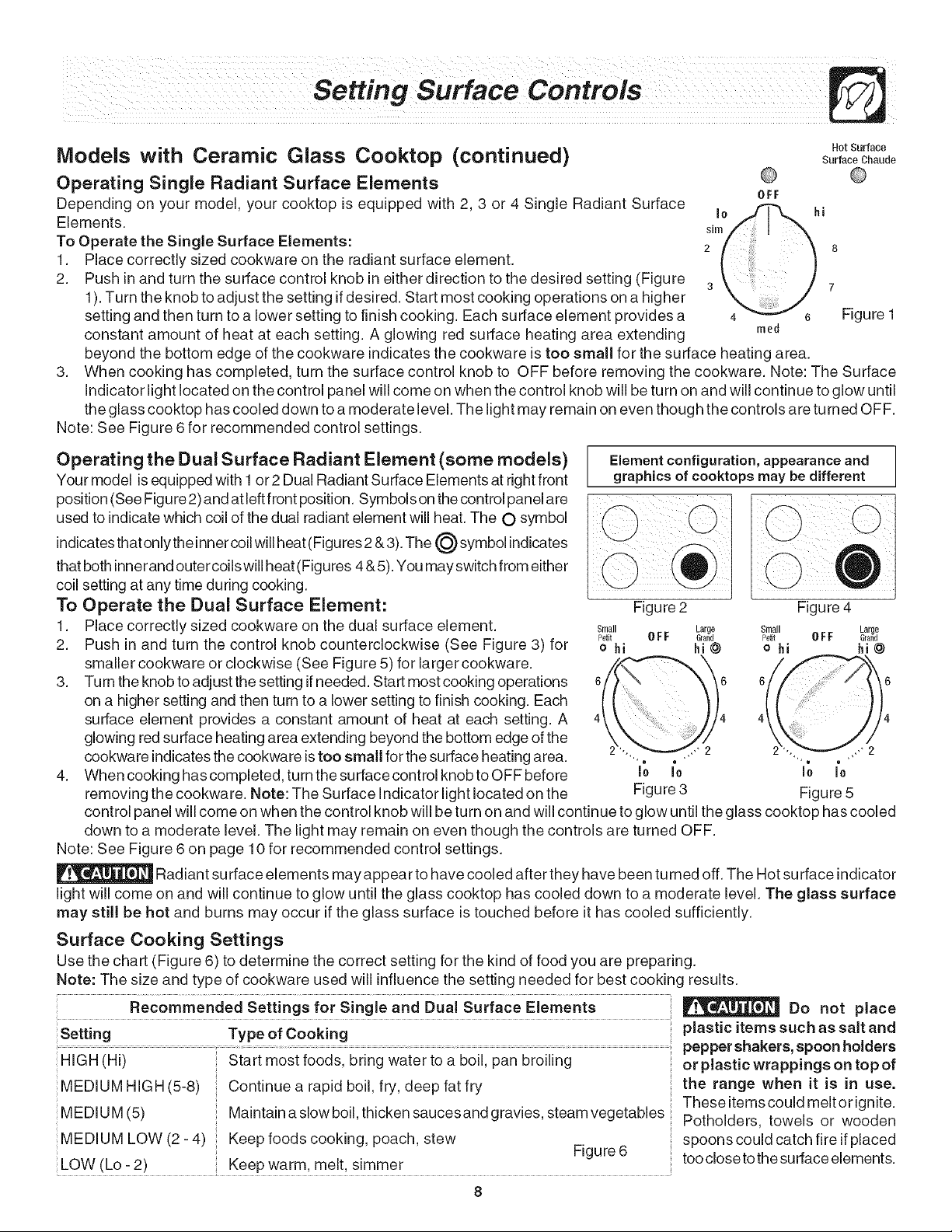

Operating Single Radiant Surface Elements

Depending on your model, your cooktop is equipped with 2, 3 or 4 Single Radiant Surface

OFF

Surface Chaude

Elements. Io hi
To Operate the Single Surface Elements: 8

t. Place correctly sized cookware on the radiant surface element.

2. Push in and turn the surface control knob in either direction to the desired setting (Figure 7

1).Turn the knob to adjust the setting if desired. Start most cooking operations on a higher

setting and then turn to a lower setting to finish cooking. Each surface element provides a Figure 1
constant amount of heat at each setting. A glowing red surface heating area extending med

beyond the bottom edge of the cookware indicates the cookware istoo small for the surface heating area.

3. When cooking has completed, turn the surface control knob to OFF before removing the cookware. Note: The Surface

Indicator light located on the control panel will come on when the control knob will be turn on and will continue toglow until

the glass cooktop has cooled down to a moderate level. The light may remain on even though the controls are turned OFF.

Note: See Figure 6 for recommended control settings.

Operating the Dual Surface Radiant Element (some models) Element configuration, appearance and

Your model isequipped with t or 2 Dual Radiant Surface Elements at rightfront graphics of cooktops may be different
position (See Figure 2)and at leftfront position. Symbols on the control panel are
used to indicate which coil of the dual radiant element will heat. The 0 symbol

indicatesthat onlytheinner coilwill heat (Figures 2&3). The (_ symbol indicates
that both innerand outer coils will heat (Figures 4 &5).You may switch from either

coil setting at any time during cooking.

To Operate the Dual Surface Element: Figure 2 Figure 4

1. Place correctly sized cookware on the dual surface element, sma, Small

2. Push in and turn the control knob counterclockwise (See Figure 3) for o hi hi @ o M hi @

smaller cookware or clockwise (See Figure 5) for larger cookware.

3. Turn the knob toadjust the setting if needed. Start most cooking operations 6

on a higher setting and then turn to a lower setting to finish cooking. Each
surface element provides a constant amount of heat at each setting. A
glowing red surface heating area extending beyond the bottom edge of the

cookware indicates the cookware istoo small forthe surface heating area. 2 ....,. . ," 2 ,,,,. • ,,"" 2

4. When cooking has completed, turn the surface control knob to OFF before Io Io Io Io

removing the cookware. Note: The Surface Indicator light located on the Figure 3 Figure 5
control panel will come on when the control knob will be turn on and will continue to glow until the glass cooktop has cooled
down to a moderate level. The light may remain on even though the controls are turned OFF.

Note: See Figure 6 on page 10 for recommended control settings.

Radiant surface elements mayappear to have cooled after they have been turned off. The Hot surface indicator

light will come on and will continue to glow until the glass cooktop has cooled down to a moderate level. The glass surface
may still be hot and burns may occur if the glass surface is touched before it has cooled sufficiently.

Petit O _ F _ Peril O F _ _a_

Surface Cooking Settings

Use the chart (Figure 6) to determine the correct setting for the kind of food you are preparing.
Note: The size and type of cookware used will influence the setting needed for best cooking results.

Recommended Settings for Single and Dual Surface Elements _ Do not place

Setting Type of Cooking plastic items such as salt and
HIGH (Hi_ Start most foods, bring water to a boil. pan broiling or plastic wrappings on top of

MEDIUM HIGH (5-8) Continuea rapid boil. fry, deep fat fry the range when it is in use.
MEDIUM(5) Maintainaslowboil.thickensaucesandgravies. steam vegetables Potholders. towels or wooden

MEDIUM LOW (2 - 4/ Keep foods cooking, poach, stew spoons could catch fire ifplaced
LOW [Lo - 21 Keep warm. melt. simmer

Figure 6 too close to the surface elements.

pepper shakers, spoon holders

These items could melt or ignite.

Models with Ceramic Glass Cooktop (continued)

Setting Warm Zone Controls (some models)

To Operate the warm zone

Your appliance is equipped with a warm zone. The purpose of the warm zone is to keep hot cooked foods at serving
temperature. Always start with hot food. It is not recommended to heat cold food on the warm zone.

Use the warm zone to keep cooked foods hot such as: vegetables, gravies, casseroles, soups, stews, breads, pastries
and oven-safe dinner

All food placed on the warm zone should be covered with a lid or aluminum foil to maintain quality. For best results, when
warming pastries or breads, the cover should have an opening toallow moisture to escape. Do not use plastic warp to cover
food. Plastic may melt onto the surface and be very difficult to clean.

Use only dishware, utensils and cookware recommended for oven and cooktop use on the warm zone.

Unlike the surface elements, the warm zone will not glow red when it is hot. Always use potholders or oven mitts

when removing food from the warm zone as cookware and plates will not be hot.

]

Appearance and graph- I

ics may be different

Indicator Light

OFF

Temperature Selection
Refer to the chart for recommended heating levels. Ifa particular food is not listed,
start with the medium level, and adjust asneeded. Most food can be kept at serving
temperatures by using the medium level.

hi

med

Indicator Lights
The Hot Surface indicator light is located above or

1

below the warm zone control. It turns on when the
control is set and will continue to glow until the glass

cooktop has cooled down to moderate level.

To Set theWarm Zone Control

1. To set the control, push inand turn the knob. The
temperatures are approximate, and are designated
by hi, reed and Io. However, the control can be set
at any position between hi and Io for different
levels of heating.

2. When done, turn the control to OFF position. The
warm zone will remain warm until the hot surface

indicator light goes off.

Warm Zone

Element configuration, appearance

and graphics of cooktops may be dif-

Warm Zone Recommended Food

Food Item Heating

Breads/Pastries

Casseroles

Dinner Plate with Food
Eggs Io

Gravies Io

Meats med

Sauces med
Soups (cream) med

Stews med
Vegetables med

Fried Foods hi
Hot Beverages hi

Soups (liquid) hi

ferent

Settings Chart

Level

Io
Io
Io

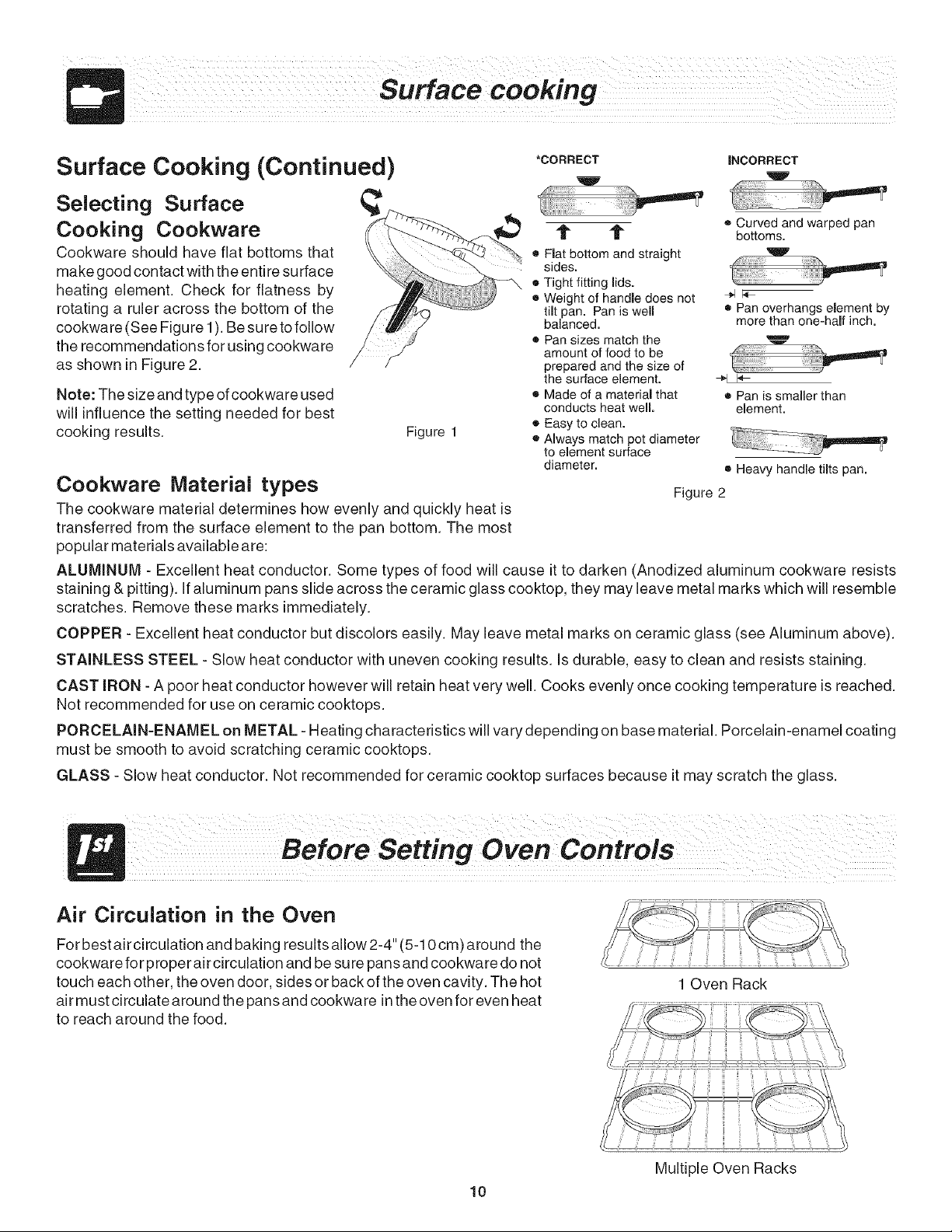

Surface Cooking (Continued)

*CORRECT iNCORRECT

Selecting Surface

Cooking Cookware

Cookware should have flat bottoms that
make good contact with the entire surface

heating element. Check for flatness by
rotating a ruler across the bottom of the
cookware (See Figure 1). Besure tofollow
the recommendations for using cookware
as shown in Figure 2.

Note: The size and type ofcookware used
will influence the setting needed for best
cooking results. Figure 1

Cookware Material types

t t

• Fiat bottom and straight
sides.

• Tight fitting lids.

• Weight of handle does not
tilt pan. Pan is well

balanced.

e Pan sizes match the

amount of food to be
prepared and the size of

the surface element.

® Made of a material that

conducts heat well,

• Easy to clean.

® Always match pot diameter

to element surface
diameter.

Figure 2

The cookware material determines how evenly and quickly heat is
transferred from the surface element to the pan bottom. The most

popular materials available are:
ALUMINUM - Excellent heat conductor. Some types of food will cause it to darken (Anodized aluminum cookware resists

staining & pitting). Ifaluminum pans slide across the ceramic glass cooktop, they may leave metal marks which will resemble
scratches. Remove these marks immediately.

COPPER - Excellent heat conductor but discolors easily. May leave metal marks on ceramic glass (see Aluminum above).
STAINLESS STEEL - Slow heat conductor with uneven cooking results. Is durable, easy to clean and resists staining.

CAST IRON - A poor heat conductor however will retain heat very well. Cooks evenly once cooking temperature is reached.
Not recommended for use on ceramic cooktops.

PORCELAIN-ENAMEL on METAL - Heating characteristics will vary depending on base material. Porcelain-enamel coating
must be smooth to avoid scratching ceramic cooktops.

GLASS - Slow heat conductor. Not recommended for ceramic cooktop surfaces because it may scratch the glass.

o Curved and warped pan

bottoms.

44_
® Pan overhangs element by

more than one-half inch.

4.1 I_

• Pan is smaller than
element.

® Heavy handle tilts pan.

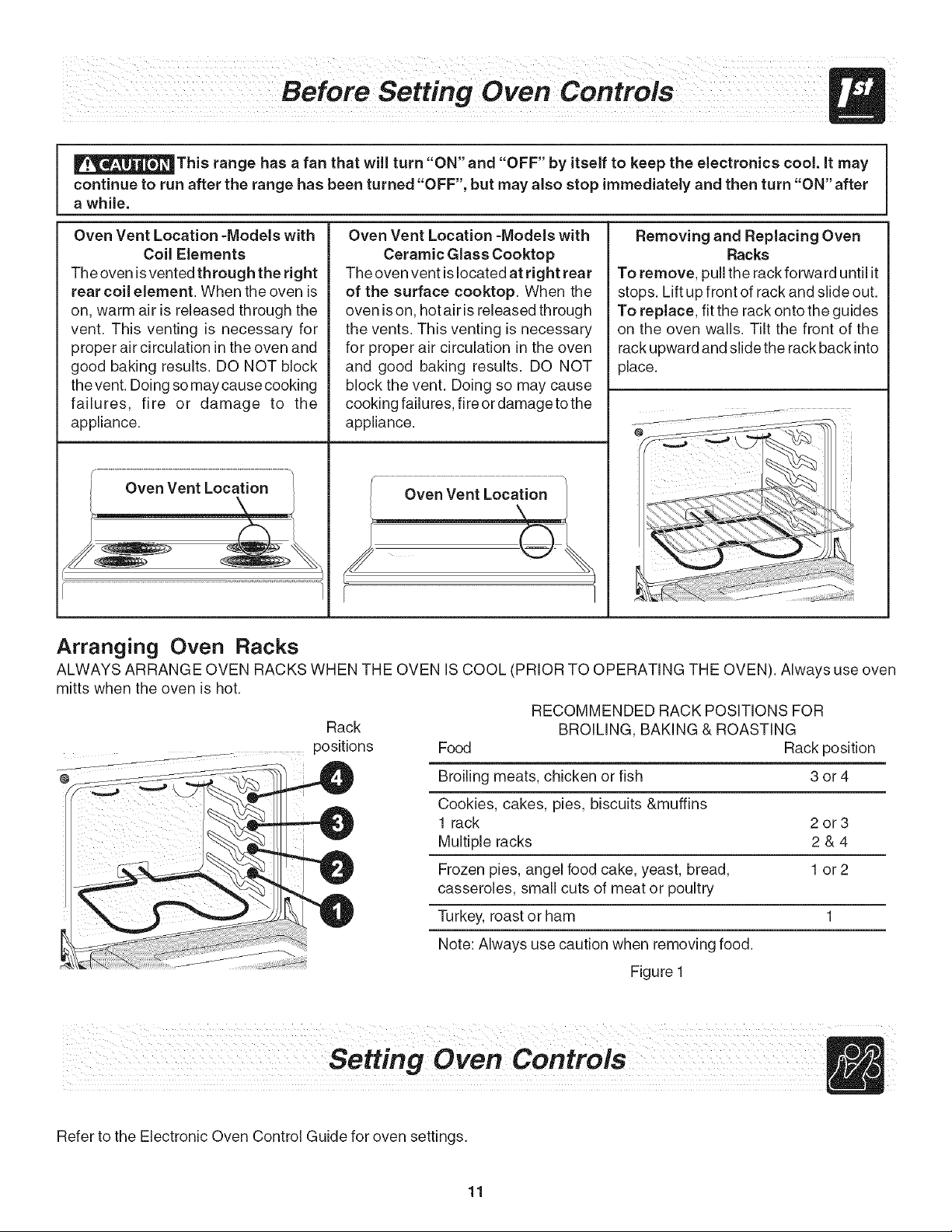

Air Circulation in the Oven

For best air circulation and baking results allow 2-4" (5-10 cm) around the
cookware for properaircirculation and be sure pans and cookware do not
touch each other, the oven door, sides or back of the oven cavity. The hot
air must circulate around thepans and cookware inthe oven for even heat

to reach around the food.

10

1 Oven Rack

Multiple Oven Racks

_This range has a fan that will turn "ON" and "OFF" by itself to keep the electronics cool. it may

continue to run after the range has been turned "OFF", but may also stop immediately and then turn "ON" after
a while.

Oven Vent Location =Models with

Coil Elements

The oven isvented through the right

rear coil element. When the oven is

on, warm air is released through the
vent. This venting is necessary for

proper air circulation in the oven and
good baking results. DO NOT block
the vent. Doing so maycause cooking
failures, fire or damage to the
appliance.

Oven Vent Location

\__

Oven Vent Location -Models with

Ceramic Glass Cooktop
The oven vent islocated at right rear
of the surface cooktop. When the
oven ison, hot airis released through
the vents. This venting is necessary
for proper air circulation in the oven
and good baking results. DO NOT
block the vent. Doing so may cause
cooking failures, fire ordamage to the
appliance.

Oven Vent Loca_

Removing and Replacing Oven

Racks

To remove, pull the rack forward until it
stops. Lift up front ofrack and slide out.
To replace, fit the rack onto the guides

on the oven walls. Tilt the front of the
rack upward and slide the rack back into

place.

Arranging Oven Racks

ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO OPERATING THE OVEN). Always use oven
mitts when the oven is hot.

RECOMMENDED RACK POSITIONS FOR

@

Rack

......... positions

Food Rack position
Broiling meats, chicken or fish 3 or 4

BROILING, BAKING & ROASTING

Cookies, cakes, pies, biscuits &muffins

1 rack 2 or 3
Multiple racks 2 & 4

Frozen pies, angel food cake, yeast, bread, 1 or 2

casseroles, small cuts of meat or poultry
Turkey, roast or ham 1

Note: Always use caution when removing food.

Refer to the Electronic Oven Control Guide for oven settings.

Figure 1

11

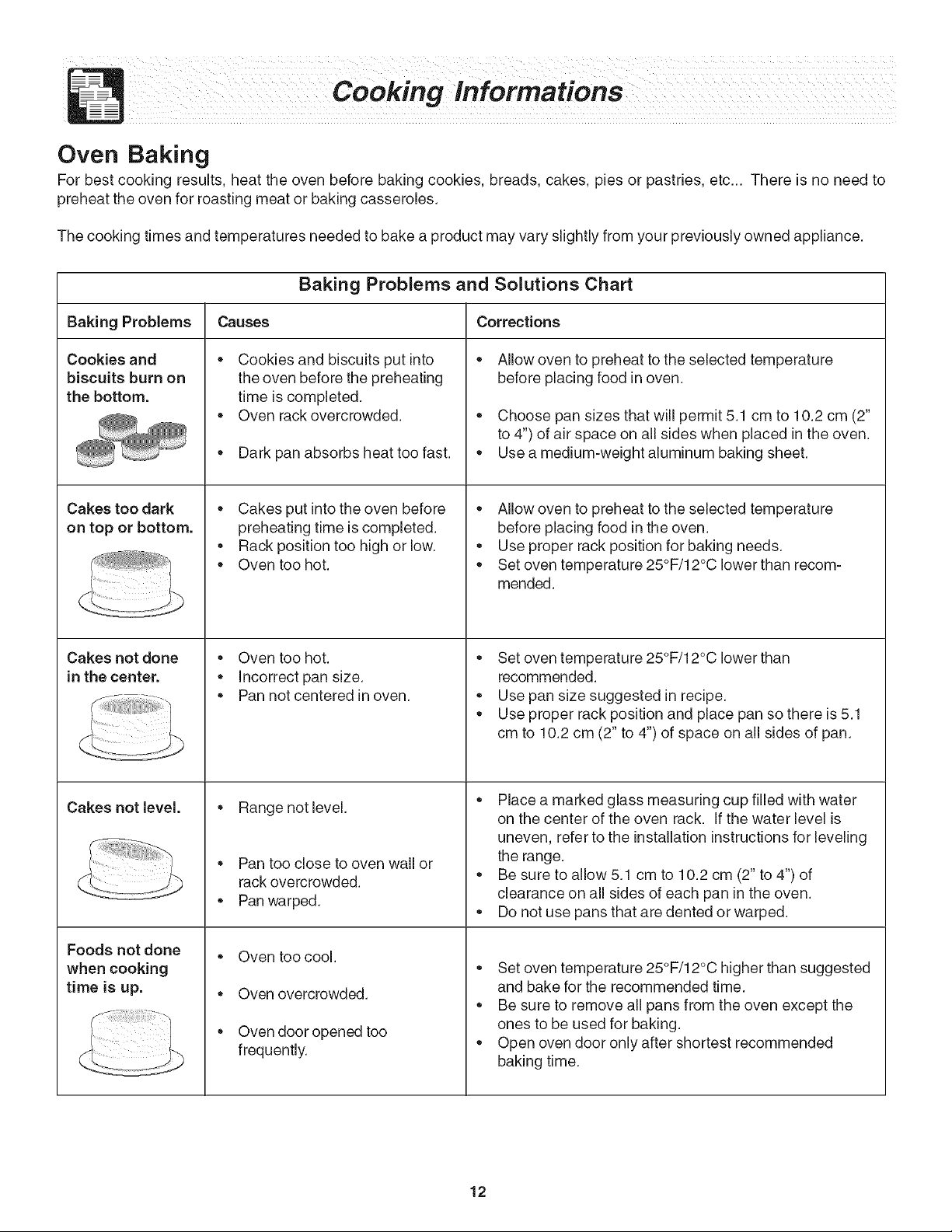

Oven Baking

For best cooking results, heat the oven before baking cookies, breads, cakes, pies or pastries, etc... There is no need to
preheat the oven for roasting meat or baking casseroles.

The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance.

Baking Problems and Solutions Chart

Baking Problems Causes Corrections

Cookies and

biscuits burn on

the bottom.

Cakes too dark

on top or bottom.

Cakes not done
in the center.

Cakes not level.

• Cookies and biscuits put into
the oven before the preheating

time is completed.

• Oven rack overcrowded.

• Dark pan absorbs heat too fast.

• Cakes put intothe oven before
preheating time is completed.

Rack position too high or low.
Oven too hot.

• Oven too hot.

• Incorrect pan size.
Pan not centered in oven.

• Range notlevel.

• Pan too close to oven wall or
rack overcrowded.

• Pan warped.

• Allow oven to preheat to the selected temperature
before placing food in oven.

• Choose pan sizes that will permit 5.1 cm to 10.2 cm (2"

to 4") of air space on all sides when placed in the oven.

Use a medium-weight aluminum baking sheet.

• Allow oven to preheat to the selected temperature
before placing food inthe oven.

Use proper rack position for baking needs.
Set oven temperature 25°F/12°C lower than recom-

mended.

Set oven temperature 25°F/12°C lower than
recommended.

Use pan size suggested in recipe.
Use proper rack position and place pan so there is5.1

cm to 10.2 cm (2" to 4") of space on all sides of pan.

• Place a marked glass measuring cup filled with water

on the center of the oven rack. If the water level is

uneven, refer to the installation instructionsfor leveling

the range.

Be sure to allow 5.1 cm to 10.2 cm (2" to 4") of

clearance on all sides of each pan in the oven.

Do not use pans that are dented or warped.

Foods not done

when cooking
time is up.

• Oven toocool.

Oven overcrowded.

Oven door opened too
frequently.

Set oven temperature 25°F/12°C higher than suggested

and bake for the recommended time.

Be sure to remove all pans from the oven except the

ones to be used for baking.

Open oven door only after shortest recommended
baking time.

12

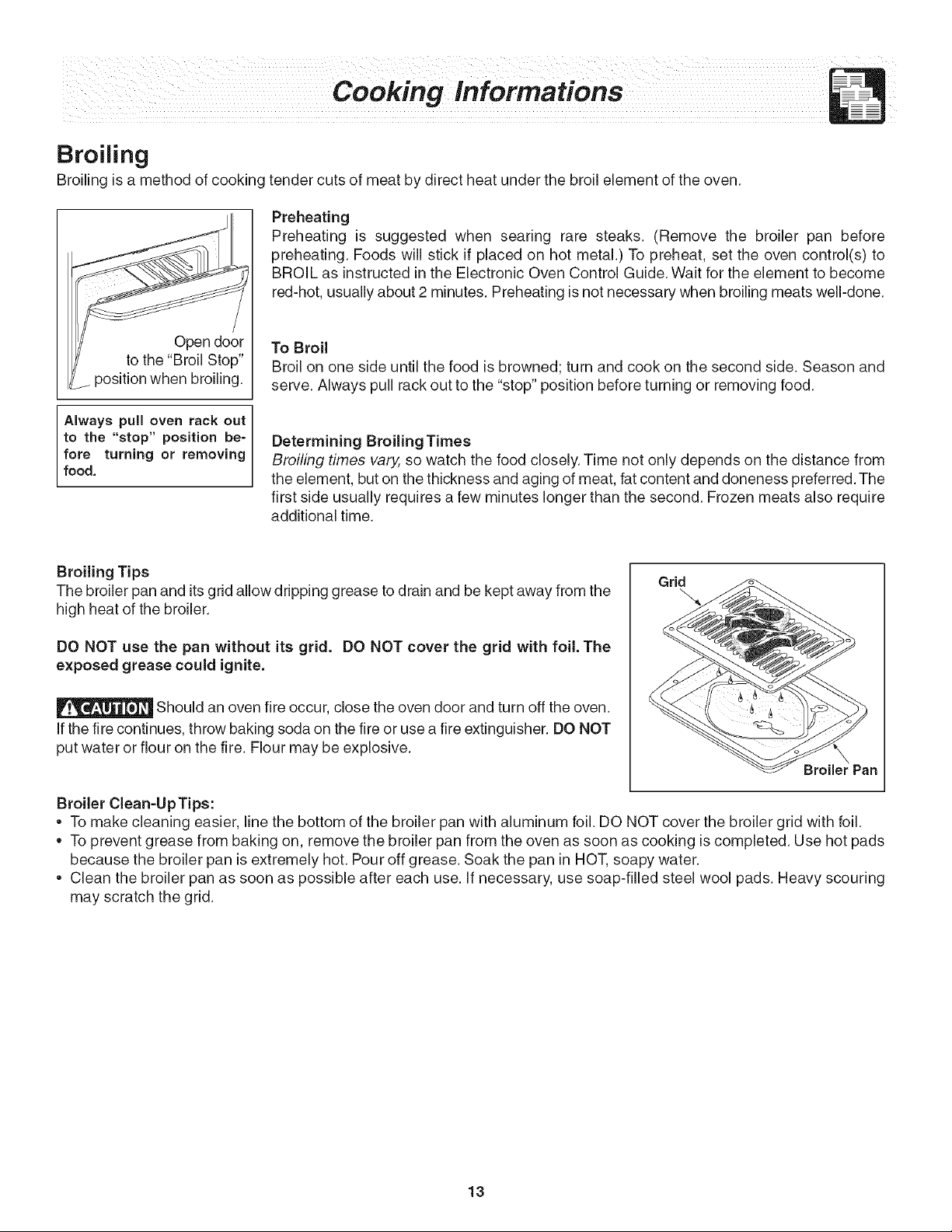

Broiling

Broiling isa method of cooking

tender cuts of meat by direct heat under the broil element of the oven.

Preheating

Preheating is suggested when searing rare steaks. (Remove the broiler pan before

preheating. Foods will stick if placed on hot metal.) To preheat, set the oven control(s) to

BROIL as instructed in the Electronic Oven Control Guide. Wait for the element to become
red-hot, usually about 2 minutes. Preheating is not necessary when broiling meats well-done.

Open door

to the "Broil Stop"

position when broiling.

Always pull oven rack out

to the "stop" position be-

fore turning or removing
food.

Broiling Tips
The broiler pan and itsgrid allow dripping grease to drain and be kept away from the
high heat of the broiler.

DO NOT use the pan without its grid. DO NOT cover the grid with foil. The
exposed grease could ignite.

Should an oven fire occur, close the oven door and turn off the oven.

If the fire continues, throw baking soda on the fire or use a fire extinguisher. DO NOT
put water or flour on the fire. Flour may be explosive.

To Broil

Broil on one side until the food isbrowned; turn and cook on the second side. Season and

serve. Always pull rack out to the "stop" position before turning or removing food.

Determining Broiling Times

Broiling times vary, so watch the food closely. Time not only depends on the distance from
the element, but on the thickness and aging of meat, fat content and doneness preferred. The
first side usually requires a few minutes longer than the second. Frozen meats also require

additional time.

Grid

Broiler Clean=UpTips:

To make cleaning easier, line the bottom of the broiler pan with aluminum foil. DO NOT cover the broiler grid with foil.
To prevent grease from baking on, remove the broiler pan from the oven as soon as cooking is completed. Use hot pads
because the broiler pan is extremely hot. Pour off grease. Soak the pan in HOT, soapy water.
Clean the broiler pan as soon as possible after each use. If necessary, use soap-filled steel wool pads. Heavy scouring
may scratch the grid.

13

Cleaning Various Parts of Your Range

Beforecleaning any part of the range,be sure all controlsareturned OFF and the range is COOL. REMOVE SPILLOVERS AND HEAVY
SOILING AS SOON AS POSSIBLE. REGULAR CLEANING WILL REDUCE THE NUMBER OF MAJOR CLEANING LATER.

Surfaces How to Clean

Aluminum & Vinyl Use hot, soapy water and a cloth. Dry with a clean cloth.
Painted and Plastic Control

Knobs, Body Parts, and
DecorativeTrim

Stainless Steel (some rood=
els) Oven Door & Drawer

Front Panel and Decorative
Trim

Surface Elements and Drip
Bowls (some models)

Porcelain Enamel
Broiler Pan and Insert,
Cooktop, Surface under

Cooktop, Door Liner, Body
Parts

Using asoftcloth, clean with mild dishdetergent and waterora 50/50 solution ofvinegarand water.
Follow by rinsing the area with clean water; dry and polish with a soft cloth. Glass cleaners may

be used if sprayed on a softcloth first. DO NOT sprayliquids directlyon the control padanddisplay
area. Do not use large amounts of water on the control panel - excess water on the control area

maycause damage tothe appliance. Donotuse other liquidcleaners, abrasive cleaners, scouring
pads, or paper towels - they will damage the finish. To remove control knobs, turn to the OFF

position; grasp firmly and pull straight off the shaft. To replace knobs after cleaning, line up the
flat sides of both the knob and the shaft; then push the knob into place.

Clean stainless steel with hot, soapy water and a dishcloth. Rinse with clean water and a
cloth. Do not use cleaners with high concentrations of chlorides or chlorines. Do not
use harsh scrubbing cleaners. Only use kitchen cleaners that are especially made for

cleaning stainless steel. Always be sure to rinse the cleaners from the surface as bluish
stains may occur during heating that cannot be removed.

Surface elements can be unplugged and removed to make cleaning the drip bowls easier.
The surface elements clean themselves when they are turned on. Food spilled on a hot

element will burn off. Food spilled on a cold element can be cleaned with a damp cloth any

remaining soil will burn off the next time element is used. NEVER IMMERSE A SURFACE
ELEMENT IN WATER. To remove surface element and drip bowls, follow the instructions

under General Cleaning.
To clean drip bowls, wash in hot, soapy water or in the dishwasher. Rinse and dry while still

warm. Hard-to-remove, burned-on soils can be removed by soaking the drip bowls for about
20 minute in a slightly diluted liquid cleanser or solution made of equal parts ammonia and

water. A nylon scrubber may be used after soaking. DO NOT use abrasive cleanser or steel
wool, as they will scratch the surface. Always rinse with clean water and polish, and dry with

a soft cloth. To replace drip bowls and surface elements, follow the instructions under
General Cleaning.

Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1 solution
of clear water and ammonia. If necessary, cover difficult spots with an ammonia-soaked

paper towel for 30 to 40 minutes. Rinse with clean water and a damp cloth, and then scrub
with a soap-filled scouring pad. Rinse and wipe dry with a clean cloth. Remove all cleaners or

the porcelain may become damaged during future heating. DO NOT use spray oven cleaners
on the cooktop.

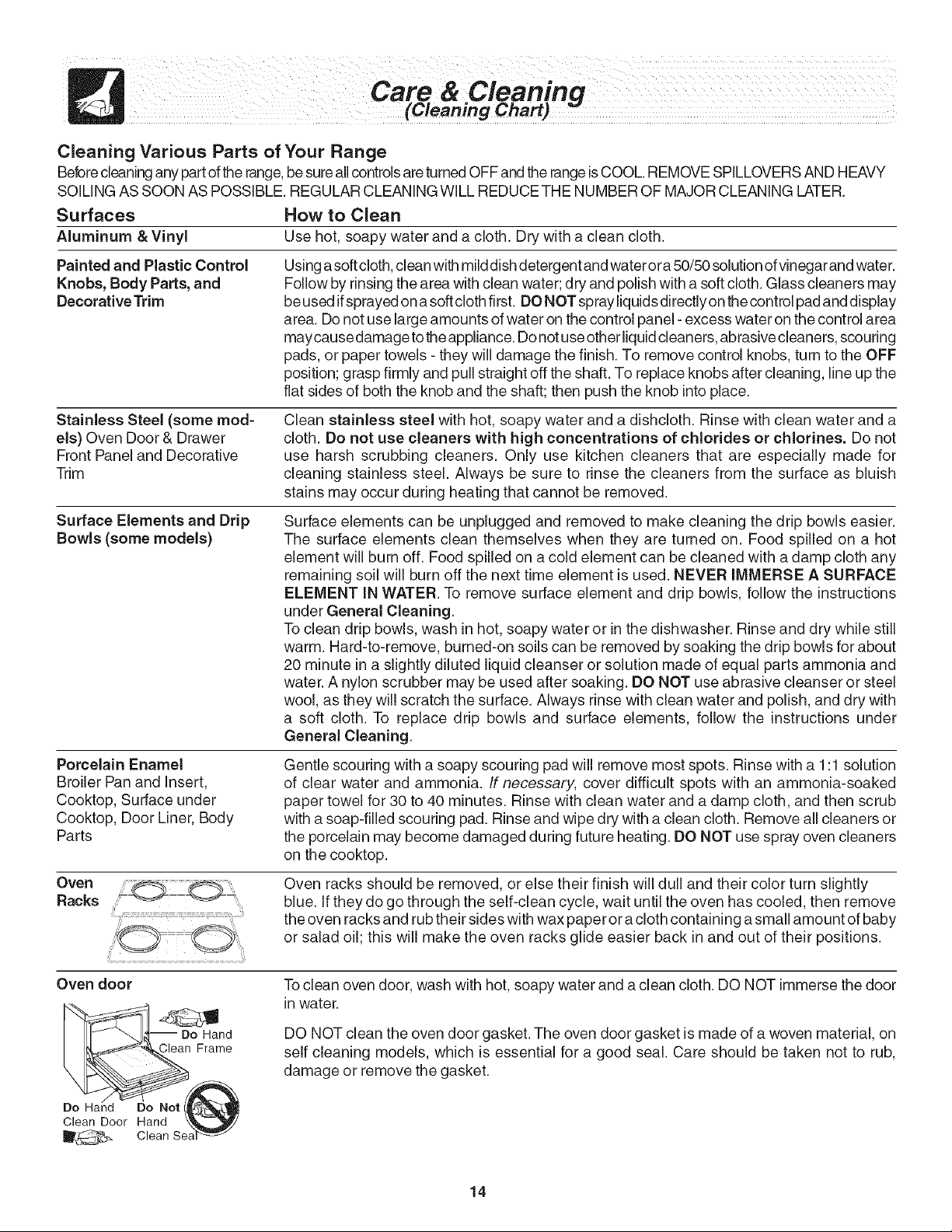

Oven

Racks

Oven door

Oven racks should be removed, or else their finish will dull and their color turn slightly
blue. Ifthey do go through the self-clean cycle, wait until the oven has cooled, then remove
the oven racks and rub their sides with wax paper or a cloth containing a small amount of baby

or salad oil; this will make the oven racks glide easier back in and out of their positions.

Toclean oven door, wash with hot, soapy water and a clean cloth. DO NOT immerse the door
in water.

DO NOT clean the oven door gasket. The oven door gasket is made of a woven material, on
self cleaning models, which is essential for a good seal. Care should be taken not to rub,
damage or remove the gasket.

14

Coil

not to bend terminal ends
when replacing elements
after cleaning.

To Raise the Cooktop for Cleaning

1. Grasp the sides and lift from the front. A lift-up rod will support the top in its raised position.

2. Clean underneath using a clean cloth and hot, soapy water.

3. To lower the top, lift the top slightly and lower the rod. Lower the range top down into the

When lowering the lift-up range top, grasp the sides with fingertips only. Be careful not to pinch
fingers. DO NOT drop or bend the range top when raising or lowering. This could damage the

surface.

Surface Element (some models)

Be careful

Only lift the top high enough to allow the support rod to rest in place under the front of the

cooktop.

range frame.

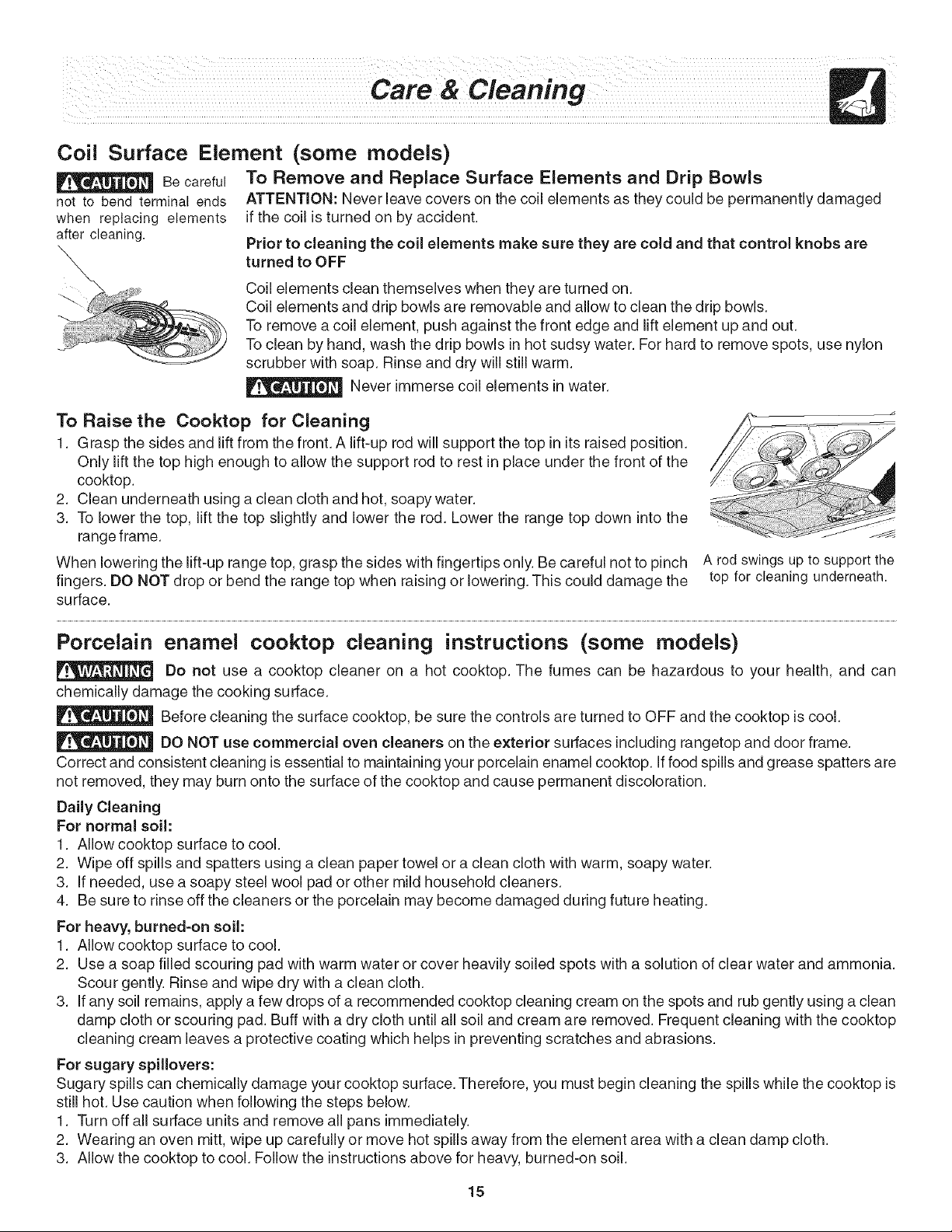

To Remove and Replace Surface Elements and Drip Bowls
ATTENTION: Never leave covers on the coil elements as they could be permanently damaged

if the coil is turned on by accident.
Prior to cleaning the coil elements make sure they are cold and that control knobs are

turned to OFF
Coil elements clean themselves when they are turned on.

Coil elements and drip bowls are removable and allow to clean the drip bowls.
To remove a coil element, push against the front edge and lift element up and out.
To clean by hand, wash the drip bowls in hot sudsy water. For hard to remove spots, use nylon
scrubber with soap. Rinse and dry will still warm.

Never immerse coil elements in water.

A rod swings up to support the

top for cleaning underneath.

Porcelain enamel cooktop cleaning instructions (some models)

Do not use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can

chemically damage the cooking surface.

Before cleaning the surface cooktop, be sure the controls are turned to OFF and the cooktop is cool.
DO NOT use commercial oven cleaners on the exterior surfaces including rangetop and door frame.

Correct and consistent cleaning is essential to maintaining your porcelain enamel cooktop. If food spills and grease spatters are
not removed, they may burn onto the surface of the cooktop and cause permanent discoloration.

Daily Cleaning
For normal soil:

1. Allow cooktop surface to cool.

2. Wipe off spills and spatters using a clean paper towel or a clean cloth with warm, soapy water.

3. If needed, use a soapy steel wool pad or other mild household cleaners.

4. Be sure to rinse off the cleaners or the porcelain may become damaged during future heating.
For heavy, burned-on soil:

1. Allow cooktop surface to cool.

2. Use a soap filled scouring pad with warm water or cover heavily soiled spots with a solution of clear water and ammonia.
Scour gently. Rinse and wipe dry with a clean cloth.

3. If any soil remains, apply a few drops of a recommended cooktop cleaning cream on the spots and rub gently using a clean

damp cloth or scouring pad. Buff with a dry cloth until all soil and cream are removed. Frequent cleaning with the cooktop
cleaning cream leaves a protective coating which helps in preventing scratches and abrasions.

For sugary spillovers:
Sugary spills can chemically damage your cooktop surface. Therefore, you must begin cleaning the spills while the cooktop is
still hot. Use caution when following the steps below.

1. Turn off all surface units and remove all pans immediately.

2. Wearing an oven mitt, wipe up carefully or move hot spills away from the element area with a clean damp cloth.

3. Allow the cooktop to cool. Follow the instructionsabove for heavy, burned-on soil.

15

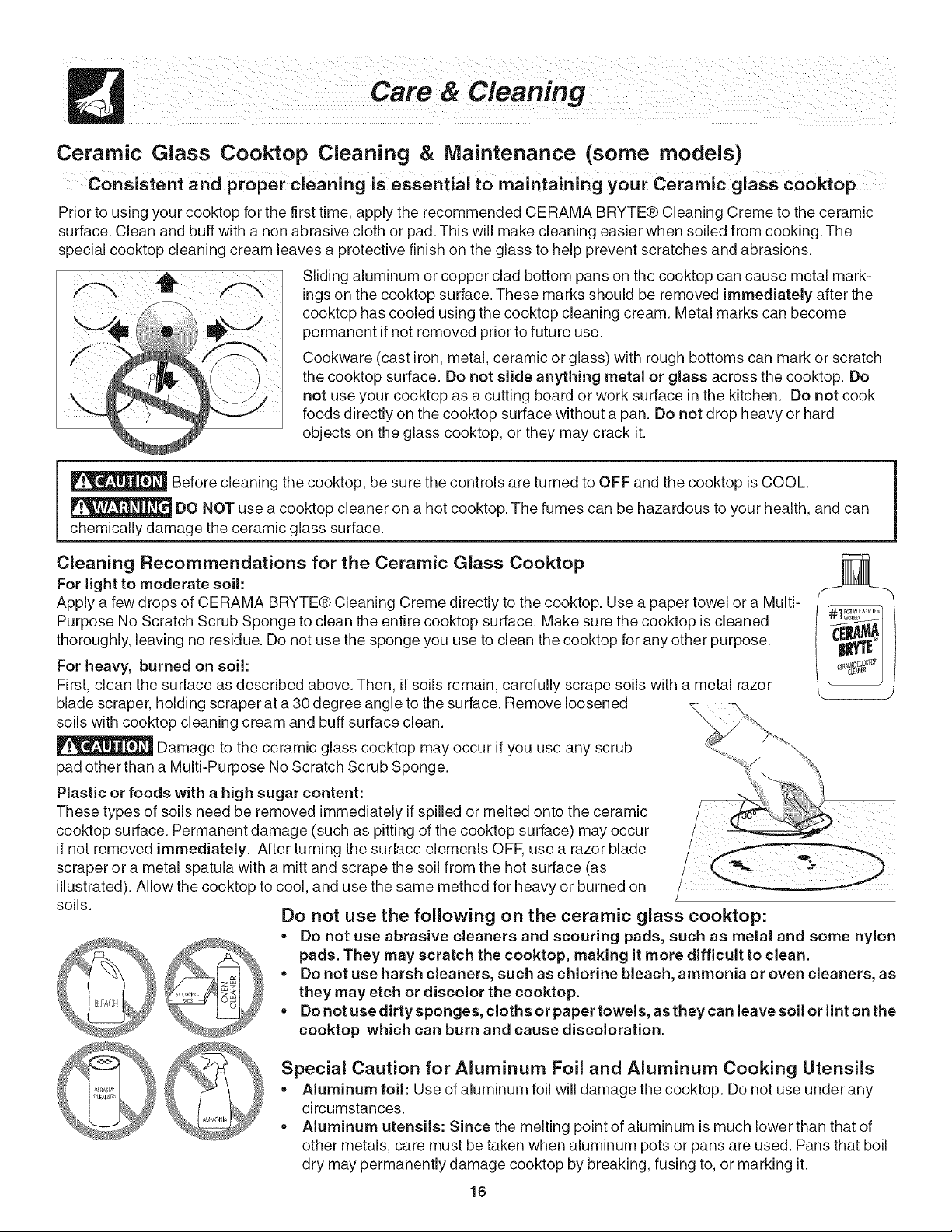

Ceramic Glass Cooktop Cleaning & Maintenance (some modeJs)

Consistent and proper cleaning is essentiaJ to maintaining y0ur Ceramic glass cooktop

Prior to using your cooktop for the first time, apply the recommended CERAMA BRYTE® Cleaning Creme to the ceramic
surface. Clean and buff with a non abrasive cloth or pad. This will make cleaning easier when soiled from cooking. The
special cooktop cleaning cream leaves a protective finish on the glass to help prevent scratches and abrasions.

f_,_ f _, Sliding aluminum or copper clad bottom pans on the cooktop can cause metal mark-

Before cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is COOL.

DO NOT use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can

chemically damage the ceramic glass surface.

ings on the cooktop surface. These marks should be removed immediately after the
cooktop has cooled using the cooktop cleaning cream. Metal marks can become

permanent if not removed prior to future use.
Cookware (cast iron, metal, ceramic or glass) with rough bottoms can mark or scratch

the cooktop surface. Do not slide anything metal or glass across the cooktop. Do
not use your cooktop as a cutting board or work surface in the kitchen. Do not cook

foods directly on the cooktop surface without a pan. Do not drop heavy or hard
objects on the glass cooktop, or they may crack it.

Cleaning Recommendations for the Ceramic Glass Cooktop

For light to moderate soil:

Apply a few drops of CERAMA BRYTE® Cleaning Creme directly to the cooktop. Use a paper towel or a Multi-
Purpose No Scratch Scrub Sponge to clean the entire cooktop surface. Make sure the cooktop is cleaned
thoroughly, leaving no residue. Do not use the sponge you use to clean the cooktop for any other purpose.

For heavy, burned on soil:
First, clean the surface as described above. Then, if soils remain, carefully scrape soils with a metal razor
blade scraper, holding scraper at a 30 degree angle to the surface. Remove loosened
soils with cooktop cleaning cream and buff surface clean.

Damage to the ceramic glass cooktop may occur if you use any scrub

pad other than a Multi-Purpose No Scratch Scrub Sponge.
Plastic or foods with a high sugar content:

These types of soils need be removed immediately ifspilled or melted onto the ceramic
cooktop surface. Permanent damage (such as pitting of the cooktop surface) may occur
if not removed immediately. After turning the surface elements OFF, use a razor blade
scraper or a metal spatula with a mitt and scrape the soil from the hot surface (as
illustrated). Allow the cooktop to cool, and use the same method for heavy or burned on

soils.

Do not use the following on the ceramic glass cooktop:

= Do not use abrasive cleaners and scouring pads, such as metal and some nylon

pads. They may scratch the cooktop, making it more difficult to clean.

= Do not use harsh cleaners, such as chlorine bleach, ammonia or oven cleaners, as

they may etch or discolor the cooktop.

• Do not use dirty sponges, cloths or paper towels, as they can leave soil or lint on the
cooktop which can burn and cause discoloration.

®_ Special Caution for Aluminum Foil and Aluminum Cooking Utensils

circumstances.

= Aluminum foil: Use of aluminum foil will damage the cooktop. Do not use under

• Aluminum utensils: Since the melting point of aluminum is much lower than that of

other metals, care must be taken when aluminum pots or pans are used. Pans that boil
dry may permanently damage cooktop by breaking, fusing to, or marking it.

16

any

Care&Cleaning

Care and Cleaning of Stainless Steel (Some IVlodels)

Some models are equipped with stainless steel exterior parts. Special care and cleaning are required for maintaining the
appearance of stainless parts. Please refer to the table provided at the beginning of the General Care & Cleaning section in

this Use & Care Guide.

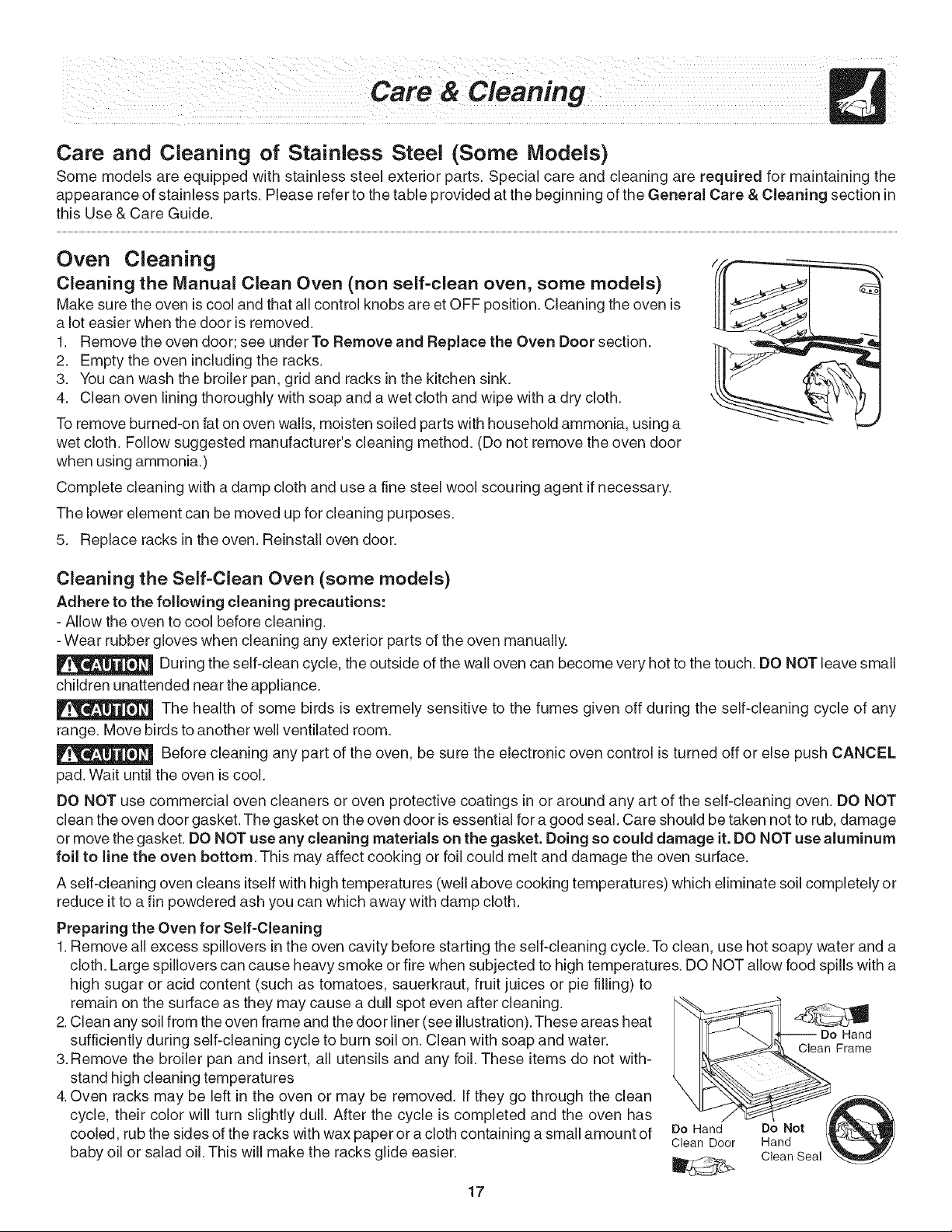

Oven Cleaning

Cleaning the Manual Clean Oven (non self-clean oven, some models)

Make sure the oven iscool and that all control knobs are et OFF position. Cleaning the oven is
a lot easier when the door isremoved.

1. Remove the oven door; see under To Remove and Replace the Oven Door section.

2. Empty the oven includingthe racks.

3. You can wash the broiler pan, grid and racks in the kitchen sink.

4. Clean oven liningthoroughly with soap and a wet cloth and wipe with a dry cloth.
To remove burned-on fat on oven walls, moisten soiled parts with household ammonia, using a

wet cloth. Follow suggested manufacturer's cleaning method. (Do not remove the oven door
when using ammonia.)

Complete cleaning with a damp cloth and use a fine steel wool scouring agent ifnecessary.
The lower element can be moved up for cleaning purposes.

5. Replace racks in the oven. Reinstall oven door.

Cleaning the Self-Clean Oven (some models)

Adhere to the foJJowing cJeaning precautions:

- Allow the oven to cool before cleaning.

- Wear rubber gloves when cleaning any exterior parts of the oven manually.
During the self-clean cycle, the outside of the wall oven can become very hot to the touch. DO NOT leave small

children unattended near the appliance.

The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any

range. Move birds to another well ventilated room.

Before cleaning any part of the oven, be sure the electronic oven control isturned off or else push CANCEL

pad. Wait until the oven is cool.
DO NOT use commercial oven cleaners or oven protective coatings in or around any art of the self-cleaning oven. DO NOT

clean the oven door gasket. The gasket on the oven door is essential for a good seal. Care should be taken notto rub, damage
or move the gasket. DO NOT use any cleaning materiaJs on the gasket. Doing so could damage it. DO NOT use aJuminum

foil to Jine the oven bottom. This may affect cooking or foil could melt and damage the oven surface.
A self-cleaning oven cleans itselfwith high temperatures (well above cooking temperatures) which eliminate soil completely or

reduce itto a fin powdered ash you can which away with damp cloth.
Preparing the Oven for Self-Cleaning

1.Remove all excess spillovers in the oven cavity before starting the self-cleaning cycle. To clean, use hot soapy water and a

cloth. Large spillovers can cause heavy smoke or fire when subjected to high temperatures. DO NOT allow food spills with a
high sugar or acid content (such as tomatoes, sauerkraut, fruit juices or pie filling) to
remain on the surface as they may cause a dull spot even after cleaning.

2.Clean any soil from the oven frame and the door liner (see illustration).These areas heat

sufficiently during self-cleaning cycle to burn soil on. Clean with soap and water. CleanFrame

3.Remove the broiler pan and insert, all utensils and any foil. These items do not with-

stand high cleaning temperatures

4.Oven racks may be left in the oven or may be removed. If they go through the clean

cycle, their color will turn slightly dull. After the cycle is completed and the oven has
cooled, rub the sides of the racks with wax paper or a cloth containing a small amount of Do Hand Do Not

baby oil or salad oil. This will make the racks glide easier. _ CleanSeal

17

Clean Door Hand

-- Do Hand

Care & Cleaning

Oven Cleaning (Continued)

Cleaning the Self-Clean Oven (some models, Continued)

What to Expect During Cleaning
While the oven is inoperation, the oven heats to temperatures much higher than those used in normal cooking. Sounds of metal

expansion and contraction are normal. Odor isalso normal as the food soil isbeing removed. Smoke may appear through the
oven vent, located on the top of the control panel.

if heavy spillovers are not wiped up before cleaning, they may flame and cause more smoke and odor than usual. This isnormal
and safe and should not cause alarm, if available, use an exhaust fan during the self-cleaning cycle.

NOTE: A smoke eliminator in the oven vent converts most of the soil into a colorless vapor.

Setting the Controls for Self-Clean Cycle
For the setting of the clean cycle, refer to Timer or Electronic Oven Control Guide.

Hinge lever hook

Hinge

Hin(
support

Lock engaged for door

removal - Figure 1

- Door removed from
the oven - Figure 2

Lock in normal

position - Figure 3

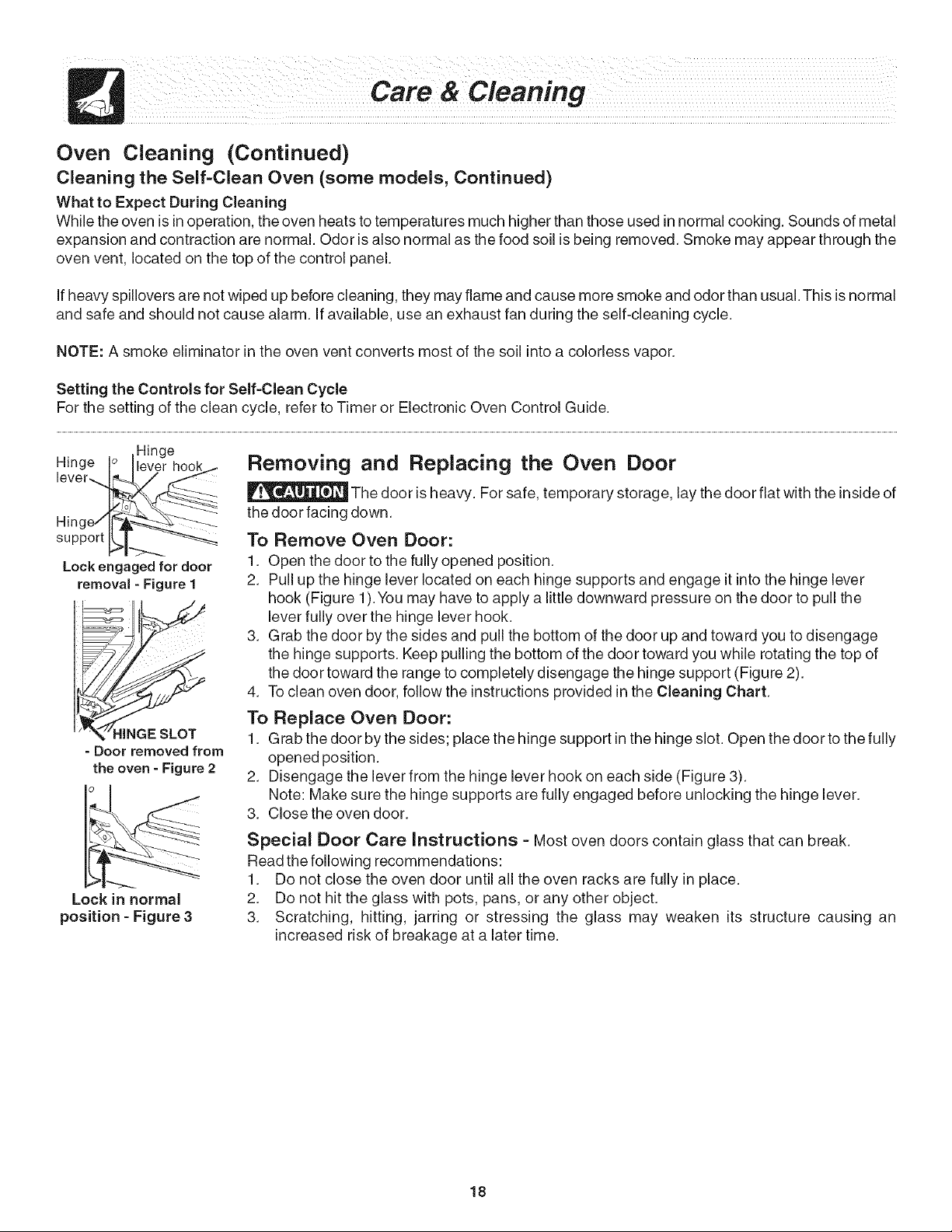

Removing and Replacing the Oven Door

The door is heavy. For safe, temporary storage, lay the door flat with the inside of

the door facing down.
To Remove Oven Door:

1. Open the door to the fully opened position.

2. Pull up the hinge lever located on each hinge supports and engage it intothe hinge lever
hook (Figure 1).You may have to apply a little downward pressure on the door to pull the
lever fully over the hinge lever hook.

3. Grab the door by the sides and pull the bottom of the door up and toward you to disengage
the hinge supports. Keep pulling the bottom of the door toward you while rotating the top of
the door toward the range to completely disengage the hinge support (Figure 2).

4. To clean oven door, follow the instructionsprovided in the Cleaning Chart.

To Replace Oven Door:

1. Grab the door by the sides; place the hinge support inthe hinge slot. Open the door to the fully
opened position.

2. Disengage the lever from the hinge lever hook on each side (Figure 3).
Note: Make sure the hinge supports are fully engaged before unlocking the hinge lever.

3. Close the oven door.

Special Door Care Instructions - Most oven doors contain glass that can break.
Read the following recommendations:

1. Do not close the oven door until all the oven racks are fully in place.

2. Do not hit the glass with pots, pans, or any other object.

3. Scratching, hitting, jarring or stressing the glass may weaken its structure causing an

increased risk of breakage at a later time.

18

Care &Cleaning

Storage

Left Glide

Pull down latch
with finger Right Glide

Drawer with e×tensible glides (some models)

To remove Warmer Drawer:

1. Open the drawer to the fully opened position.

2. Locate the latches on both sides of the warmer drawer. (See Figure 1)

3. Pull up on the left glide latch and push down on the right glide latch. (See Figure

Pull up latch 1)

_vithfinger 4. Pull the drawer away from the range.

5. To clean warmer drawer, gently scour with a soapy scouring pad, this will remove
most spots. Rinse with a 1:1 solution of clear water and ammonia. If necessary,
cover difficult spots with an ammonia-soaked paper towel for 30 to 40 minutes.
Rinse with clean water and a damp cloth. Remove all cleaners or the porcelain
may become damaged during future heating. DO NOT use spray oven cleaners
on the cooktop.

To Replace Warmer Drawer:

1. Alignthe glide latches on both sides of the drawer with the slots on the drawer.

2. Push the drawer back into the range.

Figure 1

Regular Storage Drawer (some models)

Use the storage drawer for storing cooking utensils. The drawer can de removed to
facilitate cleaning under the range. Use care when handling the drawer.

Removing and Replacing Storage Drawer

To remove the drawer:

1. Pull empty drawer out to the roller guide stop.

2. Tilt the drawer up and pull it out over the rollers.
To replace the drawer:

1. insert the rear end of the drawer into the opening.

2. Fit the drawer end rollers onto the guide rails.

3.

Push the drawer in until it stops, then lift to allow the rollers to clear the roller guide
stop, and push in.

Roller

Front
Frame

Storage

Drawer

19

Figure 2

Care &Cleaning

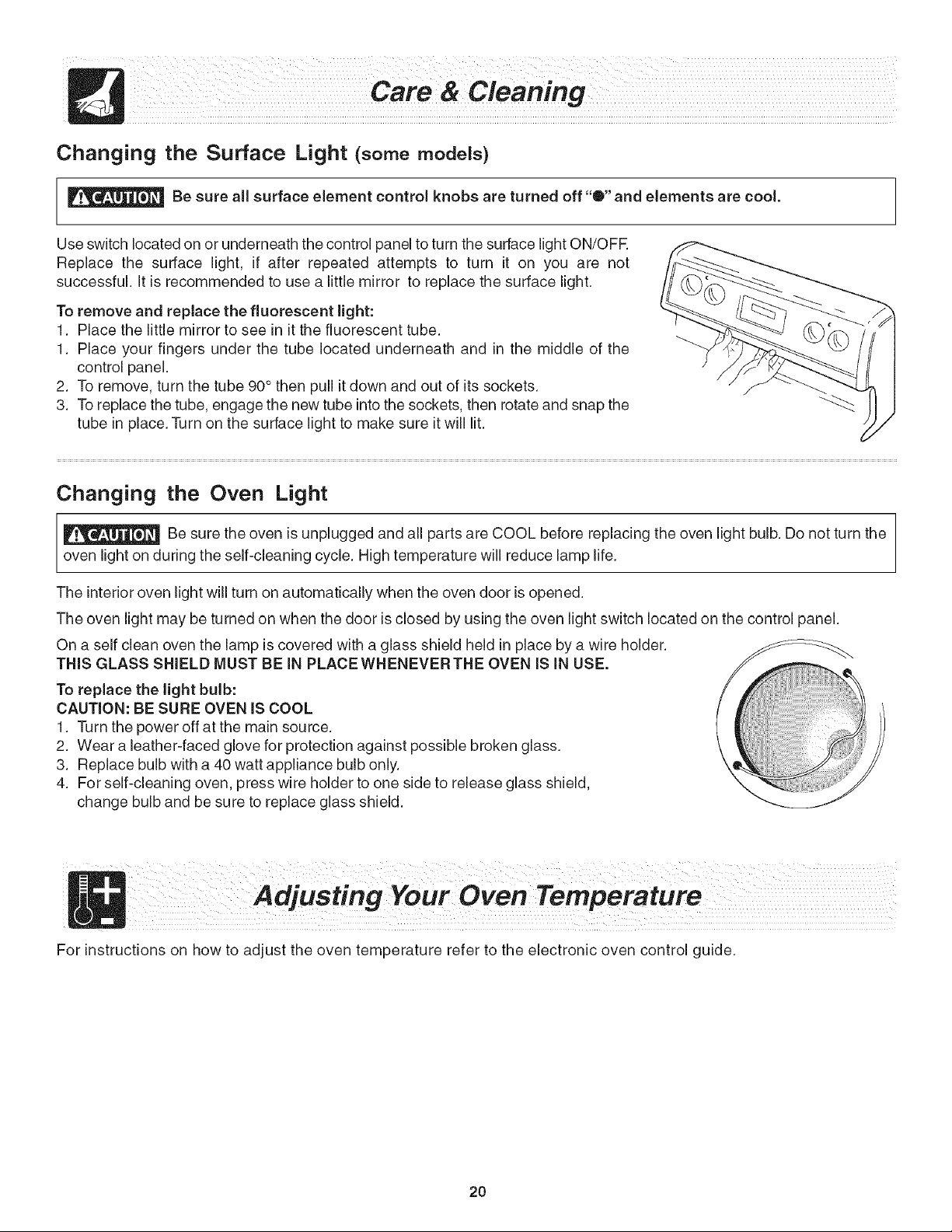

Changing the Surface Light (some models)

Be sure all surface element control knobs are turned off "0" and elements are cool.

Use switch located on or underneath the control panel to turn the surface lightON/OFE
Replace the surface light, if after repeated attempts to turn it on you are not

successful, it is recommended to use a little mirror to replace the surface light.
To remove and replace the fluorescent light:

1. Place the little mirror to see in it the fluorescent tube.

1. Place your fingers under the tube located underneath and in the middle of the
control panel.

2. To remove, turn the tube 90 ° then pull itdown and out of its sockets.

3. To replace the tube, engage the new tube intothe sockets, then rotate and snap the
tube inplace. Turn on the surface light to make sure it will lit.

Changing the Oven Light

Be sure the oven is unplugged and all parts are COOL before replacing the oven light bulb. Do not turn the

oven light on during the self-cleaning cycle. High temperature will reduce lamp life.

The interior oven light will turn on automatically when the oven door is opened.
The oven light may be turned on when the door is closed by using the oven light switch located on the control panel.
On a self clean oven the lamp is covered with a glass shield held in place by a wire holder.

THiS GLASS SHIELD MUST BE IN PLACEWHENEVER THE OVEN IS IN USE.
To replace the light bulb:

CAUTION: BE SURE OVEN iS COOL

1. Turn the power off at the main source.

2. Wear a leather-faced glove for protection against possible broken glass.

3. Replace bulb with a 40 watt appliance bulb only.

4. For self-cleaning oven, press wire holder to one side to release glass shield,
change bulb and be sure to replace glass shield.

For instructions on how to adjust the oven temperature refer to the electronic oven control guide.

20

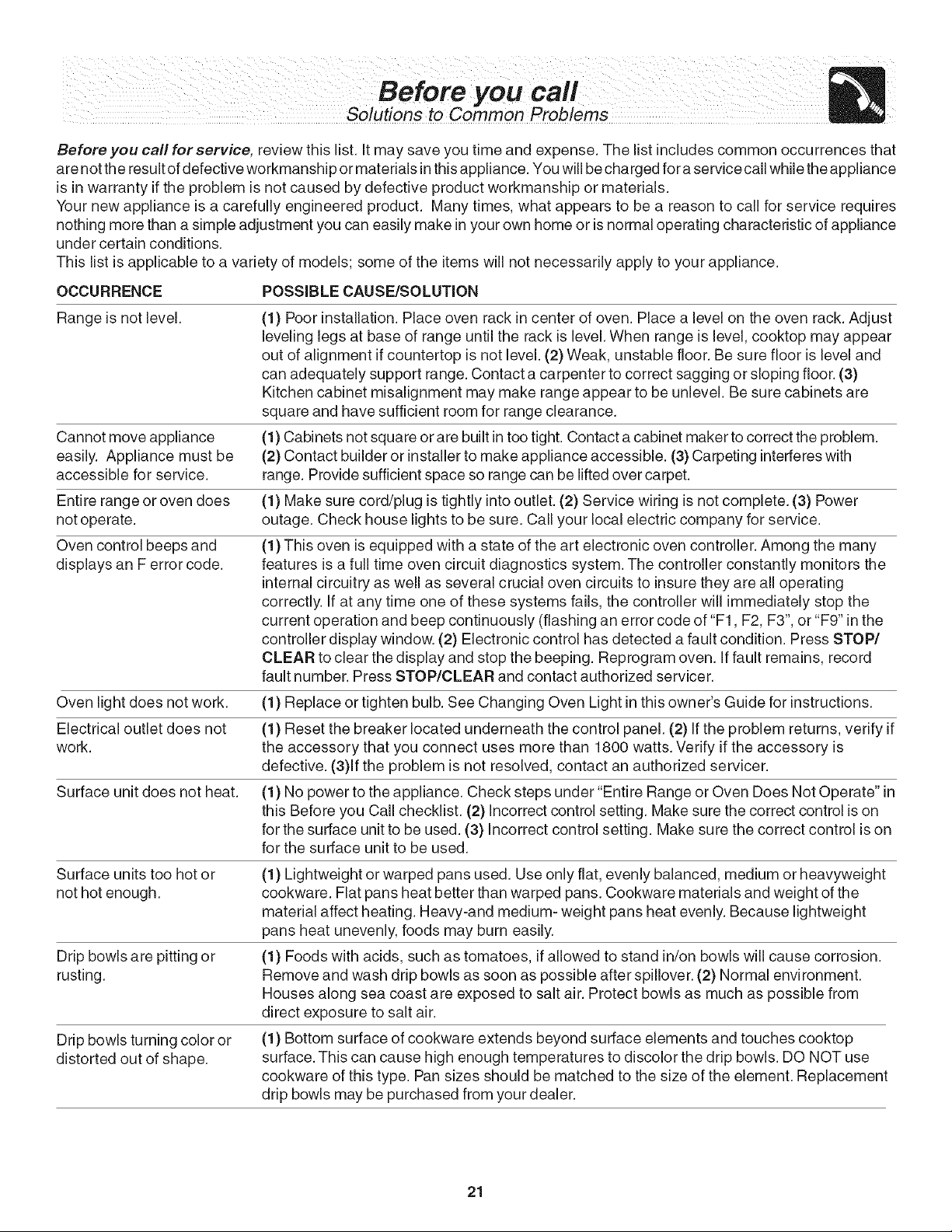

Solutions to Common Problems

Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that

are not the result of defective workmanship or materials in this appliance. You will be charged fora service call while the appliance
is in warranty if the problem is not caused by defective product workmanship or materials.
Your new appliance is a carefully engineered product. Many times, what appears to be a reason to call for service requires
nothing more than a simple adjustment you can easily make in your own home or is normal operating characteristic of appliance

under certain conditions.
This list is applicable to a variety of models; some of the items will not necessarily apply to your appliance.

OCCURRENCE POSSBLE CAUSE/SOLUTION
Range is not level.

Cannot move appliance
easily. Appliance must be

accessible for service.
Entire range or oven does

not operate.
Oven control beeps and

displays an F error code.

Oven light does not work.
Electrical outlet does not

work.

Surface unit does not heat.

Surface units too hot or
not hot enough.

Drip bowls are pitting or
rusting.

Drip bowls turning color or
distorted out of shape.

(1) Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust
leveling legs at base of range until the rack is level. When range is level, cooktop may appear
out of alignment if countertop is not level. (2) Weak, unstable floor. Be sure floor is level and
can adequately support range. Contact a carpenter to correct sagging or sloping floor. (3)

Kitchen cabinet misalignment may make range appear to be unlevel. Be sure cabinets are

square and have sufficient room for range clearance.
(1) Cabinets not square or are built in too tight. Contact a cabinet maker to correct the problem.

(2) Contact builder or installer to make appliance accessible. (3) Carpeting interferes with

range. Provide sufficient space so range can be lifted over carpet.

(1) Make sure cord/plug is tightly into outlet. (2) Service wiring is not complete. (3) Power
outage. Check house lights to be sure. Call your local electric company for service.

(1) This oven is equipped with a state of the art electronic oven controller. Among the many
features is a full time oven circuit diagnostics system. The controller constantly monitors the
internal circuitry as well as several crucial oven circuits to insure they are all operating
correctly. If at any time one of these systems fails, the controller will immediately stop the
current operation and beep continuously (flashing an error code of "F1, F2, F3", or"F9" in the
controller display window. (2) Electronic control has detected a fault condition. Press STOP/
CLEAR to clear the display and stop the beeping. Reprogram oven. If fault remains, record

fault number. Press STOP/CLEAR and contact authorized servicer.
(1) Replace or tighten bulb. See Changing Oven Light in this owner's Guide for instructions.

(1) Reset the breaker located underneath the control panel. (2) If the problem returns, verify if
the accessory that you connect uses more than 1800 watts. Verify if the accessory is
defective. (3)If the problem is not resolved, contact an authorized servicer.

(1) No power to the appliance. Check steps under"Entire Range or Oven Does Not Operate" in
this Before you Call checklist. (2) Incorrect control setting. Make sure the correct control ison
for the surface unit to be used. (3) Incorrect control setting. Make sure the correct control is on

for the surface unit to be used.
(1) Lightweight or warped pans used. Use only flat, evenly balanced, medium or heavyweight

cookware. Flat pans heat better than warped pans. Cookware materials and weight of the
material affect heating. Heavy-and medium- weight pans heat evenly. Because lightweight

pans heat unevenly, foods may burn easily.
(1) Foods with acids, such as tomatoes, if allowed to stand in/on bowls will cause corrosion.

Remove and wash drip bowls as soon as possible after spillover. (2) Normal environment.
Houses along sea coast are exposed to salt air. Protect bowls as much as possible from

direct exposure to salt air.
(1) Bottom surface of cookware extends beyond surface elements and touches cooktop

surface. This can cause high enough temperatures to discolor the drip bowls. DO NOT use
cookware of this type. Pan sizes should be matched to the size of the element. Replacement
drip bowls may be purchased from your dealer.

21

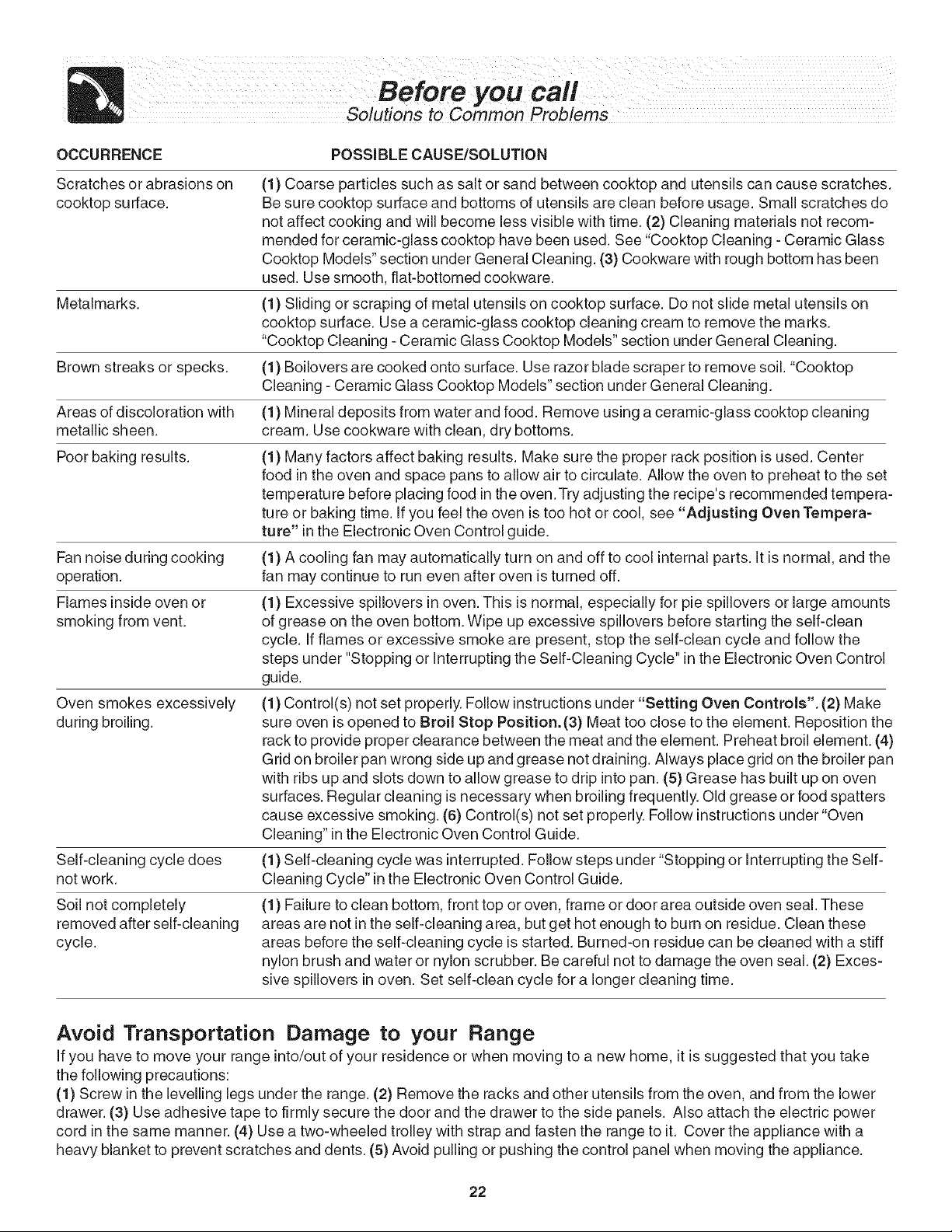

Solutions to Common Problems

OCCURRENCE POSSIBLE CAUSE/SOLUTION
Scratches or abrasions on

cooktop surface.

Metalmarks.

Brown streaks or specks.

Areas of discoloration with
metallic sheen.

Poor baking results.

Fan noise during cooking
operation.

Flames inside oven or
smoking from vent.

Oven smokes excessively
during broiling.

Self-cleaning cycle does
not work.

Soil not completely
removed after self-cleaning
cycle.

(1) Coarse particles such as salt or sand between cooktop and utensils can cause scratches.

Be sure cooktop surface and bottoms of utensils are clean before usage. Small scratches do
not affect cooking and will become less visible with time. (2) Cleaning materials not recom-
mended for ceramic-glass cooktop have been used. See "Cooktop Cleaning - Ceramic Glass
Cooktop Models" section under General Cleaning. (3) Cookware with rough bottom has been
used. Use smooth, flat-bottomed cookware.

(1) Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensils on
cooktop surface. Use a ceramic-glass cooktop cleaning cream to remove the marks.
"Cooktop Cleaning - Ceramic Glass Cooktop Models" section under General Cleaning.

(1) Boilovers are cooked onto surface. Use razor blade scraper to remove soil. "Cooktop
Cleaning - Ceramic Glass Cooktop Models" section under General Cleaning.

(1) Mineral deposits from water and food. Remove using a ceramic-glass cooktop cleaning
cream. Use cookware with clean, dry bottoms.

(1) Many factors affect baking results. Make sure the proper rack position is used. Center
food in the oven and space pans to allow air to circulate. Allow the oven to preheat to the set
temperature before placing food in the oven.Try adjusting the recipe's recommended tempera-
ture or baking time. If you feel the oven is too hot or cool, see "Adjusting Oven Tempera-
ture" in the Electronic Oven Control guide.

(1) A cooling fan may automatically turn on and off to cool internal parts. Itis normal, and the
fan may continue to run even after oven is turned off.

(1) Excessive spillovers in oven. This isnormal, especially for pie spillovers or large amounts
of grease on the oven bottom. Wipe up excessive spillovers before starting the self-clean
cycle. If flames or excessive smoke are present, stop the self-clean cycle and follow the
steps under "Stopping or Interrupting the Self-Cleaning Cycle" in the Electronic Oven Control
guide.

(1) Control(s) not set properly. Follow instructions under "Setting Oven Controls". (2) Make
sure oven is opened to Broil Stop Position.(3) Meat too close to the element. Reposition the

rack to provide proper clearance between the meat and the element. Preheat broil element. (4)
Grid on broiler pan wrong side up and grease not draining. Always place grid on the broiler pan

with ribs up and slots down to allow grease to drip into pan. (5) Grease has built up on oven
surfaces. Regular cleaning is necessary when broiling frequently. Old grease or food spatters

cause excessive smoking. (6) Control(s) not set properly. Follow instructions under"Oven
Cleaning" in the Electronic Oven Control Guide.

(1) Self-cleaning cycle was interrupted. Follow steps under "Stopping or Interrupting the Self-
Cleaning Cycle" in the Electronic Oven Control Guide.

(1) Failure to clean bottom, front top or oven, frame or door area outside oven seal. These
areas are not in the self-cleaning area, but get hot enough to burn on residue. Clean these
areas before the self-cleaning cycle is started. Burned-on residue can be cleaned with a stiff
nylon brush and water or nylon scrubber. Be careful not to damage the oven seal. (2) Exces-
sive spillovers in oven. Set self-clean cycle for a longer cleaning time.

Avoid Transportation Damage to your Range

If you have to move your range into/out of your residence or when moving to a new home, it is suggested that you take
the following precautions:

(1) Screw in the levelling legs under the range. (2) Remove the racks and other utensils from the oven, and from the lower
drawer. (3) Use adhesive tape to firmly secure the door and the drawer to the side panels. Also attach the electric power

cord in the same manner. (4) Use a two-wheeled trolley with strap and fasten the range to it. Cover the appliance with a
heavy blanket to prevent scratches and dents. (5) Avoid pulling or pushing the control panel when moving the appliance.

22
