Use & Care Manual

Side by Side

Refrigerator

Welcome 2

Safety Instructions

Installation --

IHousehold Water Supply to refrigerator

Door Removal Instructions

Features at a Glance

Temperature Controls

Looking Inside

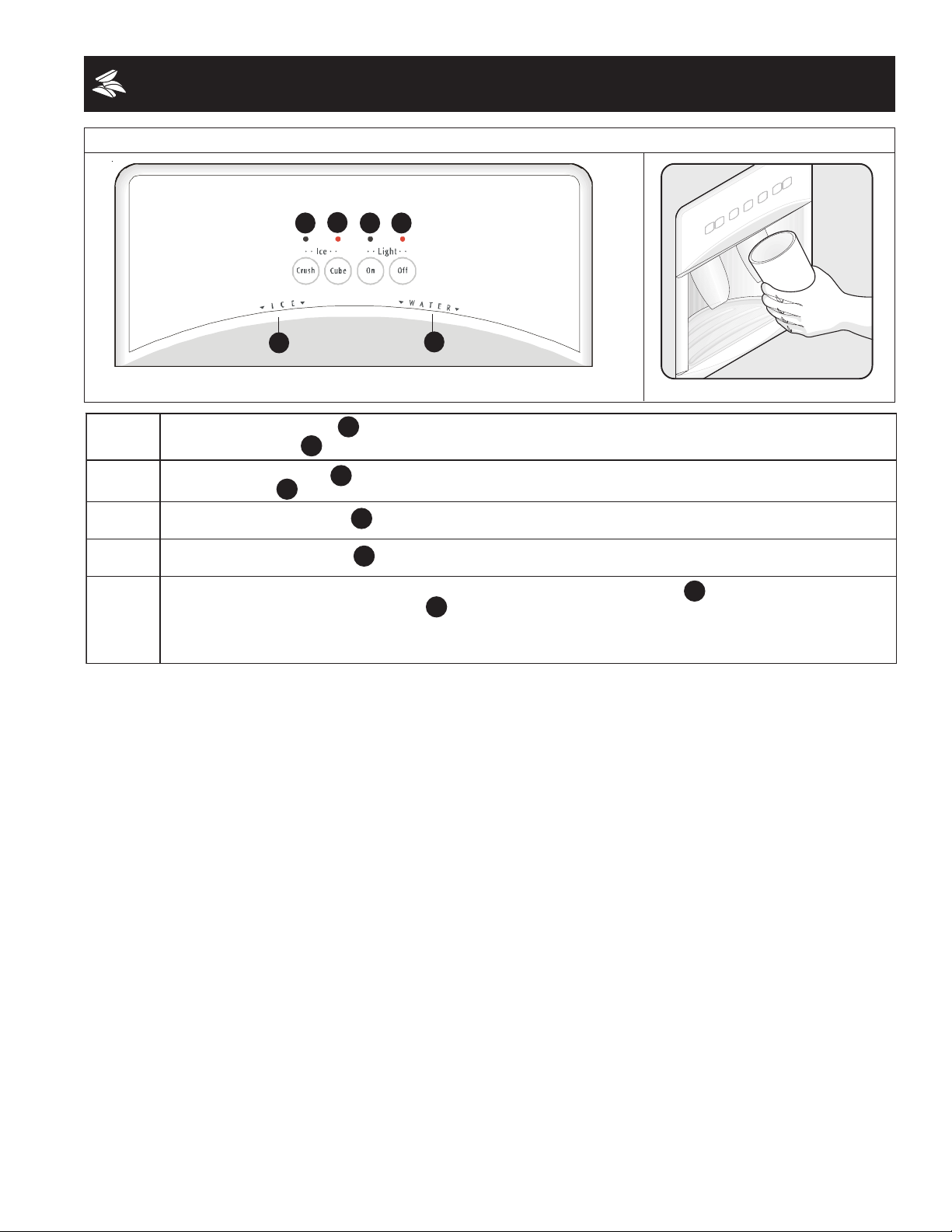

Automatic Ice and Water Dispenser

Food Storage & Energy Saving Tips

Includes Connecting

4 - 5

8 - 11

12 - 13

14 - 20

Español Fran

ais

READ AND SAVE THESE INSTRUCTIONS

Normal Operating Sounds

Care & Cleaning

Warranty

Before You Call

Solutions to Common Problems

23 - 24

26 - 29

PN: 241824400 (Jan 2007)

WELCOME & CONGRATULATIONS

Congratulations on your purchase of a new refrigerator! We here at Crosley Corporation are very proud of our product and we are completely committed to providing you with the best service possible. Your satisfaction is our #1 priority.

Please read this Use & Care Manual very carefully. It contains valuable information on how to properly maintain your new refrigerator.

We know you’ll enjoy your new refrigerator and Thank You for choosing our product. We hope you consider us for future purchases.

PLEASE READ AND SAVE THESE INSTRUCTIONS

This Use & Care Manual provides specific operating instructions for your model. Use your refrigerator only as instructed in this manual. These instructions are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating and maintaining any appliance.

Please record your model and serial numbers below for future reference. This information is found on the serial plate located inside the refrigerator compartment.

NONO

TETE

NONO

TETE

Use only soap and water to clean serial plate.

FOR PRODUCT INFORMATION CONTACT:

336-761-1212

Crosley Corporation

PO Box 2111

Winston-Salem, NC 27102

www.crosley.com

Please attach sales receipt

here for future reference.

Model Number: Serial Number: Purchase Date:

PLEASE COMPLETE AND MAIL IN THE

PRODUCT REGISTRATION CARD INCLUDED

WITH YOUR REFRIGERATOR

Serial Plate

IMPORTANT SAFETY INSTRUCTIONS

WARNING WARNING

WARNING

WARNING WARNING

Please Read All Instructions Before Using This Refrigerator.

FOR YOUR SAFETY

• Do not store or use gasoline, or other flammable liquids in the vicinity of this or any other appliance. Read product labels for warnings regarding flammability and other hazards.

• Do not operate the refrigerator in the presence of explosive fumes.

• Avoid contact with any moving parts of automatic ice maker.

• Remove all staples from the carton. Staples can cause severe cuts, and also destroy finishes if they come in contact with other appliances or furniture.

CHILD SAFETY

Destroy or recycle the carton, plastic bags, and any exterior wrapping material immediately after the refrigerator is unpacked. Children should NEVER use these items to play. Cartons covered with rugs, bedspreads, plastic sheets or stretch wrap may become airtight chambers, and can quickly cause suffocation.

PROPER DISPOSAL OF YOUR REFRIGERATOR OR FREEZER

Risk of child entrapment

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators or freezers are still dangerous – even if they will sit for “just a few days.” If you are getting rid of your old refrigerator or freezer, please follow the instructions below to help prevent accidents.

Before you throw away your old refrigerator/ freezer:

• Remove doors.

• Leave shelves in place so children may not easily climb inside.

• Have refrigerant removed by a qualified service technician.

WARNING WARNING

WARNING

WARNING WARNING

These Guidelines Must Be Followed To Ensure That Safety Mechanisms In This Refrigerator Will Operate Properly.

ELECTRICAL INFORMATION

• The refrigerator must be plugged into its own dedicated 115 Volt, 60 Hz., 15 Amp, AC only electrical outlet. The power cord of the appliance is equipped with a

three-prong grounding plug for your protection against electrical shock hazards. It must be plugged directly into a properly grounded three prong receptacle. The receptacle must be installed in accordance with local codes and ordinances. Consult a qualified electrician. Avoid connecting refrigerator to a Ground Fault Interruptor (GFI) circuit. Do not use an extension cord or adapter plug.

• If the power cord is damaged, it should be replaced by an authorized service technician to prevent any risk.

• Never unplug the refrigerator by pulling on the power cord. Always grip the plug firmly, and pull straight out from the receptacle to prevent damaging the power cord.

• Unplug the refrigerator before cleaning and before replacing a light bulb to avoid electrical shock.

• Performance may be affected if the voltage varies by 10% or more. Operating the refrigerator with insufficient power can damage the compressor. Such damage is not covered under your warranty.

• Do not plug the unit into an electrical outlet controlled by a

wall switch or pull cord to prevent the refrigerator from being turned off accidentally.

IMPORIMPOR

IMPOR

IMPORIMPOR

Pressing and holding the On/Off button for 3 seconds, located on the left side of the temperature control panel (Electronic controls), or turning the Freezer and Fresh Food controls to “0” (Mechanical controls) will disable your refrigerator’s cooling system, but does not disconnect the power to the light bulb and other electrical components. To turn off power to your refrigerator you must unplug the power cord from the electrical outlet.

ANTANT

ANT

ANTANT

Grounding type wall receptacle

Do not, under any circumstances, cut, remove, or bypass the grounding prong.

Power cord with 3-prong grounded plug

INSTALLATION

Cabinet

To e

Grille

This Use & Care Manual provides general operating instructions for your model. Use the refrigerator only as instructed in this Use & Care Manual. Before starting the

refrigerator, follow these important first steps.

LOCATION

• Choose a place that is near a grounded electrical outlet.

Do Not use an extension cord or an adapter plug.

• If possible, place the refrigerator out of direct sunlight and away from the range, dishwasher or other heat sources.

• The refrigerator must be installed on a floor that is level and strong enough to support a fully loaded refrigerator.

• Consider water supply availability for models equipped with an automatic ice maker.

INSTALLATION

CA CA

UTIONUTION

UTION

CA CA

UTIONUTION

Do Not install the refrigerator where the temperature will drop below 55°F (13°C) or rise above 110°F (43°C). The compressor will not be able to maintain proper temperatures inside the refrigerator.

Do Not block the toe grille on the lower front of your refrigerator. Sufficient air circulation is essential for the proper operation of your refrigerator.

Installation Clearances

• Allow the following clearances for ease of installation, proper air circulation, and plumbing and electrical connections:

Sides & Top ------------------ 3/8” Back---------------------------- 1”

DOOR OPENING

NONO

TETE

NONO

TETE

Tabs

Ta b

To e

To Remove Toe Grille:

1. Open freezer and fresh food compartment doors.

2. Working from left side of toe grille, slip your fingers between top of toe grille and cabinet. Gently pull forward until first set of tabs are free. Slide your hand down past the free tabs and pull forward again until the second set of tabs are free. Continue this process until all tabs are free and the toe grille can be removed. (See graphic at top of page in right column.)

Grille

LEVELING

All four corners of your refrigerator must rest firmly on a solid floor. Your refrigerator is equipped with adjustable front rollers to help level your unit. To ensure proper door seal and assist door closing, the refrigerator should be tilted 1/4” (6 mm), front to back.

To Level Your Refrigerator:

1. Remove toe grille. (See

2. Use flat-blade screwdriver or 3/8” socket wrench to adjust front rollers.

“To Remove Toe Grille”

If your refrigerator is placed with the door hinge side against a wall, you may have to allow additional space so the door can be opened wider.

Your refrigerator should be positioned to allow easy access to a counter when removing food. For best use of drawers and freezer baskets, the refrigerator should be in a position where both the refrigerator and freezer doors can be fully opened.

TOE GRILLE INSTALLATION / REMOVAL

To Install Toe Grille:

1. Open freezer and fresh food compartment doors.

2. Line up toe grille at base of refrigerator, making sure the four bottom tabs are resting through holes at base of cabinet.

3. Starting from left side of toe grille, press in on first top tab using your thumb and push toe grille forward until it snaps in place. Continue this process until all tabs are snapped in place and toe grille is secured to refrigerator.

NONO

TETE

NONO

TETE

The refrigerator doors are designed to shut by themselves within a 20 degree opening.

Raise

3. Check both doors to be sure seals touch cabinet on all four sides.

CONNECTING HOUSEHOLD WATER SUPPLY TO REFRIGERATOR

WARNING WARNING

WARNING

WARNING WARNING

To avoid electric shock, which can cause death or severe personal injury, disconnect the refrigerator from electrical power before connecting a water supply line to the refrigerator.

CA CA

UTIONUTION

UTION

CA CA

UTIONUTION

To Avoid Property Damage:

• Copper tubing is recommended for the water supply line. Water supply tubing made of ¼” plastic is not recommended since it greatly increases the potential for water leaks. Manufacturer will not be responsible for any damage if plastic tubing is used for supply line.

• DO NOT install water supply tubing in areas where temperatures fall below freezing.

• Chemicals from a malfunctioning softener can damage the ice maker. If the ice maker is connected to soft water, ensure that the softener is maintained and working properly.

To Connect Water Supply Line To Ice Maker Inlet Valve

1. Disconnect refrigerator from electric power source.

2. Place end of water supply line into sink or bucket. Turn ON water supply and flush supply line until water is clear. Turn OFF water supply at shutoff valve.

3. Unscrew plastic cap from water valve inlet and discard cap.

4. Slide brass compression nut, then ferrule (sleeve) onto water supply line, as shown.

5. Push water supply line into water valve inlet as far as it will go (¼ inch). Slide ferrule (sleeve) into valve inlet and finger tighten compression nut onto valve. Tighten another half turn with a wrench; DO NOT over tighten.

6. With steel clamp and screw, secure water supply line to rear panel of refrigerator as shown.

7. Coil excess water supply line (about 2½ turns) behind refrigerator as shown and arrange coils so they do not vibrate or wear against any other surface.

8. Turn ON water supply at shutoff valve and tighten any connections that leak.

9. Reconnect refrigerator to electrical power source.

10. To turn ice maker on, lower wire signal arm (side mounted) or set the ice maker’s On/Off power switch to the “I” position (rear mounted).

IMPORIMPOR

IMPOR

IMPORIMPOR

ANTANT

ANT

ANTANT

Ensure that your water supply line connections comply with all local plumbing codes.

Before Installing The Water Supply Line, You Will Need:

• Basic Tools: adjustable wrench, flat-blade screwdriver,

and PhillipsTM screwdriver

• Access to a household cold water line with water pressure between 30 and 100 psi.

• A water supply line made of ¼ inch (6.4 mm) OD, copper tubing. To determine the length of copper tubing needed, you will need to measure the distance from the ice maker inlet valve at the back of the refrigerator to your cold water pipe. Then add approximately 7 feet (2.1 meters), so the refrigerator can be moved out for cleaning (as shown).

• A shutoff valve to connect the water supply line to your household water system. DO NOT use a self-piercing type shutoff valve.

• A compression nut and ferrule (sleeve) for connecting the water supply line to the ice maker inlet valve.

NONO

TETE

NONO

TETE

Water line kit number 5303917950, available from your appliance dealer at additional cost, contains 25 feet (7.6 meters) of ¼ inch OD copper tubing, a saddle type shutoff valve (nonpiercing), (2) ¼ inch brass compression nuts, (2) ferrules/sleeves, and instructions for installing a water supply line.

Plastic Water Tubing

to Ice Maker

Fill Tube

Copper water line from household water supply

(Include enough tubing in loop to allow

moving refrigerator out for cleaning.)

IMPORIMPOR

IMPOR

IMPORIMPOR

ANTANT

ANT

ANTANT

After connecting the water supply, refer to

the Water Supply System”

for important information about

Steel

Clamp

Brass

Compression

Nut

Ferrule

(Sleeve)

Copper

water line

Water Valve

Bracket

Valve Inlet

Water Valve

“How to Prime

priming an empty water supply system.

Your refrigerator’s water supply system includes several tubing lines, a water filter, a water valve and a water tank. To ensure that your water dispenser works properly, this system must be completely filled with water when your refrigerator is first connected to the household water supply line.

Adjustable

Wrench

Socket

Wrench Set

Phillips head

and

Flat Head

Screw Driver

™

Tools Necessary:

3/8” Fixed Wrench

DOOR REMOVAL INSTRUCTIONS

Top Hinge Screw

Top Hinge

Cover Screw

Bottom

Hinge Screw

DOOR REMOVAL INSTRUCTIONS:

If it is necessary to move the refrigerator through narrow doorways, follow these steps to remove the doors.

Before you start:

1 Make sure the electrical power cord is unplugged from the wall outlet. 2 Remove any food from the door shelves. 3 Close the doors.

To remove the hinge cover:

1 Remove the three screws from the cover over the top door hinges. 2 Pull the cover forward about a half inch and lift it off.

To remove the refrigerator door:

1 Trace lightly around the door’s top hinge with a pencil. This makes reinstallation

easier.

2 Remove the two screws from the top hinge. Lift the door off of the bottom hinge and

set it aside.

3 Remove the three bottom hinge screws and hinge, if necessary.

To remove the freezer door:

1 Detach the multi-wire cable connector located above the top hinge. Grasp both sides

of the connector firmly and pull apart.

2 Trace lightly around the door’s top hinge with a pencil. This makes reinstallation

easier.

3 Detach the water tube from the connector located below the freezer door. The

connector releases when you press its outer sleeve inward.

4 Remove the screws from the top hinge and pull the multi-wire cable through it. 5 Lift the door off of the bottom hinge. Lay the door on its side to avoid damage to the

Remove the three bottom hinge screws and hinge, if necessary.

To reinstall the refrigerator and freezer doors, reverse the above steps.

FEATURES AT A GLANCE

Features may vary according to model

Electronic Controls

Mechanical Controls

MECHANICAL TEMPERATURE CONTROLS

COOL DOWN PERIOD

To ensure safe food storage, allow the refrigerator to operate with the doors closed for at least 8 to 12 hours before loading it with food.

REFRIGERATOR & FREEZER CONTROLS

NOTE

When changing control settings, wait 24 hours for the temperature to stabilize before making additional changes.

TEMPERATURE ADJUSTMENT

• After 24 hours, adjust the controls as needed. Adjust temperatures gradually; move the knob in small increments, allowing the temperature to stabilize.

• For colder temperatures, turn the knob towards Colder.

• For warmer temperatures, turn the knob towards Cold.

To maintain temperatures, a fan circulates air in the refrigerator and freezer compartments. For good circulation, do not block cold air vents with food items.

* IMPORTANT

Turning the Freezer and Fresh Food Controls to “0” turns off the compressor and prevents your refrigerator from cooling, but does not disconnect the power to the light bulb and other electrical components. To turn off power to your refrigerator you must unplug the power cord from the electricl outlet.

Refrigerator & Freezer Controls

(Features may vary according to model.)

FfI

ffOrotaregirfeRnruToT*

EDIUGTNEMTSUJDAERUTAREPMET

mraWooTsItnemtrapmoCdooFhserFfI

dloCooTsItnemtrapmoCdooFhser

mraWooTsItnemtrapmoCrezeerFfI

dloCooTsItnemtrapmoCrezeerFfI

nruT redloC .

sdrawoTylthgilSlortnoCdooFhserFnruT redloC .

sdrawoTylthgilSlortnoCdooFhserFnruT dloC .

sdrawoTylthgilSlortnoCrezeerF

sdrawoTylthgilSlortnoCrezeerFnruT dloC .

TslortnoCdooFhserFdnarezeerFnruT O.

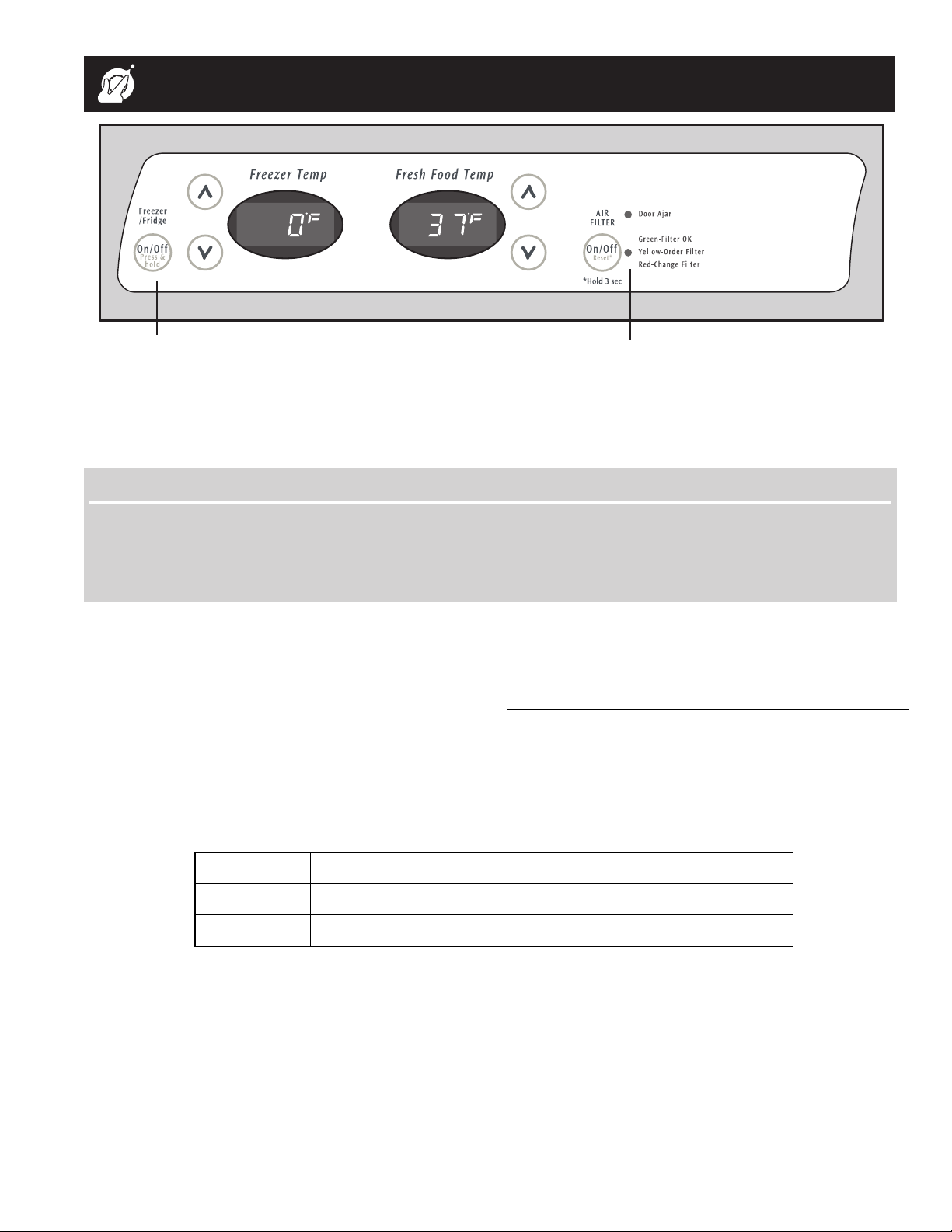

ELECTRONIC TEMPERATURE CONTROLS

ALLOWING COOLING TIME BEFORE USE

To ensure safe food storage, allow your refrigerator to operate with the doors closed for at least 8 to 12 hours before placing food inside. During this cooling period, you do not need to adjust the controls, which are preset at the factory.

SETTING COOLING TEMPERATURES

Your refrigerator comes with a state-of-the-art electronic digital control system. The system’s control panel is located at the top of the the fresh food compartment.

The two digital displays on the left half of the control panel indicate the current settings or temperatures of your freezer and fresh food compartments. The models with a 2-digit temperature display are for reference only, and do not display the current accurate compartment temperature. Should you desire to see what the current accurate temperature is, place a separate thermometer inside the freezer or fresh food compartment in the desired location.

(Single Digit Display - Features may vary.)

NONO

TETE

NONO

TETE

The advanced electronic control system in your refrigerator includes additional display modes that service professionals can use to rapidly diagnose performance issues.

To adjust the temperature to a higher or lower setting, press the Up (Cold) or Down (Colder) button closest to the display. The first time you press the button, the display shows current setting you entered. Each press of the button after that changes the setting by one.

The display shows your new setting momentarily, then changes back to the current temperature.

TEMPERATURE CONTROLS

TEMPERATURE ADJUSTMENT

After 24 hours, adjust the controls as needed. Make your adjustments small and gradual; allowing time for temperatures to change and stabilize. Refer to the adjacent guidelines for temperature settings.

To adjust the temperature to a higher or lower setting, press the Up or Down button closest to the display. The first time you press the button, the display shows the last setting you entered. Each press of the button after that increments the setting by one degree.

The display shows your new setting momentarily, then changes back to the current temperature.

IF TEMPERATURE DISPLAYS FLASH...

If ever you see both temperature displays continously flashing, it may indicate that the control system has detected a performance problem. Call your service representative, who can interpret the flashing message.

To maintain temperatures, a fan circulates air in the refrigerator and freezer compartments. For good circulation, do not block cold air vents with food items.

Numeric Display

Freezer

Warmest 1 1

Factory Setting 6 6

Coldest 9 9

Temperature Adjustment Guide

If Fresh Food compartment is too warm

If Fresh Food compartment is too cold

If Freezer compartment is too warm

If Freezer compartment is too cold

Fresh

Food

Temperature Display (2-Digit)

Freezer Fresh Food

F° C° F° C°

Warmest 6° -14° 47° 8°

Factory Setting 0° -18° 37° 3°

Coldest -6° -21° 33° 1°

Adjust Fresh Food control one degree

colder by pressing Down (Colder) butt on.

Adjust Fresh Food control one degree

warmer by pressing the Up (Cold) button.

Adjust Freezer control one degree colder

by pressing Down (Colder) button.

Adjust Freezer control one degree warmer

by pressing the Up (Cold) button.

TEMPERATURE CONTROLS

Cooling System On/Off Button

TURNING THE COOLING SYSTEM ON AND OFF

You can disable the cooling system in your refrigerator by pressing the On/Off button located on the left side of the temperature control panel. To ensure that you do not accidentally turn off the cooling system, the button does not work unless you press

hold

it for three seconds. Once you disable the cooling system, all refrigeration to the freezer and fresh food compartments stops.

To turn the cooling system back on, you must again press

NONO

TETE

NONO

TETE

Pressing the On/Off button on the control panel disables your refrigerator’s cooling system but does not disconnect power to lights and other electrical components. To turn off power to your refrigerator you must unplug the power cord from the wall outlet.

Each time you make settings on the control panel, a single audible tone acknowledges your input.

AIR FILTER INDICATOR & STATUS LIGHTS

Your refrigerator’s air filter needs to be replaced from time to time. You can monitor the need for replacement by referring to the status light while the air filter is “ON”. To turn on the air filter, press the “Air Filter” button. To turn off the air filter, press the “Air Filter” button. To RESET the air filter, press the “Air Filter” button and hold for 3 seconds.

and hold

the On/Off button for three more seconds.

RESPONDING TO ALARMS (Audible Tones & Indicator Lights)

Your refrigerator ’s control system can convey the following information through audible tones and the alarm indicator lights.

Door Ajar

Indicator Lights

Flashing Green

Freezer or refrigerator door has been open for over five minutes.

and

Close door to disable and reset alarm.

Air Filter Status Light (not available on all models)

Green Filter OK.

Yellow Air filter is about 80 percent used. Please order new one.

Red Air filter is 100 percent used. Please change now.

LOOKING INSIDE

PIZZA SHELF (SOME

MODELS)

This shelf is attached to the freezer wall beside the ice dispenser container. This convenient area allows for storage of pizza and other tall items placed vertically between the ice dispenser container and the freezer wall.

ICE CREAM SHELF (SOME

MODELS)

This shelf attaches to the top of the ice dispenser container. It allows storage of both round and rectangular cartons of your favorite ice cream.

TIP-UP SHELF (SOME

MODELS)

A Tip-Up shelf in the freezer section allows tall items to be easily stored.

Pizza Shelf

Ice Cream Shelf

CANTILEVER SHELF ADJUSTMENT

Refrigerator shelves are easily adjusted to suit individual needs. Before adjusting the shelves, remove all food. Cantilever shelves are supported at the back of the refrigerator.

To adjust cantilever shelves:

1 Lift front edge up.

2 Pull shelf out.

Replace the shelf by inserting the hooks at rear of the shelf into the wall bracket. Lower the shelf into the desired slots and lock into position.

* SpillSafeTM

accidental spills. In some models, the out for easy access to food and for fast cleaning. The shelves slide out independently of their mounting brackets. Just pull the front of the shelf forward. Shelves can be extended as far as the stopper will allow but are not removable from their mounting brackets.

glass shelves (some models) catch and hold

* SpillSafe

shelves slide

CA CA

UTIONUTION

UTION

CA CA

UTIONUTION

To avoid personal injury or property damage, handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change. See “Glass Slelves” in Care & Cleaning Chart.

ADJUSTABLE DOOR BINS

Some models have adjustable door bins that can be moved to suit individual needs.

To move door bins

1. Lift bin straight up.

2. Remove bin.

3. Place bin in desired position.

4. Lower bin onto supports until locked in place.

Cantilever Glass Shelf

Cantilever Sliding Glass Shelf

DOOR STORAGE

Door bins and shelves are provided for convenient storage of jars, bottles, and cans. Frequently used items can be quickly selected.

Some models have door bins that can accommodate gallonsized plastic drink containers and economy-sized jars and containers. Some bins are adjustable for maximum storage capacity.

The dairy compartment, which is warmer than the general food storage section, is intended for short term storage of cheese, spreads, or butter.

Adjustable Door Bin

Bin Liner

(Some models)

Fixed Door Bin

LOOKING INSIDE (CONTINUED)

TALL BOTTLE RETAINER (SOME MODELS)

The Tall Bottle Retainer keeps tall containers in the bin from falling forward when opening or closing the refrigerator door. To install, hold the retainer at the top, and slide it over the outside wall of the bin, as shown in the diagram. The Tall Bottle Retainer works best with a Bin Snugger.

Tall Bottle Retainer (left) and Bin Snugger (right)

CRISPERS

The crispers, located under the bottom refrigerator shelf, are designed for storing fruits, vegetables, and other fresh produce. Wash items in clear water and remove excess water before placing them in the crispers. Items with strong odors or high moisture content should be wrapped before storing.

SPECIAL ITEM RACK

(SOME MODELS)

The innovative design of the Special Item Rack allows you to store a sixpack of 12 ounce drink cans, a bottle of wine, a two-liter soft drink bottle, or a carton of eggs. The Special Item Rack mounts on the left side of your refrigerator. To install, just slide the Special Item Rack onto any shelf as shown in the drawing.

Special ItemRack

DELI DRAWER (SOME MODELS)

Some models are equipped with a Deli Drawer for storage of luncheon meats, spreads, cheeses, and other deli items.

MEAT KEEPER (SOME MODELS)

Some models are equipped with a Meat Keeper. Meat Keeper temperatures can be adjusted by sliding the Meat Keeper Temperature Control in either direction. Use this pan for short term storage of bulk meat items. If meats are to be kept longer than one or two days, they should be frozen. The Meat Keeper is fixed and cannot be moved up or down. If fruits or vegetables are to be stored in the Meat Keeper, set the Meat Keeper Temperature Control to a warmer setting to prevent freezing.

Crisper Drawer

HUMIDITY CONTROL (SOME MODELS)

The Humidity Control, present on some models with crisper drawers, allows you to adjust the humidity within the crisper. This can extend the life of fresh vegetables that keep best in high humidity.

NONO

TETE

NONO

TETE

Leafy vegetables keep best when stored with the Humidity Control set on Higher Humidity, or in a drawer without a Humidity Control. This keeps incoming air to a minimum and maintains maximum moisture content.

Crisper Humidity Control

Meat Keeper with

Temperature Control

Wine Rack

WINE RACK (SOME MODELS)

The wine rack stores bottles of wine, or single two-liter plastic bottles of juice or soda pop. To install, slide the Wine Rack onto the shelf with the curve facing in. To remove, slide the Wine Rack out. Install on either side of shelf.

AUTOMATIC ICE AND WATER DISPENSER

AUTOMATIC ICE & WATER DISPENSER OPERATING INSTRUCTIONS

1 2

3 4

Features may vary according to model.

EXTREME To freeze food at a faster rate to preserve freshness, push the Touch Pad for 3-5 seconds to FREEZE activate this feature. A green light will appear above the Touch Pad. Push the Touch Pad again

for 3-5 seconds to deactivate.

EXTRA To increase ice production for special occasions, such as parties, push the Touch Pad for ICE 3-5 seconds to activate this feature. A green light will appear above the Touch Pad. Push the

Touch Pad again for 3-5 seconds to deactivate. Extra Ice should produce 25% to 50% more ice every 24 hours.

CUBE Press the CUBE Touch Pad to get cubed ice. A green light will appear above the Touch Pad.

Press glass against ICE dispensing paddle as far up as possible to catch all ice.

CRUSH Press the CRUSH Touch Pad to get crushed ice. A green light will appear above the Touch Pad.

Press glass against ICE dispensing paddle as far up as possible to catch all ice.

LIGHT Press the LIGHT Touch Pad to turn on dispenser light. Press again to turn the light off.

The light also turns on automatically when ice and/or water is dispensed. Replace light bulb with an appliance bulb of the same wattage.

FILTER The FILTER STATUS indicator light above the Touch Pad will light up each time the dispenser STATUS is used. The following filter light indications are:

Green The filter is still operating within its specified life cycle. Amber The filter has reached approximately 80% of its useful life. This is the recommended time

to purchase a replacement filter. Red The filter is 100% used up. Change the filter as soon as possible. After the filter cartridge has been changed, press and hold the FILTER RESET Touch Pad for

10-15 seconds.

NOTE: The Green, Red and Amber lights will flash when reset is completed.

LOCK The Ice & Water Dispenser can be locked out to prevent unwanted use.

To Lock Out Press the LOCK Touch Pad for 3-5 seconds. A Red light will appear above

To Unlock Press the LOCK Touch Pad for 3-5 seconds until the Red light above the

WATER To operate the water dispenser, press a glass against the WATER dispensing paddle . To

stop dispensing water, pull the glass away from the dispensing paddle . Dispensed water is not cold. For colder water, add crushed ice or cubes before dispensing water. A drip tray located at

the base of the dispenser catches small spills and allows them to evaporate. This drip tray is removable and dishwasher safe. Do not pour water and excess ice in this area because there is no drain.

5 5

the Touch Pad.

Touch Pad goes out.

AUTOMATIC ICE AND WATER DISPENSER

AUTOMATIC ICE & WATER DISPENSER OPERATING INSTRUCTIONS

hsurC

ebuC

nOthgiL

ffOthgiL

RETAWresnepsidretawehte

Features may vary according to model.

ehtsserP hsurC tsniagassalgsserP.daPhcuoTehtevobaraeppalliwrotacidniderA.ecidehsurctegotdaPhcuoT

ehtsserP ebuC ECItsniagassalgsserP.daPhcuoTehtevoba

tsserP nOthgiL .daPhcuoTehtevobaraeppalliwrotacidniderA.thgilresnepsidnonrutotdaPhcuoT

ehtsserP f

tarepooT llup,retawgnisnepsidpotsoT.elddapgnisnepsidRETAWehttsniagassalgasserp,

fOthgiL .daPhcuoTehtevobaraeppalliwrotacidniderA.thgilresnepsidffonrutotdaPhcuoT

fyawassalgeht roecidehsurcdda,retawredlocroF.dloctonsiretawdesnepsiD

sihT.etaropave aerasihtniecissecxednaretawruoptonoD. erehtesuaceb

.niardonsi

.elddapgnisnepsidehtmor

.retawgnisnepsiderofebsebuc otmehts

cillahctacotelbissopsapurafsaelddapgnisnepsidECI

.ecillahctacotelbissopsapurafsaelddapgnisnepsid

efasrehsawhsiddnaelbavomersiyartpird

raeppalliwrotacidniderA.ecidebuctegotdaPhcuoT

wolladnasllipsllamssehctacresnepsidehtfoesabehttadetacolyartpirdA

AUTOMATIC ICE AND WATER DISPENSER

OFF

Wire

Signal Arm

HOW TO PRIME THE WATER SUPPLY SYSTEM

Your refrigerator’s water supply system includes several tubing lines, a water filter, a water valve and a water tank. To

ensure that your water dispenser works properly, this system must be completely filled with water when your refrigerator is first connected to the household water supply line and whenever you replace the water filter.

CA CA

UTIONUTION

UTION

CA CA

UTIONUTION

For proper dispenser operation, recommended water supply pressure should fall between 30 psi and 100 psi. Excessive pressure may cause water filter to malfunction.

TO PRIME THE WATER SUPPLY SYSTEM:

• Begin filling the tank by pressing and holding a drinking

glass against the water dispenser paddle.

• Keep the glass in this position until water comes out of

the dispenser. There will be noticeable spurts and sputters as the system pushes air out through the system and dispenser nozzle. This is normal. This may

take about 1½ minutes.

• Continue dispensing water for about 3 minutes to flush

the system of any air and impurities. Empty glass as needed.

NO NO

TETE

cause the ice maker to cycle two or three times before making a full tray of ice. With no usage, it will take approximately two days to fill the ice container.

Because of new plumbing connections, the first production of ice cubes may be discolored or have an odd flavor. Discard ice made during the first 24 hours.

TURNING YOUR SIDE MOUNTED ICE MAKER ON/OFF

To begin ice production, lower the wire signal arm to the DOWN or ON position. The ice maker turns off automatically when the ice container becomes full. To stop the ice maker, raise the wire signal arm until it clicks and locks in the UP or OFF position (see Figure 1).

TURNING YOUR REAR MOUNTED ICE MAKER ON/OFF

Ice production is controlled by the ice maker’s ON/OFF power switch. To gain access to the ice maker, pull the ice cream shelf out. Press the switch to the “O” position to turn it Off and press it to the “I” position to turn it On (see Figure 2). The ice maker also has a built-in wire signal arm, which automatically stops ice production when the ice bin is full. DO NOT use this signal arm to manually stop the ice maker.

OFF

The water dispenser has a built-in device that shuts off the water flow after 3 minutes of continuous use. To reset this shutoff device, simply release the dispenser paddle.

HOW THE ICE MAKER WORKS

CA CA

UTIONUTION

UTION

CA CA

UTIONUTION

Chemicals from a malfunctioning softener can damage the ice maker. If the ice maker is connected to soft water, ensure that the softener is maintained and working properly.

IMPOR IMPOR

IMPOR

IMPOR IMPOR

Your ice maker is shipped from the factory with the wire signal arm in the ON position (side mounted) or with the switch turned ON (rear mounted). To ensure proper function of your ice maker, hook up water supply immediately or turn ice maker OFF by lifting the wire signal arm until it clicks and locks in the UP position (side mounted) or turn the On/Off switch to the Off (O) position. If the ice maker is

not turned off and the water supply is not connected, the water valve will make a loud chattering noise.

The ice maker and container are located in the top of the freezer compartment. After the refrigerator is installed properly and has cooled for several hours, the ice maker can begin making ice within 24 hours. Air in new plumbing lines may

ANTANT

ANT

ANTANT

Figure 1

IMPOR IMPOR

IMPOR

IMPOR IMPOR

Small Ice cubes or ice chips jamming in the ice maker may be a sign that your water filter needs changing. If you have a side mounted ice maker you may also experience hollow cubes — partially frozen cubes with water inside. When these cubes are harvested they break open and spill water over the other ice cubes in the ice container, forming a solid mass of ice. As the water filter nears the end of its useful life and becomes clogged with particles, less water is delivered to the ice maker during each cycle. The ice maker can’t fill every cube in the ice maker mold, leading to small cubes or chips that can get caught between the ice ejector blades and the stripper. Remember, if your ice maker is

jamming with small ice cubes or it’s been six months or longer since you last changed your water filter – replace the water filter with a new one. Poor quality household water may require the filter to be changed more frequently.

ANTANT

ANT

ANTANT

Figure 2

AUTOMATIC ICE AND WATER DISPENSER

ICE PRODUCTION: WHAT TO EXPECT How Much Ice Will a Side Mounted Ice Maker

Produce in 24 Hours?

A side mounted ice maker will produce 4 to 4.5 pounds of ice every 24 hours, depending on usage conditions. Ice is produced at a rate of 8 cubes every 75 to 90 minutes.

How Much Ice Will a Rear Mounted Ice Maker Produce in 24 Hours?

A rear mounted ice maker will produce 3 to 4 pounds of ice every 24 hours, depending on usage conditions. Ice is produced at a rate of 8 cubes every 75 to 90 minutes.

ICE AND WATER DISPENSER FEATURES

The ice and water dispenser conveniently dispenses chilled water, and ice cubes or crushed ice, depending on the model.

To operate the ice dispenser, select the ice option desired using the touchpad. Press a glass against the dispensing paddle as far up as possible to catch all ice. To stop dispensing ice, pull glass away from dispensing paddle. Do not remove the glass until the ice has completely dispensed. Complete instructions for the dispenser operation are attached to the inside of the freezer door (some models).

ICE DISPENSER TIPS

• Remove ice chips and clean the shelf and chute that supports the ice container.

• Replace the ice container. Resume ice production on side-mounted ice makers by lowering the wire signal arm to the DOWN position. Resume ice production on rear-mounted ice makers by pressing the ice maker’s On/Off power switch to the On (I) position.

WARNING WARNING

WARNING

WARNING WARNING

Do not use the ice chute as a handle when removing or replacing the ice storage bin. Surfaces there may be sharp. Do not put fingers up ice chute. Surfaces there may be sharp.

CA CA

UTIONUTION

UTION

CA CA

UTIONUTION

If the dispensing paddle is pushed for more than four minutes, the dispenser motor may overload and stop. The overload protector will reset automatically after three or four minutes.

• Ice cubes stored too long may develop an odd flavor.

Empty the ice container and ensure that the ice maker is on (see previous page). The ice maker will then produce more ice.

• Occasionally shake the ice container to keep ice

separated.

• If a large quantity of ice is needed at one time, it is best

to remove cubes directly from the ice container.

• Stop the ice maker when cleaning the freezer and during

vacations.

• If the ice maker will be turned off for a long period of

time, turn the water supply valve to a closed position.

CLEANING THE ICE DISPENSER

Clean the ice dispenser and ice container at regular intervals, particularly before you take a vacation or move, or if the ice dispenser sticks.

• Stop ice production on side-mounted ice maker by raising wire signal arm to the UP position. Stop ice production on rear-mounted ice makers by pressing the ice maker’s On/Off power switch to the Off (O) position.

• Remove ice container by lifting up and out. Empty and carefully clean the container with mild detergent. Rinse with clear water. Do not use harsh or abrasive cleaners. Allow ice container to dry completely before replacing in the freezer.

IMPOR IMPOR

IMPOR

IMPOR IMPOR

When removing or replacing the ice bin, DO NOT rotate the auger in the ice bin. If the auger is accidentally rotated, you must realign the auger by turning it in 90º turns until the ice bin fits into place with the drive mechanism. If the auger is not properly aligned when replacing the ice bin, the refrigerator will only dispense door may also not close properly causing warm air to leak into the freezer.

• An extended power failure (one hour or longer) causes

• The ice dispenser is not used frequently. Ice cubes will

NEVER use an ice pick or similar sharp instrument to break up the ice. This could damage the ice storage bin and dispenser mechanism.

ANTANT

ANT

ANTANT

Crushed Ice

ice cubes in the ice storage bin to melt and freeze together and jam the dispenser mechanism.

freeze together in the bin and jam the dispenser mechanism. Remove the ice storage bin and shake to loosen the cubes.

CA CA

UTIONUTION

UTION

CA CA

UTIONUTION

. The freezer

AUTOMATIC ICE AND WATER DISPENSER

PURESOURCE TM * ICE AND WATER FILTER (SOME MODELS)

NONO

TETE

NONO

TETE

If you purchased a refrigerator with a Ice and Water filter, please read the following use and care information. This ice and water filter system filters

water to your ice maker and water dispenser. It is located in the upper right back corner of the refrigerator compartment.

PureSource

System Startup:

Water supply does not need to be turned off, however, do not use ice and water dispenser while installing filter. The filter cartridge has already been installed in the filter housing at the factory. Refer to the properly fill the system with water.

Order new filter cartridges through the dealer where you bought the refrigerator, contact the

Hotline

9044, or go to our web site at www.frigidaire.com. It might be good to order some filter cartridges when you first install your refrigerator. Be sure to ask for

How to Prime the Water Supply System

Electrolux Solutions

at 1-800-944-

the

RG-100

section to

PureSource™*

replacement cartridge.

The

PureSource™

Filter System with the RG-100 cartridge is tested and certified by NSF International, the nationally recognized and respected, not for profit, certification organization for public health safety.

The

PureSource™*

NSF Standard 42. See performance data sheet for specifications. This system should not be used on water that is microbiologically unsafe or with water of unknown quality unless the water has been adequately disinfected before or after traveling through the filtration system.

• Rated Capacity - 400 gallons

• Rated service flow - .5 GPM

• Maximum Rated Pressure - 100 PSI

• Maximum Operating Temp. - 100° F

system is tested and certified to ANSI/

* NGRG-2000 Ice and Water

Changing the Filter:

Water conditions vary throughout the world, but changing the water filter every 6 - 9 months normally will ensure the highest possible water quality. Ice jams in the ice maker and/or hollow

ice cubes (partially frozen cubes with water inside), may also be a sign that your water filter needs changing. The

Filter Status light will turn red after 400 gallons of water has flowed through the ice and water dispenser. Also, if the filter has been in a refrigerator that has not been in use for awhile (during

moving for example), change the filter before reinstalling the refrigerator. The dispenser system will also operate without filtration (with filter cartridge removed).

To change filter:

It is not necessary to turn the water supply off to change the filter.

1. Open freezer door and leave open until filter change is complete.

2. Turn OFF side mounted ice maker by raising wire signal arm to the UP position. Turn OFF rear mounted ice maker by pressing ON/OFF power switch to the “O” position.

3. Hold filter cup firmly, and unscrew towards left (Some water could leak out as you remove cup. This is normal.). Filter cartridge should come down with cup. If cartridge remains in housing, pull down gently, while twisting filter back and forth.

4. Rinse out cup under running water.

5. The large o-ring that seals the filter system fits in the o-ring groove inside the cup. Should the o-ring fall out during filter cartridge replacement, simply place it back in the groove prior to screwing the cup back in place. If the o-ring becomes damaged, you will need to order one from the

Electrolux

Solutions Hotline.

6. Discard old filter cartridge.

7. Remove new filter cartridge from packaging. Place in cup. The end with the small o-ring should be up, out of the cup.

8. Screw cup, with filter, back onto housing. Do Not Use Wrench To Reinstall Cup. Filter cartridge will self-align as cup is tightened. Be sure cup is completely tightened with

PureSource™

9. Turn ON side mounted ice maker by lowering wire signal arm to the DOWN position. Turn ON rear mounted ice maker by pressing ON/OFF power switch to the “I” position.

10. Check for leaks. Open refrigerator door. Wipe any water droplets from the filter cup. Fill a glass with water. If there is a leak, unscrew filter cup, and reinsert the filter cartridge. Check placement of large O-ring. Reinstall filter cup, making certain it is tightened completely.

11. To prime filter system and purge air from water line, continue flushing the system for approximately 3 minutes to assure that the purest water possible is stored in the water tank. There will be noticeable spurts and sputters

as the system pushes air out through the system and out the dispenser nozzle. This is normal.

IMPORIMPOR

IMPOR

IMPORIMPOR

logo facing outward. Do Not Tighten Past Stop.

ANTANT

ANT

ANTANT

Resetting The Filter Status Light (some models)

After replacing the filter cartridge, it will be necessary to press the

Filter Status

This will reset the Filter Status light. Push the reset button until the green, red and amber lights flash (10-15 seconds). Please refer to the complete dispenser operating instructions attached to the inside of the freezer door.

On models without a

of Reminder Stickers included in the envelope that the Use & Care Manual came in. Choose a dated sticker that indicates 6 - 9 months (depending on your water quality and usage) from the date of installation. Place the sticker on the front of the filter cup to remind you when it is time to change the filter.

reset button located on the ice and water dispenser.

Filter Status

reset button, there is a set

AUTOMATIC ICE AND WATER DISPENSER

PURESOURCE2

* ICE AND WATER FRONT FILTER

(SOME MODELS)

NONO

TETE

NONO

TETE

If you purchased a refrigerator with a Ice and Water front filter, please read the following use and care information. This ice and water filter system

filters water to your ice maker and water dispenser. It is located in the upper right front corner of the refrigerator compartment.

PureSource2

TM *

System Startup:

Water supply does not need to be turned off, however, do not use ice and water dispenser while installing filter.

The filter cartridge has already been installed in the filter housing at the factory. Refer to the

Supply System

Order new filter cartridges through the dealer where you bought the refrigerator, contact the

Solutions Hotline

800-944-9044, or go to our web site at www.frigidaire.com. It might be good to order some filter cartridges when you first install your refrigerator. Be sure to ask for 100

PureSource™*

replacement cartridge.

organization for public health safety. The Filter system is tested and certified to ANSI/NSF Standards 42 and 53. See performance data sheet for specifications. This system should not be used on water that is microbiologically unsafe or with water of unknown quality unless the water has been adequately disinfected before or after traveling through the filtration system.

• Rated Capacity - 400 gallons

• Rated service flow - .5 GPM

• Maximum Rated Pressure - 100 PSI

• Maximum Operating Temp. - 100° F

section to properly fill the system with water.

Electrolux

at 1-

the

FC-

The

PureSource2

System NGFC 2000 with the cartridge FC 100 is tested and certified by NSF International, the nationally recognized and respected, not for profit, certification

How to Prime the Water

TM*

Ice and Water Filter

PureSource2

TM*

Changing the Filter:

Water conditions vary throughout the world, but changing the water filter every 6 - 9 months normally will ensure the highest possible water quality. Ice jams in the ice maker and/or

hollow ice cubes (partially frozen cubes with water inside), may also be a sign that your water filter needs changing.

The Filter Status light will turn red after approximately 400 gallons of water has flowed through the ice and water dispenser.

Also, if the filter has been in a refrigerator that has not been in use for awhile (during moving for example), change the filter before reinstalling the refrigerator. The dispenser system will also operate without filtration (with filter cartridge removed and bypass installed).

To change filter:

It is not necessary to turn the water supply off to change the filter.

1. Turn OFF side mounted ice maker by raising wire signal

arm to the UP position. Turn OFF rear mounted ice maker by pressing ON/OFF power switch to the “O” position.

2. Push the

filter cartridge, to release the filter from the housing. To minimize the possibility of the filter falling out of the housing during removal, it would be best to hold the filter as it moves out toward you.

NONO

TETE

NONO

TETE

A small amount of water may be released during this operation. You should have a paper towel or dish cloth handy to wipe up any water that may drip out of the filter or housing. Two small holes near the back of the housing have been added for any excess water to escape. It would be best to clear away any food near this area on the top shelf in advance of removing the filter.

3. Pull the old filter cartridge straight out of the housing.

4. Discard the old filter.

5. Remove the new filter cartridge from the packaging and insert into the filter housing the same way the old one came out.

6. When the cartridge is almost in, you will feel it stop against the clip assembly in the back of the housing. The clip assembly holds the filter cartridge firmly in place. At this point, you will need to push firmly until the cartridge snaps fully in place. When completely in place, the front of the filter cartridge will be flush with the front of the housing.

7. Turn ON side mounted ice maker by lowering wire signal arm to the DOWN position. Turn ON rear mounted ice maker by pressing ON/OFF power switch to the “I” position.

8. Fill a glass with water. As you are doing this, check for leaks at the filter housing.

9. To prime filter system and purge air from water line, continue flushing the system for approximately 3 minutes to assure that the purest water possible is stored in the water tank. There will be noticeable spurts and sputters

as the system pushes air out through the system and out the dispenser nozzle. This is normal.

IMPORIMPOR

IMPOR

IMPORIMPOR

Filter Release Button

ANTANT

ANT

ANTANT

Resetting The Filter Status Light (some models)

After replacing the filter cartridge, it will be necessary to press the

Filter Reset

will reset the Filter Status light. Push the reset button until the green, red and amber lights flash (10-15 seconds). Please refer to the complete dispenser operating instructions attached to the inside of the freezer door.

button located on the ice and water dispenser. This

, located to the right of the

AUTOMATIC ICE AND WATER DISPENSER

PURESOURCE MB ICE AND WATER FRONT FILTER (SOME MODELS)

NONO

TETE

NONO

TETE

If you purchased a refrigerator with a Ice and Water front filter, please read the following use and care information. This ice and water filter system

filters water to your ice maker and water dispenser. It is located in the upper right front corner of the refrigerator compartment.

PureSource MB

System Startup:

Water supply does not need to be turned off, however, do not use ice and water dispenser while installing filter.

The filter cartridge has already been installed in the filter housing at the factory. Refer to the Supply System section to properly fill the system with water.

Order new filter cartridges through the dealer where you bought the refrigerator, contact the

Solutions Hotline

800-944-9044, or go to our web site at www.frigidaire.com. It might be good to order some filter cartridges when you first install your refrigerator. Be sure to ask for

MB100

cartridge WF2MB.

for public health safety. The tested and certified to ANSI/NSF Standards 42 and 53. See performance data sheet for specifications. PureSource MB, MBFC-2003 Ice & Water Filter System should not be used on water that is visually contaminated (cloudy) or has an obvious contamination source, such as contamination by raw sewage. State of Wisconsin requires statement: Do not use in Wisconsin with water that is microbiologically unsafe, or of an unknown quality without adequate point-of-entry disinfection before this device.

• Rated Capacity - 250 gallons

• Rated service flow - .5 GPM

• Maximum Rated Pressure - 100 PSI

• Maximum Operating Temp. - 100° F

Electrolux

at 1-

the

replacement

The

PureSource MB

MBFC 2003 with the MB100 is tested and certified by NSF International, the nationally recognized and respected, not for profit, certification organization

How To Prime The Water

Ice and Water Filter System

PureSource MB

Filter system is

cartridge

Changing the Filter:

Water conditions vary throughout the world, but changing the water filter every 6 - 9 months normally will ensure the highest possible water quality. Ice jams in the ice maker and/or hollow ice cubes

(partially frozen cubes with liquid water inside), may also

be a sign that your water filter needs changing. The Filter

Status light will turn red after approximately 250 gallons of water has

flowed through the ice and water dispenser. Also, if the filter has been in a refrigerator that has not been in use for awhile (during moving for example), change the filter before reinstalling the refrigerator. The dispenser system will also operate without filtration (with filter cartridge removed and bypass installed).

To change filter:

It is not necessary to turn the water supply off to change the filter.

1. Turn OFF side mounted ice maker by raising wire signal arm to the UP position. Turn OFF rear mounted ice maker by pressing ON/OFF power switch to the “O” position.

2. Push the filter cartridge, to release the filter from the housing. To minimize the possibility of the filter falling out of the housing during removal, it would be best to hold the filter as it moves out toward you.

3. Pull the old filter cartridge straight out of the housing.

NONO

TETE

NONO

TETE

4. Discard the old filter.

5. Remove the new filter cartridge from the packaging and

insert into the filter housing the same way the old one came out.

6. When the cartridge is almost in, you will feel it stop against

the clip assembly in the back of the housing. The clip assembly holds the filter cartridge firmly in place. At this point, you will need to push firmly until the cartridge snaps fully in place. When completely in place, the front of the filter cartridge will be flush with the front of the housing.

7. Replace the ice container. Turn ON side mounted ice

maker by lowering wire signal arm to the DOWN position. Turn ON rear mounted ice maker by pressing ON/OFF power switch to the “I” position.

8. Fill a glass with water. As you are doing this, check for

leaks at the filter housing.

9. To prime filter system and purge air from water line,

continue flushing the system for approximately 3 minutes to assure that the purest water possible is stored in the water tank. There will be noticeable spurts and sputters

as the system pushes air out through the system and out the dispenser nozzle. This is normal.

IMPORIMPOR

IMPOR

IMPORIMPOR

Resetting The Filter Status Light (some models)

After replacing the filter cartridge, it will be necessary to press the

Filter Reset

Filter Release Button

ANTANT

ANT

ANTANT

button located on the ice and water dispenser. This

, located to the right of the

FOOD STORAGE & ENERGY SAVING IDEAS

FOOD STORAGE IDEAS

Fresh Food Storage

• The fresh food compartment should be kept between 34° F and 40° F with an optimum temperature of 37° F.

• Avoid overcrowding the refrigerator shelves. This reduces the circulation of air around the food and results in uneven cooling.

Fruits and Vegetables

• Storage in the crisper drawers traps moisture to help preserve the fruit and vegetable quality for longer time periods.

Meat

• Raw meat and poultry should be wrapped securely so leakage and contamination of other foods or surfaces does not occur.

Frozen Food Storage

• The freezer compartment should be kept at 0° F or lower.

• A freezer operates most efficiently when it is at least 2/3 full.

Packaging Foods for Freezing

• To minimize dehydration and quality deterioration, use aluminum foil, freezer wrap, freezer bags or airtight containers. Force as much air out of the packages as possible and seal them tightly. Trapped air can cause food to dry out, change color, and develop an off-flavor (freezer burn).

• Wrap fresh meats and poultry with suitable freezer wrap prior to freezing.

• Do not refreeze meat that has completely thawed.

Loading the Freezer

• Avoid adding too much warm food to the freezer at one time. This overloads the freezer, slows the rate of freezing, and can raise the temperature of frozen foods.

• Leave a space between the packages, so cold air can circulate freely, allowing food to freeze as quickly as possible.

• Avoid storing hard-to-freeze foods such as ice cream and orange juice on the freezer door shelves. These foods are best stored in the freezer interior where the temperature varies less.

ENERGY SAVING IDEAS

• Locate the refrigerator in the coolest part of the room, out of direct sunlight, and away from heating ducts or registers. Do not place the refrigerator next to heat-producing appliances such as a range, oven, or dishwasher. If this

is not possible, a section of cabinetry or an added layer of insulation between the two appliances will help the refrigerator operate more efficiently.

• Level the refrigerator so that the doors close tightly.

• Refer to this Use & Care Manual for the suggested temperature control settings.

• Do not overcrowd the refrigerator or block cold air vents. Doing so causes the refrigerator to run longer and use more energy.

• Cover foods and wipe containers dry before placing them in the refrigerator. This cuts down on moisture build-up inside the unit.

• Organize the refrigerator to reduce door openings. Remove as many items as needed at one time and close the door as soon as possible.

NORMAL OPERATING SOUNDS & SIGHTS

UNDERSTANDING THE SOUNDS YOU MAY HEAR

Your new high-efficiency refrigerator may make unfamiliar sounds. These are all normal sounds and soon will become familiar to you. They also indicate your refrigerator is operating as designed. Hard surfaces, such as vinyl or wood floors, walls, and kitchen cabinets may make sounds more noticeable. Listed below are descriptions of some of the most common sounds you may hear, and what is causing them.

NONO

TETE

NONO

TETE

Rigid foam insulation is very energy efficient, but is not a sound insulator.

A. Evaporator

The flow of refrigerant through the evaporator may create a boiling or gurgling sound.

B. Evaporator Fan

You may hear air being forced through the refrigerator by the evaporator fan.

C. Defrost Heater

During defrost cycles, water dripping onto the defrost heater may cause a hissing or sizzling sound. After defrosting, a popping sound may occur.

IMPORIMPOR

IMPOR

IMPORIMPOR

ANTANT

ANT

ANTANT

During the automatic defrost cycle, you may notice a red glow in the vents on the back wall of your freezer compartment. This is normal during the defrost cycle.

D. Automatic Ice Maker

If your refrigerator is equipped with an automatic ice maker, you will hear ice cubes falling into the ice bin.

E. Cold Control & Automatic Defrost Control

These parts can produce a snapping or clicking sound when turning the refrigerator on and off.

F. Condenser Fan

You may hear air being forced through the condenser by the condenser fan.

G. Compressor

Modern, high-efficiency compressors operate much faster than older models. The compressor may have a high-pitched hum or pulsating sound.

H. Water Valve

If your refrigerator is equipped with an automatic ice maker, you will hear a buzzing sound as the water valve opens to fill the ice maker during each cycle.

IMPORIMPOR

IMPOR

IMPORIMPOR

ANTANT

ANT

ANTANT

Your ice maker is turned On at the factory so it can work as soon as you install your refrigerator. To ensure proper function of your ice maker, connect a water supply immediately or turn the Ice maker off by lifting the wire signal arm to the "up" or OFF position (side mounted) or the ice maker’s On/Off power switch turned Off-set to the

“O” position (rear mounted) .

I. Drain Pan (not removable)

You may hear water running into the drain pan during the defrost cycle.

J. Condenser

May create minimal sounds from forced air.

K. Motorized Damper

May produce a light humming during operation.

CARE & CLEANING

Keep your refrigerator and freezer clean to prevent odor build-up. Wipe up any spills immediately and clean both sections at least twice a year. Never use metallic scouring pads, brushes, abrasive cleaners or strong alkaline solutions on any surface. Do not wash any removable parts in a dishwasher.

CA CA

UTIONUTION

UTION

CA CA

UTIONUTION

Always unplug the power cord from the electrical outlet before cleaning.

• When moving the refrigerator, pull straight out. Do not shift the refrigerator from side to side as this may damage the floor. Be careful not to move the refrigerator beyond the plumbing connections.

• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or damp hands.

• Never use CHLORIDE to clean stainless steel.

NONO

TETE

NONO

TETE

• The On/Off button on the Electronic Control only controls your refrigerator’s cooling system. To turn off power to your refrigerator you must unplug the power cord from the electrical outlet.

• Do not use razor blades or other sharp instruments which can scratch the appliance surface when removing adhesive labels. Any glue left from tape or labels can be removed with a mixture of warm water and mild detergent, or, touch the glue residue with the sticky side of tape you have already removed. Do not remove the serial plate.

Care & Cleaning Chart

Part What To Use Tips and Precautions

Interior/Door Liner

Door Gaskets

Drawers/Bins

Glass Shelves

Toe Grille

Exterior and Handles

(Stainless Steel Models Only)

• Soap and water

• Baking soda and water

• Soap and water

• Glass cleaner

• Mild liquid sprays

• Soap and water

• Mild liquid sprays

• Vacuum attachment

• Soap and water

• Non Abrasive Glass

Cleaner

• Soap and water

• Ammonia

• Stainless Steel Cleaners

Use 2 tablespoons of baking soda in 1 quart of warm water. Be sure to wring excess water out of sponge or cloth before cleaning around controls, light bulb or any electrical part.

Wipe gaskets with a clean soft cloth.

Do not wash any removable items (bins, drawers, etc.) in dishwasher. Allow glass to warm to room temperature before immersing in warm water.

Vacuum dust from front of toe grille. Remove toe grille. Vacuum backside and wipe with sudsy cloth or sponge. Rinse and dry.

Do not use commercial household cleaners, ammonia, or alcohol to clean handles. Use a soft cloth to clean smooth handles. Do Not use a dry cloth to

clean smooth doors.

CAUTION: Never use CHLORIDE to clean stainless steel.

Clean stainless steel front and handles with soapy water and a dishcloth. Rinse with clean water and a soft cloth. Wipe stubborn spots with an ammonia-soaked paper towel, and rinse. Use a non-abrasive stainless steel cleaner. These cleaners can be purchased at most home improvement or major department stores. Always follow manufacturer's instructions.

Exterior

Easy Care

( Stainless Steel Models)

• Soap and water

• Mild liquid sprays

NOTE: Always clean, wipe and dry with the grain to prevent cross-grain

scratching. Wash the rest of the cabinet with warm water and mild liquid

detergent. Rinse well, and wipe dry with a clean soft cloth.

CAUTION: DO NOT use abrasive or stainless steel cleaners on

Stainless Steel Models. It will remove the protective finish.

Care

Use warm soapy water to clean Easy Care surfaces. Mild liquid sprays may be used on stubborn spots.

Easy

CA CA

UTIONUTION

UTION

UTIONUTION

CARE & CLEANING (CONTINUED)

Wear gloves when replacing light bulbs to avoid getting cut.

REPLACING LIGHT BULBS

1. Unplug refrigerator.

2. Wear gloves as protection against possible broken glass.

3. Remove light cover, if necessary.

4. Unscrew and replace old bulb with an appliance bulb of the same wattage.

5. Replace light cover, if necessary.

6. Remember to plug the refrigerator back in.

Screw

Refrigerator Lights Located behind control panel

Refrigerator Light Replacement

Light

Shield

Crisper Light Replacement (Models may vary)

Freezer Light Replacement

Vacation and Moving Tips

• Leave refrigerator operating during vacations of 3 weeks or less.

Short Vacations

Long Vacations

Moving

IMPORIMPOR

IMPOR

IMPORIMPOR

If the refrigerator is going to be stored or moved in freezing temperatures, the water in the ice and water system must be drained completely. Failure to do so could result in water leaks when the refrigerator is put back into service. Contact a service representative to perform this operation.

ANTANT

ANT

ANTANT

• Use all perishable items from refrigerator compartment.

• Turn automatic ice maker off and empty ice bucket, even if you will only be gone for a

few days.

• Remove all food and ice if you will be gone one month or more.

• Turn off automatic ice maker and turn water supply valve to closed position.

• Turning refrigerator controls to “OFF” by pressing and holding the On/Off button for 3

seconds (electronic) or turn control knobs to “0” (manual)on the mechanical controls only controls your refrigerator’s cooling system. To turn off power to your refrigerator you must unplug the power cord from the wall outlet.

• Clean interior thoroughly.

• Leave both doors open to prevent odors and mold build-up. Block doors open if

necessary.

• Remove all food and ice.

• If using handcart, load from side.

• Adjust rollers all the way up to protect them during sliding or moving.

• Pad cabinet to avoid scratching surface.

WARRANTY

REFRIGERATOR WARRANTY

Your refrigerator is protected by this warranty

FULL ONE-YEAR WARRANTY

* In addition to warranty shown above, ask your dealer about Crosley Extended Limited Warranty that comes to you at no extra charge for the 2nd through 10 years.

WARRANTY

PERIOD

One year from original purchase date

THROUGH OUR AUTHORIZED SERVICERS,

Pay all costs for repairing or replacing any parts of this appliance which prove to be defective in materials or workmanship. Excludes original and replacement Ice & Water filter cartridges (if equipped). Original and replacement cartridges are warranted for 30 days (parts only).

WE WILL:

THE CONSUMER WILL BE RESPONSIBLE FOR:

Costs of service calls that are listed under NORMAL RESPONSIBILITIES OF THE CONSUMER. *

In the U.S.A., your appliance is warranted by Crosley Corporation. We authorize no person to change or add to any of our obligations under this warranty. Our obligations for service and parts under this warranty must be performed by an authorized Crosley Corporation servicer. In Canada, your appliance is warranted by Crosley Canada Corp.

*NORMAL RESPONSIBILITIES OF THE CONSUMER

This warranty applies only to products in ordinary household use, and the consumer is responsible for the items listed below:

1. Proper use of the appliance in accordance with instructions provided with the product.

2. Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in accordance with all local plumbing, electrical and/or gas codes.

3. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose connections or defects in house wiring.

4. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,etc., which are not a part of the appliance when it was shipped from the factory.

5. Damages to finish after installation.

6. Replacement of light bulbs and/or fluorescent tubes (on models with these features).

EXCLUSIONS

This warranty does not cover the following:

1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY. NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.

2. Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in ordinary household use. The consumer shall pay for such service calls.

3. Damages caused by services performed by servicers other than Crosley Corporation, Crosley Canada Corp. or its authorized servicers; use of parts other than genuine Crosley Corporation parts; obtained from persons other than such servicers; or external causes such as abuse, misuse, inadequate power supply or acts of God.

4. Products with original serial numbers that have been removed or altered and cannot be readily determined.

IF YOU NEED SERVICE

Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill establishes the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. This written warranty gives you specific legal rights. You may also have other rights that vary from state to state. Service under this warranty must be obtained by contacting Crosley Corporation or Crosley Canada Corp.

This warranty only applies in the 50 States of the U.S.A., in Puerto Rico, and in Canada. Product features or specifications as described or illustrated are subject to change without notice. All warranties are made by Crosley Corporation. In Canada, your appliance is warranted by Crosley Canada Corp.

Rev. 01/2006

FOR WARRANTY INFORMATION CONTACT:

USA 800-944-9044 Canada 800-668-4606

FOR PRODUCT INFORMATION CONTACT:

336-761-1212

Crosley Corporation

PO Box 2111

Winston-Salem, NC 27102

www.crosley.com

BEFORE YOU CALL

1-800-944-9044 (United States)

1-800-668-4606 (Canada)

Visit our web site at

www.crosley.com.

PROBLEM CAUSE CORRECTION

RUNNING OF REFRIGERATOR

Compressor does not run.

Refrigerator runs too much or too long.

• Freezer control is set to "OF" or “0”.

• Refrigerator is in defrost cycle.

• Plug at electrical outlet is

disconnected.

• House fuse blown or tripped circuit breaker.

• Power outage.

• Room or outside weather is

hot.

• Refrigerator has recently been disconnected for a period of time.

• Automatic ice maker is operating.

• Doors are opened too frequently or too long.

• Fresh Food/freezer door may be slightly open.

• Freezer control is set too cold (control found in Fresh Food section).

• Fresh Food/freezer gasket is dirty, worn, cracked, or poorly fitted.

• Condenser is dirty.

• Set freezer control. See Temperature Controls section.

• This is normal for a fully automatic defrost refrigerator.

The defrost cycle occurs periodically, lasting about 30 minutes.

• Ensure plug is tightly pushed into outlet.

• Check/replace fuse with a 15 amp time-delay fuse.

Reset circuit breaker.

• Check house lights. Call local Electric Company.

• It’s normal for the refrigerator to work longer under

these conditions.

• It takes 8-12 hours for the refrigerator to cool down completely.

• Ice maker operation causes refrigerator to run slightly more.

• Warm air entering the refrigerator causes it to run more. Open doors less often.

• Ensure refrigerator is level. Keep food and containers from blocking door. See PROBLEM section OPENING/CLOSING OF DOORS/DRAWERS.

• Set Fresh Food control to warmer setting until refrigerator temperature is satisfactory. Allow 24 hours for temperature to stabilize.

• Clean or change gasket. Leaks in door seal will cause refrigerator to run longer in order to maintain desired temperatures.

• Clean condenser. See and Cleaning section.

Care & Cleaning Chart

in Care

Compressor goes off and on frequently.

• Thermostat keeps the refrigerator at a constant temperature.

TEMPERATURES ARE TOO COLD

Freezer temperature too cold. Fresh Food temperature is satisfactory.

Fresh Food temperature too cold. Freezer temperature is satisfactory.

Food stored in drawers freezes.

Food stored in Meat Keeper freezes (some models).

Digital temperature displays are flashing.

• Freezer control is set too cold. • Set freezer control to a warmer setting. Allow 24 hours

• Fresh Food control is set too

cold.

• Fresh Food control is set too cold.

• Meat Keeper Temperature Control set too cold.

• Electronic control system has detected a performance problem.

• This is normal. Refrigerator goes on and off to keep temperature constant.

for temperature to stabilize.

• Set fresh food control to a warmer setting. Allow 24 hours for temperature to stabilize.

• See solution above.

• Adjust Meat Keeper Temperature Control to a lower

setting. (Meat should be stored at a temperature just below the freezing point for maximum fresh storage time. It is normal for ice crystals to form due to the moisture content of meat.)

• Call your service representative, who can interpret any messages or number codes flashing on the digital displays.

BEFORE YOU CALL (CONTINUED)

PROBLEM CAUSE CORRECTION

TEMPERATURES ARE TOO WARM

Freezer/Fresh Food temperature is too warm.

Freezer temperature is too warm. Fresh Food temperature is satisfactory.

Fresh Food temperature is too warm. Freezer temperature is satisfactory.

Temperature in the Meat Keeper is too warm (some models).

• Doors are opened too frequently or too long.

• Door is slightly open.

• Condenser is dirty.

• Freezer control is set too

warm.

• Fresh Food control is set too warm.

• Meat Keeper Temperature Control is set too warm.

WATER/MOISTURE/FROST INSIDE REFRIGERATOR

Moisture collects on inside of refrigerator walls.

• Weather is hot and humid.

• Door is slightly open.

• Door is opened too often or too

long.

• Open containers.

• Warm air enters the refrigerator whenever the door is

opened. Open the door less often.

• See PROBLEM section OPENING/CLOSING OF DOORS/DRAWERS.

• Clean condenser. See

and Cleaning section

• Set freezer control to a colder setting. Allow 24 hours for temperature to stabilize.

• Set fresh food control to a colder setting. Allow 24 hours for temperature to stabilize.

• Adjust Meat Keeper Temperature Control to a colder setting.

• The rate of frost buildup and internal sweating increases.

• See PROBLEM section OPENING/CLOSING OF DOORS/DRAWERS.

• Open door less often.

• Keep containers covered.

Care & Cleaning Chart

in Care

Water collects on bottom side of drawer cover.

Water collects in bottom of drawer.

• Vegetables contain and give off moisture.

• Washed vegetables and fruit drain while in the drawer.

WATER/MOISTURE/FROST OUTSIDE REFRIGERATOR

Moisture collects on outside of refrigerator or between doors.

• Weather is humid.

• Door is slightly open, causing

cold air from inside refrigerator to meet warm air from outside.

AUTOMATIC ICE MAKER

Ice maker is not making any ice.

• Ice maker wire signal arm is in the “up” or OFF position.

• Ice maker power switch is Off.

• Household water line valve is

not open.

• Ice maker has small cube caught in mechanism.

• Freezer is not cold enough.

• Saddle valve on cold water

pipe is clogged or restricted by foreign material.

• It is not unusual to have moisture on the bottom side of the cover.

• Move humidity control (some models) to lower setting.

• Dry items before putting them in the drawer. Water

collecting in bottom of drawer is normal.

• This is normal in humid weather. When humidity is lower, the moisture should disappear.

• See PROBLEM section OPENING/CLOSING OF DOORS/DRAWERS.

• Move wire signal arm to the “down” or ON position. (side mounted)

• Turn power switch to On (“I”) position. (rear mounted)

• Turn on household water line valve.

• Remove small cube from ice maker. The ice & water

filter cartridge may be clogged. Replace filter cartridge.

• See PROBLEM section TEMPERATURES ARE TOO WARM.

• Turn off household water line valve. Remove valve. Ensure that valve is not a self-piercin Clean valve. Replace valve if necessary.

saddle valve.

BEFORE YOU CALL (CONTINUED)

PROBLEM CAUSE CORRECTION

AUTOMATIC ICE MAKER (CONTINUED)

Ice maker is not making enough ice.

Ice maker will not stop making ice.

Ice cubes are freezing together.

Ice has bad odor and taste.

• Ice maker is producing less ice than you expect.

• Freezer is not cold enough.

• Household water line valve is

not completely open.

• Check to see if water dispenser is dispensing slower than normal.

• Ice maker wire signal arm is being held down by some item in the freezer.

• Ice cubes are not being used frequently enough.

• Ice cubes are hollow (partially frozen cubes with water inside).

• Freezer control is set too warm.

• Very little food in freezer.

• Ice has picked up odor or

flavor from strong food stored in refrigerator or freezer.

• Water running to ice maker has poor taste or odor.

• Ice not used frequently enough.

ICE DISPENSER

Dispenser will not dispense ice.

Ice dispenser is jammed.

• Ice storage container is empty.

• Freezer temperature is set too

warm.

• Household water line valve is not open.

• Freezer door is not closed.

• Ice dispensing arm has been

held in for more than 4-5 minutes.

• Ice has melted and frozen around auger due to infrequent use, temperature fluctuations, and/or power outages.

• Ice cubes are jammed between ice maker and back of ice container.

• Ice cubes are frozen together.

• Ice cubes are hollow

(partially frozen cubes with water inside).

• Side mounted ice maker should produce 4 to 4.5 pounds (approximately 4 quarts) of ice every 24 hours. A rear mounted ice maker should produce 3 to 4 pounds (approximately 3½ quarts) of ice every 24 hours. 50% more ice every 24 hours.

• See PROBLEM section TEMPERATURES ARE TOO WARM.

• Turn on household water line valve.

• If it is, replace the ice & water filter cartridge.

• Move item and release wire signal arm. Remove

any ice cubes that are frozen together over the wire signal arm.

• Remove ice container and discard ice from container. Ice maker will produce fresh supply.

• The ice & water filter cartridge may be clogged. Replace filter cartridge.

• Set freezer control to colder setting. Allow 24 hours for temperature to stabilize.

• Add more food to freezer.

• Cover foods tightly. Discard stale ice. Ice maker will

produce fresh supply.

• Add filter to water supply line. Consult a water purifying company.

• Discard stale ice.

• When the first supply of ice is dropped into the

container, the dispenser should operate.

• Turn freezer control to a higher setting so that ice cubes will be made. When first supply of ice is made, dispenser should operate.

• Open household water line valve. Allow sufficient time for the ice to be made. When ice is made, the dispenser should operate.

• Ensure freezer door is closed.

• Motor is overloaded. Motor overload protector will

reset in approximately 3 minutes. Ice can then be dispensed.

• Remove ice container, thaw, and empty the contents. Clean container, wipe dry, and replace in proper position. When new ice is made, dispenser should operate.

• Remove ice cubes that are jamming the dispenser.

• Use the dispenser often so that cubes do not freeze

together.

• The ice & water filter cartridge could be clogged. Replace the filter cartridge. Dispensing system operates best at 30 – 100 psi water pressure. Well water pressures should fall within this range.

Extra Ice

option should produce 25% to

BEFORE YOU CALL (CONTINUED)

PROBLEM CAUSE CORRECTION

WATER DISPENSER

Dispenser will not dispense water.

Water has an odd taste and/or odor.

Water pressure is extremely low.

• Household water line valve is not

• Freezer door is not closed.

• Ice & water filter cartridge is clogged.

• Front filter not fully installed, if

• Water has been in the tank for a

• Unit not properly connected to cold

• Tubing used in the household water

• Water has a high mineral content.

• Cut-off and cut-on pressures are too

• Reverse osmosis system is in

ODORS IN REFRIGERATOR

Interior is dirty.

• Interior needs to be cleaned.

• Food with strong odors is in

open.

equipped

period of time.

water line.

supply and installation may affect water taste and odor.

low (well systems only).

regenerative phase.

refrigerator.

• Open household water line valve. See PROBLEM section ICE MAKER IS NOT MAKING ANY ICE.

• Ensure that freezer door is closed.

• Replace filter cartridge.

• Push filter in until you hear a “click”. Filter should be

flush with cabinet.

• Draw and discard 10 – 12 glasses of water to freshen the supply and completely rinse out the tank.

• Connect unit to cold water line that supplies water to the kitchen faucet.

• For best results, use copper tubing for water connections.

• Contact water treatment plant for help.

• Have someone turn up the cut-off and cut-on pressure

on the water pump system (well systems only).

• It is normal for a reverse osmosis system to be below 20 psi during the regenerative phase.

• See

• Cover food tightly.

Care & Cleaning Chart

section.

in Care and Cleaning

OPENING/CLOSING OF DOORS/DRAWERS

Door(s) will not close.

Drawers are difficult to move.

• Door was closed too hard, causing other door to open slightly.

• Refrigerator is not level. It rocks on the floor when moved slightly.

• Refrigerator is touching a wall or cabinet.

• Food is touching shelf on top of drawer.

• Track that drawers slide on is dirty.

LIGHT BULB IS NOT ON

Light bulb is not on.

• Light bulb is burned out.

• Light switch is stuck.

• No electric current is reaching

refrigerator.

IF YOU HEAR (electronic models only)

5 beeps

3 beeps

• A door has been left open for 5 minutes or more.

• The refrigerator has experienced a loss of power or a low voltage condition.

• Close both doors gently.

• Ensure floor is level and solid, and can adequately

support the refrigerator. Contact a carpenter to correct a sagging or sloping floor.

• Ensure floor is level and solid, and can adequately support the refrigerator. Contact a carpenter to correct a sagging or sloping floor.

• Keep less food in drawer.

• Clean drawer, rollers, and track. See

Chart

in Care and Cleaning section.

• See

• Light switch is located on side of refrigerator and

• See PROBLEM section RUNNING OF

• These beeps will repeat once every minute until the

• This is normal when “Power-On-Reset” is activated.

Replacing Light Bulbs

section.

freezer liners.

REFRIGERATOR.

door has been closed. This is normal for the “Door Ajar” alarm.

in Care and Cleaning

Care & Cleaning

Crosley 241824400 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
