1 PLAYER WHEEL OF FORTUNE
OPERATOR’S MANUAL
Machine Part Number: 920847
Manual Part Number: 990510 Issue 1
© 2004 Cromptons Leisure International Ltd
All Rights Reserved
No part of this publication may be reproduced in any form without the
written permission of Cromptons Leisure International Limited.
Every effort has been made to ensure that the information contained in
this manual is accurate. Cromptons Leisure International Limited reserve the
right to make alterations without prior notice.
Cromptons Leisure International Limited
4 Wilton Road, Haine Industrial Estate, Ramsgate, Kent
CT12 5HG. UK
Tel: +44 1843 593335 Fax: +44 1843 588043 www.cromptons.com
920847 Wheel Of Fortune 2
List of Contents
1. Introduction
1.1 Warnings, Cautions and Notes
1.2 Safety Precautions
1.3 Abbreviations and Terms
2. Game play & Description
2.1 Game play & Description
2.2 Game play
2.3 Navigation Front
2.4 Navigation Back
2.5 Navigation Top Sign
3. Installation & Setup
3.1 Installation
3.2 Setting-up the Playfield with Coins
3.3 Pre-Operation Checks
4. Security
4.1 Tilt Bob
4.2 Intelligent Tilt
4.2 Slam Tilt
5. Programmer & Dipswitch Settings
5.1 Sound PCB & Dip Switch Settings
5.2 Main Control PCB - General
5.3 Main Control PCB – Dipswitch
5.4 Main Control PCB – Dipswitch SW1
5.5 Main Control PCB – Dipswitch SW2
6. Ticket Refill
6.1 Refill Ticket Routine
7. Routine Maintenance16
7.1 Daily Inspection
7.a PSU Rack Checks
7.b Fluorescent Lamp replacement
7.c Coin Entry Check
7.d Playfield
7.e Pin Perspex Removal
7.f Back Door Removal
7.g Payout Level

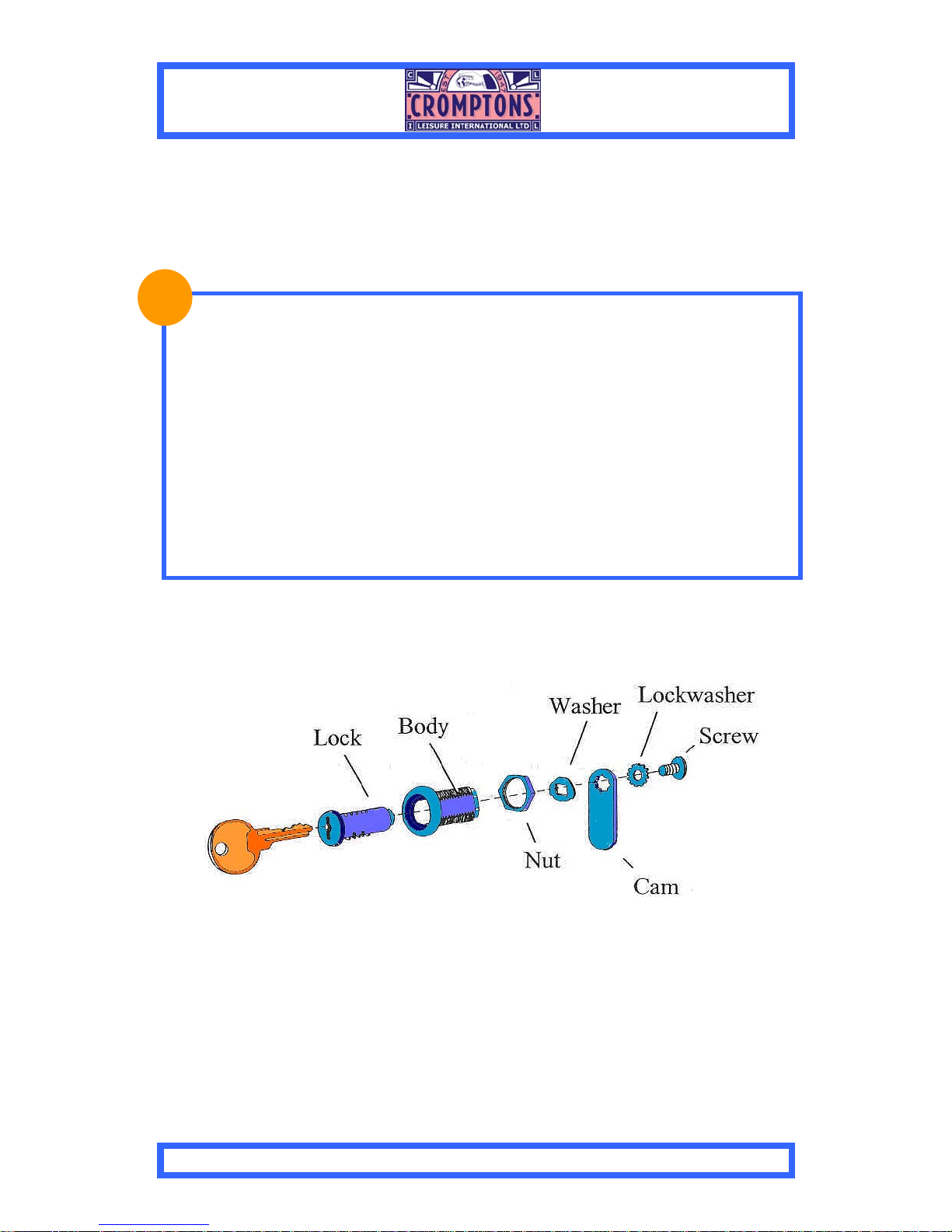

7.h Lock Replacement

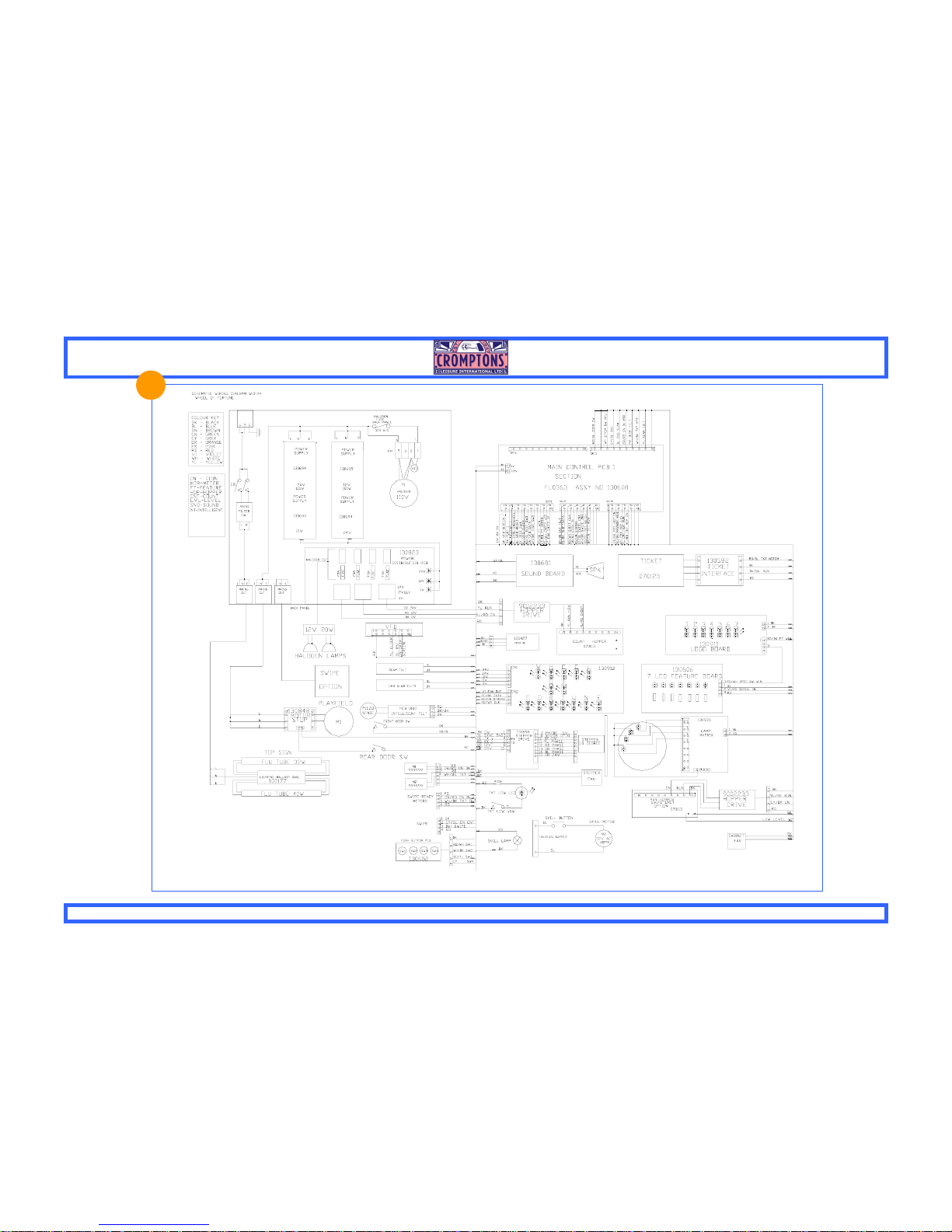

8. Electrical Wiring Schematic

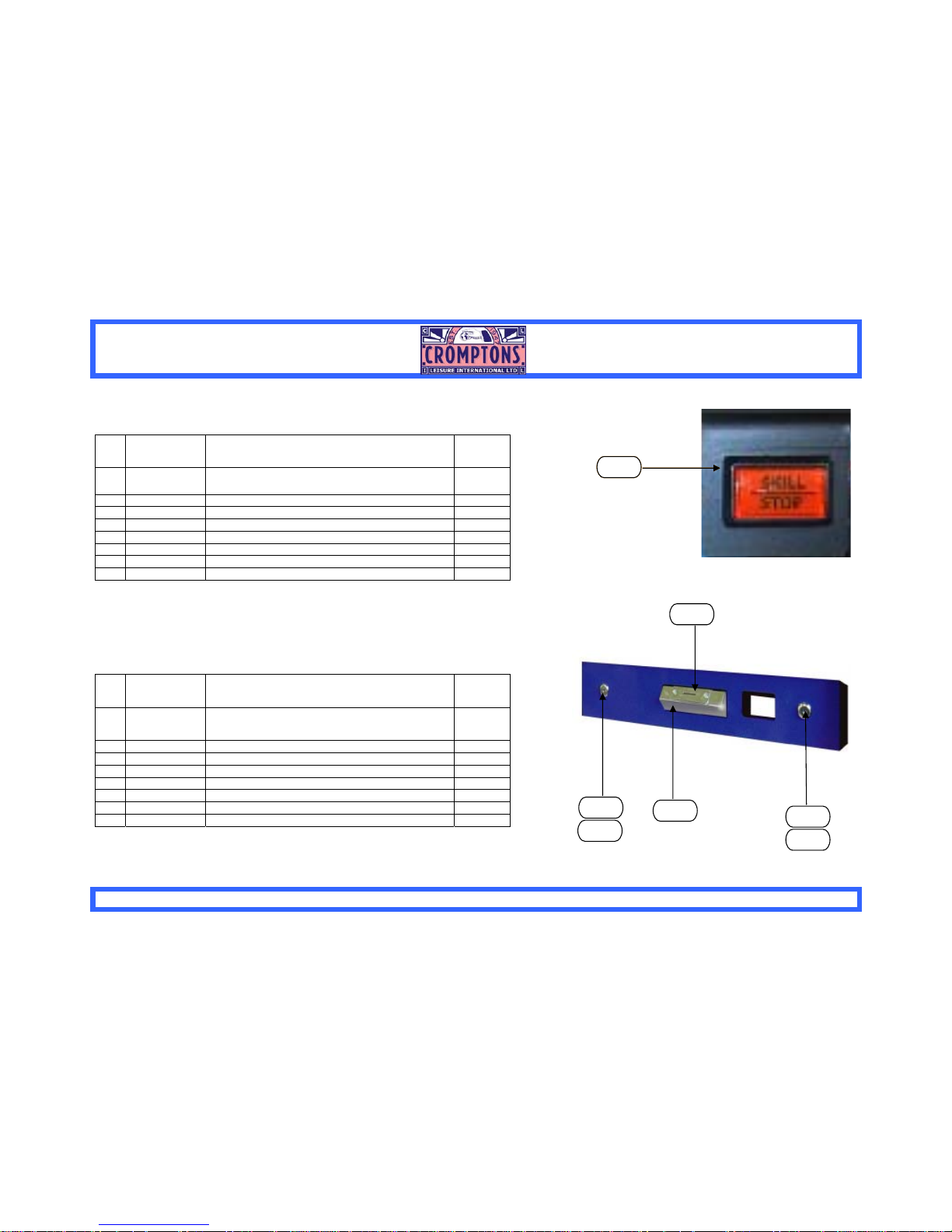

9. Parts List
5
5
5
6
7
8
9
10
11
11
11
12
13
13
14
15
15
16
16
17
18
19
20
21
21
22
23
24
25
26
27
920847 Wheel Of Fortune 3
1. IT IS ESSENTIAL THAT ONLY SUITABLY QUALIFIED
PERSONNEL CARRY OUT MAINTENANCE AND REPAIR
OPERATIONS.
2. TO PREVENT INJURY AND ELECTRIC SHOCK, SWITCH OFF
AND DISCONNECT ALL ELECTRICAL POWER SUPPLIES
BEFORE OPENING DOORS AND PANELS AND STARTING
WORK ON THE MACHINE.
3. TO PREVENT ELECTRIC SHOCK DURING OPERATION, A
SECURE, GROUNDED ELECTRICAL PLUG MUST BE FITTED.
4. USE ONLY THE SPECIFIED ELECTRICAL FUSES SHOWN IN
THE PARTS LIST. REPLACEMENT FUSES MUST MATCH
THOSE TO BE REPLACED IN FUSE TYPE AND RATING. THE
FUSE COVER (WHERE APPLICABLE) MUST BE IN PLACE
BEFORE SWITCHING THE MACHINE ON.
5. TO MAINTAIN THE SAFE AND EFFICIENT OPERATION OF
THE MACHINE, USE ONLY PARTS THAT HAVE BEEN
SUPPLIED BY CROMPTONS, OR ARE CROMPTONS
APPROVED.
6. THIS MACHINE IS INTENDED FOR INDOOR USE ONLY.
CAUTION
1. MANY ELECTRICAL PLUGS ARE KEYED TO FIT ONE WAY.
NOTE ORIENTATION BEFORE REMOVAL.
2. BEFORE HANDLING A PCB OR ITS COMPONENT PARTS,
TAKE FULL ANTI-STATIC PRECAUTIONS.
3. WAIT FOR AT LEAST ONE MINUTE AFTER SWITCHING THE
MACHINE OFF, TO ENABLE THE CAPACITORS TO FULLY
DISCHARGE BEFORE SWITCHING BACK ON. FAILURE TO
DO SO MAY RESULT IN A LOSS OF FUNCTIONALITY.
920847 Wheel Of Fortune 4
Introduction
This manual is intended to act as a guide to the operation of the machine.
The list of contents shows the layout of the manual. Should repairs be
necessary, there is a Parts List of components that are normally
considered replaceable. Recommendations are made throughout the
manual and it is essential that these be followed for safety reasons.
1.1 Warnings, Cautions and Notes
“WARNING”: refers to essential safety precautions that must be taken to avoid
a potential hazard to health.
“CAUTION”: refers to precautions that must be taken to avoid damage to the
equipment.
“NOTE”: refers to advisory information, normally to assist in performing
tasks.
1.2 S
AFETY PRECAUTIONS
The following general Safety Precautions apply to all Operators and Engineers
and must be complied with at all times. More specific warnings and cautions
are also provided in the manual where they apply.
1.3 Abbreviations and Terms
Units used are the standard SI units, e.g. grams “g”, volts “V”, etc
Abbreviations
Assy. Assembly
CW Clockwise
DIP Dual In-line Package
EMC Electro Magnetic Compatibility.
GRP Glass Reinforced Plastic.
ICE Innovative Concepts in Entertainment
JST Japanned Solderless Terminal
LED Light Emitting Diode.
PCB Printed circuit board.
PSU Power supply unit.
TBD To be done.
LH Left Hand
RH Right Hand
Terms
Coin Coin or Token
Fixings Small pieces of metalwork, etc used for assembly
Slug Counterfeit coin or token
920847 Wheel Of Fortune 5
2.0 GAME PLAY & DESCRIPTION
Marquee Level
Coin Entry Level
Playfield Level
Payout Level

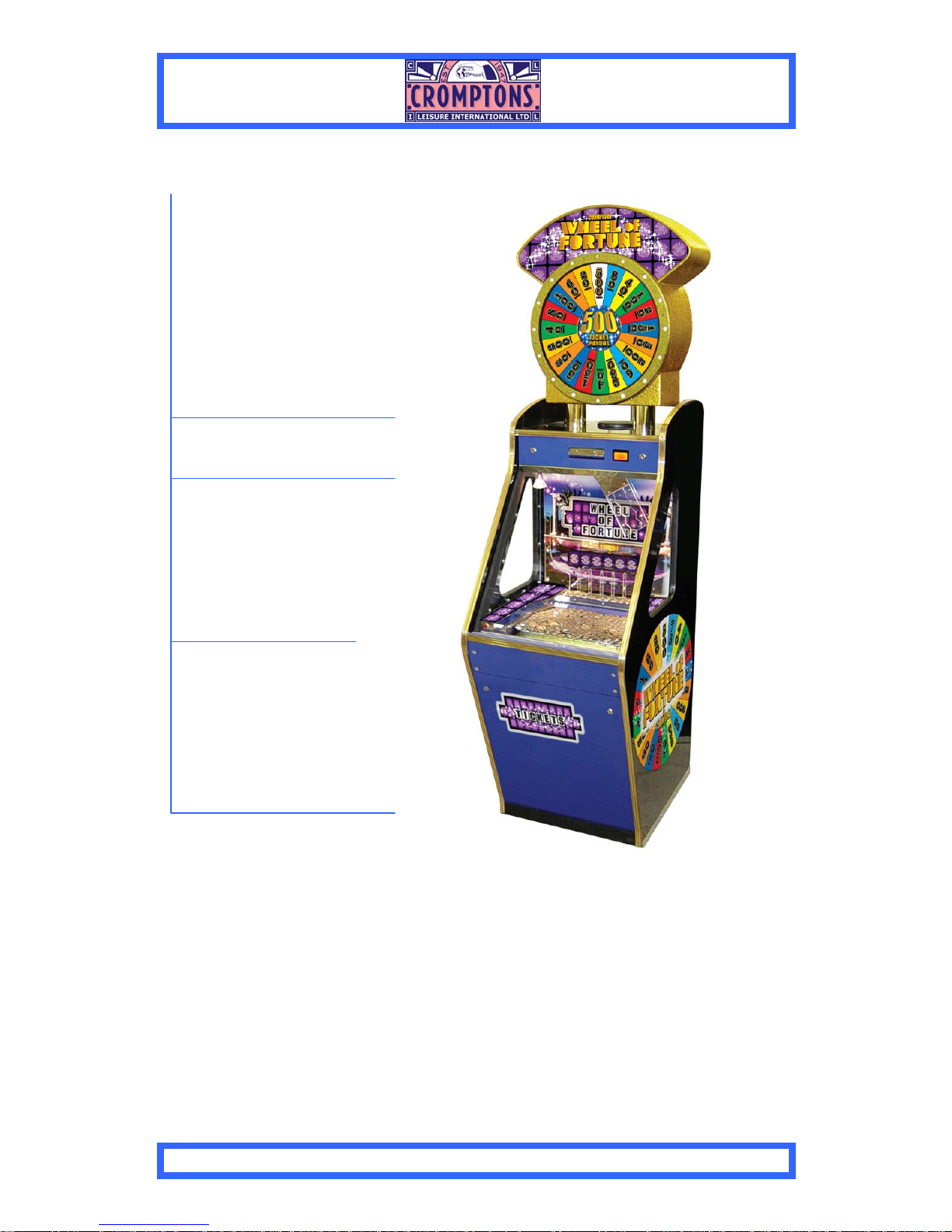

Figure 1- General View of Wheel of Fortune
2.1 General Description
The Wheel of Fortune can be divided into 4 separate levels as shown in Figure 1
Each level contains assembly of components that at times may require
adjustments and maintenance.
920847 Wheel Of Fortune 6
p

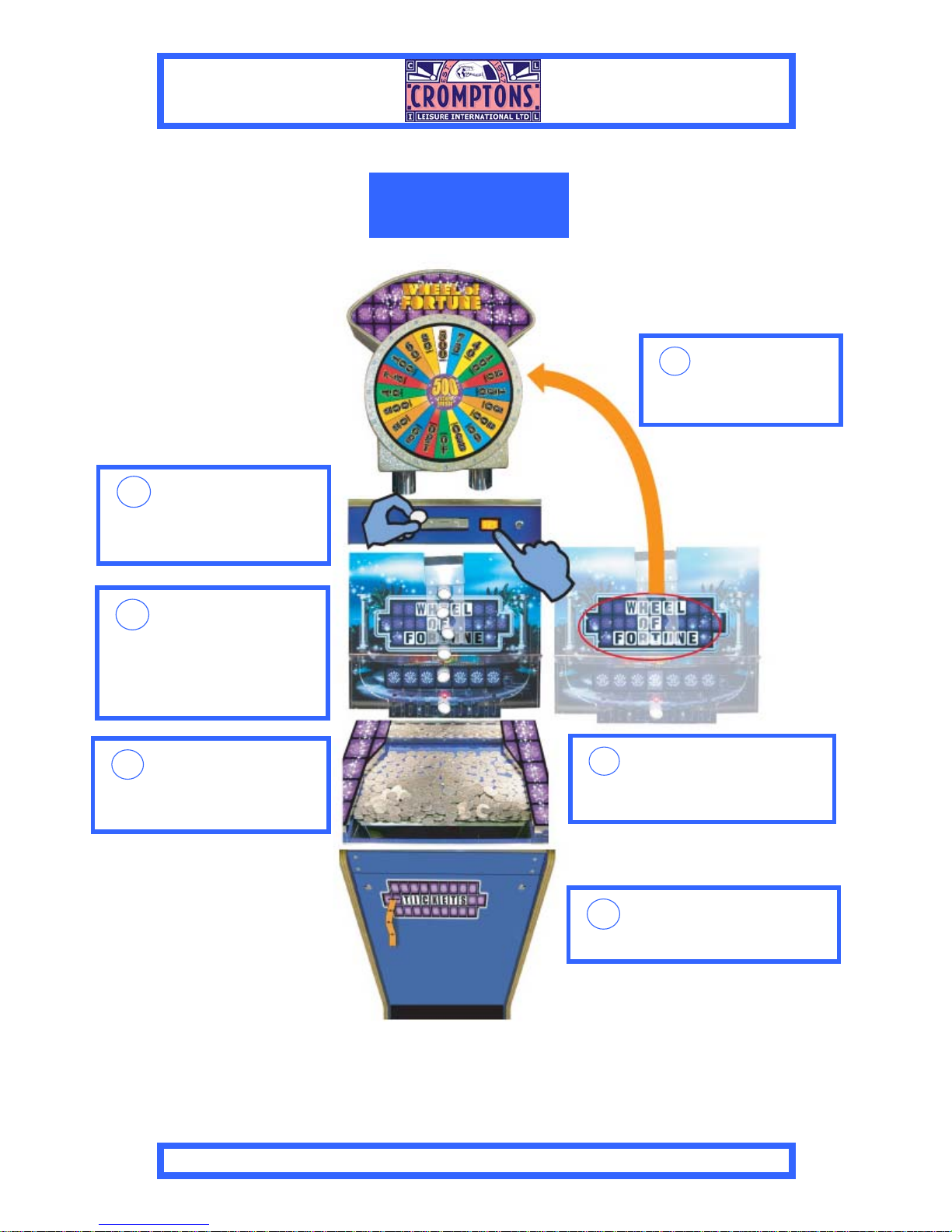

2.2
1
Drop Quarter or Token
down the Skill Arm.
GAME PLAY
4
When all 14 letters
are lit the bonus wheel
s
ins for extra tickets
2
Use the Button to stop
the arm and direct the coin.
Time the drop with the running
lights.
5
The Quarter or Token
continues to the playfield and
pushes coins forward towards
3
Each time a running light is
hit a WHEEL OF FORTUNE letter
6
When coins fall over the edge,
tickets are paid to the player.
920847 Wheel Of Fortune 7

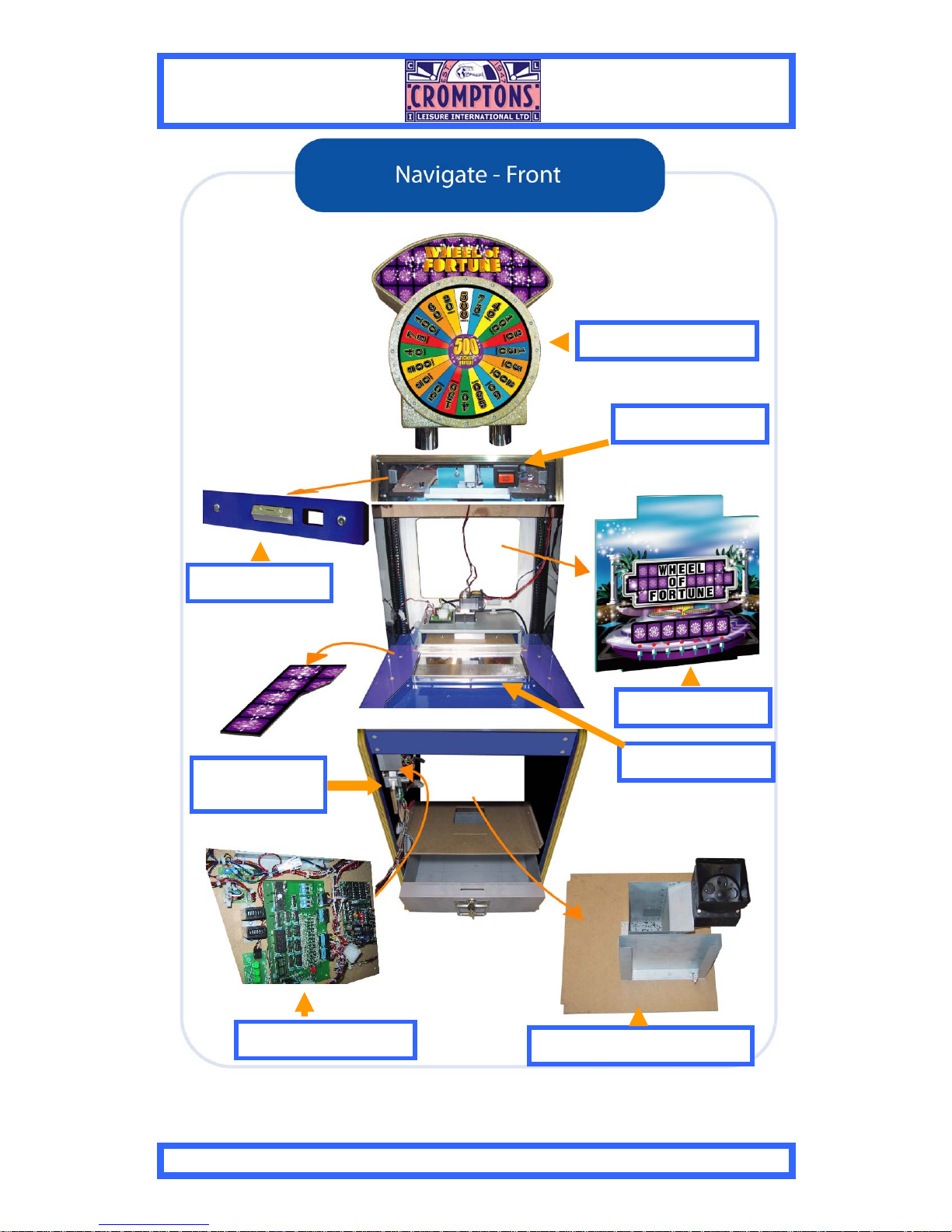

Marquee Assembly
Skill Stop Button
Coin Entry Door
Ticket Payout
Latch Switch
Pin Perspex Assy
Pusher Box Assy
Main Control Board

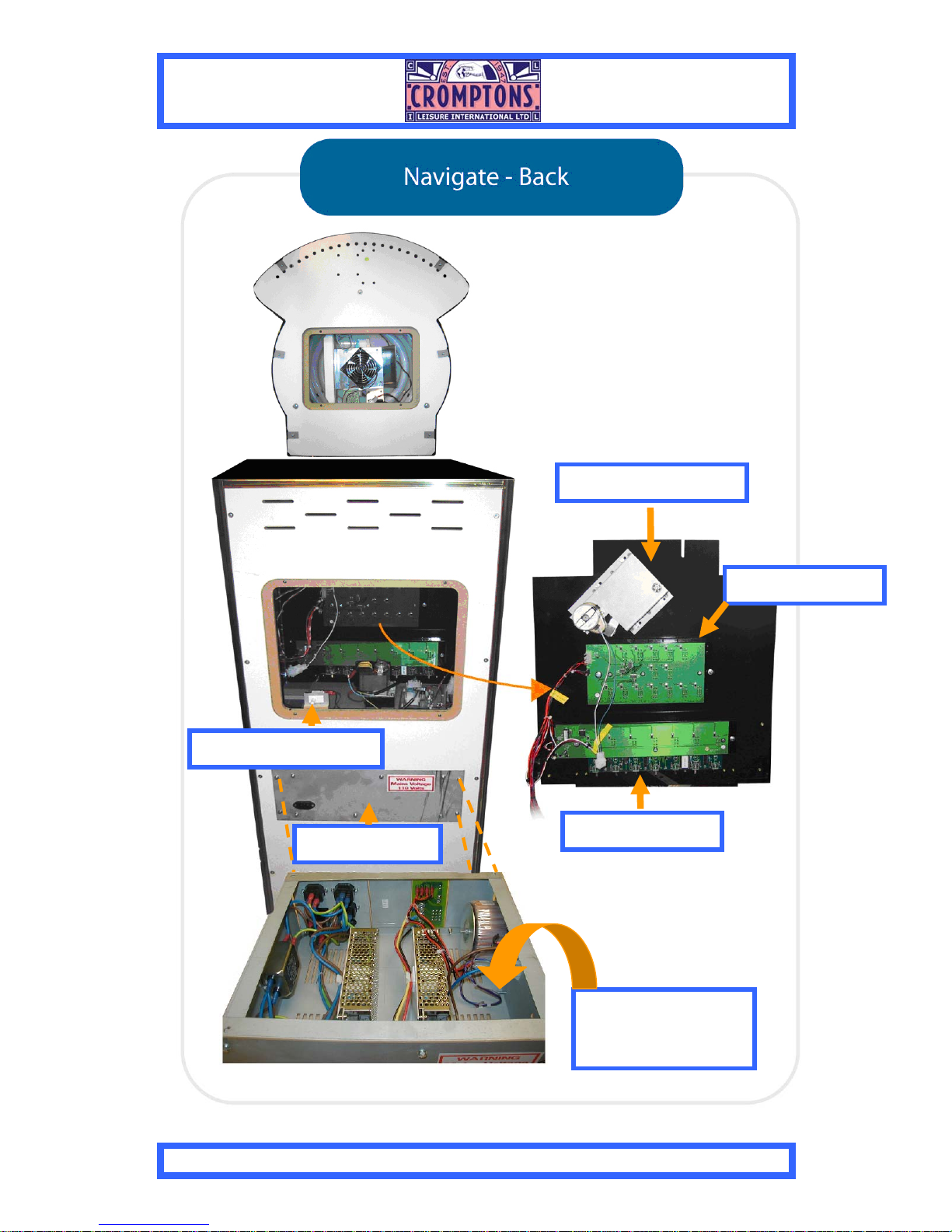

920847 Wheel Of Fortune 8
Edge Win Count Module
Motor Drive Arm Assy
Motor Interlock Switch

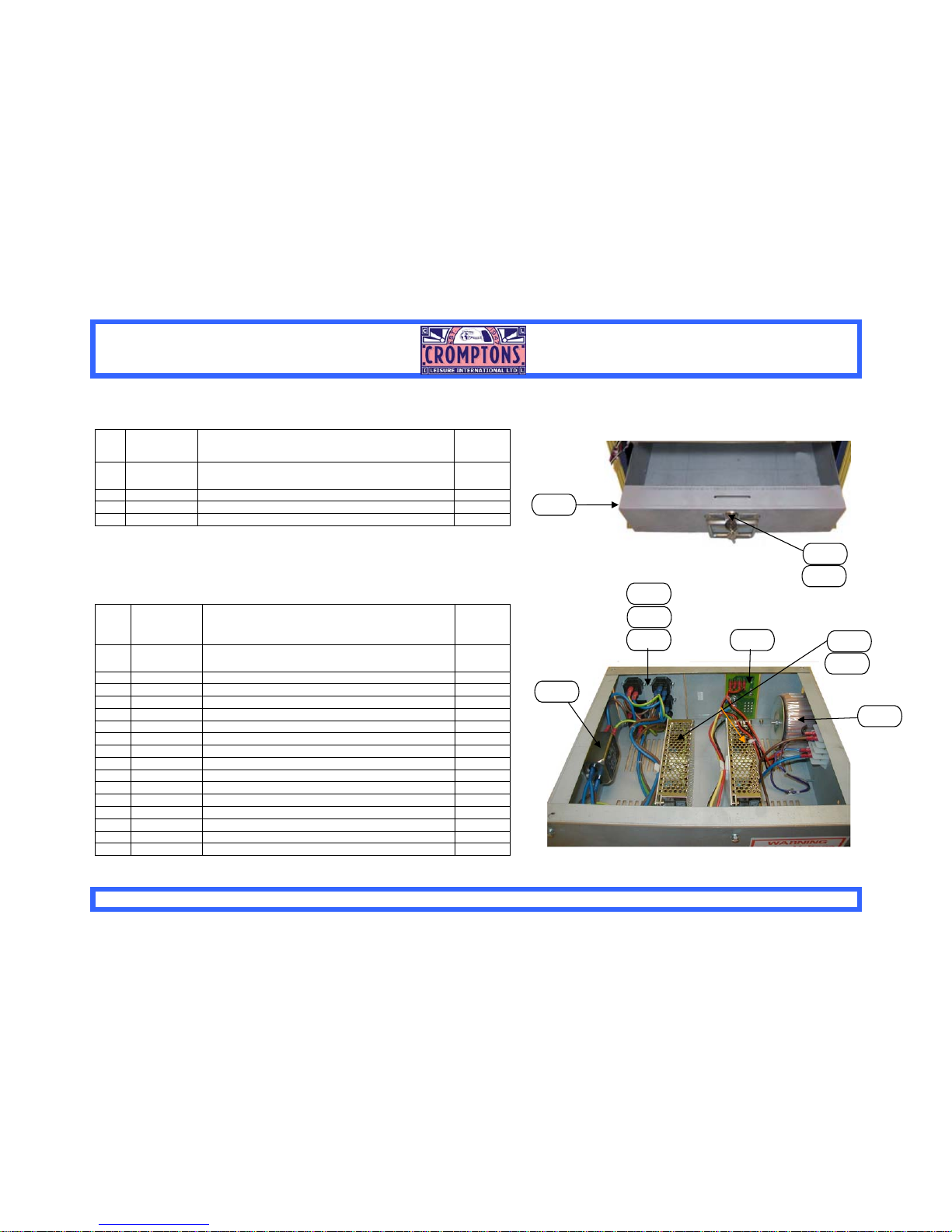

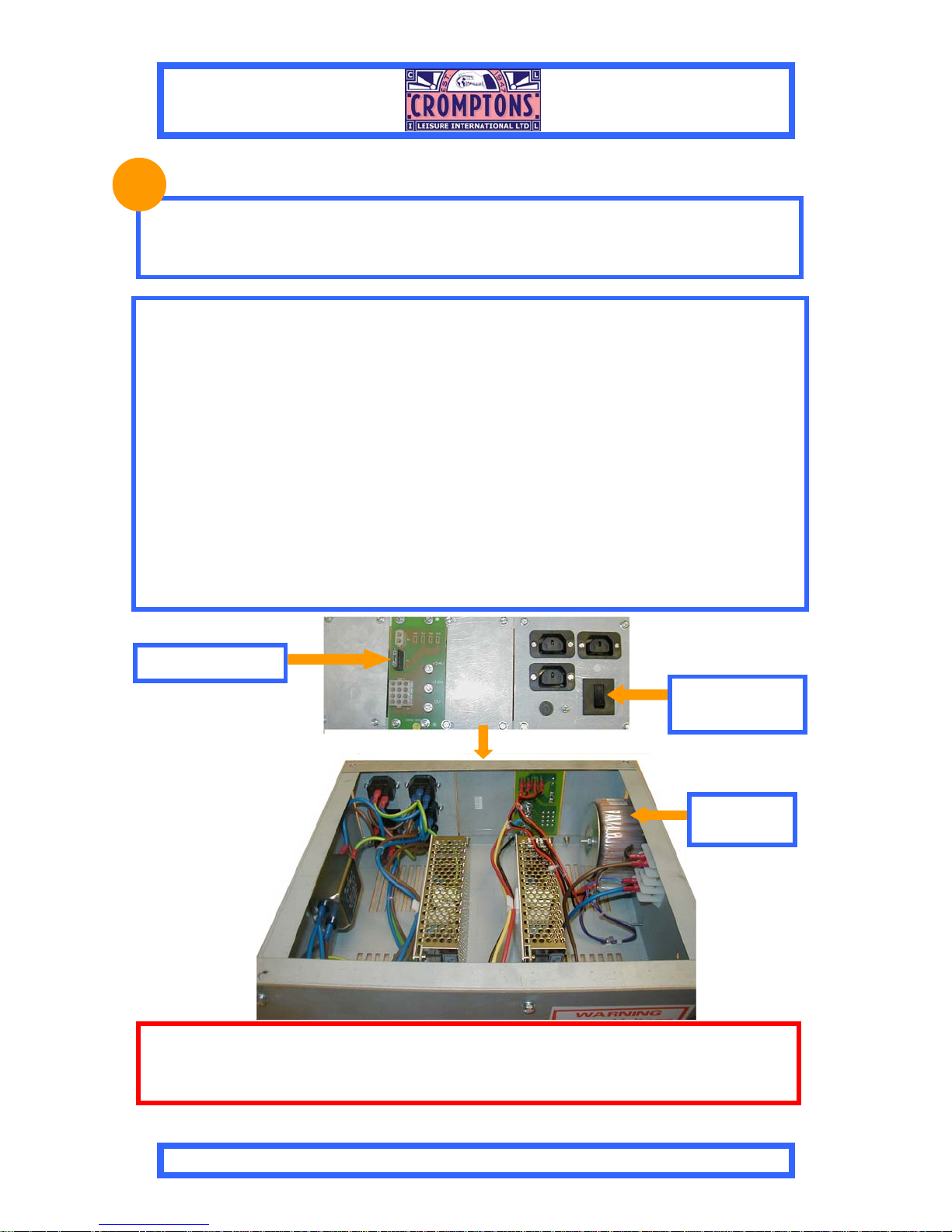

PSU Rack Assy
LED Bonus Board
LED Bonus Board
Power Supply
Halogen Transformer
Mains Power Filter

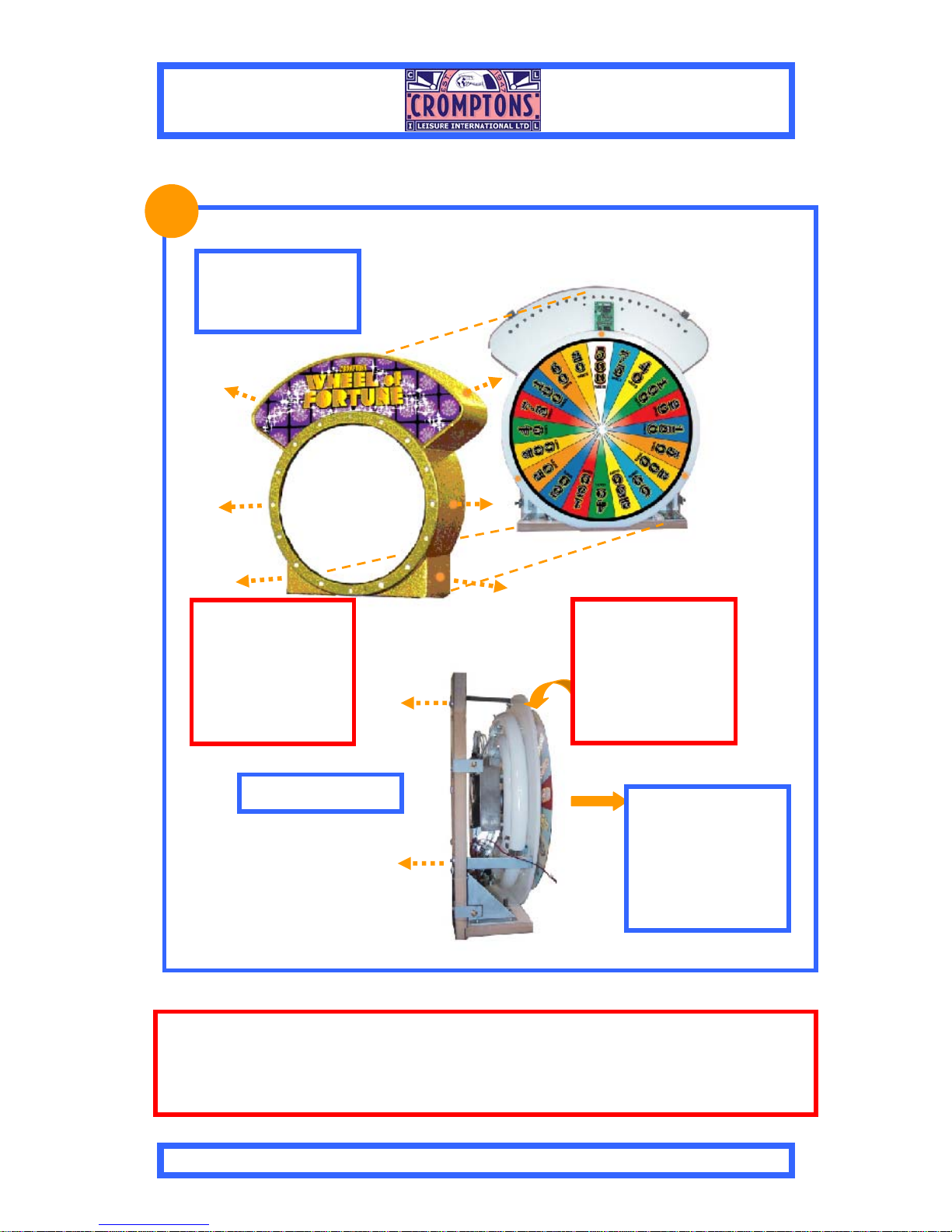

920847 Wheel Of Fortune 9

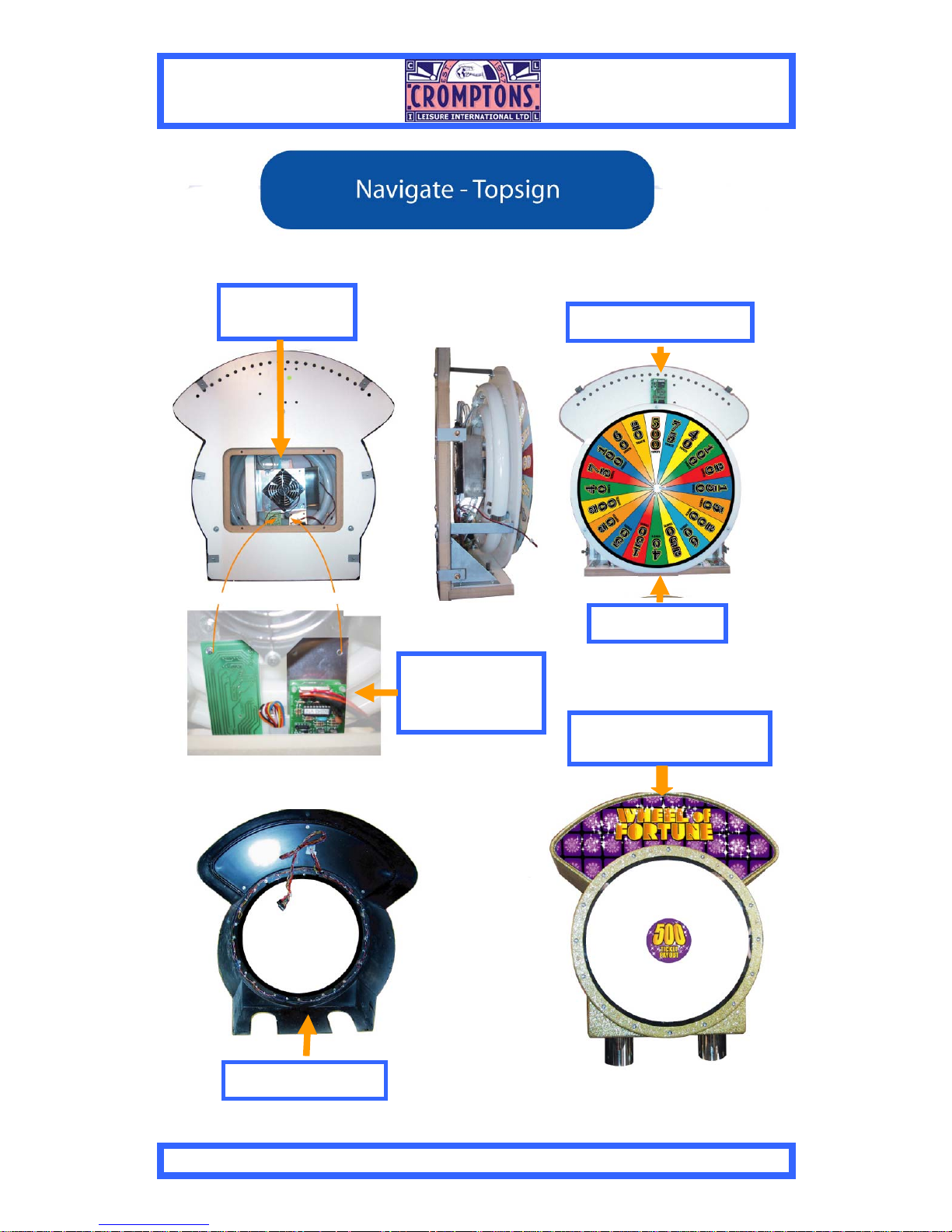

y
Stepper Motor
& Fan Ass
LED Lighting PCB
LED Controller
& Stepper Drive
Card
Wheel Perspex
TopSign Glitter Coat
LED Lighting PCB
920847 Wheel Of Fortune 10
920847 Wheel Of Fortune 11
Installation & Setup
3.1 Installation
i. Remove the machine from the shipping crate and check that it is complete.
Any special instructions and the entry keys are attached to the outer surface of
the machine. Ensure that all transit packing is removed from outside and inside
the machine. Close and lock all doors and panels.
ii. The machine must be installed for use on a stable, level surface. It must not be
exposed to extremes of temperature or high humidity. Ensure that the mains
electrical supply is grounded and complies with the specification shown on the
Identification Label (normally located on the side of the machine). Ensure the
switch on the electrical socket is set to "ON". Connect to the mains electrical
supply using a readily accessible disconnect device, and switch on the supply,
starting the machine. The power switch is located in the payout level of the
machine, (see page 19)
iii. Check that all lights are working and that the pusher box is moving smoothly.
When the machine appears to be functioning correctly, set up the playfields as
follows.
iv. Check that the skill arm is working correctly (see page 7, Game Play)

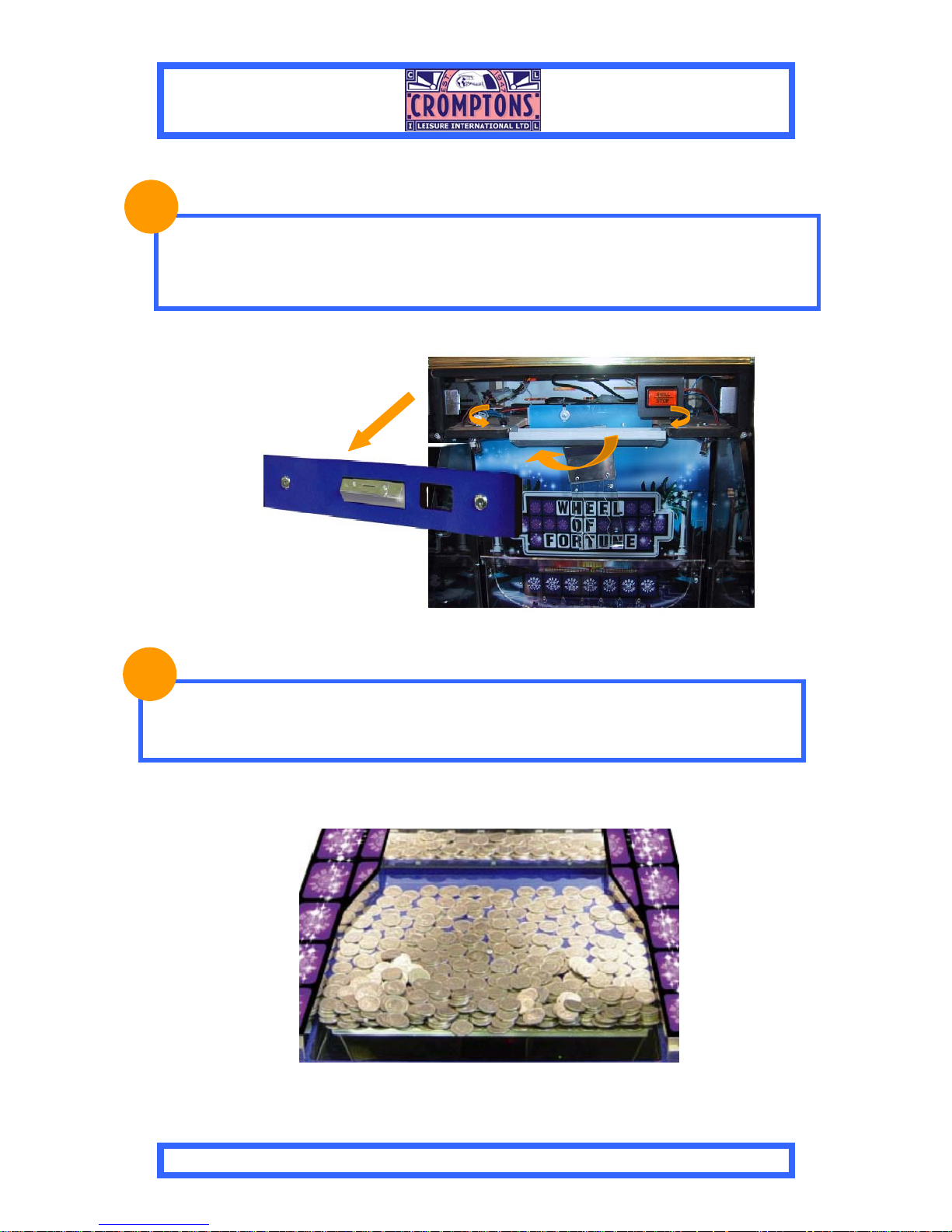

3.2 Setting-Up the Playfield with Coins
The following set-up procedure is recommended before the machine is played:-
i. To "float-up" the play area, turn the machine on, open the glass access door
and spread approximately 720 coins evenly over the Playfield.
ii. To settle the machine ready for play, feed approximately another 720 coins
evenly onto the playfield through the Coin Entry.

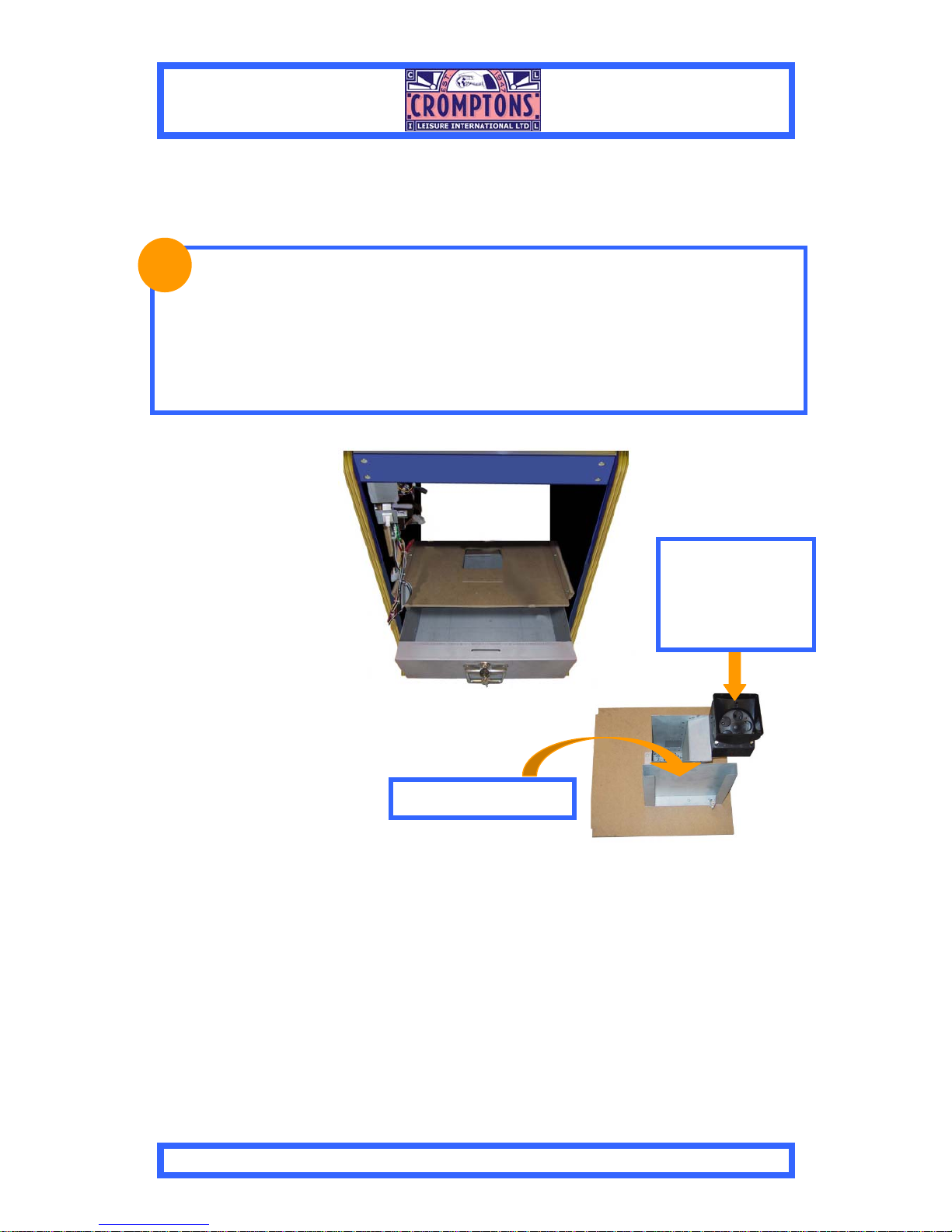

iii. Open the Payout door and fill the Ticket Dispenser.
3.3 Pre-Operation Checks
i. Visually check that the playfield is correctly set up with Coins.
ii. Open the Payout Door and visually check the and Ticket Dispenser is full.
iii. Set the Sound Volume to the desired level (Figures 3).
iv. Feed several Coins into the Coin Slot and visually check that the Coins fall
onto the Playfield correctly.
v. Check that the Coin Entry sound is triggered each time a Coin is entered.
vi. Check the operation of the skill stop arm by pressing the button to stop the
arm.
CAUTION:
DO NOT FILL THE COUNT
HOPPER WITH COINS AS THE
MACHINE WILL PAYOUT
I
NCO
RRECTLY
920847 Wheel Of Fortune 12
4.0 Security
The machine uses three separate tilt mechanisms to enhance security:
The Alarm is a continuous two tone sound that lasts for approximately 8-10
seconds.
The machine is protected by three different tilt mechanisms - the Tilt Bob, the
Slam Tilt and the Intelligent Tilt™. The settings of each can be adjusted to alter
their sensitivity.
Please note that these settings are critical to ensure game play – they must be set
sensitively enough to protect the machine, but if they are set too sensitively, game
play will be adversely affected.
Tilt Bob Mechanism

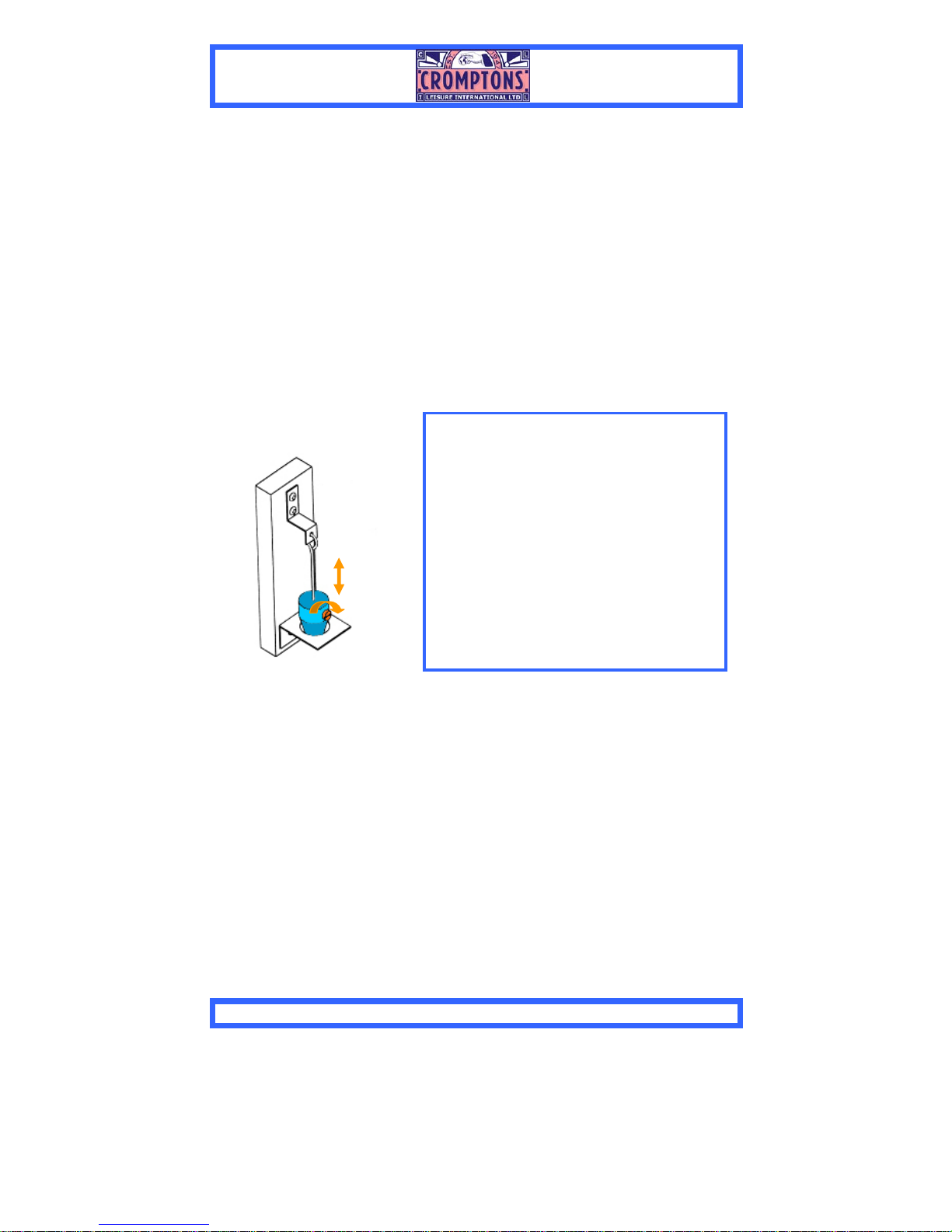

4.1 TILT BOB MECHANISM ADJUSTMENT.
The Tilt Bob is housed in the coin entry level
of the machine.
It operates under gravity by making contact
between the metal frame and the freeswinging bob if the machine is tilted beyond a
pre-determined angle.
To set the tilt angle, loosen the Locking
Screw on the side of the bob. The bob can
then be moved up the shaft to increase the
operating angle or down the shaft to decrease
the angle. Ensure that the Locking Screw is
tightened following adjustment.
920847 Wheel Of Fortune 13

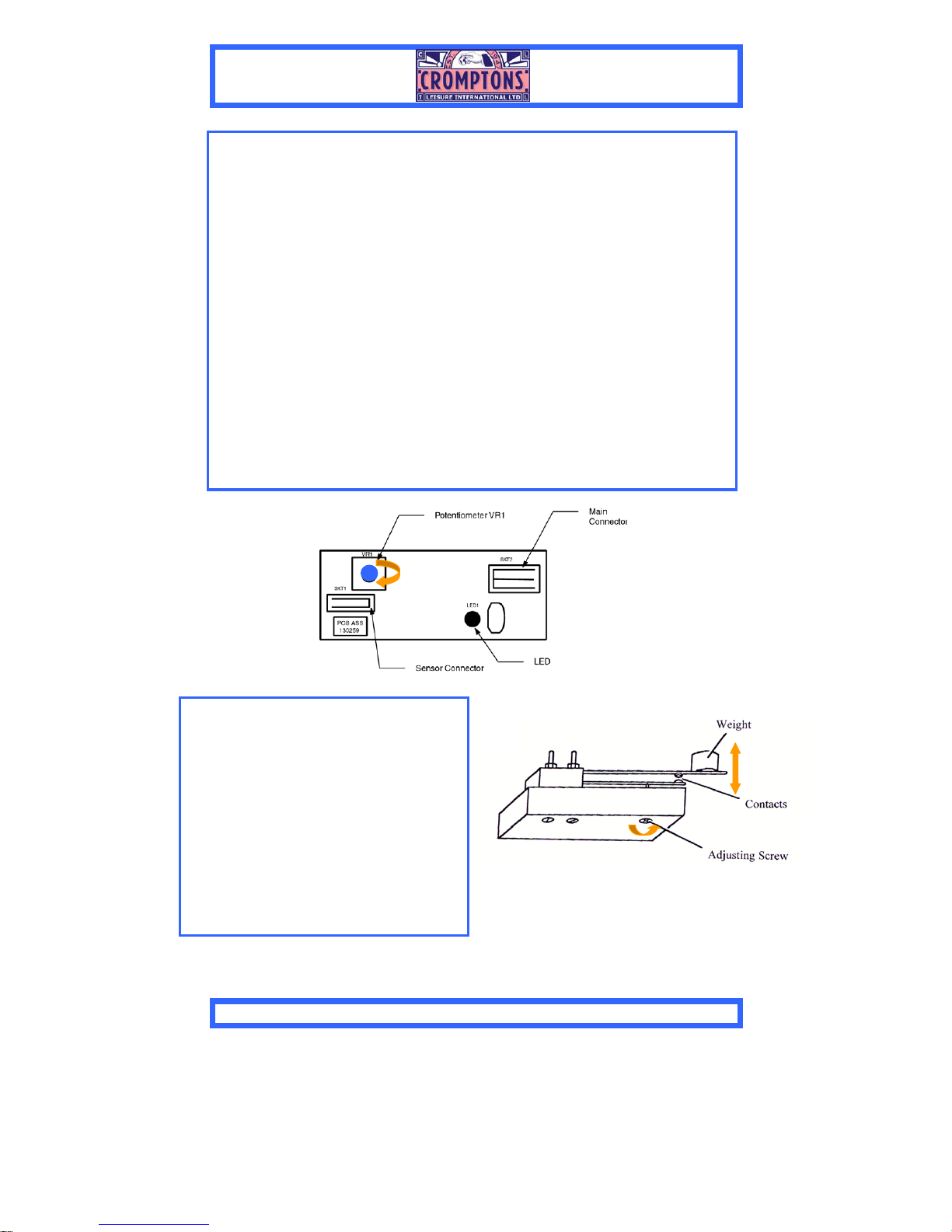

Intelligent Tilt Assembly
4.2 INTELLIGENT TILT™ADJUSTMENT
The piezo-electric sensors and associated PCBs are secured to the underside of the
Win Chutes.
The sensitivity of the Intelligent Tilt mechanism can be adjusted by turning the
potentiometer VR1 on the Intelligent Tilt PCB.
Turning the potentiometer anti-clockwise increases sensitivity, and turning it
clockwise decreases sensitivity.
To test for correct function:
1. Remove the Glass Door from the Play Section.
2. Position a coin at the edge of the Playfield, as far away from the Coin Fall
Detector as possible (to check for maximum sensitivity).
3. Gently push the coin over the edge so that it drops into the win chute, as it
would do in normal play.
4. As the coin enters the win chute, visually check that the LED on the PCB
lights, indicating that the coin has been detected. This will not cause the alarm
to sound.
If the LED does not light, turn the potentiometer anti-clockwise slightly and repeat
the test.

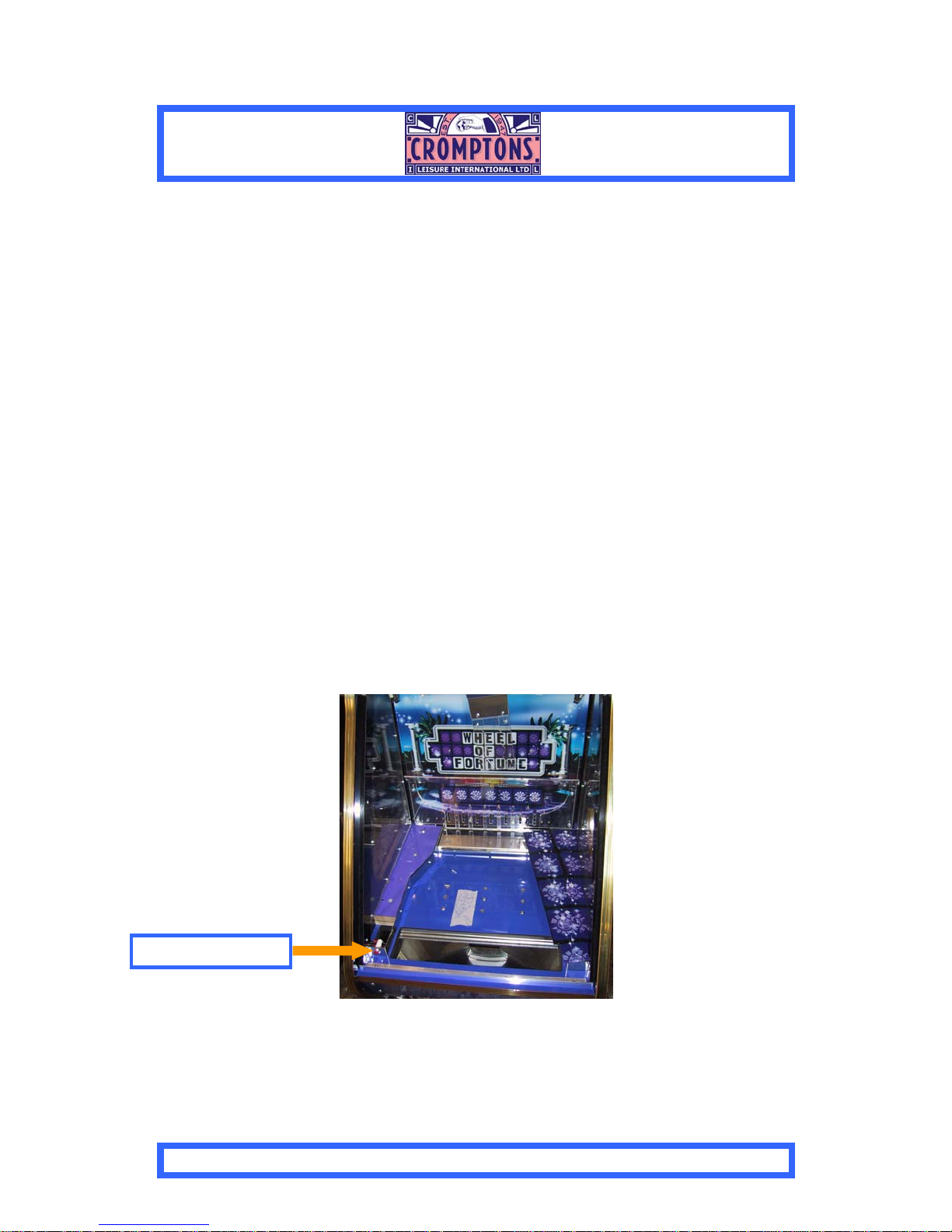

4.3 SLAM TILT ADJUSTMENT
The Slam Tilt Switches comprise an
adjustable switch with a weight mounted on
a sprung arm.
The switch operates if the machine is struck
with enough force to move the weight and
close the electrical contacts
Tightening the Adjusting Screw reduces the
gap between the contacts and makes the
switch more sensitive
920847 Wheel Of Fortune 14

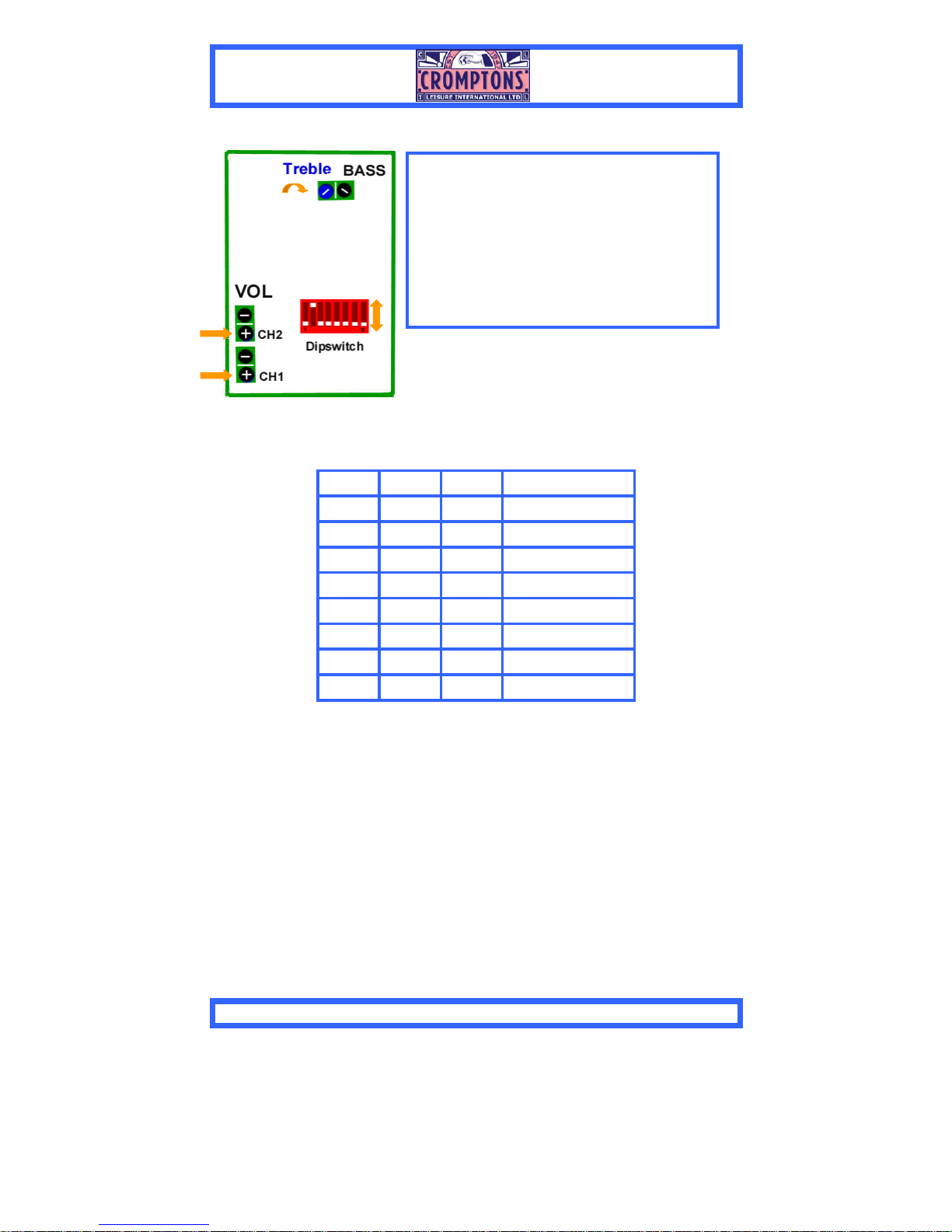

5.0 Programmer & Dipswitch Settings
Sound Card
SW1 SW2 SW3 Time Interval
OFF OFF OFF No attract sound
ON OFF OFF 30 Seconds
OFF ON OFF 60 Seconds
ON ON OFF 90 Seconds
OFF OFF ON 120 Seconds
ON OFF ON 150 Seconds
OFF ON ON 180 Seconds
ON ON ON 210 Seconds
Table 1 "Attract Sound" - Dipswitch Settings
5.1 SOUND PCB – DIPSWITCH SETTINGS
A Dipswitch unit mounted on the Sound
PCB is used to control the “Attract Sound”.
This sound is intended to attract players to
the machine when it is not being played).
The time interval between the sounds is
settable as shown below. Only switches 1 to
3 of the 8 switches are currently used.

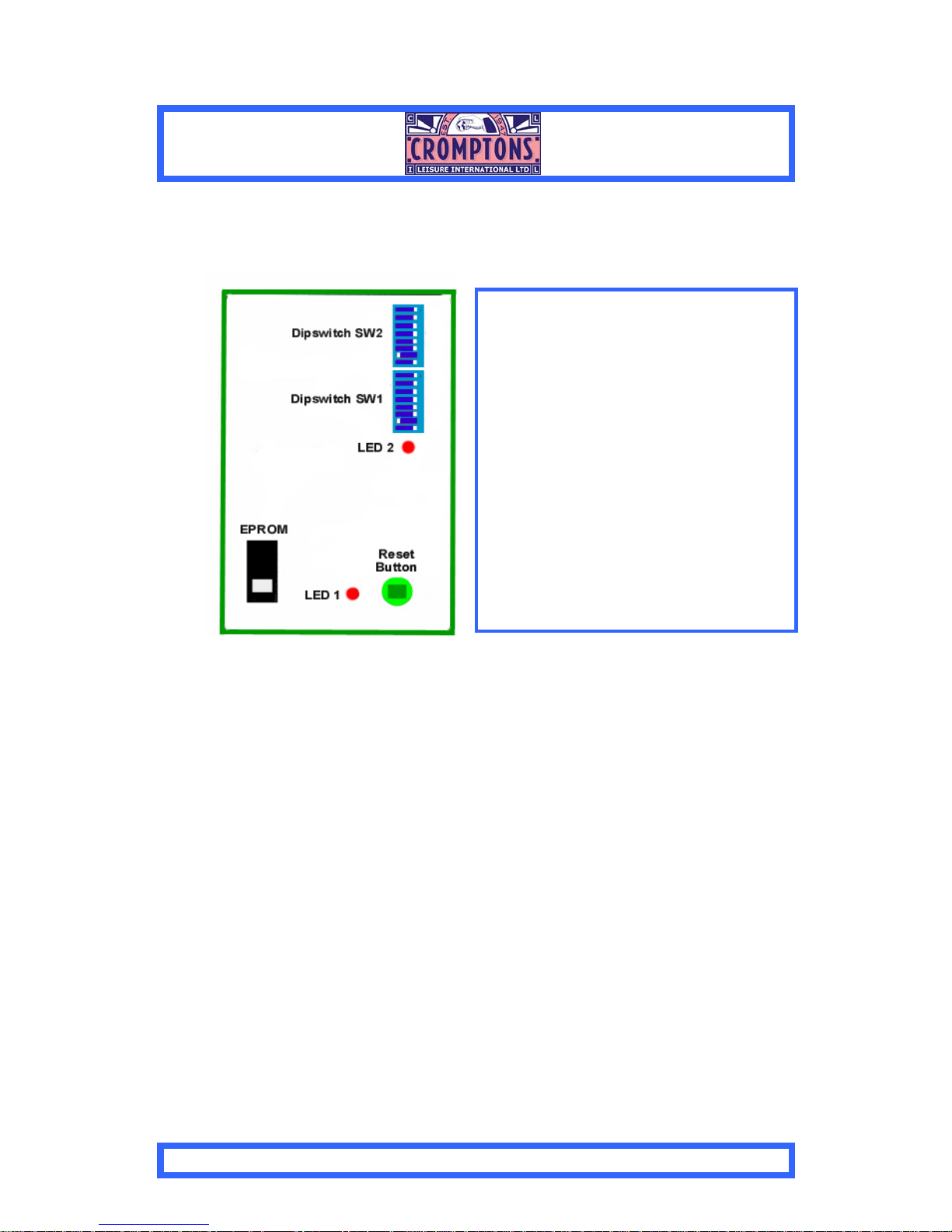

5.2 MAIN CONTROL PCB –GENERAL
A separate Main Control PCB is used to
control each play section. Above each
PCB is a label with its Play Section
number.
Each PCB has two LEDs incorporated:
LED1 is illuminated while there is power
to the PCB.
LED2 is a software monitor that flashes
regularly while the program is running
correctly. If this LED stops flashing at
any time, pressing the Reset Button will
cause the program to be reset.
Figure 2 - Control PCB
Pressing the Reset Button resets the control system for that Play Section without
disturbing other parts of the machine. Pressing this button will also cause unpaid
tickets to be paid out following a refill.
5.3 Main Control PCB - Dipswitch Settings
Two banks of Dipswitches are located on each Main Control PCB, labelled
“SW1” and “SW2” (Figure 5). The switches themselves are labelled with the
numbers “1-8” and the ‘ON’ position is shown.
The Dipswitch settings take effect only at Power-up or after the Main Control
PCB Reset button has been pressed.
A Software Specification Sheet is located inside the ticket level of each machine.
This specifies the Dipswitch settings for that particular machine and, in the event
of conflicting information, should be followed in preference to the settings shown
below.
920847 Wheel Of Fortune 15
5.3 - Dipswitch SW1
Merci Ticket
Adjustment
DS
1 +1 ON
2
3
Number of
Tickets paid
per coin over
the edge
4 +1 ON
5 +2
6 +4 ON
7 +8
Not Used
8
5.4 - Dipswitch SW2
DS
Default Setting Description
If all OFF no Merci Ticket is paid.
+2
+4
OFF
OFF
DS1 ON = 1 Ticket
DS1 & 2 ON = 3 Tickets (cumulative
values)
If all OFF no Tickets paid
OFF
DS1 & 6 ON = 5 Tickets paid for each
coin over the edge (cumulative values)
OFF
OFF Not Used
Default Setting Description
Feature Ticket
Adjustment
TEST Modes
The above default setting will give the following payout:
For every coin in deliver 1 merci ticket, 5 tickets for every coin over the edge
and average 4 tickets for the Wheel of Fortune bonus payout. Effectively this
will total 10 tickets out for every coin in.
9 +1
+2
10
+4
11
OFF
OFF
ON
12 - OFF
13 -
14 -
15 -
16
- OFF
OFF
OFF
OFF
Ave tickets from feature per coin in
DS11 ON = Ave 4 tickets per coin in.
Clear Down RAM settings
Only used for Test modes please
contact your Distributor
920847 Wheel Of Fortune 16
6.0 Filling Ticket Dispenser Versions
Tickets Reload Sequence
An LED visible on the playfield also indicates when Tickets are low. When a
section runs out of tickets, an audio alarm indicates “Tickets Empty.”
To refill ticket bin and pay out any remaining tickets, carry out the following
steps
i. Remove the Payout Door. Place the block of folded tickets in the Ticket
Box so that the feed will be in correct orientation.
ii. Switch the power supply ON (if not already on) and press the advance
button on the side of the dispenser until tickets appear at the Payout Slot.
iii. Tear off any excess tickets and replace the Payout Door. Take care not to
trap the tickets.
iv. The machine verifies tickets are present and pays any tickets owing and
allows the game to be continued.
v. The door switch (see Navigate-Front, page 8) has a pull latch ON state for
Ticket Low LED
testing ticket payout with the door open.
920847 Wheel Of Fortune 17
7.0. Routine Maintenance
Daily Inspection
It is recommended that the following checks are carried out daily:
i. Switch the machine on.
ii. Visually check that the machine is clean inside and out and that all lamps are
working.
iii. Visually check that there are no coins jammed in the Coin Entry.
iv. Check that the playfield is correctly set-up with coins. Do not attempt to
change a playfield which has already been set up.
See Next Page for Details of routine maintenance
WARNING:
1) MAINTENANCE AND REPAIR WORK SHOULD ONLY
BE CARRIED OUT BY SUITABLY SKILLED AND
TRAINED PERSONS.
2) SWITCH OFF AND DISCONNECT ELECTRICAL
POWER SUPPLY BEFORE WORKING ON THE
MACHINE. NOTE THAT MAINS SUPPLY VOLTAGES
ARE USED BEHIND THE COIN ENTRY, THE PAYOUT
AND REAR SERVICE DOORS.
CAUTION:
1) When touching any PCBs or their component parts, take
full anti-static precautions at all times, or else electronic
components may be damaged.
2) Note the orientation of all PCBs and their connectors before
removal, to ensure correct reconnection.
3) After installation or assembly, test any affected parts for
correct function before use.
920847 Wheel Of Fortune 18
A
Switch the machine ‘ON’.Visually check that the machine is clean inside and out and that
all lamps are working. If the machine does not work check the electrical supply and main
fuses.
There are no fuses on the main power supply. A circuit breaker is utilised to protect the
machine from surges in supply. To access the switch remove the front door at the payout
level.
The low-voltage Halogen lamps illuminating the playfield are powered from the mains via a
Transformer inside the PSU rack Assy. The Transformer has a Transformer PCB on the
front of the rack, which acts as an interface between the power supply, the Transformer and
the lamps, and is equipped with an anti-surge fuse.
Switch off and disconnect the power supply. Remove the PSU rack from the back of the
machine.
Disconnect the electrical connector from the transformer.
Remove the securing nut and setscrew from the base of the transformer and remove.
Install by reversing the above procedure.
PSU Rack Checks
Anti Surge Fuse
Circuit Breaker
WARNING
To prevent injury, ensure that the Electrical Supply is switched off and disconnected
before changing the main fuse or performing any kind of maintenance task.
Switch
Halogen
920847 Wheel Of Fortune 19
b.
Fluorescent Lamp Lighting & Component Replacement
Remove Fixings to
release Front
Moulding
WARNING
Disconnect lamp
loom before
removing front
moulding
Remove Fixings
WARNING
To prevent injury, ensure that the Electrical Supply is switched off and disconnected
before changing the main fuse or performing any kind of maintenance task.
WARNING
Ensure that the
LED PCB is clear
before removing
Wheel
Release printed
wheel. Replace
Lamps or
Components and
re-assemble in
reverse order.
920847 Wheel Of Fortune 20
Routine Maintenance
c.
Open the Coin Entry Door and visually check that there are no Coins jammed in the
Coin Entry. Visually check the Coin Reject Tray and empty if necessary. When
replacing the door ensure that the coin entry is aligned with chute that transfer the
d.
Check that the playfield is correctly set-up with Coins. Do not attempt to change a
playfield which has already been set-up.
920847 Wheel Of Fortune 21

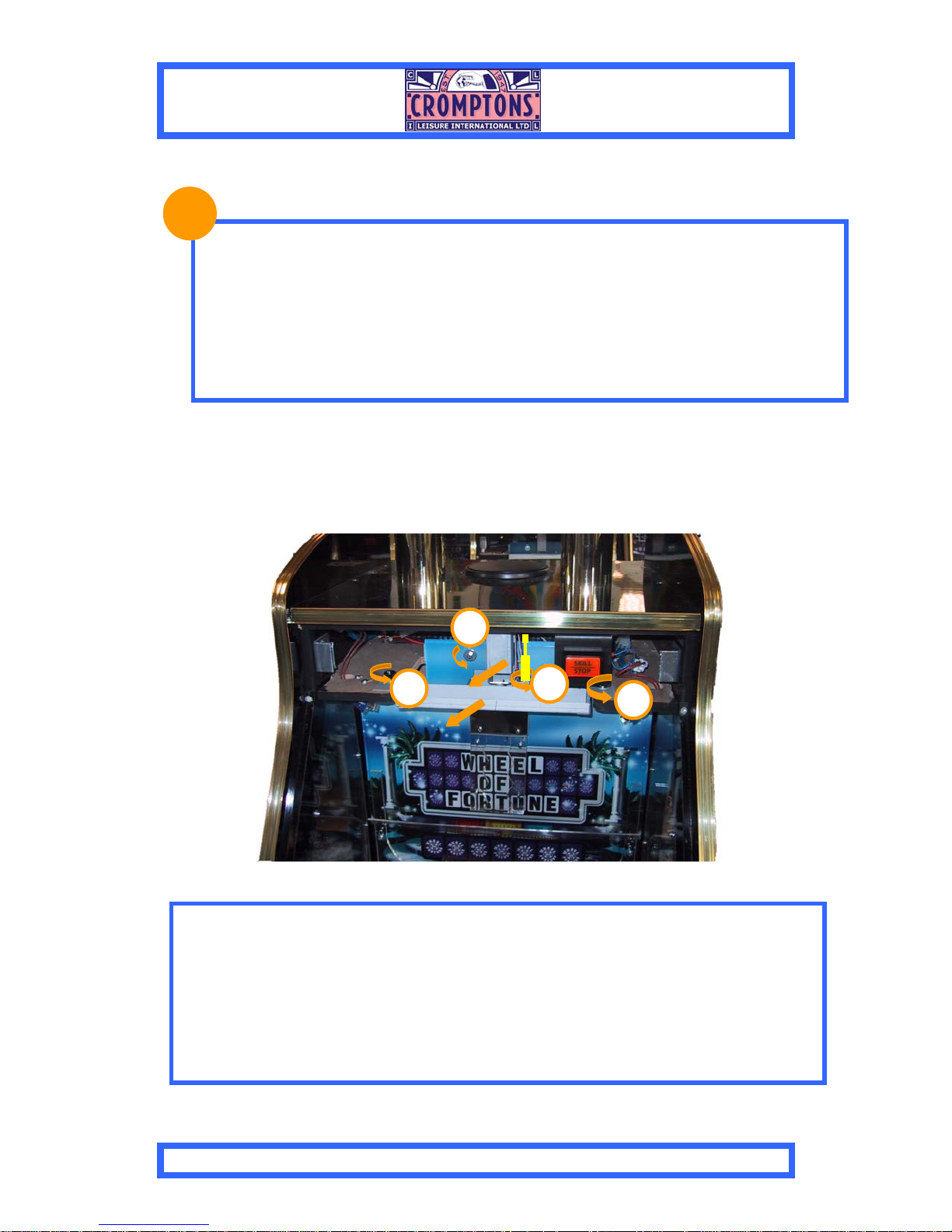

e.
Remove Glass panel and follow steps 1-3
1) Unscrew and remove reject tray.
2) Using a screw driver loosen 2 screws that secure the coin chute. The coin chute
can then be slid forward. Take care to unplug the loom prior to removal.
3) Unscrew securing bolt and lift Pin Perspex from Machine. Take care to unplug
the 4 connecting looms as the Perspex is removed.
Pin Perspex Removal
It is recommended that the Pin Perspex is cleaned on a regular basis to ensure smooth
running of the skill arm and fall of coins. Once the Pin Perspex has been removed
access can be made to the skill arm motor and LED PCBs that are secured to the
back surface.
Access to the LED PCB’s and pusher box motor can also be made through the rear
access door.
920847 Wheel Of Fortune 22
f.

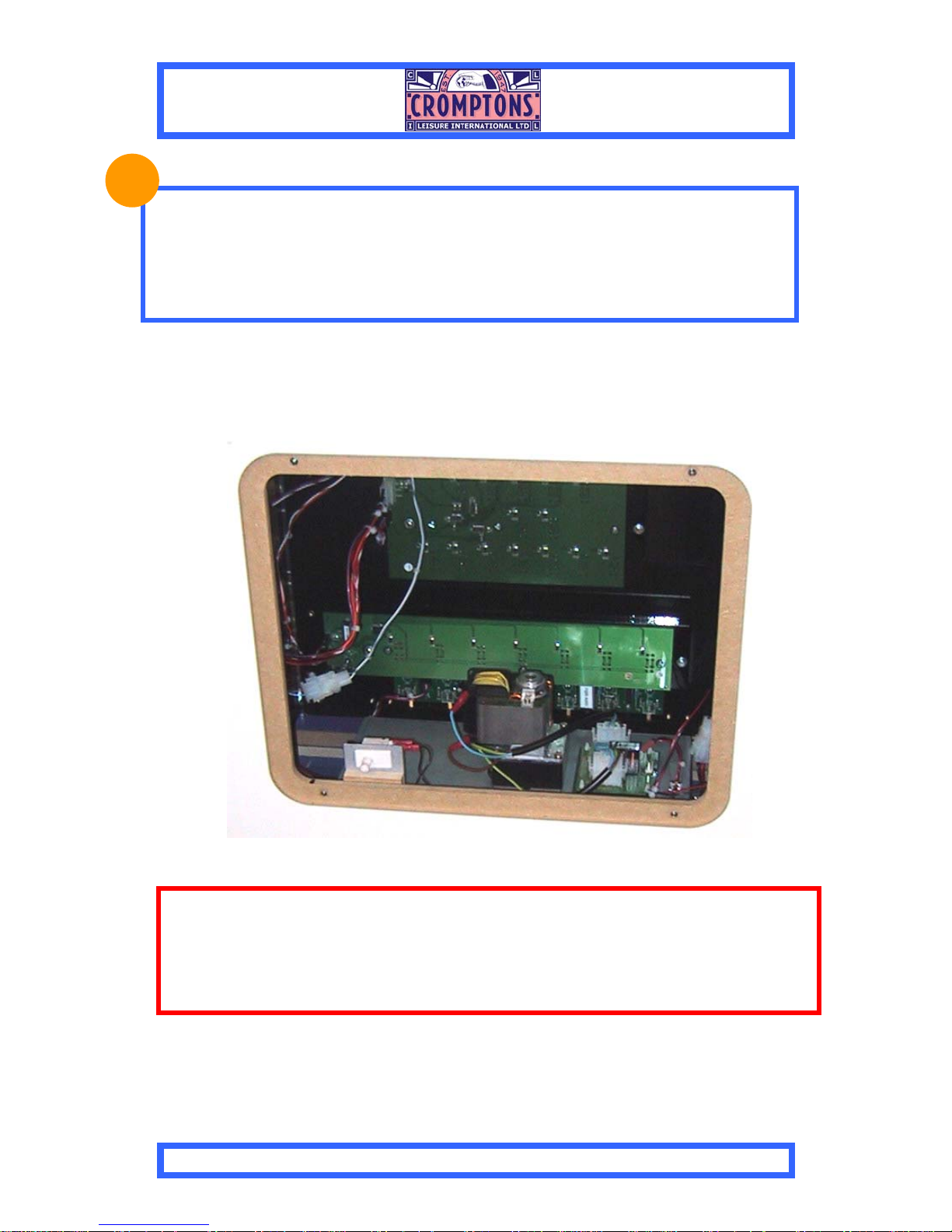

Back Door Removal
The Back door can be removed to access the Pusher Box motor and looms to the rear of
the Pin Perspex. By removing the panel the door switch will be activated to stop the
motor for maintenance.
To prevent injury, ensure that the Electrical Supply is switched off and disconnected
when accessing any wiring looms. Although the switch will stop the motor
920847 Wheel Of Fortune 23
WARNING
mechanical movement all wiring is still live.
g
.
At the very bottom of the machine is a removable Cash Box, with a single lock. The lock
supplied is of type "675" -this is different to all other doors, for security reasons. The
Cash Box collects all the coins that are pushed over the playfield edge. Each coin is
counted and then passed to the cashbox for collection. Regular Collections should be
made
Payout Level
Refill Tickets here
Count Hopper
Should always be
empty. Check
Daily for Coin
920847 Wheel Of Fortune 24
h.
All the Locks on the machine may be replaced as follows:
Before removal, note the alignment of the lock assembly -particularly the orientations
of the key and the cam, relative to the door/panel and the lock Body.
Lock Replacement
Remove the Screw and remove the Cam and two washers.
Undo the 22mm securing Nut and remove Lock and Body.
i. T
OP SIGN REMOVAL & INSTALLATION
Installation is a reversal of removal. Ensure that the lock assembly is aligned, as noted
before removal. Keep the body aligned using a 16mm (or a 5/8 AF) spanner while
tightening
920847 Wheel Of Fortune 25
920847 WHEEL OF FORTUNE 26
8
9.0. PARTS LISTS
920847 WHEEL OF FORTUNE 27

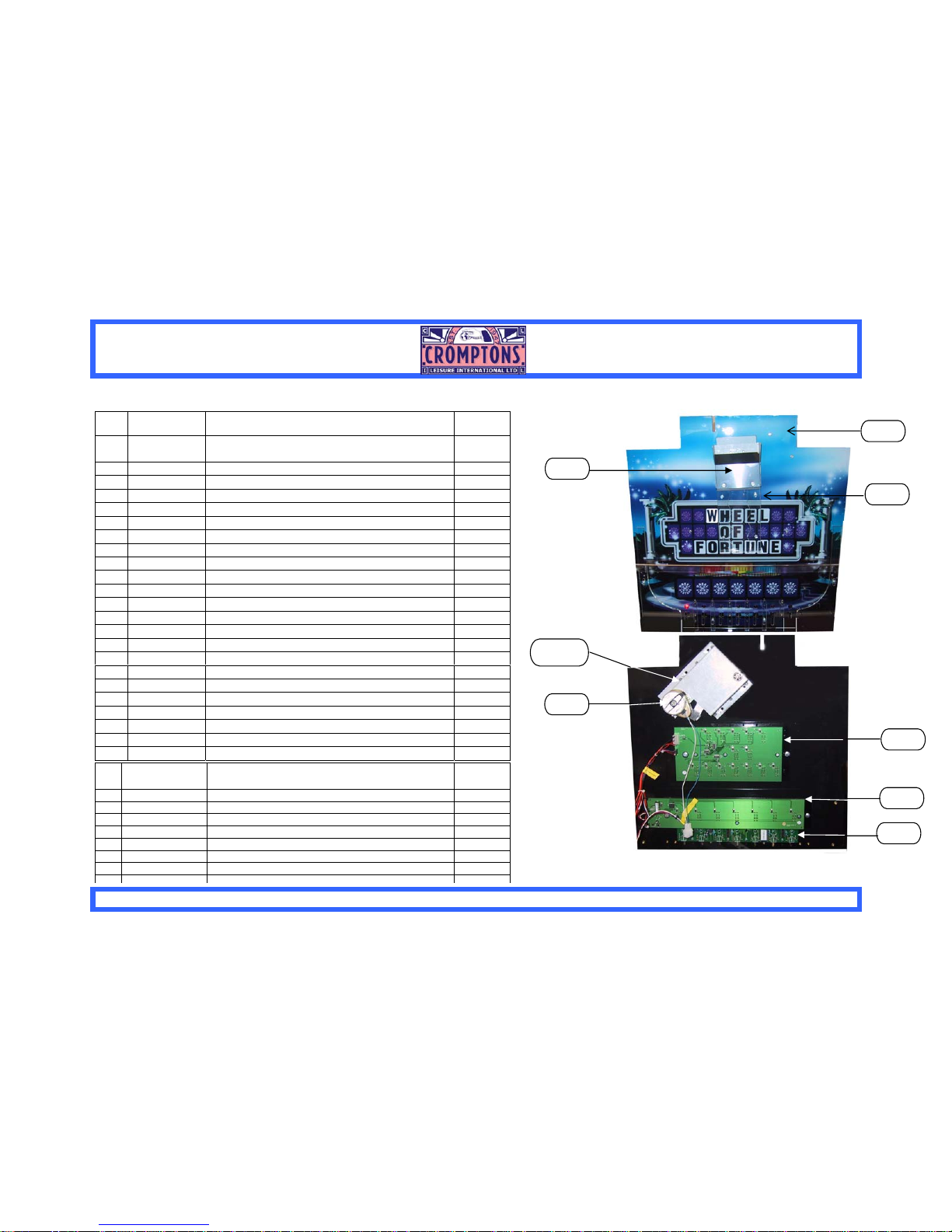

Part Code Description No Off
1.0 9104451 PIN PERSPEX PANEL ASSY WOF US 1.0
1.1 0504339 RUNDOWN FRONT COVER WOF 1.0
1.2 130606 BO245 7-LED BONUS BRD MK3 1.0
1.3 0504337 LOGO BOX 1.0
1.4 0504338 LIGHT BOX 1.0
1.5 130906 SUPER FLUX LED WHITE 42.00
1.6 0504439 FRONT COVER 1.0
1.7 130199 BO345 LOGO PCB 1.0
1.8 130912 BO346 LIGHT BOX PCB 1.0
1.9 0504359 PIN P/X MACHINIG WOF 1.0
1.10 0504271 PIN PERSPEX 1.0
1.11 0501815 CENTRE FINGER S/T US 3.0
1.12 0501802 FINGER S/T US 2.0
1.13 0501798 FINGER SIDES S/T US 2.0
1.14 130897 MOTOR 12V AC 4 RPM 50HZ ZONES93 1.0
1.15 030326 DRIVE ARM LONG MOTORMOUNT 1.0
1.16 0303762 COIN RUN DOWN LOCKNUT 1.0
1.17 0303757 MOTOR MOUNT BOX S/T US 1.0
1.18 030235 DRIVE ARM ASSY (SHORT) SK 1.0
1.19 060094 OILITE BUSH OL06X10X06FL 4.0
1.20 0301508 PIVOT BUSH part of 03031098 1.0
1.21 030238 LINK ARM –MOTORMOUNT 1.0
1.22 9002271 SWING ARM MOTOR LOOM 1.0
2.0 9104462 SKILL ARM ASSY 1.0
2.1 0303764 R/DOWN PIV PIN ASS US 1.0
2.2 0303761 FRONT PLATE S/T 1.0
2.3 0504341 ZIG ZAG L/H 1.0
2.4 0504342 ZIG ZAG R/H 1.0
2.5 0504343 ARM COVER FRONT 1.0
2.6 0504344 ARM COVER REAR 1.0
2.7 050400 SKILL RUNDOWN SIDE STRIP 2.0
1.17-1.22
1.1
1.9
2.0
1.14
1.8
1.7
1.2
9.0. PARTS LISTS
920847 WHEEL OF FORTUNE 28
Part Code Description No Off
3.0 9102724 SKILL STOP BUTTON ASSY 1.0
3.1 130285 PUSHBUTTON – RPBEEOA2110 1.0
3.2 1901062 0303805 SKILL BUTTON BRKT 1.0
3.3 0501844 SKILL AIM LABEL 1.0
3.4 0502211 SKILL BUTTON SPACER IT1 S/T 1.0
3.5 0502212 SKILL BUTTON SPACER IT2 S/T 1.0
3.6 190985 130363 SWITCH COVER 1.0
3.7 130363 MAINS COVER. FAR 301-231 1.0
Part Code Description No Off
4.0 9102697 COIN ENTRY DOOR ASSY S/T SKILL 1.0
4.1 080033 180 DEGREE LOCK AND 2 KEYS 2.0
4.2 080012 CAM – 4 -30MM STRAIGHT 2.0
4.3 190953 03033794 C0IN ENT HOUSING S/T 1.0
4.4 190952 03033795 .984 COIN CHUTE S/T US 1.0
4.5 0303545 COIN DOOR GLASS RET S/T 1.0
4.6 0501777 GENERIC COIN OF PLAY LABEL S/T 1.0
4.7 130022 INDICATOR 12V LED 1.0
3.0
4,1
4.2
4.3
4.1
4.2
4.4
3.0
9.0. PARTS LISTS
920847 WHEEL OF FORTUNE 29
Part Code Description No Off

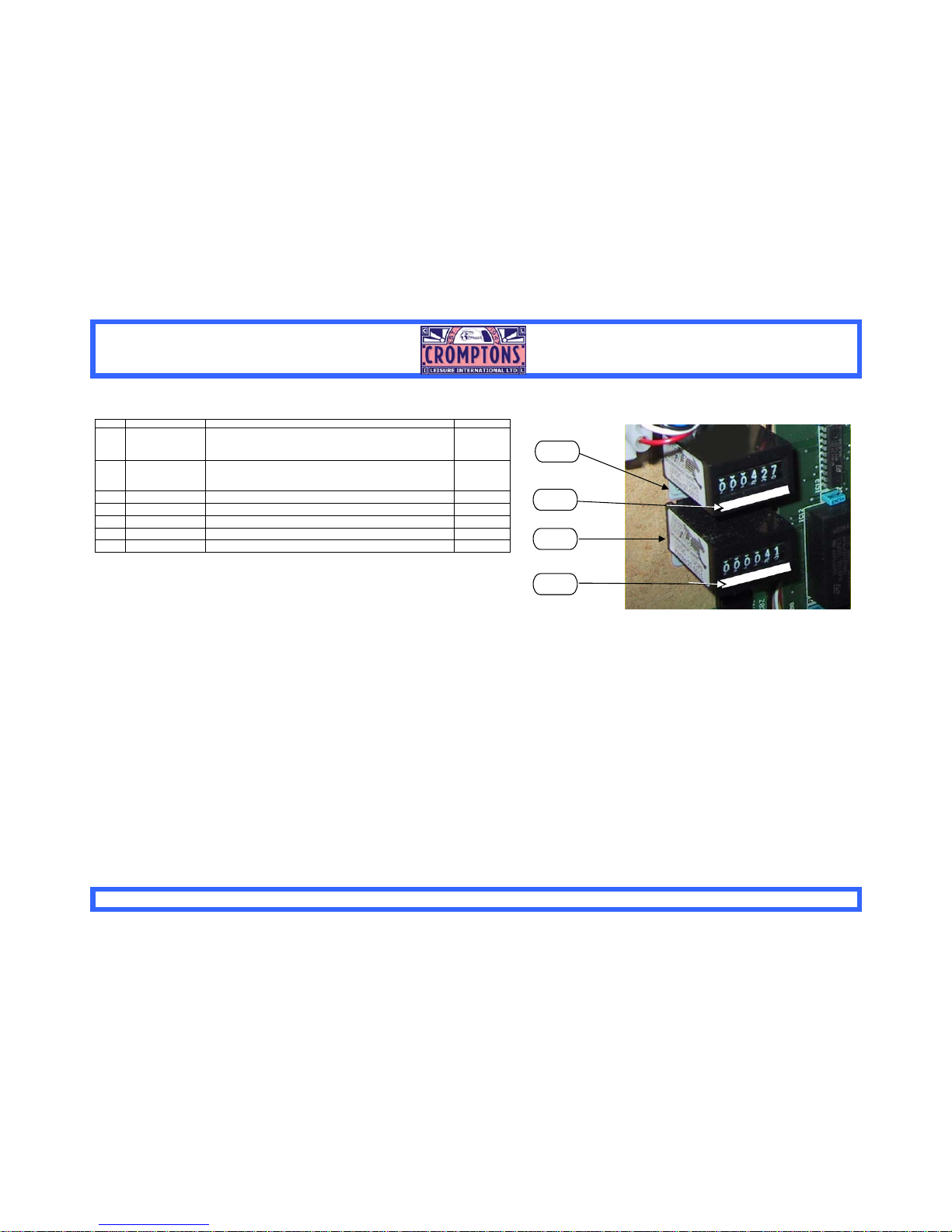

5.0 9102773 METER ASSY S/T 2 PLYR 1.0
5.1 0303861 METER BRACKET S/T US 1.0
5.2 130147 METER -27-0015 NON –RESET 2.0
5.3 090136 MOULDED PANEL GROMMET 1.0
5.4 160013 LABEL TICKET OUT SELF ADH 1.0
5.5 160043 LABEL- COIN IN 1.0
5.1
5.2
5.5
5.4
9.0. PARTS LISTS
920847 WHEEL OF FORTUNE 30
Part Code Description No Off

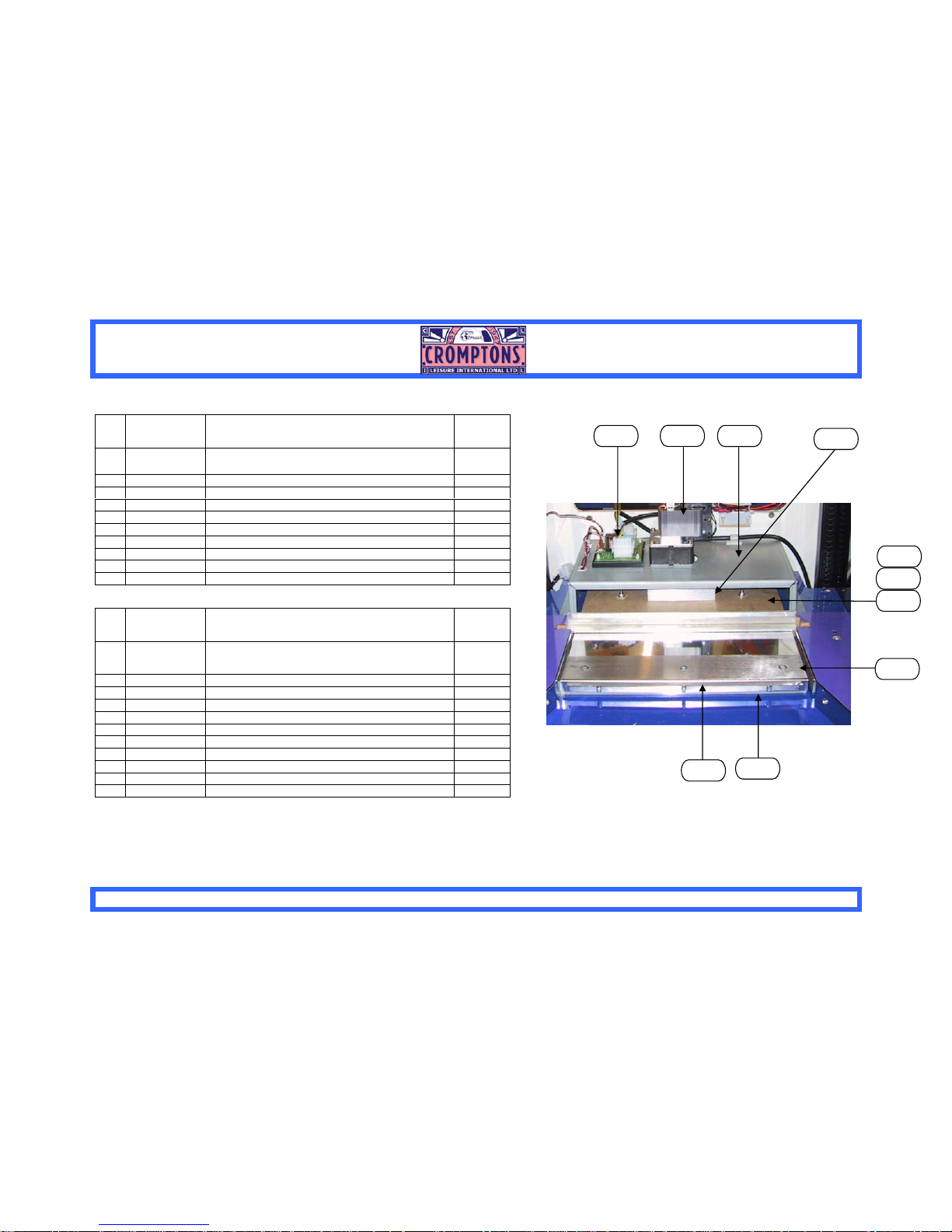

6.0 9104476 PUSHER BOX ASSY USA 1 PLY WOF 1.0
6.1 0002935 PUSHER BOX WOF 1 PL 1.0
6.2 000001 18MM MDF 1.2
6.3 060008 ACCURIDE SLIDE CZ115-1556U 2.0
6.4 0303432 ACCURIDE SLIDE SPACER 4.0
6.5 0306927 PUSHER DRIVE CHANNEL WOF 1.0
6.6 0303426 PUSHERBOX PLATE S/T 1.0
6.7 0501564 PUSHER STRIP S/T 1.0
6.8 0303878 PUSHER BOX RISER 110 ZONE 22 1.0
6.9 130848 BO327 MOTOR STOP PCB – 2PLY SPW 1.0
Part Code Description No Off
7.0 9104465 MOTOR DRIVE ASSY WOF 1.0
7.1 010147 MOTOR CROUZET 806670 1.0
7.2 0306952 CROUZET DRIVE ARM 1.0
7.3 060042 BALL BEARING 6001-2RS 1.0
7.4 140032 CABLE – 32.02MM 1MM GR/YELLOW 0.40
7.5 120131 X TERMINAL – RED 4MM (150-270) 1.0
7.6 120184 UNML 4W CAP 350780-1 1.0
7.7 120164 X MALE CRIMP LOOSE 350690 - 1 2.00
7.8 120176 X MALE CRIMP 350547-1 2.0
7.9 050182 LABEL – SUPPLIED 1.0
7.10 0306936 MOTOR MOUNT PLATE WOF 1.0
6.9
7.1
7.10
7.2
6.4
6.3
6.2
6.6
6.7
6.8
9.0. PARTS LISTS
920847 WHEEL OF FORTUNE 31
Part Code Description No Off
9.0 9104455 CASHBOX ASSY SUMMERTIME USA 1.00
9.1 0306893 CASH BOX 1.00
9.2 080013 CAM – 4 -35MM STRAIGHT 1.00
9.3 080010 90 DEGREE LOCK & 2 KEYS 1.00
Part Code Description No Off
10.0 1904582 PSU RACK ASSEMBLY 110V –WOF 1.0
10.1 130830 4-WAY TERMINAL BLOCK 1.0
10.2 130579 MAINS SOCKET OUT FE:145-313 3.0
10.3 130815 CARLING SWITCH –SPW 1.0
10.4 130816 MAINS POWER FILTER –SPW 1.0
10.5 130943 POWER SUPPLY 12VOLT 60WATT 1.0
10.6 130944 POWER SUPPLY 24 VOLT 60 WATT 1.0
10.7 130940 BO352 DUAL PSU DIST.PCB - WOF 1.0
10.8 9002232 CAGE ASSY LOOM 1.0
10.9 130831 FUSE HOLDER 1.0
10.10 100049 FUSE -3.15A RS415-610 1.0
10.11 130832 NTC SURGE ARRESTER 1.0
10.12 0306285 EARTH STUD M4x30-SPW 1.0
10.13 160116 LABEL MAINS WARNING 110V 1.0
10.14 130555 MAINS SOCKET IN FE:313-749 1.0
10.15 HALOGEN LIGHT TRANDFORMER 1.0
10.2
10.3
10.4
10.5
10.6
10.7
10.14
10.15
9.1
9.2
9.3
9.0. PARTS LISTS

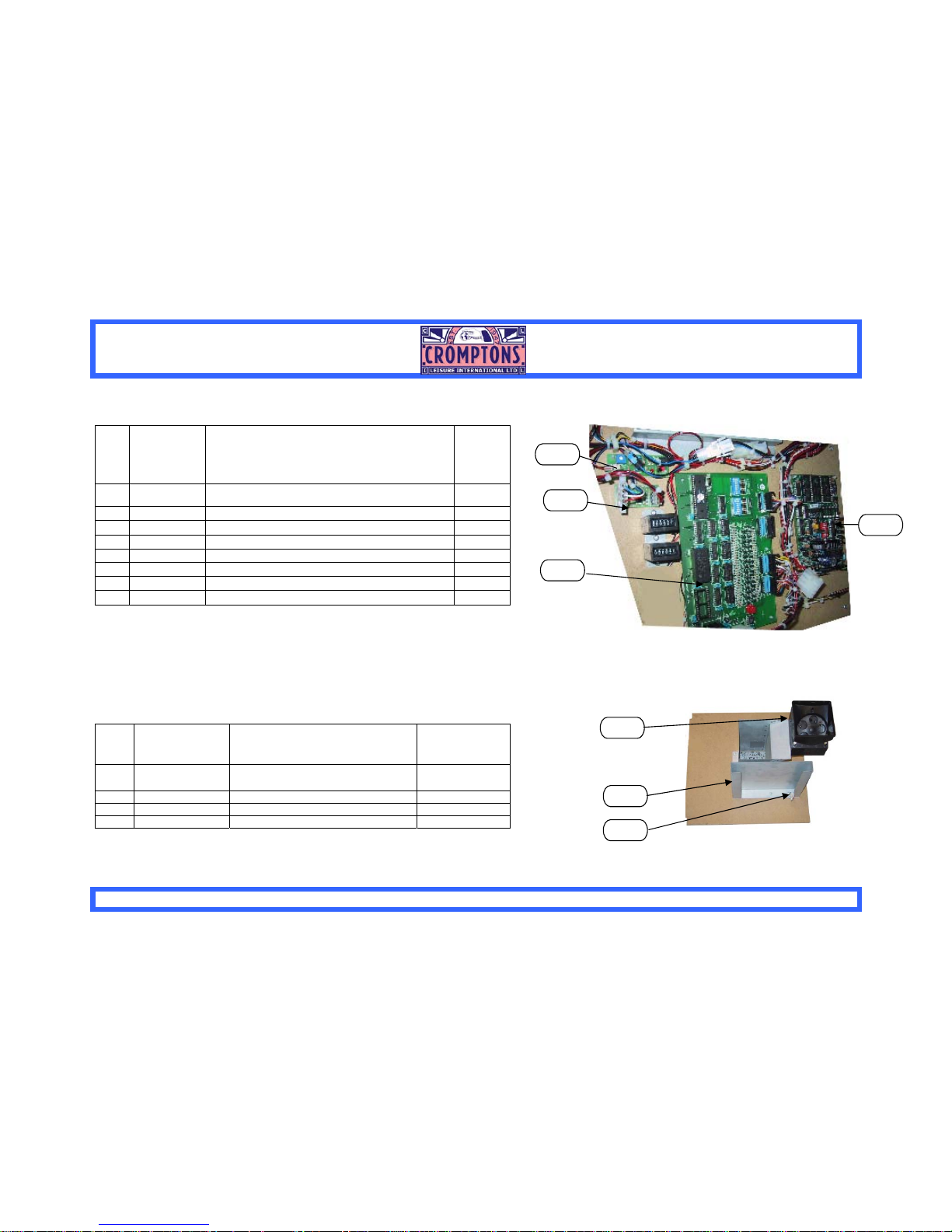

920847 WHEEL OF FORTUNE 32
Part Code Description No Off
11.0 PCBs
11.1 130608 FLO363 SECTION CONTROL 1.0
11.2 130004 PIC 16C57-XT/P CHIP 1.0
11.3 230006 4 MEG CHIP 27C0404 1.0
11.4 230001 PIC 16C54 –XT/P CHIP 2.0
11.5 130582 B0239 TCKT MECH INTERFACE 1.0
11.6 130259 PCB 0100 ISS.3 ASSEM COMP 1.0
11.7 130681 FLO 439 DUAL CHAN SND PCB 1.0
Part Code Description No Off
12 PAYOUT ASSEMBLY 1.0
12.1 0306917 TICKET BIN 1.0
12.2 070113 CUBE HOPPER STC: 10-1700-41 1.0
12.3 130913 LOW TICKET MICROSWITCH 1.0
11.1
11.5
11.6
11.7
12.1
12.2
12.2
9.0. PARTS LISTS

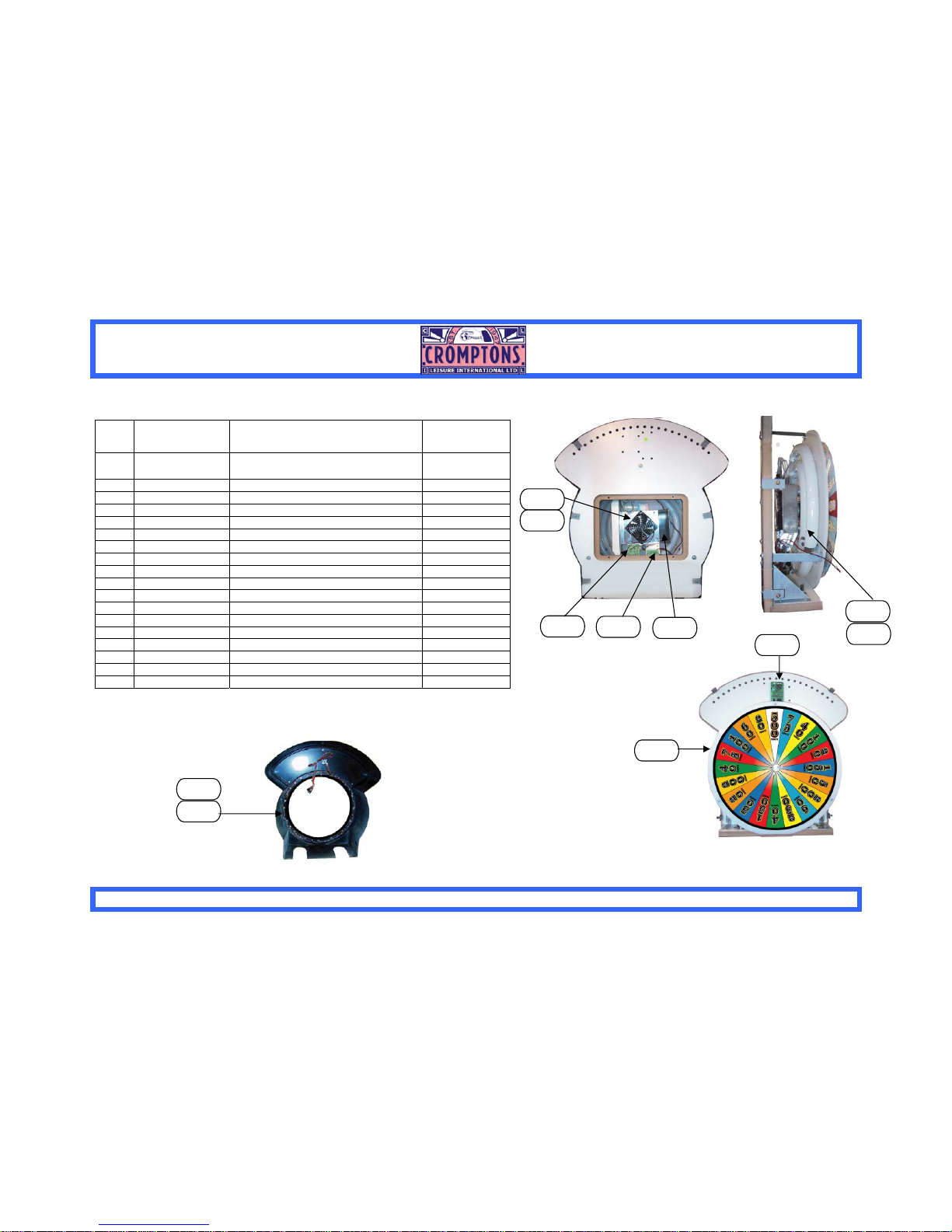

920847 WHEEL OF FORTUNE 33
Part Code Description No Off
13 9104463 TOPSIGN ASSY WOF 1 PLY 1.0
13.1 130935 BO351 TOP SIGN LED CONTROLLER 1.0
13.2 130898 B0343 STEPPER DRIVE CARD 1.0
13.3 100184 FLU TUBE – 12” DIA 32 W CIRC 1.0
13.4 100042 FLU TUBE – 16” DIA CIRC 40W ZONES 1.0
13.5 0504345 DIFFUSER RING 1.0
13.6 9002253 LED LIGHT RING LOOM 1.0
13.7 0504276 WHEEL PERSPEX 1.0
13.8 130933 STEP MOTOR 24V 200 STEP 1.0
13.9 130927 SENSOR.SUZO REF: 22-2130-95 1.0
13.10 130928 LOOM PCB SENSOR 1.0
13.11 130929 PCB SUZO REF : 22-2130-97 1.0
13.12 130932 HOLE PLUG . SUZO REF 22-2171 1.0
13.13 130934 RUBBER REEL , MOTOR 1.0
13.14 130915 LED AMBER HPWT-ML00 16.0
13.15 130923 FAN 92X92 KDE1209PTB2 SUNON 1.0
13.16 130924 FAN GUARD 92X92 F735-980 1.0
13.17 130939 FLAG STARTPOINT 06S002-03-AFBK 1.0
13.1
13.2
13.3
13.4
13.7
13.8
13.15
13.16
13.1
13.14
13.6
Loading...
