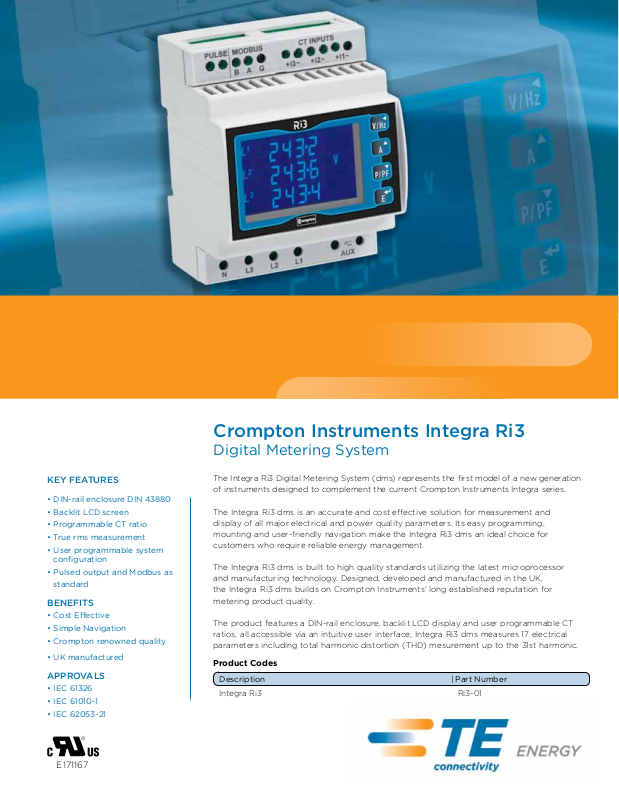

Crompton Instruments Ri3-01 Data Sheet

Crompton Instruments Integra Ri3

Digital Metering System

KEY FEATURES

• DIN-rail enclosure DIN 43880

• Backlit LCD screen

• Programmable CT ratio

• True rms measurement

• User programmable system
configuration

• Pulsed output and Modbus as
standard

BENEFITS

• Cost Effective

• Simple Navigation

• Crompton renowned quality

• UK manufactured

APPROVALS

• IEC 61326

• IEC 61010-1

• IEC 62053-21

E171167

The Integra Ri3 Digital Metering System (dms) represents the first model of a new generation
of instruments designed to complement the current Crompton Instruments Integra series.

The Integra Ri3 dms is an accurate and cost effective solution for measurement and
display of all major electrical and power quality parameters. Its easy programming,
mounting and user-friendly navigation make the Integra Ri3 dms an ideal choice for
customers who require reliable energy management.

The Integra Ri3 dms is built to high quality standards utilizing the latest microprocessor
and manufacturing technology. Designed, developed and manufactured in the UK,
the Integra Ri3 dms builds on Crompton Instruments' long established reputation for
metering product quality.

The product features a DIN-rail enclosure, backlit LCD display and user programmable CT
ratios, all accessible via an intuitive user interface, Integra Ri3 dms measures 17 electrical
parameters including total harmonic distortion (THD) mesurement up to the 31st harmonic.

Product Codes

Description | Part Number

Integra Ri3 Ri3-01

TE Connectivity

45.00

62.00

48.30

62.00

Button Screen Parameters

V/Hz 1 Volts L1-N

2 Volts L1-L2

3 Frequency

4 Volts L1-N THD%

5 Volts L1-L2 THD%

A 1 Current 1

2 Neutral Current

3 L1 Current Max Demand

4

5 Current L1 THD%

P/PF 1 kW

2 kW Max Demand

3 Power Factor

E 1 Import kWh

2 Export kWh

3 Import kVArh

4 Export kVArh

TE Technical Support Center

USA: [phone]
Canada: [phone]
Mexico [phone]
Latin/S. America: [phone]
UK: [phone]
France: [phone]
Netherlands: [phone]
China: [phone]

35.00

32.40

Volts L2-N

Volts L3-N

Volts L2-L3

Volts L3-L1

Volts L2-N THD%

Volts L3-N THD%

Volts L2-L3 THD%

Volts L3-L1 THD%

Current 2

Current 3

L2 Current Max Demand

L3 Current Max Demand

Neutral Current Max
Demand

Current L2 THD%

Current L3 THD%

kVAr

kVA

Specifications:Parameters:

Input

Nominal input voltage 100-289V AC-L-N (173-500V-AC-L-L)

Max. continuous input 120% of nominal

overload voltage

Max. short duration input voltage 2 x range maximum (1 second applicationrepeated 5 times at 5 minute intervals)

Nominal input voltage burden <0.2VA per phase

Nominal input current 5A AC rms

Max. continuous input 120% of nominal

overload current

Max. short duration input current 10 x nominal (1 second application repeated 5 times at 5 minute intervals)

Nominal input current burden <0.6VA per phase

Frequency 45-66Hz

System CT primary values 1 to 9999

Auxillary

Operating range

Burden <10VA/5W

Accuracy

Voltage (V) 0.5%

Current (A) 0.5%

Neutral current calculated (A) 4%

Frequency (Hz) 0.1Hz

Power factor (PF) 1% of unity

Active power (W) +/- 1% of range

Reactive power (Var) +/- 1% of range

Apparent power (VA) +/- 1% of range

Active energy (kWh) Class1 (IEC 62053-21)

Reactive energy (kVArh) +/-1% of range

THD 1% up to 31st harmonic

Response time 1 sec

Output

Pulsed output relay 1

Contact rating 50mA max at 250V AC

Type Solid state relay

RS-485 Mobus output module 1 Mobus channel

Type 2-wire half duplex

Baud rate 2400, 4800, 9600, 19200, 38400

Enclosure

Enclosure Style DIN-rail

Dimensions 72 x 90mm (width x height) as per DIN 43880

Front protection rating IP52

Case protection rating IP30

Material Polycarbonate to ULk94VO

Weight 300g

Terminals Shrouded screw-clam 0.05-4mm wire

Environment

Operating temperature -10˚C to +55˚C

Storage temperature -20˚C to +70˚C

Relative humidity 0-90% non-condensing

Shock 30g in 3 planes

Vibration 10Hz to 50Hz

Dielectric Voltage 1 Withstand test 3.25kV rms 50Hz for 1 minutebetween comms and measuring inputs.

110-400V AC nominal, +/- 10%(99-440V AC absolute limits) or 120-350V DC +/- 20%
(96-420V DC absolute limits)

Integra Ri3

cromptonusa.com
crompton-instruments.com
energy.te.com

© 2011 Tyco Electronics Corporation,

a TE Connectivity Ltd. Company. All Rights Reserved.

1773462-1 E446 07/2011

Integra, TE Connectivity and TE connectivity (logo) are

trademarks. Crompton is a trademark of Crompton Parkinson

and is used under license. Other logos, product and/or

company names might be trademarks of their respective owners.
