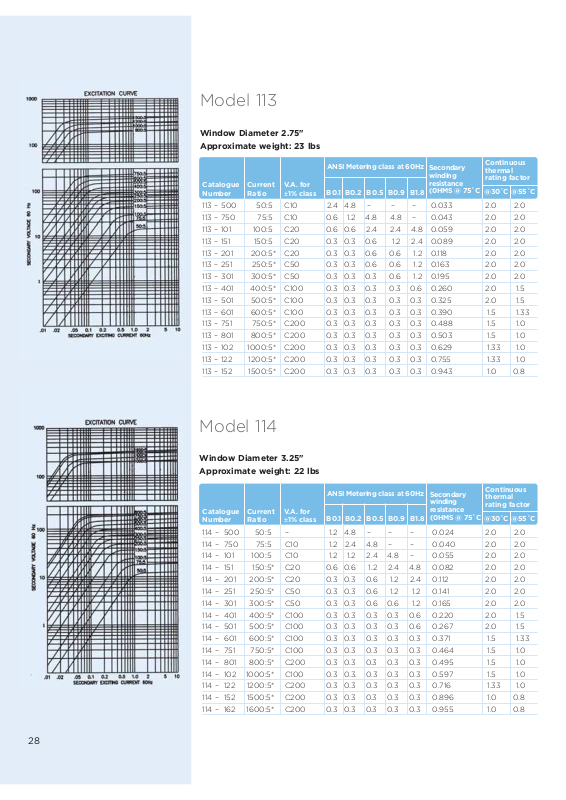

Crompton Instruments 113, 114 Catalog Page

Model 113

Window Diameter 2.75"
Approximate weight: 23 lbs

114 – 500 50:5 – 1.2 4.8 – – – 0.024 2.0 2.0
114 – 750 75:5 C10 1.2 2.4 4.8 – – 0.040 2.0 2.0
114 – 101 100:5 C10 1.2 1.2 2.4 4.8 – 0.055 2.0 2.0
114 – 151 150:5* C20 0.6 0.6 1.2 2.4 4.8 0.082 2.0 2.0
114 – 201 200:5* C20 0.3 0.3 0.6 1.2 2.4 0.112 2.0 2.0
114 – 251 250:5* C50 0.3 0.3 0.6 1.2 1.2 0.141 2.0 2.0
114 – 301 300:5* C50 0.3 0.3 0.6 0.6 1.2 0.165 2.0 2.0
114 – 401 400:5* C100 0.3 0.3 0.3 0.3 0.6 0.220 2.0 1.5
114 – 501 500:5* C100 0.3 0.3 0.3 0.3 0.6 0.267 2.0 1.5
114 – 601 600:5* C100 0.3 0.3 0.3 0.3 0.3 0.371 1.5 1.33
114 – 751 750:5* C100 0.3 0.3 0.3 0.3 0.3 0.464 1.5 1.0
114 – 801 800:5* C200 0.3 0.3 0.3 0.3 0.3 0.495 1.5 1.0
114 – 102 1000:5* C100 0.3 0.3. 0.3 0.3 0.3 0.597 1.5 1.0
114 – 122 1200:5* C200 0.3 0.3 0.3 0.3 0.3 0.716 1.33 1.0
114 – 152 1500:5* C200 0.3 0.3 0.3 0.3 0.3 0.896 1.0 0.8
114 – 162 1600:5* C200 0.3 0.3 0.3 0.3 0.3 0.955 1.0 0.8

ANSI Metering class at 60Hz

Secondary
winding
resistance
(0HMS @ 75˚C

Continuous
thermal
rating factor

@30˚C @55˚C

Catalogue Current V.A. for
Number Ratio ±1% class

B0.1 B0.2 B0.5 B0.9 B1.8

113 – 500 50:5 C10 2.4 4.8 – – – 0.033 2.0 2.0
113 – 750 75:5 C10 0.6 1.2 4.8 4.8 – 0.043 2.0 2.0
113 – 101 100:5 C20 0.6 0.6 2.4 2.4 4.8 0.059 2.0 2.0
113 – 151 150:5 C20 0.3 0.3 0.6 1.2 2.4 0.089 2.0 2.0
113 – 201 200:5* C20 0.3 0.3 0.6 0.6 1.2 0.118 2.0 2.0
113 – 251 250:5* C50 0.3 0.3 0.6 0.6 1.2 0.163 2.0 2.0
113 – 301 300:5* C50 0.3 0.3 0.3 0.6 1.2 0.195 2.0 2.0
113 – 401 400:5* C100 0.3 0.3 0.3 0.3 0.6 0.260 2.0 1.5
113 – 501 500:5* C100 0.3 0.3 0.3 0.3 0.3 0.325 2.0 1.5
113 – 601 600:5* C100 0.3 0.3 0.3 0.3 0.3 0.390 1.5 1.33
113 – 751 750:5* C200 0.3 0.3 0.3 0.3 0.3 0.488 1.5 1.0
113 – 801 800:5* C200 0.3 0.3 0.3 0.3 0.3 0.503 1.5 1.0
113 – 102 1000:5* C200 0.3 0.3 0.3 0.3 0.3 0.629 1.33 1.0
113 – 122 1200:5* C200 0.3 0.3 0.3 0.3 0.3 0.755 1.33 1.0
113 – 152 1500:5* C200 0.3 0.3 0.3 0.3 0.3 0.943 1.0 0.8

ANSI Metering class at 60Hz

Secondary
winding
resistance
(0HMS @ 75˚C

Continuous
thermal
rating factor

@30˚C @55˚C

Catalogue Current V.A. for
Number Ratio ±1% class

B0.1 B0.2 B0.5 B0.9 B1.8

Model 114

Window Diameter 3.25"
Approximate weight: 22 lbs

28
