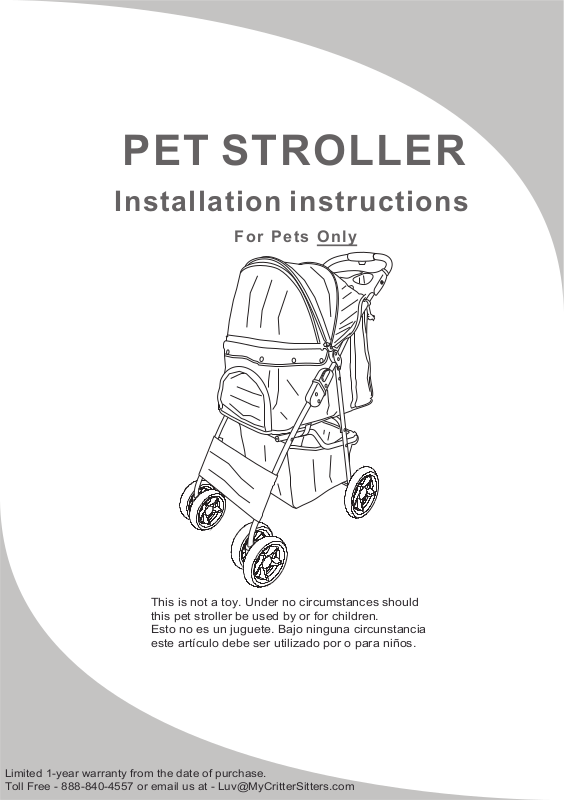

PET STROLLER
Installation instructions
For Pets Only
This is not a toy. Under no circumstances should
this pet stroller be used by or for children.
Esto no es un juguete. Bajo ninguna circunstancia
este artículo debe ser utilizado por o para niños.
Limited 1-year warranty from the date of purchase.
Toll Free - 888-840-4557 or email us at - Luv@MyCritterSitters.com
Components:
Hook and Loop Strap
Assembly:
1.Release the red locking latch, unfold the
stroller upwards and make sure both locks
snap into place.
2.To install the front wheel, follow
the direction of the arrow and insert the wheel
onto the leg until you hear a "click".
3. Insert each rear wheel onto the axle first, then
slide on a washer, and then a pin as shown in
the picture. To complete assembly of the wheel,
cover the wheel cap.
4. Now attach the
rear wheels on the
rear legs. Once you
hear the "click", it is
secure.
5.On the bottom of the
pet canopy, connect the
hook and loop straps
around the metal poles
as shown.
Brake and Canopy Functions:
6. Next you'll attach the
storage basket by using hook
and loop to attach the back
of the storage basket to the
horizontal metal pole.
Then on the side of the
basket, slide on the loops to
the metal horizontal poles
that face the front of the
stroller.
1. Brake: step on the brake to stop the
stroller.
2. Canopy: open and fold the canopy as
shown in the picture.
Folding the Stroller:
1. Fold the stroller: unzip the canopy
window first, then press the folding
button in the direction of the arrow
to fold the stroller. Fasten the
folding hook to keep it in place.
WARNING
• This is not a toy. Under no circumstances should this pet stroller
be used by or for children.
• Not intended to be used as a restraining device for aggressive
animals.
• Do not leave your pet unattended while in the stroller.
• Do not use near an open or exposed flame.
• Do not leave pet unsupervised in stroller.
• This stroller is designed for one pet only. Do not place more
than one pet in the stroller.
• Do not hang bags from handles, this could cause the stroller to
become unstable.
• Do not use on escalator or stairs; always fold the stroller and
carry it.
• Put on the brake whenever you park the stroller.
• Ensure stroller is completely vertical and check that all locks are
engaged before placing pet in stroller.
• Do not exceed the maximum weight of 33 lbs.
• Failure to follow these warnings and the instructions could result
in serious injury or death.
