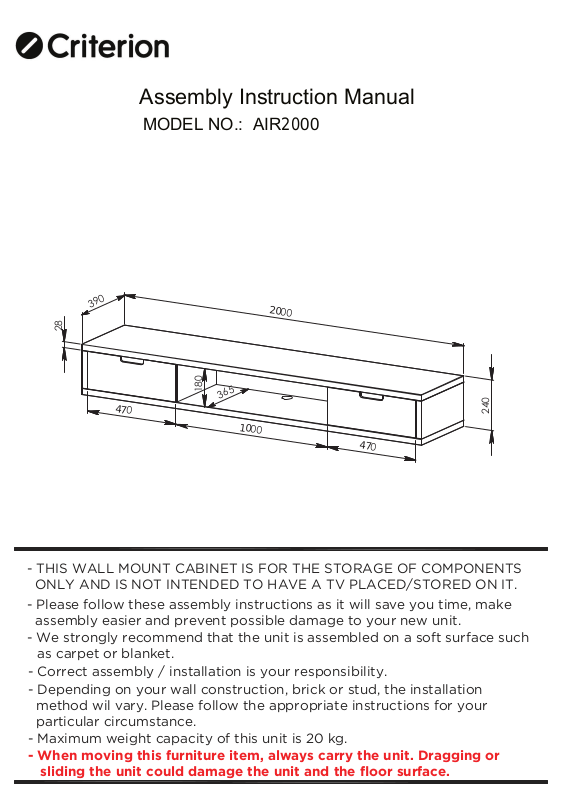

Assembly Instruction Manual
MODEL NO.: AIR2000
0
9
3
20
0
0
180
5
6
3
47
0
10
00
47
0
240
- THIS WALL MOUNT CABINET IS FOR THE STORAGE OF COMPONENTS
ONLY AND IS NOT INTENDED TO HAVE A TV PLACED/STORED ON IT.
- Please follow these assembly instructions as it will save you time, make
assembly easier and prevent possible damage to your new unit.
- We strongly recommend that the unit is assembled on a soft surface such
as carpet or blanket.
- Correct assembly / installation is your responsibility.
- Depending on your wall construction, brick or stud, the installation
method wil vary. Please follow the appropriate instructions for your
particular circumstance.
- Maximum weight capacity of this unit is 20 kg.
- When moving this furniture item, always carry the unit. Dragging or
sliding the unit could damage the unit and the floor surface.
10pcs
10pcs
Additional Tools Required (Not included):
As all installation environments are different
you may not have all the necessary installation
hardware provided in the hardware pack
supplied with this unit. If you require further
fixings please visit your local hardware store
and purchase other required fixings. The
fixings provided in this pack are for a basic
install only.
Power drill
Drill bit
6mm
Drill bit
3mm
Philips
Screw driver
Stud finder Leveler
The following Instructions are provided as a guide for installing this Wall Cabinet
WE RECOMMEND THAT A PROFESSIONAL INSTALLS THIS PRODUCT.
POSITIONING AND MOUNTING YOUR WALL CABINET
Decide on the height you would like the top of your new Wall Mount Cabinet to be. Measure 117mm down your wall
to mark your first hole location. Place the coinciding hole of the wall bracket over this hole. While holding the Bracket on this
hole ensure that it is level, with a spirit level and mark the remaining holes with a pencil or your drill. Remove wall mount and
drill holes into your wall with an appropriate drill bit. If there is any major wall imperfections/unevenness please consider
fixing these first, to allow cabinet to sit flat against the wall.
Please remember that this is a wall mount cabinet for components only and it is not intended for a TV to be placed on
this unit.
Please ensure that your TV is secured/mounted to the wall with a suitable wall mount prior to the installation of this
cabinet underneath.
CABINET TOP
x 9
4
x 9
3
117mm
FLOOR
OPTION 1 - FOR BRICK WALL
BRICK WALL NOTE:
Please fix screws into Bricks not Mortar
Maximum weight capacity of this unit is 20 KGS
x9
x9
OPTION 2- FOR STUD WALL
44
10
STUD WALL SAFETY NOTE:
The mounting board has fixing holes
in place for a standard stud wall. Please
usa a stud finder to ensure that you
are fixing into the studs.
x104
1
REMOVE THE DRAWERS
Press the runner clip downward at right side and
press the runner clip upward at left side to take out
the drawer
Maximum weight capacity of this unit is 20 KGS
OPTIONAL STEP - FOR PROFESSIONAL INSTALLATION ONLY (HARDWARE NOT PROVIDED)
FOR ADDITIONAL SUPPORT YOU MAY WISH TO USE EXTRA HARDWARE TO BRING
CABINET TOP FLUSH WITH THE WALL.
USE CABINET MOUNT AS A GUIDE TO DRILL THROUGH REAR CABINET
PANEL AND THEN USE APPROPRIATE FIXINGS TO SCREW THROUGH REAR
PANEL INTO WALL.
LIFTING CABINET ONTO THE WALL
SAFETY NOTE:
This step must be completed by two persons to
ensure the weight of cabinet is evenly distributed
across mounting board and eliminate physical injury
to individuals.
SECURING CABINET TO WALL MOUNT
5
SAFETY NOTE:
For the safety of others you must ensure that
this cabinet is secured to the wall mount with
5
the provided screws as shown.
Maximum weight capacity of this unit is 20 KGS
RIGHT
LEFT
Align the runners on both sides of the drawer,
push the left drawer into left side of the cabiet,
and push the right drawer into right side of
the cabinet.
Maximum weight capacity of this unit is 20 KGS
TV
Maximum weight capacity of this unit is 20 KGS
SURFACE CARE INSTRUCTIONS
A little care and attention will extend the life and good looks of your furniture. Take care
when using materials which might spill, or be sharp or abrasive, on the surface of your
furniture.
Normal Cleaning For normal cleaning use a soft, dry, clean cloth.
Glass Cleaning for Frosted Glass Do not use glass cleaner or solvent based cleaners on the
surface of the glass that has the frosting effect on it.
Normal Glass Cleaning You may use normal glass cleaning products on all other types of
glass. Use a soft non-abrasive cloth to remove light dust and finger prints.
Vinyl Cleaning Under no circumstances should any abrasive materials be used on this
surface, as it will result in unrepairable damage.
Do not use solvents, solvent based cleaners, scouring pads, steel wool, furniture wax or
scrubbing brushes.
Only use a slightly damp, soft, clean cloth on this surface if cleaning is needed. Do not scrub.
CAUTION
As with all furniture, this unit should not be exposed to direct sunlight, extreme
temperatures or moisture, as this can result in non-reparable damage.
Note: The sooner a spill or mark is cleaned, the easier it will be removed.
Customer Service
FOR ALL MISSING OR FAULTY PARTS: PLEASE RE-CHECK YOUR PACKAGING TO ENSURE THAT PARTS ARE MISSING THEN CONTACT THE
STORE YOU PURCHASED THE ITEM FROM.
THE STORE WILL NEED THE FOLLOWING INFORMATION…..
- COPY OF YOUR PURCHES SLIP/RECEIPT
- MODEL NUMBER OF THE UNIT PURCHASED
- DESCRIPTION/PART NUMBER OF THE MISSING OR FAULTY PART
- QUANTITY OF THE PARTS NEEDED
If for whatever reason you cannot get in contact with the store, please get in contact with Criterion direct at
http://www.rvm.com.au/contact/
Product of RVM Australia
11 Tamara Drive, COCKBURN CENTRAL
Perth, Western Australia 6164
PH: 08 9417 9944
www.rvm.com.au
This Warranty is Supplied by : RVM Australia Pty Ltd
Head Office: 11 Tamara Drive, Cockburn Central, Perth, WA 6164 Tel: 08 9417 9944 F: 08 9417 9984 Email: sales@rvm.com.au
WARRANTY POLICY
1. Nothing in this Warranty affects the Consumer’s rights under the Australian Consumer law. The
benefits to the Consumer under this Warranty are in addition to the rights and remedies of the
buyer under any Consumer Guarantees. The Australian Consumer Law requires that we confirm that:
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality.
2. Subject to Clause 1, the Seller warrants that CRITERION branded products will be free of
manufacturing defects and will perform to the Seller’s specifications subject to the following clauses.
3. The benefit of this 12 Month Warranty extends only to the owner of the property in which the
Products manufactured or supplied by the Seller are installed and used by the owner for the
duration of the Warranty Period.
4. If within the Warranty Period a manufacturing defect is discovered in the Product, or the Product
fails to perform to the Seller’s specifications as a result of some defect in material or workmanship,
then the Seller will replace or repair the goods under Warranty or refund the purchase price paid by
the consumer (except if the failure is a major failure)
5. The Warranty does not apply to Product that:
a.) Has failed due to excessive wear and tear beyond what is considered to be reasonable.
b.) Has been misused or neglected.
c.) Has been damaged accidently or by acts of God including fire and flooding.
d.) Has been used or operated contrary to operating or maintenance instructions.
e.) Has been damaged in transit from the Sellers store to the buyer, either by the buyer or a third
party authorised to act for the buyer.
f.) Was incorrectly assembled or installed
6. In order to make a claim under the Warranty, the Owner must provide proof of purchase in all
cases.
7. The seller will examine any returned Products and if the Seller determines that there is an
apparent defect through no fault of the Owner, the Seller will:
a.) Make note of the Owner’s contact details including the Owner’s telephone number which the
owner can be contacted during business hours, postal address and e-mail address.
www.rvm.com.au
This Warranty is Supplied by : RVM Australia Pty Ltd
Head Office: 11 Tamara Drive, Cockburn Central, Perth, WA 6164 Tel: 08 9417 9944 F: 08 9417 9984 Email: sales@rvm.com.au
b.) Make note of the defects reported by the Owner.
c.) Take back the defective goods from the owner and determine within a reasonable time through
dialogue with the Seller whether the goods are defective.
d.) Advise the owner within a reasonable time
frame whether it accepts or
rejects the Product
claim.
e.) If the Seller accepts the
return of
the Product, the
Seller must arrange to have
i)
The
Product repaired or,
ii) Replace the damaged or faulty Product or,
iii) Refund the purchase price
8. The Seller will not accept any returned Product which has not
been returned
strictly
in
accordance with this Warranty.
9.
For
the purpose of this Warranty:
a.) Australian Consumer Law means the law as
set out in Schedule 2 of the Competition
and
Consumer
Act 2010
(Cth).
b.) Consumer means the Purchaser of goods
from the seller.
c.) Consumer means a Consumer as
that term is set out in section 3 of the
Australian
Consumer Law. d.) Consumer Guarantees means the guarantees under the Australian
Consumer Law.
e.) Implied terms means
any
guarantees, conditions, warranties, or other terms
implied by
any
Australian
Commonwealth, State or Territory laws,
(excluding the Australian Consumer
Law) or the law of any other
jurisdiction.
f.) Owner
has the meaning set out in clause 3.
g.)
Warranty means
this warranty.
h.) Product means the Product/s
bought by the Owner
from the
Seller that fall under this
warranty.
i.)
Warranty Period means:
i) In relation to Furniture: 12 months Limited Warranty
