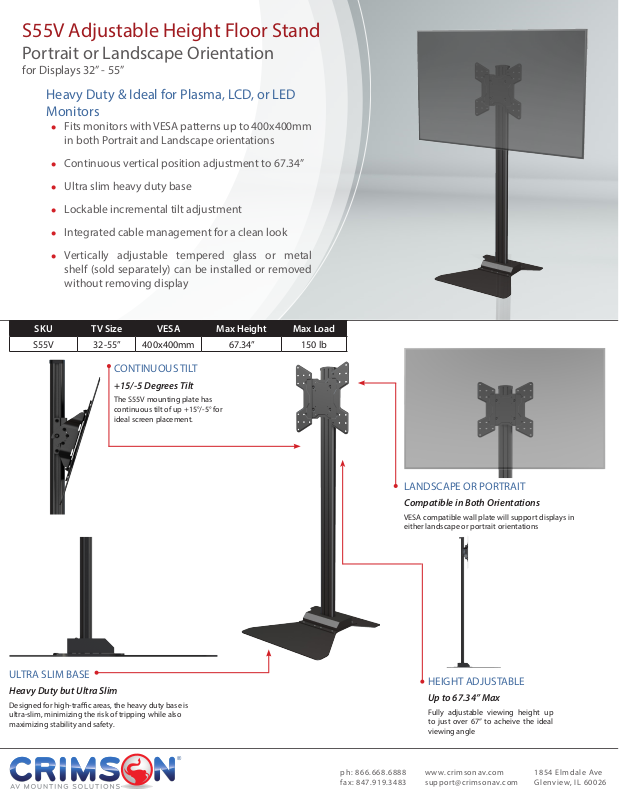

Crimson S55V Specsheet
S55V Adjustable Height Floor Stand
Portrait or Landscape Orientation
for Displays 32” - 55”
Heavy Duty & Ideal for Plasma, LCD, or LED
Monitors
l Fits monitors with VESA patterns up to 400x400mm
in both Portrait and Landscape orientations
l Continuous vertical position adjustment to 67.34”
l Ultra slim heavy duty base
l Lockable incremental tilt adjustment
l Integrated cable management for a clean look
l Vertically adjustable tempered glass or metal
shelf (sold separately) can be installed or removed
without removing display
SKU TV Size VESA Max Height Max Load
S55V 32-55” 400x400mm 67.34” 150 lb
CONTINUOUS TILT
+15/-5 Degrees Tilt
The S55V mounting plate has
continuous tilt of up +15°/-5° for
ideal screen placement.
LANDSCAPE OR PORTRAIT
Compatible in Both Orientations
VESA compatible wall plate will support displays in
either landscape or portrait orientations
ULTRA SLIM BASE
Heavy Duty but Ultra Slim
Designed for high-trac areas, the heavy duty base is
ultra-slim, minimizing the risk of tripping while also
maximizing stability and safety.
ph: 866.668.6888
fax: 847.919.3483
HEIGHT ADJUSTABLE
Up to 67.34” Max
Fully adjustable viewing height up
to just over 67” to acheive the ideal
viewing angle
www.crimsonav.com
support@crimsonav.com
1854 Elmdale Ave
Glenview, IL 60026
S55V
Adjustable Height Floor Stand
for displays 32” - 55”
Heavy duty construction makes this stand ideal for Plasma, LCD, or LED monitors up
to 150lb total. Continous tilt of +15°/-5° allows for perfect screen placement. Heavy
duty, ultra slim base provides stability as well as safety in high foot trac areas. Fully
adjustable tilt and height. Vertically adjustable tempered glass or metal shelf (sold
separately) can be easily installed or removed without removing TV monitor.
1-866-MOUNT-TV
www.crimsonav.com
Attribute Value
TV size range
Weight capacity
Max mounting pattern 400x400mm
Vertical adjustment Continuous vertical adjustment to 67.34”
Orientation Landscape or portrait
Tilt +15°/-5° with incremental tilt lock
Optional accessories Optional accessory glass (MSG) or metal (MSM) shelves;
Construction Aluminum/high-grade cold rolled steel
Product nish Scratch resistant epoxy powder coat
Color Black
Model number S55V
Warranty 10 years
32” - 55”
150 lb (68.03kg)
vertically adjustable and can be easily installed or removed
without removing TV monitor
ph: 866.668.6888
fax: 847.919.3483
www.crimsonav.com
support@crimsonav.com
1854 Elmdale Ave
Glenview, IL 60026
