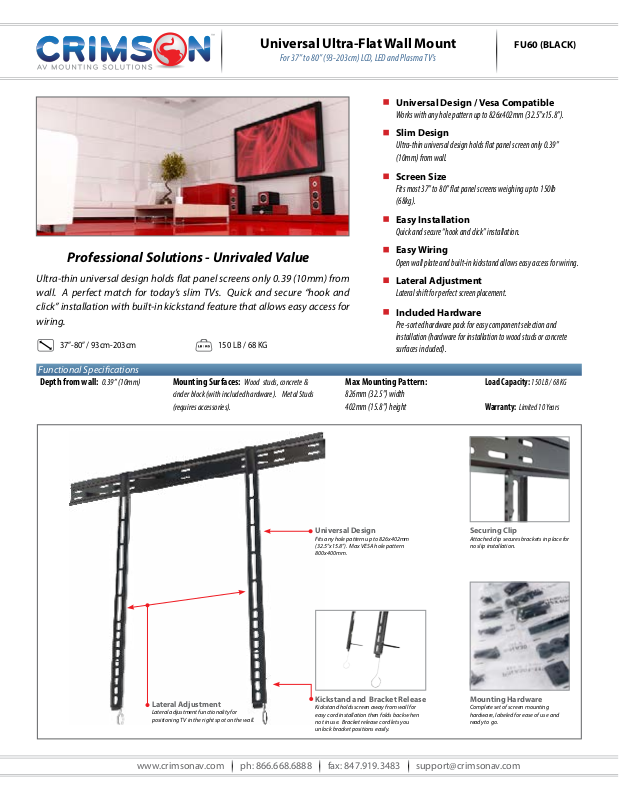

FU60 (BLACK)Universal Ultra-Flat Wall Mount
For 37” to 80” (93-203cm) LCD, LED and Plasma TV’s
Universal Design / Vesa Compatible
Works with any hole pattern up to 826x402mm (32.5”x15.8”).
Slim Design
Ultra-thin universal design holds at panel screen only 0.39”
(10mm) from wall.
Screen Size
Fits most 37” to 80” at panel screens weighing up to 150lb
(68kg).
Easy Installation
Quick and secure “hook and click” installation.
Professional Solutions - Unrivaled Value
Ultra-thin universal design holds at panel screens only 0.39 (10mm) from
wall. A perfect match for today’s slim TVs. Quick and secure “hook and
click” installation with built-in kickstand feature that allows easy access for
wiring.
37”-80” / 93cm-203cm 150 LB / 68 KG
Open wall plate and built-in kickstand allows easy access for wiring.
Lateral Adjustment
Lateral shift for perfect screen placement.
Included Hardware
Pre-sorted hardware pack for easy component selection and
installation (hardware for installation to wood studs or concrete
surfaces included).
Functional Specications
Easy Wiring
Depth from wall: 0.39” (10mm) Max Mounting Pattern:
Mounting Surfaces: Wood studs, concrete &
cinder block (with included hardware). Metal Studs
(requires accessories).
826mm (32.5”) width
402mm (15.8”) height
Universal Design
Fits any hole pattern up to 826x402mm
(32.5”x15.8”). Max VESA hole pattern
800x400mm.
Load Capacity: 150 LB / 68 KG
Warranty: Limited 10 Years
Securing Clip
Attached clip secures brackets in place for
no slip installation.
Lateral Adjustment
Lateral adjustment functionality for
positioning TV in the right spot on the wall.
Kickstand and Bracket Release
Kickstand holds screen away from wall for
easy cord installation then folds back when
not in use. Bracket release cord lets you
unlock bracket positions easily.
Mounting Hardware
Complete set of screen mounting
hardware, labeled for ease of use and
ready to go.
Page 2
3.17 (80.5MM)
Universal Ultra-Flat Wall Mount
For 37” to 80” (94-203cm) LCD, LED and Plasma TV’s
34.5” (876.3mm)
32” (812mm)
24” (609.6mm)
20” (508mm)
16” (406mm)
15.8” (402mm)
FU60 (BLACK)
0.39” (10mm)
20.4” (518.5mm)
Max: 32.5” (826.3mm)
Min: 1.42 (36mm)
Product Specications
PRODUCT WEIGHT LOAD CAPACITY FINISHCOLORS PACKAGE CONTENTS
4lb (1.8kg) 35.4” x 3.3” x 1.4”
150lb (68kg) 5.5lb (2.5kg)Scratch resistant
Black
powder coating
Package Specications
PACKAGE SIZE
(WxHxD)
(900 x 85 x 35mm)
SHIP WEIGHT UPC CODE
FU60 (Black)
0815885010217
Mount, wall and screen
mounting hardware,
product manual.
Mounting Interface
31mm
W
31mm
H
Universal
Min Max
826mm
502mm
W
H
VESA
75mm
X
75mm
100mm
X
100mm
200mm
X
100mm
200mm
X
200mm
300mm
X
200mm
300mm
X
300mm
400mm
X
200mm
400mm
X
300mm
400mm
X
400mm
600mm
X
200mm
600mm
400mm
Accessories
Toggle bolts (for metal stud installation)
On-wall Cable Management
Shelving
10°
800mm
800mm
X
X
X
200mm
400mm
HT2 - 2 Pack
HT4 - 4 Pack
HT6 - 6 Pack
Use when installing into metal stud.
WA1 - 1 Shelf
WA2 - 2 Shelves
WA3 - 3 Shelves
Component shelf and on-wall cable routing
system. Hides cables inside internal
channels for a clean look.
Single-stud mountable component shelf.
WF1 - 1 Shelf
Visit crimsonav.com to see the full line of vidamounts LCD/plasma, projector and TV/monitor mounts. © 2010 Crimson AV LLC. All rights reserved.
