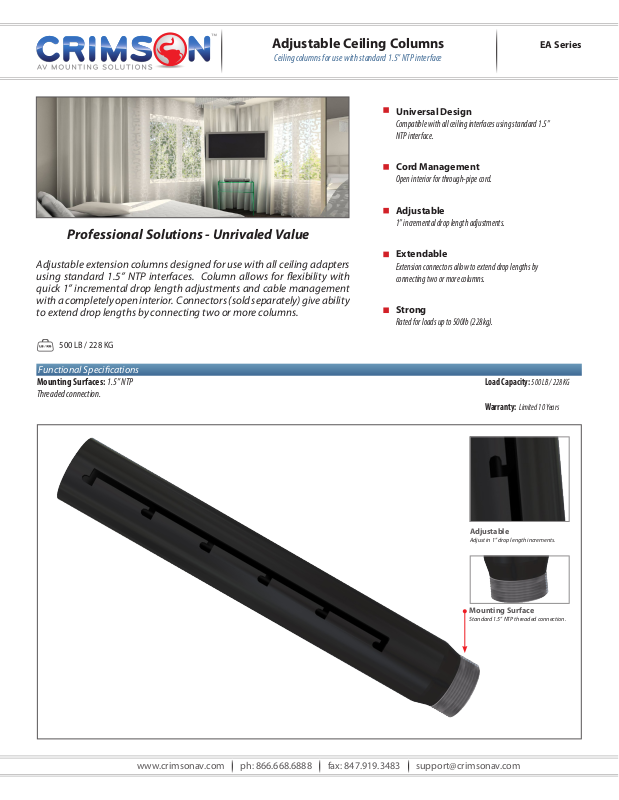

Crimson EA0611, EA01218, EA01824, EA23, EA24 Specification Sheet

Adjustable extension columns designed for use with all ceiling adapters
using standard 1.5” NTP interfaces. Column allows for exibility with
quick 1” incremental drop length adjustments and cable management
with a completely open interior. Connectors (sold separately) give ability

™

Ceiling columns for use with standard 1.5” NTP interface

Professional Solutions - Unrivaled Value

EA SeriesAdjustable Ceiling Columns

Universal Design

Compatible with all ceiling interfaces using standard 1.5”
NTP interface.

Cord Management

Open interior for through-pipe cord.

Adjustable

1” incremental drop length adjustments.

Extendable

Extension connectors allow to extend drop lengths by
connecting two or more columns.

to extend drop lengths by connecting two or more columns.

500 LB / 228 KG

Functional Specications

Mounting Surfaces: 1.5” NTP
Threaded connection.

Strong

Rated for loads up to 500lb (228kg).

Load Capacity:

Warranty: Limited 10 Years

Adjustable

Adjust in 1” drop length increments.

500 LB / 228 KG

www.crimsonav.com ph: 866.668.6888 fax: [phone] [e-mail]

Mounting Surface

Standard 1.5” NTP threaded connection.

Adjustable Ceiling Columns

Ceiling columns for use with standard 1.5” NTP interface

Adjustable Columns

Adjustable extension columns designed for use with all ceiling adapters using standard 1.5” NTP
interfaces. Column allows for exibility with quick 1” incremental drop length adjustments and
cable management with a completely open interior. Connectors (sold separately) give ability to
extend drop lengths by connecting two or more columns.

EA Series

Product Specications

PRODUCT WEIGHT

See table above

LOAD CAPACITY

500lb (228kg)

MODEL DROP

PRODUCT

WEIGHT

SHIPPING

WEIGHT

PACKAGE SIZE UPC

EA0611 6”-11” 3.1lb/1.4kg 3.8lb/1.7kg 8.8”x4.5”x3.6” 0815885010972

EA01218 12”-18” 4.4lb/2kg 5.5lb/2.5kg 14.8”x4.5”x3.6” 0815885010989

EA01824 18”-24” 5.5lb/2.5kg 6.8lb/3.1kg 20.8”x4.5”x3.6” 0815885010996

EA23 2’-3’ 7.5lb/3.4kg 9lb/4.1kg 26.9”x4.5”x3.6” 0815885011009

EA24 2’-4’ 10.1lb/4.6kg 11.7lb/5.3kg 39.3”x5.5”x2.8” 0815885011979

EA35 3’-5’ 12.6lb/5.7kg 14.1lb/6.4kg 39.3”x5.5”x2.8” 0815885011016

EA46 4’-6’ 14.8lb/6.7kg 17lb/7.7kg 51.2”x5.5”x2.8” 0815885011023

EA68 6’-8’ 19.8lb/9kg 22.9lb/10.4kg 37.1”x7.5”x2.8” 0815885011047

EA810 8’-10’ 24.3lb/11kg 27.6lb/12.5kg 51.2”x7.5”x2.8” 0815885011061

EA1012 10’-12’ 29.3lb/13.3kg 32.6lb/14.8kg 51.2”x7.5”x2.8” 0815885011085

Package Specications

COLORS

Black

Scratch resistant

powder coating

PACKAGE SIZE

(WxHxD)

See table above

SHIP WEIGHTFINISH

See table above

UPC CODE

See table above

PACKAGE CONTENTS

Column, hardware, product
manual.

Accessories

Suspended Ceiling Adapters Structural Ceiling Adapters

CAS1W CAS2W CA1 CA2 CA4 CA8

For mounting above a false ceiling

tile. 13” of lateral shift for fast

project adjustment. Compatible

with all 1.5” NTP threaded pipe.

CAT 3

Mounts to round, square and

rectangular trusses from .75” up to

3” in diameter and is compatible

with all 1.5” NTP threaded pipe.
