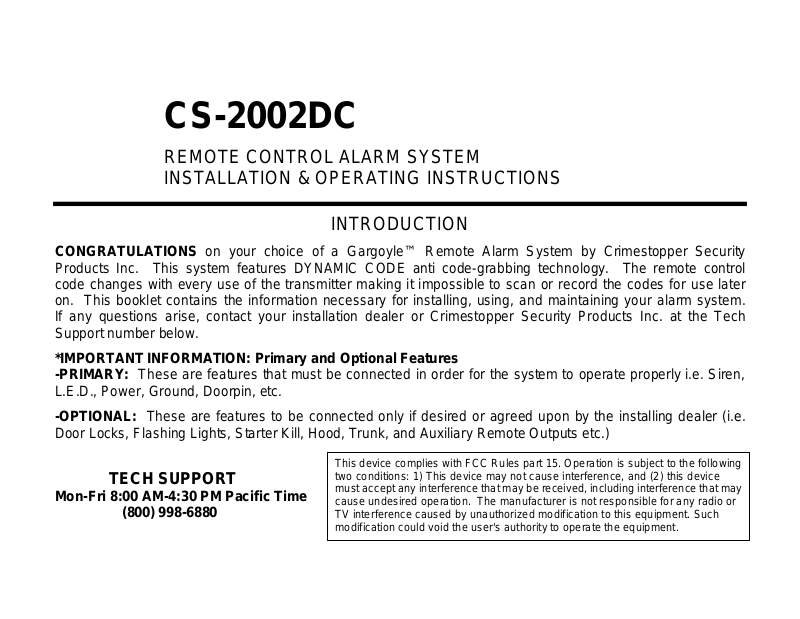

CS-2002DC

REMOTE CONTROL ALARM SYSTEM
INSTALLATION & OPERATING INSTRUCTIONS

INTRODUCTION

CONGRATULATIONS on your choice of a Gargoyle™ Remote Alarm System by Crimestopper Security

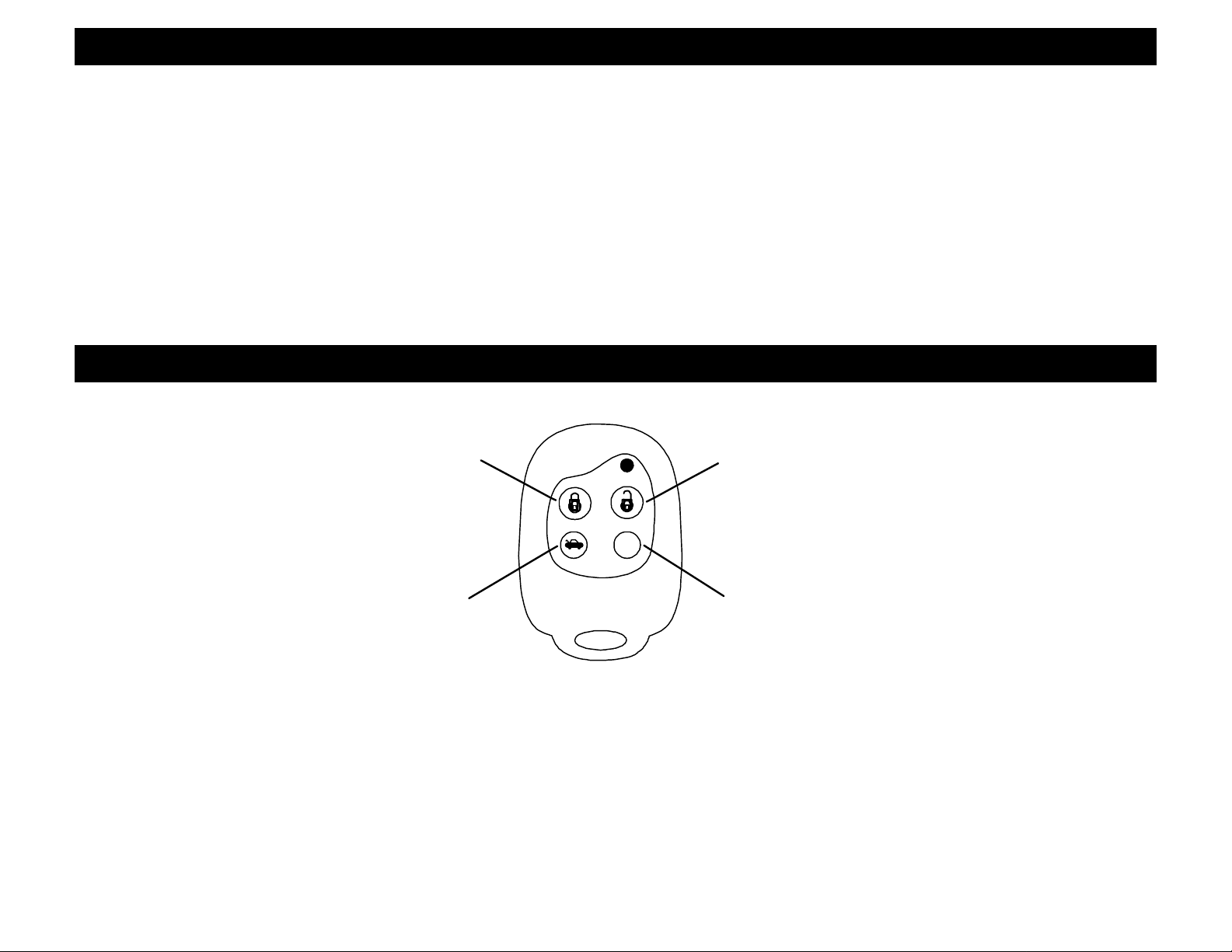

Products Inc. This system features DYNAMIC CODE anti code-grabbing technology. The remote control
code changes with every use of the transmitter making it impossible to scan or record the codes for use later
on. This booklet contains the information necessary for installing, using, and maintaining your alarm system.
If any questions arise, contact your installation dealer or Crimestopper Security Products Inc. at the Tech
Support number below.

*IMPORTANT INFORMATION: Primary and Optional Features

-PRIMARY: These are features that must be connected in order for the system to operate properly i.e. Siren,

L.E.D., Power, Ground, Doorpin, etc.

-OPTIONAL: These are features to be connected only if desired or agreed upon by the installing dealer (i.e.
Door Locks, Flashing Lights, Starter Kill, Hood, Trunk, and Auxiliary Remote Outputs etc.)

TECH SUPPORT

Mon-Fri 8:00 AM-4:30 PM Pacific Time

[phone]

This device complie
two conditions: 1) This device may not cause interference, and (2) this device

cause undesired operation. The manufacturer is not responsible for any radio or
TV interference caused by unauthorized modification to this equipment. Such
modification could void the user's authority to operate the equipment.

INSTALLATION CAUTIONS & WARNINGS

BEFORE BEGINNING, check all vehicle manufacturer cautions and warnings regarding electrical service (AIR

BAGS, ABS BRAKES, AND BATTERY).
TO PREVENT A POSSIBLE DEAD BATTERY remove vehicle dome light fuse while working on the vehicle.

MAKE CERTAIN TO REINSTALL FUSE PRIOR TO TESTING FOR DOOR TRIGGERS.

DO NOT EXCEED MAXIMUM OUTPUT RATINGS! - SERIOUS DAMAGE MAY OCCUR. LIMITS FOR
ALARM FUNCTIONS ARE LISTED WHERE APPLICABLE. IF UNSURE ABOUT CURRENT LOAD,
MEASURE LOAD WITH AN AMP-METER.

REMOVE MAIN SYSTEM FUSE(S) before jump starting the vehicle or charging the battery at high boost.

DAMAGE MAY OCCUR TO SYSTEM IF PROPER PRECAUTIONS ARE NOT OBSERVED.
DO NOT ROUTE ANY WIRING THAT MAY BECOME ENTANGLED with brake, and gas pedals, steering

column, or any other moving parts in the vehicle.

CONTROL MODULE MOUNTING

DO NOT Mount the control unit in the engine compartment.
DO NOT Mount the control unit or wiring harness where they can become entangled with moving parts
such as brake/gas/clutch pedals, or the steering column.

The alarm control module should be mounted in a concealed location. The Placement of the module will
affect the distance from which the remote transmitter can control the unit. The antenna wire should be routed
away from any metal if possible. Do not alter the length of the antenna wire or route it with other wires. Do
not ground the antenna wire.

Underdash Mounting: If you are locating the control unit underdash, mount it as high as possible not easily
located by an intruder.
Driver’s Side underdash mounting provides an easy location for wiring however this is a common location for
an intruder to check for an alarm after breaking into the vehicle. The left side of the vehicle may contain more
metal and or wiring that will create interference and decrease the operating range of the system.
Passenger Side underdash is often the best location, however some extra wiring may be needed to extend
wires across from the driver’s side.
Under-seat / Center Console mounting is also a possibility however range be affected by metal structures
and of the unit may be exposed to moisture from spilled drinks etc. Moisture or Damage caused by corrosion
is not covered under warranty.

COMPONENT MOUNTING

SIREN MOUNTING: Mount the siren under the hood to fender-well or other body surface with the open end facing

downward. Run the red siren wire through the firewall using a rubber grommet. Ground the black wire to the body
metal near the siren.

LED: Mount the red LED in a visible location on the dashboard or console.
Shock Sensor: Mount the included shock sensor with wire ties to an under dash wire harness or fasten with screws to

firewall or side paneling.

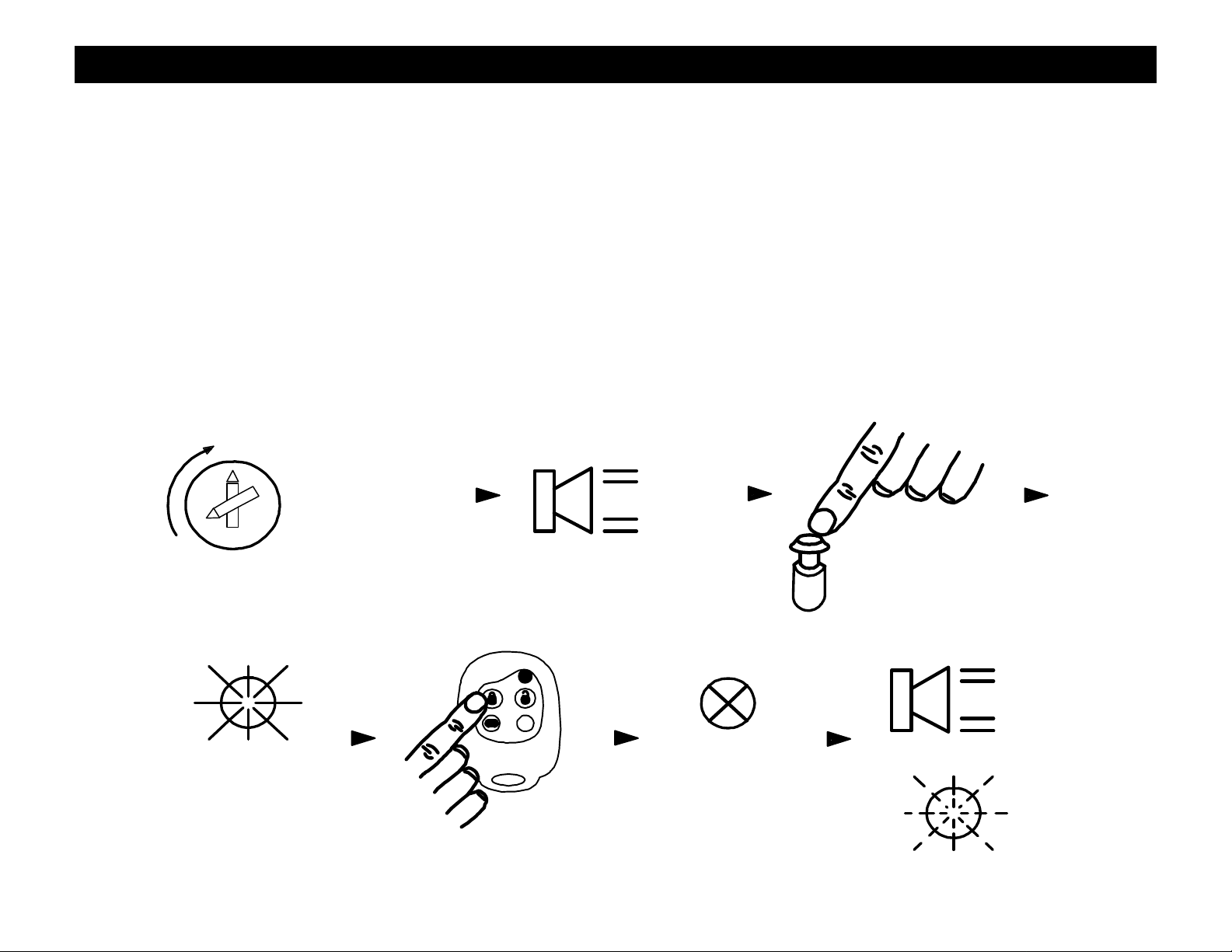

Override/Program Button: Mount the Override/Program push-button in a hidden but accessible location. It is used

for emergency disarm without the use of the transmitter and for programming certain features.

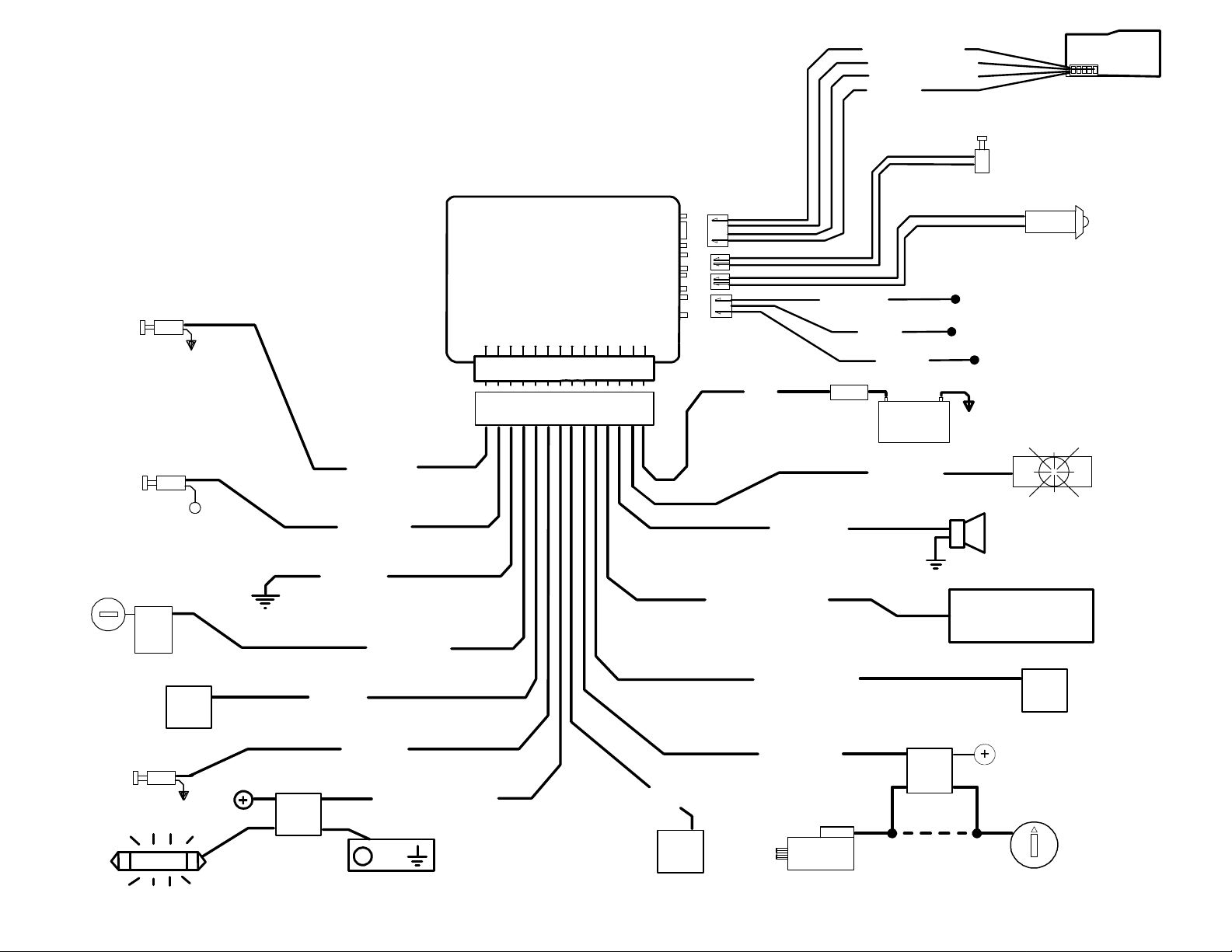

WIRING

RED WIRE: +12V POWER INPUT (15 amp fuse)

Connect to +12 Volt source with supplied fuse & holder. Recommended location for this connection is at the vehicle
battery positive terminal.

BLACK WIRE: SYSTEM CHASSIS GROUND

THIS WIRE MUST BE CONNECTED TO CHASSIS METAL OF THE VEHICLE. Scrape away any paint or dirt from
the connection point to ensure a good connection. We recommend the kick panel area for your ground point.

YELLOW WIRE: IGNITION SWITCHED “ON” AND “START” +12 VOLTS

Connect to an ignition wire (or fuse in the fuse box) that shows +12 Volts when the key in both “On” and “Start”
positions.

ORANGE WIRE: STARTER KILL / NEGATIVE ARMED OUTPUT (500mA Ground)

Ground output when system is armed. This output is used for disabling the starter or to activate other devices such as
scanner LED’s, window modules, voice modules etc. For starter kill, cut starter wire and connect between 87A and 30
on relay. Connect orange wire to 85 and connect 86 to an Ignition source that has voltage in the ON and CRANKING
position.

WHITE WIRE: +12V FLASHING PARKING LIGHT OUTPUT (Optional)

Connect to switched parking light wire at back of light switch. If this is not possible, connect directly to one of the
parking lights at the front of the vehicle. European vehicles require separate right and left circuits. Use a dual relay or
2 diodes to separate the output signal.

BROWN WIRE: (+) SIREN OUTPUT (3 Amp Max.)

Connect to RED siren wire.

WIRING

BLUE WIRE: (-) HOOD/TRUNK TRIGGER

Input trigger for a grounding hood or trunk pin switch. Connect to existing hood and trunk pin switches that read
ground when open. If no existing switches are available, install new pin switches if desired. Note: DO NOT mount
new pin switches in water pathways.

GREEN WIRE: (-) DOOR TRIGGER

Identify the wire that reads ground when any door is open and 12 volts when all doors are closed. Some vehicles may
have isolated door triggers. In this case you may need to run additional wires from other doors or go directly to the
wire that triggers the vehicle’s dome light.

VIOLET WIRE: (+) DOOR TRIGGER

Same as GREEN wire above except this wire is used for vehicles that show a positive voltage (12 volts) when the door
is open such as Ford.

GRAY WIRE: (-) AUX REMOTE OUTPUT 1 (Optional, requires relay)
Connect to terminal 85 of relay. Connect terminal 86 to constant. Connect terminal 87 to +12V or Ground depending
on the type of circuit that needs to activated. Connect terminal 30 to the device/circuit to be activated.

WHITE/RED WIRE: (-) AUX REMOTE OUTPUT 2 (Optional, requires relay)

This wire connects the same way as Remote Output 1 see GRAY WIRE above.

BLACK/WHITE WIRE: (-) DOME LIGHT ILLUMINATION OUTPUT (Optional, requires relay)

Connects to terminal 85 of a relay. Connect terminal 86 to +12V Constant. Connect terminal 87 to +12V or Ground
depending on the type of dome light circuit in the vehicle. Connect terminal 30 to the dome light circuit.

BROWN/WHITE WIRE: (-) HORN HONK/CHIRP OUTPUT (Optional, requires relay)

Connects to terminal 85 of a relay. Connect terminal 86 to +12V Constant. Connect terminal 87 to +12V or ground
depending on the type of horn activation circuit in the vehicle. Connect terminal 30 to the horn activation circuit.

BLUE/WHITE WIRE: (-) PASSENGER(S) DOOR UNLOCK OUTPUT (Optional, requires relay)

Connects to unlock circuit for passenger door(s) when using separate driver’s door unlock option. See DOOR LOCK
WIRING for configuration options.

2 PIN PLUG (BLUE): PROGRAM/OVERRIDE PUSH BUTTON
2 PIN PLUG (RED): LED INDICATOR (RED FLASHING LIGHT)
4 PIN SENSOR PLUG:

WHITE WIRE: NEG. WARN AWAY *The Sensor supplied with the system does not require
BLUE WIRE: NEG. TRIGGER any additional wiring, simply mount the sensor in a
BLACK WIRE SENSOR GROUND suitable location, plug in, and adjust sensitivity.
RED WIRE SENSOR +12V POWER

POWER DOOR LOCK WIRING

3 PIN DOOR LOCK PLUG (Optional):
GREEN: (-) Negative pulse for LOCK

RED: +12V Coil Power for external relays TERM 86.
BLUE: (-) Negative pulse for UNLOCK

DETERMINING DOOR LOCK TYPE: We recommend determining the type of locking system the vehicle has

before connecting any wires. Incorrect connection will result in damage to the remote start and/or vehicle
locking system. There are several types of door lock systems in vehicles today. Below is listed the many
types of common locking systems:

Negative trigger: Most Japanese; Ford, New GM Positive trigger: Many GM; Some Chrysler
One wire dual voltage: Newer /Chrys/Dodg/Plym; Ford Probe
Reverse Polarity: Chrys/Dodg/Plym; GM; Ford Ground/open: Some Nissan; Subaru
Semi-automatic: Older Saab and Volvo Electric vacuum pump: Pre-‘95 Mercedes-Benz

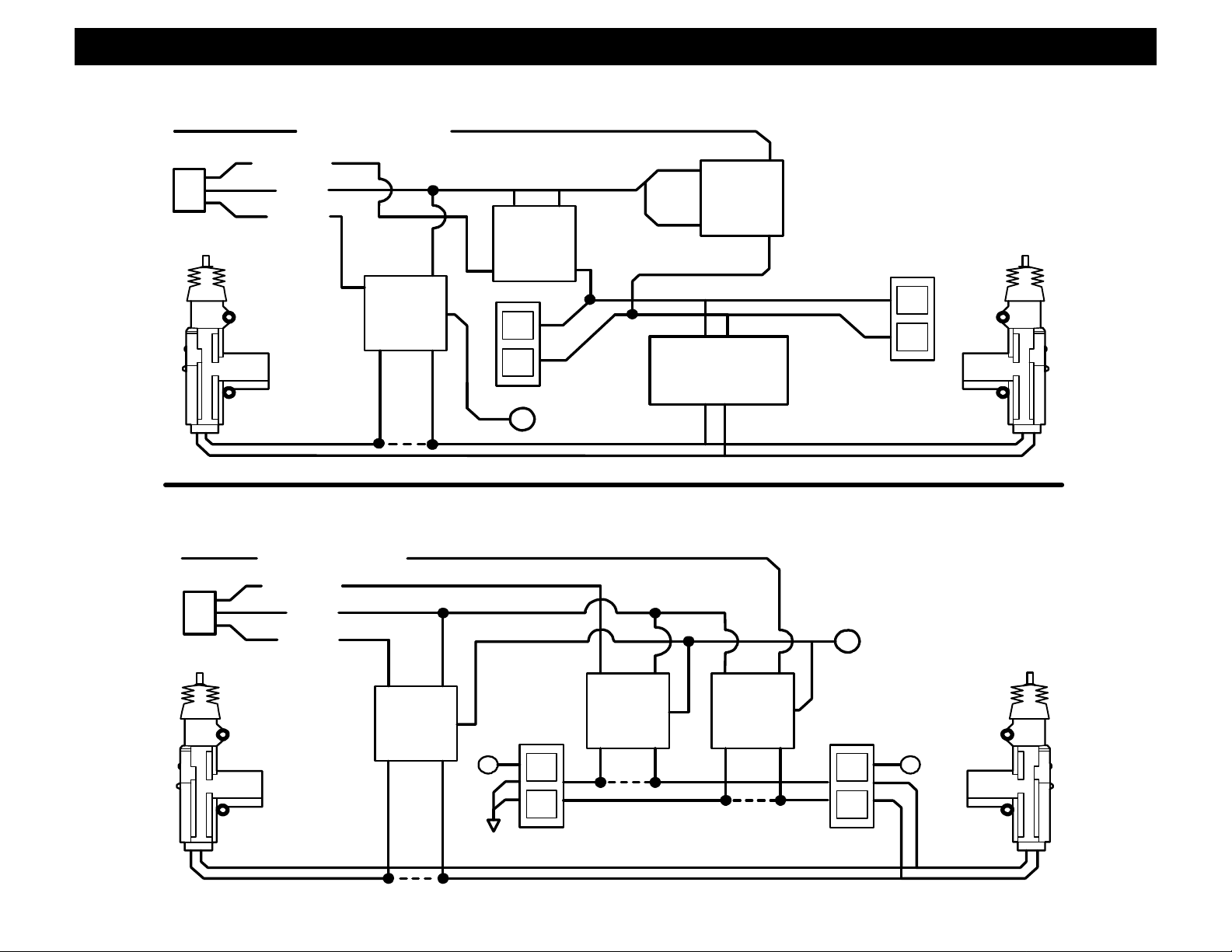

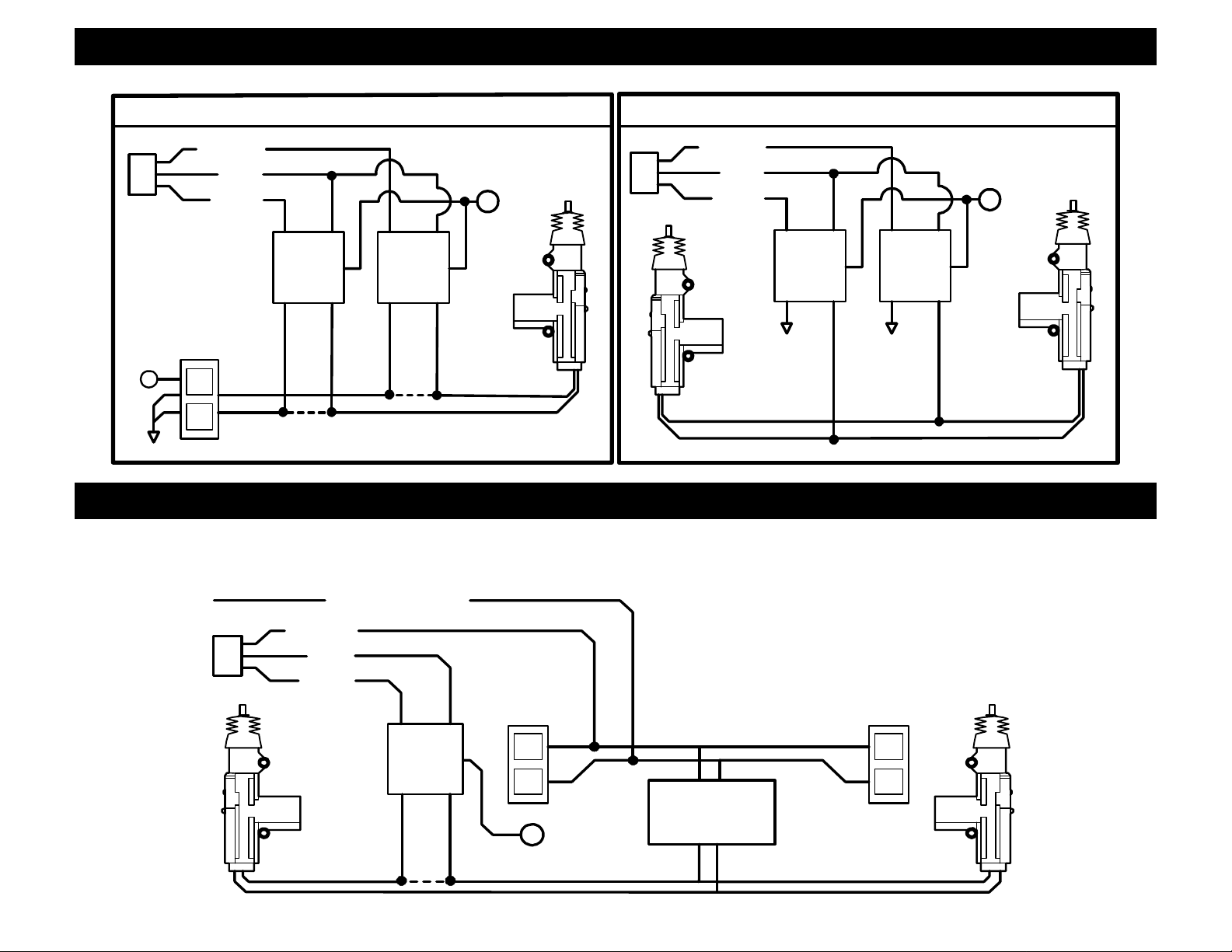

NEGATIVE TRIGGER DOORLOCK WIRING

GREEN

BLUE

POSITIVE TRIGGER DOORLOCK WIRING

GREEN

RED

BLUE

86

858685

FUSED
+12VRED

+

8787

87A

L

UL

FACTORY

POWER

LOCKING

RELAYS

L

UL

3087A30

FACTORY

POWER

LOCKING

RELAYS
