DO GUIDE
UC-PHONE-PLUS
Desk Phones for Skype® for Business & Microsoft Teams™ Software
Page 2

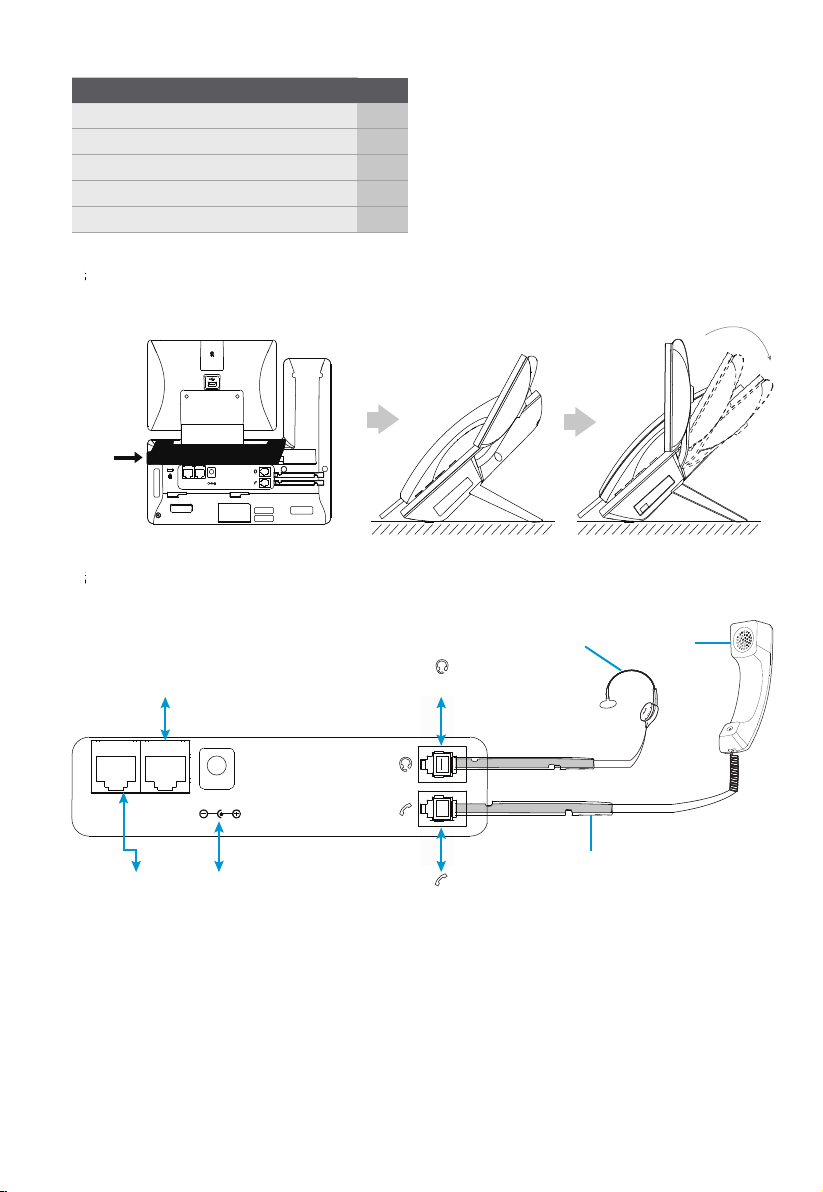

DO Check the Box
ITEM
Cable, Ethernet, CAT5e, 6.6' (2 m)
Cord, Handset
Handset
Phone
Stand
QTY
1
1
1
1
1
DO Assemble the Device
PUSH
DC5V
PC
Internet
DO Connect the Device
Make the necessary connections as called out in the following diagrams.
Internet:
To 802.3af compliant
PoE injector or switch via
included Ethernet cable
PC
Internet
PC (Optional):
To PC LAN port
DC5V
DC5V
Not used
NOTE: The USB port on the back of the display is not used.
To headset (sold separately)
Handset cord
To handset cord
HandsetHeadset
Page 3
DO Use the Device
After the device is connected to the network and supplied with power, it automatically begins the initialization process. After startup, the phone is ready for use. You can congure the phone via the web user interface or phone user interface. For details, refer to UC-PHONE Supplementary Guide (Doc. 8368) at www.crestron.com/manuals.
DO Learn More
Visit the website for additional information and the latest rmware updates. To learn more about this product, use a QR reader application on your mobile device to scan the QR images.
UC-PHONE-T-PLUSUC-PHONE-S-PLUS
Page 4
As of the date of manufacture, the product has been tested and found to comply with specications for CE
As of the date of manufacture, the product has been
marking.
tested and found to comply with specications for CE
This product is Listed to applicable UL
marking.
requirements tested by TUV.
This product is Listed to applicable UL
Ce produit est homologué selon les normes et les
requirements tested by TUV.
exigences UL applicables par TUV.
Ce produit est homologué selon les normes et les exigences UL applicables par TUV.
Federal Communications Commission (FCC) Compliance Statement
Federal Communications Commission (FCC)
This device complies with part 15 of the FCC Rules.
Compliance Statement
Operation is subject to the following conditions: (1) This
This device complies with part 15 of the FCC Rules.
device may not cause harmful interference and (2) this
Operation is subject to the following conditions: (1) This
device must accept any interference received, including
device may not cause harmful interference and (2) this
interference that may cause undesired operation.
device must accept any interference received, including
CAUTION: Changes or modications not expressly
interference that may cause undesired operation.
approved by the manufacturer responsible for compliance
CAUTION: Changes or modications not expressly
could void the user’s authority to operate the equipment.
approved by the manufacturer responsible for compliance
NOTE: This equipment has been tested and found to
could void the user’s authority to operate the equipment.
comply with the limits for a Class B digital device, pursuant
NOTE: This equipment has been tested and found to
to part 15 of the FCC Rules. These limits are designed to
comply with the limits for a Class B digital device, pursuant
provide reasonable protection against harmful interference
to part 15 of the FCC Rules. These limits are designed to
1.
1.
in a residential installation. This equipment generates, uses
provide reasonable protection against harmful interference
and can radiate radio frequency energy and, if not installed
in a residential installation. This equipment generates, uses
and used in accordance with the instructions, may cause
2.
2.
and can radiate radio frequency energy and, if not installed
harmful interference to radio communications. However,
and used in accordance with the instructions, may cause
there is no guarantee that interference will not occur in a
harmful interference to radio communications. However,
particular installation. If this equipment does cause harmful
there is no guarantee that interference will not occur in a
interference to radio or television reception, which can be
particular installation. If this equipment does cause harmful
determined by turning the equipment off and on, the user
interference to radio or television reception, which can be
To change network settings or move Kaptivo to another board:
is encouraged to try to correct the interference by one or
determined by turning the equipment off and on, the user
more of the following measures:
is encouraged to try to correct the interference by one or
Go to kaptivo.com/setup in any browser and follow the online
• Reorient or relocate the receiving antenna.
more of the following measures:
instructions
Reorient or relocate the receiving antenna.
®
Standards and
®
Standards and
• Increase the separation between the equipment and
• Connect the equipment into an outlet on a circuit
• Consult the dealer or an experienced radio/TV
Industry Canada (IC) Compliance Statement
CAN ICES-3 (B)/NMB-3(B) The product warranty can be found at
www.crestron.com/warranty.
The specic patents that cover Crestron products are listed at www.crestron.com/legal/patents.
Certain Crestron products contain open source software. For specic information, please visit
www.crestron.com/opensource.
Crestron and the Crestron logo are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. Skype and Microsoft Teams are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. UL is either a trademark or registered trademark of Underwriters Laboratories, Inc. in the United States and/or other countrieOther trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.
This document was written by the Technical Publications department at Crestron.
©2018 Crestron Electronics, Inc.
receiver.
different from that to which the receiver is connected.
technician for help.
Crestron Electronics
15 Volvo Drive, Rockleigh, NJ 07647
888.CRESTRON | www.crestron.com
DOC. 8359A (2052470) 08.18
Page 5
UC-PHONE-PLLLLLLlLLUS Specifications
Easy Audio and Visual Communication
The UC-PHONE-PLlUS is a simple-to-use smart business phone that provides an enriched HD audio and video calling experience for
business professionals. This all-new smart business phone enables productivity-enhancing visual communication with the ease of a
standard phone. Based on Android 5.1.1 operating system, the PHONE features a seven-inch adjustable multi-point touch screen,
integrated 5G Wi-Fi and Bluetooth 4.2, and it is coupled with a built-in web browser, calendar, recorder and more, which also supports
the installation of third-party applications for business customization. More than that, you can easily turn your smart business
phone into a video phone ready with an optional removable two-megapixel HD camera CAM50. Thanks to the DECT technology, if you
want to expand your horizons for busy environments, or, share one phone system with your small team by adding multiple handsets,
simply turn phone to the corded-cordless phone, and it will repay you up to 4 DECT handsets in total to meet your
daily demands. The Smart Business Phone strikes an exquisite balance between simplicity and sophistication, offering
an all-in-one communications solution for today's busy executives, managers and teleworkers.
7-inch Multi-
touch Screen
SDK
HD AudioAndroid OS
HD Video
Opus Codec
Built-in
5G Wi-Fi
Built-in
Bluetooth
USB 2.0
DoorPhone
Features
Content Sharing
Key Features and Benefits
HD Audio and HD Video
The phone includes the latest version of Yealink Optimal HD Voice technologies , including the Noise Proof Technology and now supports the Opus codec, which helps maximize the acoustic performance of the phone’s handset, headset and especially the speakerphone. And its hearing aid compatible (HAC) handset helps the person who is with hearing loss to hear the voice more clearly. The optional dynamic, removable two-megapixel HD camera CAM50 is specially designed for remarkable real-time face-to-face conversa­tions, that you can connect into video conferences directly from your desk. Morever, you can use the phone with the VC Desktop together to share content from your laptop.
A Better User Experience with Android Operating System
Based on Android 5.1.1, the phone features a built-in browser, email, calendar and more. Administrators can easily install additional Android applications to improve collabora­tion and productivity. Meanwhile, the Open the SDK (Software Development Kit) allows the phone to deeply integrate with 3 and giving a better user experience.
Richer Interface for Easy Customization
The phone features Bluetooth 4.2 for pairing with headsets and mobile phones. It also includes dual-port Gigabit Ethernet with PoE as well as built-in 5G Wi-Fi. The USB 2.0 port allows for media and storage via a USB flash drive and a direct wired/wireless USB headset connection. The phone can also be paired with up to 3 color-screen expansion modules.
Efficient Provisioning and Management
The phone supports the efficient Auto-Provisioning mechanism, including phone deployment and application installation. Administrators can take advantage of centralized deployment, management, updating and uninstallation to ensure application standardization.
rd
party applications, providing richer phone features
• 7 inch (1024 x 600) capacitive adjustable
touch screen
• 720p30 HD video (with CAM50)
• Runs Android 5.1.1
• The Noise Proof Technology
• The SDK (Software Development Kit)
• DoorPhone Features
(Preview, One-button Open, Monitoring)
• Built-in Bluetooth 4.2 for headsets and
pairing mobile devices
• Built-in 5G Wi-Fi (802.11b/g/n/ac)
• USB 2.0 port (2.0 compliant) for USB headset,
media and storage applications
• Opus Codec support
• Up to 16 VoIP accounts
• Up to 5-party audio conferencing
• Wall mountable
• Color-screen Expansion Module support
www.yealink.com
Page 6
UC-PHONE-PLLLLLLlLLUS Specifications
Audio Features
• HD voice: HD handset, HD speaker
• Hearing aid compatible (HAC) handset
• Yealink Noise Proof Technology
• Audio codec: Opus, G.722, G.722.1, G.722.1C,
G.711 (A/µ), G.723, G.726, G.729AB, iLBC
• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC
Video Features*
• 720p@30fps HD video call
• Video codec: H.264 High Profile, H.264, VP8
• Video quality: 720P (1280x720)-30fps ( 512 kbps)
• Yealink CAM50 camera: 2 mega-pixel, plug and play,
adjustable, with privacy shutter and LED indicator
• Vertical tilt angle adjustable: 50°
• Field of view (FOV): 70.2°
• Self view (local video preview)
Display and Indicator
• LCD screen:
- 7" 1024 x 600 capacitive adjustable touch screen
- Vertical tilt angle adjustable: 48°
• 5 points multi-touch surface
• Screensaver and Wallpaper
• LED for call and message waiting indication
• Intuitive user interface with icons and soft keys
• Multilingual user interface
• Caller ID with name, number and photo
Android bundled Applications
• FileManager/Email/Calendar/Camera/Gallery/Recorder/
Calculator/Browser/Message
• Third party Android application support
Phone Features
• The SDK (Software Development Kit )
• 16 VoIP accounts
• Call hold, call forward
• Call waiting, call transfer
• One-touch speed dial, hotline
• Mute, DND
• Group listening, emergency call
• Redial, call return, auto answer
• Direct IP call without SIP proxy
• Ring tone select/import/delete
• Set date time manually or automatically
• Dial plan, action URL/URI
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• Five-party audio conferencing
• Data import/export via Bluetooth, email, etc.
• DoorPhone features:
Preview, One-button Open, Monitoring
*Note: If you want to realize all video features, you should buy a CAM50 camera seperately.
Corded-Cordless Phone (via DECT Dongle DD10K)
• Up to 4 DECT cordless handsets
• Up to 4 concurrent calls
• Support W52H/W53H (OTA pending)/W56H/DD Phone
Slave Handset for Master Deskset
IP-PBX Features
• Busy Lamp Field (BLF), Bridged Line Appearance (BLA)
• Anonymous call, anonymous call rejection
• Remote office, hot desking, intercom, paging
• Message Waiting Indicator (MWI)
• Voice mail, call park, call pickup, music on hold
• Call completion, call recording
Directory
• Local phonebook up to 1000 entries
• Black list
• XML/LDAP remote phonebook
• Smart dialing
• Phonebook search/import/export
• Call history: dialed/received/missed/forwarded
Feature keys
• 27 one-touch DSS keys
• 8 feature keys: hold, transfer, message, headset, mute, redial,
speakerphone, volume
• Illuminated mute/headset/hands-free speakerphone key
Interface
• Dual-port Gigabit Ethernet
• Power over Ethernet (IEEE 802.3af), class 3
• Built-in 5G Wi-Fi (802.11b/g/n/ac)
• Built-in Bluetooth 4.2 for
- Bluetooth headsets
- Pairing mobile devices
• 1 x USB 2.0 port (on the top of the phone) for:
- The CAM50 camera
• 1 x USB 2.0 port (on the rear of the phone) for:
- USB flash drive
- Wired/wireless USB headset
- Color-screen expansion modules
• 1 x Security lock port
• 1 x RJ9 (4P4C) handset port
• 1 x RJ9 (4P4C) headset port
• Supports up to 3 color-screen expansion modules
Management
• Configuration: browser/phone/auto provision
• Auto provision via FTP/TFTP/HTTP/HTTPS
for mass deployment
• Auto-provision with PnP, Zero-sp-touch, TR-069
• Phone lock for personal privacy protection
• Reset to factory, reboot
• Package tracing export, system log
• Only the administrator can install/uninstall apps
via auto-provisioning
• Setup Assistant wizard
Network and Security
• IPv4/IPv6
• SIP v1 (RFC2543), v2 (RFC3261)
• Call server redundancy supported
• NAT traversal: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP/PPPoE
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV (RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
• SRTP
• Transport Layer Security (TLS)
• HTTPS certificate manager
• AES encryption for configuration file
• Adb encryption authenticated
• Digest authentication using MD5/MD5-sess
• OpenVPN, IEEE802.1X
Other Physical Features
• Color: Metallic Gray
• Wall mountable (optional)
• External Yealink AC adapter (optional):
AC 100~240V input and DC 5V/2A output
• Power consumption (PSU): 1.5W-4.5W
• Power consumption (PoE): 2.3W-6.0W
• Dimension (W*D*H*T):
259.4mm*220mm*215mm*42.6mm
• Operating humidity: 10~95%
• Operating temperature: -10~40°C (+14~104°F)
Package Features
• Package content:
- Yealink SIP-T58A IP phone
- Handset with handset cord
- Ethernet Cable (2m CAT5E FTP Cable)
- Stand
- Yealink CAM50 camera (Optional)
- Quick Start Guide
- Power Adapter (Optional)
• Qty/CTN: 5 PCS
• N.W/CTN: 9.3 kg
• G.W/CTN: 10.4 kg
• Giftbox size: 324 mm*293 mm*128 mm
• Carton Meas: 680 mm*303 mm*332 mm
Compliance
REACH
PC
Internet
USB 2.0
USB Flash Drive
Loading...
