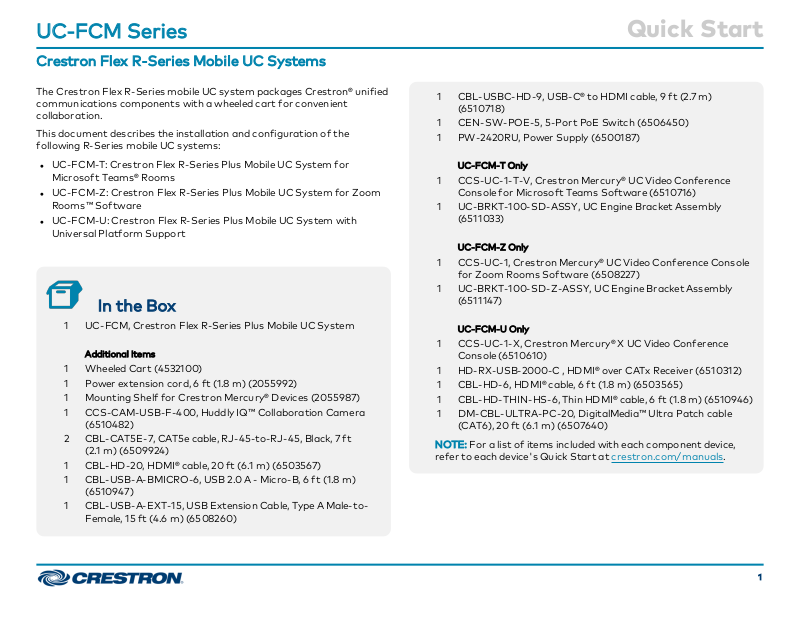

UC-FCM Series
Crestron Flex R-Series Mobile UC Systems
QuickStart
The Crestron Flex R-Series mobile UC system packages Crestron® unified
communications components with a wheeled cart for convenient
collaboration.
This document describes the installation and configuration of the
following R-Series mobile UC systems:
l UC-FCM-T: Crestron Flex R-Series Plus Mobile UC System for
Microsoft Teams® Rooms
l UC-FCM-Z: Crestron Flex R-Series Plus Mobile UC System for Zoom
Rooms™ Software
l UC-FCM-U: Crestron Flex R-Series Plus Mobile UC System with
Universal Platform Support
In the Box
1 UC-FCM, Crestron Flex R-Series Plus Mobile UC System
Additional Items
1 Wheeled Cart (4532100)
1 Power extension cord, 6 ft (1.8 m) (2055992)
1 Mounting Shelf for Crestron Mercury® Devices (2055987)
1 CCS-CAM-USB-F-400, Huddly IQ™ Collaboration Camera
(6510482)
2 CBL-CAT5E-7, CAT5e cable, RJ-45-to-RJ-45, Black, 7 ft
(2.1m) (6509924)
1 CBL-HD-20, HDMI® cable, 20 ft (6.1 m) (6503567)
1 CBL-USB-A-BMICRO-6, USB 2.0 A - Micro-B, 6 ft (1.8 m)
(6510947)
1 CBL-USB-A-EXT-15, USB Extension Cable, Type A Male-to-
Female, 15 ft (4.6 m) (6508260)
1 CBL-USBC-HD-9, USB-C® to HDMI cable, 9 ft (2.7 m)
(6510718)
1 CEN-SW-POE-5, 5-Port PoE Switch (6506450)
1 PW-2420RU, Power Supply (6500187)
UC-FCM-T Only
1 CCS-UC-1-T-V, Crestron Mercury® UC Video Conference
Console for Microsoft Teams Software (6510716)
1 UC-BRKT-100-SD-ASSY, UC Engine Bracket Assembly
(6511033)
UC-FCM-Z Only
1 CCS-UC-1, Crestron Mercury® UC Video Conference Console
for Zoom Rooms Software (6508227)
1 UC-BRKT-100-SD-Z-ASSY, UC Engine Bracket Assembly
(6511147)
UC-FCM-U Only
1 CCS-UC-1-X, Crestron Mercury® X UC Video Conference
Console (6510610)
1 HD-RX-USB-2000-C , HDMI® over CATx Receiver (6510312)
1 CBL-HD-6, HDMI® cable, 6 ft (1.8 m) (6503565)
1 CBL-HD-THIN-HS-6, Thin HDMI® cable, 6 ft (1.8 m) (6510946)
1 DM-CBL-ULTRA-PC-20, DigitalMedia™ Ultra Patch cable
(CAT6), 20 ft (6.1 m) (6507640)
NOTE: For a list of items included with each component device,
refer to each device's Quick Start at crestron.com/manuals.
1
UC-FCM Series
Crestron Flex R-Series Mobile UC Systems
Assemble Mounting Components
QuickStart
3. Follow the display manufacturer's instructions to attach the display
to the display mounting bracket arms using the supplied screws and
washers.
In R-Series mobile UC systems, some component mounting is required. A
device mounting shelf for the included Crestron Mercury device is
premounted to the front of the cart. A UC bracket assembly, PoE switch,
power supply, power strip, retractable power cable, and retractable
Ethernet cable are premounted to the cart's interior for convenience. An
HDMI over CATx receiver is premounted in place of the UC bracket
assembly in universal R-Series systems (UC-FCM-U).
Attach the Display Mounting Bracket Arms
Prior to mounting the display (not included) to the cart, the display
mounting bracket arms must be attached to the display.

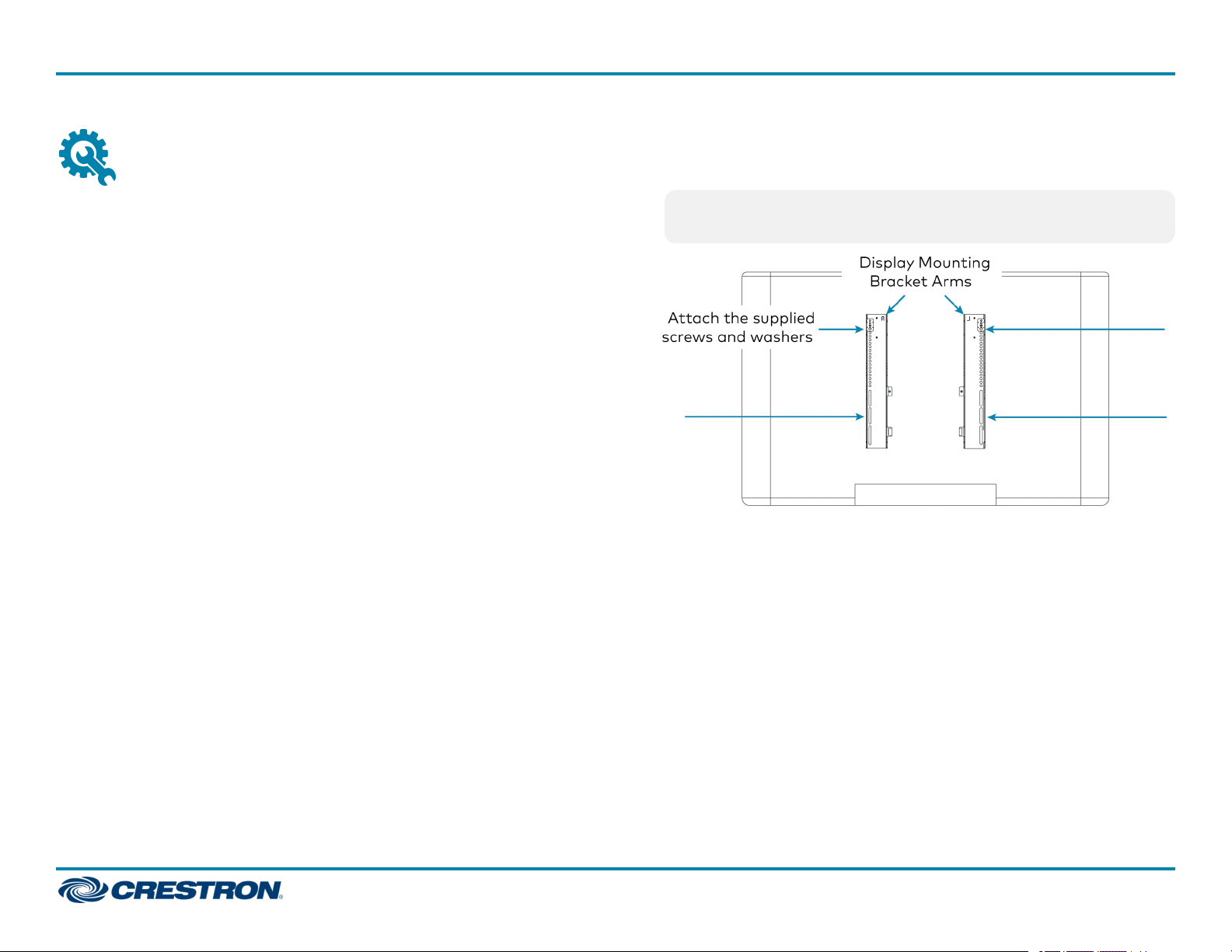

To attach the display mounting bracket arms:
1. Set the display on a flat surface with the screen side down. Ensure
that the surface is protected so that the screen is not damaged.
2. Align the mounting holes on the left and right edges of the display
mounting bracket arms over the mounting holes on the rear of the
display.
NOTE: Screw placement may differ from the following image
based on the location of the display's mounting holes.
2
UC-FCM Series
QuickStart
Crestron Flex R-Series Mobile UC Systems
Make Connections
To connect the system components:
1. Connect system components to the preinstalled cables. Connect the display power cord to the power strip inside of the bottom rear of the cart.
NOTE: If the display's power cord does not reach the integrated power strip, use the included 6 ft extension cord.

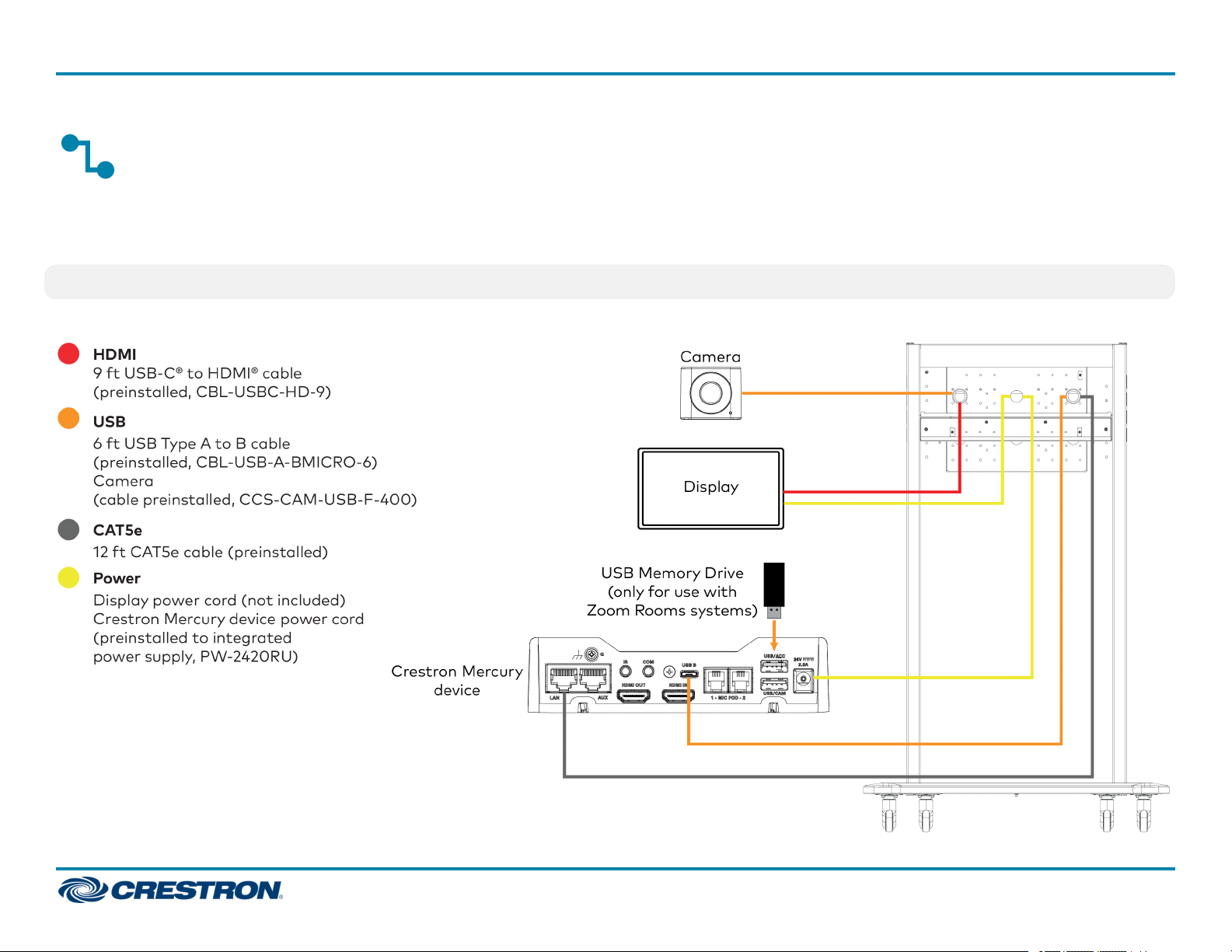

l Microsoft Teams (UC-FCM-T) and Zoom Rooms Systems (UC-FCM-Z)
3
UC-FCM Series
Crestron Flex R-Series Mobile UC Systems

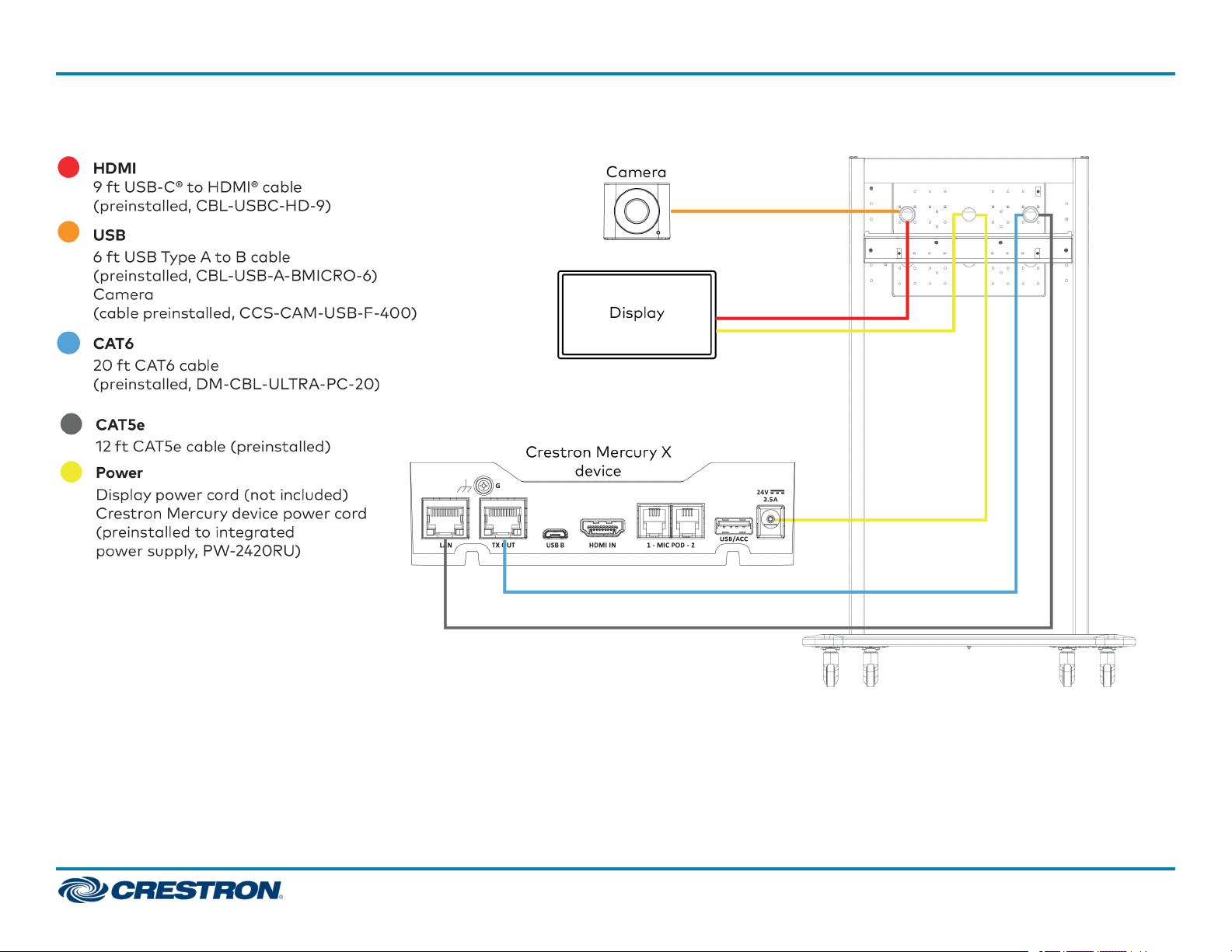

l Universal System (UC-FCM-U)
QuickStart
4
UC-FCM Series
Crestron Flex R-Series Mobile UC Systems
QuickStart

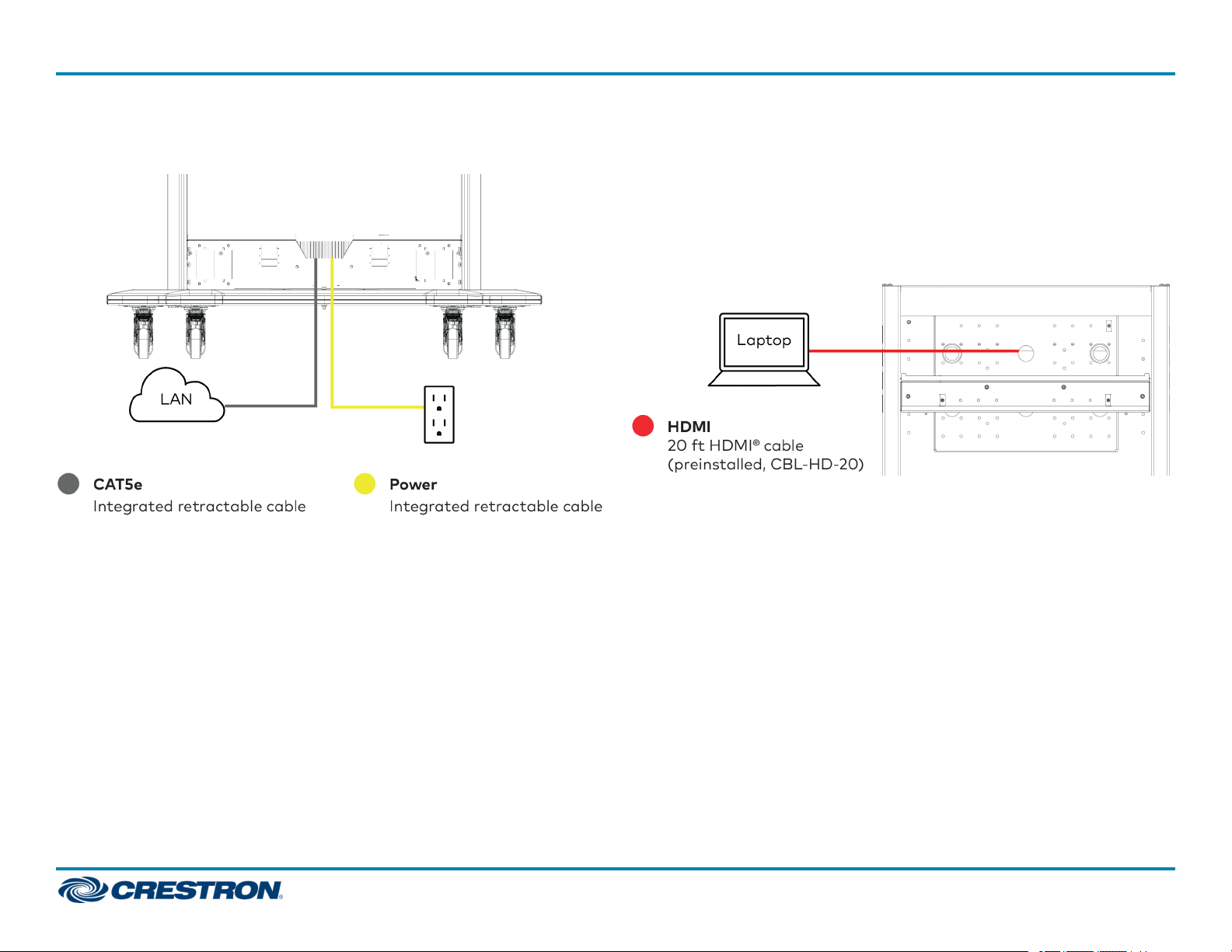

2. Make LAN and power connections from the bottom rear of the cart as
shown below using the integrated retractable cables.
3. Make device presentation connections as shown in the following
diagrams.
l Microsoft Teams (UC-FCM-T) and Zoom Rooms Systems
(UC-FCM-Z): A 20 ft HDMI cable (CBL-HD-20) is preattached to the
UC Engine assembly and coiled inside of the cart. Route the cable
through one of the grommets as shown below for presentation from a
laptop.
5
UC-FCM Series
Crestron Flex R-Series Mobile UC Systems

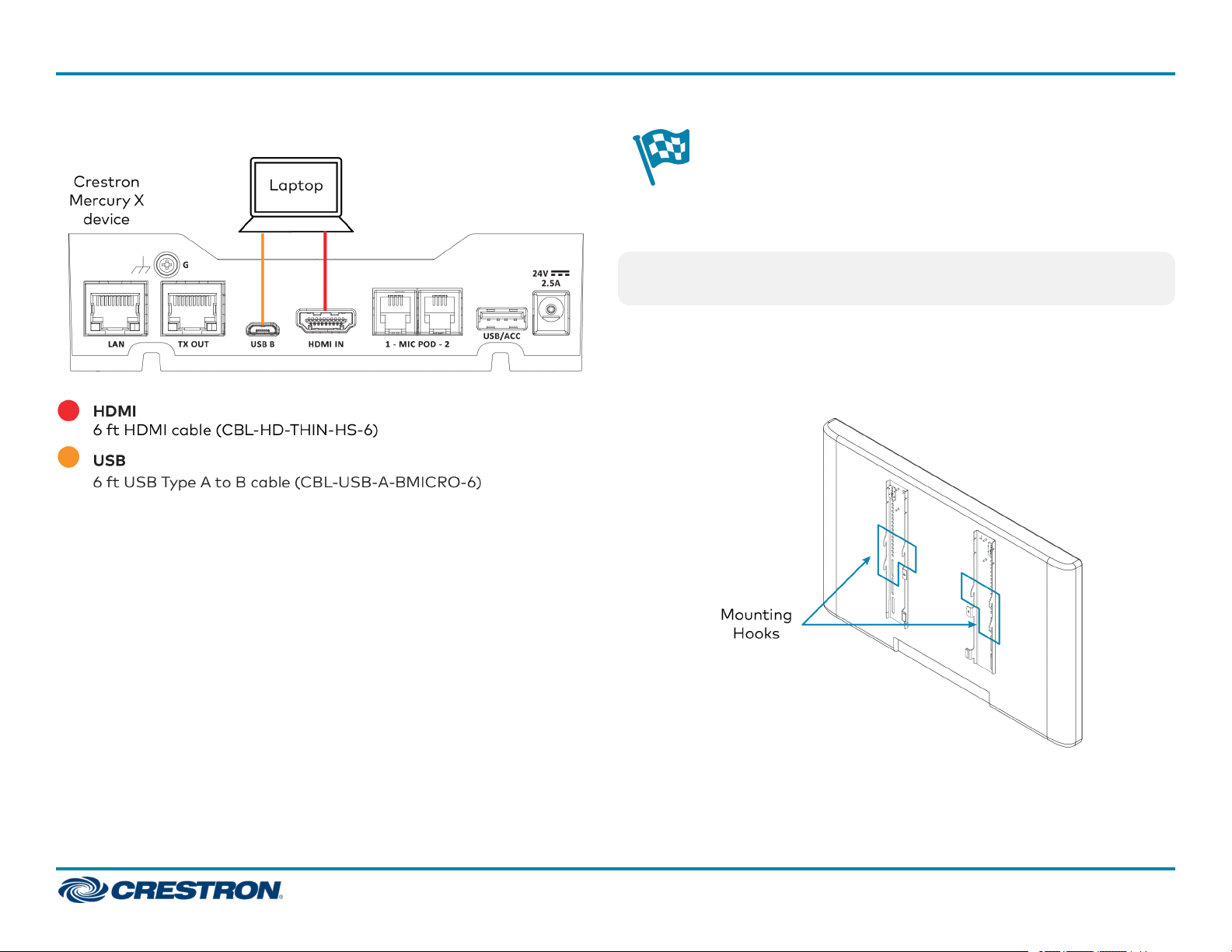

l Universal Systems (UC-FCM-U)
QuickStart
Complete the Installation
Mount the Display
CAUTION: For safety, Crestron recommends that no fewer than two
people mount the display.

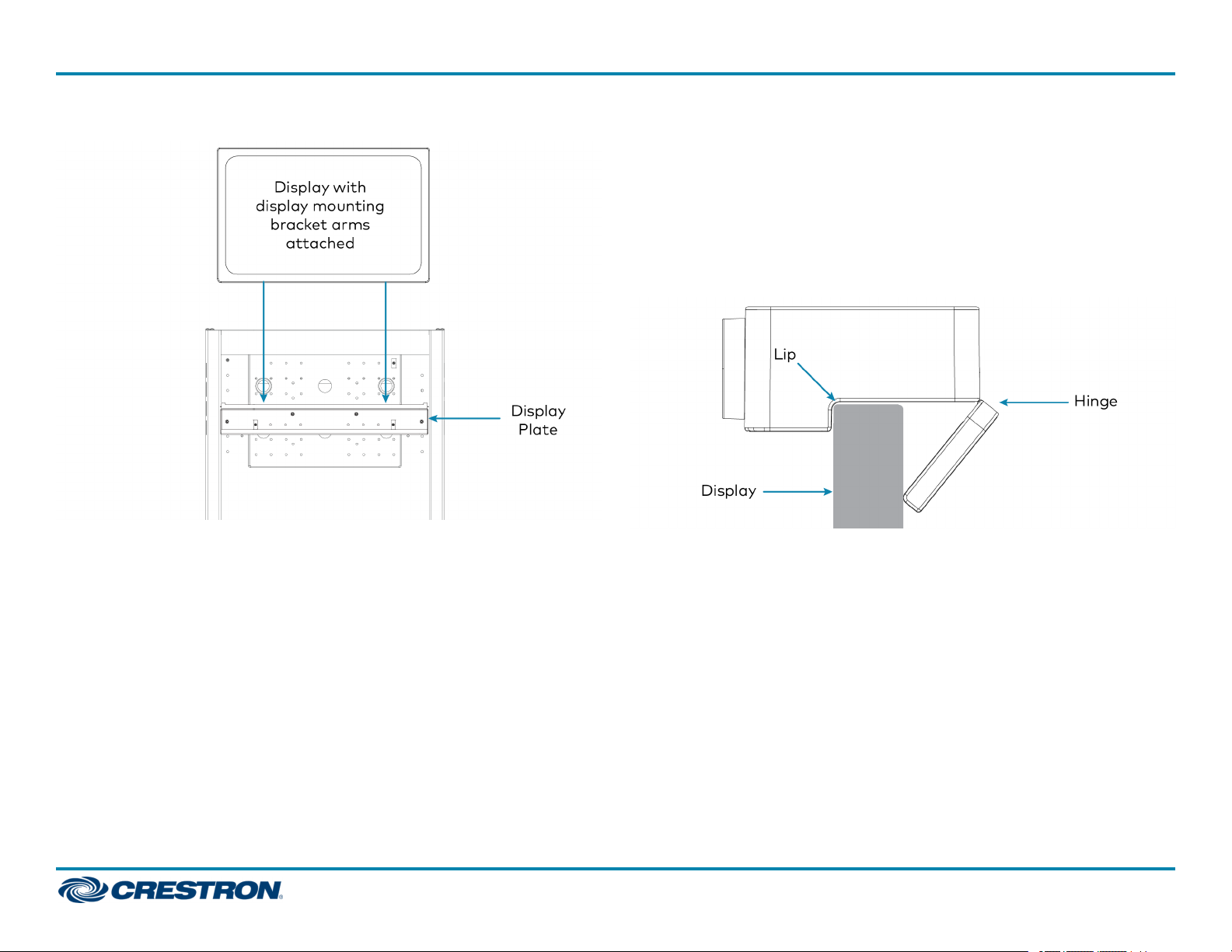

Mount the display mounting bracket arms with the attached display by
sliding the mounting hooks over the display plate. Ensure that the display
mounting bracket arms and the display are secure before stepping away
from the cart.
Mounting Hooks
6
UC-FCM Series
Crestron Flex R-Series Mobile UC Systems
QuickStart
Slide the mounting hooks over the display plate
Mount the Camera
To mount the Huddly IQ camera:
1. Open the hinge on the bottom of the camera.
2. Set the camera atop the display and hook the lip to the front edge of
the display.
3. Adjust the hinge until the camera sits atop the display.
Mount the Crestron Mercury Device
To mount the Crestron Mercury device, place the device on the
preinstalled device mounting shelf.
7
UC-FCM Series
Crestron Flex R-Series Mobile UC Systems
Completed Installation
QuickStart
Once complete, the installation will appear as shown below.
Configuration
Microsoft Teams Devices
To configure the R-Series mobile UC system that utilizes Microsoft
Teams software (UC-FCM-T), refer to the instructions below.
Apply Power
Press the power button on the bottom of the UC Engine (attached to the
UC bracket assembly) and apply power to all of the other devices in the
system.
Configure the Crestron Mercury Device
To configure the Crestron Mercury Device:
1. Tap Teams Video and then tap OK. The device will reboot.
2. On a computer, open a web browser to the IP address displayed on the
Crestron Mercury X device to configure the device to operate in Teams
Video mode.
NOTES:
l The Crestron Mercury device and computer must be on the same
network switch and VLAN.
l A login with administrative rights for the Crestron Mercury device
is required.
3. Log in to the Crestron Mercury device and navigate to DEVICE >
Applications.
8
UC-FCM Series
Crestron Flex R-Series Mobile UC Systems
QuickStart
4. Enter the following information in the appropriate fields:
l Teams Video PC Address: Enter the IP address or hostname of
the UC Engine.
l
NOTES:
o
The UC Engine's IP address can be found using the device
discovery tool in Crestron Toolbox™ software.
o
The hostname is printed on a label affixed to the UC Engine
(mounted on the bracket assembly). To view the label, open
the cart's rear door and locate the UC Engine preattached
near the top of the cart's interior.
l Teams Video PC Port: By default, port number 49500 is used. If
a different port number has been configured on the UC Engine,
enter that port number instead.
l Teams Video Username: Enter the login username for the UC
Engine. (The default username is “admin”.)
l Teams Video Password: Enter the login password for the UC
Engine. (The default password is “sfb”.)
5. Click Save Changes.
For more information, refer to the CCS-UC-1 Product Manual (Doc.
7844).
Configure the System
Use the Crestron Mercury device and your Microsoft Teams or Skype®
account credentials to configure the UC Engine. Refer to the Crestron
Flex UC Video Conference Systems Supplemental Guide (Doc. 8360).
Zoom Rooms Devices
To configure the R-Series mobile UC system that utilizes Zoom Rooms
software (UC-FCM-Z), refer to the instructions below.
Apply Power
Press the power button on the bottom of the UC Engine (attached to the
UC bracket assembly) and apply power to all of the other devices in the
system. The connected display device will show a pairing code.
Remove the USB memory drive (CCS-UCA-MEM-USB) from the Crestron
Mercury device. The USB memory drive does not need to be reconnected
once the device has been powered on. Store the USB memory drive in the
event that it is needed for future troubleshooting.
Log In to the Zoom Rooms Service
1. Tap Zoom and then tap OK. The device will reboot.
2. Enter the pairing code shown on the display to pair the Crestron
Mercury device with the UC Engine. The Zoom Rooms controller app is
displayed.
3. Log in to the Zoom Rooms service with an activation code or Zoom
Rooms Credentials (email and password).
l Activation Code:
a. Tap Enter Activation Code.
b. Enter the 16-digit activation code provided by the
administrator to activate the Zoom Rooms room that is
assigned to the activation code. The Zoom Rooms
Conference Room screen is shown on the display.
9
UC-FCM Series
Crestron Flex R-Series Mobile UC Systems
l Sign In:
a. Tap Sign In.
b. Enter the Zoom Room credentials and tap Sign In.
c. Select the conference room name from the list and
tapNext. The Zoom Rooms Conference Room screen is
shown on the display.
4. Tap Settings. If a password is required, enter the password (default is
0000). The Settings screen is displayed.
5. Tap Microphone and select the Crestron Mercury device as the source.
6. Tap Speaker and select the Crestron Mercury device as the source.
7. Tap Meet Now to exit.
Configure the System
Connect a USBkeyboard and mouse (not included) to a USBport on the
UC Engine to configure system features. Refer to the Crestron Flex UC
Video Conference Systems Supplemental Guide (Doc. 8360).
QuickStart
Visit the Product Page
Scan the QR code to visit the product page.
UC-FCM-T
www.crestron.com/model/6511538
UC-FCM-Z
www.crestron.com/model/6511539
Universal Devices
To configure the universal R-Series mobile UC system (UC-FCM-U), refer
to the CCS-UC-1 Product Manual (Doc. 7844).
UC-FCM-U
www.crestron.com/model/6511561
10
UC-FCM Series
Crestron Flex R-Series Mobile UC Systems
Additional Information
Original Instructions
The U.S. English version of this document is the original instructions.
All other languages are a translation of the original instructions.
Crestron product development software is licensed to Crestron dealers and Crestron
Service Providers (CSPs) under a limited nonexclusive, nontransferable Software
Development Tools License Agreement. Crestron product operating system software is
licensed to Crestron dealers, CSPs, and end-users under a separate End-User License
Agreement. Both of these Agreements can be found on the Crestron website at
www.crestron.com/legal/software_license_agreement.
The product warranty can be found at www.crestron.com/warranty.
The specific patents that cover Crestron products are listed at
www.crestron.com/legal/patents.
Certain Crestron products contain open source software. For specific information, visit
www.crestron.com/opensource.
Crestron, the Crestron logo, Crestron Mercury, Crestron Toolbox, and DigitalMedia are
either trademarks or registered trademarks of Crestron Electronics, Inc. in the United
States and/or other countries. HDMI is either a trademark or registered trademark of
HDMI Licensing LLC in the United States and/or other countries. Huddly IQ is either a
trademark or registered trademark of Huddly A S in the United States and/or other
countries. Microsoft Teams and Skype are either trademarks or registered trademarks
of Microsoft Corporation in the United States and/or other countries. USB-C is either a
trademark or registered trademark of USB Implementers Forum, Inc. in the United
States and/or other countries. Zoom Rooms is either a trademark or registered
trademark of Zoom Video Communications, Inc. in the United States and/or other
countries. Other trademarks, registered trademarks, and trade names may be used in
this document to refer to either the entities claiming the marks and names or their
products. Crestron disclaims any proprietary interest in the marks and names of others.
Crestron is not responsible for errors in typography or photography.
©2020 Crestron Electronics, Inc.
Doc. 8768A
06/24/20
QuickStart
11
Loading...
