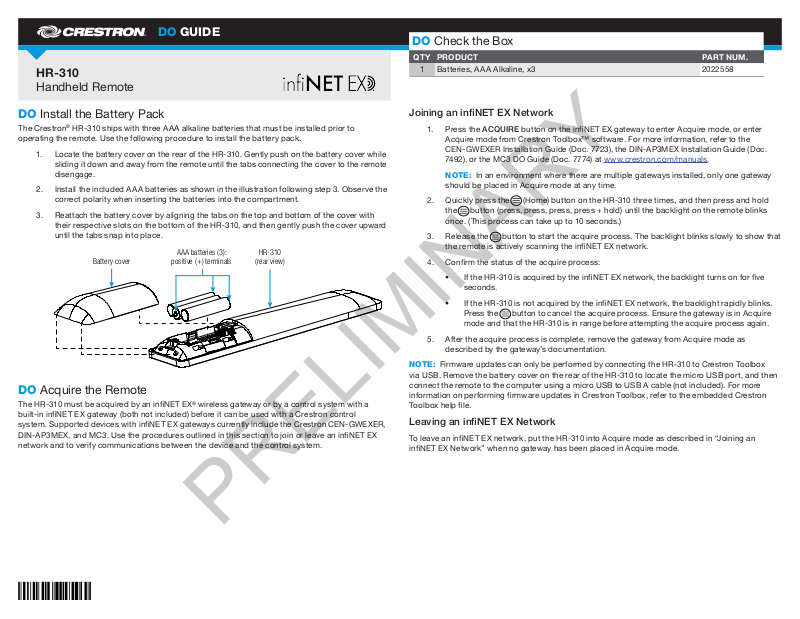

HR-310
AAA batteries (3):
HR-310
PRELIMINARY
Handheld Remote
DO GUIDE
DO Check the Box
QTY PRODUCT PART NUM.
1 Batteries, AAA Alkaline, x3 2022558
DO Install the Battery Pack
The Crestron® HR-310 ships with three AAA alkaline batteries that must be installed prior to
operating the remote. Use the following procedure to install the battery pack.
1. Locate the battery cover on the rear of the HR-310. Gently push on the battery cover while
sliding it down and away from the remote until the tabs connecting the cover to the remote
disengage.
2. Install the included AAA batteries as shown in the illustration following step 3. Observe the
correct polarity when inserting the batteries into the compartment.
3. Reattach the battery cover by aligning the tabs on the top and bottom of the cover with
their respective slots on the bottom of the HR-310, and then gently push the cover upward
until the tabs snap into place.
Battery cover
positive (+) terminals
(rear view)
DO Acquire the Remote
The HR-310 must be acquired by an inNET EX® wireless gateway or by a control system with a
built-in inNET EX gateway (both not included) before it can be used with a Crestron control
system. Supported devices with inNET EX gateways currently include the Crestron CEN-GWEXER,
DIN-AP3MEX, and MC3. Use the procedures outlined in this section to join or leave an inNET EX
network and to verify communications between the device and the control system.
Joining an inNET EX Network
1. Press the ACQUIRE button on the inNET EX gateway to enter Acquire mode, or enter
Acquire mode from Crestron Toolbox™ software. For more information, refer to the
CEN-GWEXER Installation Guide (Doc. 7723), the DIN-AP3MEX Installation Guide (Doc.
7492), or the MC3 DO Guide (Doc. 7774) at www.crestron.com/manuals.
NOTE: In an environment where there are multiple gateways installed, only one gateway
should be placed in Acquire mode at any time.
2. Quickly press the (Home) button on the HR-310 three times, and then press and hold
the button (press, press, press, press + hold) until the backlight on the remote blinks
once. (This process can take up to 10 seconds.)
3. Release the button to start the acquire process. The backlight blinks slowly to show that
the remote is actively scanning the inNET EX network.
4. Conrm the status of the acquire process:
• If the HR-310 is acquired by the inNET EX network, the backlight turns on for ve
seconds.
• If the HR-310 is not acquired by the inNET EX network, the backlight rapidly blinks.
Press the button to cancel the acquire process. Ensure the gateway is in Acquire
mode and that the HR-310 is in range before attempting the acquire process again.
5. After the acquire process is complete, remove the gateway from Acquire mode as
described by the gateway’s documentation.
NOTE: Firmware updates can only be performed by connecting the HR-310 to Crestron Toolbox
via USB. Remove the battery cover on the rear of the HR-310 to locate the micro USB port, and then
connect the remote to the computer using a micro USB to USB A cable (not included). For more
information on per forming rmware updates in Crestron Toolbox, refer to the embedded Crestron
Toolbox help le.
Leaving an inNET EX Network
To leave an inNET EX network, put the HR-310 into Acquire mode as described in “Joining an
inNET EX Network” when no gateway has been placed in Acquire mode.
Verifying Communication Status
PRELIMINARY
To check the communication status of the HR-310, quickly press the button three times, and
then press and hold the button for up to two seconds. The backlight blinks to indicate the current
communication status as described in the table below.
BACKLIGHT BEHAVIOR COMMUNICATION STATUS
The backlight turns on for ve seconds. The HR-310 is communicating with the control system.
The HR-310 is communicating with the control system,
The backlight blinks three times.
but the gateway is not communicating with the control
system.
The backlight blinks twice.
The HR-310 was previously joined to the network but is
no longer communicating with the gateway.
The backlight blinks once. The HR-310 is not joined to the network.
DO Set the Device RFID
If required, use the following procedure to set the RFID (radio-frequency identication) of the
HR-310.
NOTE: The HR-310 RFID is set to “01” by default.
NOTE: The HR-310 must be kept awake to maintain communications while setting the device RFID
via a wireless connection. After completeing the below procedure, press any button on the HR-310 to
wake the remote so that it receives the change ID command from the gateway.
1. Ensure that the HR-310 has been acquired to the inNET EX wireless gateway as described
in the “DO Acquire the Remote” section above.
2. Open Crestron Toolbox and select the InNetEx Diagnostic Tool. The tool scans the inNET
EX network for the wireless gateway and all acquired devices.
3. Once the gateway has been discovered, locate the HR-310 in the Connected Devices
table.
4. Right click on the HR-310’s entry in the Connected Devices table, and then click
inNET(EX) ID.
5. Select a new RFID from the provided drop-down menu, and then click Apply to send the
new RFID to the device. Click OK to exit.
Alternatively, the device RFID can also be set through the Text Console tool in Crestron Toolbox.
Remove the battery cover on the rear of the HR-310 to locate the micro USB port, and then connect
the remote to the computer using a micro USB to USB A cable. Open the Text Console tool in
Crestron Toolbox, and then issue the M N ETID [x x] command, where xx is the desired RFID. The
HR-310 remains awake when connected to a USB host.
DO Customize the Hard Buttons
The HR-310 ships with a default set of nine congurable hard buttons installed. Custom-engraved
buttons can be created and ordered using Crestron Studio® software to replace the default button
set. For more information on installing the custom hard buttons, refer to the HR-310-BTN Installation
Guide (Doc. 8224) at www.crestron.com/manuals.
DO Learn More
Visit the website for additional information and the latest rmware updates. To learn
more about this product, use a QR reader application on your mobile device to scan
the QR image.
Crestron Electronics
15 Volvo Drive, Rockleigh, NJ 07647
888.CRESTRON | www.crestron.com
