Crestron CWDHR
Two-Way RF Transceiver Module
Operations Guide

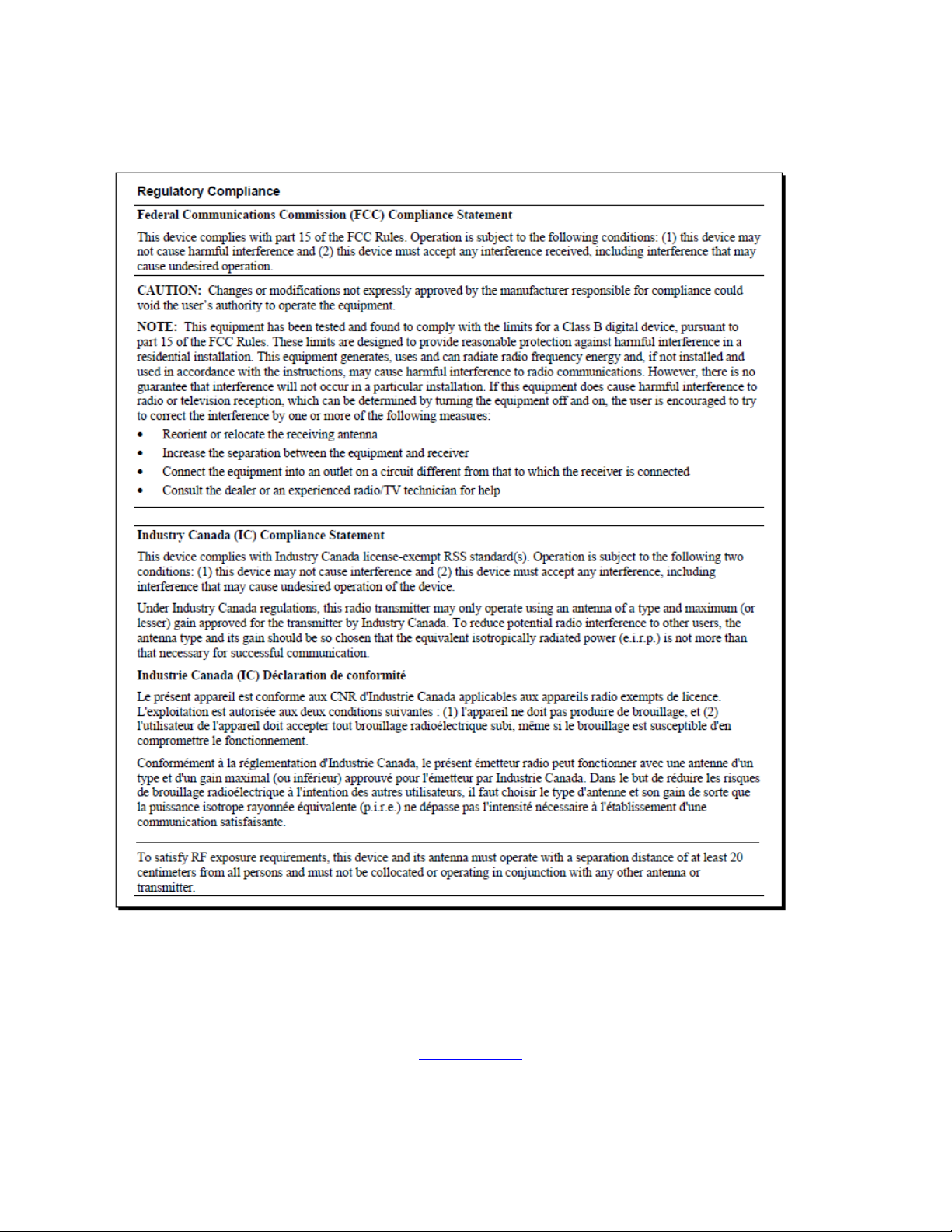

The specific patents that cover Crestron products are listed at patents.crestron.com.
Crestron and the Crestron logo are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries.
Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or
their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or
photography.
This document was written by the Technical Publications department at Crestron.
©2014 Crestron Electronics, Inc.
Crestron CWDHR Two-Way RF Transceiver Module
Contents
Two-Way RF Transceiver Module: CWDHR ................................................. 1
Introduction ............................................................................................................................... 1
Specifications ............................................................................................................................. 2
Physical Description .................................................................................................................. 3
Setup .......................................................................................................................................... 4
Labeling ..................................................................................................................................... 5
Documentation ........................................................................................................................... 5
Operations Guide - DOC. 7657A Contents i
Crestron CWDHR Two-Way RF Transceiver Module
Two-Way RF Transceiver Module:
CWDHR
Introduction
The CWDHR (hereafter referred to as “module”), with an SMD antenna, is a two-way radio frequency
(RF) module that utilizes the 2.4 GHz frequency band to communicate with other devices. There are
two versions: PA07414 and PA07424.
The module operates according to the IEEE 802.15.4 specifications.
The module receives RF signals from one or more Crestron devices and can transmit these signals over
the air for further processing (depending on the application).
Features and Functions
2.4 GHz frequency band, IEEE 802.15.4 specification
Range from 3 feet to 550 feet.
Operates on one of 16 available channels to establish optimal signal quality
Operations Guide - DOC. 7657A Two-Way RF Transceiver Module: CWDHR 1
Two-Way RF Transceiver Module Crestron CWDHR
Specifications
Specifications for the CWDHR are listed in the following table.
CWDHR Specifications
SPECIFICATIONS DETAILS
Power Requirements Four (4) disposable 1.5 V “AAA”
alkaline batteries
Operating Frequency 2400 MHz to 2483.5 MHz
(802.15.4 compliant)
Operating Ranges*
Minimum Distance
Maximum Distance Indoors
(without repeater device)
Available Channels 16 (numbered 11 through 26 per
3 feet
550 feet
802.15.4)
Serial Communications SPI, 3.0 Vdc Nominal
Antenna
Gain
Type
Frequency
Dimensions (PA07414)
Height
Width
Depth
Dimensions (PA07424)
Height
Width
Depth
* The location and orientation of the module are important factors in RF performance. With the unit
located outside of any metal enclosures, the antenna is adjusted to achieve the best range. The range
is dependent on its placement and the building in which it is used. The construction of the building,
obstructions, and RF interference from other devices are factors determining the effective range of
the unit. To prevent unit-to-unit RF interference, multiple modules operating at the same frequencies
should not be installed within 3-5 feet of each other.
2.5 dBi max. peak
Ceramic chip antenna
2.4 GHz to 2.5 GHz
1.850 in
0.303 in
7.248 in
1.850 in
0.303 in
5.967 in
2 Two-Way RF Transceiver Module: CWDHR Operations Guide - DOC. 7657A
Crestron CWDHR Two-Way RF Transceiver Module
Physical Description

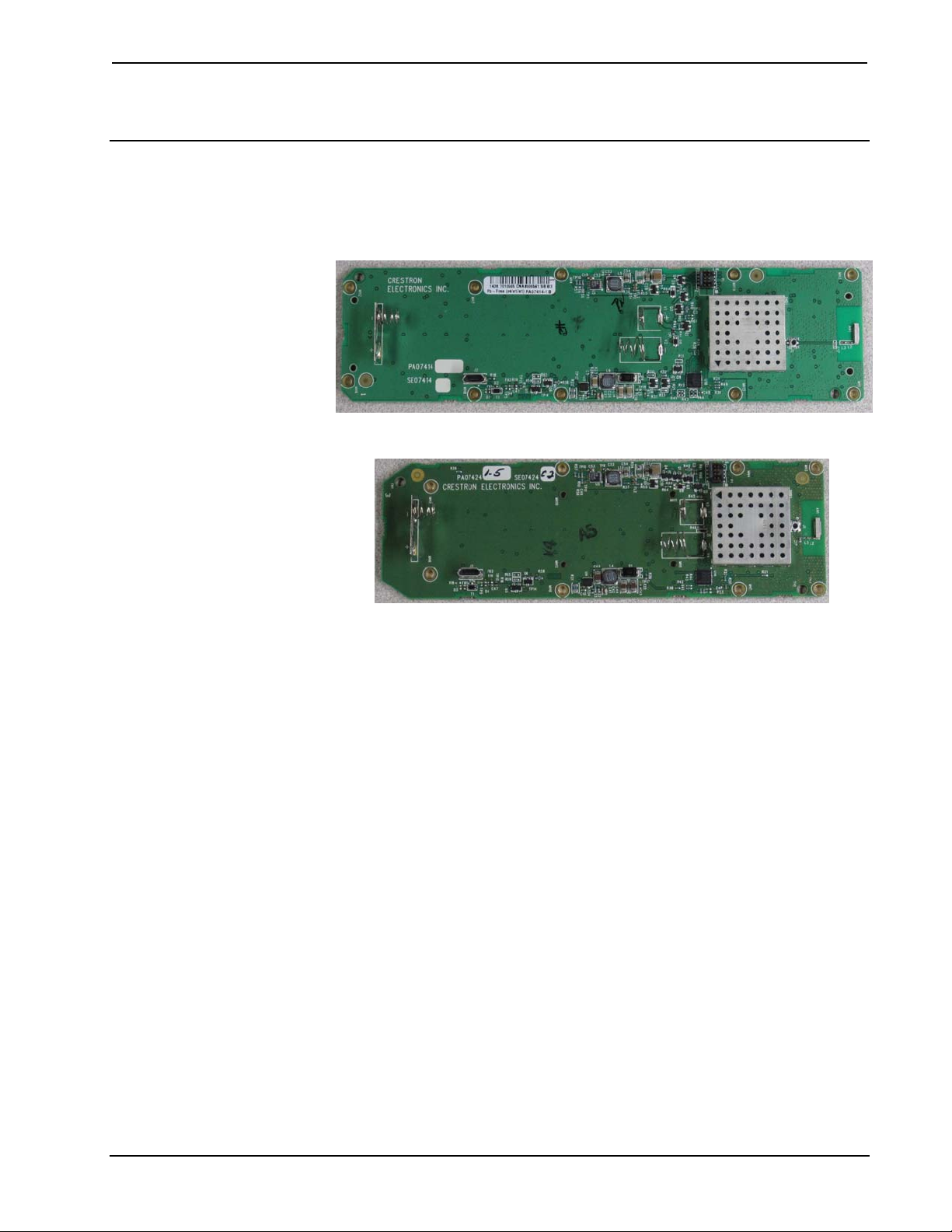

The module, shown below, consists of various components attached to a printed
circuit board (PCB). The SMD antenna is soldered to the PCB.
Physical View of CWDHR (PA07414)
Physical View of CWDHR (PA07424)
Operations Guide - DOC. 7657A Two-Way RF Transceiver Module: CWDHR 3
Two-Way RF Transceiver Module Crestron CWDHR
Setup

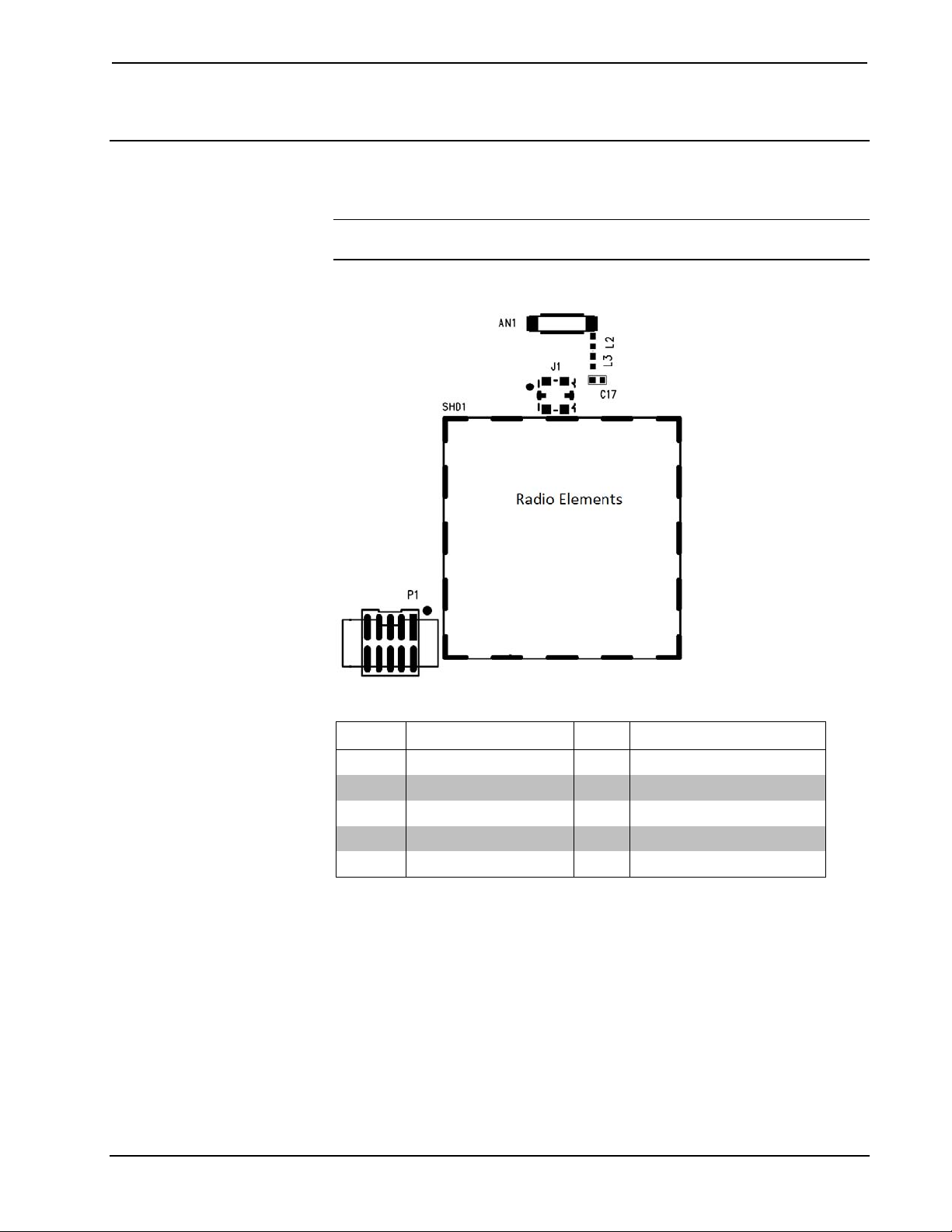

Refer to the following diagram. P1 is the interface port. J1 is the antenna port.
NOTE: To prevent unit-to-unit RF interference, multiple modules operating at the
same frequencies should not be installed within 3-5 feet of each other.
P1 Pin out Signals
Pin # Signal Pin # Signal
1
3
5
7
9
+3.0V 2
\JRST 4 JTDI
AGND 6 JTCK
JTMS 8 \RESET
PA4 / PTI_EN 10 PA5 / PTI_DATA
JTDO
4 Two-Way RF Transceiver Module: CWDHR Operations Guide - DOC. 7657A
Crestron CWDHR Two-Way RF Transceiver Module
Labeling
The host device shall be properly labeled to identify the modules within the host
device.
The FCC and Industry Canada certification label of a module shall be clearly visible
at all times when installed in the host device. Otherwise the host device must be
labeled to display the FCC and Industry Canada certification numbers of the module,
preceded by the words “Contains Transmitter Module” or the word “Contains”, or
similar wording expressing the same meaning as follows:
Contains FCC ID: EROCWDHR
Contains IC: 5683C-CWDHR
Documentation
The OEM integrator must be aware not to provide information to the end user
regarding how to install or remove this RF module in the user manual of the end
product.
The user’s manual for OEM integrators must include the following information in a
prominent location:
IMPORTANT NOTE: To comply with FCC RF exposure compliance
requirements, the antenna used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons.
Operations Guide - DOC. 7657A Two-Way RF Transceiver Module: CWDHR 5
Two-Way RF Transceiver Module Crestron CWDHR
This page is intentionally left blank.
6 Two-Way RF Transceiver Module: CWDHR Operations Guide - DOC. 7657A
Crestron CWDHR Two-Way RF Transceiver Module
This page is intentionally left blank.
Operations Guide - DOC. 7657A Two-Way RF Transceiver Module: CWDHR 7
Crestron Electronics, Inc. Operations Guide – DOC. 7657A
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON 10.14
Fax: 201.767.7576 Specifications subject to
www.crestron.com change without notice.
