Changes or modifications not expressly approved by the manufacturer responsible for compliance
•Consult the dealer or an experienced radio/TV technician for help
device.
20 centimeters from all persons and must not be colocated or operating in conjunction with any other antenna or
transmitter.
This document was prepared an d written by th e Tech nical Docum entati on d ep artment at :
Crestron Electronics, Inc.
15 Volvo Dr ive
Rockleigh, NJ 07647
1-888-CRESTRON
Regulatory Compliance
Federal Communications Commission (FCC) Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions:
(1) This device may not cause harmful interference and (2) this device must accept any interferen ce received,
including interference th at may cause un desired oper ation.
CAUTION:
could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B device, pursuant to part
15 of the FC C Rules. Th ese limi t s are d esign ed t o provid e rea son abl e pr otect ion ag ain st har mful in ter fer en ce in a
residential installation. This equipment generates, uses and can radiate radio frequen cy ener gy and i f not in stall ed
and used in accor dan ce with th e instr uct ion s, ma y cause har mfu l in ter feren ce to r adi o commun i cati ons. However ,
there is no guarantee that interfer ence will not occur in a particular installation. If this equipment does cause
harm ful inter ference t o radio or televisi on recept ion, wh ich can be d etermin ed by turnin g the equ ipment off and
on, the user is encouraged to try to correct the interference by one or more if the following measures:
• Reorient or relocate the receiving antenna
• Incr ease the separ ation between the equip ment and receiv er
• Connect the equip ment into an outlet on a circu it differen t from that to which the receiver is connected
Industry Canada (IC) Compliance Statement
Operation is subject to the following two conditions:
1. This devi ce may not cau s e in terference, and
2. This devi ce must accept an y inter ference, in cludin g int erfer ence that may cause un desired operat ion of the
To satisfy RF exposure requirements, this device and its antenna must operate with a separation distance of at least
Le fonctionnement est soumis aux deux con diti ons suivantes:
1. Cet ap p areil ne doit p as provoquer d' in terfér en ces et
2. Cet appar eil doit accepter toute interfér ence, y compris les inter férences pouvant entraîner un fonctionnement non
dispositif.
Pour satisfaire aux exigences d'exposition RF, ce dispositif et son antenne doivent fonctionner avec un e distance de
sépara t ion d'a u moins À 20 centim ètr es de tout es les per sonn es et n e doit pas êtr e coll océe ou fon ct ion n er en conjon cti on
avec un e autre antenne ou émett eur .
All brand names, product names and tradem arks are the property of their respective owne rs.
• 2.4 GHz frequency band, IEEE 802.15.4 specification
Two-Way RF Transceiver Module:
CWD7567
Functions and Features
The CWD7567 (hereafter referred to as “module”) is a two-way radio frequency (RF) module that
utilizes the 2.4 GHz fr eq u ency band t o communicat e wi th other devices.
The module oper at es a ccor din g t o the IE EE 8 02. 15. 4 speci ficat ion and can be config ured t o minimi ze
the possibility of interference with other devices.
The module receives RF signals from one or more Crestr on devi ces and can transmit these sign als over
the air for further processing (depending on the application).
Functional Summ ary
• Range fr om 3 fee t to 50 ft.
• Operates on one of sixteen available channels to establish optimal
The tabl e bel ow is a summary of specifica tions for the CWD7567.
Specifications of the CWD7567
Operating Frequency 2400 MHz to 24 83.5 MHz (802.15.4 compliant)
Operating Ranges¹
Minimum Distance
Maximum Distance Indoors
(without repeater device)
Avai lable Channels 16 (numbered 11 through 26 per 802.15.4)
Dimensions Width: 1.64 in (4.15 cm)
Antenna Antenova: Mica 2.4GHz SMD Antenna (A5645)
3 ft
50 ft
Height: 2.35 in (5.98 cm)
Frequency Range: 2.4-2.5GHz
Gain: 1.80 dBi max.
Type: T he ant en na requir es a gr oun dplane,
1. The lo cation and orien tation of the module are impo r tant factors in the RF performance. With the unit located outside of
any metal enclosures, the antenna is adjusted to achieve the best range. The range is dependent on its placement and the
building in which it i s used. The constru ction of the building, obstructions, and RF interference from other devices are
factors determining the effective range of the unit. To prevent unit-to-unit RF interference, multiple modules operating
at the sa m e fr e qu e ncies shou ld not be installe d w ithin 3-5 f eet of eac h o t her.
Physical Description

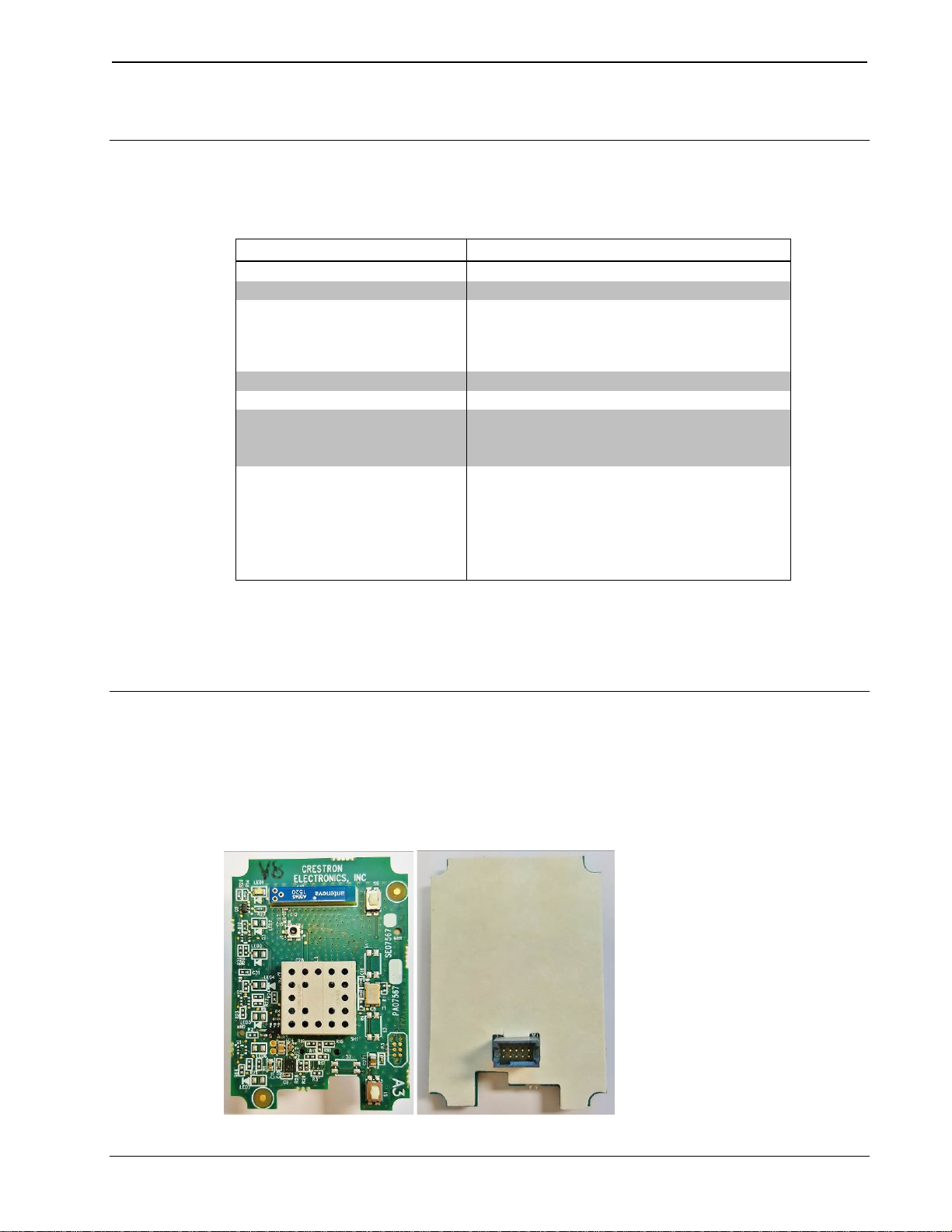

The module, shown belo w, consist s of various compone nts attached to a print e d circ uit boa rd.
There are three (3) different build options for this module. The options specify the number of installed
push buttons/switches, the number and color of installed LEDs.

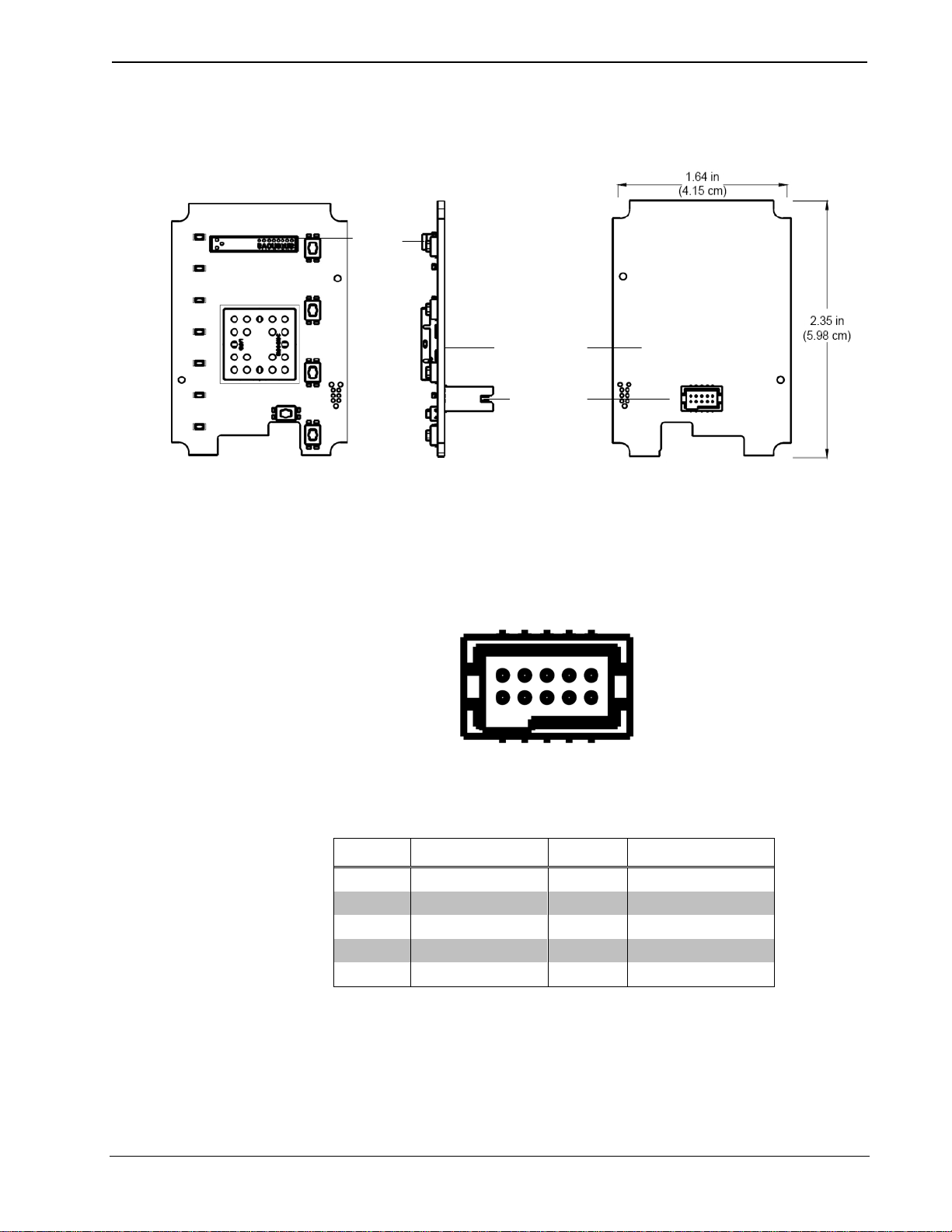

Physical View of CWD7567 (with 2 switches and 1 LED in stalled )
The mod u le contains a 10 -p in con nector. Ref er to the diagrams and descriptions that follow.
Power/I-O
The 10 pin con nector provides power to the module as well as communications between the module
and wir ed devices. Re fer to the foll owing table for pin assign ments of the module int er face connector.
NOTE: Pin 1 provides p o w er to the cir cu it card.
Refer to the hookup diagram below, which shows th e con nections made to the mod u le. Complete the
conn ections in any order.
NOTE: To pr eve nt un i t-to-unit RF inter ference, mul tiple modul es operatin g at th e s ame frequen cies
should not be installed within three to five feet of each other.
Orientation
The devi ce i s in tended to be install ed with the PCB perp endicular to the groun d with the antenna at the
top as shown in th e picture belo w.
Labeling
If the FCC identification numb er is not visibl e wh en the module i s installed inside another device, then
the outside of the device into which the module is installed must also display a label referring to the
enclosed module. This exterior label can use wording such as the following: “Contains Transmitter
Module FCC ID: EROCWD7567” or “Contains FCC ID: EROCWD7567.” Any similar wording that
expr ess es the same m ean ing may be used.
The OEM integrator has to be aware not to provide information to the end user regarding how to install
or r e move this RF m odule in the u s ers manual of t he end produ ct.
The users manual for OEM integrators must include the following information in a prominent location
“IMPORTANT NOTE: To comply with FCC RF exposure compliance
requirements, the antenna used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located
or operating in conjunction with any other antenna or transmitter.”
