Two-Way RF Transceiver Module: CWD7191
Functions and Features
The CWD7191 (hereafter referred to as “module”), with a dipole antenna or an integrated SMD antenna, is a two-way radio frequency (RF) module that utilizes the 2.4 GHz frequency band to communicate with other devices.
The module operates according to the IEEE 802.15.4 specification and can be configured to minimize the possibility of interference with other devices.
The module receives RF signals from one or more Crestron devices and can transmit these signals over the air for further processing (depending on the application).
Functional Summary
2.4 GHz frequency band, IEEE 802.15.4 specification Range from 3 feet to 550 ft. Operates on one of sixteen available channels to establish optimal signal
quality
Operations Guide - DOC. 7439C Two-Way RF Transceiver Module: CWD7191 1
Two-Way RF Transceiver Module Crestron CWD7191
Specifications
The table below is a summary of specifications for the CWD7191.
Specifications of the CWD7191
SPECIFICATION DETAILS
Power Requirements 1.3 W (5 Vdc @ 0.26 A) Operating Frequency 2400 MHz to 2483.5 MHz (802.15.4 compliant) Operating Ranges* Minimum Distance Maximum Distance Indoors
(without repeater device) Available Channels 16 (numbered 11 through 26 per 802.15.4) Antenna (External) Gain: 2.0±0.5 dBi max.
Antenna (Internal) Max. Gain: 1.8 dBi
Dimensions Width: 1.80 in (4.57 cm)
* The location and orientation of the module are important factors in the RF performance. With the unit located outside of
any metal enclosures, the antenna is adjusted to achieve the best range. The range is dependent on its placement and the building in which it is used. The construction of the building, obstructions, and RF interference from other devices are factors determining the effective range of the unit. To prevent unit-to-unit RF interference, multiple modules operating at the same frequencies should not be installed within 3 – 5 feet of each other.
3 ft 550 ft
Type: Sleeve Dipole Antenna Frequency: 2.4 GHz to 2.5 GHz Connector Type: SMA Plug Reverse
Polarity Connector with ¼-36 UNS2B Screw
Average Gain: -1.9 dBi Type: SMD Frequency: 2.4 GHz to 2.5 GHz
Height: 2.00 in (5.08 cm) Depth: 0.45 in (1.14 cm)
2 Two-Way RF Transceiver Module: CWD7191 Operations Guide - DOC. 7439C
Crestron CWD7191 Two-Way RF Transceiver Module
Physical Description – CWD7191 with a SMD Antenna
The module, shown below, consists of various components attached to a printed circuit board. The circuit board attaches an intended SMD mounting antenna while a 25-pin D-SUB male connector is for the application-specific installation.

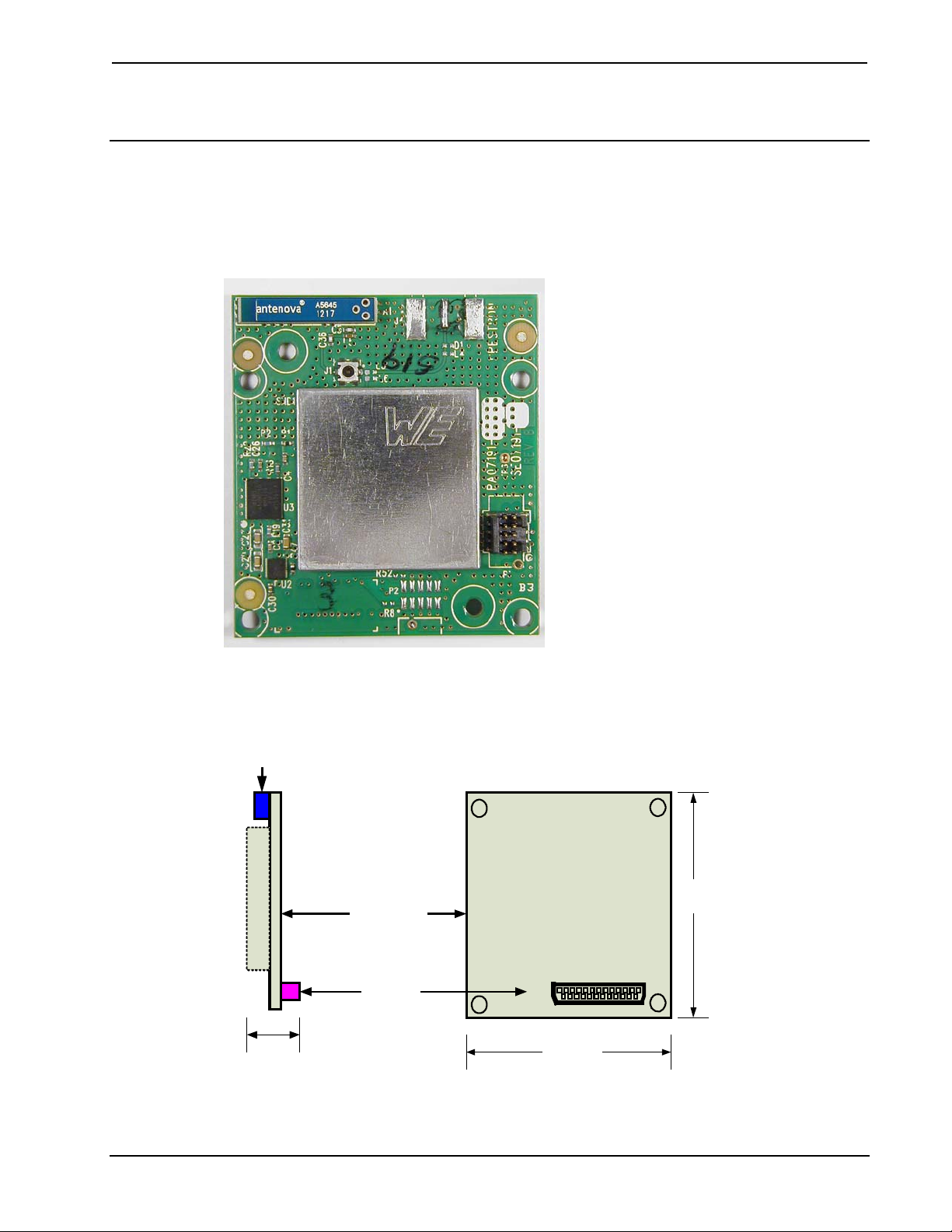

Physical View of CWD7191 (SMD Antenna)
CWD7191 Detail Views
SIDE BACK
SMD ANTENNA
P C B
RF SHIELD
0.45 inch
1.14 cm
PCB WITH RADIO
D-SUB 25 PIN
MALE CONNECTOR
PIN 1
PIN 2
1.80 inch
4.57 cm
P1
PIN 25
PIN 24
2.00 inch
5.08 cm
Operations Guide - DOC. 7439C Two-Way RF Transceiver Module: CWD7191 3
Two-Way RF Transceiver Module Crestron CWD7191
Physical Description – CWD7191 with a Dipole Antenna
The module, shown below, consists of various components attached to a printed circuit board. A SMA reverse polarity female antenna port is located at the edge of the circuit board for the attaching of a dipole antenna while a 5-pin double row male connector is for the application-specific installation.

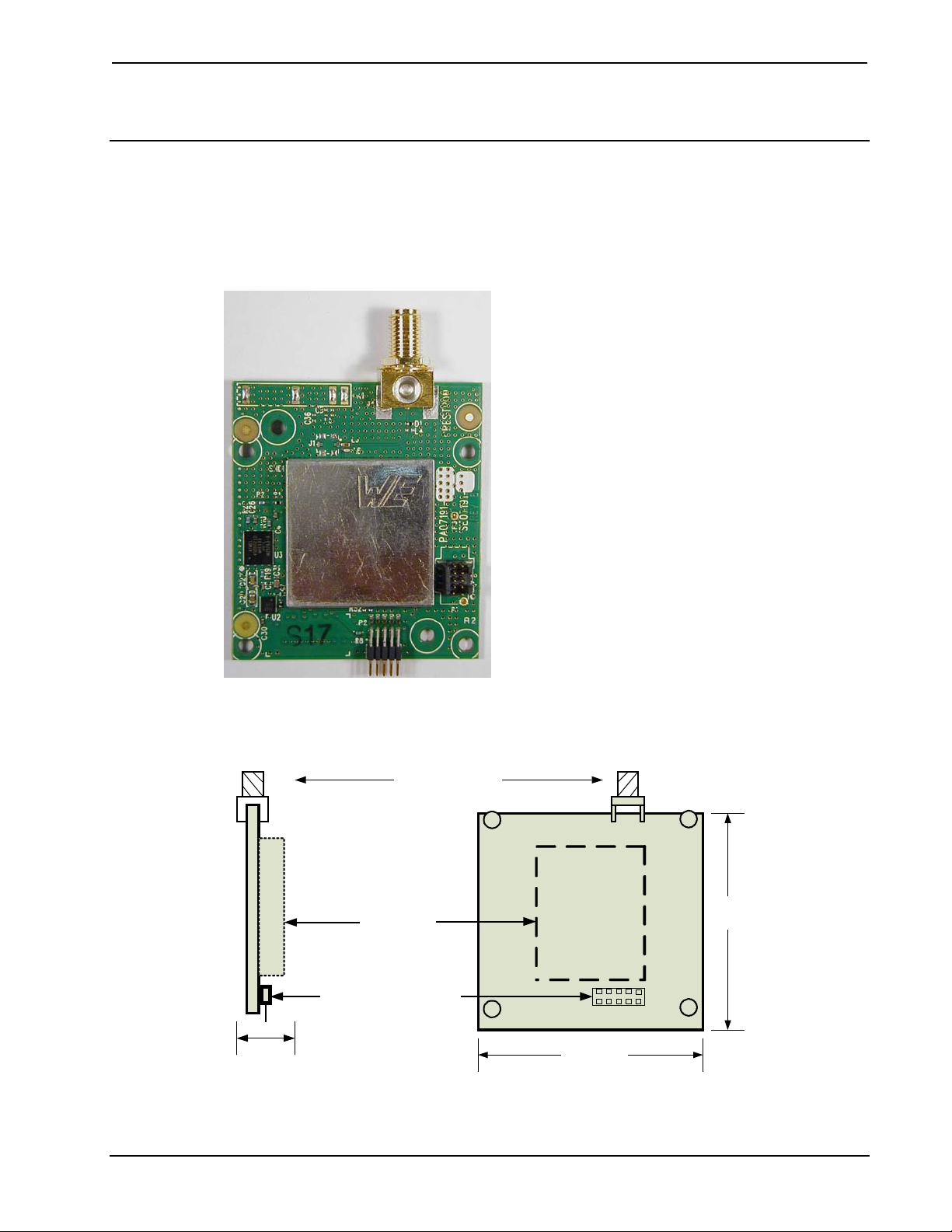

Physical View of CWD7191 (Dipole Antenna)
CWD7191 Detail Views
SIDE BACK
SMA PLUG REVERSE
POLARITY CONNECTOR
RF SHIELD
RF SHIELD
P C B
0.40 inch
1.02 cm
0.050" X 0.05"LS, RT ANGLE, SM
RF SHIELD
1.5" X 1.0" X 0.24"
HEADER, 5PIN, DBL ROW
PIN 2 PIN 1
2.50 inch
6.35 cm
PIN 10
PIN 9
P2
2.00
5.08 cm
inch
4 Two-Way RF Transceiver Module: CWD7191 Operations Guide - DOC. 7439C
Crestron CWD7191 Two-Way RF Transceiver Module
Connectors
Ports
For the CWD7191 with a SMD antenna, the module contains a 25-pin D-SUB male connector and a 10-pin debug header.
For the CWD7191 with a dipole antenna, the module contains a 5-pin double row male connector, a 10-pin debug header, and one antenna port.
The diagrams and descriptions of the 25-pin D-SUB male connector and the 5-pin double row male connector are shown in the “Power/I-O” section.
Power/I-O

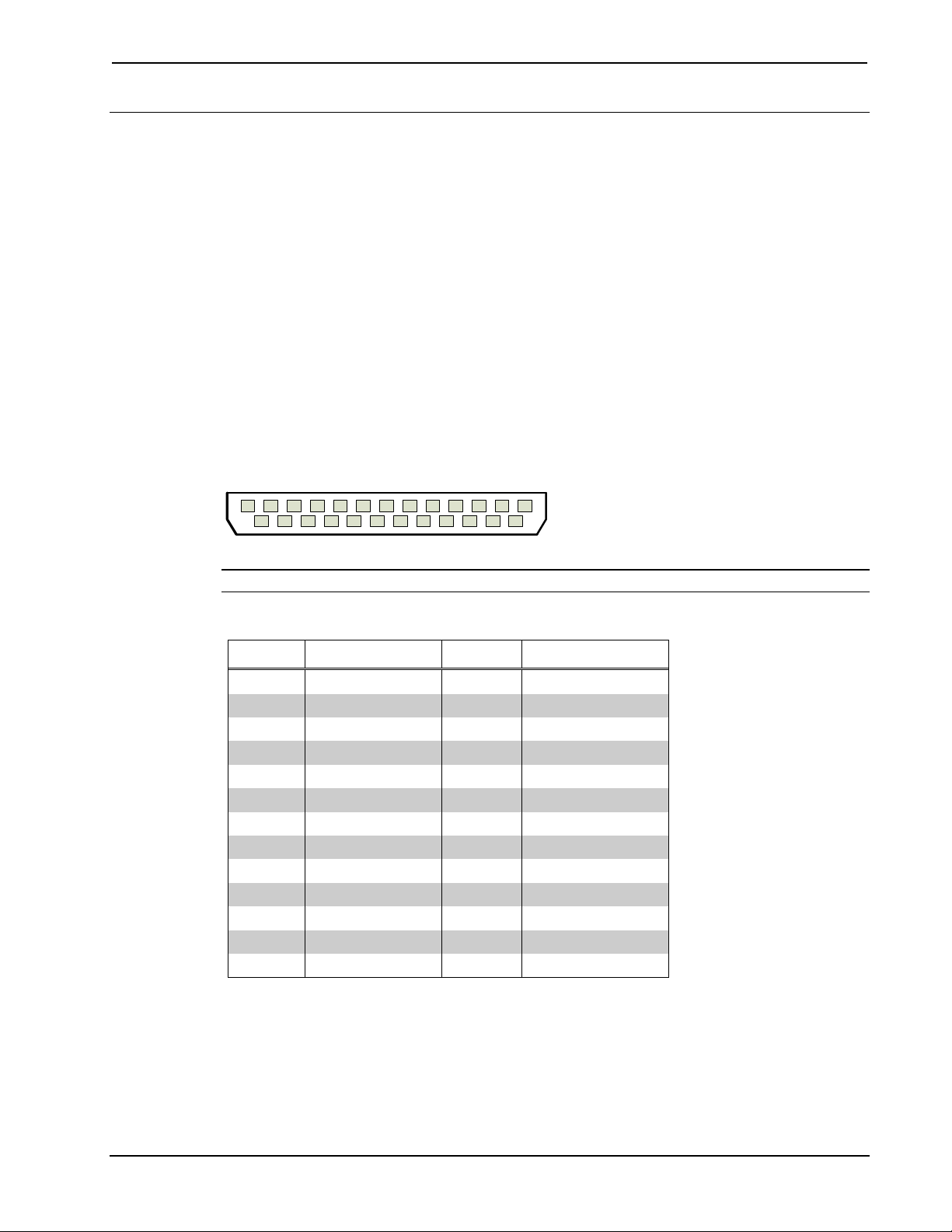

The 25-pin D-SUB male connector provides power to the module as well as the communication between the module and wired devices. Refer to the following table for pin assignments of the module interface connector.
1
1089765432
17151311
18
161412
232119
25
242220
NOTE: Pins 8, 10 and 12 provide power to the circuit card.
Power/I-O Pinout Signals
Pin # Signal Pin # Signal
1 3 5 7
9 11 13 15 17 19 21 23 25
PA7 2 PC7 PB3 4 PC6 PB4 6 RESET SPI MOSI 8 5V SPI MISO 10 5V SPI CLK 12 5V PA4 14 GND PA5 16 GND PA6 18 GND PB1/TXD 20 PB5 PB2/RXD 22 PB6 PB0 24 PB7 PC1
Operations Guide - DOC. 7439C Two-Way RF Transceiver Module: CWD7191 5
Two-Way RF Transceiver Module Crestron CWD7191
The 5-pin double row male connector provides power to the module as well as the communication between the module and wired devices. Refer to the following table for pin assignments of the module interface connector.
246810
P2
13579
(Top View)
NOTE: Pin 3 provides power to the circuit card.
Power/I-O Pinout Signals
Pin # Signal Pin # Signal
1
3
5
7
9
PB2/RXD 2 PB1/TXD 5V 4 GND SPI MISO 6 GND SPI MOSI 8 GND RESET 10 SPI CLK
6 Two-Way RF Transceiver Module: CWD7191 Operations Guide - DOC. 7439C
Crestron CWD7191 Two-Way RF Transceiver Module
Setup
Refer to the hookup diagram below, which shows the connections made to the module. Complete the connections in any order.
NOTE: To prevent unit-to-unit RF interference, multiple modules operating at the same frequencies should not be installed within three to five feet of each other.

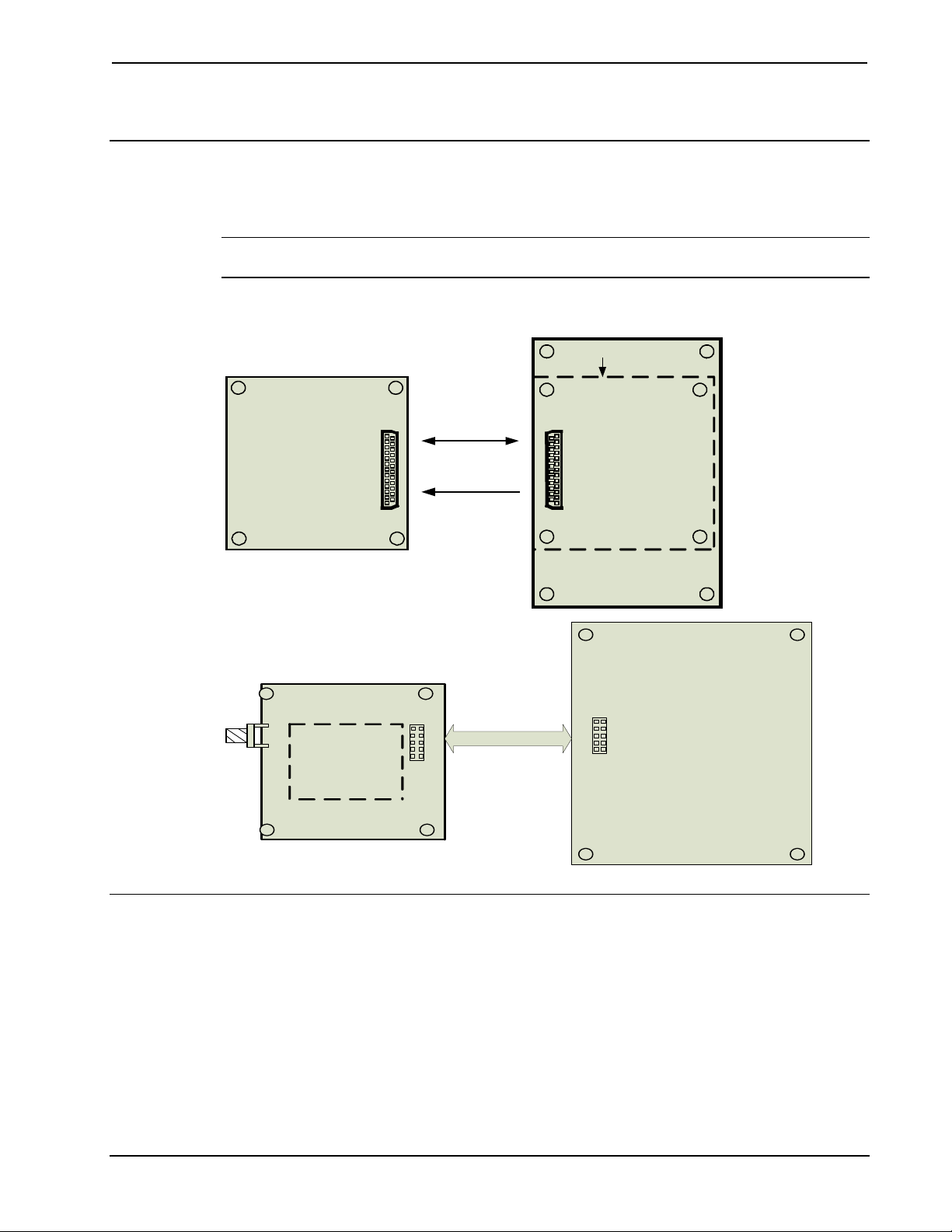

Hardware Hookup
CWD7191
RADIOMODULE
PIN 25
PIN 1
P1
PIN 24
PIN 2
CONTROL
+5V
PIN 24
PIN 25
J5
HOST PCB
PIN 1
PIN 2
PIN 9
PIN 10
PIN 9
P2
PIN 1
RF SHIELD
PIN 2
CABLE ASSY,
2.5 INCH
5 PIN DBL ROW
FEMALE, CONNC.
PIN 10
J3
HOST PCB
PIN 1
PIN 2
Labeling Requirements for the Host Device
