Crestron Electronics CWD1011 User Manual

CLW-DIM1RF, DIMS1RF, & SLVD1RF(W/A/B)

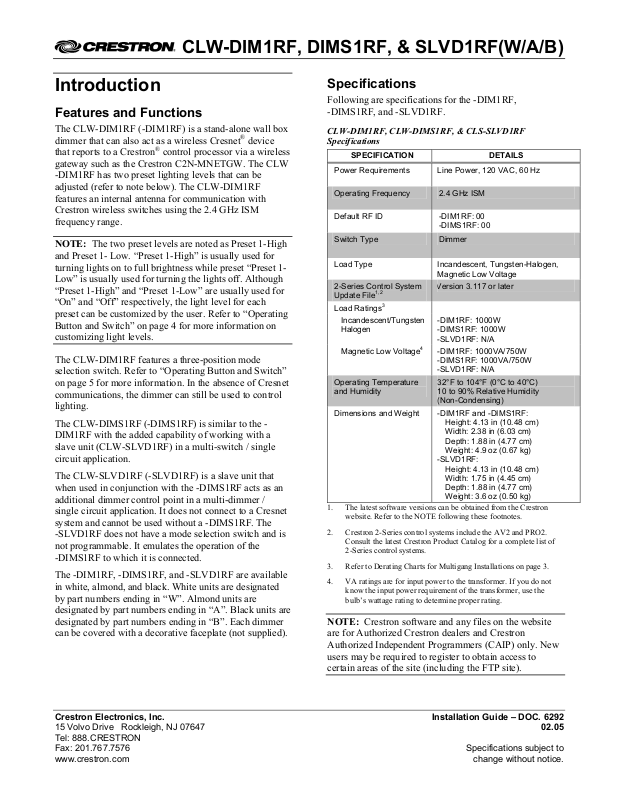

Introduction

Features and Functions

The CLW-DIM1RF (-DIM1RF) is a stand-alone wall box
dimmer that can also act as a wireless Cresnet
that reports to a Crestron® control processor via a wireless
gateway such as the Crestron C2N-MNETGW. The CLW

-DIM1RF has two preset lighting levels that can be
adjusted (refer to note below). The CLW-DIM1RF
features an internal antenna for communication with
Crestron wireless switches using the 2.4 GHz ISM
frequency range.

NOTE: The two preset levels are noted as Preset 1-High
and Preset 1- Low. “Preset 1-High” is usually used for
turning lights on to full brightness while preset “Preset 1­Low” is usually used for turning the lights off. Although
“Preset 1-High” and “Preset 1-Low” are usually used for
“On” and “Off” respectively, the light level for each
preset can be customized by the user. Refer to “Operating
Button and Switch” on page 4 for more information on
customizing light levels.

The CLW-DIM1RF features a three-position mode
selection switch. Refer to “Operating Button and Switch”
on page 5 for more information. In the absence of Cresnet
communications, the dimmer can still be used to control
lighting.

The CLW-DIMS1RF (-DIMS1RF) is similar to the ­DIM1RF with the added capability of working with a
slave unit (CLW-SLVD1RF) in a multi-switch / single
circuit application.

The CLW-SLVD1RF (-SLVD1RF) is a slave unit that
when used in conjunction with the -DIMS1RF acts as an
additional dimmer control point in a multi-dimmer /
single circuit application. It does not connect to a Cresnet
system and cannot be used without a -DIMS1RF. The

-SLVD1RF does not have a mode selection switch and is
not programmable. It emulates the operation of the

-DIMS1RF to which it is connected.

The -DIM1RF, -DIMS1RF, and -SLVD1RF are available
in white, almond, and black. White units are designated
by part numbers ending in “W”. Almond units are
designated by part numbers ending in “A”. Black units are
designated by part numbers ending in “B”. Each dimmer
can be covered with a decorative faceplate (not supplied).

®

device

Specifications

Following are specifications for the -DIM1RF,

-DIMS1RF, and -SLVD1RF.

CLW-DIM1RF, CLW-DIMS1RF, & CLS-SLVD1RF
Specifications

SPECIFICATION DETAILS

Power Requirements Line Power, 120 VAC, 60 Hz

Operating Frequency 2.4 GHz ISM

Default RF ID -DIM1RF: 00

Switch Type Dimmer

Load Type Incandescent, Tungsten-Halogen,

2-Series Control System
Update File

Load Ratings3

Incandescent/Tungsten

Halogen

Magnetic Low Voltage4 -DIM1RF: 1000VA/750W

Operating Temperature
and Humidity

Dimensions and Weight -DIM1RF and -DIMS1RF:

1. The latest software versions can be obtained from the Crestron

2. Crestron 2-Series control systems include the AV2 and PRO2.

3. Refer to Derating Charts for Multigang Installations on page 3.

4. VA ratings are for input power to the transformer. If you do not

1,2

website. Refer to the NOTE following these footnotes.

Consult the latest Crestron Product Catalog for a complete list of
2-Series control systems.

know the input power requirement of the transformer, use the
bulb’s wattage rating to determine proper rating.

NOTE: Crestron software and any files on the website
are for Authorized Crestron dealers and Crestron
Authorized Independent Programmers (CAIP) only. New
users may be required to register to obtain access to
certain areas of the site (including the FTP site).

-DIMS1RF: 00

Magnetic Low Voltage

Version 3.117 or later

-DIM1RF: 1000W

-DIMS1RF: 1000W

-SLVD1RF: N/A

-DIMS1RF: 1000VA/750W

-SLVD1RF: N/A

32°F to 104°F (0°C to 40°C)
10 to 90% Relative Humidity
(Non-Condensing)

Height: 4.13 in (10.48 cm)
Width: 2.38 in (6.03 cm)
Depth: 1.88 in (4.77 cm)
Weight: 4.9 oz (0.67 kg)

-SLVD1RF:
Height: 4.13 in (10.48 cm)
Width: 1.75 in (4.45 cm)
Depth: 1.88 in (4.77 cm)
Weight: 3.6 oz (0.50 kg)

Crestron Electronics, Inc. Installation Guide – DOC. 6292

15 Volvo Drive Rockleigh, NJ 07647 02.05
Tel: 888.CRESTRON
Fax: [phone] Specifications subject to
www.crestron.com change without notice.

CLW-DIM1RF, DIMS1RF, & SLVD1RF(W/A/B)

Physical Description

The -DIM1RF and -DIMS1RF contain one large
pushbutton, a light emitting diode (LED) with software
adjustable brightness*, and a three-position slider-switch,
shown after this paragraph. The -SLVD1RF is similar to
the -DIM1RF and -DIMS1RF but does not have the
slider-switch. Line voltage connections are made at the
rear of the dimmer.

* LED brightness can only be adjusted through Crestron programming

software.

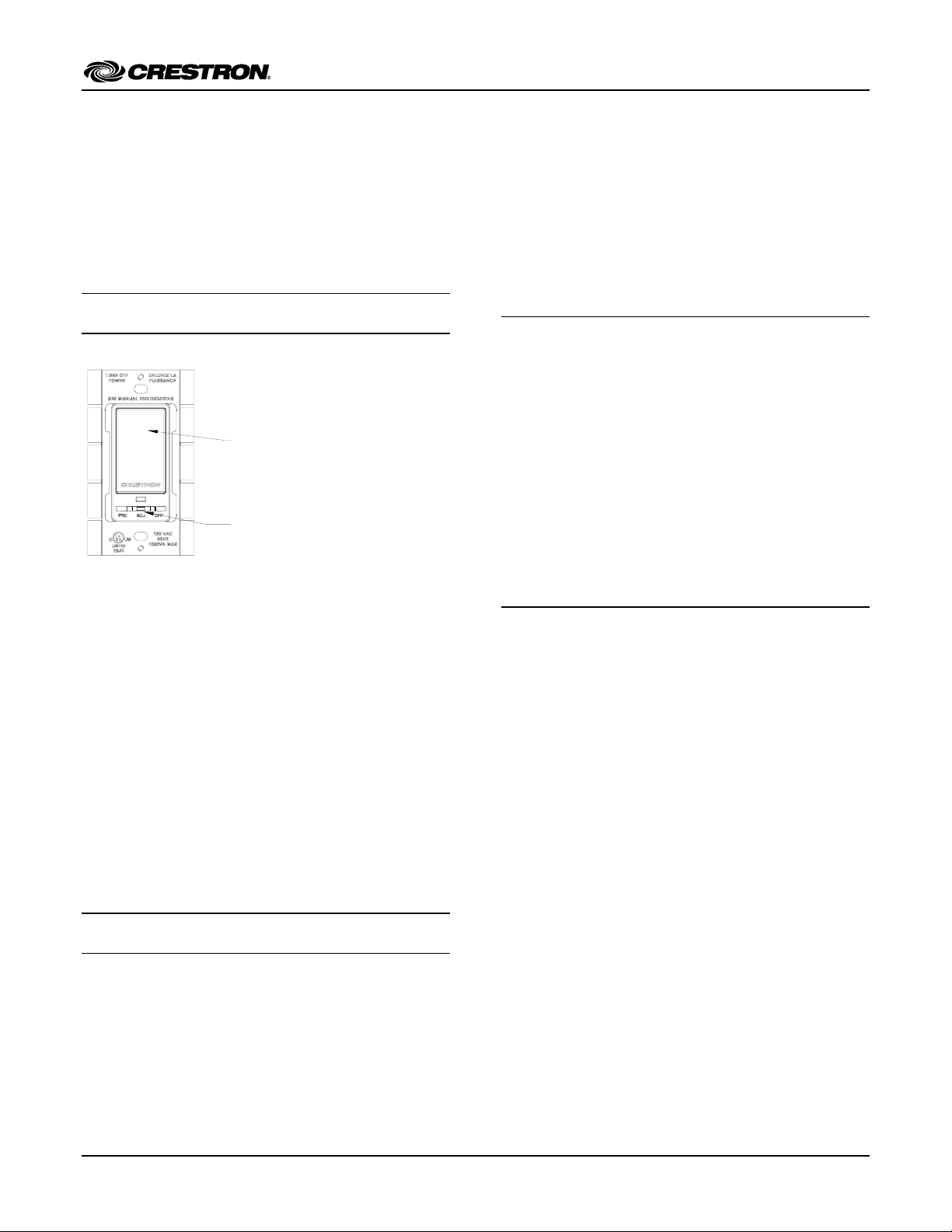

CLW-DIM1RF/-DIMS1RF (L) and CLW-SLVD1RF (R)
shown in white

Physical view of CLW-DIM1RF/-DIMS1RF
(clockwise from top; Top, Side, and Front)

1.75 in

(4.45 cm)

Physical view of CLW-SLVD1RF (clockwise from top; Top,
Side, and Front)

1.75 in

(4.45 cm)

3.28 in

(8.32 cm)

3.81 in

(9.68 cm)

(10.48 cm)

4.13 in

1.88 in

(4.77 cm)

1.50 in

(3.81 cm)

2.70 in

(6.86 cm)

The -DIM1RF, -DIMS1RF, and -SLVD1RF mount in a
standard wallbox and are covered using a decorative
faceplate (not included).

Industry Compliance

This unit has been manufactured to comply with UL’s
Standards for Safety in Canada and the United States.
Formal approval is pending.

2.38 in

(6.03 cm)

3.28 in

(8.32 cm)

3.81 in

(9.68 cm)

(10.48 cm)

4.13 in

1.88 in

(4.77 cm)

1.50 in

(3.81 cm)

2.70 in

(6.86 cm)

Compliance Statement (Part 15.19 )
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received,
including interference that may cause undesired
operation.

Warning (Part 15.21 )
Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.

RF Exposure (OET Bulletin 65 )
To comply with FCC's RF exposure limits for general
population / uncontrolled exposure, the antenna(s) used
for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and
must not be co-located or operating in conjunction with
any other antenna or transmitter.

Industry Canada Statement

The term "IC" before the certification/registration number
only signifies that the Industry Canada technical
specifications were met.
IC: 5683A-CWD1011

2 • Stand Alone Wall Box Dimmer : CLW-DIM1RF, DIMS1RF, & SLVD1RF Installation Guide – DOC. 6292

CLW-DIM1RF, DIMS1RF, & SLVD1RF(W/A/B)

Important Notes

Read before installation.

• Codes: Install in accordance with all local and
national electrical codes.

CAUTION: TO REDUCE THE RISK OF

•

OVERHEATING AND POSSIBLE DAMAGE
TO OTHER EQUIPMENT, DO NOT INSTALL
TO CONTROL A RECEPTACLE OR A
MOTOR OPERATED APPLIANCE (i.e. BATH
FAN).

• Wiring: Use copper wire only. For supply
connections, use wires rated for at least 75°C.

• Lamp Type: The -DIM1RF, -DIMS1RF, and ­SLVD1RF are designed for use with
permanently installed incandescent, magnetic
low voltage, or tungsten-halogen only.

• Temperature: The -DIM1RF, -DIMS1RF, and ­SLVD1RF are designed to be used where
temperatures are between 32° to 104°F (0° to
40°C).

• Wallboxes: Devices mount in standard
wallboxes. For easy installation, Crestron
recommends using 3 ½” deep wallboxes. Several
devices can be installed in one wall box
(multigang). This requires the removal of side
sections (refer to diagram on page 3) and the
derating of the dimming device. For a smooth
appearance, one-piece multigang faceplates (not
supplied) can be installed.

• Other Switch Devices: Mechanical 3- or 4-way
switches will not work with the -DIM1RF, ­DIMS1RF, or -SLVD1RF.

• Spacing: If mounting one device above another,
leave at least 4 ½” vertical space between them.

• Low Voltage Applications: Use with core and
coil (magnetic) low voltage transformers only.
Do not use any solid-state electronic low voltage
transformers.

Operation of a low voltage circuit with all lamps
inoperative or removed may result in current
flow in excess of normal levels. To avoid
transformer overheating and premature
transformer failure, Crestron recommends the
following:

 Do not operate low voltage circuits

without operative lamps in place.

 Replace burned-out lamps as quickly as

possible.

 Use transformers that incorporate

thermal protection or fuse transformer
primary windings to prevent
transformer failure due to overcurrent.

Multigang Installations

In multigang installations, several controls are grouped
horizontally in one wallbox. For a smooth appearance,
one-piece multigang faceplates (not supplied) can be
installed.

1. When combining controls in a wallbox, remove
inner side sections prior to wiring (refer to the
following figure).

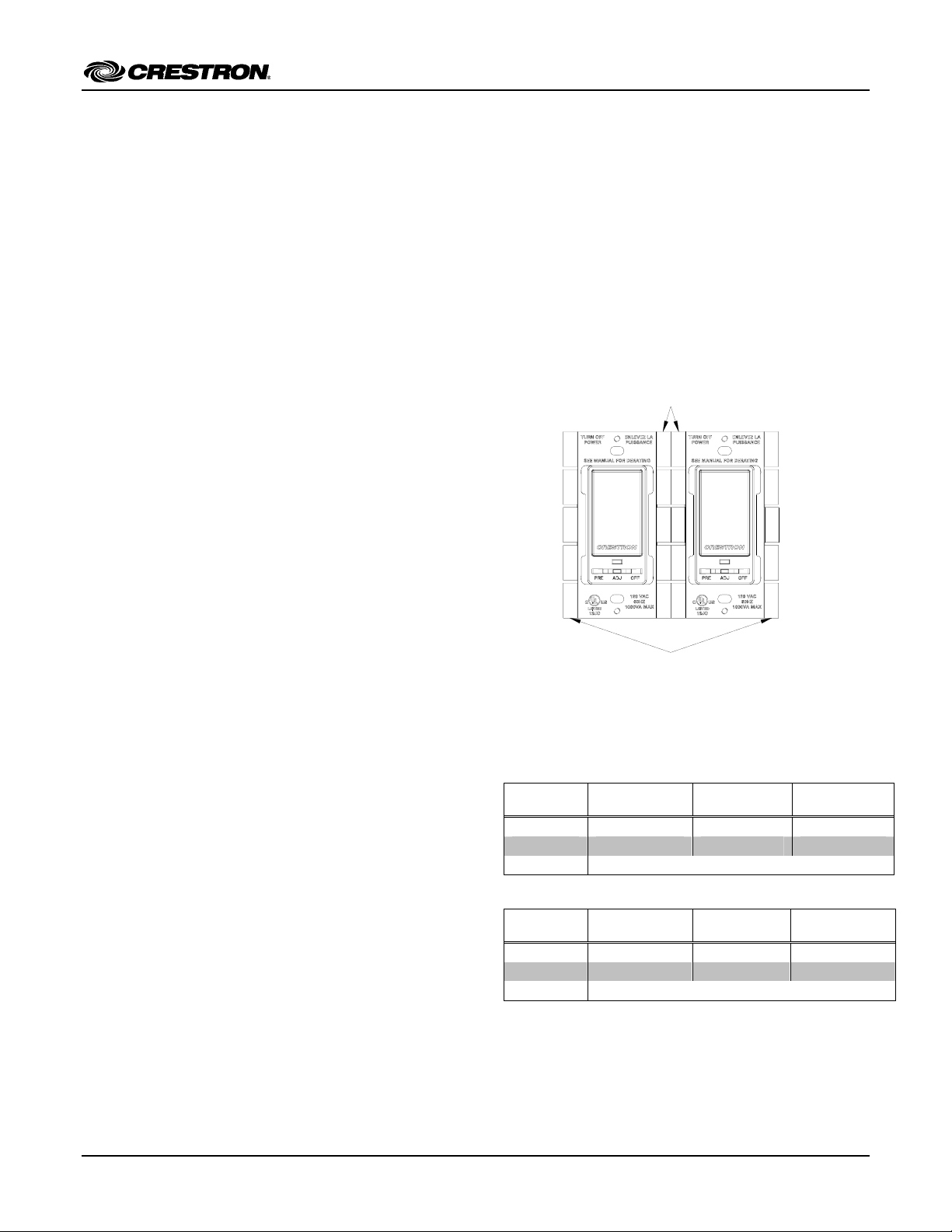

Inner Sections of Multiganged Switches

REMOVE INNER SECTIONS

DO NOT REMOVE OUTER SECTIONS

The load capacity must also be derated. The
following charts provide derating information for
various applications.

Derating Information for Incandescent and Tungsten Halogen
Applications

Part

Number

-DIM1RF 1000W 600W 400W

-DIMS1RF 1000W 600W 400W

-SLVD1RF No Derating Necessary

Derating Information for Magnetic Low Voltage Applications*

Part

Number

-DIM1RF 1000VA/750W 600VA/450W 400VA/300W

-DIMS1RF 1000VA/750W 600VA/450W 400VA/300W

-SLVD1RF No Derating Necessary

* VA ratings are for input power to the transformer. If you do not

know the input power requirement of the transformer, use the bulb’s
wattage rating to determine proper rating.

No Side

Removed

No Side

Removed

One Side
Removed

One Side

Removed

2. To remove a side section, bend the side section
back and forth with a pair of pliers until the
section breaks off from the mounting plate. Use a
file or sandpaper to remove any excess metal.

Two Sides

Removed

Two Sides

Removed

Installation Guide – DOC. 6292 Stand Alone Wall Box Dimmer: CLW-DIM1RF, DIMS1RF, & SLVD1RF • 3

CLW-DIM1RF, DIMS1RF, & SLVD1RF(W/A/B)

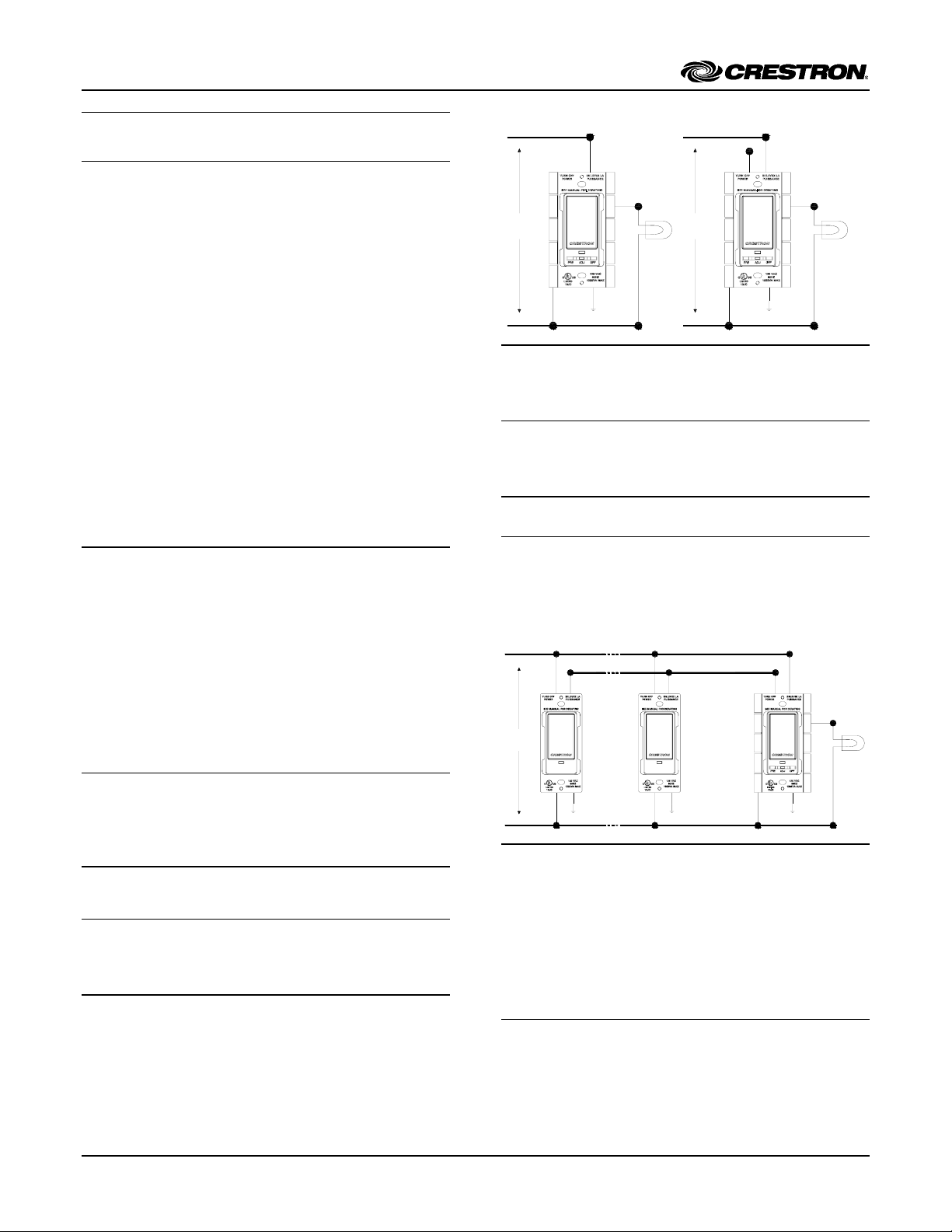

Wiring Diagram for CLW-DIM1RF (L) / CLW-DIMS1RF (R)

Installation

NOTE: The -DIMS1RF must be installed in the same
wallbox that contains the connections to the load.

NOTE: The -DIM1RF, -DIMS1RF, and -SLVD1RF
require a neutral wire for operation. If no neutral is
present, contact a licensed electrician for installation or
contact Crestron Customer Service for alternative wiring
options.

WARNING: Turn off power at the circuit breaker.
Installing with power on can result in serious personal
injury and damage to the device.

NOTE: New installations should be checked for short
circuits prior to installing the -DIM1RF, -DIMS1RF, or

-SLVD1RF. With power off, close the circuit and restore
power. If the lights do not work or a breaker trips, check
and correct the wiring or fixture (if necessary). Install the

-DIM1RF, -DIMS1RF, or -SLVD1RF only when the
short is no longer present. The warranty is void if the

-DIM1RF, -DIMS1RF, or -SLVD1RF is installed and
operated with a shorted load.

1. Turn power off at the circuit breaker.

2. If installing multiple dimmers (-DIM1RF or

-DIMS1RF), note the serial number on each
device and make sure they are being installed in
the proper location.

3. Wire the device for the appropriate application.
Choose either “CLW-DIM1RF / CLW­DIMS1RF Wiring” or “CLW-DIMS1RF with
CLW-SLVD1RF Wiring”, shown on this page
and the following page.

Hot

BLACK

RED

LINE

120VAC

60Hz

WHITE

Neutral

GREEN

Ground

NOTE: The RED (Load) and BLACK (Hot) wires are
#14 AWG. The BLUE (Slave) and WHITE (Neutral)
wires are #18 AWG. The GREEN (Ground) wire is #16
AWG.

CLW-DIMS1RF with CLW-SLVD1RF Wiring

NOTE: The -DIMS1RF must be installed in the same
wallbox that contains the connections to the load.

The following wiring diagram illustrates installation of
the -DIMS1RF with multiple -SLVD1RFs.

Wiring Diagram of CLW-DIMS1RF with multiple CLW­SLVD1RFs

Hot

LINE

120VAC

60Hz

CLW-SLVD1RF

CLW-SLVD1RF

BLACK BLUE

Load

Hot

LINE

120VAC

60Hz

Neutral

WHITE

BLUE

BLACK

GREEN

Ground

CLW-DIMS1RF

BLACK

BLUEBLACK BLUE

RED

Load

RED

Load

NOTE: Alternative wiring methods can be obtained from
the Dealer/Tech Resources | Design Center section of the
Crestron website (http://www.crestron.com/dealer-

Neutral

WHITE

GREEN GREEN

Ground Ground

WHITE

GREEN

Ground

WHITE

tech_resources/design_center/hot_design_tips_and_
diagrams/tech_sales_tips/).

NOTE: Do not connect the BLUE (Slave) wire to the
Black (Hot) or RED (Load) wires.

CLW-DIM1RF / CLW-DIMS1RF Wiring

NOTE: The -DIM1RF and -DIMS1RF require a neutral
wire for operation. If no neutral is present, contact a
licensed electrician for installation or contact Crestron
customer service for alternative wiring options.

The following wiring diagram illustrates installation of
the -DIM1RF or -DIMS1RF.

NOTE: The RED (Load) and BLACK (Hot) wires are
#14 AWG. The BLUE (Slave) and WHITE (Neutral)
wires are #18 AWG. The GREEN (Ground) wire is #16
AWG.

NOTE: If a -DIMS1RF is installed without a

-SLVD1RF, the BLUE lead (Slave) should be capped.

4. Push all Class 1 power wires back into the
wallbox and fasten the device to the wallbox
with the provided screws.

5. Attach decorative faceplate.

6. Restore power.

4 • Stand Alone Wall Box Dimmer : CLW-DIM1RF, DIMS1RF, & SLVD1RF Installation Guide – DOC. 6292

CLW-DIM1RF, DIMS1RF, & SLVD1RF(W/A/B)

Operating Button and Switch

The -DIM1RF, -DIMS1RF, and -SLVD1RF have one
large pushbutton. The single button may be pushed at the
top or bottom to perform certain functions. The -DIM1RF
and -DIMS1RF also have a three-position mode selection
switch. The function of the pushbutton is determined by
the position of the mode selection switch. Refer to the
following diagram.

NOTE: The -SLVD1RF does not have a mode selection
switch. It will act in the same mode as the -DIMS1RF.

Buttons of CLW-DIM1RF, -DIMS1RF, and -SLVD1RF

Button

Pressing and holding the a button until the LED flashes
will store the current lighting level.

* The preset fade time can only be adjusted through Crestron

programming software.

To store preset values for “Preset 1-High” and “Preset 1­Low”; while in the PRE mode, recall the lighting level to
be changed. Switch to the ADJ mode and adjust the
lighting to the desired level. Move the mode selection
switch to PRE. Press and hold the pushbutton until the
LED flashes to store the new preset value.

NOTE: If a new preset value for “Preset 1-High” is
lower than the stored value for “Preset 1-Low”, the
previously stored value for “Preset 1-Low” becomes
“Preset 1-High”. Similarly, if a new preset value for
“Preset 1-low” is higher than the value stored for “Preset
1-High”, the previously stored value for “Preset 1-High”
becomes “Preset 1-Low”.

NOTE: The default preset light values for each preset
are:

Mode Selection Switch
(-DIM1RF & -DIMS1RF Only)

OFF

When the mode selection switch is in the “OFF” position,
the pushbutton will not have any function and the load is
disconnected from the power source. This must be used
when changing light bulbs to ensure that the load is fully
disconnected from power.

ADJ

When the mode selection switch is in the “ADJ” position,
tapping the top of the button set the light to the Preset
1-Hi level. Tapping the bottom of the button will set the
light to the Preset 1-Lo level.

Pressing the button on the bottom will ramp the light level
down until it reaches 0%, or until the button is released.

Pressing the button on the top will ramp the light level up
until it reaches 100%, or until the button is released.

PRE

NOTE: Before storing a preset, the lighting must be
adjusted to the desired level while in the ADJ mode.

• Preset 1-High: 100%

• Preset 1-Low: 0%

NOTE: The device may be warm to the touch during
operation. This is normal.

Restoring Default Settings

To restore the dimmer’s default settings for lighting
levels, preset fade time (two seconds), and ramp time
(five seconds), move the mode selection switch to the
PRE position. While holding the pushbutton, move the
mode selection switch to the ADJ position and back to the
PRE position. Release the pushbutton. The LED will flash
to confirm that the default values have been restored.

When the switch is in the PRE position, it is in the preset
mode and can be used to recall and/or store preset lighting
levels. The pushbutton is used to recall and/or store the
“Preset 1-High” and “Preset 1-Low” presets. Pressing and
releasing the pushbutton will fade to the preset lighting
level over a preset amount of time*. Tapping the
pushbutton while the light is fading will cause the light
level to “jump” directly to the preset without fading.

Installation Guide – DOC. 6292 Stand Alone Wall Box Dimmer: CLW-DIM1RF, DIMS1RF, & SLVD1RF • 5

CLW-DIM1RF, DIMS1RF, & SLVD1RF(W/A/B)

Return and Warranty Policies

Merchandise Returns / Repair Service

1. No merchandise may be returned for credit, exchange, or
service without prior authorization from CRESTRON. To
obtain warranty service for CRESTRON products, contact
the factory and request an RMA (Return Merchandise
Authorization) number. Enclose a note specifying the nature
of the problem, name and phone number of contact person,
RMA number, and return address.

2. Products may be returned for credit, exchange, or service
with a CRESTRON Return Merchandise Authorization
(RMA) number. Authorized returns must be shipped freight
prepaid to CRESTRON, 6 Volvo Drive, Rockleigh, N.J, or
its authorized subsidiaries, with RMA number clearly marked
on the outside of all cartons. Shipments arriving freight
collect or without an RMA number shall be subject to refusal.
CRESTRON reserves the right in its sole and absolute
discretion to charge a 15% restocking fee, plus shipping
costs, on any products returned with an RMA.

3. Return freight charges following repair of items under
warranty shall be paid by CRESTRON, shipping by standard
ground carrier. In the event repairs are found to be non­warranty, return freight costs shall be paid by the purchaser.

CRESTRON Limited Warranty

CRESTRON ELECTRONICS, Inc. warrants its products to be free from
manufacturing defects in materials and workmanship under normal use
for a period of three (3) years from the date of purchase from
CRESTRON, with the following exceptions: disk drives and any other
moving or rotating mechanical parts, pan/tilt heads and power supplies
are covered for a period of one (1) year; touchscreen display and overlay
components are covered for 90 days; batteries and incandescent lamps
are not covered.

This warranty extends to products purchased directly from CRESTRON
or an authorized CRESTRON dealer. Purchasers should inquire of the
dealer regarding the nature and extent of the dealer's warranty, if any.

CRESTRON shall not be liable to honor the terms of this warranty if the
product has been used in any application other than that for which it was
intended, or if it has been subjected to misuse, accidental damage,
modification, or improper installation procedures. Furthermore, this
warranty does not cover any product that has had the serial number
altered, defaced, or removed.

This warranty shall be the sole and exclusive remedy to the original
purchaser. In no event shall CRESTRON be liable for incidental or
consequential damages of any kind (property or economic damages
inclusive) arising from the sale or use of this equipment. CRESTRON is
not liable for any claim made by a third party or made by the purchaser
for a third party.

CRESTRON shall, at its option, repair or replace any product found
defective, without charge for parts or labor. Repaired or replaced
equipment and parts supplied under this warranty shall be covered only
by the unexpired portion of the warranty.

Except as expressly set forth in this warranty, CRESTRON makes no
other warranties, expressed or implied, nor authorizes any other party to
offer any warranty, including any implied warranties of merchantability
or fitness for a particular purpose. Any implied warranties that may be
imposed by law are limited to the terms of this limited warranty. This
warranty statement supercedes all previous warranties.

Trademark Information

All brand names, product names, and trademarks are the sole property of their respective
owners. Windows is a registered trademark of Microsoft Corporation. Windows95/98/Me/XP
and WindowsNT/2000 are trademarks of Microsoft Corporation.

6 • Stand Alone Wall Box Dimmer : CLW-DIM1RF, DIMS1RF, & SLVD1RF Installation Guide – DOC. 6292
