Crestron UPX-2 Universal Presentation Processor Operations Guide

This document was prepared and written by the Technical Documentation department at:

Windows

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

and Windows® XP are registered trademarks of Microsoft Corporation in the United States and other countries.

All brand names, product names and trademarks are the property of their respective owners.

Universal Presentation Processor Crestron UPX-2

Contents

UPX-2 Quick Start iii

Introduction ...................................................................................................................... iii

Required Equipment.................................................................................................................iii

Hook Up ...................................................................................................................................iii

Accessing the SETUP MENU.................................................................................................. vi

Establish Communications .....................................................................................................viii

Calibrate the Output Display Device ....................................................................................... xii

Calibrate the Touchpanel........................................................................................................ xiii

Download the Required Files from Crestron.......................................................................... xiv

Load the Demo Program & Project ........................................................................................xiv

Troubleshooting the Demo Program......................................................................................xvii

Button Configuration.............................................................................................................xvii

Connect the RGB and Video Sources................................................................................... xviii

Calibrate the RGB/Video Inputs...........................................................................................xviii

Storage Devices...................................................................................................................... xix

Universal Presentation Processor: UPX-2 1

Introduction ........................................................................................................................1

Features and Functions .............................................................................................................. 1

Demonstration Program............................................................................................................. 5

Specifications ............................................................................................................................7

Physical Description................................................................................................................ 10

Industry Compliance................................................................................................................ 18

Setup.................................................................................................................................19

Rack Mounting ........................................................................................................................ 19

Network Wiring....................................................................................................................... 20

Crestron Toolbox..................................................................................................................... 21

Identity Code ........................................................................................................................... 21

Configuring the UPX-2 ...........................................................................................................23

Hardware Hookup.................................................................................................................... 52

Setting Up a Projector for the UPX-2...............................................................................57

Programming .................................................................................................................... 58

Uploading and Upgrading.................................................................................................59

Establishing Communications Between the PC and the UPX-2 .............................................. 59

Troubleshooting Communications........................................................................................... 68

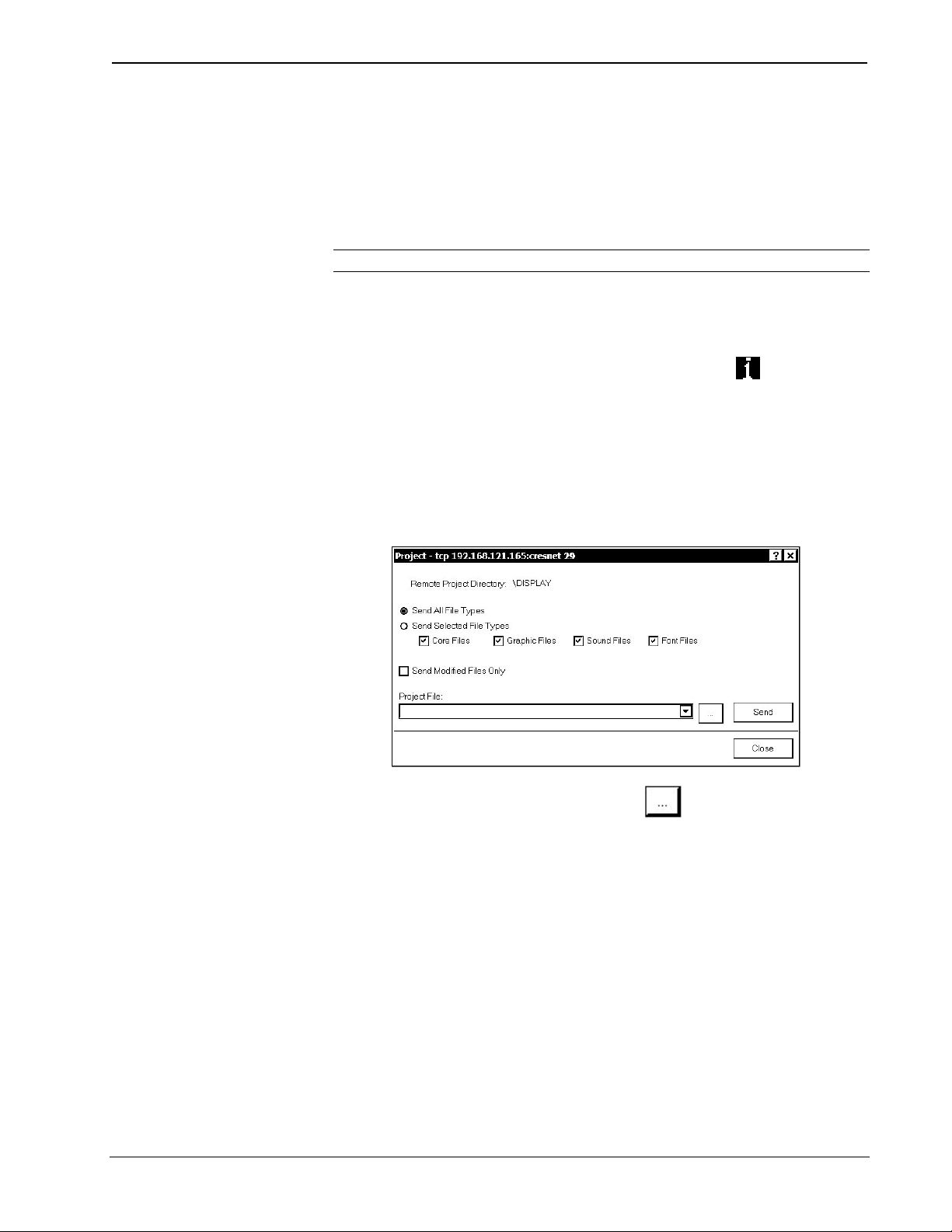

Uploading a VT Pro-e Project .................................................................................................69

Firmware Upgrade................................................................................................................... 70

Operation .......................................................................................................................... 72

Embedded Applications...........................................................................................................72

MediaMarker ........................................................................................................................... 72

Security Infrastructure ............................................................................................................. 73

Problem Solving ...............................................................................................................74

Troubleshooting....................................................................................................................... 74

Restoring UPX-2 Default Settings........................................................................................... 75

Further Inquiries ...................................................................................................................... 76

Future Updates......................................................................................................................... 76

Operations Guide – DOC. 6276B Contents • i

Crestron UPX-2 Universal Presentation Processor

Appendix: Video Definitions............................................................................................77

RGB and Video .......................................................................................................................77

Video Standards....................................................................................................................... 78

Progressive and Interlaced Video ............................................................................................ 79

Aspect Ratios........................................................................................................................... 81

Software License Agreement............................................................................................84

Return and Warranty Policies........................................................................................... 86

Merchandise Returns / Repair Service..................................................................................... 86

CRESTRON Limited Warranty............................................................................................... 86

Microsoft® Windows® XP Embedded End User License Agreement ..............................87

INDEX..............................................................................................................................89

ii ¥ Contents Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

UPX-2 Quick Start

Introduction

The following steps are designed to guide you through the basic hookup, configuration and loading of the demo program. The demo program contains files required by the UPX-2 and the 2-Series control system.

Required Equipment

The following equipment is required to load and run the demo program.

• UPX-2 Universal Presentation Processor.

• 2-Series control system with CUZ file version 3.137 or later.

• DTT DualTouch touchpanel

• PS/2

• PS/2 mouse (not included)

• USB cable for connecting UPX-2 to DTT DualTouch touchpanel

• RGB cable for connecting UPX-2 to DTT DualTouch touchpanel

• Power cables (included with UPX-2 and DTT DualTouch touchpanel)

• Cresnet

keyboard (not included)

(included with DTT DualTouch touchpanel)

cable for connecting the UPX-2 to the 2-Series control system

(not included)

Hook Up

Refer to the following diagrams and connect the UPX-2 in the following order.

1. You must connect a PS/2 keyboard and mouse to the UPX-2 to establish communication for the first time. After the initial setup, the mouse and keyboard will not be required except for troubleshooting.

2. Connect the DTT-15V2 or DTT-17 to the UPX-2 using the supplied DVI/RGB cable and USB cable. The DVI/RGB adaptor cable is connected to RGB OUTPUT A. The USB cable is connected to a USB port on the UPX-2.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ iii

Crestron UPX-2 Universal Presentation Processor

NOTE: If using a UPX-2 containing a 512MB operating system, the USB cable should be connected to the bottom-left USB port.

NOTE: Refer to the latest version of the DTT-15V2 (Doc. 6342) or DTT-17 (Doc. 6343) Operations Guide for additional details. These guides are available from the Crestron website (http://www.crestron.com/manuals).

NOTE: The UPX-2 supports a variety of touchpanels from different manufacturers. For information on selecting a supported touchpanel model, refer to “Configuring Touch Screens” on page 31 for more information.

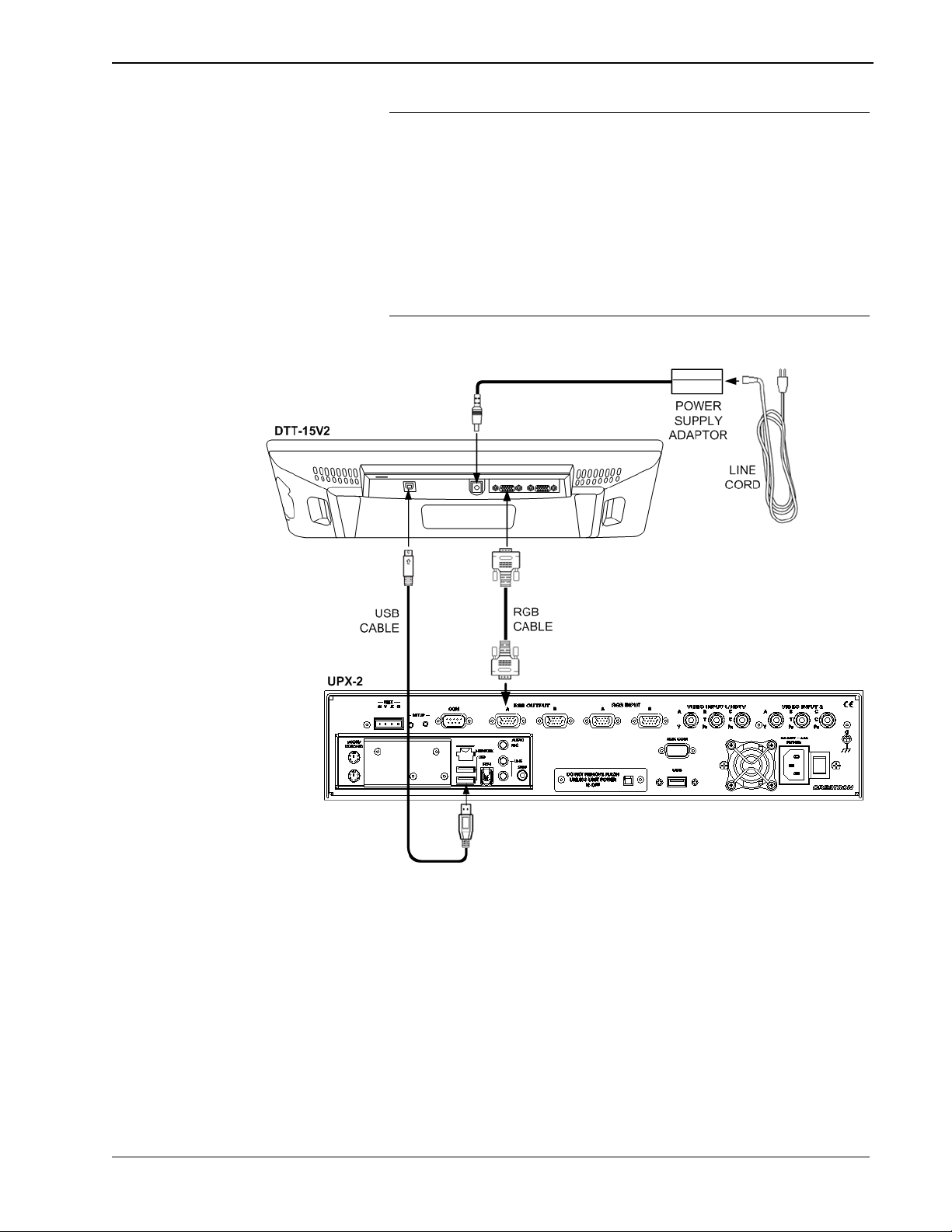

DTT-15V2 Hookup

iv ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

DTT-17 Hookup

NOTE: One or two touchpanels may be connected.

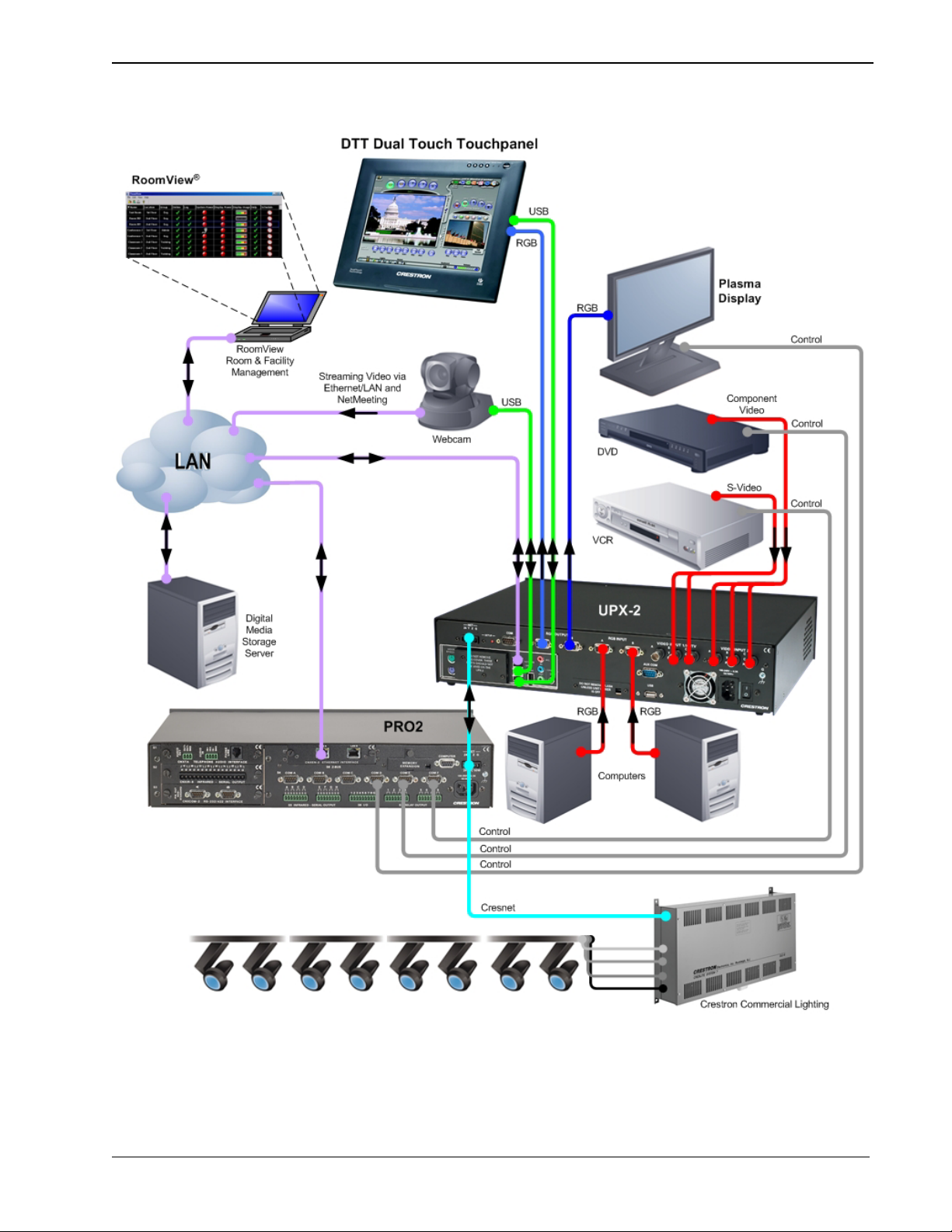

3. Use the following diagram to make the rest of the required connections.

Setup Connections

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ v

Crestron UPX-2 Universal Presentation Processor

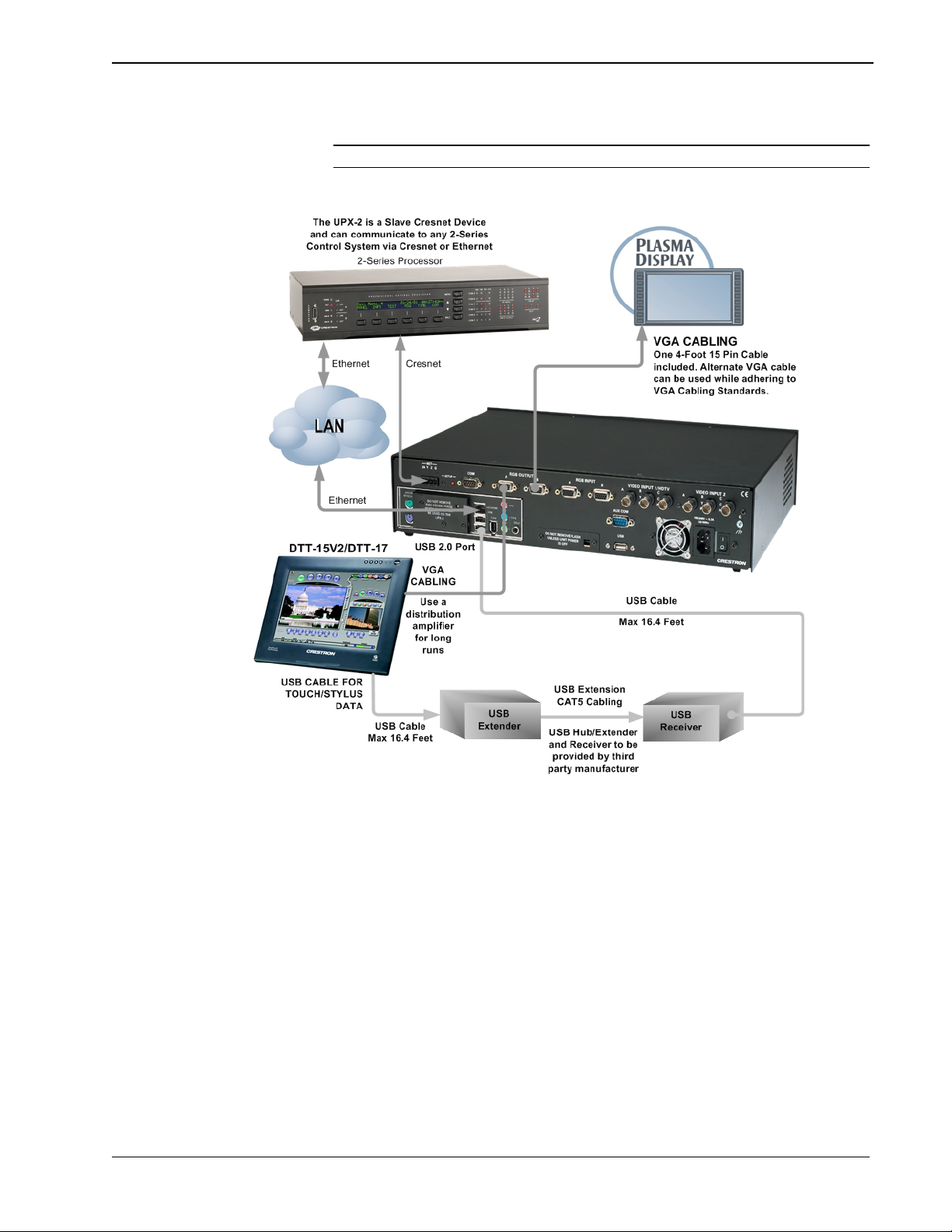

NOTE: Refer to “Hardware Hookup” on page 52 for additional hook up information.

4. Connect the programming computer to the UPX-2 AUX COM connector with a null-modem serial cable. Refer to page 15 for AUX COM connector pinouts.

Null Modem Cable

Pins

2 3 5 7 8

Optionally, you can connect the UPX-2 to the Ethernet (after establishing serial communications), or use a crossover Ethernet connector to connect directly to the computer. The Ethernet connection is the fastest method for sending/uploading projects and firmware. Refer to “TCP/IP Communication” on page 64 for Ethernet connection information.

NOTE: Sending project files via Cresnet is not recommended.

Pins

2 3 5 7 8

5. Connect the 2-Series control system using a Cresnet cable.

NOTE: The UPX-2 does not supply power to, or use power from, the 24 VDC Cresnet connection.

NOTE: The UPX-2 defaults to Cresnet ID 03.

6. Connect the audience display device to RGB OUTPUT B.

7. Connect the power cord and power up the UPX-2. The DTT screen cycles through a series of different color screens as it normally powers up.

8. When the license agreement appears, click I agree to accept the terms and conditions. A printed version of this agreement appears at the end of this guide.

9. The SETUP MENU will be displayed after agreeing to the license.

CAUTION: At power up or reboot, the touchpanel will cycle through colors and the Crestron logo screen for approximately 2.5 minutes prior to displaying the progress bar. This is a normal part of the boot up process. Do not turn off power to the UPX-2 while it is rebooting. Damage may occur.

Accessing the SETUP MENU

1. If a project is displayed, access the SETUP MENU by pressing Ctrl+Alt+Shift on the keyboard connected to the UPX-2.

2. When prompted, enter the user account upxadmin, and the password upxadmin and click Validate.

vi ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

“Security” Window

NOTE: The password is case sensitive.

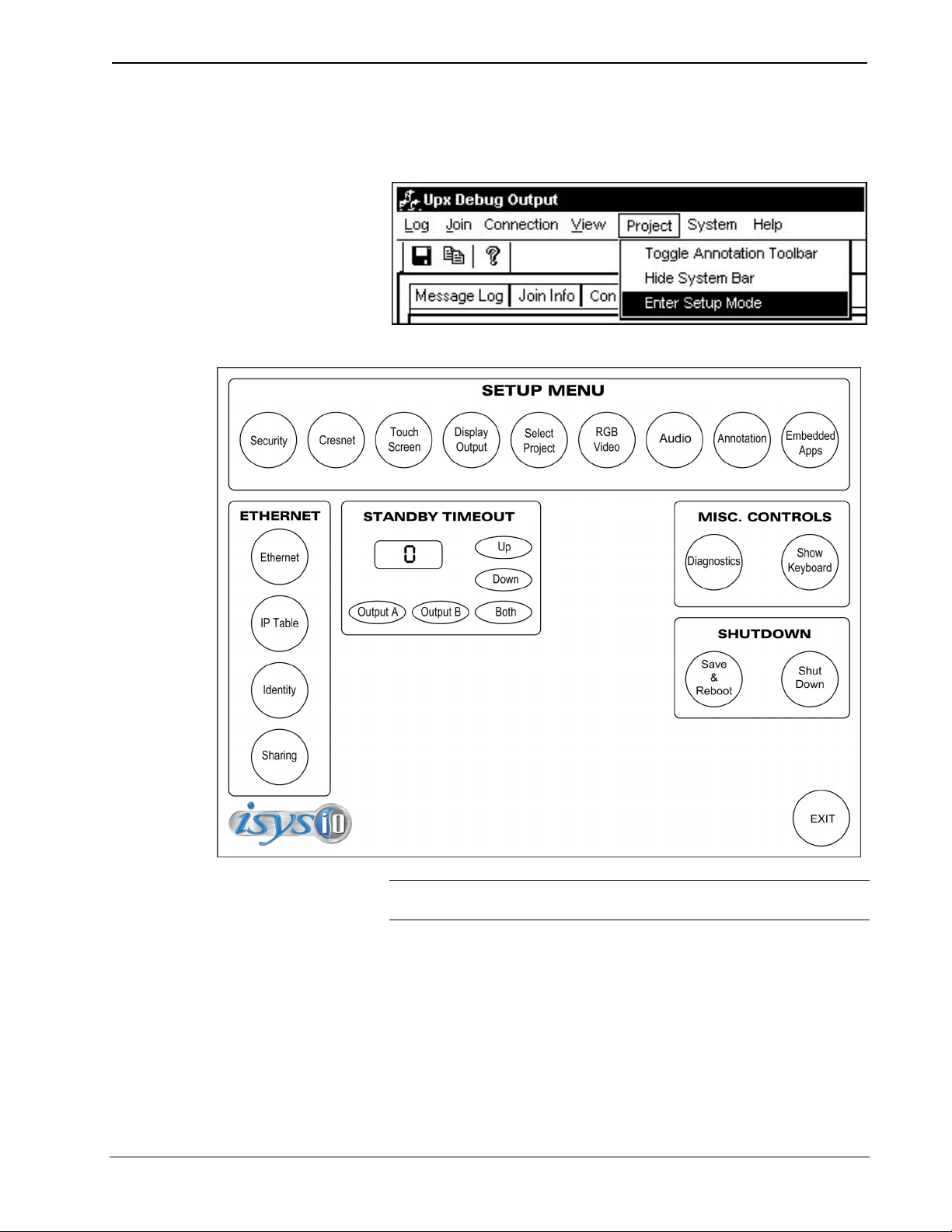

3. When the “Upx Debug Output” window appears, select Project | Enter Setup Mode.

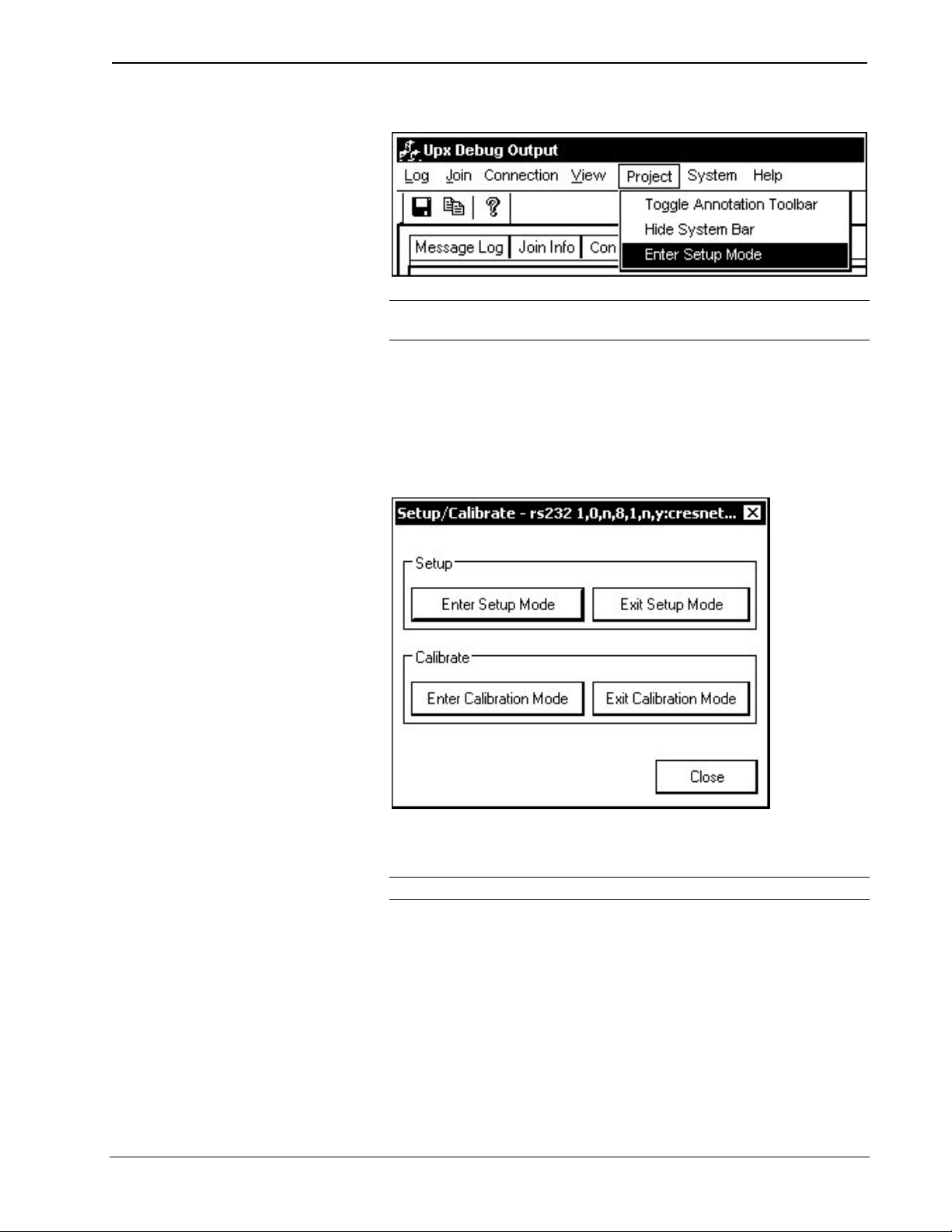

“Upx Debug Output” Window

The SETUP MENU will be displayed in the center of the screen.

NOTE: For output displays set to resolutions greater than 800 x 600, the SETUP MENU may be displayed on the left side of the screen. If this occurs, the display needs to be adjusted. To adjust the display, select Display Output from the SETUP MENU and select the Full Screen White test pattern. Turn off the display’s power and turn back on after five seconds. Press the screen to return to the “Display Output” window and then press Close to return to the SETUP MENU. The display will be adjusted and the SETUP MENU will be centered on the display.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ vii

Crestron UPX-2 Universal Presentation Processor

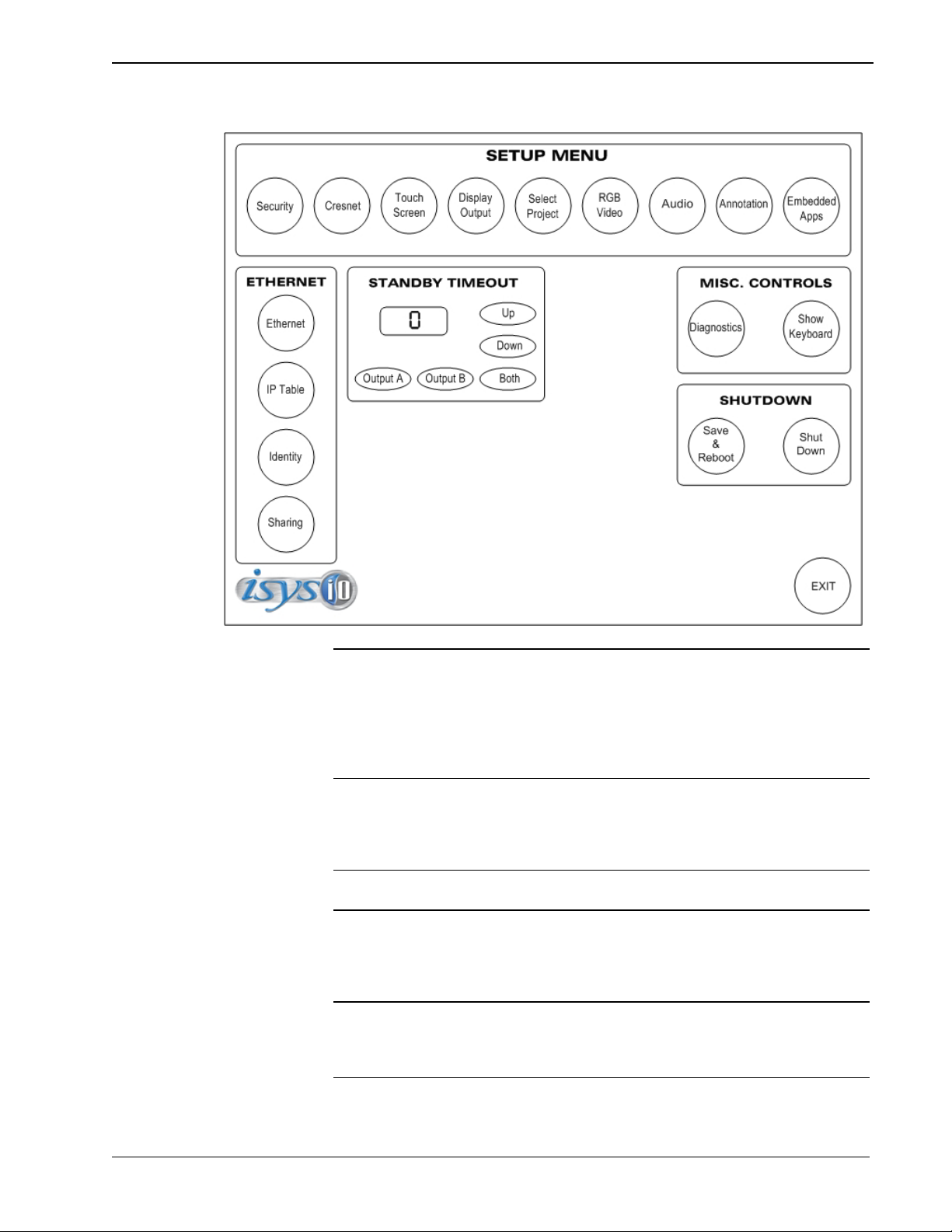

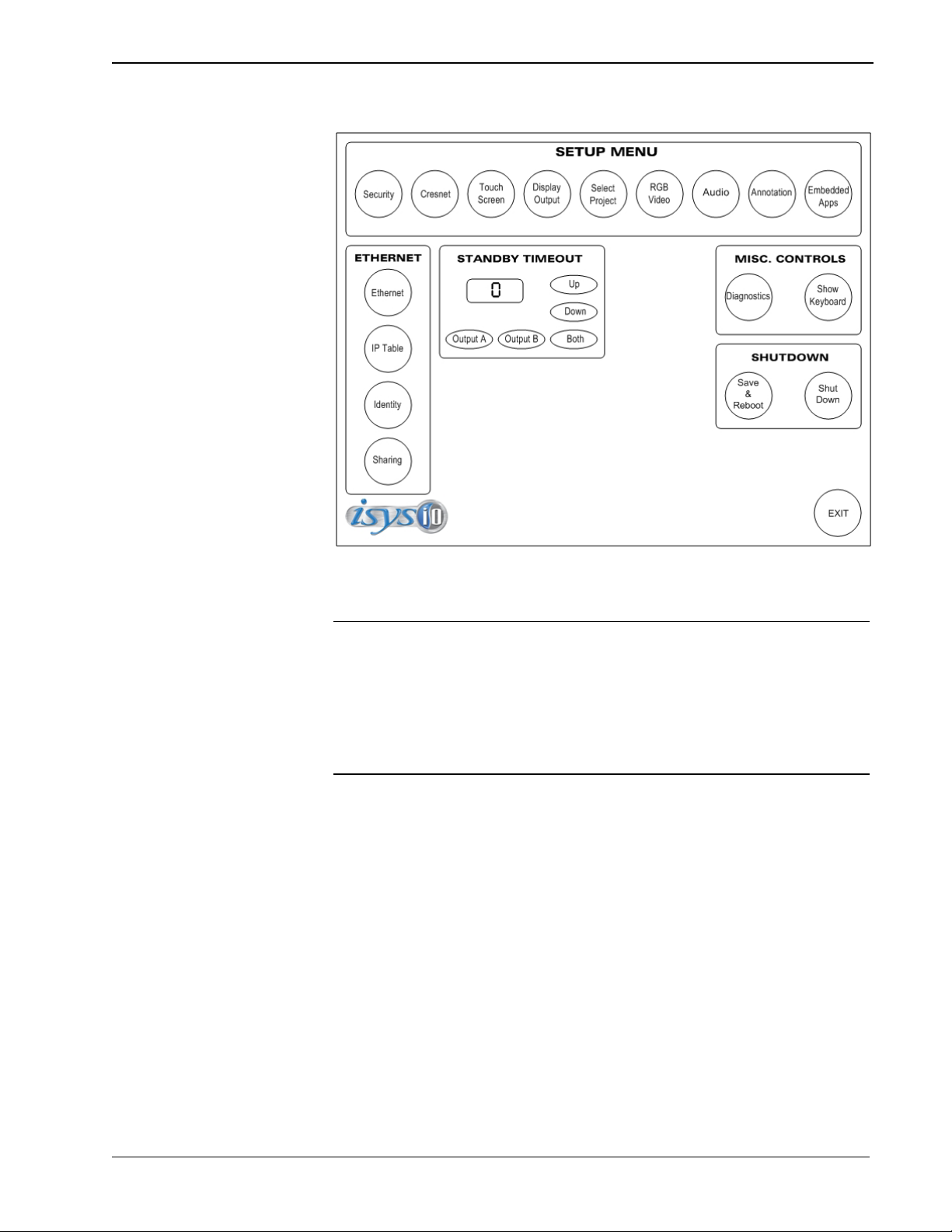

UPX-2 SETUP MENU

Establish Communications

NOTE: Communications is initially established by serial method. Ethernet communication is recommended for faster sending. Refer to “Establishing Communications Between the PC and the UPX-2” on page 59 for detailed communications information.

NOTE: This procedure requires Crestron Toolbox. The minimum version of Crestron Toolbox required to operate with the UPX-2 is version 1.2.10 or later. For more information, refer to “Crestron Toolbox” on page 21.

Serial Communication

1. When the SETUP MENU appears, click the Touch Screen button.

2. In the Use Serial Port For: box, click Console. In the Console Settings box, select the Baud Rate (115200), select Parity (None), select Data Bits (Eight), select Stop Bits (One), and enable RTS/CTS. Then click OK.

viii ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

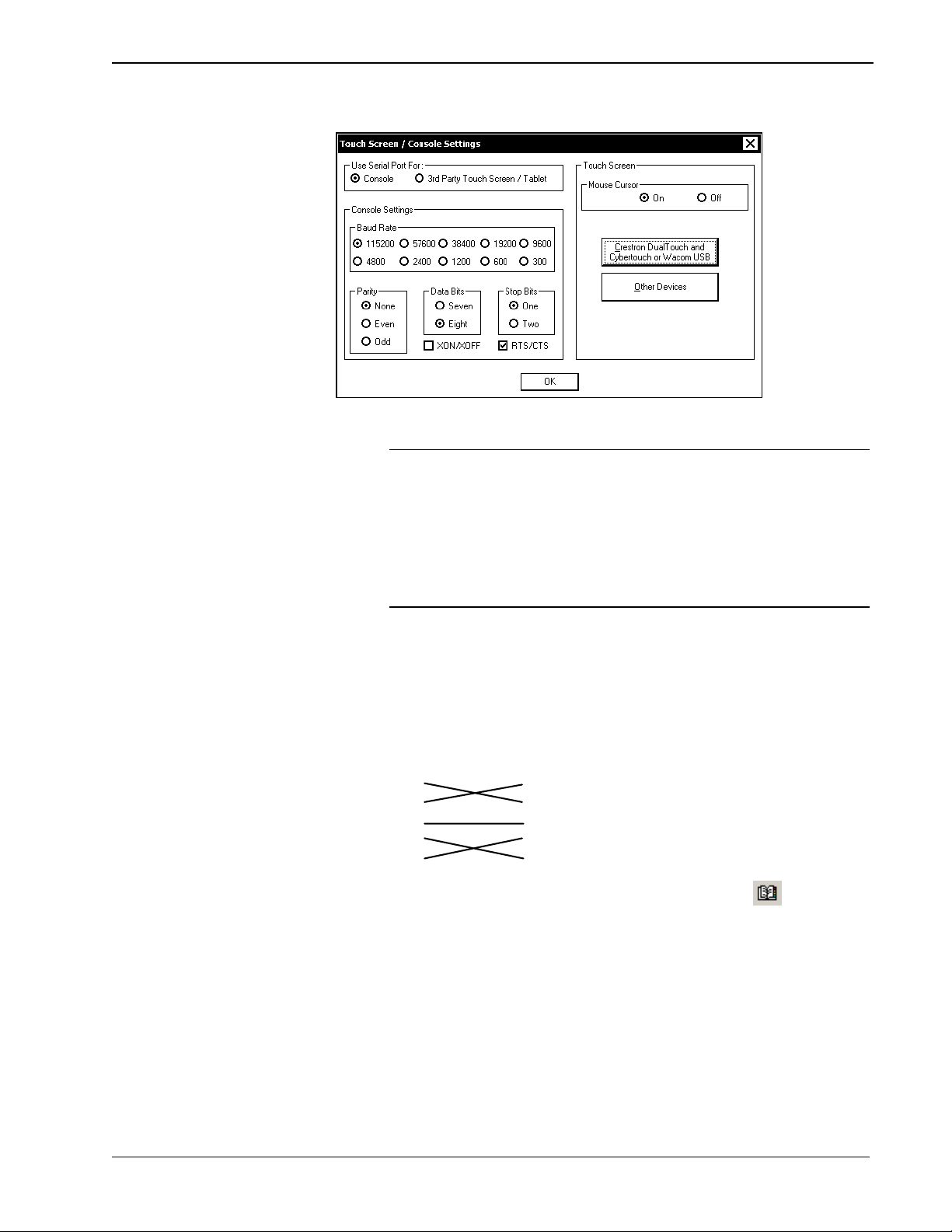

“Touch Screen / Console Settings” Window

3. Click Save & Reboot on the SETUP MENU. Do not click EXIT.

CAUTION: At power up or reboot, the touchpanel will cycle through

colors and the Crestron logo screen for approximately 2.5 minutes prior to displaying the progress bar. This is a normal part of the boot up process. Do not turn off power to the UPX-2 while it is rebooting. Damage may occur.

4. Open Crestron Toolbox and click the Address Book icon , or select Tools | Manage Address Book to open the Address Book. The Address

Book allows you to maintain a list of accessible control systems and network devices. You can establish a session with any or all of the devices in the address book (provided the PC has a valid connection to the Cresnet or Ethernet network).

5. Select the device from the Address Book or click Add Entry and type a name for the new device (UPX2 in our example).

6. Select RS232 as the Connection Type and select the serial settings specified in step 2. This sets the PC to the same serial settings as the UPX-2. Enter the settings and click OK.

For the UPX-2, the default settings are:

• Port = COM 1

• Baud Rate = 15200 (or select Auto-Detect)

• Parity = None

• Data Bits = 8

• Stop Bits = 1

• Hardware Handshaking (RTS/CTS) enabled

• Software Handshaking (XON/XOFF) not enabled

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ ix

Crestron UPX-2 Universal Presentation Processor

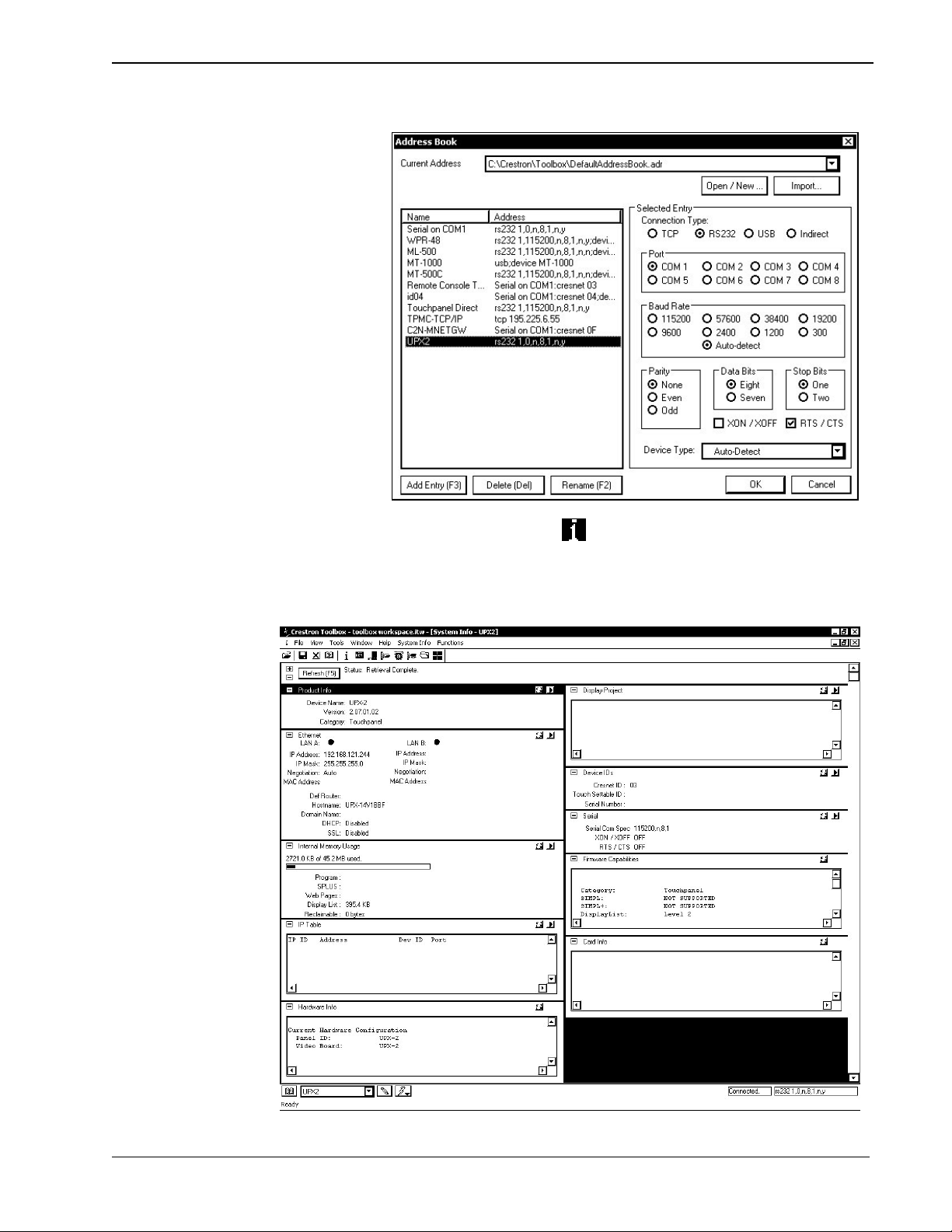

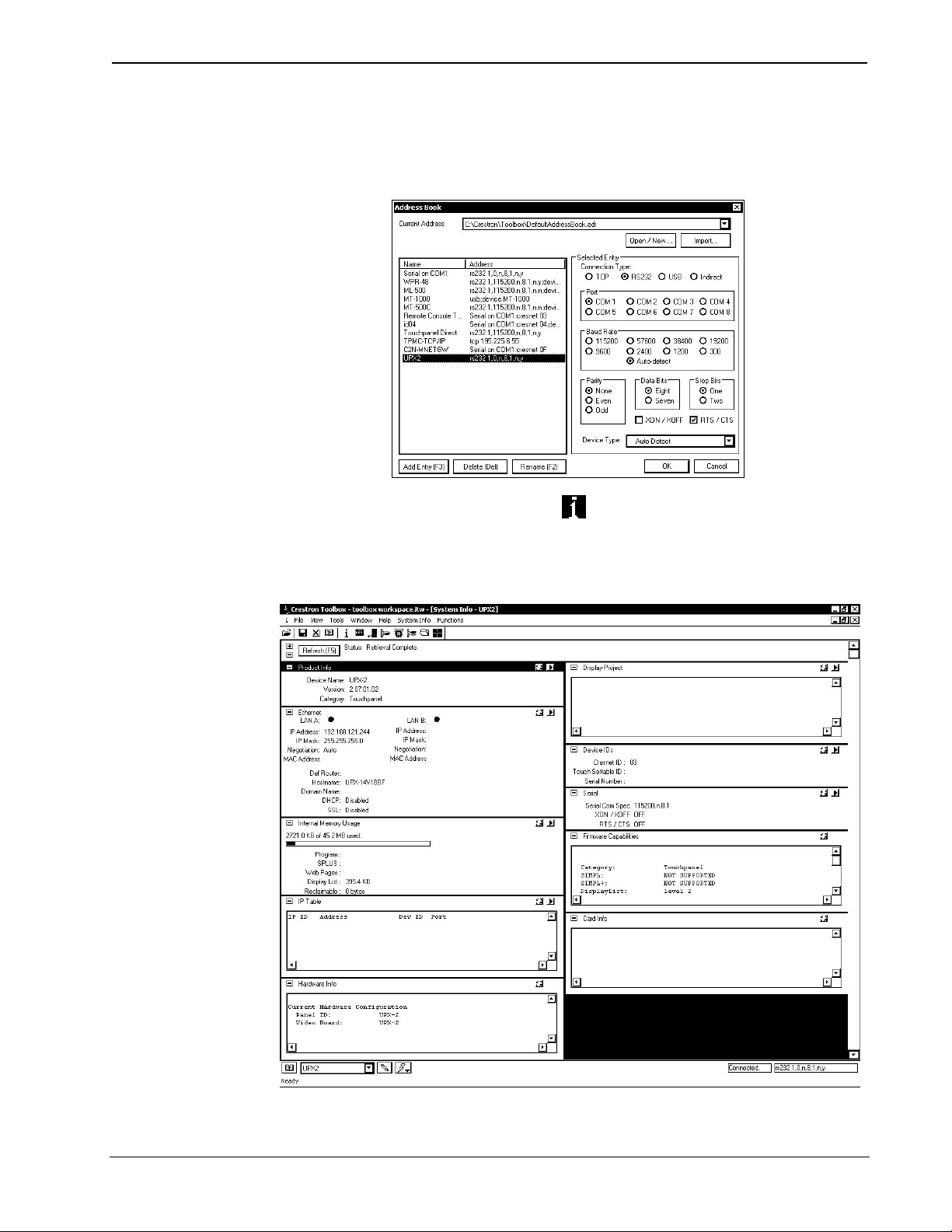

Crestron Toolbox Address Book Setup for Serial Connection

7. Click the System Info icon it is not already selected. If communication is successful, the “System Info”

window displays the firmware version number, Cresnet ID, connection parameters, memory usage, and hardware information.

Crestron Toolbox – System Info

and select UPX2 from the drop-down list if

x ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

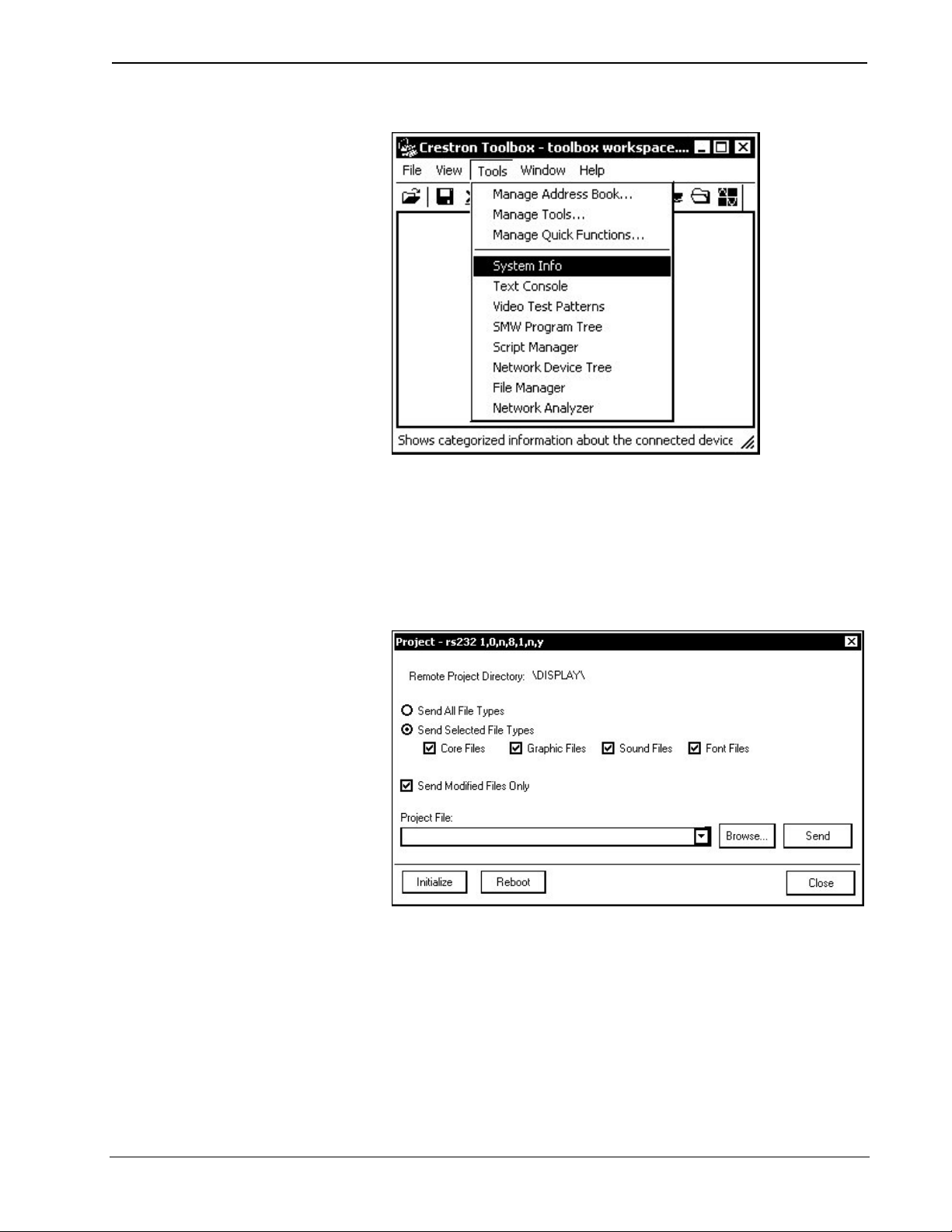

The Functions menu may now be used to upload a project, update firmware, and reset the network ID.

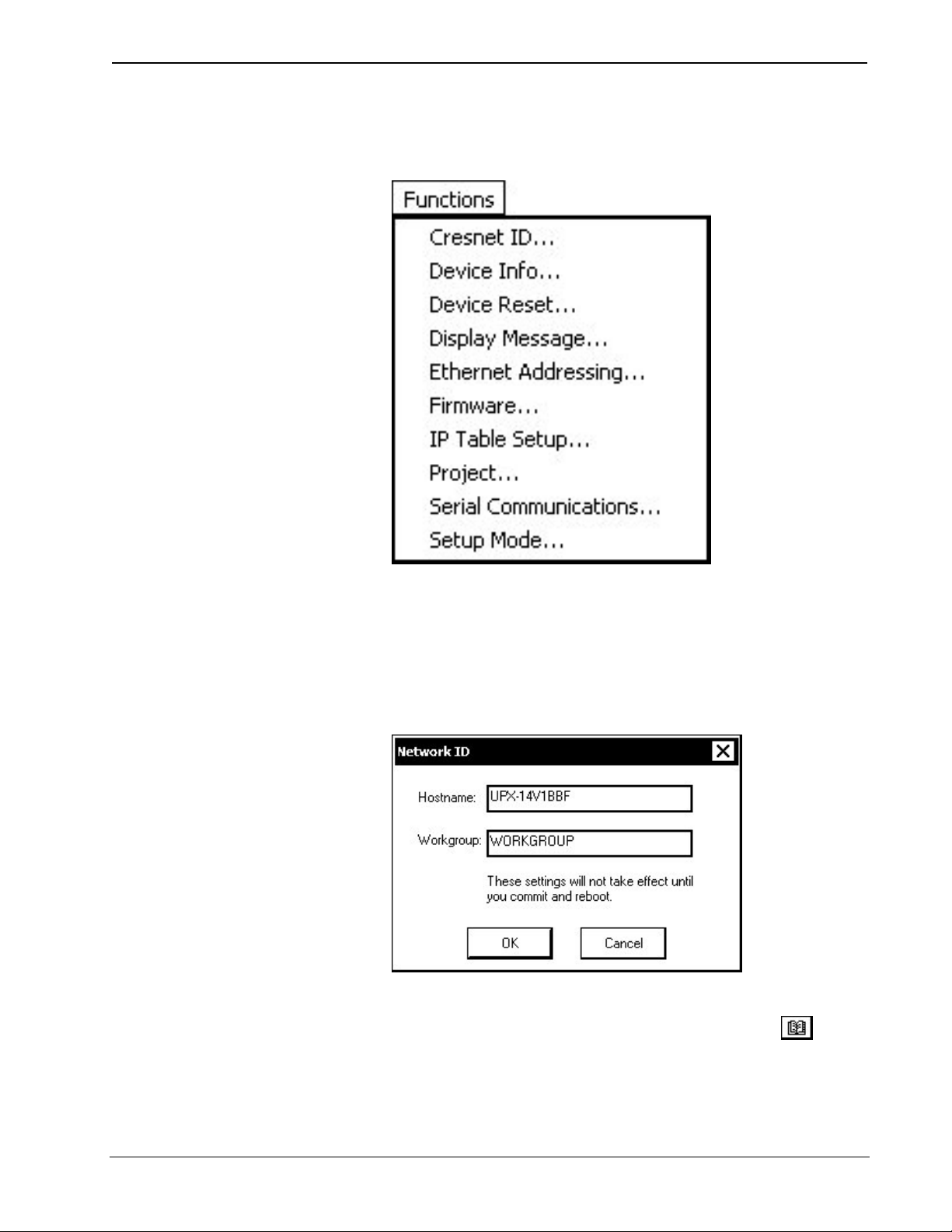

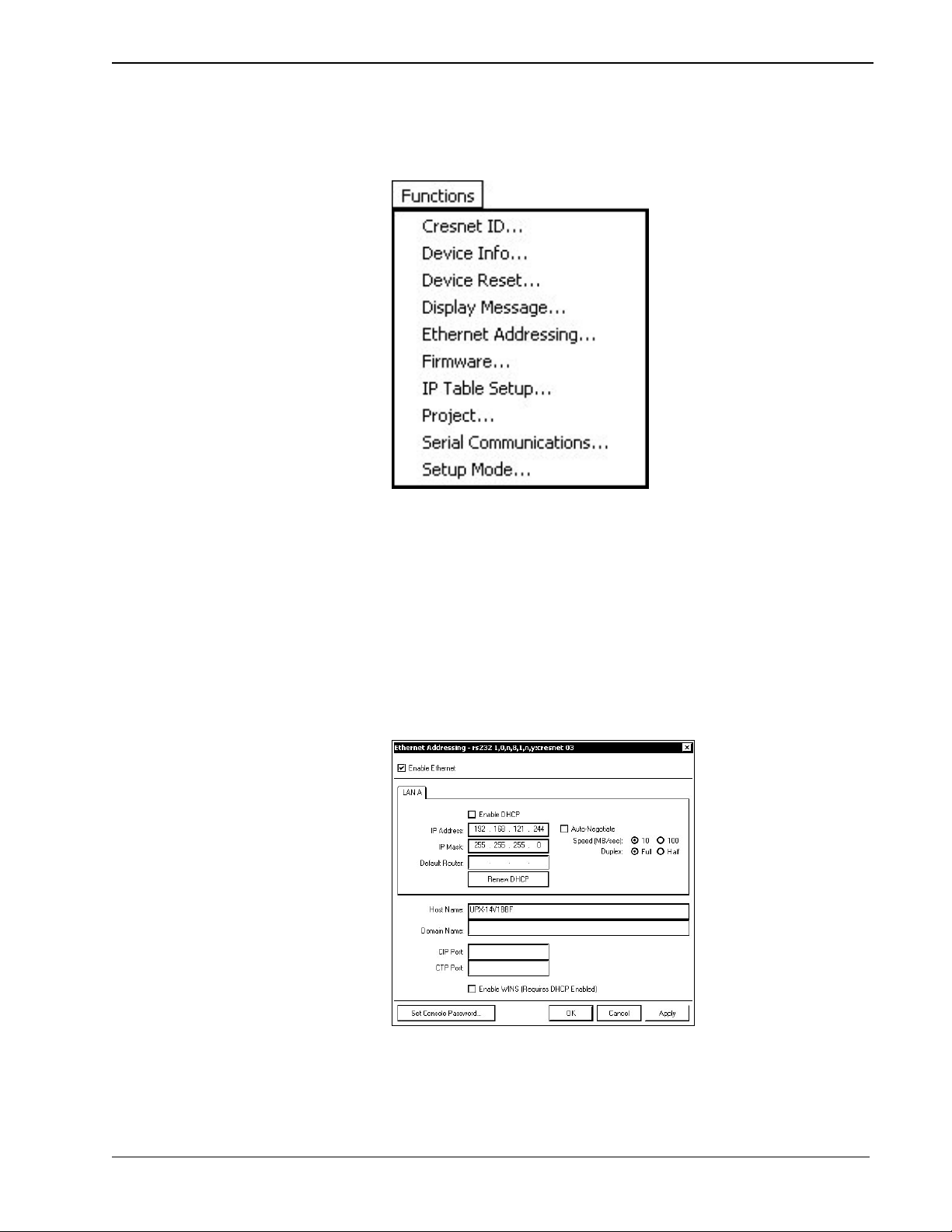

Crestron Toolbox Functions Menu

Ethernet Communications

For complete instructions for establishing Ethernet communications, refer to “Establishing Communications Between the PC and the UPX-2” on page 59.

1. To establish Ethernet communications, select Identity from the UPX-2 SETUP MENU.

“Network ID” Window

2. Copy the Hostname from the “Network ID” window.

3. Start Crestron Toolbox and open the address book by clicking

4. Select the existing UPX2 entry from the Address Book (for changing to a TCP/IP entry) or click Add Entry and type a name for the new device (UPX2-tcp-ip in our example).

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ xi

Crestron UPX-2 Universal Presentation Processor

5. Select TCP as the Connection Type and enter the Hostname in the IP address field and click OK.

Crestron Toolbox Address Book Setup for TCP-IP Connection

NOTE: The UPX-2 Ethernet default communication mode is DHCP. Refer to “TCP/IP Communication” on page 64 for Ethernet setup instructions and use the SETUP MENU to change communication format if desired.

Calibrate the Output Display Device

Access the UPX-2 SETUP MENU as described in “Accessing the SETUP MENU” on page vi.

Click Display Output, select the appropriate Output Resolution, and click Apply. If the screen resolution is not acceptable, choose another resolution setting. If the controls are not visible due to the change in resolution, use Crestron Toolbox to change the resolution. Refer to “Display Output” on page 33 for instructions.

Select the following Test Patterns, in the following order, and adjust the display device as necessary.

1. Grid

2. Vertical Lines

3. Color Bars

4. Grayscale Gradient

5. Frequency Adjust Test

6. Streak, Boost and Skew

7. Full Screen White

8. RGB Gradient

NOTE: If the screen does not fit properly, adjust the resolution.

xii ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

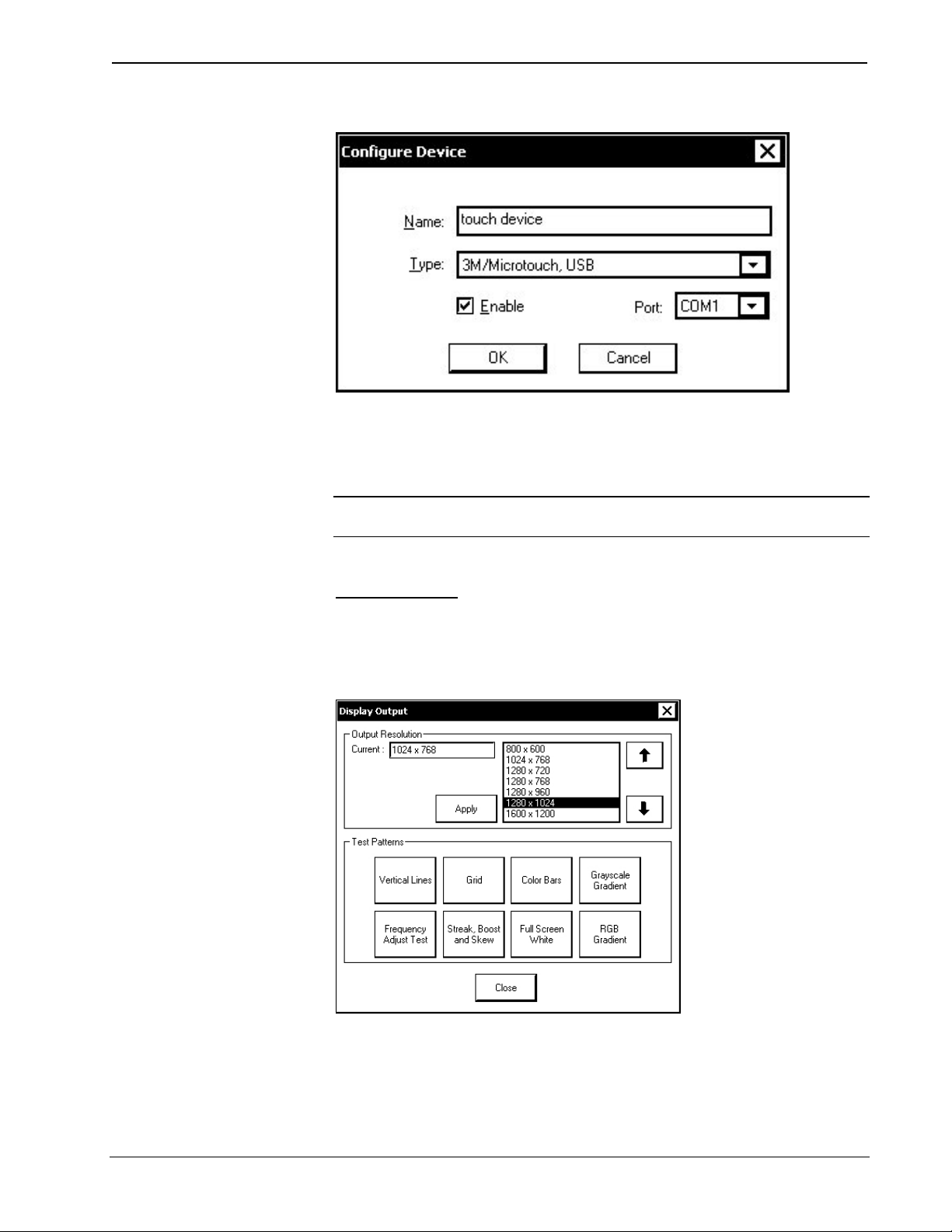

“Display Output” Window

Calibrate the Touchpanel

If the DTT-15V2 or DTT-17 requires calibration, access the UPX-2 SETUP MENU described in “Accessing the SETUP MENU” on page vi.

Refer to “Touch Screen” on page 30 for additional calibration information.

1. Click Touch Screen | Crestron DualTouch and Cybertouch or Wacom USB | Calibrate and follow the directions for touch and pen calibration.

2. Click Save and Reboot to save your changes.

not turn off power to the UPX-2 while it is rebooting. Damage may occur.

NOTE: Touchpanel calibration is required after a firmware upgrade.

NOTE: If a touchpanel is disconnected and reconnected to a different port,

or reconnected with a hub connecting to the UPX-2, the touchpanel must be recalibrated.

If necessary, you can also access the internal setup screen for the touchpanel. Refer to “Display Settings” in the appropriate guide: DTT-15V2 Operations Guide (Doc.

6342), or DTT-17 Operations Guide (Doc. 6343), available from the Crestron website.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ xiii

Crestron UPX-2 Universal Presentation Processor

Download the Required Files from Crestron

The 2-Series control system must contain the correct .CUZ firmware file. These files are located on the Crestron website.

On the Crestron website, browse to Tools & Resources| Product Resources | Software & Firmware Updates and select the appropriate file for the 2-Series control system that is to be connected to the UPX-2. Files are also available on the FTP site.

You must use the following software versions to program the control system and the UPX-2. These programs are available from the Crestron website.

• SIMPL™ Windows later. Requires SIMPL+® Cross Compiler version 1.1 or later.

• Crestron Database version 17.4.4 or later. Required by SIMPL Windows.

• Crestron VisionTools

touchpanel design.

• Crestron Toolbox version 1.2.10 or later. Used for observing system processes, uploading operating systems and firmware, uploading programs and UPX-2 projects, and many other tasks.

version 2.06.20 or later with Library Update 320 or

Pro-e version 3.3 or later. Used for graphical

Load the Demo Program & Project

For the demo program to function the UPX-2 must contain the correct .VTZ project file and the control system it is connected with must contain the correct .SPZ file. These files are contained in a ZIP file on the Crestron FTP server. The FTP server contains a ZIP file for systems with a DTT-15V2 touchpanel and a ZIP file for systems with a DTT-17 touchpanel.

To access the FTP site, go to the Crestron website and select Tools & Resources | FTP Servers. Log in to the FTP server with your website login and password.

1. Navigate to the “specific_products” subdirectory of the “demos” directory.

2. Select the appropriate file for your system.

– upx_15_inch_demo_rev_XXX.zip for the DTT-15V2

– upx_17_inch_demo_rev_XXX.zipfor the DTT-17.

3. Unzip the file and open Crestron Toolbox to transfer the .VTZ project file directly to the UPX-2.

NOTE: Crestron recommends sending the project files to the UPX-2 via Ethernet, the fastest method. Crestron also recommends reviewing the UPX-2 FAQs that are available through the Online Help on the Crestron website.

4. Select Tools | System Info.

xiv ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

Crestron Toolbox – Tools | System Info

5. When the “System Info” window appears, select the UPX-2 from the dropdown list on the bottom of the screen. The Functions option becomes available from the menu bar.

6. Select Functions | Project….

7. The “Project” window is used to select the project to be uploaded to the UPX-2.

“Project” Window

Each time a project is selected using the Browse… command, that project is added to the Project File drop-down list. This makes it convenient to recall projects without need to browse to a directory.

Selecting Send All File Types sends the entire project.

Selecting Send Selected File Types sends only the file types that are selected. Core Files are files that include UPX-2 logic, join number remapping, and other files related to UPX-2 functionality. Graphic Files are graphics that are displayed on the UPX-2 display. Sound Files are

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ xv

Crestron UPX-2 Universal Presentation Processor

WAV files that are assigned within a UPX-2 project. Font Files are fonts that are part of a UPX-2 project.

Selecting Send Modified Files Only will only send files that are different from those that are currently stored in the UPX-2. Note that if any pages in the UPX-2 are not present in the project, those pages will be deleted from the touchpanel.

The UPX-2 can be rebooted by clicking Reboot.

not turn off power to the UPX-2 while it is rebooting. Damage may occur.

NOTE: Crestron Toolbox compares the time required to send the modified

files against the time required to send the entire project. Crestron Toolbox will then select the package with the shorter transmission time.

8. Click the Browse… button to browse for a new compiled (.vtz) program.

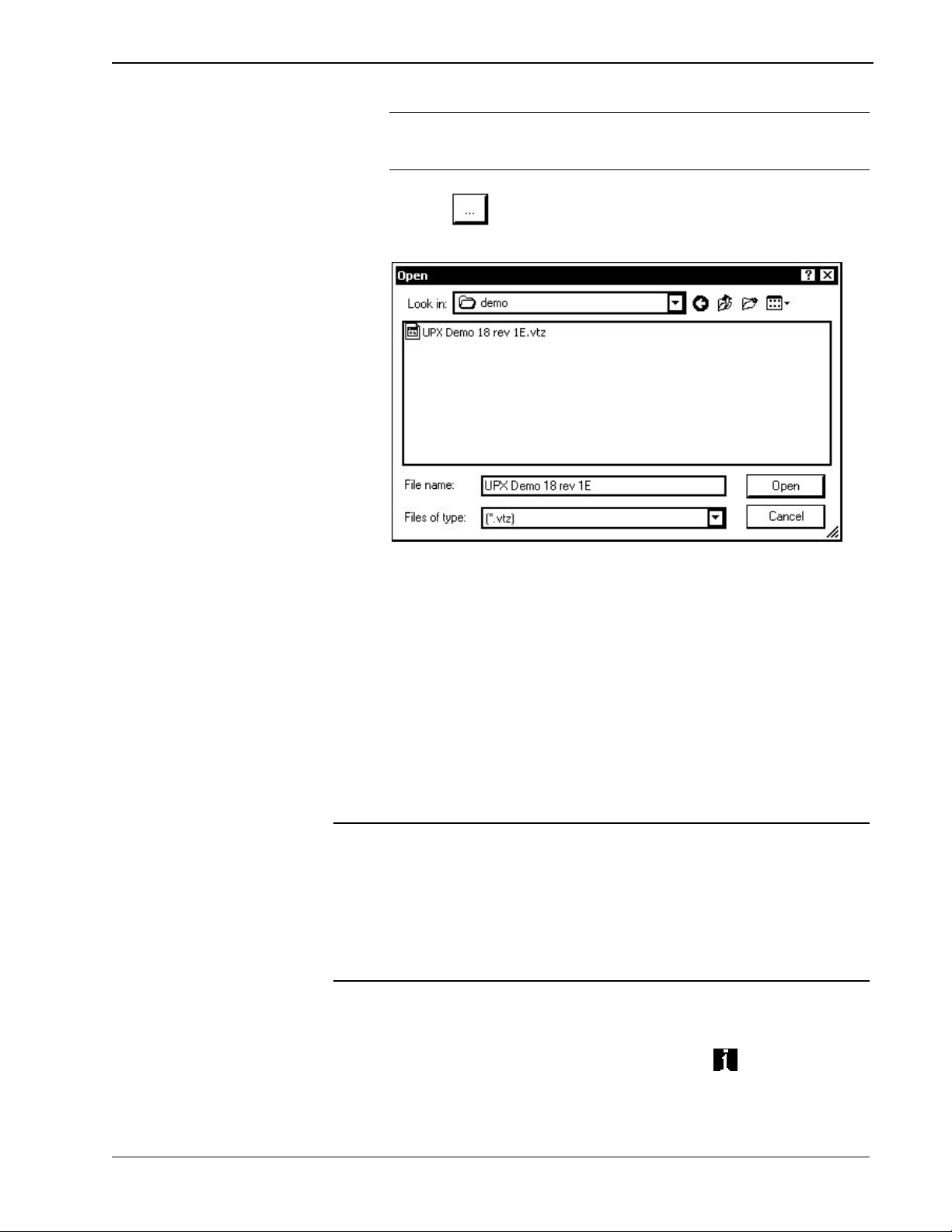

“Open” Window

9. Select a file and click Open. When the “Project” window re-opens click Send to send the project to the UPX-2.

To verify that the project has been transferred successfully, select Tools | System Info. The new project information will appear in the “System Info”

window.

10. Connect to the control system as described in the latest version of the 2-Series Reference Guide (Doc. 6256) (available from the Crestron website) and send the compiled SIMPL Windows program (.spz) to the control system.

NOTE: The SIMPL Windows program was created for the PRO2. If you are using a different 2-Series control system, open the source file (.smw) in SIMPL Windows and modify the program for your control system model.

xvi ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

Troubleshooting the Demo Program

If the DTT-15V2/DTT-17 is displaying “Communications Error with Control System”, check the following possibilities.

• The control system has the wrong CUZ file version (3.137 or greater is required).

• The UPX-2 Cresnet ID must be set to 03 for the demo program to function. In Crestron Toolbox, open the address book, connect to the control system, and select Tools | Network Device Tree for a network device report. Change the NET ID to 03 if necessary.

• Verify that the demo program for the DTT-15V2 or DTT-17 is running on the 2-Series control system.

• If communicating to the UPX-2 via Ethernet, the control system’s IP address must be in the UPX-2s IP table. Refer to “TCP/IP Communication” on page 64 for information on IP tables.

Button Configuration

When the system is initially started after loading the demo project, the five source selection buttons are not assigned.

Place and hold a finger on the Crestron logo at the bottom left corner of the screen for approximately five seconds.

Pressing the Crestron Logo on the Demo Program

A new page will appear that allows you to select each button, assign an icon, and assign an input. Click the Return button to go back to the demo program.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ xvii

Crestron UPX-2 Universal Presentation Processor

Assigning Inputs for the Demo Program

Connect the RGB and Video Sources

Video can include HDTV (on Video Input 1 only), component, composite, and S-video. Refer to “Ports – Rear Panel” on page 11 for additional port information, and the Appendix on page 77 for basic video and RGB information.

Calibrate the RGB/Video Inputs

Click RGB Video on the UPX-2 SETUP MENU.

Select each of the RGB and video inputs and adjust them using this window. Click on an input tab and adjust the settings (resolution, horizontal and vertical frequency) for the selected input. Refer to “RGB Video” on page 35 for additional RGB and Video setup details.

xviii ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

“RGB/Video Setup” Window

Storage Devices

A USB drive (connected to one of the USB ports) or a PCMCIA Flash Card adaptor card and flash memory card can be used to store the Word, Excel, and other files that can be read by the embedded applications. These storage devices can also be used to save the MediaMarker presentations and Word, Excel, and PowerPoint files created with the UPX-2. Refer to “MediaMarker” on page 72 for additional MediaMarker information.

NOTE: Word, Excel, and PowerPoint files can only be created on the UPX-2-MSO.

The UPX-2 supports removable storage devices such as compact flash via PC-Card or USB interface. When a device is inserted (for example, a PC-Card in the front ports of the UPX-2), a drive letter is assigned by the UPX-2 for access to that storage. The first device is assigned the drive letter G.

• If the assigned drive letter is for temporary use, no further steps are required.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ xix

Crestron UPX-2 Universal Presentation Processor

• If one or more devices are added to the UPX-2 for continuous use, ensure they are connected and then reboot the UPX-2. The assigned drive letters will not change unless you change the connected devices or reboot without the device(s) connected. From this point forward, you can connect and disconnect other temporary use devices without rebooting. This is only a configuration step and not required for normal use. The device will function even if this step is not performed. However, rebooting with the storage devices connected will guarantee that drive assignment letters will remain consistent for long-term use.

2. Damage may occur.

NOTE: Certain USB flash drives may not be recognized by the UPX-2 if they are left connected during a reboot or when power is cycled. To recognize a USB flash drive that is not recognized by the UPX-2, disconnect and reconnect the drive after the UPX-2 has completed rebooting.

This concludes the Quick Start section of the UPX-2 Operations Guide. Continue reading for more information on installing and operating the UPX-2. Programming tips and reference information are contained in the latest version of the UPX-2 Reference Guide (Doc. 6286) which is available from the Crestron website.

xx ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

Universal Presentation Processor: UPX-2

Introduction

This guide contains specifications, operation, installation, and setup information for the UPX-2 series of Universal Presentation Processors. For Crestron VisionTools Pro-e project, SIMPL Windows programming instructions and related information, refer to the latest version of the UPX-2 Reference Guide (Doc. 6286) which is available from the Crestron® website (www.crestron.com/manuals).

Features and Functions

The UPX-2 series of multi-window digital video processors integrate a full-featured video annotator and multimedia PC with Crestron’s DualTouch™ Technology.

Functional Summary

• Multi-Window Digital Video Processor

• Intel

• Embedded PC applications include Microsoft

• DualTouch™ Technology – Senses fingertip and pen control

• Three simultaneous scalable unique source windows on a single DualTouch

• Crestron MediaMarker™ Annotation – Draw, write, highlight, add

• Outputs high resolution presentation graphics and video to audience

• Dynamic Graphics feature enables the display of images (pictures, CD

• PNG image support enables translucent objects to be placed over still

Celeron® A, 1.8 GHz processor and Microsoft® Windows® XP

Embedded operating system

Media

Player, RealPlayer®1, Remote Desktop1, NetMeeting®, Java™ Runtime1, Macromedia® Flash® Plug-In1, Axis ActiveX® controls1, DirectX®1, and viewers for Microsoft Word, Microsoft Excel, Microsoft PowerPoint®, and Adobe® Acrobat®

touchpanel (two video sources and one RGB source or one video source and two RGB sources)

graphics and much more

displays

cover art, etc.) that are hosted externally on a flash memory card or media

server

images (such as background)

Internet Explorer, Windows

(Continued on following page)

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 1

Crestron UPX-2 Universal Presentation Processor

Functional Summary (Continued)

• Audio/video/control connectivity with RGB inputs/outputs, microphone

input, line audio output, SPDIF, IEEE 1394b and four USB connectors

• Touch The PC – Real time touchpanel navigation of any Windows PC

• Touch In Support via Ethernet and Cresnet using either UPDD format or

Microsoft mouse format

• Motion Adaptive Deinterlacing - For crisp video images

• Touchpanel Interface –Enables simultaneous use of third-

(USB and Crestron compatible)

• Ethernet – 10BaseT/100BaseTX, full duplex, auto-switching

• Two sets of three BNC inputs. Video input 1 can be one HDTV, one

component, one S-video and one composite, or up to three NTSC/PAL composite. Video input 2 can be one component, one S-video and one composite, or up to three NTSC/PAL composite

1. Requires 1GB compact flash firmware. To upgrade your firmware, you must purchase either Crestron part number UPX-OS1GB or part number UPX-OS1GB-MSO which are available from Crestron. Part number UPX-OS1GB-MSO adds Microsoft Office® to the features of UPX-OS1GB. Contact Crestron for more information.

arty touchpanels

The UPX-2 is available in two variations: The UPX-2-1GB, and the UPX-2-MSO. While both models feature the same performance, different applications are embedded in the different models. Refer to the following table to compare the features of each UPX-2 model.

UPX-2 Model Lineup*

MODEL FIRMWARE

EMBEDDED APPLICATIONS NOTES

FLASH CARD SIZE

UPX-2-1GB 1GB MediaMarker™, Microsoft®Internet Explorer,

UPX-2-MSO 1GB All of the embedded applications of the

Windows Media® Player, RealPlayer®, Remote Desktop, NetMeeting Runtime, Macromedia ActiveX® controls, DirectX®, and viewers for Microsoft Word, Microsoft Excel, Microsoft PowerPoint

UPX-2-1GB with the addition of Microsoft Picture Manager and full-blown versions of Microsoft Word, Microsoft Excel and Microsoft PowerPoint.

* A version of the UPX-2 with a 512MB compact flash operating system was produced until January

, and Adobe® Acrobat®

2006. The 512MB models of the UPX-2 are replaced by the UPX-2-1GB. If you have a 512MB version of the UPX-2, you can upgrade to the UPX-2-1GB or UPX-2-MSO by ordering a firmware upgrade. For ordering information, contact Crestron at 1-888-CRESTRON.

, Java™

Flash® Plug-In, Axis

The UPX-2 is compatible with any 2-Series control system, communicating as a Cresnet® device via Cresnet or Ethernet. The 24-bit color depth and 8-bit alpha channel transparency produces incredible 3D graphics, dynamic text, full-motion animations, animated pop-ups, translucency, and dramatic transition effects.

Can be upgraded to UPX-2-MSO by purchasing UPX-OS1GB-MSO. Additional features may be available from free downloads from the Crestron website.

Additional features may be available from free downloads from the Crestron website.

The UPX-2 is used in combination with a 15-inch (DTT-15V2) or 17-inch (DTT-17) DualTouch Technology (DTT) touchpanel (each sold separately) to provide all of the control capabilities of a touchpanel, plus pen-based annotation and computer-based multimedia presentation. Whenever the DTT touchpanel senses the pen, the touchpanel is disabled, switching instantaneously between control and annotation. Touch with a fingertip or the pen to close the drapes, dim the lights, and selectively control several presentation sources just like any Crestron touchpanel. Use the

2 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

wireless pen or your finger to annotate freely over the presentation video. Two highresolution RGB outputs provide separately controlled signals for the DTT touchpanel graphical user interface (Output A) and the audience display (Output B). Other third party touchpanels can be used with the UPX-2 as well. Refer to “Touch Screen” on page 30 or contact Crestron for more information.

The built-in MediaMarker annotation capability allows the presenter to draw or write electronically on the DTT touchpanel display with the precision of a handheld pen, drawing freehand on a blank screen, highlighting points over a still image or motion video, or making notes on a computer-based spreadsheet. At all times the presenter has full control over the entire presentation and controls what the audience sees, and can save screen images in JPEG, BMP, PNG, and HTML to a network drive, a portable flash card inserted into one of the two front panel PC card ports, or a USB drive. All annotation processing is built into the UPX-2, so there is no need to connect additional boxes or load any special software.

With embedded PC applications including Windows NetMeeting, RealPlayer, Remote Desktop, Java Runtime, and viewers for Microsoft PowerPoint, Excel, Word, and Adobe Acrobat files, the UPX-2 serves as a powerful multimedia presentation source without necessitating a separate computer. The Intel Celeron®A based PC inside the UPX-2 delivers reliable PC performance running under the Windows XP Embedded operating system.

Media Player, Internet Explorer,

NOTE: RealPlayer, Remote Desktop, and Java Runtime capabilities are only included on UPX-2s with the 1GB compact flash operating system. Users with the 512MB compact flash operating system can upgrade to the 1GB compact flash by ordering either Crestron part number UPX-OS1GB or part number UPX-OS1GB-MSO. For ordering information, contact Crestron.

The UPX-2 includes complete connectivity plus support for peripherals through a single USB 2.0 port and two PC Card slots on the front panel, with two PS/2

ports,

three USB 2.0 ports, and one IEEE 1394 port on the rear panel.

The UPX-2 is also enabled to control other connected computers. The Crestron exclusive “Touch the PC” technology allows real time touchpanel navigation of any Windows PC through a direct high-speed serial connection. One bi-directional COM port is provided to support the Touch the PC functionality, or allow connection to control a third-party device via RS-232, RS-422, or RS-485. The AUX COM port is used for communications with Crestron Toolbox and sending touchpanel programs.

The UPX-2 supports the display of up to three simultaneous, unique scalable source windows on a single DualTouch Technology touchpanel. Up to six video inputs and two RGB/computer inputs may be selectively routed to any of the three on-screen windows. You can connect up to six video sources (if all are composite), and you can show up to three windows simultaneously onscreen, however only two video sources and one RGB source or two RGB sources and one video source can be displayed at one time. More precisely, you can display up to three windows showing any combination of up to two video sources (one of which can be HDTV), and up to two computer sources. The built-in seamless video switcher accepts inputs from NTSC/PAL composite, S-video, and component video sources, and includes support for all popular HDTV formats.

Two high-resolution RGB outputs are provided. Output A normally connects to a DTT-15V2 or DTT-17 touchpanel (or other third party devices) to display the graphical user interface (GUI) that contains the AV controls, pop-up PC applications, and up to three video/RGB windows. Output B connects to a projector or plasma display and may be selected to view the same GUI as the touchpanel (with some control tool icons hidden) or a full screen image of any input source or internal PC

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 3

Crestron UPX-2 Universal Presentation Processor

application. Each video window is processed by a discrete video scaler, utilizing motion adaptive deinterlacing, which brings out the highest detail by stabilizing each picture and minimizing visible scan lines and motion artifacts. Automatic source identification assigns the optimum deinterlacing algorithm based upon the input for computer or video camera source material, with 3:2 (NTSC) and 2:2 (PAL) pulldown detection and compensation.

UPX-2 Video Processing Block Diagram

The UPX-2 supports non-interlaced RGB input resolutions up to 1600 x 1200. Output resolution for both outputs is set to that of the DualTouch Technology touchpanel, 1280 x 1024 for the DTT-17, 1024 x 768 for the DTT-15V2, and up to 1600 x 1200 with third-party touchpanel displays.

The UPX-2 allows for the creation of graphics, images, dynamic text, and animations. The UPX-2 features PNG image support, which enables translucent objects to be placed over still images (such as background). The dynamic graphics feature enables the display of images (pictures, CD cover art, etc.) that are hosted externally on a flash memory card or media server. The position and appearance of each video window can be fully customized within the total graphical interface.

NOTE: PNG image support and dynamic graphics requires the 1GB compact flash operating system. The UPX-2-1GB and UPX-2-MSO include 1GB compact flash cards. Other UPX-2 models with 512MB compact flash can be upgraded to the 1GB compact flash with either Crestron part number UPX-OS1GB or part number UPXOS1GB-MSO which are available from Crestron. For ordering information, contact Crestron.

Programming tips and reference information are contained in the latest version of the UPX-2 Reference Guide (Doc. 6286) which is available as a PDF from the Crestron website.

4 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

Demonstration Program

The UPX-2 is shipped with a pre-programmed demonstration program that can be configured and used as an “out-of-the-box” presentation system with a 2-Series control system.

Pre-Programmed User Interface

For information on running the demonstration program, refer to “UPX-2 Quick Start” on page iii.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 5

Crestron UPX-2 Universal Presentation Processor

UPX-2 Universal Presentation Processor and DTT-17 DualTouch Technology Touchpanel – Typical Application Diagram

6 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

Specifications

The following table provides a summary of specifications for the UPX-2.

UPX-2 Specifications

SPECIFICATION DETAILS

Processor Intel Celeron A, 1.8 GHz

Memory

Operating System

Power Requirements Internal Universal Power Supply: 6.3 Amps, 100-240 Volts AC,

Default Net ID 03

Firmware UPX-2 Touchpanel version 2.08.00.02 or later2

2-Series Control System Update File

Ethernet Support

Graphics Engine

Video Processor

Digital Sampling

Resolution

Output color depth

Video Switcher

SDRAM: 512MB DDR PC2100 DIMM

Compact Flash Slot: 1GB Type II Compact Flash containing operating system1

Microsoft

50/60 Hz, IEC Socket (3-conductor AC cord included) Main power on/off switch on rear (Does not use Cresnet power)

Version 3.137 or later

3,4

Type: 10BaseT / 100BaseTX, auto-switching Fast Ethernet

Full duplex, IEEE 802.3U compliant

24 Bit non-palette graphics + 8 Bit alpha (transparency) and video,

16.7 million colors

24 bits per pixel, 8 bits per color

24-bit video/graphics

24 bits per pixel, 8 bits per color

Seamless Matrix Switcher: Up to six inputs routed to three scalers; accommodates versatile combinations of composite, S-video and component sources; automatically routes signals based upon scaler availability. Two RGB or two video sources maximum.

Scalers

Output A

Output B

Windows® XP Embedded

Four (three input and one combiner) built-in scalers provide motion adaptive de-interlacing and line doubling of video sources and scaling of RGB sources.

Displays Control/PC GUI with up to three windows, showing any combination of up to two video sources, up to two RGB sources and /or one HDTV source.

Selectively displays same image as Output 1 (minus control tools) or any input source displayed full screen.

Specifications continued on following page

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 7

Crestron UPX-2 Universal Presentation Processor

UPX-2 Specifications (Continued)

SPECIFICATION DETAILS

Connectors

VIDEO INPUT 2

Min/max levels

Impedance

Horizontal frequency

Vertical frequency

VIDEO INPUT 2

Min/max levels

Impedance

Horizontal frequency

Vertical frequency

RGB INPUT A & B

Analog formats

Input resolution, non-interlaced

Min/Max levels

Impedance

Sync input type

Sync input level

Sync input impedance

Maximum Sync input

Horizontal frequency

Vertical Frequency

Three BNC female connectors

Configurable as one of the following:

- One component input (Y/Pb/Pr: 480i/576i) video input, or HDTV: 480p, 576p, 720p, 1080i

- Three composite (NTSC/PAL) video inputs

- One S-video (Y/C) input and (1) Composite input

0.5 to 1.5 V

with built-in DC restoration

p-p

75 ohms

15 - 45 kHz

50-60 Hz

Three BNC female connectors

Configurable as one of the following:

- One component input (Y/Pb/Pr: 480i/576i) video input

- Three composite (NTSC/PAL) video inputs

- One S-video (Y/C) input and (1) Composite input

0.5 to 1.5 V

with built-in DC restoration

p-p

75 ohms

15.75 kHz (NTSC); 15.625 kHz (PAL)

50-60 Hz

Two DB15HD RGB (VGA) female input connectors (HDTV can be applied to RGB input A)

RGBHV, RGBS and RGsB

640 x 480 minimum to 1600 x 1200 maximum (75 Hz limit at 1600 x 1200)

0.7 to 1.5 V

with built-in DC restoration

p-p

75 ohms

Autodetect RGBHV, RGBS, RGsB

3.0 to 5.0 V

p-p

1K ohms

5.0 V

p-p

31.5 to 100 kHz

60 to 85 Hz

RGB OUTPUT A & B

Analog formats

Aspect Ratio

Output Resolution

Sync Output Type

Sync Output Level

Polarity

Vertical Frequency

Two DB15HD RGB (VGA) female output connectors (set to same resolution as input)

RGBHV

Software configurable 4:3, 15:9, or 16:9

800 x 600 minimum to 1600 x 1200 maximum (60 Hz limit at 1600 x 1200)

RGBHV

TTL, 5.0 V

p-p

H/V user-selectable

60 to 85 Hz; 60 Hz limit at 1600 x 1200

Audio LINE IN One 3.5 mm TRS mini phone jack, unbalanced stereo audio input

Specifications continued on following page

8 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

UPX-2 Specifications (Continued)

SPECIFICATION DETAILS

Connectors (continued)

Audio LINE OUT

MIC IN

S/PDIF

COM

AUX COM

USB Four USB 2.0 ports (one on front panel, three on rear)

PC Card Max. Size

PS/2 Mouse In One 6-pin mini DIN connector

PS/2 Keyboard In One 6-pin mini DIN connector

1394b One IEEE 1394b FireWire port (support in future release)

LAN One 8-wire RJ-45 10/100BaseT Ethernet port with LED indicators

NET One 4-pin 5 mm detachable terminal block for connection to

Buttons PWR – Turns power on/off

Indicators

Operating Environment Temperature: 41° to 113°F (5° to 45°C)

Rack Units 2 units high

Dimensions Height (without feet): 3.47 in (8.81 cm)

Optional Accessories DTT-17: 17-inch DualTouch Technology Touchpanel

1. Found on UPX-2-1GB and UPX-2-MSO only. Other UPX-2 models with 512MB compact flash can be upgraded to the 1GB compact flash with either Crestron part number UPX-OS1GB or part number UPX-OS1GB-MSO which are available from Crestron. Part number UPX-OS1GB-MSO adds Microsoft Office manual.

2. UPX-2s with the 512MB compact flash operating system can be upgrade to version 2.0 by purchasing either Crestron part number UPX-OS1GB or part number UPX-OS1GB-MSO which are available from Crestron.

3. The latest software versions can be obtained from the Crestron website. Refer to the NOTE following these footnotes.

One 3.5 mm TRS mini phone jack, unbalanced stereo audio output

One 3.5 mm TRS mini phone jack, simplex-powered microphone input

One RCA female digital audio output

One DB9 male bidirectional RS-232/422/485 port

Up to 115.2K baud

Hardware and software handshaking support

One DB9 male – Standard PC pinout RS-232 connection for nonCrestron pointing device. Contact Crestron to confirm compatibility

Use for Crestron Toolbox communication

Two PC Card slots (front panel) 4GB

Cresnet (does not use power from, or supply power to Cresnet)

RESET – Hardware/Software Reset

SETUP – Standard Touch Settable ID functionality

PWR – Indicates unit power is on

NET – Indicates this device is getting polled on Cresnet

SETUP – Standard Touch Settable ID functionality

Humidity: 10% to 90% RH (non-condensing)

Width (with ears): 19.0 in (48.26 cm) Width (without ears): 17.03 in (43.26 cm) Depth: 12.12 in (30.78 cm) Weight: 11.65 lbs (5.28 kg)

DTT-15V2: 15-inch DualTouch Technology Touchpanel

to the features of the UPX-OS1GB described in this

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 9

Crestron UPX-2 Universal Presentation Processor

4. Crestron 2-Series control systems include the AV2 and PRO2. Consult the latest Crestron Product Catalog for a complete list of 2-Series control systems.

NOTE: Crestron software and any files on the website are for authorized Crestron dealers and Crestron Authorized Independent Programmers (CAIP) only. New users may be required to register to obtain access to certain areas of the site (including the FTP site).

Physical Description

The UPX-2, shown in the following illustrations, is housed in a black metal enclosure. The rear panel has RS-232, video, LAN, USB, 1394b, and Cresnet® connectors. The front panel has a PWR (green) LED and a NET (yellow) LED. The PWR LED illuminates when power is applied to the unit. When functioning as a Cresnet device, the NET LED blinks when the unit is polled. This will generally be frequent enough to appear to be on steady. The front panel also contains two PC card slots, a USB port, a momentary power button and a reset button. Four adhesive polyurethane feet are supplied and can be attached to the base of the unit for stability and to prevent slippage in shelf placement and stacking configurations. The unit may also be rack mounted by attaching the supplied metal flanges (ears).

UPX-2 Front View

UPX-2 Rear View

10 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

Physical View - Rear

DO NOT REMOVE THIS COVER. THESE PORTS SHOULD NOT BE USED ON THE UPX-2

OUT

Physical Views –Top, Side, and Front

11.43 in

(29.03 cm)

12.12 in

(30.78 cm)

NET

24 Y Z G

17.03 in

(43.26 cm)

3.47 in

(8.81 cm)

Ports – Rear Panel

NET

The four-pin 5 mm detachable terminal block provides communication (the UPX-2 does not use power from or supply power to this pin) with a Cresnet control network. For additional details, refer to “Network Wiring” on page 20. Pins 24 and G provide 24 VDC and ground. Pins Y and Z provide communications (data).

NOTE: The UPX-2 does not use, or supply power to the 24 VDC Cresnet connection.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 11

Crestron UPX-2 Universal Presentation Processor

NOTE: The UPX-2 is only compatible with 2-Series control systems.

COM

Pin 1

COM

DB9 male connector provides hardware and software handshaking bidirectional support for RS-232, RS-422, and RS-485. This connector can be used for the touch out command (Touch the PC application) as well as local serial device control.

COM Connector Pinout

PIN DIRECTION DESCRIPTION

1 To UPX-2 (RXD-) RS-422 Receive Data (Idles Low)

2 To UPX-2 (RXD) RS-232 Receive Data

3 From UPX-2 (TXD) RS-232 Transmit Data

4 From UPX-2 (TXD+) RS-422 Transmit Data (Idles High)

5 GND RS-232 and RS-422 Signal Common

6 To UPX-2 (RXD+) RS-422 Receive Data (Idles High)

7 From UPX-2 (RTS) RS-232 Request to Send

8 To UPX-2 (CTS) RS-232 Clear to Send

9 From UPX-2 (TXD-) RS-422 Transmit Data (Idles Low)

Pin 5

Pin 10

Pin 15

RGB OUTPUT

RGB OUTPUT A and B

Two DB15HD female connectors are provided for RGB (VGA) output. The DTT

Pin 1

Pin 6

(DualTouch Technology touchpanel) is connected to RGB OUTPUT A for analog video. The display device is connected to RGB OUTPUT B.

Pin 11

Output DB15HD Pinout

PIN DESCRIPTION PIN DESCRIPTION

1 Red video output 9 Not Connected

2 Green video output 10 GND

3 Blue video output 11 Not Connected

4 Not Connected 12 Not Connected

5 GND 13 Horizontal or Composite Sync

6 GND 14 Vertical Sync

7 GND 15 Not Connected

8 GND

12 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

Inp

RGB INPUT A and B

Pin 5

Pin 10

Pin 15

VIDEO INPUT 1/HDTV

BBC

Y P

RGB INPUT

C P

VIDEO INPUT 2

Y P P

Two DB15HD female connectors are provided for RGB (VGA) input.

Pin 1

Pin 6

Pin 11

ut DB15HD Pinout

PIN DESCRIPTION PIN DESCRIPTION

1 Red video input 9 Not Connected

2 Green video input 10 GND

3 Blue video input 11 Not Connected

4 GND 12 DOC Clock

5 GND 13 Horizontal Sync

6 GND 14 Vertical Sync

7 GND 15 DOC Data

8 GND

VIDEO INPUT 1/HDTV and VIDEO INPUT 2 (BNC Female)

Six 75Ω BNC connectors allow composite, component or S-video input. You may have six composite video inputs, two S-video inputs, two component video inputs, or some combination of the three types. Each S-video input requires two BNC connectors. For example, if you are using two S-video inputs, then there are two composite video inputs remaining. For additional connector information, refer to “Hardware Hookup” on page 52.

NOTE: Only two video sources may be displayed simultaneously.

S-video inputs must use the same pair of B (Y) and C (C) BNC connectors.

Each component video connection requires a set of three BNC connectors, Y, P and P

, and must use the same group of A, B, and C connectors. HDTV Component

input video can be 480p, 576p, 720p, and 1080i.

Composite video is a type of video signal in which all information – the red, green, and blue (horizontal and vertical sync) signals are carried over one coaxial cable.

HDTV utilizes all three BNC connectors associated with VIDEO INPUT A, so if you wish to display one HDTV and another video source simultaneously, the other video source must be connected to VIDEO INPUT B. This will limit the possible video sources on VIDEO INPUT B to either three composite sources, or one S-video and one composite source, or one component source.

S-video contains two separate signals, luminance and chrominance (also known as Y and C signals respectively). The luminance signal contains brightness, intensity, and signal timing information. This signal contains all picture information except for color. The chrominance signal contains only the color information. You can see the complete black and white image, without the chrominance, by only feeding the luminance signal into a monitor.

Component video is a method of transferring video information using multiple, individual signals: luminance (Y), luminance minus blue (PB-Y), and luminance minus red (PR-Y). Video information is transmitted in individual parts to prevent errors due to combining and then separating the various parts of the color video

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 13

Crestron UPX-2 Universal Presentation Processor

signal. The UPX-2 supports video standard 480i (480 lines, interlaced). Component video uses three 75 Ω coaxial video cables with BNC connectors to transfer the three signal components.

RGBS consists of red, green, blue, and a composite sync. RGBHV consists of red, green, blue, horizontal sync and vertical sync.

MOUSE/KEYBOARD

Green LED

Pin 8

MOUSE/

KEYBOARD

Yel lo w LED

NETWORK

Pin 1

Two 6-pin mini DIN connectors are provided for PS/2 mouse and keyboard connections.

D IN Connector Pinout

PIN DESCRIPTION

1 Data

2 (Reserved)

3 Ground

4 + 5 VDC

5 Clock

6 (Reserved)

Pin 5

Pin 3

Pin 1

Pin 6

Pin 4

Pin 2

NETWORK

The NETWORK port contains one 8-wire RJ-45 connector with two LED indicators (green LED indicates link status, yellow LED indicates Ethernet activity). This port provides an Ethernet 10baseT /100baseTX, full duplex, IEEE

802.3U compliant network connection.

N etwork Connector Pinout

PIN SIGNALS PIN SIGNALS

1 TX + 5 N/C 2 TX - 6 RC 3 RC+ 7 N/C 4 N/C 8 N/C

USB 2.0

USB

14 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Three Universal Serial Bus (USB) “A” connectors on the rear of the UPX-2 provide a communications link to the DualTouch Technology touchpanels (DTT) and thirdparty peripherals. USB is a connectivity specification developed by the USB Implementers Forum that provides a single, simple, standardized way to connect up to 127 devices to a computer. USB shielded cables contain two wires for power (+5 volts (red) and ground (brown)) and a twisted pair of wires (yellow and blue) that carry data. The USB standard supports data transfer rates of 12 Mbps (megabits per second). USB devices can be connected or disconnected without restarting the computer. USB connectors are used for touchpanels, storage devices (PQI USB 1.1 Compact Flash Reader and Sandisk ImageMate USB 2.0 Reader/Writer have been tested), USB mice (Gyration Ultra GT Cordless Optical Mouse, Belkin, and Logitech USB mice have been tested) and keyboards. Additional functionality/compatibility will be available in future firmware releases.

Universal Presentation Processor Crestron UPX-2

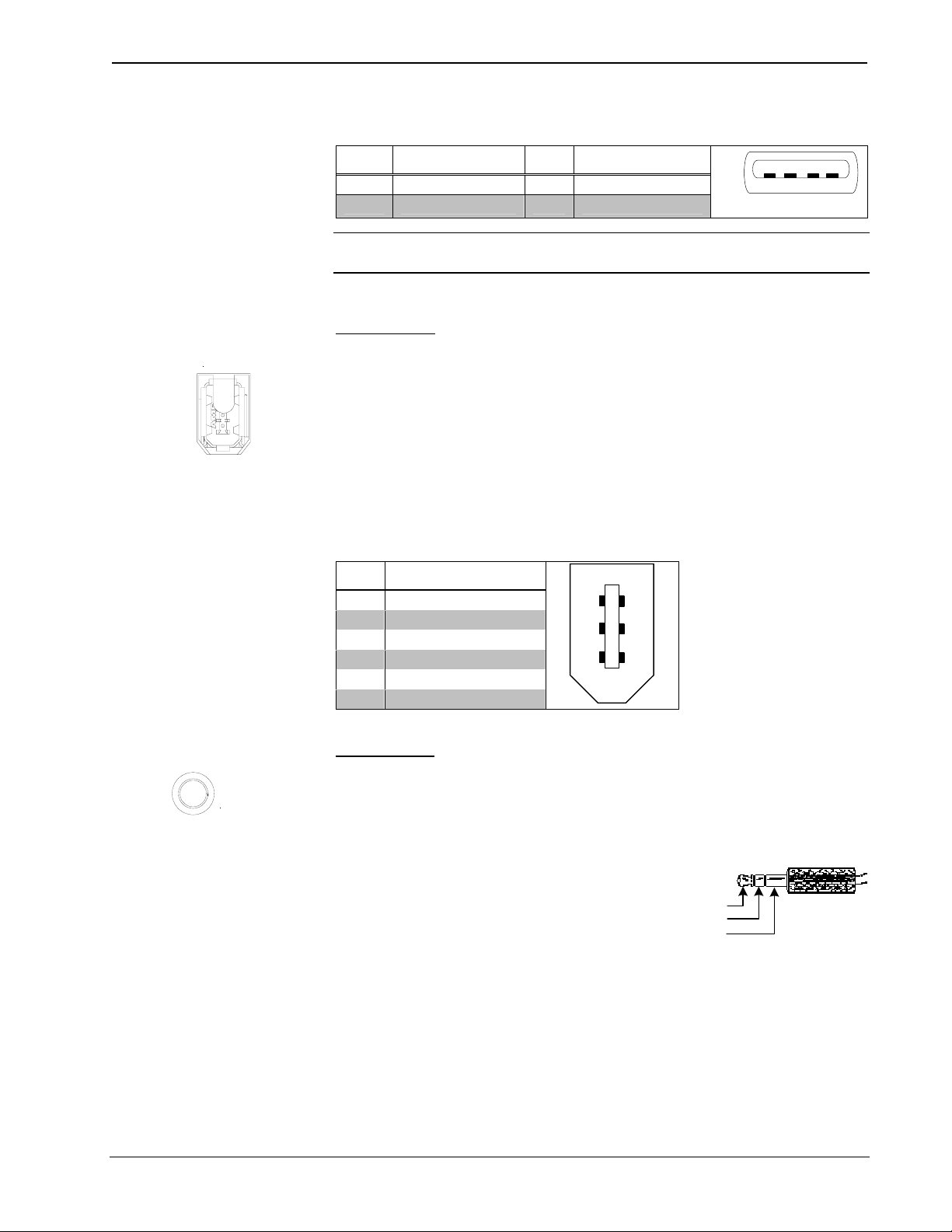

USB Connector Pinout

PIN DESCRIPTION PIN DESCRIPTION

1 +5 VDC 3 Data +

2 Data - 4 Ground

NOTE: Only standard Windows® XP embedded drivers are included. You cannot load your own driver.

IEEE 1394b

Pins 1 2 3 4

1394

AUDIO MIC

IEEE 1394b high performance serial bus is a 9-pin standard for connecting devices to a personal computer. IEEE 1394b provides a single plug-and-socket connection on which up to 63 devices can be attached with data transfer speeds up to 800 Mbps (megabits per second). The standard describes a serial bus or pathway between one or more peripheral devices and the computer's microprocessor. IEEE 1394b has networking capabilities over distances of 100 meters over CAT5. Many peripheral devices now come equipped to meet IEEE 1394b. Implementations of IEEE 1394b, which include FireWire™ and i.Link™, are not supported in the first release of the UPX-2. Additional functionality/compatibility will be available in future firmware releases.

1394 Connector Pinout

PIN DESCRIPTION

1 30 VDC

2 Ground

3 TPB- Twisted Pair B

4 TPB+ Twisted Pair B

5 TPA- Twisted Pair A

6 TPA+ Twisted Pair A

AUDIO MIC

The Audio Mic (Microphone) input is one simplex powered 3.5 mm TRS mini phone jack. Use this input for conferencing (NetMeeting is supported). MIC input is not passed to audio outputs. This input is converted to data and passed over the network to an IP address of your choosing using NetMeeting.

Input = 0.1 V

1.0 V

Impedance = 10 kΩ

Tip – Microphone audio Ring – Bias power

(with 20 dB boost on)

RMS

(with boost off)

RMS

Tip

Ring

Sleeve

Sleeve – Ground

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 15

Crestron UPX-2 Universal Presentation Processor

AUDIO LINE IN and OUT

OUT

DO NOT REMOVE FLASH

UNLESS UNIT POWER

IS OFF

SPDIF

LINE

The LINE IN audio connection is one 3.5 mm TRS mini phone jack for unbalanced stereo audio input. Input = 1.0 V

, Impedance = 10 kΩ

RMS

Tip – Left audio Ring – Right audio Sleeve – Ground

The LINE OUT audio connection is one 3.5 mm TRS mini phone jack for unbalanced stereo audio output. Output = 1.0 V

, Impedance = 10 kΩ

RMS

Tip – Left audio Ring – Right audio Sleeve – Ground

SPDIF

One RCA type female connector is provided for digital audio output. S/PDIF (Sony/Philips Digital Interface) is a standard digital audio transfer file format. It allows a digital transfer of audio from one file to another without converting to an analog format, which could degrade the signal quality. Many audio products that offer AC-3 (Dolby Digital

and DTS®) sound decoding have the SPDIF interface.

Flash Memory Access

The onboard memory is enhanced with a Type II compact flash memory (a required 1GB compact flash card is provided). This compact flash card is specifically configured by Crestron and can only be subs

The flash memory slot is accessible on the back panel of the unit.

ituted with cards supplied by Crestron.

Pin 1

AUX COM

Pin 9

CAUTION: Do not remove the flash memory unless instructed to do so by a Crestron customer service representative.

CAUTION: Make sure power is disconnected before removing or installing the compact flash.

NOTE: The UPX-2-1GB and UPX-2-MSO include 1GB compact flash cards. Other UPX-2 models with 512MB compact flash can be upgraded to the 1GB compact flash with either Crestron part number UPX-OS1GB or part number UPX-OS1GBMSO which are available from Crestron. For ordering information, contact Crestron.

AUX COM

This port contains one DB9 male connector with standard PC RS-232 pinout connection for non-Crestron touchpanel monitors, touch-sensitive overlays, or

ointing devices. Contact Crestron to confirm compatibility. This port can also be

sed for console applications from Crestron Toolbox. The AUX COM port is factory default set to touchscreen/tablet. Refer to “Touch Screen” on page 30 for console mode reset details.

16 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

AUX COM Connector Pinout

PIN MODE FUNCTION PIN MODE FUNCTION

1 Control Data Carrier Detect 6 Control Data Set Ready

2 Status Receive Data 7 Control Request to Send

3 Output Transmit Data 8 Control Clear to Send

4 Control Data Terminal Ready 9 Control Ring Indicator

5 GND Signal Ground

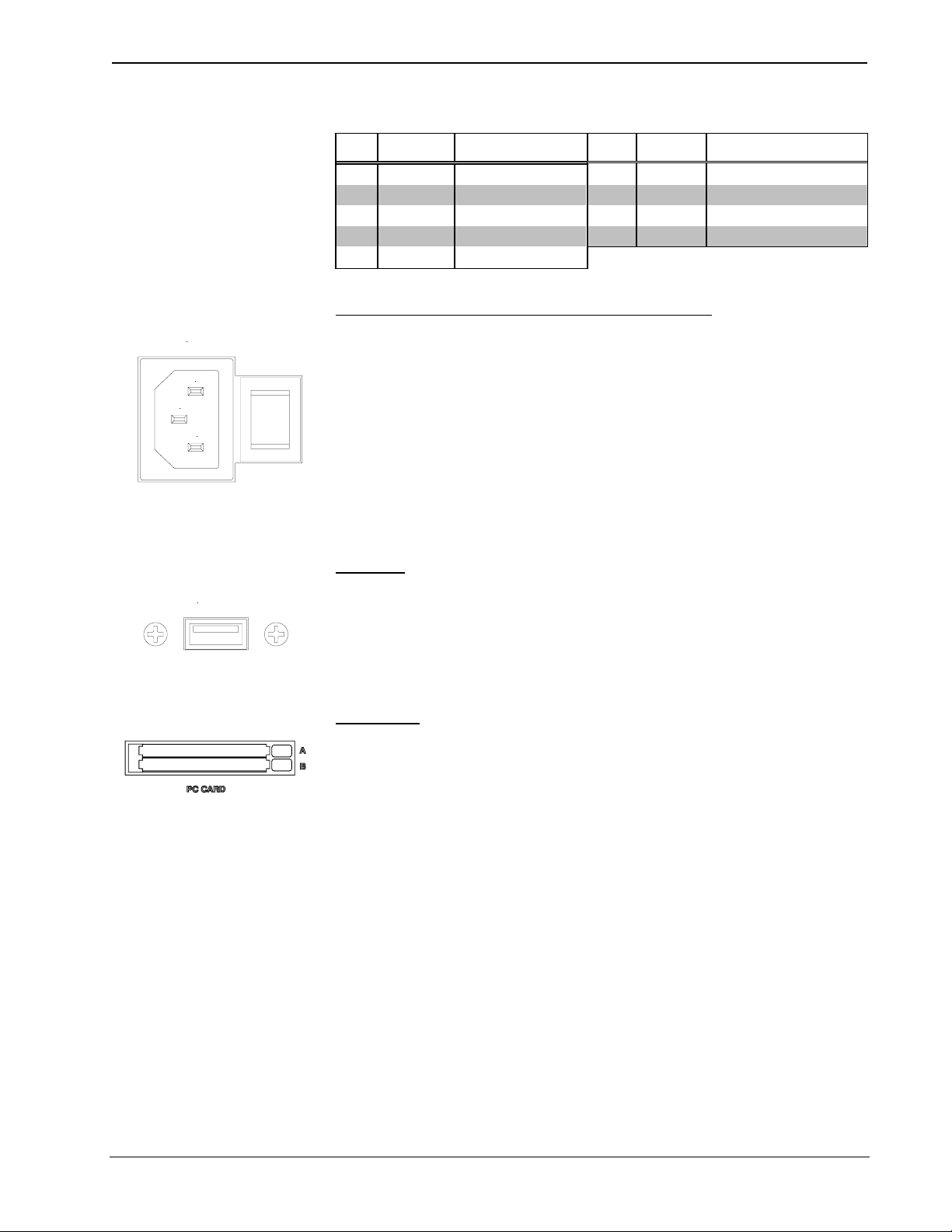

POWER CORD CONNECTION and SWITCH

100-240V ~ 6.3A

50/60Hz

Hot

GND

Neutral

USB

A six-foot power cable is included.

The AC input (IEC connector) provides auto switching from 100 to 240 VAC, 50/60 Hz.

The switch turns main power on and off.

Ports, Indicators and Buttons – Front Panel

USB 2.0

The Universal Serial Bus (USB) "A" connector can be used for communication to the DualTouch Technology touchpanels, storage devices, USB mice and keyboards. The first release of the UPX-2 does not support DualTouch Technology touchpanels on this port. Additional functionality/compatibility will be available in future releases.

PC CARD

Two PCMCIA card slots (A and B) are provided for additional flash memory cards and wireless Ethernet card (PQI FPC-PC.E and Kingston CF/ADP have been tested).

If the assigned drive letter is for temporary use, no further steps are required.

If one or more devices are added to the UPX-2 for continuous use, ensure they are connected and then reboot the UPX-2. The assigned drive letters will not change unless you change the connected devices or reboot without the device(s) connected. From this point forward, you can connect and disconnect other temporary use devices without rebooting. This is only a configuration step and not required for normal use. The device will function even if this step is not performed. However, this will guarantee the drive assignment letter will remain consistent for long-term use.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 17

Crestron UPX-2 Universal Presentation Processor

PWR

The NET LED flashes to indicate network activity.

The system-reset button provides a full hardware and software reset.

The UPX-2 is Touch-Settable ID-ready. A SETUP pushbutton and associated LED

A front panel Power LED indicates when power is applied to the UPX-2 via the AC power cord connection. Press and hold the momentary power on/off button for five seconds to shut down the system (overrides the main off switch on the rear). Press momentarily to restart.

NET

RESET

SETUP LED and Pushbutton

are located on the rear of the unit next to the Cresnet connector. The SETUP pushbutton and its associated LED are used for setting a unit’s network ID during the initial configuration of a Cresnet system or when the device is being added/replaced. Refer to “Identity Code” on page 21 for more information.

Industry Compliance

This product is Listed to applicable UL Standards and requirements by Underwriters Laboratories Inc.

(E174344)

As of the date of manufacture, the UPX-2 has been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling.

NOTE: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

18 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

Setup

Rack Mounting

WARNING: To prevent bodily injury when mounting or servicing this unit in a rack, take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety:

• The unit should be mounted at the bottom of the rack if it is the only unit in the rack.

• When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack. Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due to uneven mechanical loading.

• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack.

NOTE: To prevent overheating, do not operate this product in an area that exceeds the environmental temperature range listed in the table of specifications. Consideration must be given if installed in a closed or multi-unit rack assembly since the operating ambient temperature of the rack environment may be greater than the room ambient. Contact with thermal insulating materials should be avoided on all sides of the unit.

NOTE: Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is not compromised.

NOTE: Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

NOTE: Reliable earthing (grounding) of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit. (e.g., use of power strips).

NOTE: If rack mounting is not required, rubber feet are provided for tabletop mounting or stacking. Apply the feet near the corner edges on the underside of the unit.

Two rack “ears” are provided with the UPX-2 so that the unit can be rack mounted. These ears must be installed prior to mounting. Complete the following procedure to attach ears to the unit. A #2 Phillips screwdriver is required.

1. Using a #2 Phillips screwdriver, remove the three screws closest to the front panel from one side of the unit.

2. Position a rack ear so that its mounting holes align with the holes vacated by the screws in step 1.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 19

Crestron UPX-2 Universal Presentation Processor

3. Attach the ear to the unit with three screws from step 1, as shown in the following illustration.

Ear Attachment for Rack Mounting

4. Repeat procedure (steps 1 through 3) to attach other ear to opposite side.

Network Wiring

While the UPX-2 does not require network power to operate, the following guidelines should still be observed.

CAUTION: In order to ensure optimum performance over the full range of your installation topology, Crestron Certified Wire, and only Crestron Certified Wire, may be used. Failure to do so may incur additional charges if support is required to identify performance deficiencies as a result of using improper wire.

CAUTION: Use only Crestron power supplies for Crestron equipment. Failure to do so could cause equipment damage or void the Crestron warranty.

CAUTION: Provide sufficient power to the system. Insufficient power can lead to unpredictable results or damage to the equipment. Please use the Crestron Power Calculator to help calculate how much power is needed for the system (http://www.crestron.com/calculators).

When calculating the length of wire for a particular Cresnet run, the wire gauge and the Cresnet power usage of each network unit to be connected must be taken into consideration. Use Crestron Certified Wire only. If Cresnet units are to be daisychained on the run, the Cresnet power usage of each network unit to be daisychained must be added together to determine the Cresnet power usage of the entire chain. If the unit is a home-run from a Crestron system power supply network port, the Cresnet power usage of that unit is the Cresnet power usage of the entire run. The wire gauge and the Cresnet power usage of the run should be used in the following equation to calculate the cable length value on the equation’s left side.

Cable Length Equation

L = Length of run (or chain) in feet R = 6 Ohms (Crestron Certified Wire: 18 AWG (0.75 MM ))

or 1.6 Ohms (Cresnet HP: 12 AWG (4 MM ))

P = Cresnet power usage of entire run (or chain)

L <

40,000

Where:

R x P

20 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

Make sure the cable length value is less than the value calculated on the right side of the equation. For example, a Cresnet run using 18 AWG Crestron Certified Wire and drawing 20 watts should not have a length of run more than 333 feet. If Cresnet HP is used for the same run, its length could extend to 1250 feet.

NOTE: All Crestron certified Cresnet wiring must consist of two twisted pairs. One twisted pair is the +24V conductor and the GND conductor, and the other twisted pair is the Y conductor and the Z conductor.

NOTE: When daisy-chaining Cresnet units, strip the ends of the wires carefully to avoid nicking the conductors. Twist together the ends of the wires that share a pin on the network connector, and tin the twisted connection. Apply solder only to the ends of the twisted wires. Avoid tinning too far up the wires or the end becomes brittle. Insert the tinned connection into the Cresnet connector and tighten the retaining screw. Repeat the procedure for the other three conductors.

NOTE: For larger networks (i.e., greater than 28 network devices), it may become necessary to add a Cresnet Hub/Repeater (CNXHUB) to maintain signal quality throughout the network. Also, for networks with lengthy cable runs, it may be necessary to add a Hub/Repeater after only 20 devices.

Crestron Toolbox

NOTE: The minimum version of Crestron Toolbox required to operate with the UPX-2 is version 1.2.10 or later.

Crestron Toolbox (a replacement for Crestron Viewport) is a broad-based software package that accomplishes multiple system tasks, primarily using an RS-232 or TCP/IP connection between a PC and one or more Crestron control systems.

You can use Crestron Toolbox to:

• Observe system processes.

• Upload operating systems and firmware.

• Upload programs and touchpanel projects.

• Set or change device Network IDs.

• Change serial numbers.

• Run scripts to automate tasks.

• Perform system diagnostics, and much more.

Crestron Toolbox allows you to perform these functions using simple graphical views and click and drag methods.

Identity Code

All equipment and user interfaces within the network require a unique identity code (Net ID). These codes are two-digit hexadecimal numbers ranging from 03 to FE. Refer to “Cresnet” on page 29 for instructions on setting the unit's Net ID. The Net ID of each unit must match an ID code specified in the SIMPL Windows program. Refer to “Setting the Net ID in Device Settings” in the latest version of the UPX-2 Reference Guide (Doc. 6286) for details of the SIMPL Windows procedure.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 21

Crestron UPX-2 Universal Presentation Processor

The Net ID of the UPX-2 has been factory set to 03. The Net IDs of multiple UPX-2s in the same system must be unique. Net IDs are changed from a personal computer (PC) via Crestron Toolbox.

NOTE: For detailed information on establishing communication between the PC, control system, and the UPX-2, refer to “Establishing Communications Between the PC and the UPX-2” on page 59. If communication cannot be established, refer to the “Troubleshooting Communications” section in the latest version of the 2-Series Control System Reference Guide (Doc. 6256), which is available from the Crestron website.

Crestron Toolbox provides several methods to easily set or change device Net IDs for any device on the network. With the “Network Device Tree” window, one can set the Net ID without setting duplicate IDs or set any known Net ID that may require changing. The “Network Device Tree” window will not permit you to choose an ID already in use by another device that is not equipped with TSID. If you are going to assign an ID that is already in use by a device that is equipped with TSID, a warning message will appear.

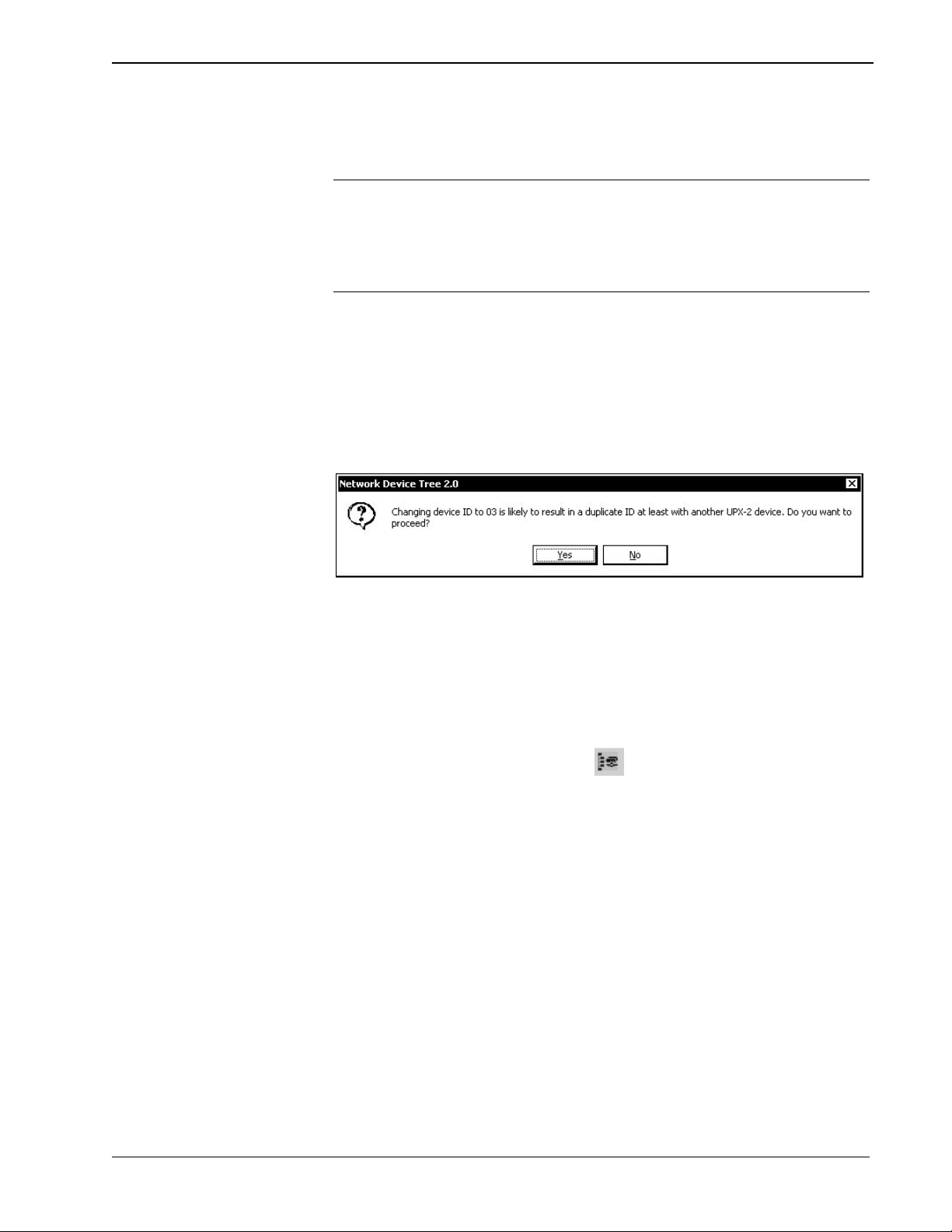

Duplicate Net ID Warning Message

Any Net ID changed in Crestron Toolbox does not change the Net ID as assigned in SIMPL Windows. For information on setting the Net ID in SIMPL Windows, refer to the latest version of the UPX-2 Reference Guide (Doc. 6286).

1. Ensure that all network devices are connected to the control system.

2. Open Crestron Toolbox and establish communications (refer to “Establishing Communications Between the PC and the UPX-2” on page

59).

3. Select the Network Device Tree Device Tree.

4. Expand the Network Device Tree until the Net ID that is to be changed is visible. Right-click on the Net ID, and when the sub-menu appears, select Change Network ID.

icon, or select Tools | Network

22 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

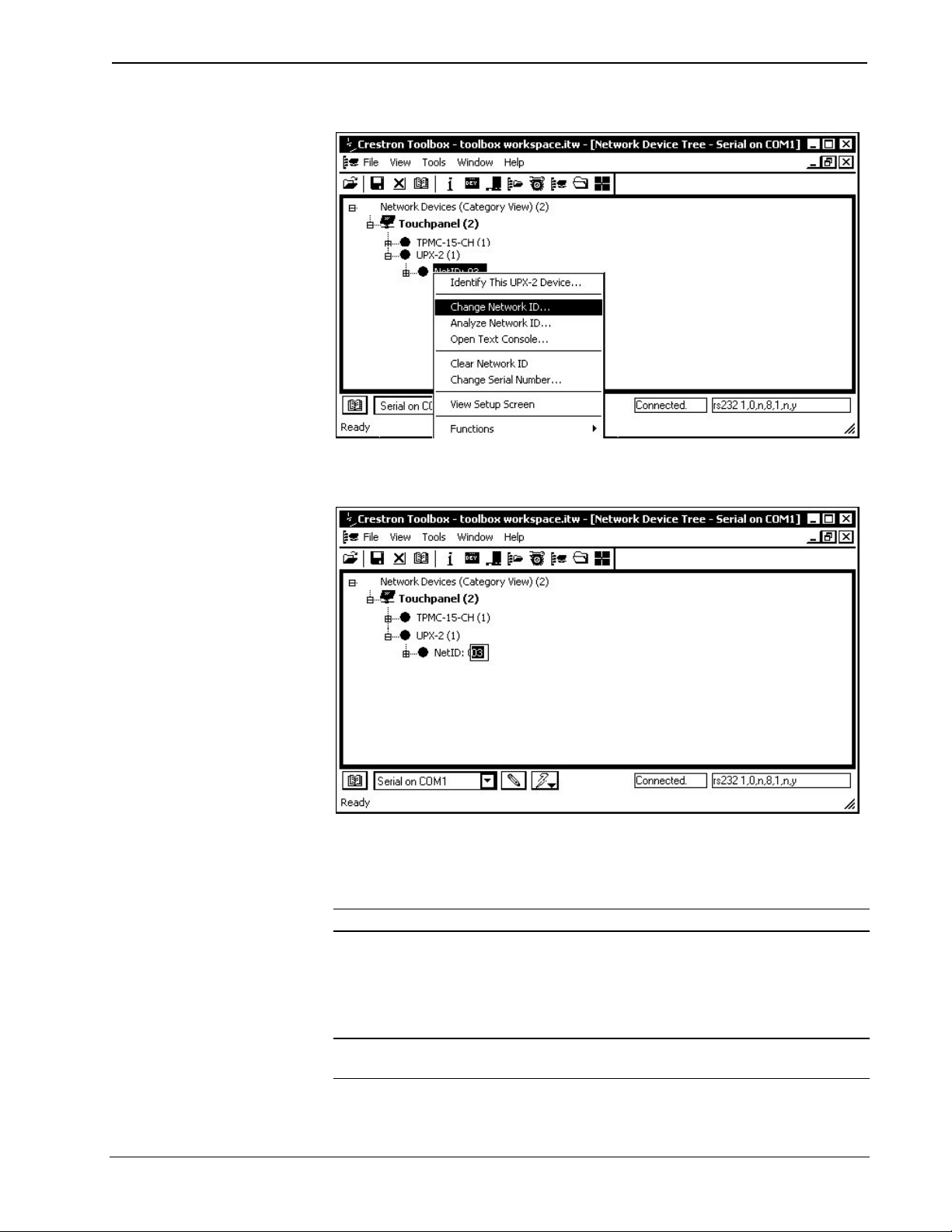

“Network Device Tree” – Sub-Menu

5. Type a new Net ID and press Enter.

Enter New Net ID

Repeat this procedure for each additional network device requiring a Net ID change.

Crestron Toolbox can also be used to set Net IDs with the SETUP button on the rear panel. For instructions, refer to the Crestron Toolbox help file.

NOTE: To set the ID using the SETUP MENU, refer to “Cresnet” on page 29.

Configuring the UPX-2

The UPX-2 is configured from the SETUP MENU.

NOTE: If a project has not been loaded, or if an invalid project has been loaded, the touchpanel displays an error message and defaults to the SETUP MENU screen.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 23

Crestron UPX-2 Universal Presentation Processor

If a project is running, the SETUP MENU can be accessed using one of three methods:

Via Touch Screen

1. At unit startup, when the “Project Loading” progress bar and time countdown is displayed, press and hold your finger on the touchpanel display until the text “Loading Setup Screen” is displayed.

2. Press the SETUP button to open the SETUP MENU. The SETUP MENU will be displayed in the center of the screen.

NOTE: If the SETUP MENU is not displayed in the center of the screen, refer to the note on page 26 for instructions on adjusting the display.

NOTE: If the touchpanel is out of calibration, the calibration menu will be displayed. Refer to “Configuring Touch Screens” on page 31 for information on calibrating the touchpanel.

Via USB Keyboard

1. Attach a USB keyboard as shown on page v.

2. Open the “Validate User Account Info” window (shown below) by pressing Ctrl+Alt+Shift on the keyboard.

“Validate User Account Info” Window

3. Enter the user account name, and password and click Validate.

NOTE: The default account name is upxadmin and the default password is

upxadmin. The password is case sensitive. After logging in, the account name and password can be changed from the “Security” window. Refer to “Security” on page 27 for more information.

4. When the “UPX Debug Output” window appears (shown in the following diagram), select Project | Enter Setup Mode to enter the SETUP MENU (shown on page 26). The SETUP MENU will be displayed in the center of the screen.

24 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

“Upx Debug Output” Window

NOTE: If the SETUP MENU is not displayed in the center of the screen, refer to the note on page 26 for instructions on adjusting the display.

Via Crestron Toolbox

1. Establish communication with the UPX-2 as described in “Establishing Communications Between the PC and the UPX-2” on page 59.

2. Right-click on the device and select Functions | Setup Mode….

“Setup/Calibrate” Window

3. Select Enter Setup Mode. The SETUP MENU will be displayed in the center of the screen as shown in the following diagram.

NOTE: Select Exit Setup Mode to exit the SETUP MENU.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 25

Crestron UPX-2 Universal Presentation Processor

UPX-2 SETUP MENU

NOTE: For output displays set to resolutions greater than 800 x 600, the SETUP MENU may be displayed on the left side of the screen. If this occurs, the display needs to be adjusted. To adjust the display, select Display Output from the SETUP MENU and select the Full Screen White test pattern. Turn off the display’s power and turn back on after five seconds. Press the screen to return to Display Output dialog and then press Close to return to the SETUP MENU. The display will be adjusted and the SETUP MENU will be centered on the display.

The SETUP MENU provides access to all basic functions and parameters. It is divided into SETUP, ETHERNET, STANDBY TIMEOUT, MISC. CONTROLS and SHUTDOWN sections.

NOTE: To allow the UPX-2 to upload projects, Standby Timeout is disabled until approximately five minutes after the project is loaded.

To exit the SETUP MENU and return to the program, press Exit, located at the bottom of the SETUP MENU. To reboot the UPX-2, press Save & Reboot, located in the SHUTDOWN section of the SETUP MENU.

26 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

SETUP MENU Details

The SETUP MENU allows configuration of the UPX-2’s settings for security, Cresnet, RS-232 communications, display, runtime project, video, audio, annotation, and embedded applications.

Security

The Security button opens the “Security Setup” window, which allows the user to change the username and password of the system account, setup and close network connections, setup a Proxy Server, close network connections, and manage the cache of the Internet Browser (clear temporary files, history, and cookies).

“Security Setup” Window

Setup Connections

Click Setup Connections… to open the “Network Connections” window. This window is used to map to a network drive. A mapped network drive permits easy access to embedded application files (Word, Excel, Powerpoint, MediaMarker, etc.) and provides a location to save files. To further customize the installation, network drives containing compiled UPX-2 project files can also be mapped.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 27

Crestron UPX-2 Universal Presentation Processor

“Network Connections” Window

To add a new network connection, click Add….

“Configure Network Connection” Window

To add a network drive, click

1. Map this connection by selecting a drive letter from the Map Drive Letter drop-down list.

2. Enter a User Name and Password.

3. Click the Remember and reconnect on startup checkbox if so desired.

4. Click OK to enable the new network connection and return to the “Network Connections” window.

Setup Proxy…

Click Setup Proxy… to open the “Setup Proxy” window. This window is used to point to a proxy server for Internet access. A proxy server acts as an intermediary between your internal network (intranet) and the Internet, retrieving files from remote Web servers.

28 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

to browse for the new network connection.

Universal Presentation Processor Crestron UPX-2

“Setup Proxy” Window

To setup a proxy server, select Use Proxy Server.

1. Enter the IP address or name of the proxy server.

2. If desired, specify addresses that should not use the proxy server (i.e. intranet addresses).

Click OK to enable the proxy server connection and return to the “Network Connections” window.

Once all changes to network connections have been completed, click OK to return to the SETUP MENU.

Cresnet

The “Cresnet Setup” window allows you to enable or disable Cresnet and permits changing the Cresnet ID.

“Cresnet Setup” Window

Select Enable for normal Cresnet communication mode or Disable to disable Cresnet communications. The communication mode is factory set to Enable.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 29

Crestron UPX-2 Universal Presentation Processor

The Cresnet network identity number (CRESNET ID) is displayed in the “Cresnet Setup” window. CRESNET ID is the two-digit hexadecimal number. The hexadecimal number can range from 03 to FE and must correspond to the Net ID set in the SIMPL Windows program of the Cresnet system. Matching IDs between touchpanel and SIMPL Windows program is required if data is to be successfully transferred. The Net ID for the UPX-2 is factory set to 03. No two devices in the same system can have the same Net ID.

Two buttons below the hexadecimal display, UP and DOWN, increase and decrease the CRESNET ID by one, respectively.

Select OK to accept the changes and return to the SETUP MENU.

Touch Screen

The Touch Screen button permits you to select how to use the AUX COM serial port. The AUX COM port can be used for serial communications between a PC and the UPX-2 console or as a communications port between the UPX-2 and third party touch screens. The “Touch Screen / Console Settings” window also provides Mouse Cursor, Key Click, and touch screen calibration for both finger touch and annotation pen.

NOTE: Touchpanel calibration may be required after a firmware upgrade.

Console Operations

To use a PC to communicate with the UPX-2, over a serial connection, you must select Console in the upper-left corner of the “Touch Screen / Console Settings” window. Select the console settings required to communicate with the PC.

Touch Screen/Tablet Operations

To set the AUX COM port to communicate with a third party touch screen or tablet, you must select 3 “Touch Screen / Console Settings” window.

“Touch Screen / Console Settings” Window

Party Touch Screen / Tablet in the upper-left corner of the

30 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

Configuring Touch Screens

The UPX-2 supports Crestron DTT, CyberTouch™, Wacom™ USB, and other third party touchpanels. Specific models and protocols are subject to verification. Refer to the Crestron website or contact Crestron for latest device support.

Up to five touchpanels (up to four Crestron, CyberTouch, or Wacom USB touchpanels and one third party serial touchpanel) can be connected to the UPX-2 at one time. Only one third party touchpanel can be connected at any time. The touchpanels can be connected to the UPX-2’s four USB ports and AUX COM port while sharing an optional RGB switch. Refer to “Connecting Multiple Touchpanels” on page 53 for more information.

Configuring Crestron DualTouch, CyberTouch, and Wacom USB Touchpanels

Click Crestron DualTouch and CyberTouch or Wacom USB to calibrate Crestron DTT, CyberTouch, and Wacom touchpanels. The“Touch Device Configuration” window will open and permit you to calibrate and detect touch configuration devices.

“Touch Device Configuration” Window

Select a device and click Calibrate to calibrate. You can also calibrate a device by touching the screen for five seconds. A full screen appears on the touchpanel with calibration instructions for the touch procedure. Once calibration is complete, you must click Save & Reboot on the SETUP MENU to save the calibration settings.

NOTE: If a touchpanel is disconnected and reconnected to a different port, or reconnected with a hub connecting to the UPX-2, the touchpanel must be recalibrated.

NOTE: A Crestron DTT consists of two separate touch devices, “Crestron DTT Touch, USB” and “Crestron DTT Pen, USB”. Both must be added and calibrated separately for the DTT to function properly. If two DTTs are connected, both devices must be added to the list of installed devices for a total of four touch devices.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 31

Crestron UPX-2 Universal Presentation Processor

NOTE: The UPX-2’s calibration routine can also be accessed through Crestron Toolbox by selecting the device from the Network Device Tree and right-clicking the device to select Functions | Setup Mode…. Select Enter Calibration Mode to begin calibration.

Click Detect to detect a new touch device.

Click Close to close the “Touch Device Configuration” window.

Press OK to accept the changes and return to the SETUP MENU.

Configuring Other Touchpanels

A variety of third party touchpanels and tablets are supported by the UPX-2. Click Other Devices in the "Touch Screen/Console Settings" window to open the “Touch Configuration” window for third party devices.

“Touch Configuration” Window

A device can be calibrated by selecting the device and clicking Calibrate. The timeout (in seconds) for the calibration procedure can be adjusted from this screen by clicking the up or down arrows next to the time value. To add a new device, click Add… to open the “Configure Device” window.

If a device’s configuration requires changes to be made, select the device and click

Modify… to open the device’s “Configure Device” window.

NOTE: Only one third party touchpanel can be connected to the UPX-2 at a time.

Before adding a new third party touchpanel, the existing touchpanel entry must be removed by clicking Remove….

32 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

“Configure Device” Window

Enter a name for the new device (or edit the existing device name) and select a supported device-type from the Type drop-down list. If applicable, the Port field will indicate which of the UPX-2’s serial ports should be connected to the device. USB devices can be enabled or disabled by checking or unchecking the Enable box.

NOTE: The Name which is entered for the device is for the end-user’s convenience and is displayed only during calibration.

Display Output

The Display Output button permits you to select the output resolution and provides test charts for setting up the display device. Output A and B have the same resolution.

“Display Output” Window

Select the appropriate Output Resolution, and click Apply. If the screen resolution is not acceptable, choose another resolution setting. If the controls are no longer visible due to the changed resolution setting, use Crestron Toolbox to change the resolution.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 33

Crestron UPX-2 Universal Presentation Processor

Using Crestron Toolbox to change the display resolution:

1. Establish communication with the UPX-2 as described on page 59.

2. Select Tools | Text Console to open a text console window.

3. From the drop-down list on the bottom of the window, select the address book entry for the UPX-2. The prompt for the UPX-2 will be displayed.

4. Type the command output H V where H is the horizontal resolution in pixels and V is the vertical resolution in pixels.

5. Press Enter to activate the new resolution setting.

Select the following Test Patterns, in the following order, and adjust the display as necessary.

1. Grid

2. Vertical Lines

3. Color Bars

4. Grayscale Gradient

5. Frequency Adjust Test

6. Streak, Boost and Skew

7. Full Screen White

8. RGB Gradient

NOTE: If the screen does not fit properly, adjust the resolution.

Select Project

Permits the selection of the UPX-2 program, a .vtz file. The default file location is the internal flash. To select a project from the internal flash, select Browse and select the compiled project to be loaded.

If loading an external file, check External as the Project Working Path and use the Select button to select the network drive and/or flash drive where the compiled project is located. After selecting the location of the compiled project, select Browse to find the compiled project file.

NOTE: Selecting the External option permits you to connect to a network drive, USB devices, and the PC Card ports on the front of the UPX-2.

NOTE: If External is checked, the display list cannot be viewed via Crestron Toolbox.

After the compiled project has been selected, press Load to load the project to the UPX-2.

34 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

“Select Project” Window – Project to Load

RGB Video

Each one of the video and RGB inputs is selected and adjusted from this window. Click on an input tab and adjust the settings (resolution, horizontal and vertical frequency) for the selected input. The selected input is shown on output B.

The “RGB/Video Setup” window can be brought up and hidden using reserved joins from within a project. Refer to the latest version of the UPX-2 Reference Guide (Doc. 6286) which is available from the Crestron website.

The “RGB/Video Setup” window contains the following settings as displayed in the image. Changes are made in real time.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 35

Crestron UPX-2 Universal Presentation Processor

RGB Setup

“Video Setup” Window - RGB 2 Tab

RGB is setup using the Size, Position, Color, and Lock Sync controls. The following test patterns are recommended for adjustment.

Lock Sync – A vertical (alternating black/white lines) line test pattern screen is recommended. Lock Sync is available for RGB only.

NOTE: The vertical line test pattern should look uniform. If you see dark vertical bars in the test pattern, adjust ‘Coarse’ to eliminate bands. If you see only horizontal noise, adjust ‘Fine’ to reduce or eliminate noise. You may also need to perform this vertical line adjustment again after changing the size of the display image.

Size and Position – A vertical/horizontal line grid screen test pattern is recommended when adjusting for position and size.

Color – Color bar and gray scale screens test patterns are recommended for color adjustments. All inputs are adjusted for brightness and contrast. Red, green and blue are individually adjusted for an RGB input. Hue and saturation are adjusted for composite, S-video and component video inputs.

36 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

NOTE: Changes made in the SIMPL windows program override these color adjustments.

NOTE: When Default is selected, all controls are set to zero.

Calibrate Auto, Default and Manual – Auto calibrate is the preferred setup method

for RGB. Auto calibrate automatically adjusts the input setting every time the source is selected. It looks at the sync for “front and back porch”, and sets them for the selected input. Auto calibrate is a mode that is set in the “Video Setup” window for each RGB input. You must select the source and have it displayed before selecting Auto from the Calibrate area. You can return to this setup screen when you want to perform auto calibrate in the future.

If this selection does not look correct, select default calibrate, which sets the input setting to the factory defaults.

Manual calibrate permits you to manually adjust the controls.

NOTE: If you are unable to obtain a stable RGB window using Auto or Default, perform the manual lock sync adjustment (coarse and fine) before continuing with the color, size, and position adjustments.

Presets – Up to 30 presets may be stored for future retrieval. Press Store to store the settings in the preset location displayed. Press Load to load the settings of the preset location displayed.

When an RGB source is connected, the UPX-2 automatically detects the horizontal resolution, vertical resolution, and sync frequency of the source. The UPX-2 will search through all of the presets that are defined for the detected settings. If a matching preset is found, the preset will be applied to the detected source. The preset number will be reported to the control system and displayed on the screen. If two or more presets were found with matching settings, the last-recalled preset will be used and the preset will be reported to the control system.

If a matching preset is not found, the UPX-2 will automatically calibrate for the RGB source. These settings will be stored as the last-recalled settings.

If presets have not been stored for a specific input, the last-recalled settings will be applied to all sources for the input. The preset number “0” will be reported to the control system and displayed on the screen.

Video Setup

The setup screen for each video source contains the settings as displayed in the following image. Changes are made in real time.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 37

Crestron UPX-2 Universal Presentation Processor

“Video Setup” Window - Video 1A Tab

Video is setup using the Color and Overscan controls. The following test patterns are recommended for adjustment.

Overscan – Overscan is the active image area in a video picture that is outside the edges of the display device (does not apply to RGB). Overscan first came about because of noise and other artifacts at the beginning and end of the scan lines. To reliably eliminate the noise and fill the screen with a picture, the outside edge of the active picture area was pushed out past the edge of the display area. The average or targeted over-scan loss is about 5 to 10% of the image on each edge. Digital images have nearly eliminated the noise and other artifacts at the edge of the picture, so more of the video image can be safely shown. The Normal setting is usually the correct choice for most video inputs.

Presets – Up to 30 presets may be stored for future retrieval. Press Store to store the settings in the preset location displayed. Press Load to load the settings of the preset location displayed.

When a video source is connected, the UPX-2 automatically detects the horizontal resolution, vertical resolution, frame rate (frames per second), and whether the signal is interlaced or deinterlaced. The UPX-2 will search through all of the presets that are defined for the detected settings. If a matching preset is found, the preset will be

38 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

applied to the detected source. The preset number will be reported to the control system and displayed on the screen. If two or more presets were found with matching settings, the last-recalled preset will be used and the preset will be reported to the control system.

If a matching preset is not found, the UPX-2 will automatically set the default settings for a video signal (brightness = 0, contrast = 0, hue = 0, and saturation = 0). These settings will be stored as the last-recalled settings.

Manage Presets

Use the Manage Presets tab to copy presets for size, position, and color for one source to other sources.

“Video Setup” Window – Manage Presets Tab

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 39

Crestron UPX-2 Universal Presentation Processor

Audio

Audio settings are made in real time. Pressing Play Test plays a short internal audio file. Volume adjustments are available for the Wave Out, Line In, and Microphone signals while balance adjustments are available for the Wave Out and Line In signals. There are also overall controls for the Master volume and balance. In addition, you can enable or disable the key click sound. Defaults are +25 for volume and zero for balance.

“Audio Setup” Window

Annotation

The Annotation button displays the “MediaMarker Session Information” window.

“MediaMarker Session Information” Window

40 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

NOTE: This screen will display a flashing message (**INVALID PATH**) if there is no flash card installed, or no folder available at the session folder location. This may also occur in the case of an invalid login.

The “MediaMarker Session Information” window allows the author name, time, date, session title and session notes to be stored for the current frame. The Author drop-down list contains all the authors available on the system. Authors can be added and removed from the Edit | Preferences | Authors menu within MediaMarker, or by pressing

Frames created during the annotation session will use a default annotation template file, frame prefix and frame output file type.

Each new frame title will contain the frame prefix followed by a sequential frame number.

The frame template serves as a starting point for each new frame. Crestron supplies some ready-made templates, or you can use one of your own.

Screen captures can automatically save the contents of the current annotation frame to an image file. The file will be saved as the default file type (HTML, JPG, BMP, PNG, or TIF) as specified in the session folder.

The Session Folder browse button select a flash memory card, a network drive, or a USB drive.

The Default Frame Template browse button templates. For Crestron provided templates, choose from the drop-down list.

For additional MediaMarker information, refer to “MediaMarker” on page 72 and the help file included with the MediaMarker software.

Advanced Settings – Click Advanced... to further customize the operation of the annotation feature.

Annotation “Preferences” Window

permits searching other folders. You may

permits you to search for

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 41

Crestron UPX-2 Universal Presentation Processor

The Highlighter section of the “Preferences” window is used to adjust the translucency level of the highlighter tool.

Different cursor styles can be selected in the Cursor section of the “Preferences” window.

The Effects section of the “Preferences” window determines how annotations will disappear from the screen. Select the effect style from the drop-down list, the delay before the effect begins, and the speed of the effect to change how annotations disappear from the screen.

NOTE: To use effects, annotation animation must be enabled by the control system program or a control on a UPX-2 touchpanel project.

When using a DTT touchpanel or a mouse, the functions of the buttons on the stylus or mouse can be defined in the Pen/Mouse Functions section of the “Preferences” window. The tip of the pen corresponds to the left mouse button. The pen side button corresponds to the middle mouse button (if present) when rocked toward the tip and the right mouse button when rocked toward the eraser. The eraser also corresponds to the right mouse button.

After all changes have been made, click OK to save the settings and return to the “MediaMarker Session Information” window.

42 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

Embedded Apps

The “Embedded Apps” window permits you to set Internet security to different levels for different types of Internet sites.

“Embedded Apps” Window (UPX-2-MSO shown)

NOTE: UPX-2-MSO models will have a button labeled Activate Microsoft Office. For more information, refer to “Office Activation (UPX-2-MSO only)” on page 45.

Internet Explorer Security Settings

Three security levels, high, medium, and low can be selected for each of the three zones, Internet, intranet, and trusted sites. The security levels are defined as:

• High: The safest way to browse, but also the least functional. Less secure features are disabled. Appropriate for sites that may have harmful content.

• Medium: Safe browsing and still functional. Prompts before downloading potentially unsafe content. Unsigned ActiveX controls will not be downloaded. Appropriate for most Internet sites.

• Low: Minimal safeguards and warning prompts are provided. Most content is downloaded and run without prompts. All active content can run. Appropriate for sites you absolutely trust.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 43

Crestron UPX-2 Universal Presentation Processor

Press Default to restore the default security settings. By default, security is set to High for Internet, Medium for intranet, and Low for trusted sites.

The “Embedded Apps” window also permits you to enable the popup windows (child windows) that open when you are in Internet Explorer (not the popup windows of the embedded applications).

Press Close after all changes have been made. The UPX-2 must be rebooted for changes to take effect. Refer to “SHUTDOWN Details” on page 51 for more information.

Trusted Sites

A list of trusted sites can be created and edited by pressing Add/Remove Trusted Sites.

To add or remove a trusted site, press Add/Remove Trusted Sites to open the “Trusted Sites” window. From here, trusted sites can be added and edited. Sites are listed by either domain name or IP address. Once all sites have been entered, press Close.

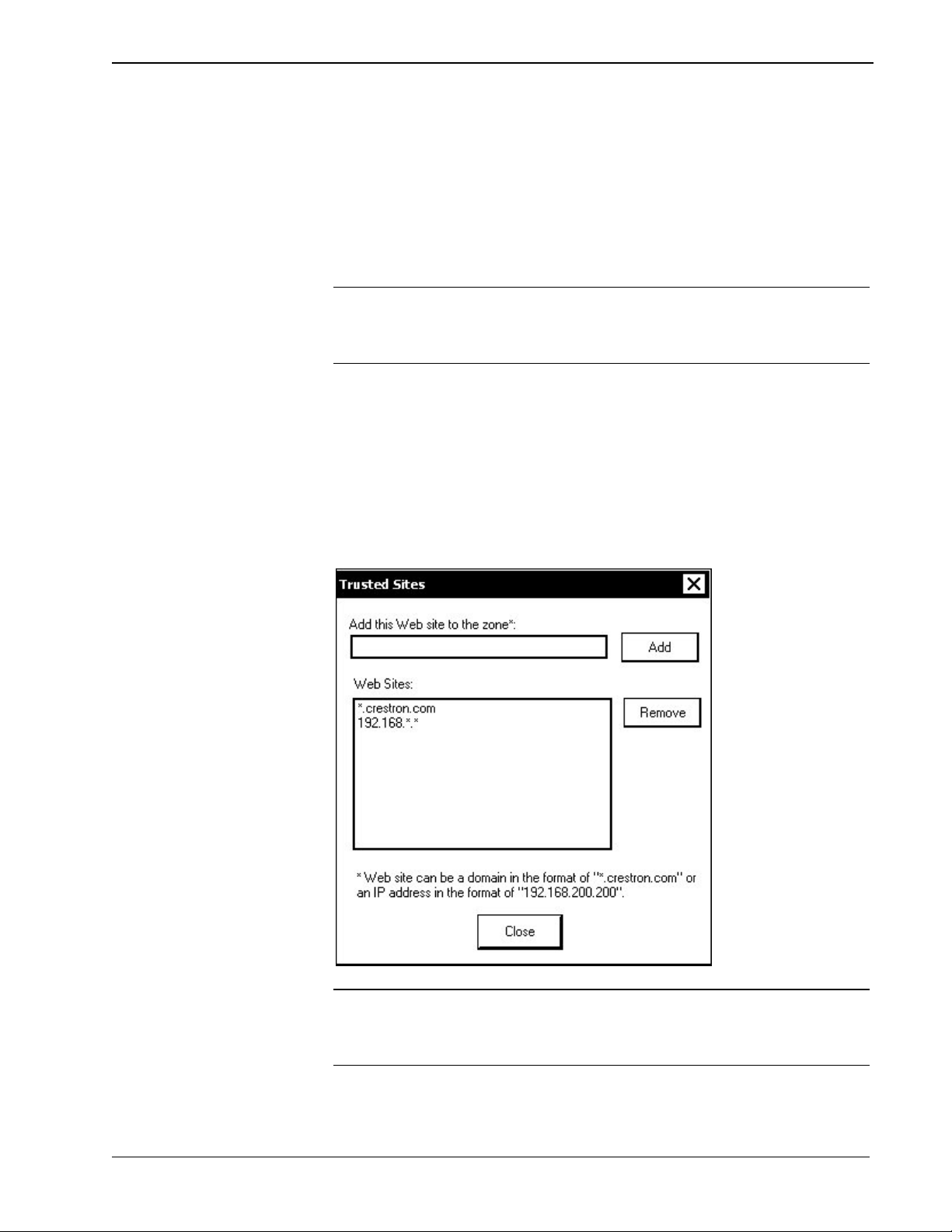

“Trusted Sites” Window

44 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

NOTE: Save & Reboot on the SETUP MENU must be selected for Embedded Apps changes to take effect.

NOTE: While browsing the Internet with the UPX-2, clicking on a link may cause a message box titled "Restrictions" to appear that contains the text "This operation has been cancelled due to restrictions in effect on this computer. Please contact your system administrator." If this message appears, checking Enable Pop-ups in the “Embedded Apps” window may correct this error. Other restrictions may also cause this error, so this may not prevent all occurrences.

Office Activation (UPX-2-MSO only)

Press the button labeled “Activate Microsoft Office” to start the process for activating Microsoft Office. A window will open describing the procedure and requirements for activating Microsoft Office.

NOTE: An Internet connection is required to activate Microsoft Office. For instructions on setting up an Internet connection, refer to “Establishing Communications Between the PC and the UPX-2” on page 59.

Setup Microsoft Office (UPX-2-MSO Only)

1. Click OK to begin the activation process. Activation requires the product key on the Microsoft Office CD included with the UPX-2-MSO. The UPX-2-MSO will launch Microsoft Word and prompt the user for the product key.

“Product Key” Window (UPX-2-MSO Only)

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 45

Crestron UPX-2 Universal Presentation Processor

2. Enter the user name, initials, organization and the product key found on the Microsoft Office CD that is included with the UPX-2-MSO.

3. Click OK to complete the activation.

ETHERNET Details

The ETHERNET MENU allows configuration of the UPX-2’s settings for Ethernet communications.

Ethernet

Press the Ethernet button to access the “Ethernet Setup” window. Changes are made in real time and there is typically no need to reboot. The Ethernet address and mask are displayed on this screen.

“Ethernet Setup” Window

Click TCP/IP Setup to open the “EthernetExternal Properties” window. This window displays the connection and related required items.

46 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

“EthernetExternal Properties” Window

To establish dynamic or static processing, select Internet Protocol (TCP/IP) and click Properties.

“Internet Protocol (TCP/IP) Properties” Window

Transmission Control Protocol/Internet Protocol (TCP/IP) is a set of protocols that defines how to transfer data between two computers. TCP monitors and ensures correct transfer of data. IP receives the data from TCP, breaks it up into packets, and

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 47

Crestron UPX-2 Universal Presentation Processor

ships it off to a network. The IP address is a unique number consisting of four parts separated by dots, e.g., 165.113.245.2.

Dynamic Host Configuration Protocol (DHCP) is a protocol for assigning dynamic IP addresses to devices on a network. With dynamic addressing, a device can have a different IP address every time it connects to the network. In some systems, the IP address of the device can even change while it is still connected. DHCP also supports a mix of static and dynamic IP addresses.

Dynamic addressing simplifies network administration because the software keeps track of IP addresses rather than requiring an administrator to manage the task. New computers can be added to a network without manually assigning each one a unique IP address.

IP Table

Edit, remove, or enter a control system’s IP address in the IP table to enable communication between the UPX-2 and a control system. The UPX-2 can communicate with multiple control systems.

Refer to the latest version of the Crestron 2-Series Control Systems Reference Guide (Doc. 6256) for more information on IP tables.

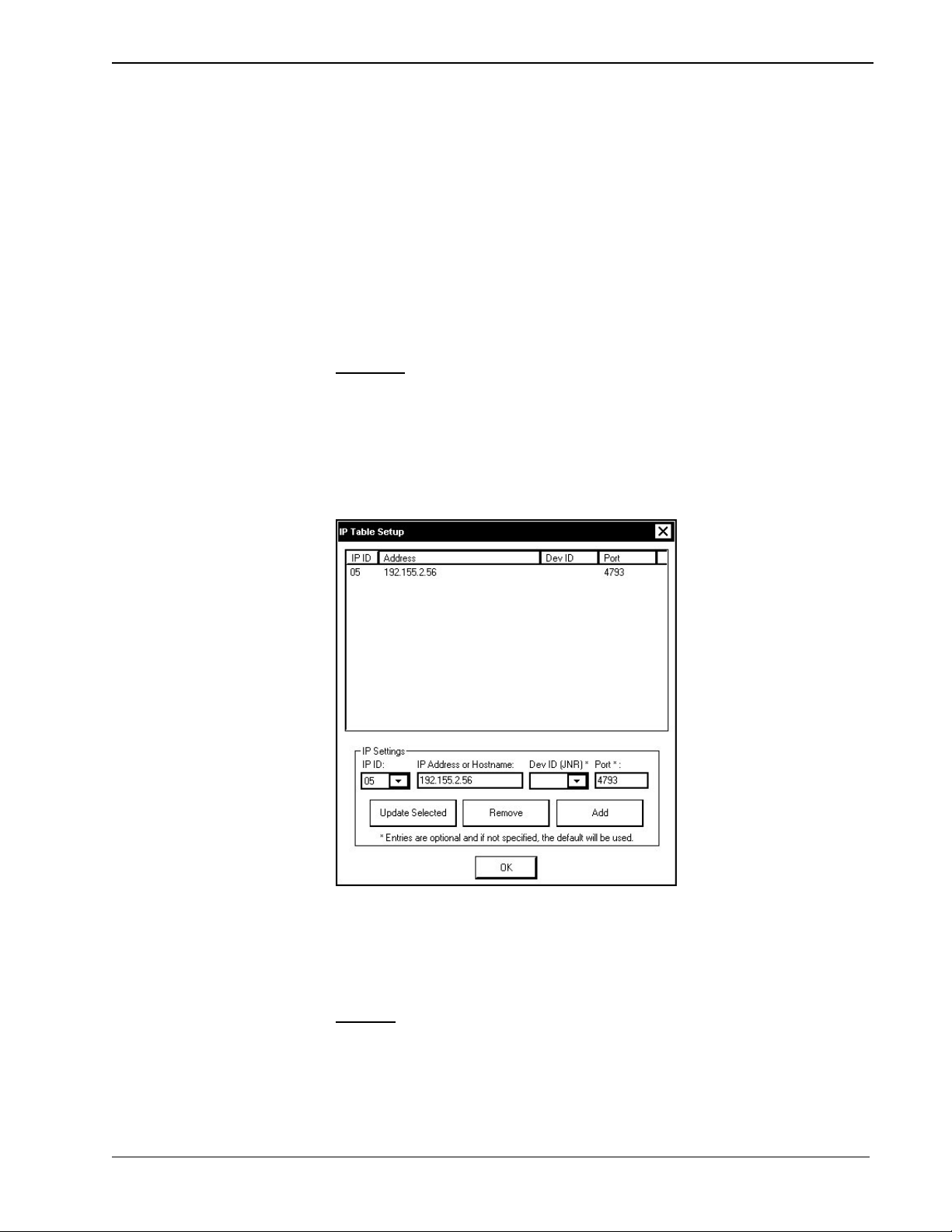

“IP Table Setup” Window

The IP ID is the ID number that is used to identify the UPX-2 in a control system’s IP table. The IP ID should match the IP ID set in the control system’s SIMPL Windows program. The IP Address field lists the IP address of the control system that will address the corresponding IP ID.

Identity

Press Identity to open the “Network ID” window. The “Network ID” window displays the hostname and workgroup that identify the UPX-2 on the network. The hostname may be used when transferring a program over Ethernet using Crestron Toolbox. This window permits editing of the hostname and workgroup.

48 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

“Network ID” Window

NOTE: The hostname is required if a static IP address is not used.

Sharing

Press Sharing to open the “Configure Shared Folders” window. This window is used to set up shared folders. Sharing enables remote computers to view and/or modify files stored on the UPX-2.

“Configure Shared Folders” Window

Click Add New Share… to browse and add directories with permission to read-only or read/write. Click Close after adding all folders to be shared.

MISC. CONTROLS Details

The Misc. Controls MENU contain the Diagnostics and Show Keyboard buttons.

Press the Diagnostics button to display the firmware version number, control popup messages and appearances, and to reset the end user license.

There are various types of popup messages. Following are definitions of each message type:

• Warning: An event occurred that may affect the normal operation of the unit.

• Error: An operation has failed.

• Fatal: An event occurred which will require the unit to be reset.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 49

Crestron UPX-2 Universal Presentation Processor

The “Diagnostics” Window in Miscellaneous Controls

Click the Show Keyboard button to display the on-screen keyboard.

The on-screen keyboard can be used in an identical manner to a physically connected keyboard. The on-screen keyboard can be used in any of the embedded applications, for example, enter a web address, enter data into a spreadsheet, etc.

Exit the on-screen keyboard by selecting File | Exit.

On-Screen Keyboard

NOTE: If Ctrl+Alt+Shift is selected from the onscreen keyboard, user accounts and passwords can no longer be typed from the onscreen keyboard or an external keyboard.

50 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

NOTE: The on-screen keyboard cannot be used when the UPX-2 is in the

Annotation mode. The on-screen keyboard cannot be used with MediaMarker Notebook.

SHUTDOWN Details

To reboot the UPX-2, press Save & Reboot, located in the SHUTDOWN section of the SETUP MENU.

To turn off the UPX-2, press Shut Down, located in the SHUTDOWN section of the SETUP MENU.

CAUTION: Do not turn off power to the UPX-2 while it is shutting down. Damage may occur.

• The screen goes black.

• You may see various images on the display. This may take a few minutes.

• When a screen appears with the Windows logo that says "It is now safe to

turn off your computer”, you may turn off the power.

This is the recommended method for powering down the UPX-2. After the UPX-2 has been shut down, the power cord can be safely removed from the UPX-2.

STANDBY TIMEOUT Details

The STANDBY TIMEOUT function can turn off the display outputs when the screen has not been touched for a specified time frame (minutes). When a display is activated, the last screen to be displayed reappears. Minutes can vary from 0 to 120, where 0 disables the timeout. Press Up or Down to adjust the timeout period.

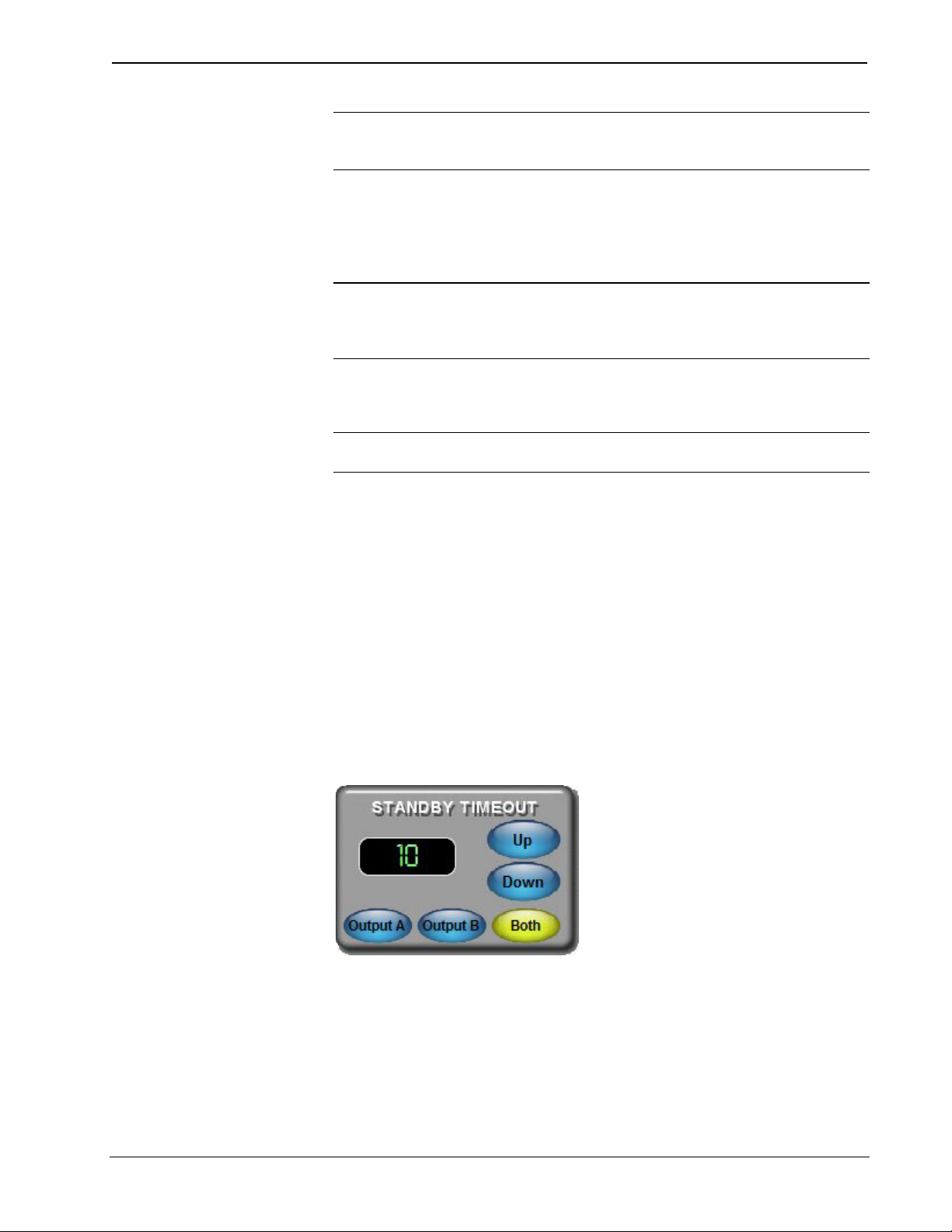

“Standby Timeout”

The timeout time of each output can be set individually by selecting the relevant output. The timeout time of both outputs can be set simultaneously by selecting Both. To increase the timeout period, press Up. To decrease the timeout period, press Down.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 51

Crestron UPX-2 Universal Presentation Processor

Hardware Hookup

Refer to the following diagram and complete the video and communications connections as needed in any order. Connect the power cord last.

NOTE: The maximum continuous current from equipment under any external load conditions shall not exceed a current limit that is suitable for the minimum wire gauge used in interconnecting cables. The ratings on the connecting unit's supply input should be considered to prevent overloading the wiring.

NOTE: The UPX-2 occupies two rack spaces.

Rear Side Connectors

CRESNET: TO CONTROL SYSTEM AND

OTHER CRESNET

DEVICES

MOUSE:

FROM PS/2

MOUSE

KEYBOARD:

FROM PS/2 KEYBOARD

NETWORK:

10/100 BASE-T

ETHERNET TO LAN

USB:

“A” TYPE FOR DUAL-

TOUCH TOUCHPANEL

DATA TRANSFER WITH 3

AND 3

PARTY

PERIPHERALS

IEEE 1394b SERIAL BUS FOR

1394:

PERIPHERALS

BI-DIRECTIONAL RS-232,

HARDWARE & SOFTWARE

COM:

RS-422, RS-485 WITH

HANDSHAKING AND

MODEM CONTROL

DO NOT REMOVE THIS COVER. THESE PORTS SHOULD NOT

BE USED ON THE

UPX-2

PARTY

RGB OUTPUT:

PORT A TO

DUALTOUCH

TOUCHPANEL

PORT B TO

DISPLAY DEVICE

OUT

LINE OUT:

UNBALANCED STEREO

AUDIO OUTPUT

RGB INPUT:

FROM

SOURCES

“A” TYPE FOR

DUALTOUCH

TOUCHPANEL

& 3

PERIPHERALS

VIDEO INPUTS:

COMPOSITE,

S-VIDEO AND

COMPONENT VIDEO

(INCLUDING HDTV)

HDTV INPUT

USB:

PARTY

POWERED MICROPHONE

UNBALANCED STEREO

FOR NON-CRESTRON

TOUCHSCREEN

MONITOR, TOUCH-

SENSITIVE OVERLAY,

OR POINTING DEVICE

AUDIO MIC:

INPUT FOR SIMPLEX

LINE IN:

AUDIO INPUT

SPDIF:

DIGITAL AUDIO OUTPUT

Ground

AUX COM:

POWER:

FOR

POWER

CABLE

52 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

NOTE: If using a UPX-2 containing a 512MB compact flash operating system, the USB cable should be connected to the bottom-left USB port.

Connecting Multiple Touchpanels

Up to five touchpanels (up to four Crestron, CyberTouch, or Wacom USB touchpanels and one third party serial touchpanel) can be connected to the UPX-2 at one time. The touchpanels can be connected to the UPX-2s four USB ports while the third party serial touchpanel is connected to the AUX COM port. All of the touchpanels can share an RGB output using an RGB switch as shown in the following diagram.

Connecting Multiple Touchpanels

Some USB touchpanels may draw too much power, and prevent the UPX-2 from booting up correctly. Use a powered USB hub to connect touchpanels that draw too much USB power.

Only one third party touchpanel can be connected at any time.

Extending the VGA and USB Cables

The following diagram details the method of extending the USB and RGB (VGA) cables for the DTT-15V2 or DTT-17 when connecting to the UPX-2.

Crestron has successfully tested the following USB extenders:

• I/O Gear model GUCE50.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 53

Crestron UPX-2 Universal Presentation Processor

• Gefen model EXT-USB-200

NOTE: Do not use a hub with a USB extender.

Extending RGB & USB Cables

Composite Video Connections

The UPX-2 has six composite video inputs available. All six connectors may be used as composite video inputs. Refer to the following diagram.

54 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

Composite Video Connections

VIDEO INPUT 1/HDTV

B Y

VIDEO INPUT 2

C C

Signal 1A

Composite

Signal 1B

Signal 1C

Composite

Signal 2A

Composite

Signal 2B

Composite

Signal 2C

Composite

S-Video Connections

When connecting S-video cables, make sure to connect one set to one input. Connect Y to the B input and C to the C input. The A input of VIDEO INPUT 1 and VIDEO INPUT 2 may be used for a composite video connection. Refer to the following diagram.

NOTE: If you are using a 4-pin DIN S-video cable, you will need to use a 4-pin (female) DIN to BNC adapter (adaptor not included).

S-Video Connections

VIDEO INPUT 1/HDTV

C C P

VIDEO INPUT 2

S-Video

Luminance

S-Video 1

(Y) Signal

S-Video

Chromanince

S-Video

(Y) Signal

Luminance

S-Video 2

S-Video

Chromanince

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 55

Crestron UPX-2 Universal Presentation Processor

Component Video Connections

When connecting Component video, connect one set of Y, PB, and PR to one set of connectors. Only VIDEO INPUT 1 supports HDTV. Refer to the following diagram.

Component Video Connections

VIDEO INPUT 1/HDTV

C C P

VIDEO INPUT 2

C P

Component

Signal

Luminance

Signal

Component

Signal 1

Signal

Component

Signal

Luminance

Signal P

Component

Signal 2

Signal

Component

The following chart shows the maximum possible video connections that can be made using both VIDEO INPUT 1 and VIDEO INPUT 2.

NOTE: Only two video sources can be displayed at any one time.

Possible Video Input Combinations (Maximum)

VIDEO INPUT 1 VIDEO INPUT 2 Maximum

Number

6 Composite Composite 1 Composite 2 Composite 3 Composite 4 Composite 5 Composite 6

and 1 S-Video

and 2 S-Video

and 1 S-Video

and 3

Composite

1 S-Video &

1 Composite

and 1

Component

1 S-Video &

1 Composite

A B C A B C

Composite 1

Composite 1 Composite 2 Composite 3 Composite 4

S-Video 4 Composite

Y C

S-Video 1 S-Video 2 2 Composite

Y C

Composite 2 Composite 3 Composite 4

Composite 2

Y C

S-Video 4 Composite

Y C

Component (HDTV) 1 Component

Y PB P

Composite 1 Composite 2 Composite 3

Component (HDTV) S-Video 1 Component,

Y PB PR

Composite 1

Y C

Component 1 (HDTV) Component 2 2 Component

Y PB P

Component 3 Composite

Composite 1 Composite 2 Composite 3

Y PB PR

S-Video Component 1 Component,

Composite 1

Y C Y P

56 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

Setting Up a Projector for the UPX-2

The following procedure describes how to configure the audience output for use with a projector.

1. Set the projector’s aspect ratio (4:3 or 16:9) and turn off the keystone feature.

2. Open the SETUP MENU as described in “Configuring the UPX-2” on page 23 and press the Display Output button to configure the UPX-2’s display output.

3. Set the resolution to the projector’s native resolution.

4. Select the “Grid” test pattern on the UPX-2 and adjust the vertical & horizontal position on the projector. Do not adjust the size if the UPX-2 is set to the projector’s native resolution.

5. Select the “Vertical Lines” test pattern on the UPX-2 and adjust the projector as required.

a. If vertical bars are displayed, adjust the Coarse adjustment (also

known as “Clock Adjustment”, “Pixel/Dot clock”, and “Pitch Adjustment”) to eliminate the vertical bars.

b. If the image has horizontal noise, adjust the Fine adjustment (also

known as “Phase Adjustment”) to eliminate the problem.

c. Select the Grid test pattern and recheck the position.

6. Close the Display Output window by pressing Close.

7. Adjust the projector for RGB sources connected to the UPX-2.

a. Install Crestron Toolbox on the RGB source.

b. Open Crestron Toolbox and select the Video Test Pattern tool by

clicking the

c. Select the Grid test pattern from the drop-down menu and click the

Full Screen button.

d. From the UPX-2 SETUP MENU, open the “RGB/Video Setup”

window and select the RGB source.

e. Adjust the position of the RGB source. If the source is not native

resolution to the UPX-2 output, adjust the size as necessary. If the source is native resolution to the UPX output, do not adjust size; this will reduce the image quality of the source.

f. On the RGB source, click the Grid test pattern, select the Vertical

Bars test pattern from the drop-down menu, and click the Full Screen button.

g. On the UPX-2, adjust the Coarse or Fine settings. If noisy, adjust

the Fine setting. If there are vertical bars, adjust the Coarse setting.

button.

h. On the RGB source, click the Vertical Bars test pattern, select the

Color Bars test pattern from the drop-down menu, and click the Full Screen button.

i. On the UPX-2, adjust the Color settings.

8. Repeat for every RGB source that is connected to the UPX-2.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 57

Crestron UPX-2 Universal Presentation Processor

Programming

For programming tips and reference information, refer to the latest revision of the UPX-2 Reference Guide (Doc. 6286) which is available from the Crestron website.

58 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

Uploading and Upgrading

NOTE: Crestron recommends using the latest programming software and that each device contains the latest firmware to take advantage of the most recently released features. Please check the Crestron website (http://www.crestron.com/updates) for the latest versions of software and firmware. New users are required to register to obtain access to this site.

NOTE: UPX-2s with the 512MB compact flash operating system cannot be upgraded to the 1GB compact flash operating system with the procedures described in this section. For instructions or upgrading a compact flash operating system, refer to the latest version of the UPX-2 1GB Memory & Operating System Upgrade Installation Guide (Doc. 6443).

Assuming a PC is properly connected to the entire system, Crestron programming software allows the programmer to upload programs, projects and firmware to the system and touchpanels after their development. However, there are times when the files for the program and projects are compiled and not uploaded. Instead, compiled files may be distributed from programmers to installers, from Crestron to dealers, etc. Even firmware upgrades are available from the Crestron website as new features are developed after product releases. In those instances, one has the option to upload via the programming software or to upload and upgrade via Crestron Toolbox.

The following sections define how one would upload a Vision Tools (VT Pro-e) project or upgrade the firmware of the UPX-2. However, before attempting to upload or upgrade, it is necessary to establish communications between the PC and the UPX-2.

Pro-e

Establishing Communications Between the PC and the UPX-2

When communicating with a UPX-2 from a PC, one of two communication methods can be used:

• Direct RS-232 serial communication

• TCP/IP communication

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 59

Crestron UPX-2 Universal Presentation Processor

To prepare the UPX-2 for communication, refer to the following figure for a typical connection diagram.

Communications Connections

Serial Communication Setup

A PC can be directly connected to the AUX COM port of the UPX-2 using a nullmodem cable.

NOTE: You must connect a PS/2 keyboard and mouse to the UPX-2 to establish communication for the first time. After the initial setup, the mouse and keyboard will not be required except for troubleshooting.

1. Power up the system. Ensure that hookup, output resolution, touchpanel

calibration and the other setup procedures have been performed as outlined in the Quick Start section at the beginning of this guide.

2. If a project has not been loaded, or if an invalid project has been loaded, the

UPX-2 defaults to the SETUP MENU screen. To access the SETUP MENU after a valid program has been loaded, simultaneously press a combination of three function keys: Ctrl+Alt+Shift.

3. The “Validate User Account Info” window appears. The default User

Account is ‘upxadmin’. Enter the default Password ‘upxadmin’ and click Validate.

“Validate User Account Info” Window

60 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

4. The “Upx Debug Output” window appears and permits access to the

SETUP MENU by clicking Project | Enter Setup Mode.

“Upx Debug Output” Window

SETUP MENU Screen

NOTE: If the SETUP MENU is not displayed in the center of the screen, refer to the note on page 26 for instructions on adjusting the display.

5. The Touch Screen button permits you to select how to use the AUX COM

serial port via the “Touch Screen/Console Settings” window. You must select Console to establish communications and upload programming via the serial connection. In the Console Settings box, select the Baud Rate (115200), select Parity (None), select Data Bits (Eight), select Stop Bits (One), and enable RTS/CTS.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 61

Crestron UPX-2 Universal Presentation Processor

“Touch Screen / Console Settings” Window

6. Click OK, and then click Save & Reboot on the SETUP MENU.

CAUTION: At power up or reboot, the touchpanel will cycle through

colors and the Crestron logo screen for approximately 2.5 minutes prior to displaying the progress bar. This is a normal part of the boot up process. Do

not turn off power to the UPX-2 while it is rebooting. Damage may occur.

NOTE: If you are going to use the serial port (AUX COM) for a touchpanel, you must return to this window, choose 3 Screen / Tablet, and Save & Reboot.

Party Touch

7. Connect the AUX COM port on the UPX-2 to one of the COM ports

(usually COM 1) on the PC. Use a null modem RS-232 cable with a DB9 female connector on both ends. Most commercially available null-modem cables are acceptable; they should have at least five pins for transmit, receive, ground, and hardware handshaking (pins 2, 3, 5, 7, and 8).

Null Modem Cable

Pins

2 3 5 7 8

Pins

2 3 5 7 8

8. Open Crestron Toolbox and click the Address Book icon to open the

Address Book. Alternatively, you can open Crestron Toolbox and select Tools | Manage Address Book to open the Address Book. The Address Book allows you to maintain a list of accessible control systems and network devices. You can establish a session with any or all of the devices in the address book (provided the PC has a valid connection to the Cresnet or Ethernet network).

9. Select the device from the Address Book or click Add Entry and type a

name for the new device (UPX2 in our example).

62 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

10. Select RS232 as the Connection Type and select the serial settings specified

in step 5. This sets the PC to the same serial settings. Enter the settings and click OK.

Crestron Toolbox Address Book Setup for Serial Connection

11. Click the System Info icon and select UPX2 from the drop-down list if

it is not already selected. If communication is successful, the “System Info” window displays the operating system, Cresnet ID, connection parameters, memory usage, and hardware information.

Crestron Toolbox – System Info

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 63

Crestron UPX-2 Universal Presentation Processor

The Functions menu may now be used to upload a project, update firmware, and reset the network ID.

Crestron Toolbox Functions Menu

TCP/IP Communication

This section explains how to configure a UPX-2 to communicate over Ethernet using TCP/IP. These procedures assume that the UPX-2 has been powered up and connected as shown on page 60.

1. To establish TCP/IP communications with the UPX-2, a serial connection must be established between the PC and UPX-2. Refer to “Serial Communication Setup” on page 60 for instructions.

2. While connected to the UPX-2, select Functions | Ethernet Addressing. The current IP address, IP mask and default router are displayed.

“Ethernet Address” Window

3. Enter a new IP address, IP Mask, Default Router, or select Enable DHCP and click OK.

64 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

NOTE: The UPX-2 Ethernet default communication mode is DHCP. Refer to “Ethernet” on page 46 for Ethernet setup instructions and use the SETUP MENU to change communication format if desired.

4. Ensure that all devices are connected to the control system. For TCP/IP, use CAT5 straight through cables with 8-pin RJ-45 connectors to connect the LAN port on the UPX-2 and the LAN port on the PC to the Ethernet hub. Alternatively, you can use a CAT5 crossover cable to connect the two LAN ports directly, without using a hub. The following figure illustrates pinouts for straight through and crossover RJ-45 cables. Pins 4, 5, 7, and 8 are not used.

RJ-45 Straight Through Cable – For Connection Through Hub

FROM

1 White/Orange Tx+ 1 Tx+

2 Orange Tx- 2 Tx-

3 White/Green Rc+ 3 Rc+

6 Green Rc- 6 Rc-

RJ-45 Crossover Cable – For Direct PC Connection

FROM

1 White/Orange Rc+ 3 Tx+

2 Orange Rc- 6 Tx-

3 White/Green Tx+ 1 Rc+

6 Green Tx- 2 Rc-

COLOR SIGNAL TO PIN SIGNAL

COLOR SIGNAL TO PIN

SIGNAL

5. Once the cable connections are made, open Crestron Toolbox and click Tools | Manage Address book to display the “Address Book” window.

6. Click Add Entry and type a name for the new device.

7. Click TCP as the connection type. Enter the IP address or hostname of the UPX-2 and click OK.

“Address Book” Window – TCP/IP Setup

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 65

Crestron UPX-2 Universal Presentation Processor

8. Click the System Info icon to display the “System Info” window. From the drop-down list on the bottom of the page, select the entry created in

step 7.

If the UPX-2 is to communicate with a control system over TCP/IP, an IP table must be created on the UPX-2 to identify the control system(s) it will communicate with over TCP/IP.

Use the following instructions to create the IP table.

1. Select Functions | IP Table Setup from the Crestron Toolbox menu bar.

“IP Table” Window

2. If the UPX-2 already has an IP table, it is displayed at the top of the window.

3. Click Add Entry to add a new IP table entry or select an existing IP entry from the list and click Modify Entry. Up to 252 entries can be listed on a UPX-2’s IP table. Click Remove [Del] to remove a selected IP entry or click Clear List to remove all of the entries from the IP table.

NOTE: IP table entries that have not yet been sent to the device are listed in red.

If loading a saved IP table, click Load From File… to browse for a saved IP table.

66 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

“Open” Window

4. To enter a new IP ID, select the hexadecimal IP ID of the control system from the IP ID list. The IP ID of the control system must match the IP ID that is specified to the control system in the SIMPL Windows program.

“IP Table Entry” Window

NOTE: All IP table entries are set as Master and cannot be changed.

5. In the IP Address/Hostname field, enter the static IP address of the control system, or if the control system is DHCP-enabled, its fully qualified domain name. After entering all of the information, click OK to add the entry to the IP table.

6. Repeat this procedure for all of the control systems that will control the UPX-2.

7. Click Save To File… on the “IP Table” window to save this IP table to the PC.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 67

Crestron UPX-2 Universal Presentation Processor

“Save As” Window

8. Once all of the control systems have been listed, click Send to Device on the “IP Table” window to upload the IP table to the UPX-2. The UPX-2 will reboot and all of the table entries will be listed in black.

not turn off power to the UPX-2 while it is rebooting. Damage may occur.

NOTE: If a control system is to communicate with the UPX-2 over

TCP/IP, the control system's IP table must have an entry for the UPX-2. The entry should list the UPX-2’s IP ID and the internal gateway IP address

127.0.0.1. For more information, refer to the latest version of the Crestron e-Control Reference Guide (Doc. 6052).

NOTE: When an IP table is sent to the UPX-2, the UPX-2 will reboot and the previously loaded IP table will be overwritten.

Troubleshooting Communications

Use the following checklist if communication cannot be established with the UPX-2.

1. Verify that you are using the correct cables. As described previously, an RS-232 connection requires a null modem serial cable. TCP/IP connection requires a CAT5 cable with 8-pin RJ-45 connectors.

2. With a serial connection, verify that the correct COM port on the PC has been selected. Some computers have more than one COM port; some may be internal (e.g., for a modem). Consult the manufacturer’s documentation for further information about the COM ports on your PC.

3. Remove and reapply power to the UPX-2.

4. If communication still cannot be established, contact Crestron customer service.

68 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

Uploading a VT Pro-e Project

The compiled VT Pro-e project file is uploaded to the UPX-2 with Crestron Toolbox. While the UPX-2 can use project files that are located on a removable drive or a network drive, projects loaded with Crestron Toolbox become the default UPX-2 project. Other UPX-2 projects can be selected from the “Select Project” section of the SETUP MENU as described on page 34.

NOTE: The maximum usable project size is 192MB.

1. Verify that the procedure for “Establishing Communications Between the PC and the UPX-2” that begins on page 59 has been performed to establish a connection between the PC and the UPX-2.

2. Open Crestron Toolbox and click the System Info icon

3. When the “System Info” window appears, select the address book entry of the UPX-2 where the program will be uploaded. The Functions option becomes available from the menu bar.

4. Select Functions | Project.

5. The “Project” window is used to select the project to be uploaded to the UPX-2.

“Project” Window

Each time a project is selected using the added to the Project File drop-down list. This makes it convenient to recall projects without need to browse to a directory.

command, that project is

Selecting Send All Files sends the entire project.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 69

Crestron UPX-2 Universal Presentation Processor

NOTE: Crestron Toolbox compares the time required to send the modified files against the time required to send the entire project. Crestron Toolbox will then select the package with the shorter transmission time.

6. Click the button to browse for a new compiled (.vtz) program.

“Open” Window

7. Select a file and click Open. When the “Project” window re-opens click Send to send the project to the UPX-2.

To verify that the project has been transferred successfully, select Tools | System Info. The new project information will be displayed in the “System

Info” window.

Firmware Upgrade

To take advantage of all the UPX-2 features, it is important that the unit contains the latest firmware available. Please check the Crestron website for the latest version of firmware. Not every product has a firmware upgrade, but as Crestron improves functions, adds new features, and extends the capabilities of its products, firmware upgrades are posted. To upgrade the firmware, complete the following steps.

NOTE: This procedure can only be used for firmware upgrades that are downloaded from the Crestron website.

1. Verify that the procedure for “Establishing Communications Between the PC and the UPX-2” that begins on page 59 has been performed.

2. Open Crestron Toolbox, click the System Info icon and select the UPX-2s address book entry from the drop-down list if it is not already

selected

70 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

3. Select Functions | Firmware.

4. The “Firmware” window displays the model and current firmware version. Click Browse… to find a new firmware file to upload.

“Firmware” Window

5. When the following screen appears, browse to locate the firmware (.csz or .zip) file. ZIP files may contain release notes that can be viewed by clicking View… in the “Firmware” window.

Locate Firmware in the “Open” Window

6. Click Open to select the file.

7. The “Firmware” window reopens indicating the new firmware version to be uploaded. Click Send to transfer the new firmware to the device. Click

Close after the firmware has been transferred.

CAUTION: While performing a firmware update, do not power off the

device unless it is unresponsive for an excessively long period of time (i.e. greater than 15-20 minutes).

NOTE: UPX-2 firmware can only be downgraded to similar version numbers (i.e., the first three digits must match). For example, 2.08.009 can be downgraded to 2.08.006. However, 2.10 cannot be downgraded to 2.09.

NOTE: Touchpanel calibration may be required after a firmware upgrade.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 71

Crestron UPX-2 Universal Presentation Processor

Operation

Embedded Applications

NOTE: Microsoft Word 2003, Microsoft Excel 2003, and Microsoft PowerPoint 2003 are robust applications that require significant memory to operate smoothly. Try to avoid launching all these application simultaneously to avoid performance degradation.

NOTE: The UPX-2-1GB and UPX-2-MSO are presentation devices and are not intended for content creation.

The following application functions have been removed for release in the UPX-2-MSO:

APPLICATION TOOLBAR MENU

Excel EMail, Print, Insert Hyperlink WebPage Preview, Page setup,

PowerPoint EMail, Print, Insert Hyperlink WebPage Preview, Page setup,

Word EMail, Print, Insert Hyperlink Page setup, Print Area, Print, Print

Print Area, Print, Print Preview

Print Area, Print, Print Preview, Send to

Preview, Send to

MediaMarker

The Crestron MediaMarker Notebook software is used to create, organize and save presentations. Crestron Notebook software works with the UPX-2 Universal Presentation Processor and DTT DualTouch Technology touchpanels. A presenter can devise an entire lecture or demonstration and save it to the notebook. At the presenter’s discretion, the audience may view the presentation complete with annotation in real-time.

You can use the Crestron MediaMarker Notebook software with the UPX-2 and DTT products or on your own personal computer.

In addition to containing the tools required for object creation, Crestron Notebook software can import graphics and text from many other applications. Importable objects include: HTML, JPG, BMP, PNG, and TIF.

MediaMarker notebook projects can be saved and retrieved to disk or to notebook (Export and Import functions in the File menu).

File | Export Project – Archives the project into one file.

File | Import Project – Opens and extracts all files from a previously exported

project into an active folder.

NOTE: When saving a project, the background images are stored as external graphic files. The graphic file type (HTML, JPG, BMP, PNG, and TIF) can be set within Edit | Preferences | Application Settings.

72 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

Additional information is available in the MediaMarker help file and the latest version of the UPX-2 Reference Guide (Doc. 6286), which is available from the Crestron website.

Security Infrastructure

Since the UPX-2 does not use a traditional hard drive, but rather an image that gets restored every time the UPX-2 is rebooted, any virus infection is cleared immediately after a reboot. However, using the currently available tools and techniques, Crestron has provided an infrastructure that protects against possible virus infections.

1. Executables/Scripts brought in on external media The implementation of the UPX-2 series has restrictions on starting any application or script. The only applications that can be started are those allowed by Crestron, and these can only be started from the Crestron project.

2. Downloaded Program/Script Depending on the settings established in the “Embedded Apps” section of the SETUP MENU, the UPX-2 can have download permissions enabled or disabled. The only files the browser can open regardless of the security settings are the files it has plug-ins for, such as PDF, etc.

3. Browser Hijack and Browser vulnerability Crestron has patched all currently known hijacks and vulnerabilities. Future updates can be downloaded from the Crestron website.

4. E-mail Viruses There is no e-mail client installed on the UPX-2. Email-based viruses cannot be executed.

5. Viruses that attack web/FTP servers The UPX-2 does not run a web or FTP server. Therefore, it is not listening to port 21 or 80. The only ports the system listens to are the ports registered to Crestron.

6. Virus from other machines on the network Since drives on the UPX-2 can be shared on the network, it is possible that a virus can write itself to files/folders on these shares. Our recommendation therefore is to share as "Read-Only," so that viruses cannot attach themselves to files on the UPX-2.

7. ActiveX and Java Depending on the settings established in the “Embedded Apps” section of the SETUP MENU, the UPX-2 can have ActiveX and Java permissions enabled or disabled. For more information, refer to “Embedded Apps” on page 43.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 73

Crestron UPX-2 Universal Presentation Processor

Problem Solving

Troubleshooting

The following table provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative.

UPX-2 Troubleshooting

TROUBLE POSSIBLE

CAUSE(S)

UPX-2 does not function.

No video output displayed.

UPX-2 does not boot properly.

Wrong source or video displayed.

Video from RGB source is garbled or no output.

UPX-2 does not respond to ping command.

Mouse or touchpanel does not work.

UPX-2 is not receiving power.

Incorrect firmware/software.

Incorrect cable connections.

Wrong VT Pro-e or SIMPL Windows programs.

VT Pro-e project not set up correctly.

DTT touchpanel incorrectly setup.

Incorrect cable connections.

VT Pro-e project not set up correctly.

Wrong effect selected in “Video Properties”.

Analog join value has been set.

IP address not correct (LAN green and amber LEDs are off).

IP mask not correct (LAN green and amber LEDs are on).

PC and UPX-2 not on

same subnet.

Incorrect Touch settings.

CORRECTIVE ACTION

Verify power to unit.

Update firmware/software versions as per those listed in the “Specifications” section.

Follow connection procedures in this guide and inspect connector pins.

Verify RGB output cable connection to unit and video display, and correct USB port.

Verify correct programs.

Verify proper video set up for each video window displayed.

Check DVI/VGA switch (should be in VGA position).

Verify horizontal/vertical BNC cable connections. Verify 15-pin cable connection.

Verify correct video effect selected for video window.

Select correct effect in VT-Pro-e “Video Properties”.

Change analog join corresponding to desired source.

Assign correct IP address to UPX-2.

Assign correct IP mask.

Ensure that the PC and the UPX-2 are on the same subnet.

Check Touch settings.

DTT-15V2 does not respond to pen input.

Power is cycled too quickly.

Turn off DTT-15V2 for two seconds and restart.

(Continued on following page)

74 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

UPX-2 Troubleshooting (Continued)

TROUBLE POSSIBLE

CORRECTIVE ACTION

CAUSE(S)

“Communication Error with Control System” is displayed when demo project loaded.

“Invalid Path” displayed in MediaMarker Session Information window.

A "Restrictions" message appears.

UPX-2 is unable to communicate with control system.

Path not specified or no Flash memory installed.

Enable Pop-ups not checked.

Check CUZ file version. Check UPX-2 Cresnet ID. Check for or load demo program in control system.

Specify network path or install Flash memory in PC Card slot A or B.

Open SETUP MENU | Embedded Apps and click checkbox.

Restoring UPX-2 Default Settings

To restore the default settings of the UPX-2:

1. Connect to the UPX-2 as described in “Establishing Communications

Between the PC and the UPX-2” on page 59.

2. Open a console window in Crestron Toolbox and type the command

RESTORE. This command will affect the following parameters:

• IP Table: All IP table entries are deleted.

• Video/RGB settings: Settings are reset to “0”.

• Net ID: Reset Net ID to 03.

• Display Output will be set to 1024 x 768.

• Project Working Path: The Project Working Path will be set to

user\display.

• Internet Security settings: High for Internet sites, Medium for Intranet, Low for Trusted sites. Trusted sites list is restored to crestron.com and 192.168.*.*.

• Standby Timeout: Standby Timeout will be reset to 10 minutes.

• Console settings: Restored to factory defaults (115200 Baud, no

parity, 8 data bits, 1 stop bit).

• Mouse cursor show/hide status: Restored to factory default setting: “Hidden”.

• Ethernet Settings: TCP/IP properties will change to DHCP.

• Mapped Drives: All mapped drives will be cleared.

• Admin Username and Password: Admin Username and Password

will be set to upxadmin.

• Hostname and Workgroup name: The hostname and workgroup name of the touchpanel will reset to their factory defaults.

CAUTION: Do not turn off power to the UPX-2 while it is restoring the default settings. Damage may occur.

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 75

Crestron UPX-2 Universal Presentation Processor

Further Inquiries

If you cannot locate specific information or have questions after reviewing this guide, please take advantage of Crestron's award winning customer service team by calling the Crestron corporate headquarters at 1-888-CRESTRON [1-888-273-7876]. For assistance in your local time zone, refer to the Crestron website (www.crestron.com) for a listing of Crestron worldwide offices.

You can also log onto the online help section of the Crestron website to ask questions about Crestron products. First-time users will need to establish a user account to fully benefit from all available features.

Future Updates

As Crestron improves functions, adds new features, and extends the capabilities of the UPX-2, additional information may be made available as manual updates. These updates are solely electronic and serve as intermediary supplements prior to the release of a complete technical documentation revision.

Check the Crestron website periodically for manual update availability and its relevance. Updates are identified as an “Addendum” in the Download column.

76 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Universal Presentation Processor Crestron UPX-2

Appendix: Video Definitions

The following definitions may be helpful when setting up the UPX-2.

• RGB and video definitions, on page 77

• Video standards, on page 78

• Progressive and interlaced video, on page 79

• Aspect ratios, on page 81

RGB and Video

RGB

The eye is capable of seeing only three colors, red (R), green (G), and blue (B). The brain extracts full spectrum information from varying intensities and combinations of these three colors. For example, when you see red and blue together, the brain interprets a third color. The proportion of red to blue determines if this color is shifted towards the red (violet) or the blue (purple).

Because of this physiological limit of vision, a video system need only reproduce red, green, and blue information.

Input synchronization for the UPX-2 can be horizontal and vertical (H&V), composite sync, or sync on G. Output sync of the UPX-2 is always H&V.

Composite (480i) and S-Video

Compression of all of the video information (luminance and chrominance) into one signal was devised in the early days of color television to permit transmission over the airwaves. This standard was defined by the National Television Standards Committee (NTSC) and is known as composite video. However, these compressed composite signals, which require RGB separation to drive a video display, cannot be fully restored to their original quality.

An S-video cable carries two separate signals, one for luminance (Y) and one for chrominance or color (C). The Y signal is the same as in the native component video format. And the C is simply a combination of the B-Y and R-Y color difference signals. (S-video is also referred to as Y/C.) By keeping luminance and chrominance information separate, most of the signal loss inherent in the conversion of composite to RGB video is avoided.

Y, PB, PR Component Video

The original RGB signal is divided into three component parts:

• The luminance signal contains the black & white (brightness) information in the original RGB signal. It is referred to as the "Y" component.

• The color difference signal B-Y contains the blue information, minus the luminance information. This signal is also called C signal designation), and P component video).

• The color difference signal R-Y contains the red information minus the luminance information. This signal is also called CR (the digital color space

Operations Guide – DOC. 6276B Universal Presentation Processor: UPX-2 ¥ 77

(the analog color space designation in

(the digital color space

Crestron UPX-2 Universal Presentation Processor

signal designation), and PR (the analog color space designation in component video).

The color difference channels (B-Y and R-Y) are algebraically recombined with the luminance channel to produce a full color picture, recreating the green information through this mathematical process. The original green data can consume more than half the bandwidth of a video signal.

NOTE: Color space is a method used to specify, create and visualize color. Color is defined by three attributes: brightness, hue and intensity. These three dimensions of color exist in a mathematical three-dimensional space, making it possible to specify precise colors.

Video Standards

HDTV (High Definition Television)

High-definition television is a high-resolution digital television broadcast and playback system composed of roughly a million or more pixels (picture elements), 16:9 aspect-ratio screens, and AC3 (Dolby Digital six-channel digital audio standard). A subset of digital television, HDTV formats include 1080i and 720p resolution.

1080i

A designated format of high-definition television in the Advanced Television Systems Committee Digital TV standard, with 1,080 vertical pixels by 1,920 horizontal pixels. The i stands for interlaced, painting odd-numbered scan lines in succession, then going back and filling in the remaining even-numbered lines. A complete picture is created 30 times per second. 1080i is a high-resolution digital television broadcast and playback system composed of roughly a million or more pixels (picture elements), 16:9 aspect-ratio screens, and AC3 (the Dolby Digital sixchannel digital audio standard). The signal is supplied in Component format; Y (luminance) and separate chrominance signals P Society of Motion Picture and Television Engineers (SMPTE) as 274m, 59.94 Hz (60 Hz) vertical and 33.716 kHz horizontal (33.75 kHz), 0.600 volts peak-to-peak.

, and Pr. 1080i is designated by the

720p

A format designated as high-definition television in the Advanced Television Systems Committee Digital TV standard. This technology comprises 720 vertical pixels and 1,280 horizontal pixels. The p stands for progressive, also called sequential scanning, by which all odd and even scanning lines are "painted" by an electron beam every 1/60 of a second. ). To use a 720p resolution with the UPX-2 it must be first converted to RGB. Crestron recommends a converter made by Key Digital Systems, model number KD-CTCAL (www.keydigital.com) for this application.

720p is designated by the Society of Motion Picture and Television Engineers (SMPTE) as 296m, 59.94 Hz (60 Hz) vertical and 33.716 kHz horizontal (33.75 kHz), 0.600 volts peak-to-peak.

SDTV (Standard Definition Television)

Digital television format that includes 480-line resolution in both interlaced (480i) and progressively scanned (480p) formats, and offers discernible improvement over

78 ¥ Universal Presentation Processor: UPX-2 Operations Guide – DOC. 6276B

Crestron UPX-2, UPX-2-1GB, UPX-2-MSO User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

UPX-2 Quick Start

Introduction

Required Equipment

Hook Up

Accessing the SETUP MENU

Establish Communications

Serial Communication

Ethernet Communications

Calibrate the Output Display Device

Calibrate the Touchpanel

Download the Required Files from Crestron

Load the Demo Program & Project

Troubleshooting the Demo Program

Button Configuration

Connect the RGB and Video Sources

Calibrate the RGB/Video Inputs

Storage Devices

Universal Presentation Processor: UPX-2

Introduction

Features and Functions

Demonstration Program

Specifications

Physical Description

Ports – Rear Panel

RGB OUTPUT A and B

RGB INPUT A and B

VIDEO INPUT 1/HDTV and VIDEO INPUT 2 (BNC Female)

MOUSE/KEYBOARD

NETWORK

USB 2.0

IEEE 1394b

AUDIO MIC

AUDIO LINE IN and OUT

SPDIF

Flash Memory Access

AUX COM

POWER CORD CONNECTION and SWITCH

Ports, Indicators and Buttons – Front Panel

USB 2.0

PC CARD

RESET

SETUP LED and Pushbutton

Industry Compliance

Setup

Rack Mounting

Network Wiring

Crestron Toolbox

Identity Code

Configuring the UPX-2

Via Touch Screen

Via USB Keyboard

Via Crestron Toolbox

SETUP MENU Details

Security

Cresnet

Touch Screen

Configuring Touch Screens

Display Output

Select Project

RGB Video

RGB Setup

Video Setup

Manage Presets

Audio

Annotation

Embedded Apps

Internet Explorer Security Settings

Trusted Sites

Office Activation (UPX-2-MSO only)

ETHERNET Details

Ethernet

IP Table

Identity

Sharing

MISC. CONTROLS Details

SHUTDOWN Details
