Bracket Assembly Box
CCS-UC-1 Box
CCS-UC-1
UC-BRKT-100-SD-Z-ASSY
UC-M130-Z
Crestron Flex Tabletop UC Video Conference System for Zoom Rooms™ Software
The Crestron® Flex Tabletop UC Video Conference System for Zoom Rooms™ software (UC-M130-Z) delivers a powerful, professional solution for
knowledge workers who want the Zoom Rooms software experience in small to midsize meeting and conference rooms.
Minimum Requirements
• A video display, connected to the UC-ENGINE-SD-Z
• A Zoom Rooms account or activation code
• USB keyboard and mouse to configure the system*
• HDMI® cable to connect an HDMI source*
* Crestron recommends using Crestron cables only. For optimum performance, Crestron offers the UC-M-ACCY KIT which includes the
required hookup cables and a wireless keyboard with integrated touchpad.
Check the Boxes
CCS-CAM-USB-F-100
(P/N 6506442)
- UC-BRKT-100-Z-SD-ASSY
- Power Cord
- Mounting Hardware
CCS-UCA-MEM-USB
(P/N 6509548)
Accessory Box
PW-2420RU
(P/N 6500187)
- CBL-CAT5E-7 CAT5e cable
- CBL-USB-A-EXT-15 USB extension cable
- CBL-USBC-HD-9,
- CCS-UC-1
- Cable, USB 2.0
A - Micro B
6 ft (1.83 m) (P/N 2047803)
- Cable, CAT5e
RJ-45 Male - RJ-45 Male
12 ft (3.66 m) (P/N 2033988)
- Cable Management Hardware
RJ-45-to-RJ-45, Black
7 ft (2.1 m) (P/N 6509924)
Type A Male-to-Female
15 ft (4.57 m) (P/N 6508260)
USB 3.0 to HDMI Converter cable
9 ft (2.7 m) (P/N 6510718)
System Overview
LAN
CCS-CAM-USB-F-100
CCS-UC-1
Display
Connect the System
1. Remove connector covers to make connections.
#1
Connector Cover
2. Make connections to the TSW-1060 and UC-BRKT-100-SD-Z-ASSY as shown below.
CAUTION: The bracket assembly has cables and devices that are connected at the factory. DO NOT DISCONNECT ANY DEVICES OR CABLES
THAT ARE ALREADY CONNECTED.
HDMI
CBL-HD-20 HDMI Cable
(sold separately)
USB
6 ft USB 2.0 A - Micro B plus
(optional use) 15 ft USB
extension cable
CCS-UCA-KB-USB Dongle
(sold separately)
Power
RF Wireless
LAN
7 ft CBL-CAT5E-7 cable
12 ft CAT5e cable
CCS-UC-1
CCS-UCA-KB-USB
Connector Cover
UC-ENGINE-SD-Z
LAN
#1
CCS-UCA-MEM-USB
LAN
PW-2420RU
Laptop
Laptop
UC-BRKT-100-SD-Z-ASSY
HDMI
LAN
USB

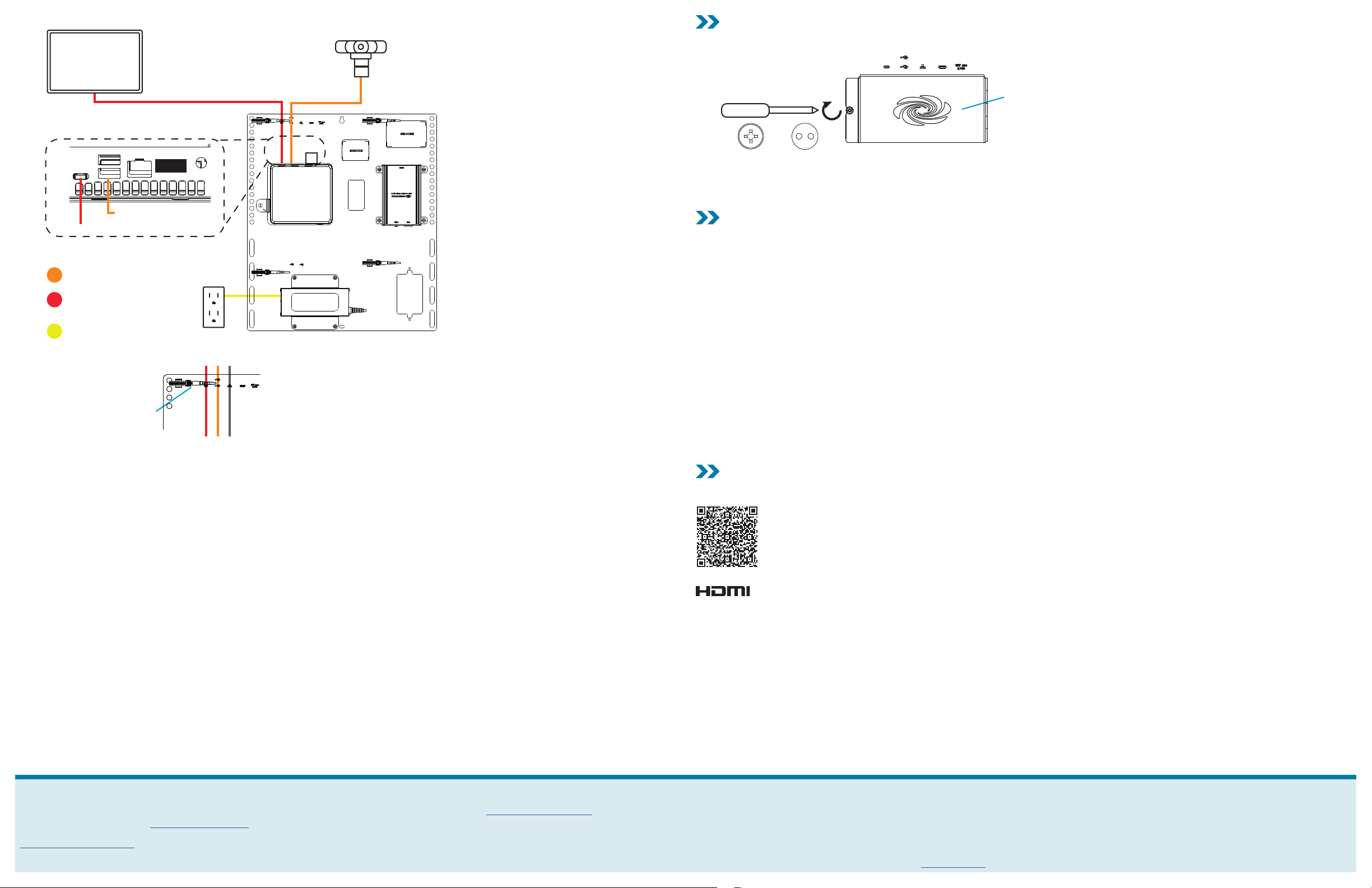

3. Connect the camera and display devices to components on the UC-BRKT-100-SD-Z-ASSY as shown below.
CCS-CAM-USB-F-100
Integrated cable tie wrap
Primary display
Complete the Installation
1. Secure the connector covers to protect the connections.
Connector Cover
or
2. Press the power button on the bottom of the UC-ENGINE-Z and apply power to all of the other devices in the system. The connected display
device will show a pairing code, and the CCS-UC-1 will show a prompt for a pairing code.
3. Remove the CCS-UCA-MEM-USB from the CCS-UC-1.
CCS-CAM-USB-F-100
Primary Display
USB
HDMI
Primary: CBL-USBC-HD-9
Power
UC-BRKT-100-SD-Z-ASSY
4. Bundle the cables with the integrated cable tie wraps. The cable tie wraps are reusable.
Configure the System
Use the CCS-UC-1 to sign in to the Zoom Rooms service using a Zoom Room Sign-In or an activation code.
1. Enter the pairing code shown on the display to pair the CCS-UC-1 with the UC-ENGINE-Z. The Zoom Rooms Controller app is displayed.
2. Log in to the Zoom Rooms service with an activation code or Zoom Rooms Credentials (email and password).
• Activation Code:
i. Tap Enter Activation Code.
ii. Enter the 16-digit activation code provided by the administrator to activate the Zoom Room that is assigned to the activation code. The
Zoom Rooms Conference Room screen is shown on the display.
• Sign In:
i. Tap Sign In
ii. Enter the Zoom Room credentials and tap Sign In.
iii. Select the conference room name from the list, and tap Next. The Zoom Rooms Conference Room screen is shown on the display.
3. Tap Settings. If a password is required, enter the password (default is 0000). The Settings screen is displayed.
4. Tap Microphone and select the Crestron Mercury device as the source.
5. Tap Speaker and select the Crestron Mercury device as the source.
6. Tap Meet Now to exit.
Additional Information
Scan or click the QR code for detailed product information.
Compliance and Legal
Original Instructions: The U. S. Engl ish version of this document is t he original in stru ctio ns. All other l anguages are a transla tion
of the original instructions.
The product wa rrant y can be fo und at www.crestron.com/warranty.
The spe cific patent s that cover Crestron p roduc ts are l isted at
www.crestron.com/legal/patents.
UC-M130-Z
Certa in Cres tron products contain open source s oft ware. For speci fic informat ion, please
visit w ww.crestron.com/opensource.
Crestron and th e Crest ron logo are eit her tra demar ks or registered trademarks of Cres tron El ectronics, Inc . in the United
States an d/or other countries. HDMI and t he HDM I logo a re either trademark s or regi stere d trade marks of HDMI Licens ing
LLC in the U nited States and /or other co untri es. Zoo m Rooms is eithe r a trade mark or registered tradema rk of Zoom Video
Commun ications, In c. in th e Unite d States an d/or other countr ies. O ther trademarks, regis tered trademarks, and trad e names
may be us ed in this docum ent to refer to either the e ntiti es claiming th e marks and names or the ir products. Cres tron disclaims
any propr ietar y interest in the mark s and nam es of oth ers. Crestron is not re sponsible fo r error s in typography or pho tograp hy.
©2019 Crestron Electronics, Inc.
Crestron Electronics, Inc.
15 Volvo Dr ive, Rockleig h, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
www.crestron.com
Quick Start - Doc. 852 9A
Specifications subject to
change without notice.
(2054439)
10/24/19
