UC-BX30-T
Crestron Flex Advanced Wall Mount Small Room Video Conference System for Microsoft Teams® Rooms
facility, whether implementing a cloud based Microsoft Teams
Rooms deployment, on-premises Skype® for Business software,
or a hybrid of the two.
Intuitive User Interface
With a large 10.1 in. (257 mm) capacitive touch screen display,
the Crestron® tabletop touch screen (TS-1070-B-S) provides
superior conferencing control in meeting rooms, huddle spaces,
and executive offices. The touch screen also offers optional
l
Front-of-room video conferencing solution for a Microsoft
Teams® Rooms environment
l
Present, call, conference, and collaborate using your own
device's UC conference platform (BYOD) or the native
Microsoft Teams Rooms platform
l
Native Microsoft Teams Rooms touch screen UI provides a
consistent user experience with simple operation and
one-touch meeting joins
l
Complete kit contains a 10.1 in. touch screen, Crestron®
smart soundbar and camera, UC Bracket Assembly, and UC
Presentation Transmitter— just add a display(s) and mount
l
Easy to specify and install — no custom design, programming,
or software installation required
l
Optional integration with Crestron® control systems
l
Direct connection option between UC Engine and touch
screen for simple installation and configuration
l
Network management and provisioning, system alerts, and
the pairing of the touch screen to the system’s UC Engine
through the XiO Cloud® service
l
Premium-level service with Crestron Flex Care (optional)
l
Enterprise-grade security - connects and communicates
securely over any enterprise or SMB network

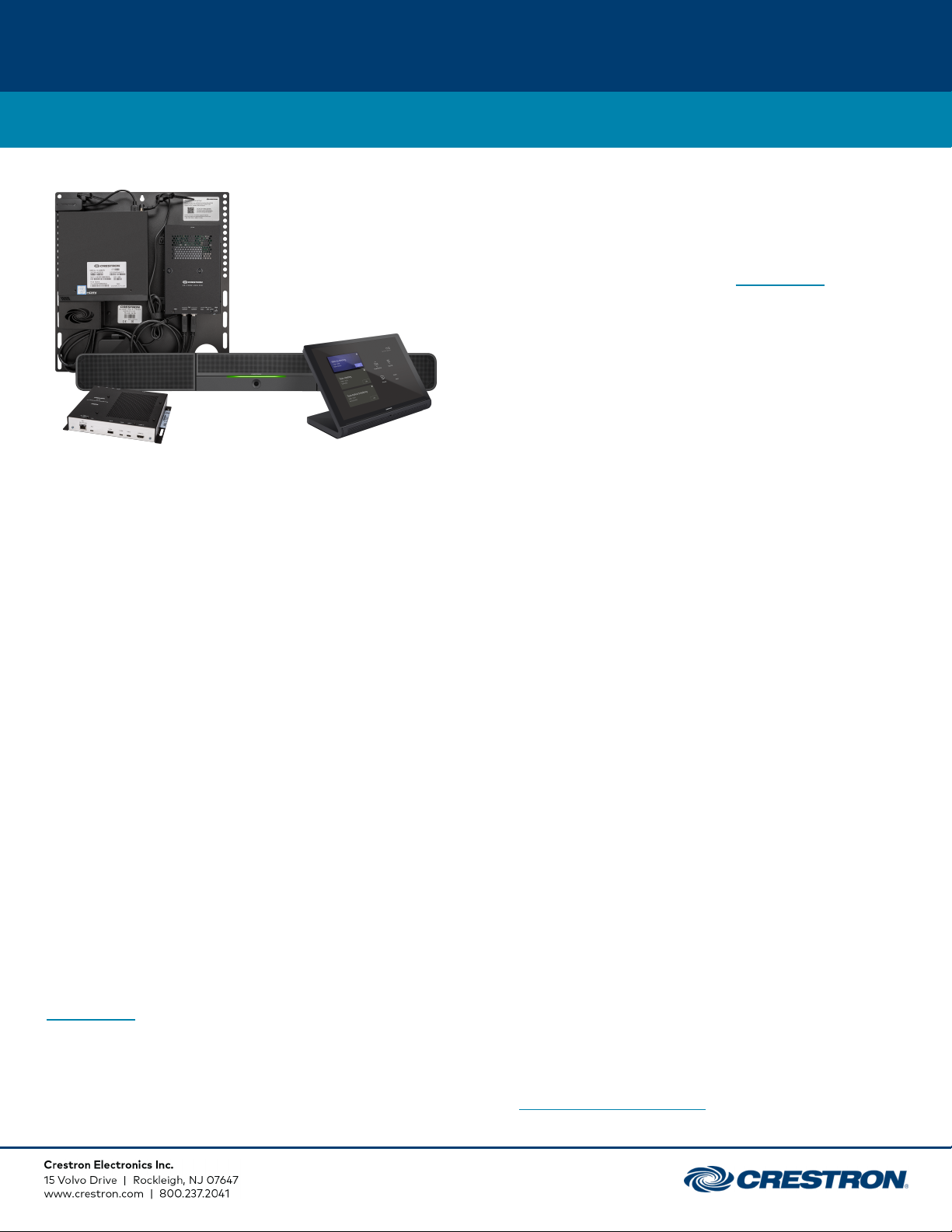

The Crestron Flex UC-BX30-T system provides a video
conference room solution for use with the Microsoft Teams
Rooms intelligent communications platform. It supports single
or dual video displays1and features a 10.1 in. touch screen
(TS-1070-B-S), UC Bracket Assembly (UC-BRKT-250-P-TASSY), UC Presentation Transmitter (UC-PR), and Crestron
UC video conference smart soundbar & camera
(UC-SB1-CAM-FLEX).
Native Microsoft Teams® Rooms Experience
The UC-BX30-T system brings the full Microsoft Teams Rooms
UC experience to any meeting space in an enterprise or SMB
control of room lighting, shades, thermostats, and other
equipment.
Simplified Deployment
The UC Bracket Assembly (UC-BRKT-250-P-T-ASSY) provides
preassembled components on one ready-to-mount bracket to
simplify installation. The assembly can be mounted on a wall, or
it can be attached to the rear of the display device. Crestron's
direct connection method further simplifies installation with a
single connection from the touch screen to the UC Bracket
Assembly.
High-Definition Video Conferencing with Impressive Audio
High-quality speakers, microphone, and digital signal processing
deliver exceptional full-duplex speakerphone performance from
the Crestron UC video conference soundbar and camera (UCSB1-CAM-FLEX). The built-in conferencing camera captures
the room in HD 1080p video resolution and with an ultra-wide
150° diagonal field of view.
Crestron Control System Integration
The UC-BX30-T can integrate with a Crestron control system
to enable touch screen control of room lighting, motorized
window shades, climate control, AV, and other amenities.
Bring Your Own Device (BYOD)
Conference room visitors can connect their laptop to the
Crestron Flex system to use their own UC conference platform.
The UC Presentation Transmitter (UC-PR)switches to the
connected laptop's UC platform and returns to the native
Microsoft Teams Rooms platform when disconnected.
Enterprise-Grade Security
Crestron Flex is an enterprise-grade solution, engineered in
partnership with Microsoft® to integrate seamlessly into any
Microsoft Teams Rooms or Skype for Business software
deployment. Crestron Flex is ideally equipped for mass
deployment throughout any sized corporate, university, medical,
military, or government facility.
Easy Provisioning and Device Management
The XiO Cloud service4is an IoT cloud based provisioning service
that enables installers and IT managers to easily deploy and
manage thousands of devices. The XiO Cloud service allows for
system alerts, network management and provisioning, and the
pairing of a control device to the system’s UC Engine. System
updates are controlled by Windows® software update.
Visit www.crestron.com/xiocloud for additional information.
2
3
2
UC-BX30-T
Crestron Flex Advanced Wall Mount Small Room Video Conference System for Microsoft Teams® Rooms
Premium-Level Support
Crestron Flex Care is an optional subscription service that
automatically renews annually, providing 24/7 live remote
technical support, an extended five year warranty on Crestron®
hardware, expedited advance replacements, and a discounted
rate for on-site support.
Visit www.crestron.com/flexcare for additional information.
Dual Control Option
A TS- or TSW- series 7 in. or 10.1 in. touch screen may be added
to the solution as an additional control point for the Microsoft
Teams Rooms environment.
2, 3
Deployment Resources
View the Crestron Flex Pre-Deployment Checklist to help plan
your Crestron Flex installation.
Specifications
Included Components
TS-1070-B-S 10.1 in. (257 mm) tabletop touch
screen, black
UC-BRKT-250-P-T-ASSY UC Bracket Assembly for Microsoft
Teams Rooms systems, comprised
of:
l UC-ENGINE-P-T: UC Engine
for Microsoft Teams video
l ADPT-USB-ENET: USB-to-
Ethernet Adapter
l HD-CONV-USB-250: CAT5 to
USB 3.0 converter for content
ingest
l Mounting hardware
UC-PR UC Presentation Transmitter
UC-SB1-CAM-FLEX UC Video Conference Smart
Soundbar and Camera
CBL-4K-DP-HD-6
CBL-CAT5E-7 (2) Ethernet LAN cable for UC
CBL-HD-6
DM-CBL-ULTRA-PC-20 (2) Ethernet LAN cable, CAT6a,
Active Converter Cable,
DisplayPort™ to HDMI, 18 Gbps,
6ft (1.8 m)
Engine, RJ45-to-RJ45, black, 7 ft
(2.1 m)
HDMI Interface Cable, 6 ft (1.8m)
RJ45-to-RJ45, blue, 20 ft (6.1m)
Tabletop Touch Screen
Touch Screen 10.1 in. (257 mm) diagonal
capacitive multi-touch TFT active
matrix color LCD, 1920 x 1200
pixels
UI Microsoft Teams UI plus optional
Crestron Smart Graphics® room
control UI
2
Ethernet 100 Mbps, auto switching, auto
negotiating, auto discovery,
full/half duplex, TCP/IP, UDP/IP,
CIP, DHCP, SSL, TLS, SSH, SFTP
(SSH File Transfer Protocol), IEEE
802.1X, SNMP, IPv4 or IPv6, Active
Directory® service authentication,
HTTPS web browser setup, XiO
Cloud® client, IEEE 802.3at
compliant
Power over Ethernet IEEE 802.3at Type 2 compliant
PoE+ PD (Powered Device);
Normally requests 15 W from an
802.3at Type 2 PSE with LLDP
advanced power management;
With room scheduling and USB
enabled, requests 18 W from an
802.3at Type 2 PSE with LLDP;
Requests 30 W (PoE+Class 4)
from an 802.3at Type 2 PSE
without LLDP;
Requests 15.4 W (PoE Class 0)
from an 802.3af (or 802.3at Type
1) PSE
Power Powered via PoE passthrough on
the UC-PR
Construction Plastic, smooth black finish, edge-
to-edge glass with black surround
Dimensions Height: 5.29 in. (134 mm)
Width: 9.63 in. (245 mm)
Depth: 4.67 in. (119 mm)
Weight 2.44 lb (1105 g)
Smart Soundbar and Camera
Speakers Stereo 2-way, 20 W per channel;
3 in. (76 mm) woofers;
3 x 4-3/8 in. (76 x 112 mm) passive
radiators;
1 in. (25 mm) dome tweeters;
80 Hz to 20 kHz (±3 dB) frequency
response;
91 dB SPL @ 1 m output level (both
channels driven at full power)
UC-BX30-T
Crestron Flex Advanced Wall Mount Small Room Video Conference System for Microsoft Teams® Rooms
Microphone Linear quad-element far-field
adaptive beamforming microphone
array;
15 ft (4.6 m) pickup range,5180°
horizontal and 180° vertical pickup
angle;
20 Hz to 8 kHz frequency response
Audio DSP Acoustic echo cancellation,
dereverberation, automatic gain
control, dynamic noise suppression,
adaptive beamforming, speaker
volume control, speaker EQ and
limiting (fixed);
Full-duplex IEEE 1329 Type 1
compliant
Camera Optics 12 Megapixel 1/2.3 CMOS sensor,
ultra wide angle six element
aspherical glass lens, f/2.8
aperture
Camera Field of View 150º diagonal, 120º horizontal, 90º
vertical
Autozoom Genius Framing automatic lossless
digital zoom intelligently frames
around people in the room
Camera Noise Reduction 3D noise reduction, bias
compensating spatio-temporal
filtering, wide area chroma
filtering, flicker elimination
Camera Scaling Real-time scaling, dewarping, and
perspective correction
Camera Resolution HD 1080p @ 30 fps
Analog Audio Input 2-Channel stereo via 3.5 mm TRS
mini-phone jack, fixed level
(bypasses DSP), 1 Vrms maximum
per channel for full rated output,
for in-room amplification of an
external audio source
Analog Audio Output 2-Channel stereo via 3.5 mm TRS
mini-phone jack, fixed level, 1 Vrms
maximum, feeds amplified audio
content to an assistive listening
system
Status Bar Multi-segment RGBY LED zero-
center mutually-diverging linear
bargraph
Main Power 24 VDC via external 100-240VAC,
50/60 Hz power pack, model
PW-2420RU
Enclosure Lightly textured gunmetal black
finish, plastic housing, perforated
stainless steel grilles, die-cast
aluminum rear cover, integral steel
hinged mounting bracket
(included)
Mounting Freestanding or surface wall
mount at ear/face level (adhesive
feet included, mounting bracket
attached)
Dimensions Height: 4.57 in. (116 mm), 4.64 in.
(118 mm) with feet
Width: 43.60 in. (1107 mm)
Depth: 3.90 in. (99 mm)
Weight 13.56 lb (6.2 kg)
UC Bracket Assembly
Mini PC Intel Core® processor with
Windows® 10 IOT Edition OS
UC Client Microsoft Teams Rooms with
Skype for Business software
functionality
Management Client XiO Cloud Service
Content Ingest
Display Output Single or dual display support
Display Output
Resolution
Power 90 W via external 100-240VAC,
Construction
Mounting Surface wall mount behind the
Dimensions Height: 15.00 in. (381 mm)
HDMI input via CAT5 to USB 3.0
converter (model
HD-CONV-USB-250)
1080p
50/60 Hz adapter (included)
Metal mounting bracket, black,
preassembled with
UC-ENGINE-P-T and
HD-CONV-USB-250
display device, or attach to the rear
of the display device via the bolts
attaching the display to a VESA®
compliant display mount;
Bracket includes mounting holes on
both side edges, spaced 100, 200,
and 300 mm vertically, to allow for
attachment to either side of the
display mounting plate
Width: 14.50 in. (368 mm)
Depth: 1.72 in. (44 mm)
UC Presentation Transmitter
Video Input Signal Types HDMI, DisplayPort 1.2 via USB
Type-C® port
Video Output Signal
Types
Resolution 1080p
Video Content Protection HDCP 1.4 and HDCP 2.2
HDMI over CAT5
UC-BX30-T
Crestron Flex Advanced Wall Mount Small Room Video Conference System for Microsoft Teams® Rooms
Audio Input Signal Types HDMI, DisplayPort 1.2 via USB
Type-C port
Audio Output Signal
HDMI over CAT5
Types
Communications Ethernet: 100 Mbps, auto-
switching, auto negotiating, autodiscovery
HDMI over CAT5: HDCP, Ethernet
HDMI: HDCP
USB: USB 2.0 and USB 3.0
Connectors
LAN PoE: (1) 8-pin RJ-45
connector, female;
ACC:(1) USB 3.0 Type B connector,
female;
For firmware loading only;
USB A: (1) USB 2.0 Type A
connector, female;
USB B: (1) USB 2.0 Type B
connector, female;
USB-C: (1) USB 2.0 Type-C
connector, female;
HDMI IN: (1) HDMI Type A, female;
To RX: (1) 8-pin RJ-45 connector,
female;
Power Jack: (1) DC power
connector;
LAN: (1) 8-pin RJ-45 connector,
female;
Ground: (1) 6-32 screw
Indicators PWR: (1) Green LED, indicates
operating power supplied via
power supply
Ethernet: (2) LEDs on To RX port;
Green indicates Ethernet link
status;
Amber indicates Ethernet activity
Power Supply 24VDC, 3.75A, 100-240VAC, 90W
Device Charging Up to 60 W charging for devices
connected via USB-C® port
Construction Metal, black finish, integral
mounting flanges;
Vented top, front, bottom, and
sides
Mounting Surface mount for mounting under
table;
Attaches to a single rack rail
Dimensions Height: 1.58 in. (40 mm)
Width: 9.25 in. (235 mm)
Depth: 8.20 in. (208 mm)
Models
UC-BX30-T
Crestron Flex Advanced Wall Mount Small Room Video
Conference System for Microsoft Teams® Rooms
Available Accessories
For a list of available accessories, visit the UC-BX30-T product
page.
Notes:
1. Display must su pport "Wake on Sync" an d "Sleep on No Sync"
functionality. Cons ult the display manu facturer's s pecifications or internal
settings of the specific display.
2. Room co ntrol capability (lighting, shades, thermostats, etc.) requires
additional equipment and commiss ioning to be provided by a Crestron
autho rized integrator and/or programmer. Additional costs may apply.
3. Only one control device may be con nected via direct conn ection method.
4. The XiO Cloud service is a room based su bscription service available
separately.
5. Microphone pickup range may vary in roo ms with highly reflective
infrastructure (e.g., glass walls, metal furniture, open ceilings, etc.) or
above average ambient noise.
This product may be purch ased fro m select au thorized Crestron dealers and
distributors . To find a dealer or distributor, please contact the Crestron sales
representative fo r your area. A list of s ales representatives is available o nline at
www.crestron.com/How-To-Buy/Find-a-Representative o r by calling
855-263-8754.
This product is covered un der the Crestron standard limited warranty. Refer to
www.crestron.com/warranty for full details.
The specific patents that cover Crestron products are listed online at
patents.crestron .com.
Certain Crestron pro ducts contain open source s oftware. For specific
information, please visit www.crestron.com/opensource.
Crestron, the Crestron logo, Smart Graphics, and XiO Cloud are either
trademarks o r registered trademarks of Crestron Electronics, Inc. in the United
States an d/or other countries. HDMI is either a trademark or registered
trademark of HDMI Licens ing LLC in the United States and/or other co untries.
Intel Core is either a trademark or registered trademark of In tel Corpo ration in
the United States and/ or other countries. Active Directory, Microso ft Teams,
Skype, and Windows are either trademarks or registered trademarks of
Microsoft Corporation in the United States and/or o ther cou ntries. USB T ype-C
and USB-C are either trademarks o r registered trademarks of USB
Implementers Foru m, Inc. in the United States and/or other countries.
DisplayPort and VESA are either trademarks o r registered trademarks of Video
Electronics Standards Association in the United States and/or other coun tries.
Other trademarks, registered trademarks , and trade names may be used in this
docu ment to refer to either the entities claiming the marks and names or their
produ cts. Crestron disclaims any proprietary interest in the marks and names
of others. Crestron is not responsible for errors in typo graph y or ph otography.
Specifications are subject to ch ange without notice.
©2020 Crestron Electronics, Inc.
Rev 12/0 5/20
UC-BX30-T
Crestron Flex Advanced Wall Mount Small Room Video Conference System for Microsoft Teams® Rooms
TS-1070-B-S
UC-BX30-T
Crestron Flex Advanced Wall Mount Small Room Video Conference System for Microsoft Teams® Rooms
UC-BRKT-250-P-T-ASSY
UC-BX30-T
Crestron Flex Advanced Wall Mount Small Room Video Conference System for Microsoft Teams® Rooms
UC-PR
UC-BX30-T
Crestron Flex Advanced Wall Mount Small Room Video Conference System for Microsoft Teams® Rooms
UC-SB1-CAM-FLEX
Loading...
