Page 1
TSW-70 Series
View this document in HTML
crestron.com/docs/8550
5 in., 7 in., and 10.1 in. Wall Mount Touch Screens
Product Manual
Crestron Electronics, Inc.
Page 2
The original language version of this document is U.S. English. All other languages are a translation of the original document.
Regulatory Model: M201923001, M201923002, M201923003
Crestron product development software is licensed to Crestron dealers and Crestron Service Providers (CSPs) under a limited nonexclusive, nontransferable Software Development Tools License Agreement. Crestron product operating system software is licensed to Crestron dealers, CSPs, and end-users under a separate End-User License Agreement. Both of these Agreements can be found on the Crestron website at www.crestron.com/legal/software_license_agreement.
The product warranty can be found at www.crestron.com/warranty.
The specific patents that cover Crestron products are listed online at www.crestron.com/legal/patents.
Certain Crestron products contain open source software. For specific information, please visit www.crestron.com/opensource.
Crestron, the Crestron logo, Crestron Fusion, Crestron Home, Crestron Toolbox, PinPoint, Rava, Smart Graphics, and XiOCloud are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. 2N is either a trademark or a registered trademark of 2N Telekomunikace in the United States and/or other countries. 22 Miles is either a trademark or a registered trademark or 22 Miles, Inc. in the United States and/or other countries. Appspace and the Appspace logo are either trademarks or registered trademarks of Appspace, Inc. in the United States and/or other countries. AskCody is either a trademark or a registered trademark of AskCody in the United States and/or other countries. Bluetooth is either a trademark or registered trademark of Bluetooth SIG, Inc. in the United States and/or other countries. EMS Software and the EMS logo are either trademarks or registered trademarks of EMS Software, LLC in the United States and/or other countries. Gingco.net is either a trademark or a registered trademark of Gingco.net in the United States and/or other countries. Envoy is either a trademark or a registered trademark of Envoy, Inc. in the United States and/or other countries. G Suite, Google, and Google Calendar are either trademarks or registered trademarks of Google, Inc. in the United States and/or other countries. Indoor Finders is either a trademark or a registered trademark of IntelliGroups, LLCin the United States and/or other countries. iOffice is either a trademark or a registered trademark of iOffice, LPin the United States and/or other countries. Kardham Digital is either a trademark or a registered trademark of Kardham Digital in the United States and/or other countries. Matrix Booking is either a trademark or a registered trademark of Matrix Booking in the United States and/or other countries. Active Directory, Microsoft, Microsoft Teams, and Office 365 are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. New Wave Apps is either a trademark or a registered trademark of New Wave Apps in the United States and/or other countries. NFS is either a trademark or a registered trademark of NFS Technology Group in the United States and/or other countries. OfficeSpace is either a trademark or a registered trademark of OfficeSpace Software Inc. in the United States and/or other countries. Pepperdash is either a trademark or a registered trademark of Pepperdash Technology Corporation in the United States and/or other countries. Door Tablet is either a trademark or a registered trademark of Public.Class Limited in the United States and/or other countries. Korbyt is either a trademark or registered trademark of RMGEnterprise Solutions, Inc. in the United States and/or other countries. Robin and the Robin logo are either trademarks or registered trademarks of Robin Powered, Inc. in the United States and/or other countries. SharingCloud is either a trademark or a registered trademark of SharingCloud in the United States and/or other countries. Smartway2 is either a trademark or a registered trademark of Smartway2 Ltd. in the United States and/or other countries. Sonos is either a trademark or a registered trademark of Sonos, Inc. in the United States and/or other countries. Space Connect is either a trademark or a registered trademark of Spaceconnect Pty Ltd in the United States and/or other countries. SpaceIQ is either a trademark or a registered trademark of Space IQ, LLC in the United States and/or other countries. Telelogos is either a trademark or a registered trademark of Telelogos SASin the United States and/or other countries. EventBoard, Teem, and the Teem logo are either trademarks or registered trademarks of Teem, LLC in the United States and/or other countries. Zoom and Zoom Rooms are either trademarks or registered trademarks of Zoom Video Communications, Inc. in the United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.
©2024 Crestron Electronics, Inc.
Page 3
Contents
Overview 1
Features 2
TSW-570 Features 3 TSW-570P Features 8 TSW-570PR Features 14 TSW-770 Features 18 TSW-770-GV Features 26 TSW-770R Features 33 TSW-1070 Features 38 TSW-1070-GV Features 46
Physical Description 53
Specifications 54
TSW-570 Specifications 55
Product Specifications 55 Dimension Drawings 59
TSW-570P Specifications 61
Product Specifications 61 Dimension Drawings 64 TSW-1070R Features 66
TSW-570PR Specifications 71
Product Specifications 71 Dimension Drawings 73
TSW-770 Specifications 74
Product Specifications 74 Dimension Drawings 78
TSW-770-GV Specifications 80
Product Specifications 80 Dimension Drawings 84
TSW-770R Specifications 86
Product Specifications 86 Dimension Drawings 89
TSW-1070 Specifications 91
Product Specifications 91 Dimension Drawings 95
TSW-1070-GV Specifications 97
Product Specifications 97 Dimension Drawings 101
TSW-1070R Specifications 102
Product Specifications 102 Dimension Drawings 105
Product Manual — Doc. 8550J Contents • iii
Page 4
Installation 106
TSW-570, TSW-770, and TSW-1070 Installation 107
Install the Mounting Bracket 107 Install the Security Bracket (Optional) 111 Connect the Touch Screen 112 Mount the Touch Screen 113 Configure the Touch Screen 114 Select an Application 116
TSW-570P Installation 118
Install the Mounting Bracket 118 Install the Security Bracket (Optional) 121 Connect the Touch Screen 122 Mount the Touch Screen 122 Configure the Touch Screen 123 Select an Application 126
TSW-770-GV and TSW-1070-GV Installation 128
Install the Mounting Bracket 128 Install the Security Bracket (Optional) 131 Connect the Touch Screen 132 Mount the Touch Screen 133 Configure the Touch Screen 134 Select an Application 137
TSW-570PR Installation 138
Install the Mounting Bracket 138 Install the Security Bracket (Optional) 141 Connect the Touch Screen 142 Mount the Touch Screen 142 Configure the Touch Screen 143 Configure the Crestron Home App 145
TSW-770R and TSW-1070R Installation 146
Install the Mounting Bracket 146 Install the Security Bracket (Optional) 149 Connect the Touch Screen 150 Mount the Touch Screen 151 Configure the Touch Screen 152 Configure the Crestron Home App 153
Configuration 155
Local Configuration 157
Access the Setup Screens 157 Ethernet Setup 158 IP Table Setup 165 Audio Setup 169 Display Setup 170 Standby Timeout 172
iv • Contents Product Manual — Doc. 8550J
Page 5
ApplicationSelection 174 Wi-Fi Setup 175 Bluetooth Beacon 182 Virtual Toolbar 183 Diagnostics &Advanced 185 About 195
Web Configuration 196
Actions Menu 197 Status 201 Settings 207 Security 226
802.1x Configuration 235
Application Selection 240
Operation 242
Resources 244
Crestron Support and Training 244 Programmer and Developer Resources 244 Related Documentation 244
Product Manual — Doc. 8550J Contents • v
Page 6
vi • Contents Product Manual — Doc. 8550J
Page 7

Overview

The Crestron® TSW-570, TSW-570P, TSW-770, and TSW-1070 are wall mount touch screens that feature web browsing, Smart Graphics® software and HTML5 UItechnology, custom-programmable virtual buttons, H.265/H.264 streaming video, a Rava®SIPintercom (TSW-770 and TSW-1070 only), Wi-Fi® network connectivity (TSW-770 and TSW-1070 only), and PoE+(Power over Ethernet Plus)network power. The touch screens also provide built-in applications for room scheduling, conferencing, and home control.
NOTE:The TSW-570, TSW-570P, TSW-770, and TSW-1070 are functionally similar. For simplicity within this documentation, the term "touch screen"is used except where otherwise noted.
Crestron offers the following variations for its standard touch screen models. Certain settings described in this document are not applicable to these models.
l
The TSW-770-GVand TSW-1070-GVseries touch screens eliminate the microphone, the Bluetooth® communications beacon, and Wi-Fi network connectivity to comply with government applications demanding extra privacy and security.
l
The TSW-570PR, TSW-770R,and TSW-1070Rseries touch screens are designed specifically to run the Crestron Home™ OShome control application.
Product Manual — Doc. 8550J TSW-70 Series • 1
Page 8

Features

Refer to the following sections for more information on the features provided by various TSW-70 Series models.
l
TSW-570 Features on page 3
l
TSW-570P Features on page 8
l
TSW-570PR Features on page 14
l
TSW-770 Features on page 18
l
TSW-770-GV Features on page 26
l
TSW-770R Features on page 33
l
TSW-1070 Features on page 38
l
TSW-1070-GV Features on page 46
l
TSW-1070R Features on page 66
2 • TSW-70 Series Product Manual — Doc. 8550J
Page 9

TSW-570 Features

The Crestron® TSW-570 is a stylish and versatile wall mount touch screen that is ideal for residential and enterprise applications. The TSW-570 features a 5in. (127mm) capacitive touch screen display with custom-programmable control buttons and support forSmart Graphics® software and HTML5-based custom UIprojects. PoEconnectivity and a comprehensive assortment of mounting accessories simplify new and retrofit installations.
Product Manual — Doc. 8550J TSW-70 Series • 3
Page 10
Key features include:
l
Next generation Crestron® wall mount touch screen
l
5in. (127mm) widescreen active-matrix color display and 1280x720HD 720 display resolution
l
Capacitive touch screen display
l
Custom-programmable virtual control buttons
l
Supports Crestron HTML5 and SmartGraphics® software custom user projects
l
H.265, H.264, or MJPEG streaming video display
l
Native Crestron room scheduling app
l
Built-in web browsing
l
Single wire Ethernet connection with PoEor PoE+ power
l
Dual USB2.0 ports for room availability accessories
l
Enterprise grade security and authentication
l
Web, cloud, or device-based configuration
l
Wall mounting with provided mounting bracket
Advanced Touch Screen Control
The TSW-570 offers a sleek and powerful user interface for controlling technology in a home, boardroom, classroom, or command center. The touch screen provides an intuitive interface that is fully customizable with easy-to-use capacitive controls, true feedback, and real-time status display. Abuilt-in proximity sensor wakes the screen without requiring any user interaction, and automatic brightness controls ensure optimal visibility under varying lighting conditions.
Custom-Programmable Virtual Buttons
The TSW-570 provides a universal status bar that is populated with virtual buttons for quick access to common touch screen functions. The touch screen comes preconfigured with virtual buttons for Power, Home, Lights, Up, and Down. Each button can be programmed via a Crestron control system to provide custom functionality, and unused buttons can be hidden individually. The universal status bar is expanded or hidden using simple swipe gestures on touch screen display.
Dynamic User Interfaces
The TSW-570 supports custom user interfaces created with Crestron HTML5 User Interface and Smart Graphics technologies, allowing greater flexibility for UI developers and programmers.
l
Crestron HTML5 User Interface enables UIdesigners to develop rich, front-end user interfaces with increased reusability and efficiency using modern web methodologies. Crestron HTML5 User Interface development tools are provided to simplify creating user interfaces built on standard web technologies
l
Smart Graphics enables programmers to integrate fluid gesture-driven controls, animated feedback, rich metadata, embedded apps and widgets, and full-motion video into their user interfaces. Smart Graphics provides dynamic features such as graphical buttons and sliders, lists and toolbars, drag-and-drop objects, dashboard widgets, screensavers, and customizable themes.
4 • TSW-70 Series Product Manual — Doc. 8550J
Page 11
Streaming Video
Native support for H.265, H.264, and MJPEG formats allows the TSW-570 to display live streaming video from an IP camera, a streaming encoder (Crestron DM-TXRX-100-STR, or similar), or a
DigitalMedia™ switcher.1Video is delivered to the touch screen over Ethernet, eliminating the need for
any extra video wiring.
Crestron Room Scheduling App
As part of a complete enterprise room scheduling solution, the TSW-570 can be deployed as a scheduling panel via the Crestron room scheduling app. ACrestron scheduling panel can be installed at the entrance of a meeting room to provide indication of the room’s availability and a view of its schedule for the day. If desired, the room can be reserved on the spot for an ad hoc meeting. ACEN-ODT-C-POE occupancy sensor can also be paired to the touch screen, allowing for occupancy status to be reported instantly to the scheduling app for no-shows and unscheduled room usage.
Running the Crestron Scheduling App, the TSW-570 integrates directly with Crestron Fusion® software, Microsoft Exchange Server® software (for users of Outlook® software and Office365® software), the Google Calendar™ calendaring app (including G Suite™ software), CollegeNET® 25Live® scheduling software, or Ad Astra™ software. IBM® Notes® software is also supported through a Crestron Fusion on-premises server.
1,2
Crestron Home OSControl
The TSW-570 may be used to control a Crestron Home™ OS whole home solution. Select the Crestron Home app from the touch screen to control lighting, shades, climate, media, security, and cameras, including the ability to create and recall scenes that create a desired ambiance throughout a home. A TSW-570 may be installed in each room to provide easy access to various Crestron Home functions for both the room and the home.
Web Browsing
Using its built-in web browser, the TSW-570 provides access to online program guides and other web­based services, and it can be used to control DVRs and other devices without having to pick up a separate tablet or smartphone.
3
Wired Connectivity
An Ethernet LAN connection is all that is required to wire the TSW-570, containing all control, video, and power signals within a single wire.
Power over Ethernet
Using PoE technology, the TSW-570 gets its operating power directly through the network cable. PoE (Power over Ethernet) eliminates the need for a local power supply or any dedicated power wiring. Crestron PoE switches (CEN-SW-POE-5 or CEN-SWPOE-161) offer a total networking solution with built-in PoE for multiple touch screens. A PoE Injector (PWE-4803RU1) is also available to support a single touch screen.
NOTE: Refer to the “Power” specifications for more details.
Product Manual — Doc. 8550J TSW-70 Series • 5
Page 12
Room Scheduling Accessories
The TSW-570 provides dual high-speed USB2.0 ports for connecting supported Crestron room scheduling hallway sign accessories to the touch screen. The SSW, SSW-EL, SSC, and SSC-EL series hallway signs feature a twosided acrylic sign face that can be custom engraved with the room name or number. The SIW-100 offers a lower profile wall mount status indicator.
1
NOTE: The touch screen supports the use of a single light bar or status indicator accessory only. The
RFID-USBcard reader accessory can be connected to the second USBport.
Enterprise-Grade Security
Crestron touch screens employ enterprise-grade networking with robust security features such as
802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory® service integration. These features are imperative to protect your network against service interruptions and malicious intrusions, and to ensure compliance with your organization’s network policies. Cloud-based provisioning and management streamlines the process of configuring, monitoring, and updating every touch screen on the network. Additional support for SNMP allows the touch screen to be monitored by your IT administrator.
XiOCloud Service
The TSW-570 is compatible with the XiO Cloud® service, which is an IoT (Internet of Things) based platform for remotely provisioning, monitoring, and managing Crestron devices across an enterprise or an entire client base. Built on the Microsoft® Azure® software platform and utilizing Microsoft's industry-leading Azure IoT Hub technology, XiO Cloud enables installers and IT managers to deploy and manage thousands of devices in the time it previously took to manage just one. Unlike other virtual machine-based cloud solutions, Azure services provide unlimited scalability to suit the ever-growing needs of an enterprise. For more information, visit www.crestron.com/xiocloud.
Wall Mount Options
The TSW-570 is easily installed into drywall and other surfaces using the included TSW-UMB-70 universal mounting bracket, which affords the following mounting options:
l
Can be used by itself as a postconstruction solution for retrofitting the TSW-570 into existing
4
drywall.
l
Can be used with the included TSW-UMB-70-PMK preconstruction mounting kit for applications that don’t require a back box.
l
Can be used with the TSW-UMB-70-BBI back box for masonry and concrete applications.
1
A security bracket option is also included to deter unauthorized removal of the touch screen.
OptionalMounting Accessories
The TSW-570/770-RMK-1 rack mount kit allows the touch screen to be mounted into a 19in. rack. When installed, the touch screen occupies three rack spaces.
The TSW-570 is also compatible with Wall-Smart® flush wall mount products via a partnership with Crestron. For more information on supported Wall-Smart hardware, click here.
1
6 • TSW-70 Series Product Manual — Doc. 8550J
Page 13
Notes:
1. Item(s) sold separately. Refer to each product’s spec sheet for complete information.
2. Web browsing, weather information, and certain other functions require an internet connection.
3. Room scheduling mode requires the TSW-570 to be designated exclusively for room scheduling use, which precludes use of certain features and functions described in this spec sheet. Additionally, CollegeNET® 25Live® scheduling software and Ad Astra™ software do not support scheduling ad hoc meetings from the touch screen. For design assistance, contact the Crestron True Blue support team at www.crestron.com/support.
4. The TSW-UMB-70 is also compatible with older TSW-UMB-PMK series preconstruction mounting kits and TSW-BBI series back boxes, allowing the TSW-570 to be installed in place of a previous generation touch screen.
Product Manual — Doc. 8550J TSW-70 Series • 7
Page 14

TSW-570P Features

The Crestron® TSW-570P is a stylish and versatile portrait touch screen that is ideal for residential and enterprise applications. The TSW-570P features a portrait-oriented 5in. (127mm) capacitive touch screen display with custom-programmable control buttons and support forSmart Graphics® software and HTML5-based custom UIprojects. PoEconnectivity and a comprehensive assortment of mounting accessories simplify new and retrofit installations.
8 • TSW-70 Series Product Manual — Doc. 8550J
Page 15
Product Manual — Doc. 8550J TSW-70 Series • 9
Page 16
Key features include:
l
Next generation Crestron® portrait touch screen
l
5in. (127mm) widescreen active-matrix color display and 720x1280HD 720 display resolution
l
Capacitive touch screen display
l
Custom-programmable virtual control buttons
l
Supports Crestron HTML5 and SmartGraphics® software custom user projects
l
H.265, H.264, or MJPEG streaming video display
l
Native Crestron room scheduling app
l
Built-in web browsing
l
Single wire Ethernet connection with PoEor PoE+ power
l
Dual USB2.0 ports for room availability accessories
l
Enterprise grade security and authentication
l
Web, cloud, or device-based configuration
l
Wall mounting with provided mounting bracket
Advanced Touch Screen Control
The TSW-570P offers a sleek and powerful user interface for controlling technology in a home, boardroom, classroom, or command center. The touch screen provides an intuitive interface that is fully customizable with easy-to-use capacitive controls, true feedback, and real-time status display. Abuilt-in proximity sensor wakes the screen without requiring any user interaction, and automatic brightness controls ensure optimal visibility under varying lighting conditions.
Custom-Programmable Virtual Buttons
The TSW-570P provides a universal status bar that is populated with virtual buttons for quick access to common touch screen functions. The touch screen comes preconfigured with virtual buttons for Power, Home, Lights, Up, and Down. Each button can be programmed via a Crestron control system to provide custom functionality, and unused buttons can be hidden individually. The universal status bar is expanded or hidden using simple swipe gestures on touch screen display.
Dynamic User Interfaces
The TSW-570P supports custom user interfaces created with Crestron HTML5 User Interface and Smart Graphics technologies, allowing greater flexibility for UI developers and programmers.
l
Crestron HTML5 User Interface enables UIdesigners to develop rich, front-end user interfaces with increased reusability and efficiency using modern web methodologies. Crestron HTML5 User Interface development tools are provided to simplify creating user interfaces built on standard web technologies
l
Smart Graphics enables programmers to integrate fluid gesture-driven controls, animated feedback, rich metadata, embedded apps and widgets, and full-motion video into their user interfaces. Smart Graphics provides dynamic features such as graphical buttons and sliders, lists and toolbars, drag-and-drop objects, dashboard widgets, screensavers, and customizable themes.
10 • TSW-70 Series Product Manual — Doc. 8550J
Page 17
Streaming Video
Native support for H.265, H.264, and MJPEG formats allows the TSW-570P to display live streaming video from an IP camera, a streaming encoder (Crestron DM-TXRX-100-STR, or similar), or a
DigitalMedia™ switcher. Video is delivered to the touch screen over Ethernet, eliminating the need for
any extra video wiring.
Crestron Room Scheduling App
As part of a complete enterprise room scheduling solution, the TSW-570P can be deployed as a scheduling panel via the Crestron room scheduling app. ACrestron scheduling panel can be installed at the entrance of a meeting room to provide indication of the room’s availability and a view of its schedule for the day. If desired, the room can be reserved on the spot for an ad hoc meeting. ACEN-ODT-C-POE occupancy sensor can also be paired to the touch screen, allowing for occupancy status to be reported instantly to the scheduling app for no-shows and unscheduled room usage.
Running the Crestron Scheduling App, the TSW-570P integrates directly with Crestron Fusion® software, Microsoft Exchange Server® software (for users of Outlook® software and Office365® software), the Google Calendar™ calendaring app (including G Suite™ software), CollegeNET® 25Live® scheduling software, or Ad Astra™ software. IBM® Notes® software is also supported through a Crestron Fusion on-premises server.
1
Crestron Home OSControl
The TSW-570P may be used to control a Crestron Home™ OS whole home solution. Select the Crestron Home app from the touch screen to control lighting, shades, climate, media, security, and cameras, including the ability to create and recall scenes that create a desired ambiance throughout a home. A TSW-570P may be installed in each room to provide easy access to various Crestron Home functions for both the room and the home.
Web Browsing
Using its built-in web browser, the TSW-570P provides access to online program guides and other web­based services, and it can be used to control DVRs and other devices without having to pick up a separate tablet or smartphone.
2
Wired Connectivity
An Ethernet LAN connection is all that is required to wire the TSW-570P, containing all control, video, and power signals within a single wire.
Power over Ethernet
Using PoE technology, the TSW-570P gets its operating power directly through the network cable. PoE (Power over Ethernet) eliminates the need for a local power supply or any dedicated power wiring. Crestron PoE switches (CEN-SW-POE-5 or CEN-SWPOE-16) offer a total networking solution with built-in PoE for multiple touch screens. A PoE Injector (PWE-4803RU) is also available to support a single touch screen.
NOTE: Refer to the “Power” specifications for more details.
Product Manual — Doc. 8550J TSW-70 Series • 11
Page 18
Room Scheduling Accessories
The TSW-570P provides dual high-speed USB2.0 port for connecting supported Crestron hallway sign accessories to the touch screen. The SSW, SSW-EL, SSC, and SSC-EL series hallway signs feature a twosided acrylic sign face that can be custom engraved with the room name or number. The SIW-100 offers a lower profile wall mount status indicator.
NOTE: The touch screen supports the use of a single light bar or status indicator accessory only. The
RFID-USBcard reader accessory can be connected to the second USBport.
Enterprise-Grade Security
Crestron touch screens employ enterprise-grade networking with robust security features such as
802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory® service integration. These features are imperative to protect your network against service interruptions and malicious intrusions, and to ensure compliance with your organization’s network policies. Cloud-based provisioning and management streamlines the process of configuring, monitoring, and updating every touch screen on the network. Additional support for SNMP allows the touch screen to be monitored by your IT administrator.
XiOCloud Service
The TSW-570P is compatible with the XiO Cloud® service, which is an IoT (Internet of Things) based platform for remotely provisioning, monitoring, and managing Crestron devices across an enterprise or an entire client base. Built on the Microsoft® Azure® software platform and utilizing Microsoft's industry-leading Azure IoT Hub technology, XiO Cloud enables installers and IT managers to deploy and manage thousands of devices in the time it previously took to manage just one. Unlike other virtual machine-based cloud solutions, Azure services provide unlimited scalability to suit the ever-growing needs of an enterprise. For more information, visit www.crestron.com/xiocloud.
Wall Mount Options
The TSW-570P is easily installed into drywall and other surfaces using the included TSW-UMB-70 universal mounting bracket, which affords the following mounting options:
l
Can be used by itself as a postconstruction solution for retrofitting the TSW-570P into existing drywall.
l
Can be used with the included TSW-UMB-570P-PMK preconstruction mounting kit for applications that don’t require a back box.
l
Can be used with the TSW-UMB-70-BBI back box for masonry and concrete applications.
A security bracket option is also included to deter unauthorized removal of the touch screen.
3
OptionalMounting Accessories
The TSW-570P is also compatible with Wall-Smart® flush wall mount products via a partnership with Crestron. For more information on supported Wall-Smart hardware, click here.
12 • TSW-70 Series Product Manual — Doc. 8550J
Page 19
Notes:
1. Room scheduling mode requires the TSW-570P to be designated exclusively for room scheduling use, which precludes use of certain features and functions described in this spec sheet. Additionally, CollegeNET® 25Live® scheduling software and Ad Astra™ software do not support scheduling ad hoc meetings from the touch screen. For design assistance, contact the Crestron True Blue support team at www.crestron.com/support.
2. Web browsing, weather information, and certain other functions require an internet connection.
3. The TSW-UMB-70 is also compatible with older TSW-UMB-PMK series preconstruction mounting kits and TSW-BBI series back boxes, allowing the TSW-570P to be installed in place of a previous generation touch screen.
Product Manual — Doc. 8550J TSW-70 Series • 13
Page 20

TSW-570PR Features

The Crestron® TSW-570PR is a stylish and versatile portrait touch screen that is designed specifically to run the Crestron Home™ OSapplication. The TSW-570PR features a portrait-oriented 5in. (127mm) capacitive touch screen display. PoEconnectivity and a comprehensive assortment of mounting accessories simplify new and retrofit installations.
14 • TSW-70 Series Product Manual — Doc. 8550J
Page 21
Product Manual — Doc. 8550J TSW-70 Series • 15
Page 22
Key features include:
l
Next generation Crestron® portrait touch screen featuring a native Crestron Home™ OSapplication
l
5in. (127mm) widescreen active-matrix color display and 720x1280HD 720 display resolution
l
Capacitive touch screen display
l
H.265, H.264, or MJPEG streaming video display
l
Single wire Ethernet connection with PoEor PoE+ power
l
Dual USB2.0 ports
l
Enterprise grade security and authentication
l
Web or device-based configuration
l
Wall mounting with provided mounting bracket
Advanced Touch Screen Control
The TSW-570PR offers a sleek and powerful user interface for controlling technology in the home via the Crestron Home app. The touch screen provides an intuitive interface that is fully customizable with easy-to-use capacitive controls, true feedback, and real-time status display. Abuilt-in proximity sensor wakes the screen without requiring any user interaction, and automatic brightness controls ensure optimal visibility under varying lighting conditions.
Streaming Video
Native support for H.265, H.264, and MJPEG formats allows the TSW-570PR to display live streaming video from an IP camera, a streaming encoder (Crestron DM-TXRX-100-STR, or similar), or a
DigitalMedia™ switcher.1Video is delivered to the touch screen over Ethernet, eliminating the need for
any extra video wiring.
Crestron Home OSControl
The TSW-570PR may be used to control a Crestron Home™ OS whole home solution. Select the Crestron Home app from the touch screen to control lighting, shades, climate, media, security, and cameras, including the ability to create and recall scenes that create a desired ambiance throughout a home. A TSW-570PR may be installed in each room to provide easy access to various Crestron Home functions for both the room and the home.

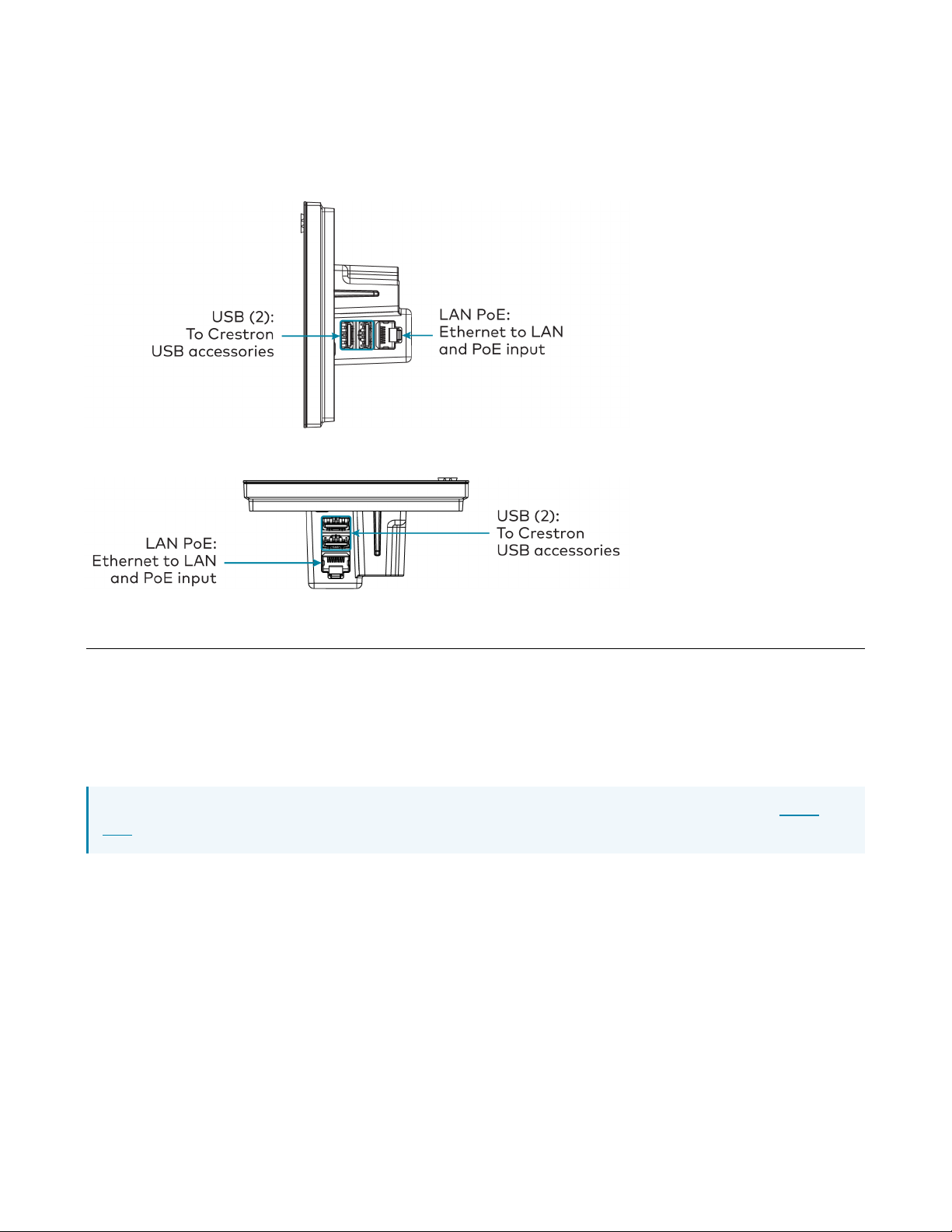

Wired Connectivity
An Ethernet LAN connection is all that is required to wire the TSW-570PR, containing all control, video, and power signals within a single wire.
Power over Ethernet
Using PoE technology, the TSW-570PR gets its operating power directly through the network cable. PoE (Power over Ethernet) eliminates the need for a local power supply or any dedicated power wiring. Crestron PoE switches (CEN-SW-POE-5 or CEN-SWPOE-161) offer a total networking solution with built-in PoE for multiple touch screens. A PoE Injector (PWE-4803RU1) is also available to support a single touch screen.
NOTE: Refer to the “Power” specifications for more details.
16 • TSW-70 Series Product Manual — Doc. 8550J
Page 23
Enterprise-Grade Security
Crestron touch screens employ enterprise-grade networking with robust security features such as
802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory® service integration.
Wall Mount Options
The TSW-570PR is easily installed into drywall and other surfaces using the included TSW-UMB-70 universal mounting bracket, which affords the following mounting options:
l
Can be used by itself as a postconstruction solution for retrofitting the TSW-570PR into existing
2
drywall.
l
Can be used with the included TSW-UMB-570P-PMK preconstruction mounting kit for applications that don’t require a back box.
l
Can be used with the TSW-UMB-70-BBI back box for masonry and concrete applications.
1
A security bracket option is also included to deter unauthorized removal of the touch screen.
OptionalMounting Accessories
The TSW-570PR is also compatible with Wall-Smart® flush wall mount products via a partnership with Crestron. For more information on supported Wall-Smart hardware, click here.
Notes:
1. Item(s) sold separately. Refer to each product’s spec sheet for complete information.
2. The TSW-UMB-70 is also compatible with older TSW-UMB-PMK series preconstruction mounting kits and TSW-BBI series back boxes, allowing the TSW-570PR to be installed in place of a previous generation touch screen.
Product Manual — Doc. 8550J TSW-70 Series • 17
Page 24

TSW-770 Features

The Crestron® TSW-770 is a stylish and versatile wall mount touch screen that is ideal for residential and enterprise applications. The TSW-770 features a 7in. (178mm) capacitive touch screen display with custom-programmable control buttons and support forSmart Graphics® software and HTML5-based custom UIprojects. PoEand Wi-Fi® network connectivity and a comprehensive assortment of mounting accessories simplify new and retrofit installations.
18 • TSW-70 Series Product Manual — Doc. 8550J
Page 25
Product Manual — Doc. 8550J TSW-70 Series • 19
Page 26
Key features include:
l
Next generation Crestron® wall mount touch screen
l
7in. (178mm) widescreen active-matrix color display and 1280x800WXGA display resolution
l
Capacitive touch screen display
l
Custom-programmable virtual control buttons
l
Supports Crestron HTML5 and SmartGraphics® software custom user projects
l
Built-in Rava® SIPintercom
l
Built-in speakers and microphone
l
H.265, H.264, or MJPEG streaming video display
l
Native apps for Crestron Home™ OS, Sonos® home sound control, Zoom Rooms™ conferencing control, and various room scheduling services
l
Built-in Bluetooth® communications beacon
l
Built-in web browsing
l
Single wire Ethernet connection with PoEor PoE+ power
l
Wi-Fi® network connectivity
l
Dual USB2.0 ports for room availability accessories
l
Enterprise grade security and authentication
l
Web, cloud, or device-based configuration
l
Electrical box mounting with provided mounting bracket
Advanced Touch Screen Control
The TSW-770 offers a sleek and powerful user interface for controlling technology in a home, boardroom, classroom, or command center. The touch screen provides an intuitive interface that is fully customizable with easy-to-use capacitive controls, true feedback, and real-time status display. Abuilt-in proximity sensor wakes the screen without requiring any user interaction, and automatic brightness controls ensure optimal visibility under varying lighting conditions.
Custom-Programmable Virtual Buttons
The TSW-770 provides a universal status bar that is populated with virtual buttons for quick access to common touch screen functions. The touch screen comes preconfigured with virtual buttons for Power, Home, Lights, Up, Down, and Microphone. Each button can be programmed via a Crestron control system to provide custom functionality, and unused buttons can be hidden individually. The universal status bar is expanded or hidden using simple swipe gestures on touch screen display.
Dynamic User Interfaces
The TSW-770 supports custom user interfaces created with Crestron HTML5 User Interface and Smart Graphics technologies, allowing greater flexibility for UI developers and programmers.
l
Crestron HTML5 User Interface enables UIdesigners to develop rich, front-end user interfaces with increased reusability and efficiency using modern web methodologies. Crestron HTML5 User Interface development tools are provided to simplify creating user interfaces built on standard web technologies
20 • TSW-70 Series Product Manual — Doc. 8550J
Page 27
l
Smart Graphics enables programmers to integrate fluid gesture-driven controls, animated feedback, rich metadata, embedded apps and widgets, and full-motion video into their user interfaces. Smart Graphics provides dynamic features such as graphical buttons and sliders, lists and toolbars, drag-and-drop objects, dashboard widgets, screensavers, and customizable themes.
Voice Recognition
With built-in voice recognition, spoken commands can be issued to the TSW-770 to quickly turn devices on or off, select and play a specific media source, change the channel, choose a lighting scene, lower the window shades, lock the doors, arm the security system, or enter a password. Simply say a command and Crestron does the rest.
1,2
Streaming Video
Native support for H.265, H.264, and MJPEG formats allows the TSW-770 to display live streaming video from an IP camera, a streaming encoder (Crestron DM-TXRX-100-STR, or similar), or a
DigitalMedia™ switcher.3Video is delivered to the touch screen over Ethernet, eliminating the need for
any extra video wiring.
Rava SIPIntercom
Rava SIP Intercom Technology enables hands-free VoIP communication with other Rava-enabled touch
screens and door stations. Rava works over Ethernet, supporting 2-way intercom and paging without requiring any special wiring. VoIP phone capability is also possible through integration with a SIP-compatible IP phone system or SIP server, allowing hands-free telephone functionality complete with speed-dialing, caller ID, custom ringers, and other enhancements. Built-in echo cancellation affords full-duplex performance for clear, seamless voice communication using the integrated microphone and speakers.
2
Sonos App
Sonos and Crestron have partnered to provide a powerful whole-house music experience. From any
touch screen in the house, browse for tracks, artists, or playlists using all the services available from Sonos and instantly play them in any room using Sonos® wireless speakers or a Crestron Sonnex®
multiroom audio system. The Sonos app runs natively on the TSW-770, enabling enhanced control of
Sonos products as part of a complete Crestron system. The app checks for updates nightly so it’s always current, and support for the Sonos S2 App is provided.
1

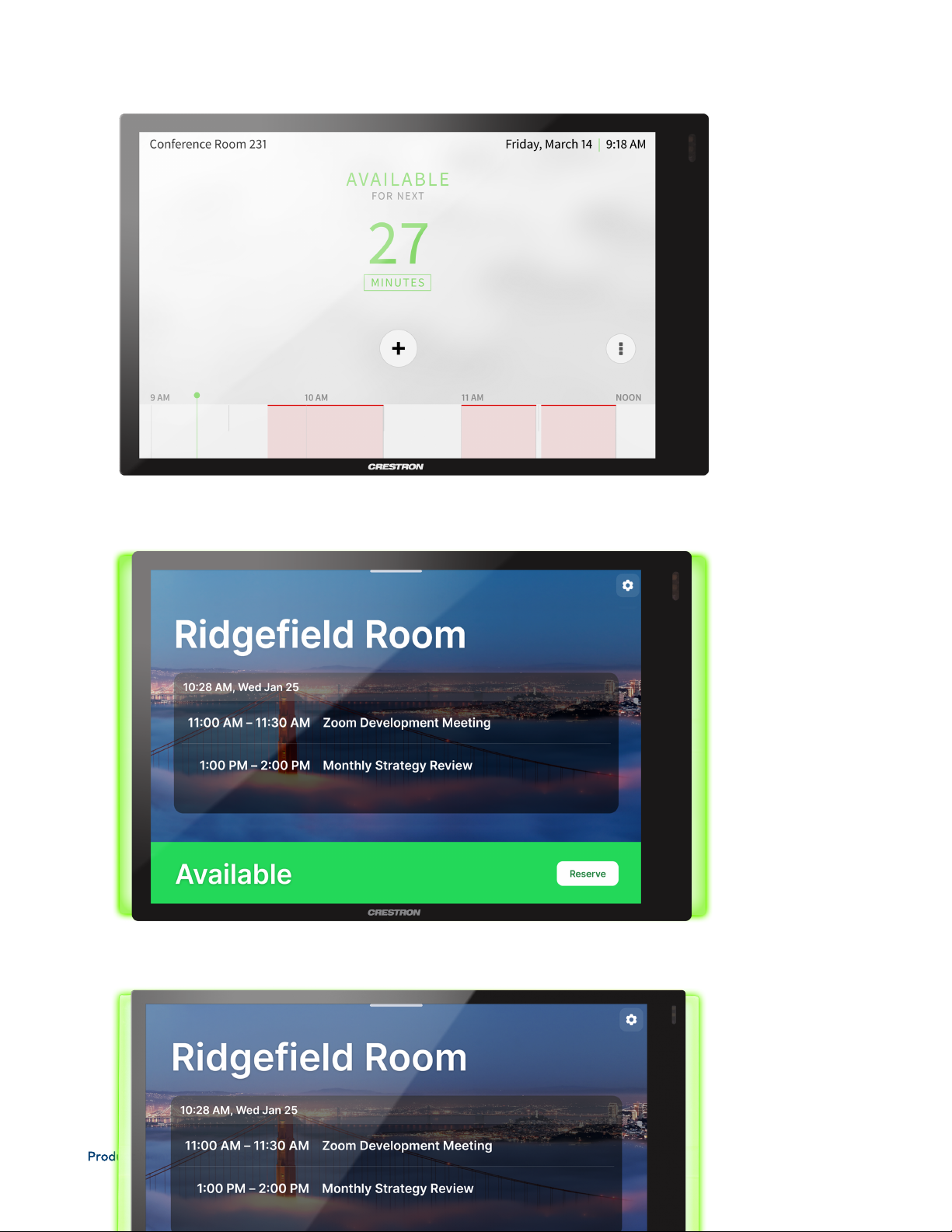

Crestron Room Scheduling App
As part of a complete enterprise room scheduling solution, the TSW-770 can be deployed as a scheduling panel via the Crestron room scheduling app. ACrestron scheduling panel can be installed at the entrance of a meeting room to provide indication of the room’s availability and a view of its schedule for the day. If desired, the room can be reserved on the spot for an ad hoc meeting. ACEN-ODT-C-POE occupancy sensor can also be paired to the touch screen, allowing for occupancy status to be reported instantly to the scheduling app for no-shows and unscheduled room usage.
Running the Crestron Scheduling App, the TSW-770 integrates directly with Crestron Fusion® software, Microsoft Exchange Server® software (for users of Outlook® software and Office365® software), the Google Calendar™ calendaring app (including G Suite™ software), CollegeNET® 25Live® scheduling software, or Ad Astra™ software. IBM® Notes® software is also supported through a Crestron Fusion on-premises server.
3,4
Product Manual — Doc. 8550J TSW-70 Series • 21
Page 28
Third-Party Scheduling Apps
The TSW-770 also includes support various third-party scheduling applications. New providers are made available via firmware updates. Whatever provider you choose, setup is as simple as connecting the touch screen to the network and choosing an app from the web-based setup menu or built-in setup screens. The selected app downloads from the cloud and installs on the touch screen without any programming or control system required.
5,6
Zoom Rooms App
The Zoom Rooms™ conferencing control application enables the TSW-770 to be used as a touch screen control panel for a Zoom Rooms software-based conferencing and collaboration solution. The TSW-770 offers a superior alternative to a consumer tablet device, providing a more reliable and secure platform with versatile, streamlined mounting options. The TSW-770 may be configured to run the Zoom Rooms app exclusively, or to allow toggling between the Zoom Rooms app and touch screen control mode. The latter option is used to integrate Zoom Rooms conferencing into a larger AV system while providing touch screen control for both.
NOTE: The Zoom ultrasonic proximity signal is supported up to an average of 9ft (2.74m) from the TSW-770 touch screen to an end user device. The range will vary based on environmental noise, the sensitivity of the end user device, and the orientation to the touch screen.
7
Crestron Home OSControl
The TSW-770 may be used to control a Crestron Home™ OS whole home solution. Select the Crestron Home app from the touch screen to control lighting, shades, climate, media, security, and cameras, including the ability to create and recall scenes that create a desired ambiance throughout a home. A TSW-770 may be installed in each room to provide easy access to various Crestron Home functions for both the room and the home.
Bluetooth Beacon
The built-in Bluetooth® proximity detection beacon enhances the intelligence and personalization of a Crestron system by enabling a smartphone or tablet device to always know what room it is in. It works with the Crestron Go App and Crestron App to determine when the mobile device is in or near the same room as the beacon, and signals the mobile app to automatically display the appropriate controls and information for the room.
2,8
Web Browsing
Using its built-in web browser, the TSW-770 provides access to online program guides and other web­based services, and it can be used to control DVRs and other devices without having to pick up a separate tablet or smartphone.
1
Wired and Wi-Fi Connectivity
An Ethernet LAN connection is all that is required to wire the TSW-770, containing all control, video, intercom, and power signals within a single wire.
For deployments without access to Ethernet, the touch screen can also be connected the network over Wi-Fi communications via a local wireless access point (WAP).
22 • TSW-70 Series Product Manual — Doc. 8550J
Page 29
Power over Ethernet
Using PoE technology, the TSW-770 gets its operating power directly through the network cable. PoE (Power over Ethernet) eliminates the need for a local power supply or any dedicated power wiring. Crestron PoE switches (CEN-SW-POE-5 or CEN-SWPOE-163) offer a total networking solution with built-in PoE for multiple touch screens. A PoE Injector (PWE-4803RU3) is also available to support a single touch screen.
NOTE: Refer to the “Power” specifications for more details.
Room Scheduling Accessories
The TSW-770 provides dual high-speed USB2.0 ports for connecting supported Crestron room scheduling accessories to the touch screen.
NOTE: The touch screen supports the use of a single light bar or status indicator accessory only. The
RFID-USBcard reader accessory can be connected to the second USBport.
l
The TSW-770-LB series light bars provide a 180° visual indication of a room’s availability status, illuminating green if the room is available and red when reserved, with options for custom color mixing and programming.
l
The SSW, SSW-EL, SSC, and SSC-EL series hallway signs feature a twosided acrylic sign face
3
that can be custom engraved with the room name or number. The SIW-100 offers a lower profile wall mount status indicator.
3
3
Enterprise-Grade Security
Crestron touch screens employ enterprise-grade networking with robust security features such as
802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory® service integration. These features are imperative to protect your network against service interruptions and malicious intrusions, and to ensure compliance with your organization’s network policies. Cloud-based provisioning and management streamlines the process of configuring, monitoring, and updating every touch screen on the network. Additional support for SNMP allows the touch screen to be monitored by your IT administrator.
XiOCloud Service
The TSW-770 is compatible with the XiO Cloud® service, which is an IoT (Internet of Things) based platform for remotely provisioning, monitoring, and managing Crestron devices across an enterprise or an entire client base. Built on the Microsoft® Azure® software platform and utilizing Microsoft's industry-leading Azure IoT Hub technology, XiO Cloud enables installers and IT managers to deploy and manage thousands of devices in the time it previously took to manage just one. Unlike other virtual machine-based cloud solutions, Azure services provide unlimited scalability to suit the ever-growing needs of an enterprise. For more information, visit www.crestron.com/xiocloud.
Product Manual — Doc. 8550J TSW-70 Series • 23
Page 30
Crestron ONEApp Support
The TSW-770 is compatible with the Crestron ONE™ mobile room control app. The Crestron ONEapp creates a peer-to-peer network over Bluetooth communications between a mobile device and the TSW­770 in the room, allowing mobile-optimized room controls to be pushed to the device from the touch screen. Programmers can specify the controls that display on the mobile app by mapping joins from Smart Graphics projects to the mobile project. A SW-MOBILITY license is required to enable mobile room control functionality.
Wall Mount Options
Using the bracket provided, the TSW-770 is easily installed over a 2-gang or 3-gang US electrical box, or a 2-gang European or UK electrical box. A security latch option is included to deter unauthorized removal of the touch screen.
Additional wall mounting options are afforded using the optional TSW-UMB-70 universal mounting bracket, TSW-UMB-70-PMK preconstruction mounting kit, and TSW-UMB-70-BBI back box.
3,9
OptionalMounting Accessories
The TSW-770 supports numerous optional mounting accessories that allow the touch screen to be installed in all kinds of installations:
l
The TSW-770-MSMK multisurface mount kit allows a TSW-770 touch screen to be mounted directly to virtually any flat surface, which is ideal for mounting at the entrance to a meeting space for room scheduling applications.
l
The TSW-770/1070-MUMKallows the touch screen to be attached to the mullion of an interior glass wall, window, or partition.
l
The TSW-770/1070-RMB-1andTSW-770/1070-RMB-2 retrofit mounting brackets allow for
3
retrofit installations in place of an older Crestron touch screen (APAD, CT-1000, LC-1000, TPS-4L, or TPS-2000L) without having to tear out the old mounting hardware or patch the wall.
l
The TSW-570/770-RMK-1 rack mount kit allows the touch screen to be mounted into a 19in. rack. When installed, the touch screen occupies three rack spaces.
l
The TSW-770-FP face plate hides the electrical box from view when replacing a TSW-760 or TSS-7 series touch screen with a TSW-770 series touch screen.
3
3
3
3
The TSW-770 is also compatible with Wall-Smart® flush wall mount products via a partnership with Crestron. For more information on supported Wall-Smart hardware, click here.
24 • TSW-70 Series Product Manual — Doc. 8550J
Page 31
Notes:
1. Voice recognition, web browsing, weather information, and certain other functions require an internet connection.
2. The microphone and Bluetooth® transceiver may be defeated programmatically at any time.
3. Item(s) sold separately. Refer to each product’s spec sheet for complete information.
4. Room scheduling mode requires the TSW-770 to be designated exclusively for room scheduling use, which precludes use of certain features and functions described in this spec sheet. Additionally, CollegeNET® 25Live® scheduling software and Ad Astra™ software do not support scheduling ad hoc meetings from the touch screen. For design assistance, contact the Crestron True Blue support team at www.crestron.com/support.
5. Refer to the firmware release notes for a list of all scheduling apps that are supported by that firmware release.
6. Additional subscriptions and/or licenses may be required. Refer to each provider’s website for details about the capabilities and requirements of its scheduling application and services. Third-party apps typically run on the TSW-770 as they do on a tablet device. The TSW-770 runs only one app, which is selected at setup. Only the apps approved and delivered by Crestron can run on the TSW-770.
7. A complete Zoom Rooms solution requires a mini PC or Mac computer running Zoom software, a Zoom Rooms subscription, plus additional peripherals and cables. Visit zoom.us/zoomrooms for more information about Zoom Rooms capabilities, hardware requirements, and subscription plans. For design assistance, contact the Crestron True Blue support team at www.crestron.com/support.
8. The TSW-770 provides an integrated, equivalent alternative to the standalone PP-100-W beacon. For more details, refer to the PP-100-W spec sheet. Bluetooth technology is used solely for proximity detection and does not transmit or receive any control, multimedia, or personal data. Crestron Bluetooth beacons are only visible to Bluetooth enabled devices that are specifically programmed and configured to work with them.
9. The TSW-UMB-70 is also compatible with older TSW-UMB-PMK series preconstruction mounting kits and TSW-BBI series back boxes, allowing the TSW-770 to be installed in place of a previous generation touch screen.
Product Manual — Doc. 8550J TSW-70 Series • 25
Page 32

TSW-770-GV Features

The Crestron® TSW-770-GV is a stylish and versatile wall mount touch screen that is ideal for residential and enterprise applications. The TSW-770-GV features a 7in. (178mm) capacitive touch screen display with custom-programmable control buttons and support forSmart Graphics® software and HTML5-based custom UIprojects. PoEconnectivity and a comprehensive assortment of mounting accessories simplify new and retrofit installations.
NOTE:The TSW-770-GV series is a modified version of the TSW-770 series, which eliminates the microphone, the Bluetooth® communications beacon, and Wi-Fi® network connectivity to comply with government applications demanding extra privacy and security.
26 • TSW-70 Series Product Manual — Doc. 8550J
Page 33
Product Manual — Doc. 8550J TSW-70 Series • 27
Page 34
Key features include:
l
Next generation Crestron® wall mount touch screen
l
7in. (178mm) widescreen active-matrix color display and 1280x800WXGA display resolution
l
Capacitive touch screen display
l
Custom-programmable virtual control buttons
l
Supports Crestron HTML5 and SmartGraphics® software custom user projects
l
Built-in speakers
l
H.265, H.264, or MJPEG streaming video display
l
Built-in web browsing
l
Single wire Ethernet connection with PoEor PoE+ power
l
Dual USB2.0 ports for room availability accessories
l
Enterprise grade security and authentication
l
Web or device-based configuration
l
Electrical box mounting with provided mounting bracket
Advanced Touch Screen Control
The TSW-770-GV offers a sleek and powerful user interface for controlling technology in a home, boardroom, classroom, or command center. The touch screen provides an intuitive interface that is fully customizable with easy-to-use capacitive controls, true feedback, and real-time status display. Abuilt-in proximity sensor wakes the screen without requiring any user interaction, and automatic brightness controls ensure optimal visibility under varying lighting conditions.
Custom-Programmable Virtual Buttons
The TSW-770-GV provides a universal status bar that is populated with virtual buttons for quick access to common touch screen functions. The touch screen comes preconfigured with virtual buttons for Power, Home, Lights, Up, and Down. Each button can be programmed via a Crestron control system to provide custom functionality, and unused buttons can be hidden individually. The universal status bar is expanded or hidden using simple swipe gestures on touch screen display.
Dynamic User Interfaces
The TSW-770-GV supports custom user interfaces created with Crestron HTML5 User Interface and Smart Graphics technologies, allowing greater flexibility for UI developers and programmers.
l
Crestron HTML5 User Interface enables UIdesigners to develop rich, front-end user interfaces with increased reusability and efficiency using modern web methodologies. Crestron HTML5 User Interface development tools are provided to simplify creating user interfaces built on standard web technologies
l
Smart Graphics enables programmers to integrate fluid gesture-driven controls, animated feedback, rich metadata, embedded apps and widgets, and full-motion video into their user interfaces. Smart Graphics provides dynamic features such as graphical buttons and sliders, lists and toolbars, drag-and-drop objects, dashboard widgets, screensavers, and customizable themes.
1
28 • TSW-70 Series Product Manual — Doc. 8550J
Page 35
Streaming Video
Native support for H.265, H.264, and MJPEG formats allows the TSW-770-GV to display live streaming video from an IP camera, a streaming encoder (Crestron DM-TXRX-100-STR, or similar), or a
DigitalMedia™ switcher.2Video is delivered to the touch screen over Ethernet, eliminating the need for
any extra video wiring.
Sonos App
Sonos and Crestron have partnered to provide a powerful whole-house music experience. From any
touch screen in the house, browse for tracks, artists, or playlists using all the services available from Sonos and instantly play them in any room using Sonos® wireless speakers or a Crestron Sonnex®
multiroom audio system. The Sonos app runs natively on the TSW-770-GV, enabling enhanced control of
Sonos products as part of a complete Crestron system. The app checks for updates nightly so it’s always current, and support for the Sonos S2 App is provided.
1
Crestron Room Scheduling App
As part of a complete enterprise room scheduling solution, the TSW-770-GV can be deployed as a scheduling panel via the Crestron room scheduling app. ACrestron scheduling panel can be installed at the entrance of a meeting room to provide indication of the room’s availability and a view of its schedule for the day. If desired, the room can be reserved on the spot for an ad hoc meeting. ACEN-ODT-C-POE occupancy sensor can also be paired to the touch screen, allowing for occupancy status to be reported instantly to the scheduling app for no-shows and unscheduled room usage.
2,3
Running the Crestron Scheduling App, the TSW-770-GV integrates directly with Crestron Fusion® software, Microsoft Exchange Server® software (for users of Outlook® software and Office365® software), the Google Calendar™ calendaring app (including G Suite™ software), CollegeNET® 25Live® scheduling software, or Ad Astra™ software. IBM® Notes® software is also supported through a Crestron Fusion on-premises server.
Third-Party Scheduling Apps
The TSW-770-GV also includes support various third-party scheduling applications. New providers are made available via firmware updates. Whatever provider you choose, setup is as simple as connecting the touch screen to the network and choosing an app from the web-based setup menu or built-in setup screens. The selected app downloads from the cloud and installs on the touch screen without any programming or control system required.
4,5
Zoom Rooms App
The Zoom Rooms™ conferencing control application enables the TSW-770-GV to be used as a touch screen control panel for a Zoom Rooms software-based conferencing and collaboration solution. The TSW-770-GV offers a superior alternative to a consumer tablet device, providing a more reliable and secure platform. The TSW-770-GV may be configured to run the Zoom Rooms app exclusively, or to allow toggling between the Zoom Rooms app and touch screen control mode. The latter option is used to integrate Zoom Rooms conferencing into a larger AV system while providing touch screen control for
6
both.
Product Manual — Doc. 8550J TSW-70 Series • 29
Page 36
NOTE: The Zoom ultrasonic proximity signal is supported up to an average of 9ft (2.74m) from the TSW-770-GV touch screen to an end user device. The range will vary based on environmental noise, the sensitivity of the end user device, and the orientation to the touch screen.
Crestron Home OSControl
The TSW-770-GV may be used to control a Crestron Home™ OS whole home solution. Select the Crestron Home app from the touch screen to control lighting, shades, climate, media, security, and cameras, including the ability to create and recall scenes that create a desired ambiance throughout a home. A TSW-770-GV may be installed in each room to provide easy access to various Crestron Home functions for both the room and the home.
Web Browsing
Using its built-in web browser, the TSW-770-GV provides access to online program guides and other web-based services, and it can be used to control DVRs and other devices without having to pick up a separate tablet or smartphone.
1
Wired Connectivity
An Ethernet LAN connection is all that is required to wire the TSW-770-GV, containing all control, video, intercom, and power signals within a single wire.
Power over Ethernet
Using PoE technology, the TSW-770-GV gets its operating power directly through the network cable. PoE (Power over Ethernet) eliminates the need for a local power supply or any dedicated power wiring. Crestron PoE switches (CEN-SW-POE-5 or CEN-SWPOE-16) offer a total networking solution with built-in PoE for multiple touch screens. A PoE Injector (PWE-4803RU) is also available to support a single touch screen.
NOTE: Refer to the “Power” specifications for more details.
Room Scheduling Accessories
The TSW-770-GV provides dual high-speed USB2.0 ports for connecting supported Crestron room scheduling accessories to the touch screen.
NOTE: The touch screen supports the use of a single light bar or status indicator accessory only. The
RFID-USBcard reader accessory can be connected to the second USBport.
l
The series light bars provide a 180° visual indication of a room’s availability status, illuminating green if the room is available and red when reserved, with options for custom color mixing and programming.
l
The SSW, SSW-EL, SSC, and SSC-EL series hallway signs feature a twosided acrylic sign face that can be custom engraved with the room name or number. The SIW-100 offers a lower profile wall mount status indicator.
2
2
2
30 • TSW-70 Series Product Manual — Doc. 8550J
Page 37
Enterprise-Grade Security
Crestron touch screens employ enterprise-grade networking with robust security features such as
802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory® service integration. These features are imperative to protect your network against service interruptions and malicious intrusions, and to ensure compliance with your organization’s network policies. Cloud-based provisioning and management streamlines the process of configuring, monitoring, and updating every touch screen on the network. Additional support for SNMP allows the touch screen to be monitored by your IT administrator.
Wall Mount Options
Using the bracket provided, the TSW-770-GV is easily installed over a 2-gang or 3-gang US electrical box, or a 2-gang European or UK electrical box. A security latch option is included to deter unauthorized removal of the touch screen.
Additional wall mounting options are afforded using the optional TSW-UMB-70 universal mounting bracket, TSW-UMB-70-PMK preconstruction mounting kit, and TSW-UMB-70-BBI back box.
2,7
Optional Mounting Accessories
The TSW-770-GV supports numerous optional mounting accessories that allow the touch screen to be installed in all kinds of installations:
l
The TSW-770-MSMK multisurface mount kit allows a TSW-770-GV touch screen to be mounted directly to virtually any flat surface, which is ideal for mounting at the entrance to a meeting space for room scheduling applications.
l
The TSW-770/1070-MUMKallows the touch screen to be attached to the mullion of an interior glass wall, window, or partition.
l
The TSW-770/1070-RMB-1andTSW-770/1070-RMB-2 retrofit mounting brackets allow for
3
retrofit installations in place of an older Crestron touch screen (APAD, CT-1000, LC-1000, TPS-4L, or TPS-2000L) without having to tear out the old mounting hardware or patch the wall.
l
The TSW-570/770-RMK-1 rack mount kit allows the touch screen to be mounted into a 19in. rack. When installed, the touch screen occupies three rack spaces.
l
The TSW-770-FP face plate hides the electrical box from view when replacing a TSW-760 or TSS-7 series touch screen with a TSW-770 series touch screen.
2
2
2
2
The TSW-770-GV is also compatible with Wall-Smart® flush wall mount products via a partnership with Crestron. For more information on supported Wall-Smart hardware, click here.
Product Manual — Doc. 8550J TSW-70 Series • 31
Page 38
Notes:
1. Web browsing, weather information, and certain other functions require an internet connection.
2. Item(s) sold separately. Refer to each product’s spec sheet for complete information.
3. Room scheduling mode requires the TSW-770-GV to be designated exclusively for room scheduling use, which precludes use of certain features and functions described in this spec sheet. Additionally, CollegeNET® 25Live® scheduling software and Ad Astra™ software do not support scheduling ad hoc meetings from the touch screen. For design assistance, contact the Crestron True Blue support team at www.crestron.com/support.
4. Refer to the firmware release notes for a list of all scheduling apps that are supported by that firmware release.
5. Additional subscriptions and/or licenses may be required. Refer to each provider’s website for details about the capabilities and requirements of its scheduling application and services. Third-party apps typically run on the TSW-770-GV as they do on a tablet device. The TSW-770-GV runs only one app, which is selected at setup. Only the apps approved and delivered by Crestron can run on the TSW-770-GV.
6. A complete Zoom Rooms solution requires a mini PC or Mac computer running Zoom software, a Zoom Rooms subscription, plus additional peripherals and cables. Visit zoom.us/zoomrooms for more information about Zoom Rooms capabilities, hardware requirements, and subscription plans. For design assistance, contact the Crestron True Blue support team at www.crestron.com/support.
7. The TSW-UMB-70 is also compatible with older TSW-UMB-PMK series preconstruction mounting kits and TSW-BBI series back boxes, allowing the TSW-770-GV to be installed in place of a previous generation touch screen.
32 • TSW-70 Series Product Manual — Doc. 8550J
Page 39

TSW-770R Features

The Crestron® TSW-770R is a stylish and versatile wall mount touch screen that is designed specifically to run the Crestron Home™ OSapplication. The TSW-770R features a 7in. (178mm) capacitive touch screen display. PoEand Wi-Fi® network connectivity and a comprehensive assortment of mounting accessories simplify new and retrofit installations.
Product Manual — Doc. 8550J TSW-70 Series • 33
Page 40
34 • TSW-70 Series Product Manual — Doc. 8550J
Page 41
Key features include:
l
Next generation Crestron® wall mount touch screen featuring a native Crestron Home™ OSapplication
l
7in. (178mm) widescreen active-matrix color display and 1280x800WXGA display resolution
l
Capacitive touch screen display
l
Built-in Rava® SIPintercom
l
Built-in speakers and microphone
l
H.265, H.264, or MJPEG streaming video display
l
Single wire Ethernet connection with PoEor PoE+ power
l
Wi-Fi® network connectivity
l
Dual USB2.0 ports
l
Enterprise grade security and authentication
l
Web or device-based configuration
l
Electrical box mounting with provided mounting bracket
Advanced Touch Screen Control
The TSW-770R offers a sleek and powerful user interface for controlling technology in the home via the Crestron Home app. The touch screen provides an intuitive interface that is fully customizable with easy-to-use capacitive controls, true feedback, and real-time status display. Abuilt-in proximity sensor wakes the screen without requiring any user interaction, and automatic brightness controls ensure optimal visibility under varying lighting conditions.
Streaming Video
Native support for H.265, H.264, and MJPEG formats allows the TSW-770R to display live streaming video from an IP camera, a streaming encoder (Crestron DM-TXRX-100-STR, or similar), or a
DigitalMedia™ switcher.3Video is delivered to the touch screen over Ethernet, eliminating the need for
any extra video wiring.
Rava SIPIntercom
Rava SIP Intercom Technology enables hands-free VoIP communication with other Rava-enabled touch
screens and door stations. Rava works over Ethernet, supporting 2-way intercom and paging without requiring any special wiring. VoIP phone capability is also possible through integration with a SIP-compatible IP phone system or SIP server, allowing hands-free telephone functionality complete with speed-dialing, caller ID, custom ringers, and other enhancements. Built-in echo cancellation affords full-duplex performance for clear, seamless voice communication using the integrated microphone and speakers.
2
Sonos App
Sonos and Crestron have partnered to provide a powerful whole-house music experience. From any
touch screen in the house, browse for tracks, artists, or playlists using all the services available from Sonos and instantly play them in any room using Sonos® wireless speakers or a Crestron Sonnex®
multiroom audio system. The Sonos app runs natively on the TSW-770R, enabling enhanced control of
Sonos products as part of a complete Crestron system. The app checks for updates nightly so it’s always current, and support for the Sonos S2 App is provided.
1
Product Manual — Doc. 8550J TSW-70 Series • 35
Page 42
Crestron Home OSControl
The TSW-770R may be used to control a Crestron Home™ OS whole home solution. Select the Crestron Home app from the touch screen to control lighting, shades, climate, media, security, and cameras, including the ability to create and recall scenes that create a desired ambiance throughout a home. A TSW-770R may be installed in each room to provide easy access to various Crestron Home functions for both the room and the home.
Wired and Wi-Fi Connectivity
An Ethernet LAN connection is all that is required to wire the TSW-770R, containing all control, video, intercom, and power signals within a single wire.
For deployments without access to Ethernet, the touch screen can also be connected the network over Wi-Fi communications via a local wireless access point (WAP).
Power over Ethernet
Using PoE technology, the TSW-770R gets its operating power directly through the network cable. PoE (Power over Ethernet) eliminates the need for a local power supply or any dedicated power wiring. Crestron PoE switches (CEN-SW-POE-5 or CEN-SWPOE-163) offer a total networking solution with built-in PoE for multiple touch screens. A PoE Injector (PWE-4803RU3) is also available to support a single touch screen.
NOTE: Refer to the “Power” specifications for more details.
Enterprise-Grade Security
Crestron touch screens employ enterprise-grade networking with robust security features such as
802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory® service integration.
Wall Mount Options
Using the bracket provided, the TSW-770R is easily installed over a 2-gang or 3-gang US electrical box, or a 2-gang European or UK electrical box. A security latch option is included to deter unauthorized removal of the touch screen.
Additional wall mounting options are afforded using the optional TSW-UMB-70 universal mounting bracket, TSW-UMB-70-PMK preconstruction mounting kit, and TSW-UMB-70-BBI back box.
3,4
Optional Mounting Accessories
The TSW-770R supports numerous optional mounting accessories that allow the touch screen to be installed in all kinds of installations:
l
The TSW-770-MSMK multisurface mount kit allows a TSW-770R touch screen to be mounted directly to virtually any flat surface, which is ideal for mounting at the entrance to a meeting space for room scheduling applications.
l
The TSW-770/1070-MUMKallows the touch screen to be attached to the mullion of an interior glass wall, window, or partition.
3
36 • TSW-70 Series Product Manual — Doc. 8550J
Page 43
l
The TSW-770/1070-RMB-1andTSW-770/1070-RMB-2 retrofit mounting brackets allow for retrofit installations in place of an older Crestron touch screen (APAD, CT-1000, LC-1000, TPS-4L, or TPS-2000L) without having to tear out the old mounting hardware or patch the wall.
l
The TSW-570/770-RMK-1 rack mount kit allows the touch screen to be mounted into a 19in. rack. When installed, the touch screen occupies three rack spaces.
l
The TSW-770-FP face plate hides the electrical box from view when replacing a TSW-760 or TSS-7 series touch screen with a TSW-770 series touch screen.
The TSW-770R is also compatible with Wall-Smart® flush wall mount products via a partnership with Crestron. For more information on supported Wall-Smart hardware, click here.
Notes:
1. Certain other functions require an internet connection.
2. The microphone may be defeated programmatically at any time.
3. Item(s) sold separately. Refer to each product’s spec sheet for complete information.
4. The TSW-UMB-70 is also compatible with older TSW-UMB-PMK series preconstruction mounting kits and TSW-BBI series back boxes, allowing the TSW-770R to be installed in place of a previous generation touch screen.
Product Manual — Doc. 8550J TSW-70 Series • 37
Page 44

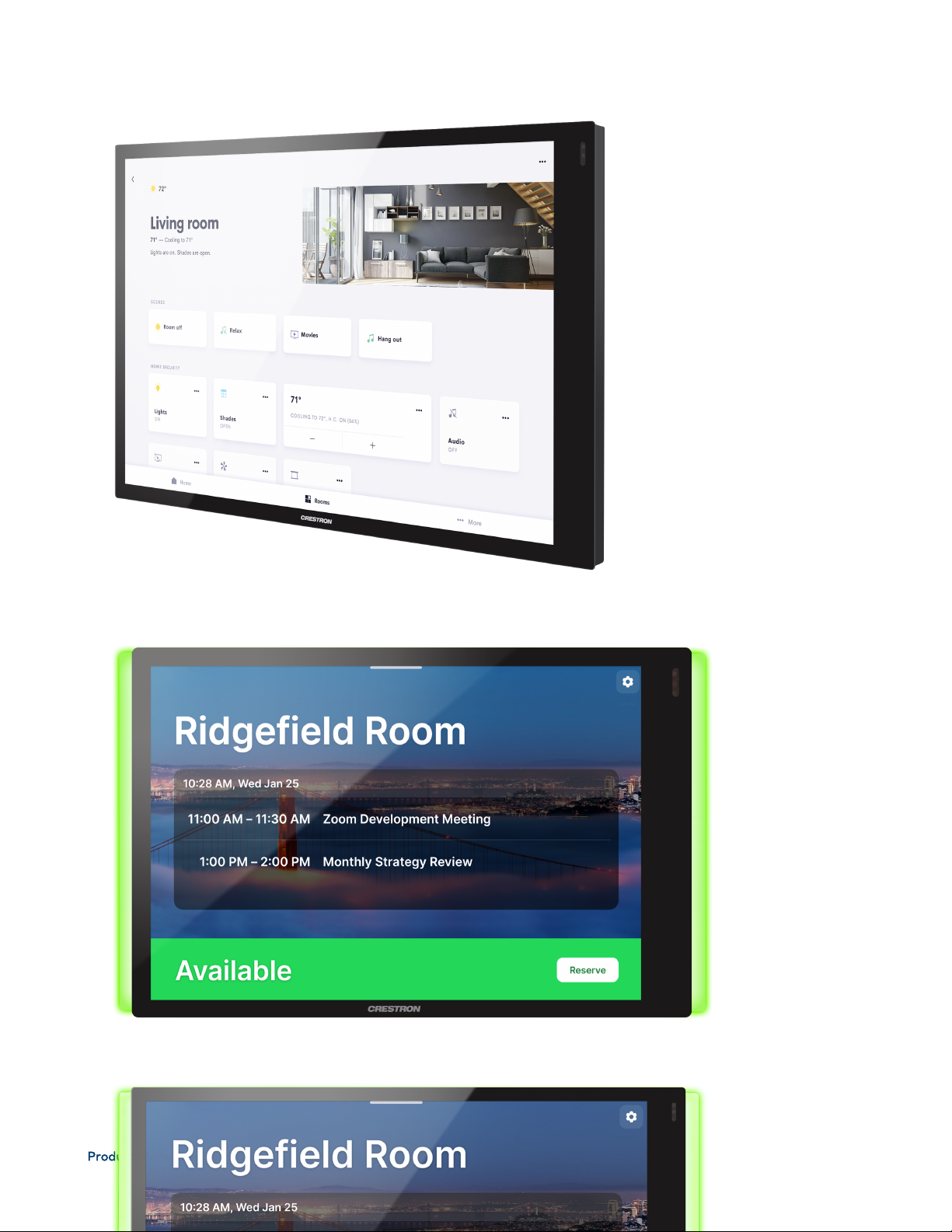

TSW-1070 Features

The Crestron® TSW-1070 is a stylish and versatile wall mount touch screen that is ideal for residential and enterprise applications. The TSW-1070 features a 7in. (178mm)10.1in. (257mm) capacitive touch screen display with custom-programmable control buttons and support forSmart Graphics® software and HTML5-based custom UIprojects. PoEand Wi-Fi® network connectivity and a comprehensive assortment of mounting accessories simplify new and retrofit installations.
38 • TSW-70 Series Product Manual — Doc. 8550J
Page 45
Product Manual — Doc. 8550J TSW-70 Series • 39
Page 46
Key features include:
l
Next generation Crestron® wall mount touch screen
l
10.1in. (257mm) widescreen active-matrix color display and 1920x1200WUXGA display resolution
l
Capacitive touch screen display
l
Custom-programmable virtual control buttons
l
Supports Crestron HTML5 and SmartGraphics® software custom user projects
l
Built-in Rava® SIPintercom
l
Built-in speakers and microphone
l
H.265, H.264, or MJPEG streaming video display
l
Native apps for Crestron Home™ OS, Sonos® home sound control, Zoom Rooms™ conferencing control, MicrosoftTeams® online meeting solution, and various room scheduling services
l
Built-in Bluetooth® communications beacon
l
Built-in web browsing
l
Single wire Ethernet connection with PoEor PoE+ power
l
Wi-Fi® network connectivity
l
Dual USB2.0 ports for room availability accessories
l
Enterprise grade security and authentication
l
Web, cloud, or device-based configuration
l
Electrical box mounting with provided mounting bracket
Advanced Touch Screen Control
The TSW-1070 offers a sleek and powerful user interface for controlling technology in a home, boardroom, classroom, or command center. The touch screen provides an intuitive interface that is fully customizable with easy-to-use capacitive controls, true feedback, and real-time status display. Abuilt-in proximity sensor wakes the screen without requiring any user interaction, and automatic brightness controls ensure optimal visibility under varying lighting conditions.
Custom-Programmable Virtual Buttons
The TSW-1070 provides a universal status bar that is populated with virtual buttons for quick access to common touch screen functions. The touch screen comes preconfigured with virtual buttons for Power, Home, Lights, Up, Down, and Microphone. Each button can be programmed via a Crestron control system to provide custom functionality, and unused buttons can be hidden individually. The universal status bar is expanded or hidden using simple swipe gestures on touch screen display.
Dynamic User Interfaces
The TSW-1070 supports custom user interfaces created with Crestron HTML5 User Interface and Smart Graphics technologies, allowing greater flexibility for UI developers and programmers.
l
Crestron HTML5 User Interface enables UIdesigners to develop rich, front-end user interfaces with increased reusability and efficiency using modern web methodologies. Crestron HTML5 User Interface development tools are provided to simplify creating user interfaces built on standard web technologies
40 • TSW-70 Series Product Manual — Doc. 8550J
Page 47
l
Smart Graphics enables programmers to integrate fluid gesture-driven controls, animated feedback, rich metadata, embedded apps and widgets, and full-motion video into their user interfaces. Smart Graphics provides dynamic features such as graphical buttons and sliders, lists and toolbars, drag-and-drop objects, dashboard widgets, screensavers, and customizable themes.
Voice Recognition
With built-in voice recognition, spoken commands can be issued to the TSW-1070 to quickly turn devices on or off, select and play a specific media source, change the channel, choose a lighting scene, lower the window shades, lock the doors, arm the security system, or enter a password. Simply say a command and Crestron does the rest.
1,2
Streaming Video
Native support for H.265, H.264, and MJPEG formats allows the TSW-1070 to display live streaming video from an IP camera, a streaming encoder (Crestron DM-TXRX-100-STR, or similar), or a
DigitalMedia™ switcher.3Video is delivered to the touch screen over Ethernet, eliminating the need for
any extra video wiring.
Rava SIPIntercom
Rava SIP Intercom Technology enables hands-free VoIP communication with other Rava-enabled touch
screens and door stations. Rava works over Ethernet, supporting 2-way intercom and paging without requiring any special wiring. VoIP phone capability is also possible through integration with a SIP-compatible IP phone system or SIP server, allowing hands-free telephone functionality complete with speed-dialing, caller ID, custom ringers, and other enhancements. Built-in echo cancellation affords full-duplex performance for clear, seamless voice communication using the integrated microphone and speakers.
2
Sonos App
Sonos and Crestron have partnered to provide a powerful whole-house music experience. From any
touch screen in the house, browse for tracks, artists, or playlists using all the services available from Sonos and instantly play them in any room using Sonos® wireless speakers or a Crestron Sonnex®
multiroom audio system. The Sonos app runs natively on the TSW-1070, enabling enhanced control of
Sonos products as part of a complete Crestron system. The app checks for updates nightly so it’s always current, and support for the Sonos S2 App is provided.
1
Crestron Room Scheduling App
As part of a complete enterprise room scheduling solution, the TSW-1070 can be deployed as a scheduling panel via the Crestron room scheduling app. ACrestron scheduling panel can be installed at the entrance of a meeting room to provide indication of the room’s availability and a view of its schedule for the day. If desired, the room can be reserved on the spot for an ad hoc meeting. ACEN-ODT-C-POE occupancy sensor can also be paired to the touch screen, allowing for occupancy status to be reported instantly to the scheduling app for no-shows and unscheduled room usage.
Running the Crestron Scheduling App, the TSW-1070 integrates directly with Crestron Fusion® software, Microsoft Exchange Server® software (for users of Outlook® software and Office365® software), the Google Calendar™ calendaring app (including G Suite™ software), CollegeNET® 25Live® scheduling software, or Ad Astra™ software. IBM® Notes® software is also supported through a Crestron Fusion on-premises server.
3,4
Product Manual — Doc. 8550J TSW-70 Series • 41
Page 48
Third-Party Scheduling Apps
The TSW-1070 also includes support various third-party scheduling applications. New providers are made available via firmware updates. Whatever provider you choose, setup is as simple as connecting the touch screen to the network and choosing an app from the web-based setup menu or built-in setup screens. The selected app downloads from the cloud and installs on the touch screen without any programming or control system required.
5,6
Zoom Rooms App
The Zoom Rooms™ conferencing control application enables the TSW-1070 to be used as a touch screen control panel for a Zoom Rooms software-based conferencing and collaboration solution. The TSW­1070 offers a superior alternative to a consumer tablet device, providing a more reliable and secure platform with versatile, streamlined mounting options. The TSW-1070 may be configured to run the Zoom Rooms app exclusively, or to allow toggling between the Zoom Rooms app and touch screen control mode. The latter option is used to integrate Zoom Rooms conferencing into a larger AV system while providing touch screen control for both.
NOTE: The Zoom ultrasonic proximity signal is supported up to an average of 9ft (2.74m) from the TSW-1070 touch screen to an end user device. The range will vary based on environmental noise, the sensitivity of the end user device, and the orientation to the touch screen.
7
Microsoft Teams App
The Microsoft Teams® online meeting solution is the hub for teamwork in Office 365® software, engaging people through messaging, voice over IP, online meetings, conferencing, content sharing, and collaboration. The Microsoft Teams application on the TSW-1070 enables presentation, calling, conferencing, and collaboration — all through a single touch screen console, with exceptional full-duplex wideband audio and HD video. A consistent user experience in every meeting space is provided via the familiar and intuitive Microsoft Teams UI, affording simple operation, built-in calendaring, and one­touch meeting joins.
NOTE: The TSW-1070 must be operated in Microsoft Teams mode in conjunction with a UC-ENGINE or UC-BRKT-100-ASSY.
3
Crestron Home OSControl
The TSW-1070 may be used to control a Crestron Home™ OS whole home solution. Select the Crestron Home app from the touch screen to control lighting, shades, climate, media, security, and cameras, including the ability to create and recall scenes that create a desired ambiance throughout a home. A TSW-1070 may be installed in each room to provide easy access to various Crestron Home functions for both the room and the home.
Bluetooth Beacon
The built-in Bluetooth® proximity detection beacon enhances the intelligence and personalization of a Crestron system by enabling a smartphone or tablet device to always know what room it is in. It works with the Crestron Go App and Crestron App to determine when the mobile device is in or near the same room as the beacon, and signals the mobile app to automatically display the appropriate controls and information for the room.
2,8
42 • TSW-70 Series Product Manual — Doc. 8550J
Page 49
Web Browsing
Using its built-in web browser, the TSW-1070 provides access to online program guides and other web­based services, and it can be used to control DVRs and other devices without having to pick up a separate tablet or smartphone.
1
Wired and Wi-Fi Connectivity
An Ethernet LAN connection is all that is required to wire the TSW-1070, containing all control, video, intercom, and power signals within a single wire.
For deployments without access to Ethernet, the touch screen can also be connected the network over Wi-Fi communications via a local wireless access point (WAP).
Power over Ethernet
Using PoE technology, the TSW-1070 gets its operating power directly through the network cable. PoE (Power over Ethernet) eliminates the need for a local power supply or any dedicated power wiring. Crestron PoE switches (CEN-SW-POE-5 or CEN-SWPOE-163) offer a total networking solution with built-in PoE for multiple touch screens. A PoE Injector (PWE-4803RU3) is also available to support a single touch screen.
NOTE: PoE+ is required when connecting a light bar or hallway sign via USB. Refer to the “Power” specifications for more details.
Room Scheduling Accessories
The TSW-1070 provides dual high-speed USB2.0 ports for connecting supported Crestron room scheduling accessories to the touch screen.
NOTE: The touch screen supports the use of a single light bar or status indicator accessory only. The
RFID-USBcard reader accessory can be connected to the second USBport.
l
The TSW-1070-LB series light bars provide a 180° visual indication of a room’s availability status, illuminating green if the room is available and red when reserved, with options for custom color mixing and programming.
l
The SSW, SSW-EL, SSC, and SSC-EL series hallway signs feature a twosided acrylic sign face that can be custom engraved with the room name or number. The SIW-100 offers a lower profile wall mount status indicator.
3
3
3
Enterprise-Grade Security
Crestron touch screens employ enterprise-grade networking with robust security features such as
802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory® service integration. These features are imperative to protect your network against service interruptions and malicious intrusions, and to ensure compliance with your organization’s network policies. Cloud-based provisioning and management streamlines the process of configuring, monitoring, and updating every touch screen on the network. Additional support for SNMP allows the touch screen to be monitored by your IT administrator.
Product Manual — Doc. 8550J TSW-70 Series • 43
Page 50
XiOCloud Service
The TSW-1070 is compatible with the XiO Cloud® service, which is an IoT (Internet of Things) based platform for remotely provisioning, monitoring, and managing Crestron devices across an enterprise or an entire client base. Built on the Microsoft® Azure® software platform and utilizing Microsoft's industry-leading Azure IoT Hub technology, XiO Cloud enables installers and IT managers to deploy and manage thousands of devices in the time it previously took to manage just one. Unlike other virtual machine-based cloud solutions, Azure services provide unlimited scalability to suit the ever-growing needs of an enterprise. For more information, visit www.crestron.com/xiocloud.
Crestron ONEApp Support
The TSW-1070 is compatible with the Crestron ONE™ mobile room control app. The Crestron ONEapp creates a peer-to-peer network over Bluetooth communications between a mobile device and the TSW­1070 in the room, allowing mobile-optimized room controls to be pushed to the device from the touch screen. Programmers can specify the controls that display on the mobile app by mapping joins from Smart Graphics projects to the mobile project. A SW-MOBILITY license is required to enable mobile room control functionality.
Wall Mount Options
Using the bracket provided, the TSW-1070 is easily installed over a 2-gang or 3-gang US electrical box, or a 2-gang European or UK electrical box. A security latch option is included to deter unauthorized removal of the touch screen.
Additional wall mounting options are afforded using the optional TSW-UMB-70 universal mounting bracket, TSW-UMB-70-PMK preconstruction mounting kit, and TSW-UMB-70-BBI back box.
3,9
OptionalMounting Accessories
The TSW-1070 supports numerous optional mounting accessories that allow the touch screen to be installed in all kinds of installations:
l
The TSW-1070-MSMK multisurface mount kit allows a TSW-1070 touch screen to be mounted directly to virtually any flat surface, which is ideal for mounting at the entrance to a meeting space for room scheduling applications.
l
The TSW-770/1070-MUMKallows the touch screen to be attached to the mullion of an interior glass wall, window, or partition.
l
The TSW-770/1070-RMB-1,TSW-770/1070-RMB-2, and TSW-1070-RMB-3, retrofit mounting
3
brackets allow for retrofit installations in place of an older Crestron touch screen (APAD, CT-1000, LC-1000, TPS-4L, TPS-6L, or TPS-2000L) without having to tear out the old mounting hardware or patch the wall.
l
The TSW-1070-RMK-2 rack mount kit allows the touch screen to be mounted into a 19in. rack.
3
When installed, the touch screen occupies four rack spaces.
The TSW-1070 is also compatible with Wall-Smart® flush wall mount products via a partnership with Crestron. For more information on supported Wall-Smart hardware, click here.
3
3
44 • TSW-70 Series Product Manual — Doc. 8550J
Page 51
Notes:
1. Voice recognition, web browsing, weather information, and certain other functions require an internet connection.
2. The microphone and Bluetooth® transceiver may be defeated programmatically at any time.
3. Item(s) sold separately. Refer to each product’s spec sheet for complete information.
4. Room scheduling mode requires the TSW-1070 to be designated exclusively for room scheduling use, which precludes use of certain features and functions described in this spec sheet. Additionally, CollegeNET® 25Live® scheduling software and Ad Astra™ software do not support scheduling ad hoc meetings from the touch screen. For design assistance, contact the Crestron True Blue support team at www.crestron.com/support.
5. Refer to the firmware release notes for a list of all scheduling apps that are supported by that firmware release.
6. Additional subscriptions and/or licenses may be required. Refer to each provider’s website for details about the capabilities and requirements of its scheduling application and services. Third-party apps typically run on the TSW-1070 as they do on a tablet device. The TSW-1070 runs only one app, which is selected at setup. Only the apps approved and delivered by Crestron can run on the TSW-1070.
7. A complete Zoom Rooms solution requires a mini PC or Mac computer running Zoom software, a Zoom Rooms subscription, plus additional peripherals and cables. Visit zoom.us/zoomrooms for more information about Zoom Rooms capabilities, hardware requirements, and subscription plans. For design assistance, contact the Crestron True Blue support team at www.crestron.com/support.
8. The TSW-1070 provides an integrated, equivalent alternative to the standalone PP-100-W beacon. For more details, refer to the PP-100-W spec sheet. Bluetooth technology is used solely for proximity detection and does not transmit or receive any control, multimedia, or personal data. Crestron Bluetooth beacons are only visible to Bluetooth enabled devices that are specifically programmed and configured to work with them.
9. The TSW-UMB-70 is also compatible with older TSW-UMB-PMK series preconstruction mounting kits and TSW-BBI series back boxes, allowing the TSW-1070 to be installed in place of a previous generation touch screen.
Product Manual — Doc. 8550J TSW-70 Series • 45
Page 52

TSW-1070-GV Features

The Crestron® TSW-1070-GV is a stylish and versatile wall mount touch screen that is ideal for residential and enterprise applications. The TSW-1070-GV features a 10.1in. (257mm) capacitive touch screen display with custom-programmable control buttons and support forSmart Graphics® software and HTML5-based custom UIprojects. PoEconnectivity and a comprehensive assortment of mounting accessories simplify new and retrofit installations.
NOTE:The TSW-1070-GV series is a modified version of the TSW-1070 series, which eliminates the microphone, the Bluetooth® communications beacon, and Wi-Fi® network connectivity to comply with government applications demanding extra privacy and security.
46 • TSW-70 Series Product Manual — Doc. 8550J
Page 53
Product Manual — Doc. 8550J TSW-70 Series • 47
Page 54
Key features include:
l
Next generation Crestron® wall mount touch screen
l
10.1in. (257mm) widescreen active-matrix color display and 1920x1200WUXGA display resolution
l
Capacitive touch screen display
l
Custom-programmable virtual control buttons
l
Supports Crestron HTML5 and SmartGraphics® software custom user projects
l
Built-in speakers
l
H.265, H.264, or MJPEG streaming video display
l
Built-in web browsing
l
Single wire Ethernet connection with PoEor PoE+ power
l
Dual USB2.0 ports for room availability accessories
l
Enterprise grade security and authentication
l
Web or device-based configuration
l
Electrical box mounting with provided mounting bracket
Advanced Touch Screen Control
The TSW-1070-GV offers a sleek and powerful user interface for controlling technology in a home, boardroom, classroom, or command center. The touch screen provides an intuitive interface that is fully customizable with easy-to-use capacitive controls, true feedback, and real-time status display. Abuilt-in proximity sensor wakes the screen without requiring any user interaction, and automatic brightness controls ensure optimal visibility under varying lighting conditions.
Custom-Programmable Virtual Buttons
The TSW-1070-GV provides a universal status bar that is populated with virtual buttons for quick access to common touch screen functions. The touch screen comes preconfigured with virtual buttons for Power, Home, Lights, Up, and Down. Each button can be programmed via a Crestron control system to provide custom functionality, and unused buttons can be hidden individually. The universal status bar is expanded or hidden using simple swipe gestures on touch screen display.
Dynamic User Interfaces
The TSW-1070-GV supports custom user interfaces created with Crestron HTML5 User Interface and Smart Graphics technologies, allowing greater flexibility for UI developers and programmers.
l
Crestron HTML5 User Interface enables UIdesigners to develop rich, front-end user interfaces with increased reusability and efficiency using modern web methodologies. Crestron HTML5 User Interface development tools are provided to simplify creating user interfaces built on standard web technologies
l
Smart Graphics enables programmers to integrate fluid gesture-driven controls, animated feedback, rich metadata, embedded apps and widgets, and full-motion video into their user interfaces. Smart Graphics provides dynamic features such as graphical buttons and sliders, lists and toolbars, drag-and-drop objects, dashboard widgets, screensavers, and customizable themes.
1
48 • TSW-70 Series Product Manual — Doc. 8550J
Page 55
Streaming Video
Native support for H.265, H.264, and MJPEG formats allows the TSW-1070-GV to display live streaming video from an IP camera, a streaming encoder (Crestron DM-TXRX-100-STR, or similar), or a
DigitalMedia™ switcher.2Video is delivered to the touch screen over Ethernet, eliminating the need for
any extra video wiring.
Sonos App
Sonos and Crestron have partnered to provide a powerful whole-house music experience. From any
touch screen in the house, browse for tracks, artists, or playlists using all the services available from Sonos and instantly play them in any room using Sonos® wireless speakers or a Crestron Sonnex®
multiroom audio system. The Sonos app runs natively on the TSW-1070-GV, enabling enhanced control
of Sonos products as part of a complete Crestron system. The app checks for updates nightly so it’s always current, and support for the Sonos S2 App is provided.
1
Crestron Room Scheduling App
As part of a complete enterprise room scheduling solution, the TSW-1070-GV can be deployed as a scheduling panel via the Crestron room scheduling app. ACrestron scheduling panel can be installed at the entrance of a meeting room to provide indication of the room’s availability and a view of its schedule for the day. If desired, the room can be reserved on the spot for an ad hoc meeting. ACEN-ODT-C-POE occupancy sensor can also be paired to the touch screen, allowing for occupancy status to be reported instantly to the scheduling app for no-shows and unscheduled room usage.
2,3
Running the Crestron Scheduling App, the TSW-1070-GV integrates directly with Crestron Fusion® software, Microsoft Exchange Server® software (for users of Outlook® software and Office365® software), the Google Calendar™ calendaring app (including G Suite™ software), CollegeNET® 25Live® scheduling software, or Ad Astra™ software. IBM® Notes® software is also supported through a Crestron Fusion on-premises server.
Third-Party Scheduling Apps
The TSW-1070-GV also includes support various third-party scheduling applications. New providers are made available via firmware updates. Whatever provider you choose, setup is as simple as connecting the touch screen to the network and choosing an app from the web-based setup menu or built-in setup screens. The selected app downloads from the cloud and installs on the touch screen without any programming or control system required.
4,5
Zoom Rooms App
The Zoom Rooms™ conferencing control application enables the TSW-1070-GV to be used as a touch screen control panel for a Zoom Rooms software-based conferencing and collaboration solution. The TSW-1070-GV offers a superior alternative to a consumer tablet device, providing a more reliable and secure platform. The TSW-1070-GV may be configured to run the Zoom Rooms app exclusively, or to allow toggling between the Zoom Rooms app and touch screen control mode. The latter option is used to integrate Zoom Rooms conferencing into a larger AV system while providing touch screen control for
6
both.
Product Manual — Doc. 8550J TSW-70 Series • 49
Page 56
NOTE: The Zoom ultrasonic proximity signal is supported up to an average of 9ft (2.74m) from the TSW-1070-GV touch screen to an end user device. The range will vary based on environmental noise, the sensitivity of the end user device, and the orientation to the touch screen.
Microsoft Teams App
The Microsoft Teams® online meeting solution is the hub for teamwork in Office 365® software, engaging people through messaging, voice over IP, online meetings, conferencing, content sharing, and collaboration. The Microsoft Teams application on the TSW-1070-GV enables presentation, calling, conferencing, and collaboration — all through a single touch screen console, with exceptional full-duplex wideband audio and HD video. A consistent user experience in every meeting space is provided via the familiar and intuitive Microsoft Teams UI, affording simple operation, built-in calendaring, and one­touch meeting joins.
NOTE: The TSW-1070-GV must be operated in Microsoft Teams mode in conjunction with a
UC-ENGINE or UC-BRKT-100-ASSY.
2
Crestron Home OSControl
The TSW-1070-GV may be used to control a Crestron Home™ OS whole home solution. Select the Crestron Home app from the touch screen to control lighting, shades, climate, media, security, and cameras, including the ability to create and recall scenes that create a desired ambiance throughout a home. A TSW-1070-GV may be installed in each room to provide easy access to various Crestron Home functions for both the room and the home.
Web Browsing
Using its built-in web browser, the TSW-1070-GV provides access to online program guides and other web-based services, and it can be used to control DVRs and other devices without having to pick up a separate tablet or smartphone.
1
Wired Connectivity
An Ethernet LAN connection is all that is required to wire the TSW-1070-GV, containing all control, video, intercom, and power signals within a single wire.
Power over Ethernet
Using PoE technology, the TSW-1070-GV gets its operating power directly through the network cable. PoE (Power over Ethernet) eliminates the need for a local power supply or any dedicated power wiring. Crestron PoE switches (CEN-SW-POE-5 or CEN-SWPOE-16) offer a total networking solution with built-in PoE for multiple touch screens. A PoE Injector (PWE-4803RU) is also available to support a single touch screen.
NOTE: Refer to the “Power” specifications for more details.
Room Scheduling Accessories
The TSW-1070-GV provides dual high-speed USB2.0 ports for connecting supported Crestron room scheduling accessories to the touch screen.
2
50 • TSW-70 Series Product Manual — Doc. 8550J
Page 57
NOTE: The touch screen supports the use of a single light bar or status indicator accessory only. The
RFID-USBcard reader accessory can be connected to the second USBport.
l
The series light bars provide a 180° visual indication of a room’s availability status, illuminating green if the room is available and red when reserved, with options for custom color mixing and programming.
l
The SSW, SSW-EL, SSC, and SSC-EL series hallway signs feature a twosided acrylic sign face
2
that can be custom engraved with the room name or number. The SIW-100 offers a lower profile wall mount status indicator.
2
Enterprise-Grade Security
Crestron touch screens employ enterprise-grade networking with robust security features such as
802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory® service integration. These features are imperative to protect your network against service interruptions and malicious intrusions, and to ensure compliance with your organization’s network policies. Cloud-based provisioning and management streamlines the process of configuring, monitoring, and updating every touch screen on the network. Additional support for SNMP allows the touch screen to be monitored by your IT administrator.
Wall Mount Options
Using the bracket provided, the TSW-1070-GV is easily installed over a 2-gang or 3-gang US electrical box, or a 2-gang European or UK electrical box. A security latch option is included to deter unauthorized removal of the touch screen.
Additional wall mounting options are afforded using the optional TSW-UMB-70 universal mounting bracket, TSW-UMB-70-PMK preconstruction mounting kit, and TSW-UMB-70-BBI back box.
2,7
Optional Mounting Accessories
The TSW-1070-GV supports numerous optional mounting accessories that allow the touch screen to be installed in all kinds of installations:
l
The TSW-1070-MSMK multisurface mount kit allows a TSW-1070-GV touch screen to be mounted directly to virtually any flat surface, which is ideal for mounting at the entrance to a meeting space for room scheduling applications.
l
The TSW-770/1070-MUMKallows the touch screen to be attached to the mullion of an interior glass wall, window, or partition.
l
The TSW-770/1070-RMB-1,TSW-770/1070-RMB-2, and TSW-1070-RMB-3, retrofit mounting
3
brackets allow for retrofit installations in place of an older Crestron touch screen (APAD, CT-1000, LC-1000, TPS-4L, TPS-6L, or TPS-2000L) without having to tear out the old mounting hardware or patch the wall.
l
The TSW-1070-RMK-2 rack mount kit allows the touch screen to be mounted into a 19in. rack.
2
When installed, the touch screen occupies four rack spaces.
The TSW-1070-GV is also compatible with Wall-Smart® flush wall mount products via a partnership with Crestron. For more information on supported Wall-Smart hardware, click here.
2
2
Product Manual — Doc. 8550J TSW-70 Series • 51
Page 58
Notes:
1. Web browsing, weather information, and certain other functions require an internet connection.
2. Item(s) sold separately. Refer to each product’s spec sheet for complete information.
3. Room scheduling mode requires the TSW-1070-GV to be designated exclusively for room scheduling use, which precludes use of certain features and functions described in this spec sheet. Additionally, CollegeNET® 25Live® scheduling software and Ad Astra™ software do not support scheduling ad hoc meetings from the touch screen. For design assistance, contact the Crestron True Blue support team at www.crestron.com/support.
4. Refer to the firmware release notes for a list of all scheduling apps that are supported by that firmware release.
5. Additional subscriptions and/or licenses may be required. Refer to each provider’s website for details about the capabilities and requirements of its scheduling application and services. Third-party apps typically run on the TSW-1070­GV as they do on a tablet device. The TSW-1070-GV runs only one app, which is selected at setup. Only the apps approved and delivered by Crestron can run on the TSW-1070-GV.
6. A complete Zoom Rooms solution requires a mini PC or Mac computer running Zoom software, a Zoom Rooms subscription, plus additional peripherals and cables. Visit zoom.us/zoomrooms for more information about Zoom Rooms capabilities, hardware requirements, and subscription plans. For design assistance, contact the Crestron True Blue support team at www.crestron.com/support.
7. The TSW-UMB-70 is also compatible with older TSW-UMB-PMK series preconstruction mounting kits and TSW-BBI series back boxes, allowing the TSW-1070-GV to be installed in place of a previous generation touch screen.
52 • TSW-70 Series Product Manual — Doc. 8550J
Page 59

Physical Description

The TSW-70 Series provides the following connectors and indicators.
TSW-570, TSW-770, and TSW-1070 Series Connectors
TSW-570PSeries Connectors
Connectors and Indicators
LANPoE (1) 8-pin RJ-45 connector, female, with 2 LEDindicators;
100BASE-TX Ethernet port; PoE+ PD port; Green and yellow LEDs indicate Ethernet port status
USB (2)USB Type-Aconnectors, female;
USB 2.0 host ports
NOTE: The touch screen supports the use of a single light bar or status indicator accessory only. The RFID-
USBcard reader accessory can be connected to the second USBport.
Product Manual — Doc. 8550J TSW-70 Series • 53
Page 60

Specifications

Refer to the following sections for more information on the specifications for various TSW-70 Series models.
l
TSW-570 Specifications on page 55
l
TSW-570P Specifications on page 61
l
TSW-570PR Specifications on page 71
l
TSW-770 Specifications on page 74
l
TSW-770-GV Specifications on page 80
l
TSW-770R Specifications on page 86
l
TSW-1070 Specifications on page 91
l
TSW-1070-GV Specifications on page 97
l
TSW-1070R Specifications on page 102
54 • TSW-70 Series Product Manual — Doc. 8550J
Page 61

TSW-570 Specifications

Product specifications for the TSW-570 are provided below.

Product Specifications

Touch Screen Display
DisplayType TFT active matrix color LCD
Size 5in. (127mm)diagonal
Aspect Ratio 16:9HD720
Resolution 1280x720 pixels
Brightness 400nits (cd/m2)
Contrast 800:1
Color Depth 24bit, 16.7M colors
Illumination Edgelit LED with auto brightness control
Viewing Angle ±80°horizontal, ±80°vertical
Touch Screen Projected capacitive, 5-point multitouch capable
Buttons
Virtual Buttons (5) Virtual buttons in collapsible universal tool bar, per-button show/hide,
preconfigured with icons for Power, Home, Lights, Up, and Down, optional custom programming via control system for additional functions
Reset (1) Pin hole on rear panel for hardware reset
Graphics Engine
Crestron HTML5 and Smart Graphics® software technology, multilanguage web browser3, multilanguage on­screen keyboard, screensaver, single scalable streaming video window, native room scheduling application2, native Crestron Home™ OSapp, setup and diagnostics via web browser, cloud, or on-screen UI
Room Scheduling Support
Crestron Scheduling App Crestron Fusion® software, Microsoft Exchange Server® and Office 365® software,
Google Calendar™ calendaring app and G Suite™ software, CollegeNET® 25Live® software, and Ad Astra™ software (IBM® Notes® software is also supported through Crestron Fusion on-premises server only)
2
Product Manual — Doc. 8550J TSW-70 Series • 55
Page 62
Languages
Smart Graphics Arabic, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English
(UK), English (US), Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Portuguese (Brazilian), Romanian, Russian, Slovak, Spanish, Swedish, Thai
On-screen Keyboard Arabic, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (UK), English
(US), Finnish, French (Canada), French (Switzerland), German, Hebrew, Hungarian, Italian, Japanese, Norwegian Bokmal, Polish, Portuguese, Russian, Serbian, Spanish, Swedish, Turkish
Web Browser
3
Arabic, Bulgarian, Catalan, Chinese, Croatian, Czech, Danish, Dutch, English, Filipino, Finnish, French, German, Greek, Hebrew, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Latvian, Lithuanian, Norwegian Bokmal, Pashto, Persian, Polish, Portuguese, Romanian, Romansh, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Thai, Turkish, Ukrainian, Vietnamese
Room Scheduling
2
Chinese (Simplified), Chinese (Traditional), Danish, Dutch (Netherlands), English (US), English (UK), French, German, Hebrew, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Portugal), Russian, Spanish, Swedish
Memory
RAM 2 GBLPDDR3
Storage Firmware/Application:16 GB eMMC pSLC
Maximum Project Size 600 MB
Wired Communications
Ethernet 100 Mbps, auto switching, auto negotiating, auto discovery, full/half duplex, TCP/IP,
UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP(SSHFile Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, XiOCloud® client, IEEE802.3at compliant
USB USB 2.0 host for room scheduling accessories
56 • TSW-70 Series Product Manual — Doc. 8550J
Page 63
Streaming Decoder
Video Formats H.265, H.264 (MPEG-4 part 10 AVC, MJPEG)
Audio Formats AACStereo
Bitrates Up to 25 Mbps (20 Mbps maximum recommended)
Input Resolutions Up to 1920x1080@30fps
Protocol RTSP
Connectors
LANPoE (1) 8-pin RJ-45 connector, female, with 2 LEDindicators;
100BASE-TX Ethernet port; PoE+ PD port; Green and yellow LEDs indicate Ethernet port status
USB (2)USB Type-Aconnectors, female;
USB 2.0 host ports; For optional room scheduling accessories
3
Power
PoE(Power over Ethernet) IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device);
Requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management; Requests 30 W (PoE+Class 4) from an 802.3at Type 2 PSE without LLDP; Requests 15.4 W (PoEClass 0) from an 802.3af (or 802.3at Type 1)PSE
Environmental
Temperature 32 to 104°F (0 to 40°C)
Humidity 10% to 95% RH (noncondensing)
Heat Dissipation 44BTU/hr
Construction
Housing Plastic, smooth black or white finish, edge-to-edge glass with black or white surround
Mounting Surface mount over a 2in. Hx 3-3/4in. W(51mm Hx 96mm W) cutout;
2-13/16in. (72mm) minimum mounting depth; 1-1/4in. (32mm) maximum mounting surface thickness; Pre/postconstruction mounting bracket assembly included; Back box and rack mount options sold separately
Product Manual — Doc. 8550J TSW-70 Series • 57
Page 64
Dimensions
Height 2.84in. (72mm)
Width 5.14in. (131mm)
Depth 1.97in. (50mm)
Dimensions do not include mounting bracket or add-on accessories
Weight
8.82oz (250g)
Compliance
Regulatory Model: M201923001
IC, CE, FCC Part 15 Class B digital device
58 • TSW-70 Series Product Manual — Doc. 8550J
Page 65

Dimension Drawings

Product Manual — Doc. 8550J TSW-70 Series • 59
Page 66
Notes:
1. Item(s) sold separately. Refer to each product’s spec sheet for complete information.
2. Web browsing, weather information, and certain other functions require an internet connection.
3. Room scheduling mode requires the TSW-570 to be designated exclusively for room scheduling use, which precludes use of certain features and functions described in this spec sheet. Additionally, CollegeNET® 25Live® scheduling software and Ad Astra™ software do not support scheduling ad hoc meetings from the touch screen. For design assistance, contact the Crestron True Blue support team at www.crestron.com/support.
4. The TSW-UMB-70 is also compatible with older TSW-UMB-PMK series preconstruction mounting kits and TSW-BBI series back boxes, allowing the TSW-570 to be installed in place of a previous generation touch screen.
60 • TSW-70 Series Product Manual — Doc. 8550J
Page 67

TSW-570P Specifications

Product specifications for the TSW-570P are provided below.

Product Specifications

Touch Screen Display
DisplayType TFT active matrix color LCD
Size 5in. (127mm)diagonal
Aspect Ratio 16:9HD720 (portrait)
Resolution 720x1280 pixels
Brightness 400nits (cd/m2)
Contrast 800:1
Color Depth 24bit, 16.7M colors
Illumination Edgelit LED with auto brightness control
Viewing Angle ±80°horizontal, ±80°vertical
Touch Screen Projected capacitive, 5-point multitouch capable
Buttons
Virtual Buttons (5) Virtual buttons in collapsible universal tool bar, per-button show/hide,
preconfigured with icons for Power, Home, Lights, Up, and Down, optional custom programming via control system for additional functions
Reset (1) Pin hole on rear panel for hardware reset
Graphics Engine
Crestron HTML5 and Smart Graphics® software technology, multilanguage web browser2, multilanguage on­screen keyboard, screensaver, single scalable streaming video window, native room scheduling application1, native Crestron Home™ OSapp, setup and diagnostics via web browser, cloud, or on-screen UI
Room Scheduling Support
Crestron Scheduling App Crestron Fusion® software, Microsoft Exchange Server® and Office 365® software,
Google Calendar™ calendaring app and G Suite™ software, CollegeNET® 25Live® software, and Ad Astra™ software (IBM® Notes® software is also supported through Crestron Fusion on-premises server only)
1
Product Manual — Doc. 8550J TSW-70 Series • 61
Page 68
Languages
Smart Graphics Arabic, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English
(UK), English (US), Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Portuguese (Brazilian), Romanian, Russian, Slovak, Spanish, Swedish, Thai
On-screen Keyboard Arabic, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (UK), English
(US), Finnish, French (Canada), French (Switzerland), German, Hebrew, Hungarian, Italian, Japanese, Norwegian Bokmal, Polish, Portuguese, Russian, Serbian, Spanish, Swedish, Turkish
Web Browser
2
Arabic, Bulgarian, Catalan, Chinese, Croatian, Czech, Danish, Dutch, English, Filipino, Finnish, French, German, Greek, Hebrew, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Latvian, Lithuanian, Norwegian Bokmal, Pashto, Persian, Polish, Portuguese, Romanian, Romansh, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Thai, Turkish, Ukrainian, Vietnamese
Room Scheduling
1
Chinese (Simplified), Chinese (Traditional), Danish, Dutch (Netherlands), English (US), English (UK), French, German, Hebrew, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Portugal), Russian, Spanish, Swedish
Memory
RAM 2 GBLPDDR3
Storage Firmware/Application:16 GB eMMC pSLC
Maximum Project Size 600 MB
Wired Communications
Ethernet 100 Mbps, auto switching, auto negotiating, auto discovery, full/half duplex, TCP/IP,
UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP(SSHFile Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, XiOCloud® client, IEEE802.3at compliant
USB USB 2.0 host for room scheduling accessories
62 • TSW-70 Series Product Manual — Doc. 8550J
Page 69
Streaming Decoder
Video Formats H.265, H.264 (MPEG-4 part 10 AVC, MJPEG)
Audio Formats AACStereo
Bitrates Up to 25 Mbps (20 Mbps maximum recommended)
Input Resolutions Up to 1920x1080@30fps
Protocol RTSP
Connectors
LANPoE (1) 8-pin RJ-45 connector, female, with 2 LEDindicators;
100BASE-TX Ethernet port; PoE+ PD port; Green and yellow LEDs indicate Ethernet port status
USB (2)USB Type-Aconnectors, female;
USB 2.0 host ports; For optional room scheduling accessories
Power
PoE(Power over Ethernet) IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device);
Requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management; Requests 30 W (PoE+Class 4) from an 802.3at Type 2 PSE without LLDP; Requests 15.4 W (PoEClass 0) from an 802.3af (or 802.3at Type 1)PSE
Environmental
Temperature 32 to 104°F (0 to 40°C)
Humidity 10% to 95% RH (noncondensing)
Heat Dissipation 44BTU/hr
Construction
Housing Plastic, smooth black or white finish, edge-to-edge glass with black or white surround
Mounting Surface mount over a 3-3/4in. H x 2in. W(96mm H x 51mm W) cutout;
2-13/16in. (72mm) minimum mounting depth; 1-1/4in. (32mm) maximum mounting surface thickness; Pre/postconstruction mounting bracket assembly included; Back box option sold separately
Product Manual — Doc. 8550J TSW-70 Series • 63
Page 70
Dimensions
Height 5.02in. (128mm)
Width 2.84in. (72mm)
Depth 1.97in. (50mm)
Weight
8.82oz (250g)
Compliance
Regulatory Model: M201923001
IC, CE, FCC Part 15 Class B digital device

Dimension Drawings

64 • TSW-70 Series Product Manual — Doc. 8550J
Page 71
Notes:
1. Room scheduling mode requires the TSW-570P to be designated exclusively for room scheduling use, which precludes use of certain features and functions described in this spec sheet. Additionally, CollegeNET® 25Live® scheduling software and Ad Astra™ software do not support scheduling ad hoc meetings from the touch screen. For design assistance, contact the Crestron True Blue support team at www.crestron.com/support.
2. Web browsing, weather information, and certain other functions require an internet connection.
3. The TSW-UMB-70 is also compatible with older TSW-UMB-PMK series preconstruction mounting kits and TSW-BBI series back boxes, allowing the TSW-570P to be installed in place of a previous generation touch screen.
Product Manual — Doc. 8550J TSW-70 Series • 65
Page 72

TSW-1070R Features

The Crestron® TSW-1070R is a stylish and versatile wall mount touch screen that is designed specifically to run the Crestron Home™ OSapplication. The TSW-1070R features a 10.1in. (257mm) capacitive touch screen display. PoEand Wi-Fi® network connectivity and a comprehensive assortment of mounting accessories simplify new and retrofit installations.
66 • TSW-70 Series Product Manual — Doc. 8550J
Page 73
Product Manual — Doc. 8550J TSW-70 Series • 67
Page 74
Key features include:
l
Next generation Crestron® wall mount touch screen featuring a native Crestron Home™ OSapplication
l
10.1in. (257mm) widescreen active-matrix color display and 1920x1200WUXGA display resolution
l
Capacitive touch screen display
l
Built-in Rava® SIPintercom
l
Built-in speakers and microphone
l
H.265, H.264, or MJPEG streaming video display
l
Single wire Ethernet connection with PoEor PoE+ power
l
Wi-Fi® network connectivity
l
Dual USB2.0 ports
l
Enterprise grade security and authentication
l
Web or device-based configuration
l
Electrical box mounting with provided mounting bracket
Advanced Touch Screen Control
The TSW-1070R offers a sleek and powerful user interface for controlling technology in the home via the Crestron Home app. The touch screen provides an intuitive interface that is fully customizable with easy-to-use capacitive controls, true feedback, and real-time status display. Abuilt-in proximity sensor wakes the screen without requiring any user interaction, and automatic brightness controls ensure optimal visibility under varying lighting conditions.
Streaming Video
Native support for H.265, H.264, and MJPEG formats allows the TSW-1070R to display live streaming video from an IP camera, a streaming encoder (Crestron DM-TXRX-100-STR, or similar), or a
DigitalMedia™ switcher.3Video is delivered to the touch screen over Ethernet, eliminating the need for
any extra video wiring.
Rava SIPIntercom
Rava SIP Intercom Technology enables hands-free VoIP communication with other Rava-enabled touch
screens and door stations. Rava works over Ethernet, supporting 2-way intercom and paging without requiring any special wiring. VoIP phone capability is also possible through integration with a SIP-compatible IP phone system or SIP server, allowing hands-free telephone functionality complete with speed-dialing, caller ID, custom ringers, and other enhancements. Built-in echo cancellation affords full-duplex performance for clear, seamless voice communication using the integrated microphone and speakers.
2
68 • TSW-70 Series Product Manual — Doc. 8550J
Page 75
Sonos App
Sonos and Crestron have partnered to provide a powerful whole-house music experience. From any
touch screen in the house, browse for tracks, artists, or playlists using all the services available from Sonos and instantly play them in any room using Sonos® wireless speakers or a Crestron Sonnex®
multiroom audio system. The Sonos app runs natively on the TSW-1070R, enabling enhanced control of
Sonos products as part of a complete Crestron system. The app checks for updates nightly so it’s always current, and support for the Sonos S2 App is provided.
1
Crestron Home OSControl
The TSW-1070R may be used to control a Crestron Home™ OS whole home solution. Select the Crestron Home app from the touch screen to control lighting, shades, climate, media, security, and cameras, including the ability to create and recall scenes that create a desired ambiance throughout a home. A TSW-1070R may be installed in each room to provide easy access to various Crestron Home functions for both the room and the home.
Wired and Wi-Fi Connectivity
An Ethernet LAN connection is all that is required to wire the TSW-1070R, containing all control, video, intercom, and power signals within a single wire.
For deployments without access to Ethernet, the touch screen can also be connected the network over Wi-Fi communications via a local wireless access point (WAP).
Power over Ethernet
Using PoE technology, the TSW-1070R gets its operating power directly through the network cable. PoE (Power over Ethernet) eliminates the need for a local power supply or any dedicated power wiring. Crestron PoE switches (CEN-SW-POE-5 or CEN-SWPOE-163) offer a total networking solution with built-in PoE for multiple touch screens. A PoE Injector (PWE-4803RU3) is also available to support a single touch screen.
NOTE: Refer to the “Power” specifications for more details.
Enterprise-Grade Security
Crestron touch screens employ enterprise-grade networking with robust security features such as
802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory® service integration.
Wall Mount Options
Using the bracket provided, the TSW-1070R is easily installed over a 2-gang or 3-gang US electrical box, or a 2-gang European or UK electrical box. A security latch option is included to deter unauthorized removal of the touch screen.
Additional wall mounting options are afforded using the optional TSW-UMB-70 universal mounting bracket, TSW-UMB-70-PMK preconstruction mounting kit, and TSW-UMB-70-BBI back box.
3,4
Optional Mounting Accessories
The TSW-1070R supports numerous optional mounting accessories that allow the touch screen to be installed in all kinds of installations:
Product Manual — Doc. 8550J TSW-70 Series • 69
Page 76
l
The TSW-1070-MSMK multisurface mount kit allows a TSW-1070R touch screen to be mounted directly to virtually any flat surface, which is ideal for mounting at the entrance to a meeting space for room scheduling applications.
l
The TSW-770/1070-MUMKallows the touch screen to be attached to the mullion of an interior glass wall, window, or partition.
l
The TSW-770/1070-RMB-1,TSW-770/1070-RMB-2, and TSW-1070-RMB-3, retrofit mounting
3
brackets allow for retrofit installations in place of an older Crestron touch screen (APAD, CT-1000, LC-1000, TPS-4L, or TPS-2000L) without having to tear out the old mounting hardware or patch the wall.
l
The TSW-1070-RMK-2 rack mount kit allows the touch screen to be mounted into a 19in. rack. When installed, the touch screen occupies four rack spaces.
The TSW-1070R is also compatible with Wall-Smart® flush wall mount products via a partnership with Crestron. For more information on supported Wall-Smart hardware, click here.
Notes:
1. Certain other functions require an internet connection.
2. The microphone may be defeated programmatically at any time.
3. Item(s) sold separately. Refer to each product’s spec sheet for complete information.
4. The TSW-UMB-70 is also compatible with older TSW-UMB-PMK series preconstruction mounting kits and TSW-BBI series back boxes, allowing the TSW-1070R to be installed in place of a previous generation touch screen.
70 • TSW-70 Series Product Manual — Doc. 8550J
Page 77

TSW-570PR Specifications

Product specifications for the TSW-570PR are provided below.

Product Specifications

Touch Screen Display
DisplayType TFT active matrix color LCD
Size 5in. (127mm)diagonal
Aspect Ratio 16:9HD720 (portrait)
Resolution 720x1280 pixels
Brightness 400nits (cd/m2)
Contrast 800:1
Color Depth 24bit, 16.7M colors
Illumination Edgelit LED with auto brightness control
Viewing Angle ±80°horizontal, ±80°vertical
Touch Screen Projected capacitive, 5-point multitouch capable
Buttons
Virtual Buttons (5) Virtual buttons in collapsible universal tool bar, per-button show/hide,
preconfigured with icons for Power, Home, Lights, Up, and Down
Reset (1) Pin hole on rear panel for hardware reset
Graphics Engine
Native Crestron Home™ OSapp, touch screen setup and diagnostics via web browser or on-screen UI, Crestron Home setup and diagnostics via Crestron Home Setup app
Languages
On-screen Keyboard Arabic, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (UK), English
(US), Finnish, French (Canada), French (Switzerland), German, Hebrew, Hungarian, Italian, Japanese, Norwegian Bokmal, Polish, Portuguese, Russian, Serbian, Spanish, Swedish, Turkish
Memory
RAM 2 GBLPDDR3
Storage Firmware/Application:16 GB eMMC pSLC
Product Manual — Doc. 8550J TSW-70 Series • 71
Page 78
Wired Communications
Ethernet 100 Mbps, auto switching, auto negotiating, auto discovery, full/half duplex, TCP/IP,
UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP(SSHFile Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, IEEE802.3at compliant
USB USB 2.0 host
Streaming Decoder
Video Formats H.265, H.264 (MPEG-4 part 10 AVC, MJPEG)
Audio Formats AACStereo
Bitrates Up to 25 Mbps (20 Mbps maximum recommended)
Input Resolutions Up to 1920x1080@30fps
Protocol RTSP
Connectors
LANPoE (1) 8-pin RJ-45 connector, female, with 2 LEDindicators;
100BASE-TX Ethernet port; PoE+ PD port; Green and yellow LEDs indicate Ethernet port status
USB (2)USB Type-Aconnectors, female;
USB 2.0 host ports
Power
PoE(Power over Ethernet) IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device);
Requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management; Requests 30 W (PoE+Class 4) from an 802.3at Type 2 PSE without LLDP; Requests 15.4 W (PoEClass 0) from an 802.3af (or 802.3at Type 1)PSE
Environmental
Temperature 32 to 104°F (0 to 40°C)
Humidity 10% to 95% RH (noncondensing)
Heat Dissipation 44BTU/hr
Construction
Housing Plastic, smooth black or white finish, edge-to-edge glass with black or white surround
Mounting Surface mount over a 3-3/4in. H x 2in. W(96mm H x 51mm W) cutout;
2-13/16in. (72mm) minimum mounting depth; 1-1/4in. (32mm) maximum mounting surface thickness; Pre/postconstruction mounting bracket assembly included; Back box option sold separately
Dimensions
Height 5.02in. (128mm)
Width 2.84in. (72mm)
72 • TSW-70 Series Product Manual — Doc. 8550J
Page 79
Depth 1.97in. (50mm)
Weight
8.82oz (250g)
Compliance
Regulatory Model: M201923001
IC, CE, FCC Part 15 Class B digital device

Dimension Drawings

Notes:
1. Item(s) sold separately. Refer to each product’s spec sheet for complete information.
2. The TSW-UMB-70 is also compatible with older TSW-UMB-PMK series preconstruction mounting kits and TSW-BBI series back boxes, allowing the TSW-570PR to be installed in place of a previous generation touch screen.
Product Manual — Doc. 8550J TSW-70 Series • 73
Page 80

TSW-770 Specifications

Product specifications for the TSW-770 are provided below.

Product Specifications

Touch Screen Display
DisplayType TFT active matrix color LCD
Size 7in. (178mm) diagonal
Aspect Ratio 16:10WXGA
Resolution 1280x800 pixels
Brightness 350nits (cd/m2)
Contrast 850:1
Color Depth 24bit, 16.7M colors
Illumination Edgelit LED with auto brightness control
Viewing Angle ±80°horizontal, ±80°vertical
Touch Screen Projected capacitive, 5-point multitouch capable
Buttons
Virtual Buttons (6) Virtual buttons in collapsible universal tool bar, per-button show/hide,
preconfigured with icons for Power, Home, Lights, Up, Down, and Microphone, optional custom programming via control system for additional functions
Reset (1) Pin hole on rear panel for hardware reset
Graphics Engine
Crestron HTML5 and Smart Graphics® software technology, multilanguage web browser1, multilanguage on­screen keyboard, screensaver, single scalable streaming video window, native room scheduling applications native Sonos® app1, native Zoom Rooms™ app7, native Crestron Home™ OSapp, setup and diagnostics via web browser, cloud, or on-screen UI
4,5,6
Room Scheduling Support
Crestron Scheduling App Crestron Fusion® software, Microsoft Exchange Server® and Office 365® software,
Google Calendar™ calendaring app and G Suite™ software, CollegeNET® 25Live® software, and Ad Astra™ software (IBM® Notes® software is also supported through Crestron Fusion on-premises server only)
Third-Party Apps Includes support for various third-party scheduling applications.
4
5,6
,
74 • TSW-70 Series Product Manual — Doc. 8550J
Page 81
Languages
Smart Graphics Arabic, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English
(UK), English (US), Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Portuguese (Brazilian), Romanian, Russian, Slovak, Spanish, Swedish, Thai
On-screen Keyboard Arabic, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (UK), English
(US), Finnish, French (Canada), French (Switzerland), German, Hebrew, Hungarian, Italian, Japanese, Norwegian Bokmal, Polish, Portuguese, Russian, Serbian, Spanish, Swedish, Turkish
Voice Recognition
Web Browser
Room Scheduling
1
Afrikaans (South Africa); Chinese, Mandarin (China, Simplified); Chinese, Mandarin (Hong Kong, Simplified); Chinese, Mandarin (Taiwan, Traditional); Chinese, Yue (Hong Kong, Traditional); Czech (Czech Republic); Dutch (Netherlands); English (Australia); English (Canada); English (Generic); English (India); English (New Zealand); English (South Africa); English (UK); English (US); French (France); German (Germany); isiZulu (South Africa); Italian (Italy); Japanese (Japan); Korean (South Korea); Polish (Poland); Portuguese (Brazil); Russian (Russia); Spanish (Spain); Turkish (Turkey)
1
Arabic, Bulgarian, Catalan, Chinese, Croatian, Czech, Danish, Dutch, English, Filipino, Finnish, French, German, Greek, Hebrew, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Latvian, Lithuanian, Norwegian Bokmal, Pashto, Persian, Polish, Portuguese, Romanian, Romansh, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Thai, Turkish, Ukrainian, Vietnamese
4
Chinese (Simplified), Chinese (Traditional), Danish, Dutch (Netherlands), English (US), English (UK), French, German, Hebrew, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Portugal), Russian, Spanish, Swedish
Memory
RAM 2 GBLPDDR3
Storage Firmware/Application:16 GB eMMC pSLC
Maximum Project Size 600 MB
Product Manual — Doc. 8550J TSW-70 Series • 75
Page 82
Wired Communications
Ethernet 100 Mbps, auto switching, auto negotiating, auto discovery, full/half duplex, TCP/IP,
UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP(SSHFile Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, XiOCloud® client, IEEE802.3at compliant
USB USB 2.0 host for room scheduling accessories
Wireless Communications
Transceiver IEEE 802.11a/b/g/n/ac Wi-Fi (2.4 or 5 GHz 2-way RF), static IP or dynamic IP via
DHCP
Security 64 and 128-bit WEP, WPA and WPA2-PSK with TKIP and AES
Range Up to 50ft (15m), subject to site-specific conditions
Bluetooth® Hardware Crestron Bluetooth beacon
2,8
Streaming Decoder
Video Formats H.265, H.264 (MPEG-4 part 10 AVC, MJPEG)
Audio Formats AACStereo
Bitrates Up to 25 Mbps (20 Mbps maximum recommended)
Input Resolutions Up to 1920x1080@30fps
Protocol RTSP
Audio
Features Built-in microphone and speakers, Rava® SIP Intercom, voice recognition
Audio Feedback Formats MP3
1,2
Connectors
LANPoE (1) 8-pin RJ-45 connector, female, with 2 LEDindicators;
100BASE-TX Ethernet port; PoE+ PD port; Green and yellow LEDs indicate Ethernet port status
USB (2)USB Type-Aconnectors, female;
USB 2.0 host ports; For optional room scheduling accessories
NOTE: The touch screen supports the use of a single light bar or status indicator accessory only. The RFID-
USBcard reader accessory can be connected to the second USBport.
3
76 • TSW-70 Series Product Manual — Doc. 8550J
Page 83
Power
PoE(Power over Ethernet) IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device);
Requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management; Requests 30 W (PoE+Class 4) from an 802.3at Type 2 PSE without LLDP; Requests 15.4 W (PoEClass 0) from an 802.3af (or 802.3at Type 1)PSE
Environmental
Temperature 32 to 104°F (0 to 40°C)
Humidity 10% to 95% RH (noncondensing)
Heat Dissipation 44BTU/hr
Construction
Housing Plastic, smooth black or white finish, edge-to-edge glass with black or white surround
Mounting Surface mount over a 2 or 3-gang US electrical box, 2-gang European (DIN 49073)
electrical box, or 2-gang UK (BS 4662) electrical box; Lectern mount over a 2in. H x 3-3/4in. W (51mmH x 96mmW) cutout; 1-3/8in. (35mm) minimum mounting depth; Wall mount, surface mount, and rack options available separately
Dimensions
Height 4.17in. (106mm)
Width 6.80in. (173mm)
Depth 1.99in. (51mm)
Dimensions do not include mounting bracket or add-on accessories
Weight
14.11oz (400g)
Compliance
Regulatory Model: M201923002
IC, CE, FCC Part 15 Class B digital device
Product Manual — Doc. 8550J TSW-70 Series • 77
Page 84

Dimension Drawings

78 • TSW-70 Series Product Manual — Doc. 8550J
Page 85
Notes:
1. Voice recognition, web browsing, weather information, and certain other functions require an internet connection.
2. The microphone and Bluetooth® transceiver may be defeated programmatically at any time.
3. Item(s) sold separately. Refer to each product’s spec sheet for complete information.
4. Room scheduling mode requires the TSW-770 to be designated exclusively for room scheduling use, which precludes use of certain features and functions described in this spec sheet. Additionally, CollegeNET® 25Live® scheduling software and Ad Astra™ software do not support scheduling ad hoc meetings from the touch screen. For design assistance, contact the Crestron True Blue support team at www.crestron.com/support.
5. Refer to the firmware release notes for a list of all scheduling apps that are supported by that firmware release.
6. Additional subscriptions and/or licenses may be required. Refer to each provider’s website for details about the capabilities and requirements of its scheduling application and services. Third-party apps typically run on the TSW-770 as they do on a tablet device. The TSW-770 runs only one app, which is selected at setup. Only the apps approved and delivered by Crestron can run on the TSW-770.
7. A complete Zoom Rooms solution requires a mini PC or Mac computer running Zoom software, a Zoom Rooms subscription, plus additional peripherals and cables. Visit zoom.us/zoomrooms for more information about Zoom Rooms capabilities, hardware requirements, and subscription plans. For design assistance, contact the Crestron True Blue support team at www.crestron.com/support.
8. The TSW-770 provides an integrated, equivalent alternative to the standalone PP-100-W beacon. For more details, refer to the PP-100-W spec sheet. Bluetooth technology is used solely for proximity detection and does not transmit or receive any control, multimedia, or personal data. Crestron Bluetooth beacons are only visible to Bluetooth enabled devices that are specifically programmed and configured to work with them.
9. The TSW-UMB-70 is also compatible with older TSW-UMB-PMK series preconstruction mounting kits and TSW-BBI series back boxes, allowing the TSW-770 to be installed in place of a previous generation touch screen.
Product Manual — Doc. 8550J TSW-70 Series • 79
Page 86

TSW-770-GV Specifications

Product specifications for the TSW-770-GV are provided below.

Product Specifications

Touch Screen Display
DisplayType TFT active matrix color LCD
Size 7in. (178mm) diagonal
Aspect Ratio 16:10WXGA
Resolution 1280x800 pixels
Brightness 350nits (cd/m2)
Contrast 850:1
Color Depth 24bit, 16.7M colors
Illumination Edgelit LED with auto brightness control
Viewing Angle ±80°horizontal, ±80°vertical
Touch Screen Projected capacitive, 5-point multitouch capable
Buttons
Virtual Buttons (5) Virtual buttons in collapsible universal tool bar, per-button show/hide,
preconfigured with icons for Power, Home, Lights, Up, and Down, optional custom programming via control system for additional functions
Reset (1) Pin hole on rear panel for hardware reset
Graphics Engine
Crestron HTML5 and Smart Graphics® software technology, multilanguage web browser1, multilanguage on­screen keyboard, screensaver, single scalable streaming video window, native room scheduling applications native Sonos® app1, native Zoom Rooms™ app6, native Crestron Home™ OSapp, setup and diagnostics via web browser, cloud, or on-screen UI
3,4,5
Room Scheduling Support
Crestron Scheduling App Crestron Fusion® software, Microsoft Exchange Server® and Office 365® software,
Google Calendar™ calendaring app and G Suite™ software, CollegeNET® 25Live® software, and Ad Astra™ software (IBM® Notes® software is also supported through Crestron Fusion on-premises server only)
Third-Party Apps Includes support for various third-party scheduling applications.
3
4,5
,
80 • TSW-70 Series Product Manual — Doc. 8550J
Page 87
Languages
Smart Graphics Arabic, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English
(UK), English (US), Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Portuguese (Brazilian), Romanian, Russian, Slovak, Spanish, Swedish, Thai
On-screen Keyboard Arabic, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (UK), English
(US), Finnish, French (Canada), French (Switzerland), German, Hebrew, Hungarian, Italian, Japanese, Norwegian Bokmal, Polish, Portuguese, Russian, Serbian, Spanish, Swedish, Turkish
Web Browser
1
Arabic, Bulgarian, Catalan, Chinese, Croatian, Czech, Danish, Dutch, English, Filipino, Finnish, French, German, Greek, Hebrew, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Latvian, Lithuanian, Norwegian Bokmal, Pashto, Persian, Polish, Portuguese, Romanian, Romansh, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Thai, Turkish, Ukrainian, Vietnamese
Room Scheduling
3
Chinese (Simplified), Chinese (Traditional), Danish, Dutch (Netherlands), English (US), English (UK), French, German, Hebrew, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Portugal), Russian, Spanish, Swedish
Memory
RAM 2 GBLPDDR3
Storage Firmware/Application:16 GB eMMC pSLC
Maximum Project Size 600 MB
Wired Communications
Ethernet 100 Mbps, auto switching, auto negotiating, auto discovery, full/half duplex, TCP/IP,
UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP(SSHFile Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, IEEE802.3at compliant
USB USB 2.0 host for room scheduling accessories
Product Manual — Doc. 8550J TSW-70 Series • 81
Page 88
Streaming Decoder
Video Formats H.265, H.264 (MPEG-4 part 10 AVC, MJPEG)
Audio Formats AACStereo
Bitrates Up to 25 Mbps (20 Mbps maximum recommended)
Input Resolutions Up to 1920x1080@30fps
Protocol RTSP
Audio
Features Built-in speakers
Audio Feedback Formats MP3
Connectors
LANPoE (1) 8-pin RJ-45 connector, female, with 2 LEDindicators;
100BASE-TX Ethernet port; PoE+ PD port; Green and yellow LEDs indicate Ethernet port status
USB (2)USB Type-Aconnectors, female;
USB 2.0 host ports; For optional room scheduling accessories
2
NOTE: The touch screen supports the use of a single light bar or status indicator accessory only. The RFID-
USBcard reader accessory can be connected to the second USBport.
Power
PoE(Power over Ethernet) IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device);
Requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management; Requests 30 W (PoE+Class 4) from an 802.3at Type 2 PSE without LLDP; Requests 15.4 W (PoEClass 0) from an 802.3af (or 802.3at Type 1)PSE
Environmental
Temperature 32 to 104°F (0 to 40°C)
Humidity 10% to 95% RH (noncondensing)
Heat Dissipation 44BTU/hr
Construction
Housing Plastic, smooth black or white finish, edge-to-edge glass with black or white surround
Mounting Surface mount over a 2 or 3-gang US electrical box, 2-gang European (DIN 49073)
electrical box, or 2-gang UK (BS 4662) electrical box; Lectern mount over a 2in. H x 3-3/4in. W (51mmH x 96mmW) cutout; 1-3/8in. (35mm) minimum mounting depth; Wall mount, surface mount, and rack options available separately
Dimensions
82 • TSW-70 Series Product Manual — Doc. 8550J
Page 89
Height 4.17in. (106mm)
Width 6.80in. (173mm)
Depth 1.99in. (51mm)
Dimensions do not include mounting bracket or add-on accessories
Weight
14.11oz (400g)
Compliance
Regulatory Model: M201923002
IC, CE, FCC Part 15 Class B digital device
Product Manual — Doc. 8550J TSW-70 Series • 83
Page 90

Dimension Drawings

84 • TSW-70 Series Product Manual — Doc. 8550J
Page 91
Notes:
1. Web browsing, weather information, and certain other functions require an internet connection.
2. Item(s) sold separately. Refer to each product’s spec sheet for complete information.
3. Room scheduling mode requires the TSW-770-GV to be designated exclusively for room scheduling use, which precludes use of certain features and functions described in this spec sheet. Additionally, CollegeNET® 25Live® scheduling software and Ad Astra™ software do not support scheduling ad hoc meetings from the touch screen. For design assistance, contact the Crestron True Blue support team at www.crestron.com/support.
4. Refer to the firmware release notes for a list of all scheduling apps that are supported by that firmware release.
5. Additional subscriptions and/or licenses may be required. Refer to each provider’s website for details about the capabilities and requirements of its scheduling application and services. Third-party apps typically run on the TSW-770-GV as they do on a tablet device. The TSW-770-GV runs only one app, which is selected at setup. Only the apps approved and delivered by Crestron can run on the TSW-770-GV.
6. A complete Zoom Rooms solution requires a mini PC or Mac computer running Zoom software, a Zoom Rooms subscription, plus additional peripherals and cables. Visit zoom.us/zoomrooms for more information about Zoom Rooms capabilities, hardware requirements, and subscription plans. For design assistance, contact the Crestron True Blue support team at www.crestron.com/support.
7. The TSW-UMB-70 is also compatible with older TSW-UMB-PMK series preconstruction mounting kits and TSW-BBI series back boxes, allowing the TSW-770-GV to be installed in place of a previous generation touch screen.
Product Manual — Doc. 8550J TSW-70 Series • 85
Page 92

TSW-770R Specifications

Product specifications for the TSW-770R are provided below.

Product Specifications

Touch Screen Display
DisplayType TFT active matrix color LCD
Size 7in. (178mm) diagonal
Aspect Ratio 16:10WXGA
Resolution 1280x800 pixels
Brightness 350nits (cd/m2)
Contrast 850:1
Color Depth 24bit, 16.7M colors
Illumination Edgelit LED with auto brightness control
Viewing Angle ±80°horizontal, ±80°vertical
Touch Screen Projected capacitive, 5-point multitouch capable
Buttons
Virtual Buttons (6) Virtual buttons in collapsible universal tool bar, per-button show/hide,
preconfigured with icons for Power, Home, Lights, Up, Down, and Microphone
Reset (1) Pin hole on rear panel for hardware reset
Graphics Engine
Native Sonos® app1, native Crestron Home™ OSapp, touch screen setup and diagnostics via web browser or on­screen UI, Crestron Home setup and diagnostics via Crestron Home Setup app
Languages
On-screen Keyboard Arabic, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (UK), English
(US), Finnish, French (Canada), French (Switzerland), German, Hebrew, Hungarian, Italian, Japanese, Norwegian Bokmal, Polish, Portuguese, Russian, Serbian, Spanish, Swedish, Turkish
Memory
RAM 2 GBLPDDR3
Storage Firmware/Application:16 GB eMMC pSLC
86 • TSW-70 Series Product Manual — Doc. 8550J
Page 93
Wired Communications
Ethernet 100 Mbps, auto switching, auto negotiating, auto discovery, full/half duplex, TCP/IP,
UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP(SSHFile Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, IEEE802.3at compliant
USB USB 2.0 host
Wireless Communications
Transceiver IEEE 802.11a/b/g/n/ac Wi-Fi (2.4 or 5 GHz 2-way RF), static IP or dynamic IP via
DHCP
Security 64 and 128-bit WEP, WPA and WPA2-PSK with TKIP and AES
Range Up to 50ft (15m), subject to site-specific conditions
Streaming Decoder
Video Formats H.265, H.264 (MPEG-4 part 10 AVC, MJPEG)
Audio Formats AACStereo
Bitrates Up to 25 Mbps (20 Mbps maximum recommended)
Input Resolutions Up to 1920x1080@30fps
Protocol RTSP
Audio
Features Built-in microphone and speakers, Rava® SIP Intercom
Audio Feedback Formats MP3
1,2
Connectors
LANPoE (1) 8-pin RJ-45 connector, female, with 2 LEDindicators;
100BASE-TX Ethernet port; PoE+ PD port; Green and yellow LEDs indicate Ethernet port status
USB (2)USB Type-Aconnectors, female;
USB 2.0 host ports
Product Manual — Doc. 8550J TSW-70 Series • 87
Page 94
Power
PoE(Power over Ethernet) IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device);
Requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management; Requests 30 W (PoE+Class 4) from an 802.3at Type 2 PSE without LLDP; Requests 15.4 W (PoEClass 0) from an 802.3af (or 802.3at Type 1)PSE
Environmental
Temperature 32 to 104°F (0 to 40°C)
Humidity 10% to 95% RH (noncondensing)
Heat Dissipation 44BTU/hr
Construction
Housing Plastic, smooth black or white finish, edge-to-edge glass with black or white surround
Mounting Surface mount over a 2 or 3-gang US electrical box, 2-gang European (DIN 49073)
electrical box, or 2-gang UK (BS 4662) electrical box; Lectern mount over a 2in. H x 3-3/4in. W (51mmH x 96mmW) cutout; 1-3/8in. (35mm) minimum mounting depth; Wall mount, surface mount, and rack options available separately
Dimensions
Height 4.17in. (106mm)
Width 6.80in. (173mm)
Depth 1.99in. (51mm)
Dimensions do not include mounting bracket or add-on accessories
Weight
14.11oz (400g)
Compliance
Regulatory Model: M201923002
IC, CE, FCC Part 15 Class B digital device
88 • TSW-70 Series Product Manual — Doc. 8550J
Page 95

Dimension Drawings

Product Manual — Doc. 8550J TSW-70 Series • 89
Page 96
Notes:
1. Certain other functions require an internet connection.
2. The microphone may be defeated programmatically at any time.
3. Item(s) sold separately. Refer to each product’s spec sheet for complete information.
4. The TSW-UMB-70 is also compatible with older TSW-UMB-PMK series preconstruction mounting kits and TSW-BBI series back boxes, allowing the TSW-770R to be installed in place of a previous generation touch screen.
90 • TSW-70 Series Product Manual — Doc. 8550J
Page 97

TSW-1070 Specifications

Product specifications for the TSW-1070 are provided below.

Product Specifications

Touch Screen Display
DisplayType TFT active matrix color LCD
Size 10.1in. (257mm) diagonal
Aspect Ratio 16:10WUXGA
Resolution 1920x1200 pixels
Brightness 400nits (cd/m2)
Contrast 1000:1
Color Depth 24bit, 16.7M colors
Illumination Edgelit LED with auto brightness control
Viewing Angle ±80°horizontal, ±80°vertical
Touch Screen Projected capacitive, 5-point multitouch capable
Buttons
Virtual Buttons (6) Virtual buttons in collapsible universal tool bar, per-button show/hide,
preconfigured with icons for Power, Home, Lights, Up, Down, and Microphone, optional custom programming via control system for additional functions
Reset (1) Pin hole on rear panel for hardware reset
Graphics Engine
Crestron HTML5 and Smart Graphics® software technology, multilanguage web browser1, multilanguage on­screen keyboard, screensaver, single scalable streaming video window, native room scheduling applications native Sonos® app1, native Zoom Rooms™ app7, native Microsoft Teams® app, native Crestron Home™ OSapp, setup and diagnostics via web browser, cloud, or on-screen UI
4,5,6
Room Scheduling Support
Crestron Scheduling App Crestron Fusion® software, Microsoft Exchange Server® and Office 365® software,
Google Calendar™ calendaring app and G Suite™ software, CollegeNET® 25Live® software, and Ad Astra™ software (IBM® Notes® software is also supported through Crestron Fusion on-premises server only)
Third-Party Apps Includes support for various third-party scheduling applications.
4
5,6
,
Product Manual — Doc. 8550J TSW-70 Series • 91
Page 98
Languages
Smart Graphics Arabic, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English
(UK), English (US), Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Portuguese (Brazilian), Romanian, Russian, Slovak, Spanish, Swedish, Thai
On-screen Keyboard Arabic, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (UK), English
(US), Finnish, French (Canada), French (Switzerland), German, Hebrew, Hungarian, Italian, Japanese, Norwegian Bokmal, Polish, Portuguese, Russian, Serbian, Spanish, Swedish, Turkish
Voice Recognition
Web Browser
Room Scheduling
1
Afrikaans (South Africa); Chinese, Mandarin (China, Simplified); Chinese, Mandarin (Hong Kong, Simplified); Chinese, Mandarin (Taiwan, Traditional); Chinese, Yue (Hong Kong, Traditional); Czech (Czech Republic); Dutch (Netherlands); English (Australia); English (Canada); English (Generic); English (India); English (New Zealand); English (South Africa); English (UK); English (US); French (France); German (Germany); isiZulu (South Africa); Italian (Italy); Japanese (Japan); Korean (South Korea); Polish (Poland); Portuguese (Brazil); Russian (Russia); Spanish (Spain); Turkish (Turkey)
1
Arabic, Bulgarian, Catalan, Chinese, Croatian, Czech, Danish, Dutch, English, Filipino, Finnish, French, German, Greek, Hebrew, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Latvian, Lithuanian, Norwegian Bokmal, Pashto, Persian, Polish, Portuguese, Romanian, Romansh, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Thai, Turkish, Ukrainian, Vietnamese
4
Chinese (Simplified), Chinese (Traditional), Danish, Dutch (Netherlands), English (US), English (UK), French, German, Hebrew, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Portugal), Russian, Spanish, Swedish
Memory
RAM 2 GBLPDDR3
Storage Firmware/Application:16 GB eMMC pSLC
Maximum Project Size 600 MB
92 • TSW-70 Series Product Manual — Doc. 8550J
Page 99
Wired Communications
Ethernet 100 Mbps, auto switching, auto negotiating, auto discovery, full/half duplex, TCP/IP,
UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP(SSHFile Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, XiOCloud® client, IEEE802.3at compliant
USB USB 2.0 host for room scheduling accessories
Wireless Communications
Transceiver IEEE 802.11a/b/g/n/ac Wi-Fi (2.4 or 5 GHz 2-way RF), static IP or dynamic IP via
DHCP
Security 64 and 128-bit WEP, WPA and WPA2-PSK with TKIP and AES
Range Up to 50ft (15m), subject to site-specific conditions
Bluetooth® Hardware Crestron Bluetooth beacon
2,8
Streaming Decoder
Video Formats H.265, H.264 (MPEG-4 part 10 AVC, MJPEG)
Audio Formats AACStereo
Bitrates Up to 25 Mbps (20 Mbps maximum recommended)
Input Resolutions Up to 1920x1080@30fps
Protocol RTSP
Audio
Features Built-in microphone and speakers, Rava® SIP Intercom, voice recognition
Audio Feedback Formats MP3
1,2
Connectors
LANPoE (1) 8-pin RJ-45 connector, female, with 2 LEDindicators;
100BASE-TX Ethernet port; PoE+ PD port; Green and yellow LEDs indicate Ethernet port status
USB (2)USB Type-Aconnectors, female;
USB 2.0 host ports; For optional room scheduling accessories
NOTE: The touch screen supports the use of a single light bar or status indicator accessory only. The RFID-
USBcard reader accessory can be connected to the second USBport.
3
Product Manual — Doc. 8550J TSW-70 Series • 93
Page 100
Power
PoE(Power over Ethernet) IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device);
Normally requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management; With room scheduling and USB enabled, requests 18 W from an 802.3at Type 2 PSE with LLDP; Requests 30 W (PoE+Class 4) from an 802.3at Type 2 PSE without LLDP; Requests 15.4 W (PoEClass 0) from an 802.3af (or 802.3at Type 1)PSE
NOTE: Enabling the USB port requires use of an 802.3at Type 2 PoE+ PSE.
Environmental
Temperature 32 to 104°F (0 to 40°C)
Humidity 10% to 95% RH (noncondensing)
Heat Dissipation 44BTU/hr
Construction
Housing Plastic, smooth black or white finish, edge-to-edge glass with black or white surround
Mounting Surface mount over a 2 or 3-gang US electrical box, 2-gang European (DIN 49073)
electrical box, or 2-gang UK (BS 4662) electrical box; Lectern mount over a 2in. H x 3-3/4in. W (51mmH x 96mmW) cutout; 1-3/8in. (35mm) minimum mounting depth; Wall mount, surface mount, and rack options available separately
Dimensions
Height 5.87in. (149mm)
Width 9.46in. (240mm)
Depth 2.01in. (51mm)
Dimensions do not include mounting bracket or add-on accessories
Weight
1.61lb (730g)
94 • TSW-70 Series Product Manual — Doc. 8550J
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
