Crestron Touchpanels
Pre-Construction Options
Wallmount Touchpanel Mounting Options/Accessories
quickstart guide
www.crestron.com
800.237.2041
©2006 Specifications subject to
change without notice
201.767.3400
For details, check the latest revision of the appropriate mounting kit
Installation Guide for your touchpanel. Refer to the tables on Page 2.
QUICKSTART DOC. 6140C (2001953) 03.06
1
Crestron Touchpanels
Post-Construction Options
This guide covers mounting options and accessories for Series 1000, TPS-2000L, TPS-3100L Series,
TPS-4000L Series, Isys® TPS-4L/TPMC-4L Series, TPS-12L/15L,17L, and TPMC-15/17-CH/QM-L
touchpanels.

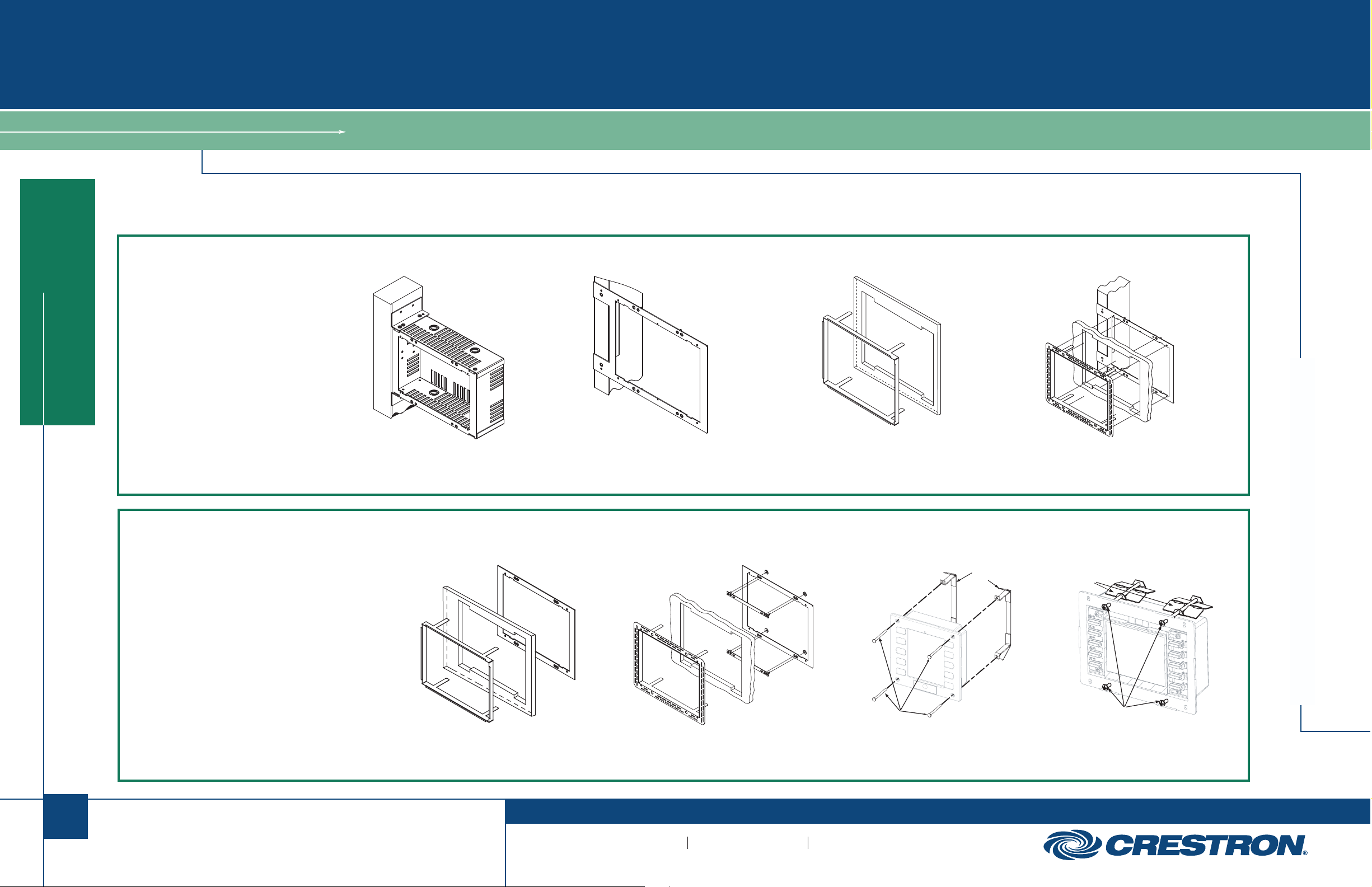

Pre-Construction Accessory
Trim Mount Kit (TMK)
Used with BB or PMK installations for smaller
irregularities around the opening. This option
provides a smooth, finished appearance and is
preferred when wallpaper is hung.
Pre-Construction Accessory
Mud Mount Kit (MMK)
Used with BB or PMK installations to fill in
larger irregularities around the opening. This
option requires plastering.
Wall Mount Kit with Trim Ring
(WMKT)
Wall Mount Kit with Mud Ring
(WMKM)
NOTE: The illustrations in this guide are representative of a mounting option or accessory type. The main
difference in option/accessory types for each touchpanel series is size and, where applicable, the number of
screws required.
Pre-construction options (BB, PMK) are
installed prior to hanging drywall, and
require access to an adjacent structural
support (stud). The TMK and MMK accessories are used to correct irregularities in
the holes cut in the drywall.
Post-construction options (WMKT,
WMKM, WMKB) are for mounting to
finished walls or other surfaces where
access to a structural support member
(stud) is not possible or does not apply
(e.g., lectern mount).
Mou nting
Clips
Mounting
Screws
Wall Mount Kit - Bracket
(WMKB - TPS-4L/TPMC-4L)
Mounting
Screws
Mounting
Brackets
Wall Mount Kit - Bracket
(WMKB - LC/CT-1000)
Back Box Kit
(BB)
Use in installations where a back
box is either required or
preferred.
Pre-Construction Mount Kit
(PMK)
Use in installations where a back
box is not required or not
preferred.
Used to correct larger irregularities
around the opening. This option
requires plastering.
These kits are used to secure the touchpanel directly to the mounting
surface without requiring an internal mounting plate . The mounting
hardware used depends on the touchpanel. After installation, the
mounting screws are hidden by the touchpanel bezel (not shown).
Used to fill in smaller irregularities around
the opening. This option provides a smooth,
finished appearance and is preferred when
wallpaper is hung.
PRE-CONSTRUCTION OPTION POST-CONSTRUCTION OPTION MODEL NUMBER DOCUMENT NUMBER
TPS-12L/15L /17L & TPMC-15/17-QM/CH-L
Back Box Kit BB-12L 6357
BB-15L 6362
BB-17L 6367
Pre-Construction Mount Kit PMK-12L 6358
PMK-15L 6363
PMK-17L 6368
Mud Mount Kit (accessory) MMK-12L 6359
MMK-15L 6364
MMK-17L 6369
Trim Mount Kit (accessory) TMK-12L 6360
TMK-15L 6365
TMK-17L 6370
Wall Mount Kit - Mud WMKM-12L 6359
WMKM-15L 6364
WMKM-17L 6369
Wall Mount Kit - Trim WMKT-12L 6063
WMKT-15L 6365
WMKT-17L 6370
Rack Mount Kit** RMK-12L 6361
RMK-15L 6366
RMK-17L 6402
* Cover can be placed over installed touchpanel
** The Rack Mount Kits consist of hardware designed to permit touchpanels to be installed in standard 19” EIA equipment
racks. Refer to the listed documents for details on these mounting options.
Crestron Touchpanels
Wallmount Touchpanel Mounting Options/Accessories
quickstart guide
www.crestron.com
800.237.2041
©2006 Specifications subject to
change without notice
201.767.3400
For details, check the latest revision of the appropriate
mounting kit Installation Guide for your touchpanel.
QUICKSTART DOC. 6140C (2001953) 03.06
2
Crestron Touchpanels
Touchpanels/Options/Accessories
PRE-CONSTRUCTION OPTION POST-CONSTRUCTION OPTION MODEL NUMBER DOCUMENT NUMBER
Series 1000
Back Box Kit BB-1000L 6060
Pre-Construction Mount Kit PMK-1000L 6061
Mud Mount Kit (accessory) MMK-1000L 6062
Trim Mount Kit (accessory) TMK-1000L 6063
Wall Mount Kit - Mud WMKM-1000L 6062
Wall Mount Kit - Trim WMKT-1000L 6063
Wall Mount Kit - Bracket WMKB-1000L 6283
Water Resistant Cover* CT/LC-WPK 5932
TPS-2000L
Back Box Kit BB-2000L 5973
Pre-Construction Mount Kit PMK-2000L 6018
Mud Mount Kit (accessory) MMK-2000L 6025
Trim Mount Kit (accessory) TMK-2000L 6026
Wall Mount Kit - Mud WMKM-2000L 6025
Wall Mount Kit - Trim WMKT-2000L 6026
Water Resistant Cover* TPS-WPK 5993
TPS-3100L Series
Back Box Kit BB-3100L 6298
Pre-Construction Mount Kit PMK-3100L 6297
Mud Mount Kit (accessory) MMK-3100L 6296
Trim Mount Kit (accessory) TMK-3100L 6295
Wall Mount Kit – Mud WMKM-3100L 6296
Wall Mount Kit – Trim WMKT-3100L 6295
Rack Mount Kit** RMK-3100L 6299
TPS-4000L Series
Back Box Kit BB-4000L 6305
Pre-Construction Mount Kit PMK-4000L 6304
Mud Mount Kit (accessory) MMK-4000L 6303
Trim Mount Kit (accessory) TMK-4000L 6302
Wall Mount Kit - Mud WMKM-4000L 6303
Wall Mount Kit - Trim WMKT-4000L 6302
Rack Mount Kit** RMK-4000L 6306
TPS-4L/TPMC-4L Series
Back Box Kit BB-4L 6387
Pre-Construction Mount Kit PMK-4L 6388
Mud Mount Kit (accessory) MMK-4L 6389
Trim Mount Kit (accessory) TMK-4L 6390
Wall Mount Kit - Mud WMKM-4L 6389
Wall Mount Kit - Trim WMKT-4L 6390
Wall Mount Kit - Bracket WMKB-4L N/A
NOTE: Make certain the template used to mark the opening in the mounting
surface is level (if on a wall), or square to the front edge (if on a lectern). Cut the
opening carefully, the mounting options provide for only minor position adjustment.
