Description

The TMK-8X-DSW trim ring is an optional accessory designed for use with the BB-8X-DSW back box and PMK-8X-DSW mounting kit to provide a smooth edge around the opening and compensate for minor drywall cutout imperfections.
The WMKT-8X-DSW mounting kit provides a complete solution for installing the TPMC-8X-DSW Wall Mount Docking Station in an existing wall or similar flat surface. Designed for post-construction applications, the WMKM-8X-DSW includes a trim ring to compensate for minor drywall cutout imperfections.
NOTE: Since the TPMC-8X-DSW contains moving parts, mounting to a stud offers more support and is therefore highly recommended. Although Crestron offers the post-construction WMKT-8X-DSW mounting option, a mounting option that is secured to a stud, such as the BB-8X-DSW or PMK-8X-DSW is highly recommended.
NOTE: If mounting into a material other than drywall (for example, wood lectern, concrete or rock) use the cutout template, available in the post-construction kit WMKT-8X-DSW. For concrete and rock mounting material, allow for proper ventilation before mounting the touchpanel.
NOTE: If necessary, consult the latest revision of the TPMC-8X-DSW Installation Guide (Doc. 6588) for a complete list of mounting options. This document is available from the Crestron website (http://www.crestron.com/manuals).
Installation Guide – DOC. 6582A Trim Ring Mount Kits: TMK-8X-DSW & WMKT-8X-DSW 1
Trim Ring Mount Kits Crestron TMK-8X-DSW & WMKT-8X-DSW

Setup

Supplied Hardware

The TMK-8X-DSW consists of a metal trim ring that attaches to the BB-8X-DSW or PMK-8X-DSW. The WMKT-8X-DSW consists of the trim ring found in the TMK-8X-DSW as well as a mounting bracket, a set of mounting screws and a cutout template.
The table below lists all parts included with the TMK-8X-DSW and WMKT-8X-DSW.
Supplied Hardware for the TMK-8X-DSW & WMKT-8X-DSW
DESCRIPTION PART NUMBER QUANTITY
Metal, Plate, Trim Ring 2017642 1
Metal, Bracket, Mounting, Post-Construction (WMKT-8X-DSW only)
Screw, #06-32 x 1-1/2”, Pan, Phil (WMKT-8X-DSW only)
Overlay, Template, Wall Cutout, TPMC-8X-DSW (WMKT-8X-DSW only)
2017789 1
2007254 4
4504431 1
Dimensional Drawing – Trim Ring Plate
10.93 in
(27.76 cm)
9.36 in
(23.76 cm)
0.54 in
(1.37 cm)
0.40 in
(1.02 cm)
3.02 in TYP (7.67 cm)
0.40 in TYP (1.02 cm)
9.86 in
(25.03 cm)
11.23 in
(28.52 cm)
9.72 in
(24.69 cm)
0.16 in
(0.39 cm)
0.16 in
(0.39 cm)
2.20 in
(5.59 cm)
6.94 in
(17.63 cm)
1.18 in
(3.00 cm)
9.66 in
(24.53 cm)
0.53 in
(1.33 cm)
0.03 in
(0.06 cm)
2 Trim Ring Mount Kits:TMK-8X-DSW & WMKT-8X-DSW Installation Guide – DOC. 6582A
Crestron TMK-8X-DSW & WMKT-8X-DSW Trim Ring Mount Kits
Dimensional Drawing – Mounting Plate
9.32 in
(23.66 cm)
10.60 in
(26.93 cm)
0.63 in
(1.58 cm)
Dimensions for Drywall Cutout
3/16 in
(4.76 cm)
(DRILL SIZE #Q)
TYP (4X)
7.38 in
(18.74 cm)
1.19 in
(3.02 cm)
1.12 in
(2.84 cm)
(27.76 cm)
(30.91 cm)
10.93 in
12.17 in
0.10 in
(0.25 cm)
11.19 in
(28.34 cm)
10.99 in
(27.91 cm)
0.06 in
(0.16 cm)
0.38 in TYP (0.96 cm)
9.38 in
(23.81 cm)
0.17 in
(0.41 cm)
9.70 in
(24.63 cm)

Installation

This section provides an installation procedure for each Trim Ring Mount Kit. The “TMK-8X-DSW Procedure” starts on the following page and the “WMKT-8X-DSW Procedure” starts on page 5. Be sure to review each before starting.
Installation Guide – DOC. 6582A Trim Ring Mount Kits: TMK-8X-DSW & WMKT-8X-DSW 3
Trim Ring Mount Kits Crestron TMK-8X-DSW & WMKT-8X-DSW

TMK-8X-DSW Procedure

This section provides the necessary steps for assembly of the TMK-8X-DSW for use with either the BB-8X-DSW or PMK-8X-DSW. It is assumed the BB-8X-DSW or PMK-8X-DSW has been secured to the stud according to the instructions in the latest Installation Guides (Doc. 6579 and Doc. 6580 respectively). It is also assumed that drywall is in place and a cutout for the TPMC-8X-DSW and touchpanel is made in the drywall.
Complete the steps in the order provided. The only tool required and not supplied is a level.
CAUTION: Allow an air gap of at least 12 inches (30.48 cm) in the wall cavity above and below the touchpanel for heat dissipation.
NOTE: When installing into the PMK-8X-DSW, verify that the 18 AWG bus wire
securing the cables for the touchpanel remains attached.
1. Verify that the cutout in the drywall is as level as possible.
2. Insert the symmetrical trim ring into the opening, as shown in the following illustration.

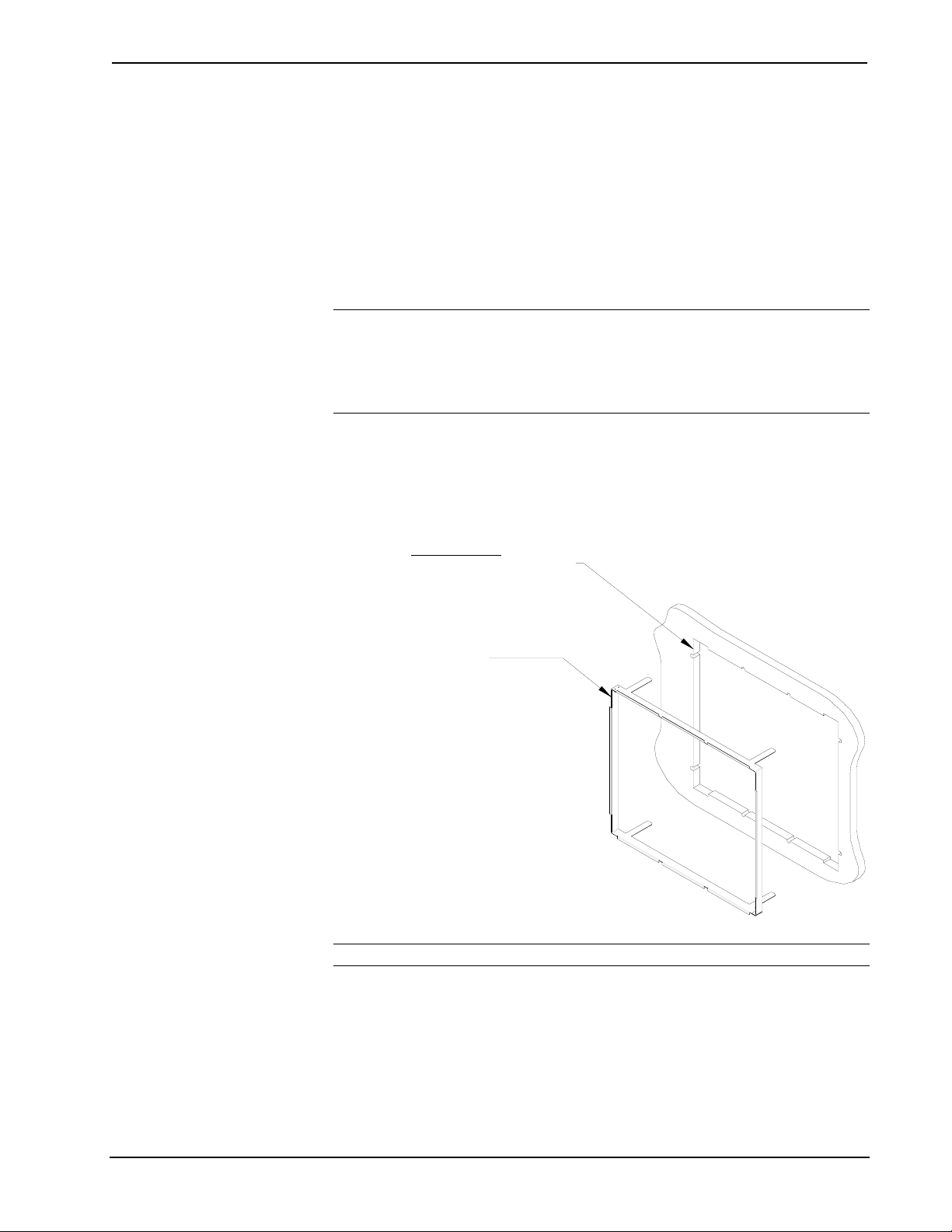

Insert Trim Ring Plate into Opening
IMPORTANT
PLEASE MAKE DRYWALL CUTOUT AS LEVEL AND CLEAN AS POSSIBLE. THE MOUNTING PLATE ALLOWS ONLY MINOR ADJUSTMENTS OF THE TPS-8X-DSW.
TRIM RING (2017642)
NOTE: The required PMK-8X-DSW or BB-8X-DSW is not shown.
3. When the trim ring is in position, bend the top two flanges of the ring upward and bend the bottom two flanges downward.
If mounting into the PMK-8X-DSW, bend the flanges approximately
90 degrees.
If mounting into the BB-8X-DSW, bend the flanges as far back as they
can go.
4 Trim Ring Mount Kits:TMK-8X-DSW & WMKT-8X-DSW Installation Guide – DOC. 6582A
Crestron TMK-8X-DSW & WMKT-8X-DSW Trim Ring Mount Kits
4. Run the necessary cables for the touchpanel and secure them behind the drywall.
5. The TPMC-8X-DSW and touchpanel can be installed using the four #06-32 1 ½” screws included with the TPMC-8X-DSW (two at each side), as shown in the following illustration. Refer to the latest revision of the TPMC-8X-DSW Installation Guide (Doc. 6588) for installation instructions.
Touchpanel Mounting Using TMK-8X-DSW – Exploded View
PMK-8X-DSW
DRYWALL
TRIM RING (2017642)
TPMC-8X-DSW (bezel removed)
TPMC-8X-DSW MOUNTING SCREWS (4) #06-32 X 1-½" (2 ON EACH SIDE)
(bezel)

WMKT-8X-DSW Procedure

NOTE: Since the TPMC-8X-DSW contains moving parts, mounting to a stud offers more support and is therefore highly recommended. Although Crestron offers the post-construction WMKT-8X-DSW mounting option, a mounting option that is secured to a stud, such as the BB-8X-DSW or PMK-8X-DSW is highly recommended.
This section provides the necessary steps for assembly and installation of the WMKT-8X-DSW into a wall. Review the procedure and complete the steps in the order provided. The only tools or materials required and not supplied are a drywall saw or equivalent and a level.
CAUTION: Allow an air gap of at least 12 inches (30.48 cm) in the wall cavity above and below the touchpanel for heat dissipation.
1. Locate an area on the wall that is free of miscellaneous wiring and studs.
2. Make a small hole near the middle of the designated site; verify that the location is suitable.
NOTE: Make the cutout as level as possible. The mounting plate allows for only minor leveling adjustments. If a larger cutout is made accidentally, consider purchasing the Crestron Mud Mount Kit, TMK-8X-DSW. Together with the mounting plate supplied with the WMKT-8X-DSW, it provides a cost-effective means of correction. Essentially, the combination of these two kits makes up the Crestron Mud Mount Kit for the wall, WMKM-8X-DSW. Simply follow the
Installation Guide – DOC. 6582A Trim Ring Mount Kits: TMK-8X-DSW & WMKT-8X-DSW 5
Trim Ring Mount Kits Crestron TMK-8X-DSW & WMKT-8X-DSW
“WMKM-8X-DSW Procedure” in the latest revision of the Mud Mount Kits Installation Guide (Doc. 6581).
3. Use the template and a drywall saw or equivalent to produce a level cutout in the drywall. Refer to illustration on page 3 for exact cutout dimensions.
4. Insert the trim ring plate into the opening, as shown in the following illustration.

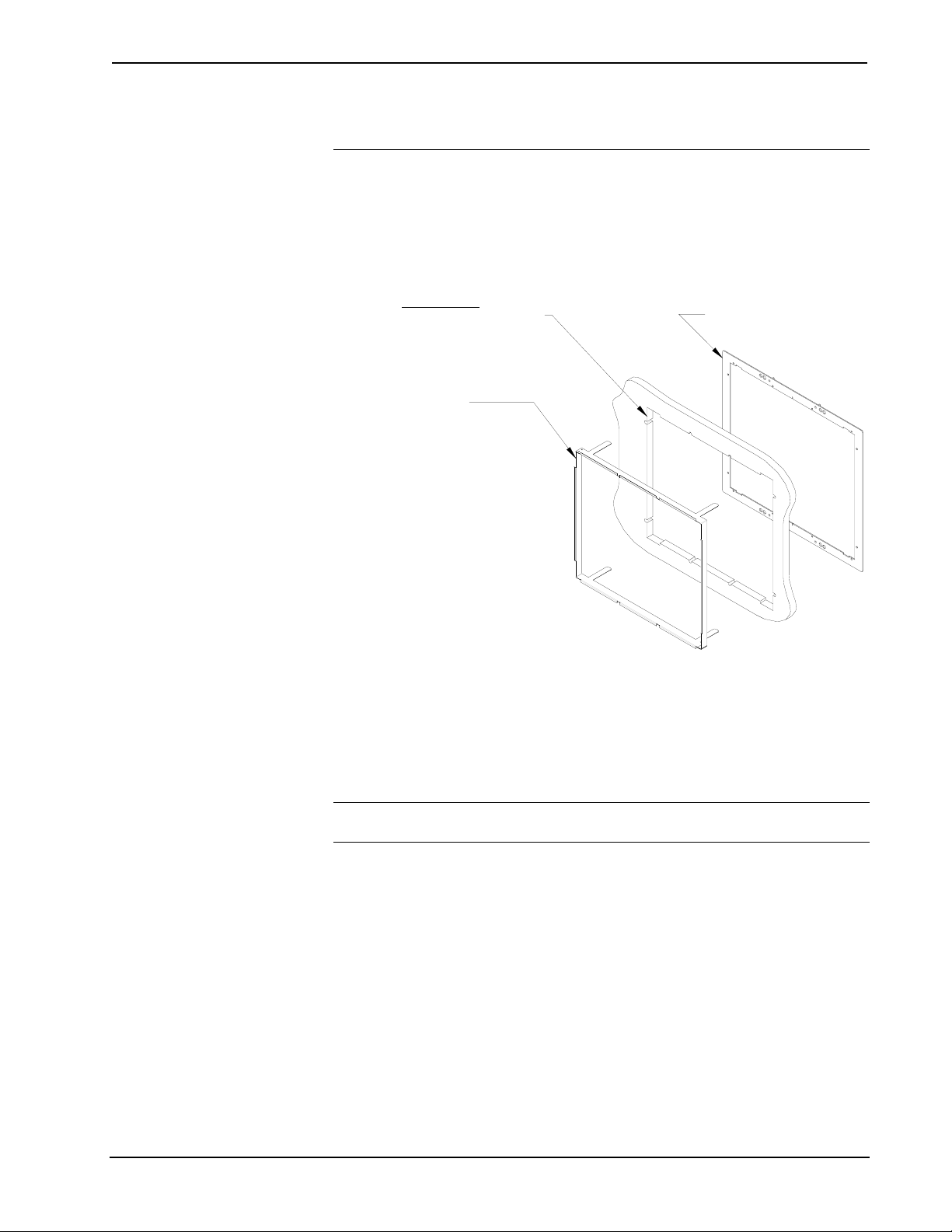

Insert Trim Ring Plate into Opening
PLEASE MAKE DRYWALL CUTOUT AS
IMPORTANT
LEVEL AND CLEAN AS POSSIBLE. THE MOUNTING PLATE ALLOWS ONLY MINOR ADJUSTMENTS OF THE TPS-8X-DSW.
TRIM RING (2017642)
MOUNTING PLATE (2017789)
5. Carefully pass the mounting plate through the opening and hold it against the interior surface of the drywall.
6. When the mounting plate is in position, bend the top two flanges of the trim ring upward (approximately 90 degrees) and the bottom two flanges downward (approximately 90 degrees). Refer to the illustration on the following page.
NOTE: The mounting plate will have a slight play; this is normal. It allows for minor adjustments to the entire assembly during installation.
6 Trim Ring Mount Kits:TMK-8X-DSW & WMKT-8X-DSW Installation Guide – DOC. 6582A
Crestron TMK-8X-DSW & WMKT-8X-DSW Trim Ring Mount Kits
Bend Flanges
7. Run the necessary cables for the touchpanel and secure them behind the drywall.
8. The TPMC-8X-DSW and touchpanel can be installed using the four included #06-32 1 ½” screws (two at each side), as shown in the following illustration. Refer to the latest revision of the TPMC-8X-DSW Installation Guide (Doc. 6588) for installation instructions.
Touchpanel Mounting Using WMKT-8X-DSW
MOUNTING PLATE (2017789)
DRYWALL
TRIM RING (2017642)
TPMC-8X-DSW (bezel removed)
TPMC-8X-DSW MOUNTING SCREWS (4) #06-32 X 1-½" (2 ON EACH SIDE)
(bezel)
Installation Guide – DOC. 6582A Trim Ring Mount Kits: TMK-8X-DSW & WMKT-8X-DSW 7
Trim Ring Mount Kits Crestron TMK-8X-DSW & WMKT-8X-DSW

Contact Information and Updates

Further Inquiries

If you cannot locate specific information or have questions after reviewing this guide, please take advantage of Crestron's award winning customer service team by calling the Crestron corporate headquarters at 1-888-CRESTRON [1-888-273-7876]. For assistance in your local time zone, refer to the Crestron website (http://www.crestron.com/offices
You can also log onto the online help section of the Crestron website (http://www.crestron.com/onlinehelp First-time users will need to establish a user account to fully benefit from all available features.
As of the date of manufacture, the TMK-8X-DSW and WMKT-8X-DSW have been tested and found to comply with specifications for CE marking.
) for a listing of Crestron worldwide offices.
) to ask questions about Crestron products.

Future Updates

As Crestron adds improvements to the TMK-8X-DSW and WMKT-8X-DSW, additional information may be made available as manual updates. These updates are solely electronic and serve as intermediary supplements prior to the release of a complete technical documentation revision.
Check the Crestron website periodically for manual update availability and its relevance. Updates are identified as an “Addendum” in the Download column.
8 Trim Ring Mount Kits:TMK-8X-DSW & WMKT-8X-DSW Installation Guide – DOC. 6582A
Crestron TMK-8X-DSW & WMKT-8X-DSW Trim Ring Mount Kits

Return and Warranty Policies

Merchandise Returns / Repair Service

1. No merchandise may be returned for credit, exchange or service without prior authorization from CRESTRON. To obtain warranty service for CRESTRON products, contact an authorized CRESTRON dealer. Only authorized CRESTRON dealers may contact the factory and request an RMA (Return Merchandise Authorization) number. Enclose a note specifying the nature of the problem, name and phone number of contact person, RMA number and return address.
2. Products may be returned for credit, exchange or service with a CRESTRON Return Merchandise Authorization (RMA) number. Authorized returns must be shipped freight prepaid to CRESTRON, 6 Volvo Drive, Rockleigh, N.J. or its authorized subsidiaries, with RMA number clearly marked on the outside of all cartons. Shipments arriving freight collect or without an RMA number shall be subject to refusal. CRESTRON reserves the right in its sole and absolute discretion to charge a 15% restocking fee plus shipping costs on any products returned with an RMA.
3. Return freight charges following repair of items under warranty shall be paid by CRESTRON, shipping by standard ground carrier. In the event repairs are found to be non-warranty, return freight costs shall be paid by the purchaser.

CRESTRON Limited Warranty

CRESTRON ELECTRONICS, Inc. warrants its products to be free from manufacturing defects in materials and workmanship under normal use for a period of three (3) years from the date of purchase from CRESTRON, with the following exceptions: disk drives and any other moving or rotating mechanical parts, pan/tilt heads and power supplies are covered for a period of one (1) year; touchscreen display and overlay components are covered for 90 days; batteries and incandescent lamps are not covered.
This warranty extends to products purchased directly from CRESTRON or an authorized CRESTRON dealer. Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if any.
CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended or if it has been subjected to misuse, accidental damage, modification or improper installation procedures. Furthermore, this warranty does not cover any product that has had the serial number altered, defaced or removed.
This warranty shall be the sole and exclusive remedy to the original purchaser. In no event shall CRESTRON be liable for incidental or consequential damages of any kind (property or economic damages inclusive) arising from the sale or use of this equipment. CRESTRON is not liable for any claim made by a third party or made by the purchaser for a third party.
CRESTRON shall, at its option, repair or replace any product found defective, without charge for parts or labor. Repaired or replaced equipment and parts supplied under this warranty shall be covered only by the unexpired portion of the warranty.
Except as expressly set forth in this warranty, CRESTRON makes no other warranties, expressed or implied, nor authorizes any other party to offer any warranty, including any implied warranties of merchantability or fitness for a particular purpose. Any implied warranties that may be imposed by law are limited to the terms of this limited warranty. This warranty statement supersedes all previous warranties.
Trademark Information
All brand names, product names and trademarks are the sole property of their respective owners. Windows is a registered trademark of Microsoft Corporation. Windows95/98/Me/XP/Vista and WindowsNT/2000 are trademarks of Microsoft Corporation.
Installation Guide – DOC. 6582A Trim Ring Mount Kits: TMK-8X-DSW & WMKT-8X-DSW 9
Trim Ring Mount Kits Crestron TMK-8X-DSW & WMKT-8X-DSW
This page is intentionally left blank.
10 Trim Ring Mount Kits:TMK-8X-DSW & WMKT-8X-DSW Installation Guide – DOC. 6582A
Crestron TMK-8X-DSW & WMKT-8X-DSW Trim Ring Mount Kits
This page is intentionally left blank.
Installation Guide – DOC. 6582A Trim Ring Mount Kits: TMK-8X-DSW & WMKT-8X-DSW 11
