Crestron TMK-6L & WMKT-6L Trim Ring Mount Kits
Contents
Trim Ring Mount Kits: TMK-6L & WMKT-6L 1
Description.................................................................................................................................1
Setup .......................................................................................................................................... 2
Supplied Hardware......................................................................................................2
Installation...................................................................................................................4
Contact Information and Updates............................................................................................10
Further Inquiries........................................................................................................10
Future Updates ..........................................................................................................10
Return and Warranty Policies..................................................................................................11
Merchandise Returns / Repair Service ......................................................................11
CRESTRON Limited Warranty.................................................................................11
Installation Guide – DOC. 6554A Contents • i
Crestron TMK-6L & WMKT-6L Trim Ring Mount Kits
Trim Ring Mount Kits:
TMK-6L & WMKT-6L
Description
Trim Ring Mount Kits are the preferred method of mounting the Crestron Isys®
TPS-6L wall mounted touchpanel when a finished appearance within a neatly
trimmed cutout is required. This application is perfect for wallpapering.
NOTE: If mounting into another material (other than drywall – for example, wood
lectern, concrete, or rock) use the cutout template, available in the post-construction
kit WMKT-6L as a hole cutout template. For concrete and rock mounting material,
allow for proper ventilation before mounting the touchpanel.
There are two Trim Ring Mount Kits. The TMK-6L is a pre-construction accessory.
Pre-construction refers to framed walls prior to hanging drywall. This accessory
must be used with either the Pre-Construction Mount Kit (PMK-6L) or Back Box Kit
(BB-6L).
The WMKT-6L is a post-construction kit. Post-construction refers to framed walls
with drywall hung. This accessory is designed with a mounting plate so that it can be
placed anywhere on a wall without the support from a stud. The mounting plate is
also ideal for installing the touchpanel in a lectern.
NOTE: If necessary, consult the latest revision of the TPS-6L Operations Guide
(Doc. 6564) for a complete list of mounting options. The document is available from
the Crestron website (www.crestron.com/manuals).
Installation Guide – DOC. 6554A Trim Ring Mount Kits: TMK-6L & WMKT-6L • 1
Trim Ring Mount Kits Crestron TMK-6L & WMKT-6L
Setup
Supplied Hardware
The TMK-6L consists of a metal trim ring that attaches to the PMK-6L or
BB-6L. The WMKT-6L consists of the trim ring found in the TMK-6L as well as a
mounting plate. The mounting plate is the part that provides the necessary support
for post-construction applications. Two overlay cutout templates (4504079) are
supplied. One is in the shape of the required opening; the other is similar to a frame,
with the inner area of the frame the shape of the required opening. (Refer to the
diagrams on pages 3 and 4.) Use the template that is most convenient.
Supplied Hardware of the TMK-6L and WMKT-6L
DESCRIPTION PART NUMBER QUANTITY
Metal Plate, Mounting
(WMKT-6L Only)
Metal Trim Ring
Overlay Template, Cutout
(WMKT-6L Only)
The dimensions of the TMK-6L/WMKT-6L are shown below.
Overall Dimensions – Mounting Plate
2016980 1
2016979 1
4504079 1
2 • Trim Ring Mount Kits: TMK-6L & WMKT-6L Installation Guide – DOC. 6554A
Crestron TMK-6L & WMKT-6L Trim Ring Mount Kits
Overall Dimensions – Trim Ring
Drywall Cutout Template and Dimensions (supplied with WMKT-6L only), 1 of 2
Installation Guide – DOC. 6554A Trim Ring Mount Kits: TMK-6L & WMKT-6L • 3
Trim Ring Mount Kits Crestron TMK-6L & WMKT-6L

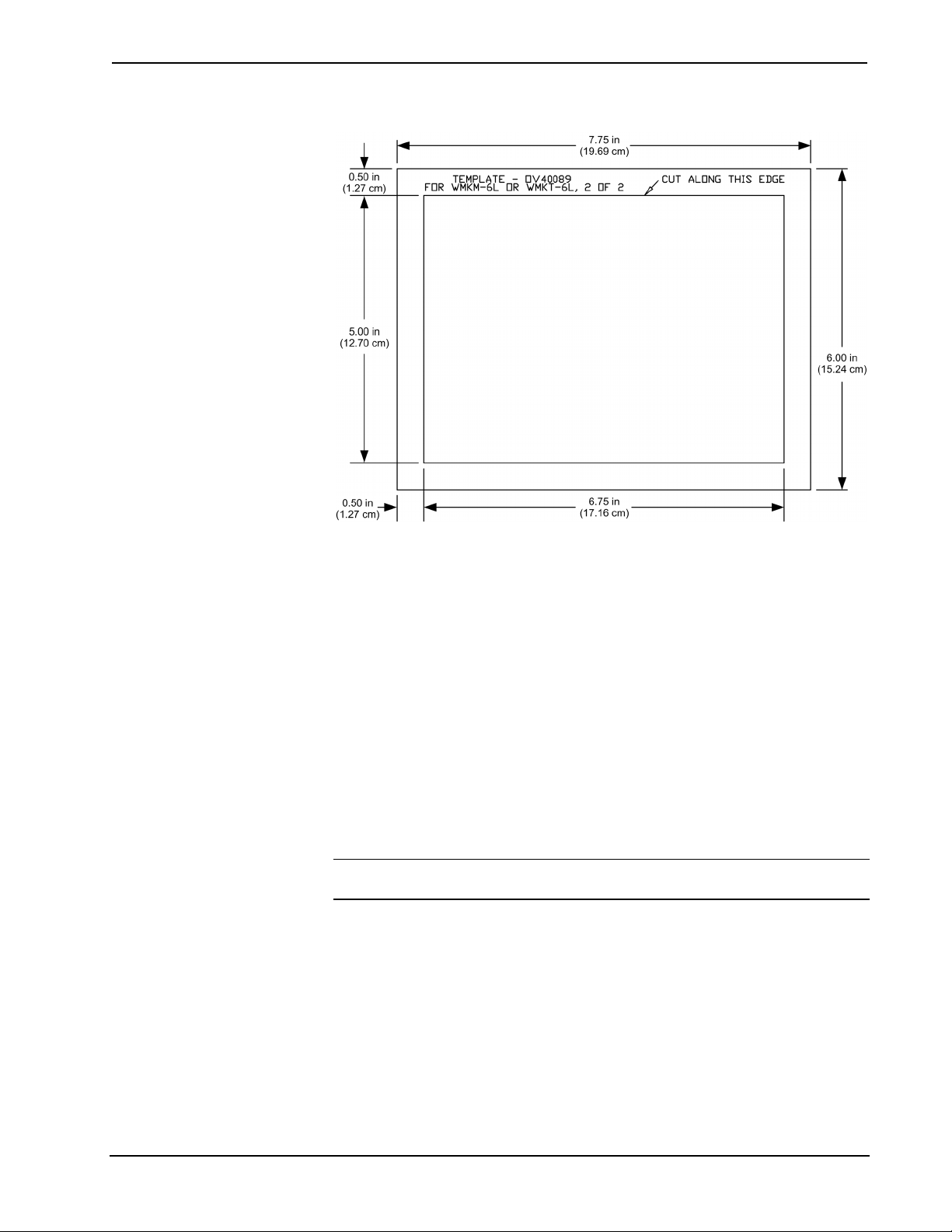

Drywall Cutout Template and Dimensions (supplied with WMKT-6L only), 2 of 2
Installation
This section provides an installation procedure for each Trim Ring Mount Kit. The
procedure for the TMK-6L starts below and the “WMKT-6L Procedure” starts on
page 6. Be sure to review each procedure before starting.
TMK-6L Procedure
The procedure in this section provides the necessary steps for the assembly of the
TMK-6L to either the PMK-6L or BB-6L. It is assumed that the PMK-6L or BB-6L
has been secured to the stud according to the procedures in the latest revisions of
their respective Installation Guides (Doc. 6552 and Doc. 6551, respectively). Also, it
is assumed that drywall is in place and a rectangular cutout for the touchpanel is
made in the drywall.
Complete the steps in the order provided. The only tool required and not supplied is
a level.
NOTE: When installing into the PMK-6L, verify that the 18 AWG bus wire
securing the cables for the touchpanel remains attached.
1. Verify that the rectangular cutout in the drywall is as level as possible.
2. Insert the symmetrical trim ring into the opening, as shown in the following
diagram.
4 • Trim Ring Mount Kits: TMK-6L & WMKT-6L Installation Guide – DOC. 6554A
Crestron TMK-6L & WMKT-6L Trim Ring Mount Kits
Insert Trim Ring into Opening
NOTE: The required PMK-6L or BB-6L is not shown.
3. When the trim ring is in position, bend the top two flanges of the ring
upward and the bottom two flanges downward.
• If mounting into the PMK-6L, bend the flanges approximately 90
degrees.
• If mounting into the BB-6L, bend the flanges back as far as they can
go.
4. Run the necessary cables for the touchpanel and secure them behind the
drywall.
5. The TPS-6L can be installed using the four tapped holes in the PMK-6L or
BB-6L. Refer to the latest revision of the TPS-6L Operations Guide
(Doc. 6564) for details. Refer also to the following comprehensive
illustration.
CAUTION: Allow an air gap of at least 12 inches in the wall cavity above and
below the touchpanel for heat dissipation.
Installation Guide – DOC. 6554A Trim Ring Mount Kits: TMK-6L & WMKT-6L • 5
Trim Ring Mount Kits Crestron TMK-6L & WMKT-6L
Touchpanel Mounting Using TMK-6L – Exploded View
WMKT-6L Procedure
The procedure in this section provides the necessary steps for installation of the
WMKT-6L into a wall. Review the procedure and complete the steps in the order
provided. The only tools or materials required and not supplied are a drywall saw or
equivalent and a level.
1. Locate an area on the wall that is free of miscellaneous wiring and studs.
2. Make a small hole near the middle of the designated site; verify that the
location is suitable.
NOTE: Make the cutout as level and smooth as possible. The mounting plate allows
only minor leveling adjustments. If a larger cutout is accidentally made, consider
purchasing the Crestron Mud Mount Kit, MMK-6L. It and the mounting plate
supplied with the WMKT-6L provide a cost-effective means of correction.
Essentially, the combination of these two kits makes up the Crestron Mud Mount Kit
for the wall, WMKM-6L. Simply follow the “WMKM-6L Procedure” in the latest
revision of the Mud Mount Kits Installation Guide (Doc. 6553).
3. Use the drywall saw or equivalent to produce a level, rectangular cutout in
the drywall, as shown on page 3 or 4.
4. Insert the trim ring into the opening, as shown in the following diagram.
6 • Trim Ring Mount Kits: TMK-6L & WMKT-6L Installation Guide – DOC. 6554A
Crestron TMK-6L & WMKT-6L Trim Ring Mount Kits
Insert the Trim Ring into the Opening
5. Carefully pass the mounting plate through the opening and hold it against
the interior surface of the drywall.
6. When the mounting plate is in position, bend the top two flanges of the trim
ring upward (approximately 90 degrees) and the bottom two flanges
downward (approximately 90 degrees). Refer to the following diagram.
Installation Guide – DOC. 6554A Trim Ring Mount Kits: TMK-6L & WMKT-6L • 7
Trim Ring Mount Kits Crestron TMK-6L & WMKT-6L
Bend Flanges
NOTE: The mounting plate will have a little play; this is normal. It allows for minor
adjustments to the touchpanel during installation.
7. Run the necessary cables for the touchpanel and secure them behind the
drywall.
8. The touchpanel can be installed using the four tapped holes in the mounting
plate. Refer to the latest revision of the TPS-6L Operations Guide
(Doc. 6564) for details. Refer also to the following comprehensive
illustration.
CAUTION: Allow an air gap of at least 12 inches in the wall cavity above and
below the touchpanel for heat dissipation.
8 • Trim Ring Mount Kits: TMK-6L & WMKT-6L Installation Guide – DOC. 6554A
Crestron TMK-6L & WMKT-6L Trim Ring Mount Kits
Touchpanel Mounting Using WMKT-6L – Exploded View
Installation Guide – DOC. 6554A Trim Ring Mount Kits: TMK-6L & WMKT-6L • 9
Trim Ring Mount Kits Crestron TMK-6L & WMKT-6L
Contact Information and Updates
Further Inquiries
If you cannot locate specific information or have questions after reviewing this
guide, please take advantage of Crestron's award winning customer service team by
calling the Crestron corporate headquarters at 1-888-CRESTRON [1-888-273-7876].
For assistance in your local time zone, refer to the Crestron website
(www.crestron.com/offices
You can also log onto the online help section of the Crestron website
(www.crestron.com/onlinehelp
users will need to establish a user account to fully benefit from all available features.
As of the date of manufacture, the TMK-6L and WMKT-6L have been tested and
found to comply with specifications for CE marking.
) for a listing of Crestron worldwide offices.
) to ask questions about Crestron products. First-time
Future Updates
As Crestron improves functions, adds new features, and extends the capabilities of
the TMK-6L or WMKT-6L, additional information may be made available as
manual updates. These updates are solely electronic and serve as intermediary
supplements prior to the release of a complete technical documentation revision.
Check the Crestron website periodically for manual update availability and its
relevance. Updates are identified as an “Addendum” in the Download column.
10 • Trim Ring Mount Kits: TMK-6L & WMKT-6L Installation Guide – DOC. 6554A
Crestron TMK-6L & WMKT-6L Trim Ring Mount Kits
Return and Warranty Policies
Merchandise Returns / Repair Service
1. No merchandise may be returned for credit, exchange or service without prior authorization
from CRESTRON. To obtain warranty service for CRESTRON products, contact an
authorized CRESTRON dealer. Only authorized CRESTRON dealers may contact the factory
and request an RMA (Return Merchandise Authorization) number. Enclose a note specifying
the nature of the problem, name and phone number of contact person, RMA number and
return address.
2. Products may be returned for credit, exchange or service with a CRESTRON Return
Merchandise Authorization (RMA) number. Authorized returns must be shipped freight
prepaid to CRESTRON, 6 Volvo Drive, Rockleigh, N.J. or its authorized subsidiaries, with
RMA number clearly marked on the outside of all cartons. Shipments arriving freight collect
or without an RMA number shall be subject to refusal. CRESTRON reserves the right in its
sole and absolute discretion to charge a 15% restocking fee plus shipping costs on any
products returned with an RMA.
3. Return freight charges following repair of items under warranty shall be paid by CRESTRON,
shipping by standard ground carrier. In the event repairs are found to be non-warranty, return
freight costs shall be paid by the purchaser.
CRESTRON Limited Warranty
CRESTRON ELECTRONICS, Inc. warrants its products to be free from manufacturing defects in materials
and workmanship under normal use for a period of three (3) years from the date of purchase from
CRESTRON, with the following exceptions: disk drives and any other moving or rotating mechanical
parts, pan/tilt heads and power supplies are covered for a period of one (1) year; touchscreen display and
overlay components are covered for 90 days; batteries and incandescent lamps are not covered.
This warranty extends to products purchased directly from CRESTRON or an authorized CRESTRON
dealer. Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if
any.
CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any
application other than that for which it was intended or if it has been subjected to misuse, accidental
damage, modification or improper installation procedures. Furthermore, this warranty does not cover any
product that has had the serial number altered, defaced or removed.
This warranty shall be the sole and exclusive remedy to the original purchaser. In no event shall
CRESTRON be liable for incidental or consequential damages of any kind (property or economic damages
inclusive) arising from the sale or use of this equipment. CRESTRON is not liable for any claim made by a
third party or made by the purchaser for a third party.
CRESTRON shall, at its option, repair or replace any product found defective, without charge for parts or
labor. Repaired or replaced equipment and parts supplied under this warranty shall be covered only by the
unexpired portion of the warranty.
Except as expressly set forth in this warranty, CRESTRON makes no other warranties, expressed or
implied, nor authorizes any other party to offer any warranty, including any implied warranties of
merchantability or fitness for a particular purpose. Any implied warranties that may be imposed by law are
limited to the terms of this limited warranty. This warranty statement supersedes all previous warranties.
Trademark Information
All brand names, product names and trademarks are the sole property of their respective owners. Windows is a registered trademark
of Microsoft Corporation. Windows95/98/Me/XP and WindowsNT/2000 are trademarks of Microsoft Corporation.
Installation Guide – DOC. 6554A Trim Ring Mount Kits: TMK-6L & WMKT-6L • 11
Crestron Electronics, Inc. Installation Guide – DOC. 6554A
15 Volvo Drive Rockleigh, NJ 07647 (2016985)
Tel: 888.CRESTRON 03.07
Fax: 201.767.7576 Specifications subject to
www.crestron.com change without notice.
Loading...
