Crestron TMK-4000L & WMKT-4000L Trim Ring Mount Kits

Trim Ring Mount Kits:
TMK-4000L & WMKT-4000L

Description

Trim Ring Mount Kits are the preferred method of mounting the Crestron Isys®
TPS-4000L series of lectern/wall-mounted video touchpanels when a finished
appearance within a neatly trimmed cutout is required. This application is perfect for
wallpapering.

There are two Trim Ring Mount Kits. The TMK-4000L is a pre-construction
accessory. Pre-construction refers to framed walls prior to hanging drywall. This
accessory must be used with either the Pre-Construction Mount Kit (PMK-4000L) or
Back Box Kit (BB-4000L).

The WMKT-4000L is a post-construction kit. Post-construction refers to framed
walls with drywall hung. This accessory is designed with a mounting plate so that it
can be placed anywhere on a wall without the support from a stud. The mounting
plate is also ideal for installing the touchpanel in a lectern.

NOTE: If necessary, consult the latest revision of the TPS-4000L Operations Guide
(Doc. 6301) for a complete list of mounting options.

Supplied Hardware

The TMK-4000L consists of a metal trim ring that attaches to the PMK-4000L or
BB-4000L. The WMKT-4000L consists of the trim ring found in the TMK-4000L as
well as a mounting plate. The mounting plate is the part that provides the necessary
support for post-construction applications.

Supplied Hardware of the TMK-4000L and WMKT-4000L

DESCRIPTION PART NUMBER QUANTITY

Metal Plate, Mounting

(WMKT-4000L only)

Metal Trim Ring 2011516 1

Installation Guide – DOC. 6302 Trim Ring Mount Kits: TMK-4000L & WMKT-4000L • 1

2011515 1

Trim Ring Mount Kits Crestron TMK-4000L & WMKT-4000L

(

)

S

The dimensions of the TMK-4000L/WMKT-4000L are shown below.

Dimensional Drawing

8.99 in

(22.84 cm)

MOUNTING PLATE (WMKT-4000L ONLY)

Drywall Cutout Dimensions

12.63 in

(32.08 cm)

11.59 in

(29.44 cm)

TRIM RING

0.06 in

(0.15 cm)

8.19 in

(20.79 cm)

0.02 in

(0.05 cm)

2.22 in

5.64 cm

19

8

31

7

in

32

(202 mm)

in MAX

64

(211 mm MAX)
DO NOT EXCEED
THIS DIMENSION

1

in

1

8

(28 mm)

13

11

in MAX

32

(290 mm MAX)

DO NOT EXCEED

DIMENSION

THI

2 • Trim Ring Mount Kits: TMK-4000L & WMKT-4000L Installation Guide – DOC. 6302

Crestron TMK-4000L & WMKT-4000L Trim Ring Mount Kits

Installation

This section provides an installation procedure for each Trim Ring Mount Kit. The
procedure for the TMK-4000L starts below and the “WMKT-4000L Procedure”
starts on page 4.

TMK-4000L Procedure

The procedure in this section provides the necessary steps for the assembly of the
TMK-4000L to either the PMK-4000L or BB-4000L. It is assumed that the
PMK-4000L or BB-4000L has been secured to the stud according to the procedures
in the latest revisions of their respective Installation Guides (Doc. 6304 and Doc.
6305, respectively). Also, it is assumed that drywall is in place and a rectangular
cutout for the touchpanel is made in the drywall (refer to the Drywall Cutout
dimensions on the previous page for cutout dimensions).

Complete the steps in the order provided. The only tool required and not supplied is
a level.

NOTE: When installing into the PMK-4000L, verify that the 18 AWG bus wire
securing the cables for the touchpanel remains attached.

1. Verify that the rectangular cutout in the drywall is as level as possible.

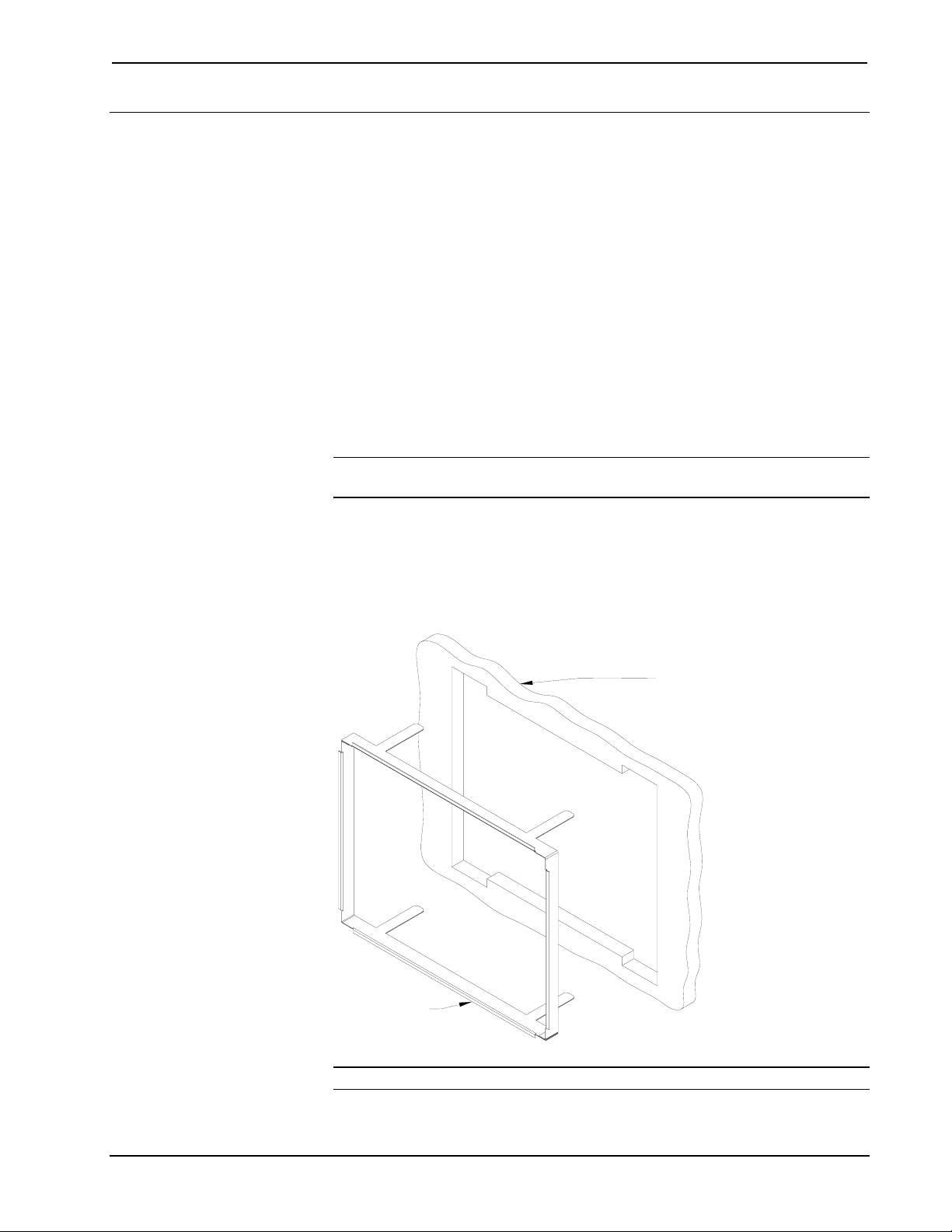

2. Insert the symmetrical trim ring into the opening, as shown in the
following diagram.

Insert Trim Ring into Opening

IMPORTANT:

MAKE DRYWALL CUTOUT AS LEVEL
AND CLEAN AS POSSIBLE. THE TRIM
RING ALLOWS FOR ONLY MINOR
ADJUSTMENT OF THE TPS-4000L

TRIM RING

NOTE: The required PMK-4000L or BB-4000L is not shown.

Installation Guide – DOC. 6302 Trim Ring Mount Kits: TMK-4000L & WMKT-4000L • 3

Trim Ring Mount Kits Crestron TMK-4000L & WMKT-4000L

3. When the trim ring is in position, bend the top two flanges of the ring
upward and the bottom two flanges downward.

• If mounting into the PMK-4000L, bend the flanges
approximately 90 degrees.

• If mounting into the BB-4000L, bend the flanges back as far
as they can go.

4. Run the necessary cables for the touchpanel and secure them behind the
drywall.

5. The TPS-4000L can be installed using the four tapped holes in the
PMK-4000L or BB-4000L. Refer to the latest revision of the
TPS-4000L Operations Guide (Doc. 6301) for details.

WMKT-4000L Procedure

The procedure in this section provides the necessary steps for installation of the
WMKT-4000L into a wall. Complete the steps in the order provided. The only tools
or materials required and not supplied are a drywall saw or equivalent and a level.

1. Locate an area on the wall that is free of miscellaneous wiring and
studs.

2. Make a small hole near the middle of the designated site; verify that the
location is suitable.

NOTE: Make the cutout as level and smooth as possible. The mounting plate allows
for only minor leveling adjustments. If a larger cutout is accidentally made, consider
purchasing the Crestron Mud Mount Kit, MMK-4000L. It and the mounting plate
supplied with the WMKT-4000L provide a cost-effective means of correction.
Essentially, The combination of these two kits makes up the Crestron Mud Mount
Kit for the Wall, WMKM-4000L. Simply follow the “WMKM-4000L Procedure” in
the latest revision of the Mud Mount Kits Installation Guide (Doc. 6303).

3. Use the drywall saw or equivalent to produce a level, rectangular cutout
in the drywall (refer to the Drywall Cutout dimensions on page 2 for
cutout dimensions.).

4. Insert the symmetrical trim ring into the opening, as shown in the
following diagram.

4 • Trim Ring Mount Kits: TMK-4000L & WMKT-4000L Installation Guide – DOC. 6302

Crestron TMK-4000L & WMKT-4000L Trim Ring Mount Kits

Insert the Trim Ring into the Opening

MOUNTING PLATE

DRYWALL

IMPORTANT:

MAKE DRYWALL CUTOUT AS LEVEL
AND CLEAN AS POSSIBLE. THE TRIM
RING ALLOWS FOR ONLY MINOR

TRIM RING

ADJUSTMENT OF THE TPS-4000L

5. Carefully pass the mounting plate through the opening and rest it

6. When the mounting plate is in position, bend the top two flanges of the

Bend Flanges

against the interior surface of the drywall.

trim ring upward (approximately 90 degrees) and the bottom two
flanges downward (approximately 90 degrees). Refer to the following
diagram.

Installation Guide – DOC. 6302 Trim Ring Mount Kits: TMK-4000L & WMKT-4000L • 5

Trim Ring Mount Kits Crestron TMK-4000L & WMKT-4000L

NOTE: The mounting plate will have slight play; this is normal. It allows for minor
adjustments to the TPS-4000L during installation.

7. Run the necessary cables for the touchpanel and secure them behind the
drywall.

8. The TPS-4000L can be installed using the four tapped holes in the
mounting plate. Refer to the latest revision of the TPS-4000L
Operations Guide (Doc. 6301) for details.

6 • Trim Ring Mount Kits: TMK-4000L & WMKT-4000L Installation Guide – DOC. 6302

Crestron TMK-4000L & WMKT-4000L Trim Ring Mount Kits

Further Inquiries

If after reviewing this Installation Guide, you cannot locate specific information or
have questions, please take advantage of Crestron's award winning customer service
team by calling:

• In the US and Canada, call Crestron’s corporate headquarters at
1-888-CRESTRON [1-888-273-7876].

• In Europe, call Crestron International at [phone].

• In Asia, call Crestron Asia at [phone].

• In Latin America, call Crestron Latin America at [phone].

• In Australia and New Zealand, call Crestron Control Solutions at

[phone].

You can also log onto the online help section of the Crestron website
(www.crestron.com
need to establish a user account to fully benefit from all available features.

As of the date of manufacture, the TMK-4000L and WMKT-4000L have been tested
and found to comply with specifications for CE marking.

) to ask questions about Crestron products. First-time users will

Future Updates

As Crestron improves functions, adds new features, and extends the capabilities of
the TMK-4000L or WMKT-4000L, additional information may be made available as
manual updates. These updates are solely electronic and serve as intermediary
supplements prior to the release of a complete technical documentation revision.

Check the Crestron website (www.crestron.com
availability and relevance. Updates are available from the Download | Product
Manuals section and are identified as an “Addendum” in the Download column.

) periodically for manual update

Installation Guide – DOC. 6302 Trim Ring Mount Kits: TMK-4000L & WMKT-4000L • 7

Trim Ring Mount Kits Crestron TMK-4000L & WMKT-4000L

Return and Warranty Policies

Merchandise Returns / Repair Service

1. No merchandise may be returned for credit, exchange, or service without prior
authorization from CRESTRON. To obtain warranty service for CRESTRON
products, contact the factory and request an RMA (Return Merchandise
Authorization) number. Enclose a note specifying the nature of the problem, name
and phone number of contact person, RMA number, and return address.

2. Products may be returned for credit, exchange, or service with a CRESTRON Return
Merchandise Authorization (RMA) number. Authorized returns must be shipped
freight prepaid to CRESTRON, 6 Volvo Drive, Rockleigh, N.J., or its authorized
subsidiaries, with RMA number clearly marked on the outside of all cartons.
Shipments arriving freight collect or without an RMA number shall be subject to
refusal. CRESTRON reserves the right in its sole and absolute discretion to charge a
15% restocking fee, plus shipping costs, on any products returned with an RMA.

3. Return freight charges following repair of items under warranty shall be paid by
CRESTRON, shipping by standard ground carrier. In the event repairs are found to
be non-warranty, return freight costs shall be paid by the purchaser.

CRESTRON Limited Warranty

CRESTRON ELECTRONICS, Inc. warrants its products to be free from manufacturing defects in
materials and workmanship under normal use for a period of three (3) years from the date of
purchase from CRESTRON, with the following exceptions: disk drives and any other moving or
rotating mechanical parts, pan/tilt heads and power supplies are covered for a period of one (1)
year; touchscreen display and overlay components are covered for 90 days; batteries and
incandescent lamps are not covered.

This warranty extends to products purchased directly from CRESTRON or an authorized
CRESTRON dealer. Purchasers should inquire of the dealer regarding the nature and extent of the
dealer's warranty, if any.

CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in
any application other than that for which it was intended, or if it has been subjected to misuse,
accidental damage, modification, or improper installation procedures. Furthermore, this warranty
does not cover any product that has had the serial number altered, defaced, or removed.

This warranty shall be the sole and exclusive remedy to the original purchaser. In no event shall
CRESTRON be liable for incidental or consequential damages of any kind (property or economic
damages inclusive) arising from the sale or use of this equipment. CRESTRON is not liable for
any claim made by a third party or made by the purchaser for a third party.

CRESTRON shall, at its option, repair or replace any product found defective, without charge for
parts or labor. Repaired or replaced equipment and parts supplied under this warranty shall be
covered only by the unexpired portion of the warranty.

Except as expressly set forth in this warranty, CRESTRON makes no other warranties, expressed
or implied, nor authorizes any other party to offer any warranty, including any implied warranties
of merchantability or fitness for a particular purpose. Any implied warranties that may be imposed
by law are limited to the terms of this limited warranty. This warranty statement supercedes all
previous warranties.

Trademark Information

All brand names, product names, and trademarks are the sole property of their respective owners. Windows is a registered
trademark of Microsoft Corporation. Windows95/98/Me/XP and WindowsNT/2000 are trademarks of Microsoft
Corporation.

8 • Trim Ring Mount Kits: TMK-4000L & WMKT-4000L Installation Guide – DOC. 6302

Crestron TMK-4000L & WMKT-4000L Trim Ring Mount Kits

This page intentionally left blank.

Installation Guide – DOC. 6302 Trim Ring Mount Kits: TMK-4000L & WMKT-4000L • 9

Crestron Electronics, Inc. Installation Guide – DOC. 6302

15 Volvo Drive Rockleigh, NJ 07647 10.04
Tel: 888.CRESTRON
Fax: [phone] Specifications subject to
www.crestron.com change without notice.
