Crestron STX-1700CXP User Manual

Crestron STX-1700CXP
2-Way RF Wireless Touchpanel
Operations Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

©2003 Crestron Electronics, Inc.

Crestron STX-1700CXP 2-Way RF Wireless Touchpanel

Contents

2-Way RF Wireless Touchpanel: STX-1700CXP 1

Introduction ...............................................................................................................................1

Functions and Features................................................................................................ 1

Specifications ..............................................................................................................3

Physical Description.................................................................................................... 4

Industry Compliance ...................................................................................................6

Setup .......................................................................................................................................... 6

Applying Power........................................................................................................... 6

Identity Codes..............................................................................................................7

Configuring the Touchpanel........................................................................................ 8

General Use and Safety ............................................................................................. 12

Recommended Touchpanel Cleaning........................................................................ 12

Programming Software............................................................................................................13

Programming with the Crestron AppBuilder.............................................................13

Programming with SIMPL Windows........................................................................ 13

“Quick” Pushbuttons .................................................................................................18

Programming with VT Pro-e..................................................................................... 18

Reserved Join Numbers............................................................................................. 19

Uploading and Upgrading........................................................................................................ 20

Communication Settings ...........................................................................................20

Uploading a VT Pro-e Project ...................................................................................24

Firmware Upgrade..................................................................................................... 25

Problem Solving ...................................................................................................................... 27

Troubleshooting......................................................................................................... 27

Out of Range Feature.................................................................................................28

Further Inquiries........................................................................................................ 29

Future Updates ..........................................................................................................29

Appendix A: Engraveable Pushbutton Installation................................................................. 30

Appendix B: Optimum RF Reception Guidelines .................................................................. 31

Minimize Interference ...............................................................................................31

Gateway Placement ...................................................................................................31

Antenna Orientation .................................................................................................. 31

Software License Agreement................................................................................................... 33

Return and Warranty Policies.................................................................................................. 35

Merchandise Returns / Repair Service ......................................................................35

CRESTRON Limited Warranty.................................................................................35

Operations Guide – DOC. 6144 Contents • i

Crestron STX-1700CXP 2-Way RF Wireless Touchpanel

2-Way RF Wireless Touchpanel:
STX-1700CXP

Introduction

Functions and Features

The STX-1700CXP is a 2-way wireless radio frequency (RF) compact color

touchpanel that utilizes 2.4 GHz spread spectrum technology to provide a user

interface to a Crestron

The “Wi-Fi friendly” touchpanel is a handheld transceiver that communicates

through Crestron’s gateway/transceiver, the TPS-RFGWX (sold separately), to the

Cresnet system. (Refer to “Wi-Fi Technology” and “Gateway Compatibility” on

page 2 for more details.) The 2-way communications provide control of third party

and Cresnet devices and dynamic onscreen feedback for real-time confirmation of

commands. Up to 15 touchpanels can communicate with one TPS-RFGWX. RF

signals can travel from a minimum of three feet up to a maximum between 100 - 200

feet; the range is dependent on location of the touchpanel, the construction of the

building, and obstructions and RF interference from other devices. Location and

antenna orientation of the TPS-RFGWX also are important factors in RF

reception/transmission.

Functional Summary

• 5.7" (14.78 cm) active color matrix display

• 320x240 screen resolution

• 63MIPs ColdFire processor running Crestron Isys

• 16-bit non-palette graphics

• 64,000-color Crestron Isys engine

• 4 MB of flash memory (approx. 3MB for user display lists)

• 8 MB of SDRAM

• Built-in 10 "quick" pushbuttons

*Customizable engraving available. Refer to “Appendix A” on page 30 for details.

**Refer to “Gateway Compatibility” on page 2 for details.

− Engraveable*

− Operate without waking display

• Long-life NiMH battery

− Fast charging

− No battery memory

• “Wi-Fi friendly” operating frequency selection to avoid interference

• Compatible with TPS-RFGWX RF gateways that are not Wi-Fi friendly. **

®

control system (herein referred to as the Cresnet® system).

™

-generation firmware

Operations Guide – DOC. 6144 2-Way RF Wireless Touchpanel: STX-1700CXP • 1

2-Way RF Wireless Touchpanel Crestron STX-1700CXP

Included with the STX-1700CXP are a Crestron High Performance Rechargeable

Battery Pack (ST-BTPN) and a Docking Station (ST-DSN) that docks the touchpanel

and/or recharges the ST-BTPN. An external power pack (PW-1215 for domestic use

or PWI-1215 for international use) is also provided to power the touchpanel. Refer to

the latest revisions of the documentation supplied with these items for details.

The touchpanel is also available in an international version, the STXI-1700CXP.

Wi-Fi Technology

Wi-Fi (wireless fidelity) is the common term for high-frequency wireless local area

network (WLAN) technology that is gaining acceptance as an alternative to a wired

LAN in commercial as well as home network configurations. Wi-Fi is specified in

the 802.11b specification from the Institute of Electrical and Electronics Engineers

(IEEE) and is part of a series of wireless specifications together with 802.11,

802.11a, and 802.11g.

The STX-1700CXP touchpanel is not “Wi-Fi compatible.” It does not comply with

the 802.11 specifications, nor can it communicate with 802.11 devices. It is,

however, considered “Wi-Fi friendly,” since you can select a communication band

(frequency range) that will avoid interference with 802.11 devices. The touchpanel’s

transceiver (as well as the gateway’s) allows you to select one of ten possible bands

(0 through 9) for communication. The bands define specific frequency ranges within

the 2.4 GHz Spectrum. The default band (Band 0) covers almost the entire spectrum

and is, therefore, not Wi-Fi friendly. The nine additional bands define narrower

ranges, leaving the rest of the frequency spectrum available for other RF devices,

thus making it possible to avoid interference. Refer to the “ADDITIONAL RF

SETUP” illustration on page 10 for details.

As you configure the touchpanel for operation, you select an RF channel to identify

the gateway that will communicate with the touchpanel. Up to 16 gateways can be

included in one SIMPL program, and up to 15 touchpanels can communicate with

each gateway.

You then select one of the ten frequency bands. Selection of a band is based on a

number of factors, most importantly the need to avoid interference with nearby RF

devices, and compliance with local communication laws. Crestron recommends

using Bands 5 (USA comp 1) through 9 (USA comp 5) within the US. Bands 1

through 4 (France, Spain, Japan, and Canada) are intended for use in Cresnet systems

outside the US.

If you have two or more Crestron wireless RF devices in the Cresnet system, they

should all be set to the same band. If your system includes non-Crestron RF devices,

set the Crestron RF devices to a different band than the non-Crestron devices to

minimize the possibility of interference between them.

Gateway Compatibility

The ability to select frequency bands makes it possible for the STX-1700CXP to

communicate with TPS-RFGWX two-way RF transceivers (gateways) that are Wi-Fi

friendly as well as those that are not. TPS-RFGWX gateways that are Wi-Fi friendly

(include band selection) have product labels that include a seven-digit number

beginning with 600 (e.g., 6002104). Product labels on earlier models of the TPS-

RFGWX gateway (fixed band; not Wi-Fi friendly) include seven-digit alphanumeric

codes beginning with ZA (e.g., ZA11308). Similarly, Wi-Fi friendly TPS-RFGWX

gateways can communicate with touchpanels that are not so enabled as well as those

that are. In either case, in order to communicate, the TPS-RFGWX gateway and

STX-1700CXP touchpanel must be set to the same band and have identical identity

code settings (refer to “Identity Codes” on page 7 for details).

2 • 2-Way RF Wireless Touchpanel: STX-1700CXP Operations Guide - DOC. 6144

Crestron STX-1700CXP 2-Way RF Wireless Touchpanel

Specifications

The table below provides a summary of specifications for the STX-1700CXP.

Specifications of the STX-1700CXP Touchpanel

SPECIFICATION DETAILS

Power Options
ST-BTPN

AC: Domestic External Adapter

AC: International External Adapter

ST-DSN

RF Specifications2 Bidirectional Spread Spectrum 2.4 GHz (range

Default NET ID³ 03 (NET ID used in wired configuration only.)

Default RF ID³ 01 (RF ID used in wireless configuration only.)

Default RF Channel³ 01 (Identifies RF gateway to be used for

Default RF Band³ Band 0 (USA Original) Ten frequency bands

Default Timeouts 10 minutes for standby

Signal Join Maximums 4000 digital, 1024 analog, 127 serial input, 255

Control System Update Files

2-Series Control System Update

CEN/CN-TVAV Update File

CNMSX-AV/Pro Update File

CNRACKX/-DP Update File

Acceptable file extensions7

.vtz

.csf

TPS-RFGWX firmware Version 2.15 or later

Memory 4 MB flash memory (3 Mbytes available for

Touchscreen Dimensions Height: 3.700 in (9.017 cm)

Touchscreen Resolution 320 x 240 pixels

Touchscreen Viewing Angles ±65° for X dir, +65/-40° for Y dir

Touchscreen LCD Active matrix, 64K colors

Touchscreen Illumination Backlit fluorescent

Touchscreen Composition Resistive Membrane

Operating Temperature 50° to 113°F (10° to 45°C)

Humidity 10% to 90% RH (non-condensing)

Overall Dimensions Width: 8.75 in (22.23 cm)

Weight8 1.85 lb (0.84 kg)

4, 5, 6

Rechargeable NiMH battery pack (included)

4100 mAh capacity after full charge.

(Operating time depends on usage.)

12VDC, 1.5A, 120VAC Input (included)

(P/N PW-1215 or equivalent)

12VDC, 1.5A, 230VAC Input (included with

international version touchpanel)

(P/N PWI-1215 or equivalent)

Docking Station/charger with external power

pack (included)

approximately 100 - 200 feet). Requires one
TPS-RFGWX transceiver per 15 touchpanels.

communication.)

(ranges) available for selection.

30 minutes for power down

serial output

Version C2-3.044.CUZ or later

Version 5.12.63V.UPZ or later

Version 5.14.02X.UPZ or later

Version 5.14.02W.UPZ or later

projectname.vtz (compiled file)

STX1700CXP.vx.xxx.x.csf (panel firmware)

user programming)

8 MB SDRAM

Width: 4.700 in (11.938 cm)

Height: 3.62 in (9.20 cm)

Depth: 5.43 in (13.80 cm)

1

Operations Guide – DOC. 6144 2-Way RF Wireless Touchpanel: STX-1700CXP • 3

2-Way RF Wireless Touchpanel Crestron STX-1700CXP

1. Battery life is 180 minutes continuous usage with background lighting at full brightness. Actual
operating time depends on usage and settings for background brightness and timeouts.

2. Requires Crestron TPS-RFGWX 2-Way RF Gateway/Transceiver. The RF signals can travel from a
minimum of three feet up to a maximum between 100 - 200 feet; the range is dependent on construction
of the building, obstructions, and RF interference from other devices. The location of the TPS-RFGWX
and the orientation of the antenna are also important factors in the RF performance.

3. Refer to “Identity Codes” on page 7 for details.

4. The latest versions can be obtained from the Downloads | Software Updates section of the Crestron
website (www.crestron.com)

5. Crestron 2-Series control systems include the AV2, AV2 with Card Cage, CP2, CP2E, PAC2, MC2W,
MC2E, MP2, MP2E, PRO2, and RACK2.

6. CNX update files are required for either CNMSX-AV/Pro or CNRACKX/-DP. Filenames for CNX
update files have a UPZ extension and are in one EXE or zipped UPZ file. To avoid program problems,
make certain you are using the update file with the correct suffix letter (e.g., S, V, W, X).

7. In DETAILS, projectname represents the assigned project name, and vx.xxx.x represents a version
number.

8. The weight listed for the touchpanel does not include the ST-BTPN, ST-DSN or external power pack.

NOTE: Crestron software and any files on the website are for Authorized Crestron
dealers and Crestron Authorized Independent Programmers (CAIP) only. New users
may be required to register to obtain access to certain areas of the site (including the
FTP site).

. Refer to NOTE after last footnote.

Physical Description

The touch-sensitive viewing screen and “quick” pushbuttons are located on the front
of the STX-1700CXP. The electronic hardware is housed in a high impact, black
molded plastic enclosure, shown below. Connectors to upload touchscreen projects
via Cresnet, using a PC and Crestron processor, and to power the unit using the
external power pack are located on the left and right sides of the unit, respectively.
Refer to illustrations on the next page.

Physical View of STX-1700CXP

4 • 2-Way RF Wireless Touchpanel: STX-1700CXP Operations Guide - DOC. 6144

Crestron STX-1700CXP 2-Way RF Wireless Touchpanel

Physical Views (continued)

The underside of the unit contains the battery compartment that holds one ST-BTPN.
Contacts for the ST-DSN are through the ST-BTPN. Four rubber feet on the
underside of the unit are for stability and to prevent slippage on flat surfaces.

Refer to “Programming Cable” on page 22 for details and pinouts of the cable used
for programming and uploading.

Operations Guide – DOC. 6144 2-Way RF Wireless Touchpanel: STX-1700CXP • 5

2-Way RF Wireless Touchpanel Crestron STX-1700CXP

Industry Compliance

As of the date of manufacture, this unit has been tested and found to comply with
specifications for CE marking and standards per EMC and Radio Communications
Compliance Labeling (N11785).

NOTE: This device complies with part 15 of the FCC rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. The equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:

Setup

■ Reorient or relocate the receiving antenna.

■ Increase the separation between the equipment and transceiver.

■ Connect the equipment into an outlet on a circuit different from that to which the

transceiver is connected.

■ Consult the dealer or an experienced radio/TV technician for help.

Applying Power

The touchpanel can be powered via the ST-BTPN, while docked in the ST-DSN, or
via the external power pack. Each of these items has its own Operations Guide which
details proper usage. Refer to the table below for the required document number.

STX-1700CXP Power Source Options

POWER SOURCE OPTION MODEL

Battery Pack** ST-BTPN 6088

Docking Station ST-DSN 6095

Domestic External Power Pack, or PW-1215 5764

International External Power Pack PWI-1215 5765

* The latest revision may have a revision letter after the document number (i.e., 6088A).

** The battery pack does not “trickle” charge when the external power pack is used to power

the touchpanel.

DOCUMENT

NUMBER*

6 • 2-Way RF Wireless Touchpanel: STX-1700CXP Operations Guide - DOC. 6144

Crestron STX-1700CXP 2-Way RF Wireless Touchpanel

Identity Codes

The STX-1700CXP touchpanel uses distinct types of identity (ID) codes for
recognition within a Cresnet system: Cresnet identity (NET ID) for instances when
the touchpanel is wired to the Cresnet system, and RF ID for those instances when
the touchpanel communicates with the Cresnet system via the RF gateway. These
codes are assigned to the touchpanel from the SELECT INTERFACE screen when
the unit is configured. Refer to “Select Interface” on page 9. These assignments must
match assignments made in the SIMPL Windows project.

In addition, it is necessary to specify an RF channel and band in order for the
touchpanel and TPS-RFGWX gateway to communicate. These settings, described
briefly below, are assigned via the RF SETUP and ADDITIONAL RF SETUP
screens, shown on pages 9 and 10, respectively.

NET ID

Every equipment and user interface wired to the Cresnet system requires a unique
NET ID. These codes are two-digit hexadecimal numbers from 03 to FE. The NET
ID of the unit must match the NET ID specified in the SIMPL Windows program.
The NET ID is used during uploading of a Crestron VisionTools
(VT Pro-e) project or upgrading the touchpanel firmware.

®

Pro-e

The NET ID is also used when operating the unit as a wired touchpanel.

RF ID

Every STX-1700CXP touchpanel communicating with a Cresnet control system via
a TPS-RFGWX requires a unique RF ID to identify it to the gateway to secure RF
communications. There are 15 useable codes, ranging from 1 to F (hexadecimal
number), to allow for up to 15 touchpanels communicating via a given gateway. The
RF ID of the touchpanel must match the RF ID specified in the SIMPL Windows
program.

NOTE: The RF channel and band selection of the touchpanel must match the
channel ID and band selection of the gateway to have communication. Refer to the
latest version of the TPS-RFGWX Operations Guide (DOC. 5847) for gateway
assignment details.

RF CHANNEL

Each STX-1700CXP touchpanel communicating to the TPS-RFGWX transceiver
must have an RF channel that matches the channel ID of the TPS-RFGWX. There
are 16 possible RF channels ranging from 0 to F (hexadecimal number). Having
multiple channels available allows for multiple gateways, and therefore many
multiple touchpanels, to be used in a given project without signal interference.

The channel ID assignment of the TPS-RFGWX is viewed/changed in the Crestron
Viewport software utility.

Band

The ability to specify one of the ten bands (frequency ranges) designated for
communication within the 2.4 GHz spectrum makes it possible to minimize
interference with other RF devices that may be operating near the Cresnet system.
Refer to the “ADDITIONAL RF SETUP” illustration on page 10 for details.

Operations Guide – DOC. 6144 2-Way RF Wireless Touchpanel: STX-1700CXP • 7

2-Way RF Wireless Touchpanel Crestron STX-1700CXP

b

Configuring the Touchpanel

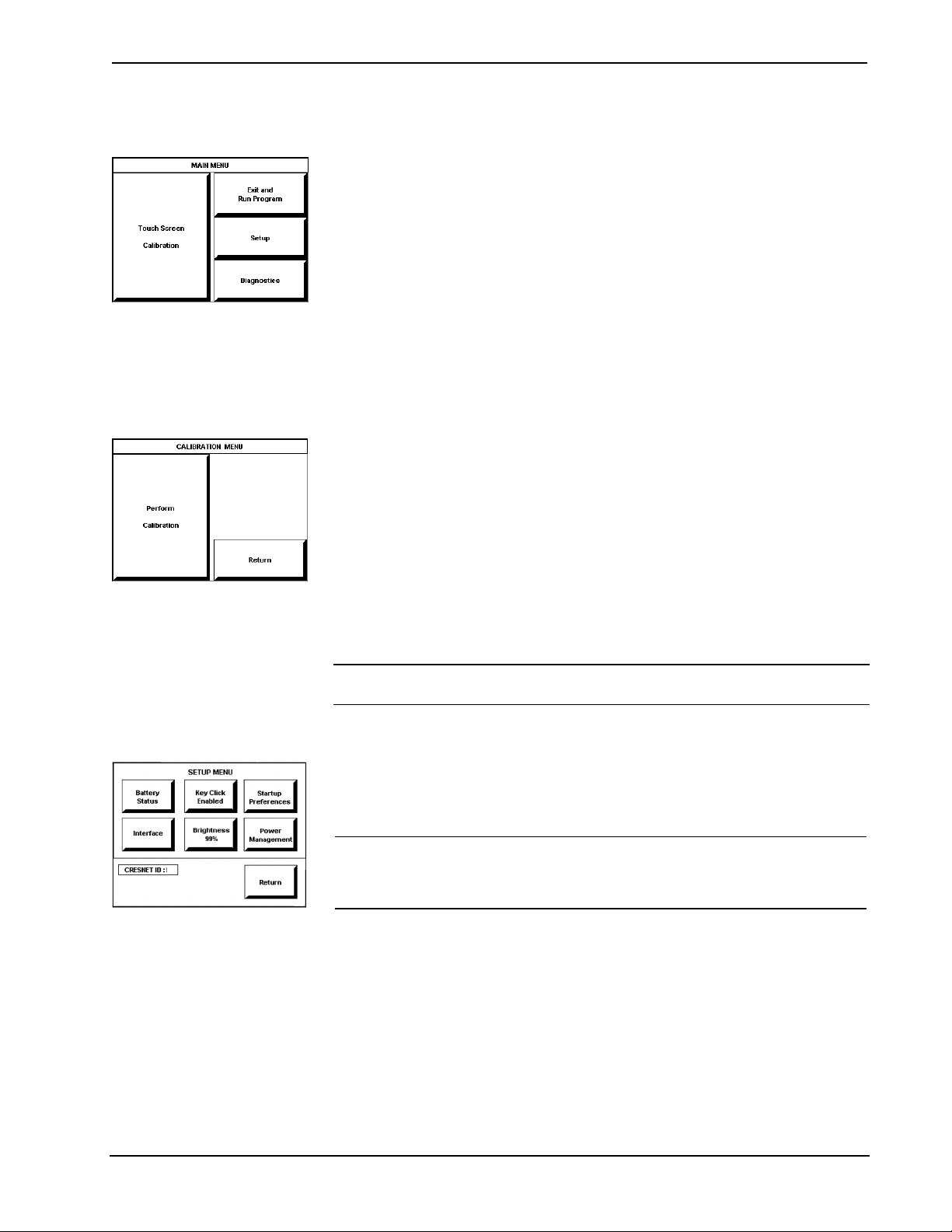

MAIN MENU

This menu can also be obtained via
digital reserved join number, 17242.

CALIBRATION MENU

To configure the unit, it may be necessary to access a series of setup screens prior to
viewing run-time screens that are loaded into the touchpanel for normal operation.
The MAIN MENU for configuring the touchpanel appears when a finger is pressed
on the screen just before power is applied, and held pressed for about five seconds as
the unit powers up.

Upon entering SETUP MODE, the MAIN MENU, shown to the left, displays four
buttons: Touch Screen Calibration, Exit and Run Program, Setup, and
Diagnostics.

Selecting Exit and Run Program verifies that all of the setup information has been
saved to EEPROM and displays the main page that has been programmed into the
touchpanel. The remaining buttons on the MAIN MENU open other menus, which
are discussed in subsequent paragraphs.

Calibration Menu

Calibration of the touchscreen is required if the active touch area of a button does
not coincide with the button's image. Select the Touch Screen Calibration
display the CALIBRATION MENU, as shown to the left. The CALIBRATION
MENU offers the choice to initiate calibration with the Perform Calibration button
or return to the previous screen with the Return button. Choose an option by
touching the appropriate button.

utton to

SETUP MENU

03

If you need to calibrate the touchpanel, the screen displays the message "Touch
Upper Left" centered on the panel with a cross hair in the upper left corner. Touch
the cross hair to initiate calibration. Another message, "Touch Upper Right", appears
with a cross hair in the correct corner. Touch the cross hair. A final message, “Touch
Lower Right”, appears with a cross hair in the correct corner. Touch the crosshair to
finish the calibration and return to the MAIN MENU.

NOTE: When touching each crosshair during calibration, be as accurate as possible.
Use the tip of a capped pen or the eraser end of a pencil.

Setup Menu

To obtain the SETUP MENU, shown to the left, press the Setup button from the
MAIN MENU. The SETUP MENU offers a series of buttons, which open additional
menus and screens that are detailed in subsequent paragraphs. After setup parameters
have been set, select the Return button to return to the MAIN MENU.

NOTE: For convenience, the current CRESNET ID setting is displayed in the lower
left corner.

NOTE: All touchpanel settings are automatically saved in non-volatile memory.

8 • 2-Way RF Wireless Touchpanel: STX-1700CXP Operations Guide - DOC. 6144

Crestron STX-1700CXP 2-Way RF Wireless Touchpanel

BATTERY STATUS

SELECT INTERFACE

CRESNET INTERFACE MENU

03

Battery Status

To access the Battery Status screen, shown to the left, press the Battery Status
button on the SETUP MENU.

This screen indicates the amount of charge (or life) remaining in the battery as a
percentage of full capacity, if the battery is installed. An analog bar is provided
below the percentage amount as a quick visual reference to the approximate level of
charge remaining. The EXTERNAL POWER label appears if external power is
applied either through the docking station or via the optional power pack. Note that
battery recharging takes place only through the docking station. Touch the Return
button to display the SETUP MENU.

NOTE: When charging the battery, the battery status screen is not an accurate
indicator of battery level. The battery status screen will indicate a full charge (100%)
before the docking station indicates that charging is complete (RDY illuminates).

Select Interface

The touchpanel communicates with a control system to activate commands or to
display feedback from components within the system. The communication interface
must be correctly specified or communication will not occur. To set communication
parameters, first select the Interface button on the SETUP MENU to display the
SELECT INTERFACE screen, shown to the left. Then, select either the CRESNET
or the RF button to display the CRESNET INTERFACE MENU or the RF SETUP
screen, respectively. Use these screens to set the Cresnet network identity
(CRESNET ID) and the RF ID numbers.

Cresnet Interface Menu

CRESNET ID is a two-digit hexadecimal number that can range from 03 to FE. Note
that if the panel is to be used in a wired mode, this number and the NET ID set in the
SIMPL Windows program of the Cresnet system must match. NET ID for the STX­1700CXP is factory set to 03.

The UP and DOWN buttons increase and decrease the CRESNET ID by one digit
(i.e., 03, 04, 05, . . .FE).

RF SETUP

Select the Return button to return to the SELECT INTERFACE menu.

RF Setup

The RF ID identifies the gateway port that the touchpanel will use for
communication. The RF ID consists of a one-digit hexadecimal number. The
touchpanel can be set to one of fifteen numbers; “1” is shown as an example in the
illustration and is the default. This means that up to fifteen touchpanels can
communicate with a given gateway.

The UP and DOWN buttons increase/decrease the RF ID by one, respectively (i.e.,
1, 2, 3, …F).

The radio frequency channel setting (RF CHANNEL) identifies the particular TPS­RFGWX gateway used for communication with the touchpanel. (Up to sixteen TPS­RFGWX gateways can exist in a SIMPL program.) The RF CHANNEL setting
consists of a one-digit hexadecimal number; “0” is shown as an example in the
illustration on the left and is the default. The UP and DOWN buttons increase and
decrease the RF CHANNEL by one, respectively (i.e., 1, 2, 3, …F). Refer to the
latest revision of the TPS-RFGWX Operation Guide (Doc. 5847) for more
information on setting up the RF CHANNEL for the RF gateway.

Operations Guide – DOC. 6144 2-Way RF Wireless Touchpanel: STX-1700CXP • 9

2-Way RF Wireless Touchpanel Crestron STX-1700CXP

ADDITIONAL RF SETUP

KEY CLICK SETUP

Press the ADDITIONAL SETUP button to display the ADDITIONAL RF SETUP
screen. In situations where two or more touchpanels are in close proximity and could
conflict with each other, press the SET LOW POWER button to reduce the
touchpanel’s power and minimize the possibility of interference. The factory default
setting is SET HIGH POWER.

Use the PREVIOUS and NEXT buttons to choose the desired frequency band. The
choices correspond with the names shown in the following table. The table shows
the 802.11b channels within each band that are occupied by the STX-1700CXP.
Selection of a band is based on a number of factors, including the need to avoid
interference with nearby RF devices, and compliance with local communication
laws. In the US, Crestron recommends using Bands 5 (USA comp 1) through 9
(USA comp 5). Bands 1 through 4 (France, Spain, Japan, and Canada) are intended
for use in Cresnet systems outside the US. The default setting is Band 0, USA
(original), which is not Wi-Fi friendly. At this setting, the touchpanel can
communicate with a TPS-RFGWX gateway whether it is Wi-Fi friendly or not, since
Band 0 is the default for both versions of the gateway. Note that the touchpanel and
gateway must be set to the same band in order to communicate.

Freq.

Band

In the table, a bullet (•) indicates channels that are used by the STX-1700CXP. The unmarked channels
can be used by other devices communicating near the Cresnet system, thus minimizing interference.

Range

(MHz) Band Name

#

0 2400-2474
1 2448-2474
2 2448-2474
3 2471-2497
4 2452-2477
5 2400-2425
6 2409-2435
7 2419-2445
8 2430-2455
9 2440-2465

USA (original)

France

Spain

Japan

Canada
USA (comp 1)
USA (comp 2)
USA (comp 3)
USA (comp 4)
USA (comp 5)

1234567891011121314

•••••••••••••

•••••

•••••••

Occupied 802.11b Channels

•••••••

•••••••

••••

•••••••

••••••••

•••••••••

•••••••••

After the Cresnet ID, RF ID, RF CHANNEL, and Band settings have been verified,
touch the Return button at the bottom of the screen to save settings and display the
SELECT INTERFACE screen. Touch Return again to display the SETUP MENU.

Key Click Setup

From the SETUP MENU, press the Key Click Enabled button to open KEY CLICK
SETUP screen. (If the function is currently disabled, the button legend is “Key Click
Disabled.”) To enable an audible tone (beep) when the touchpanel buttons are
pressed, select among the Short, Med, or Long KEY CLICK ENABLE/LEN buttons
to set the duration of the tone. The touchpanel responds with a corresponding signal.
To disable the feature, select Click Off.

Use the KEY CLICK VOLUME UP and DOWN buttons to increase and decrease the
volume of the signal. The area to the right of the buttons shows the relative volume
from 0% to 100%, both as a numeric value and, for a quick visual reference, as an
analog bar.

Select the Return button to return to the SETUP MENU.

10 • 2-Way RF Wireless Touchpanel: STX-1700CXP Operations Guide - DOC. 6144

Crestron STX-1700CXP 2-Way RF Wireless Touchpanel

b

SCREEN SETTINGS

- BRIGHTNESS

STARTUP PREFERENCE

POWER MANAGEMENT
TIMEOUT SETTINGS

Brightness

From the SETUP MENU, press the Brightness button to open the SCREEN
SETTINGS – BRIGHTNESS screen. The UP and DOWN buttons increase and
decrease screen brightness, respectively. The area to the right of the buttons shows the
relative brightness from 0% to 100%.

Select the Return button to return to the SETUP MENU.

Startup Preference

The Startup Preference option allows (when the touchpanel is off or in standby) the
display to come on or stay off when a “quick” pushbutton is pressed. From the SETUP
MENU, press the Startup Preferences button to open the STARTUP PREFERENCE
screen. In either case, the button signal will be sent to the RF gateway if the touchpanel
is in standby mode.

When pressed, the DISPLAY ON FROM HARDKEY button toggles between
ENABLED and DISABLED. With ENABLED selected, the display comes on when
one of the “quick” pushbuttons is pressed. With DISABLED selected, the display stays
off when a “quick” pushbutton is pressed (if touchpanel was off, it goes to standby).
The default is DISABLED.

Select the Return button to return to the SETUP MENU.

Power Management Timeout Settings

The Power Management feature is intended to conserve energy, and to extend the
service life of the battery. From the SETUP MENU, press the Power Management

utton to display the POWER MANAGEMENT TIMEOUT SETTINGS screen. Use

the STANDBY and POWER DOWN UP and DOWN buttons to set the respective

30 10

timeouts from 0 through 120 minutes, where 0 disables the timeout. It adjusts in one­minute increments from 1 to 10, in ten-minute increments from 20-120.

Use the Standby Now and Power Down Now buttons to immediately enter the
respective mode.

STANDBY timeout turns the display and backlight off when the touchpanel is
inactive for the specified time. When the touchpanel is reactivated, the last screen to
be displayed reappears. The specified time is displayed in minutes. The default
STANDBY timeout is 10 minutes.

POWER DOWN timeout turns off all power when the touchpanel is inactive for the
specified time. When the touchpanel is activated, the first page of the project
appears. The specified time is displayed in minutes. The default POWER DOWN
timeout is 30 minutes. It adjusts in one-minute increments from 1 to 10, in ten­minute increments from 20-120.

NOTE: Power Down Timeout should be set low to maximize battery life. However,
Power Down Timeout should be set greater than Standby Timeout. Otherwise, the
Standby Timeout is meaningless.

NOTE: When the panel is powered down, it will take about 1.5 seconds to power up
and respond to a button press. There is no delay from Standby mode.

NOTE: This touchpanel does not include a built-in option to power up on the last
page viewed prior to power down. To power up on the last page viewed, you must
give the pages discrete join numbers and track them with SIMPL Windows logic.

Operations Guide – DOC. 6144 2-Way RF Wireless Touchpanel: STX-1700CXP • 11

2-Way RF Wireless Touchpanel Crestron STX-1700CXP

NOTE: If the external AC power pack is attached to the touchpanel and plugged
into an active AC receptacle or if the touchpanel is resting in the docking station
(ST-DSN) and plugged into an active AC receptacle, the panel does not power down
when the power down timeout is achieved. Recall that the purpose of this timeout is
to maximize battery life. Standby timeout still functions.

Press Return to save the settings and return to the SETUP MENU.

DIAGNOSTICS Menu

DIAGNOSTICS MENU

The Diagnostics button from the MAIN MENU should only be used under
supervision from a Crestron customer service representative during telephone
support. Many options available from the DIAGNOSTICS MENU, shown to the left,
are numeric in nature and their interpretation is beyond the scope of this manual.

General Use and Safety

WARNING: To avoid shock hazard and possible damage to the unit, do not use the
touchpanel in the rain or expose it to unnecessary moisture.

Recommended Touchpanel Cleaning

Keep the surface of the touchscreen free of dirt, dust, or other materials that could
degrade optical properties. Long-term contact with abrasive materials can scratch the
surface, which may detrimentally affect image quality.

For best cleaning results, use a clean, damp, non-abrasive cloth with any
commercially available non-ammonia glass cleaner. The surrounding plastic
enclosure may not provide a completely watertight seal. Therefore, apply cleaning
solution to the cloth rather than the surface of the touchscreen. Wipe touchscreen
clean and avoid leakage of moisture beneath panels.

12 • 2-Way RF Wireless Touchpanel: STX-1700CXP Operations Guide - DOC. 6144

Crestron STX-1700CXP 2-Way RF Wireless Touchpanel

f

p

Programming Software

Have a comment about
Crestron software?

Direct software related
suggestions and/or complaints to
Crestron via email
([e-mail])
Do not forward any queries to
this address. Instead refer to
“Further Inquiries” on page 29

or assistance.

The easiest method of

rogramming, but does not
offer as much flexibility as
SIMPL Windows.

.

You can create a program that allows you to set up the STX-1700CXP to operate a
Crestron control system using the Crestron programming tools Crestron Application
Builder

™ (AppBuilder) and SIMPL Windows. These tools are intended for users

with different levels of programming knowledge. The flexibility of each tool is
proportional to the degree of programming expertise (i.e., the more flexible, the
more a programmer needs to know and account for). Of course, one can initiate
programming using the easiest method (Crestron AppBuilder) and use advanced
techniques that are available from SIMPL Windows to customize the job.

VT Pro-e is a Windows

®

compatible software package for creating Crestron
touchpanel screen designs. Refer to “Programming with VT Pro-e” on page 18 for
additional details regarding VT Pro-e.

The following are recommended software version requirements for the PC:

• SIMPL Windows version 2.04.14 or later. Requires SIMPL+ Cross
Compiler version 1.1.

• Crestron Database version 15.9.10 or later.

• (Optional) Crestron Application Builder version 1.2.3 or later. Requires

SIMPL Windows.

• VT Pro-e version 3.0.0.8 or later, used for graphical touchscreen design.

• (Optional) Crestron Engraver version 2.1.0.2

Programming with the Crestron AppBuilder

The Crestron AppBuilder offers automatic programming for such residential and
commercial applications as audio distribution, home theater, video conferencing, and
lighting. The interface of this tool guides you through a few basic steps for
designating rooms and specifying the control system, touchpanels, devices, and
functionality. The Crestron AppBuilder then programs the system, including all
touchpanel projects and control system logic.

The Crestron AppBuilder is fully integrated with Crestron's suite of software
development tools, including SIMPL Windows, VT Pro-e, Crestron Database, User
IR Database, and User Modules Directory. The Crestron AppBuilder accesses these
tools behind the scenes, enabling you to easily create robust systems.

Programming with SIMPL Windows

NOTE: The following assumes that the reader has knowledge of SIMPL Windows.
If not, refer to the extensive help information provided with the software.

NOTE: In the following description, the PRO2 control system is used.

NOTE: The STX-1700CXP can operate as a wired panel when set correctly in the

SIMPL program. This is recommended to troubleshoot the program code and to
eliminate wireless/RF configuration issues before running the program in wireless
mode.

SIMPL Windows is Crestron's software for programming Crestron control systems.
It provides a well-designed graphical environment with a number of workspaces
(i.e., windows) in which a programmer can select, configure, program, test, and

Operations Guide – DOC. 6144 2-Way RF Wireless Touchpanel: STX-1700CXP • 13

2-Way RF Wireless Touchpanel Crestron STX-1700CXP

PRO2 System View

monitor a Crestron control system. SIMPL Windows offers drag and drop
functionality in a familiar Windows

®

environment.

This section describes a sample SIMPL Windows program that includes an STX­1700CXP.

Configuration Manager is where programmers “build” a Crestron control system by
selecting hardware from the Device Library. In Configuration Manager, drag the
PRO2 from the Control Systems folder of the Device Library and drop it in the upper
pane of the System Views. The PRO2 with its associated communication ports is
displayed in the System Views upper pane.

The System Views lower pane displays the PRO2 system tree (refer to graphic
below). This tree can be expanded to display and configure the communications
ports.

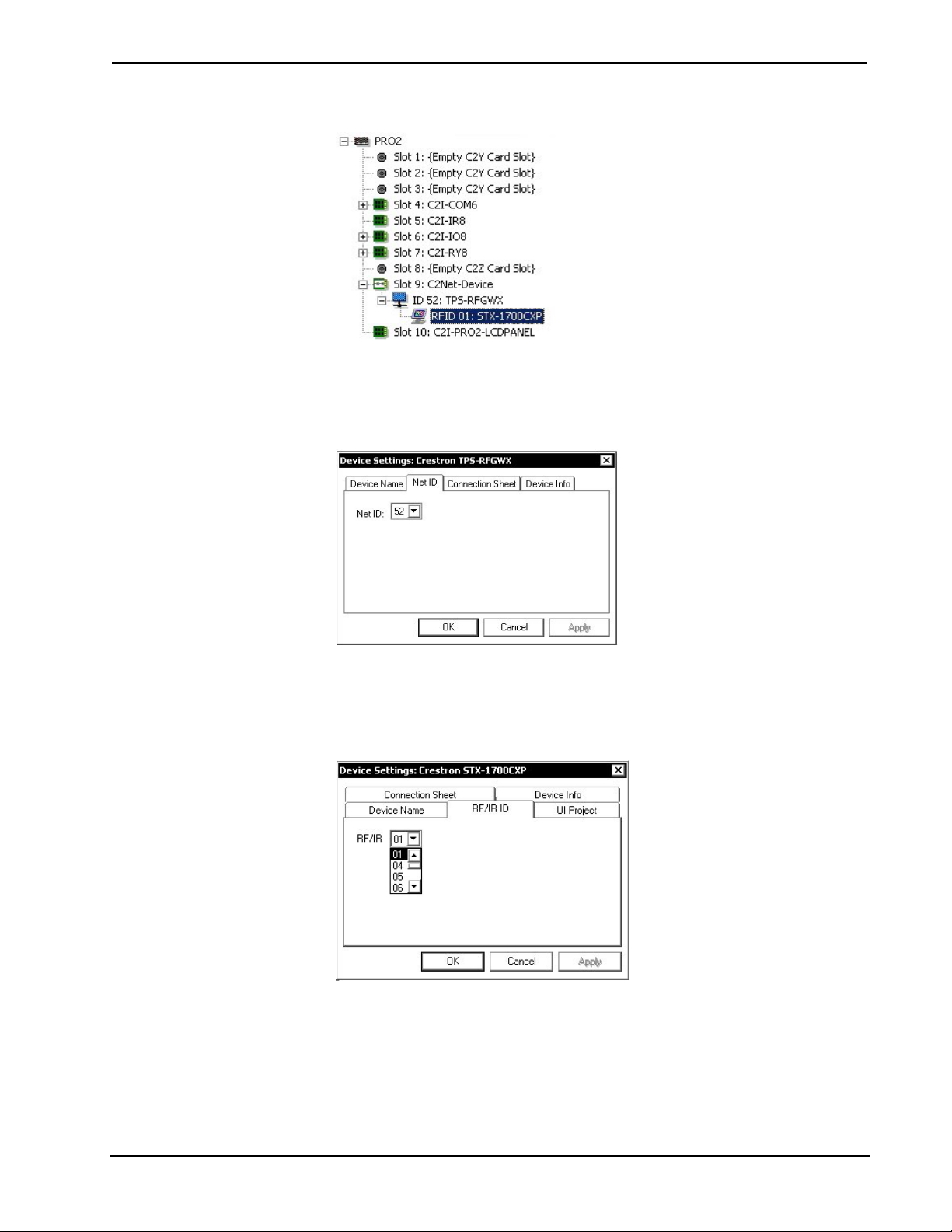

Expanded PRO2 System Tree

C2Net-Device Slot in Configuration Manager

To incorporate an STX-1700CXP into the system, a gateway device is required. The
C2Net-Device Slot can accept a gateway such as the TPS-RFGWX. Once a gateway
is configured in a C2Net-Device Slot, the slot allows Cresnet communication
between the touchpanel and the control system.

In Configuration Manager, drag the TPS-RFGWX gateway from the Wireless
Receivers (RF) folder of the Device Library and drop it in the upper pane of the
System Views. The System Views upper pane displays the TPS-RFGWX device icon
below the PRO2 graphic.

Drag the STX-1700CXP from the Touchpanels (Wireless | Wireless Two-Way)
folder of the Device Library and drop it on the TPS-RFGWX symbol in System
Views. The PRO2 system tree displays the TPS-RFGWX gateway in Slot 9, with a
default NET ID of 52. The TPS-RFGWX displays the touchpanel at the touchpanel’s
default RF ID location, “01,” as shown in the graphic on the next page.

14 • 2-Way RF Wireless Touchpanel: STX-1700CXP Operations Guide - DOC. 6144

Crestron STX-1700CXP 2-Way RF Wireless Touchpanel

C2Net Device, Slot 9

Double-click the TPS-RFGWX icon in the upper pane to open the “Device Settings”
window. This window displays TPS-RFGWX device information. Select the Net ID
tab to change the gateway Net ID, as shown in the following graphic.

“Device Settings” Window for the TPS-RFGWX

Similarly, expand the system tree in the lower pane and double-click the STX­1700CXP icon to open the “Device Settings” window for the touchpanel. Select the
RF/IR ID tab to change the touchpanel RF ID, as shown below. For more information
on setting the RF/IR ID, refer to “RF Setup” shown on page 9.

Touchpanel “Device Settings” Window

STX-1700CXP Symbol in Programming Manager

Programming Manager is where programmers “program” a Crestron control system
by assigning signals to symbols. The graphic after this paragraph shows the STX­1700CXP symbol in the SIMPL Windows’ Programming Manager.

Operations Guide – DOC. 6144 2-Way RF Wireless Touchpanel: STX-1700CXP • 15

2-Way RF Wireless Touchpanel Crestron STX-1700CXP

Detail View of the STX-1700CXP in SIMPL Windows’ Programming Manager

Signal Types

Signals interconnect the various devices and logic symbols that comprise a SIMPL
program. Signals can be one of three types: digital, analog, or serial. For any given
signal, the signal type is determined by its driving source. That is, if the symbol that
drives the signal has an analog output, then, by definition, the signal connected there
will be an analog signal.

In SIMPL Windows, the signal types are color-coded as follows:

Digital = Blue

Analog = Red

Serial = Black

Other = Green

NOTE: “Other” signals are a combination of the three basic types (e.g. many

symbols accept either analog or serial signals where the combination is shown as a
green signal). The signal type is displayed on the Status Bar when the signal is
highlighted.

For additional information, refer to Doc. 6120, Crestron SIMPL Windows Symbol Guide. It
may be downloaded from the Downloads | Product Manuals | Software section of the Crestron
website (www.crestron.com).

Digital Signals

A digital signal contains one bit of information and usually takes on one of two
values: 1 or 0. These two digits can represent the logical values true and false, and
they can be represented in an electronic device by the states on/off or high/low,
recognized as two voltage levels. (Other common descriptors are active/inactive.)

Analog Signals

Unlike digital signals, analog signals can vary continuously in value, in the same
manner as a parameter such as volume, temperature, or pressure. Analog signals
contain 16 bits of information, which means that this type of signal can have values
ranging from 0 to 65535 (2

16 • 2-Way RF Wireless Touchpanel: STX-1700CXP Operations Guide - DOC. 6144

16

-1). This 16-bit property makes analog signals useful for

Crestron STX-1700CXP 2-Way RF Wireless Touchpanel

controlling devices that do not have discrete settings, such as volume controllers,
pan/tilt head controllers, and lighting dimmers.

Serial Signals

Serial signals are much like analog signals, in that they, too, contain 16 bits of
information. However, whereas the value of an analog signal is used directly–to
control volume or temperature, for instance–the value of the serial signal is used as a
pointer to a location in memory that contains a string of characters. When a serial
signal is routed to a symbol, that symbol can identify the signal as serial rather than
analog and it will automatically look at the data to which it points.

Thus, serial signals are used to facilitate the transmission of serial data (strings of
characters). These signals can be generated by incoming data on a COM port or by a
symbol that has a serial output.

STX-1700CXP Input/Output Signals

The STX-1700CXP symbol provides up to 4000 digital joins, up to 1024 analog
joins, and up to 127 serial output joins and 255 serial input joins. The programmer
selects the signal types by clicking on the appropriate button at the top of the Symbol
Detail view when programming the panel.

The following tables list functional descriptions for touchpanel outputs and inputs.

Digital Output Signal Descriptions

OUTPUT DESCRIPTION

press 1 through press 4000

Digital Input Signal Descriptions

Notifies control system of button press (1 – 4000).
High/1 = press On
Low/0 = press Off

INPUT DESCRIPTION

fb 1 through fb 4000

Analog Output Signal Descriptions

Notifies panel to display feedback (1 – 4000). This can
represent that the button was pressed, or can be actual
device feedback, e.g., that power was turned on.

OUTPUT DESCRIPTION

an_act 1 through an_act 1024 Notifies control system of an analog action (1 – 1024).

Any value from 0 through 65535

Analog Input Signal Descriptions

INPUT DESCRIPTION

an_fb 1 through an_fb 1024 Notifies panel of analog feedback (1 – 1024).

Serial Output Signal Descriptions

OUTPUT DESCRIPTION

text-I1 through text-I127 For remapping of system reserved joins (1 – 127).

Operations Guide – DOC. 6144 2-Way RF Wireless Touchpanel: STX-1700CXP • 17

2-Way RF Wireless Touchpanel Crestron STX-1700CXP

j

Serial Input Signal Descriptions

INPUT DESCRIPTION

Pushbutton Layout and Join
Number Assignment

1

2

3

4

5

CRESTRON

text-o1 through text-o255

Notifies panel of text string (1 – 255). Also called
indirect text.

Device Extenders

Device extenders provide additional logic and functionality to a device. The Poll
Manager and Sleep/Wake Manager symbols are device extenders for touchpanels.
For the STX-1700CXP in wired mode only, the Poll Manager takes the touchpanel
on and off line during polling by the control system. In wireless mode, Sleep/Wake
Manager suspends and restores operation of the touchpanel. For additional
information about Device Extenders, refer to the latest version of the Crestron
SIMPL Windows Symbol Guide (Doc. 6120), or the on-line help included with
SIMPL Windows.

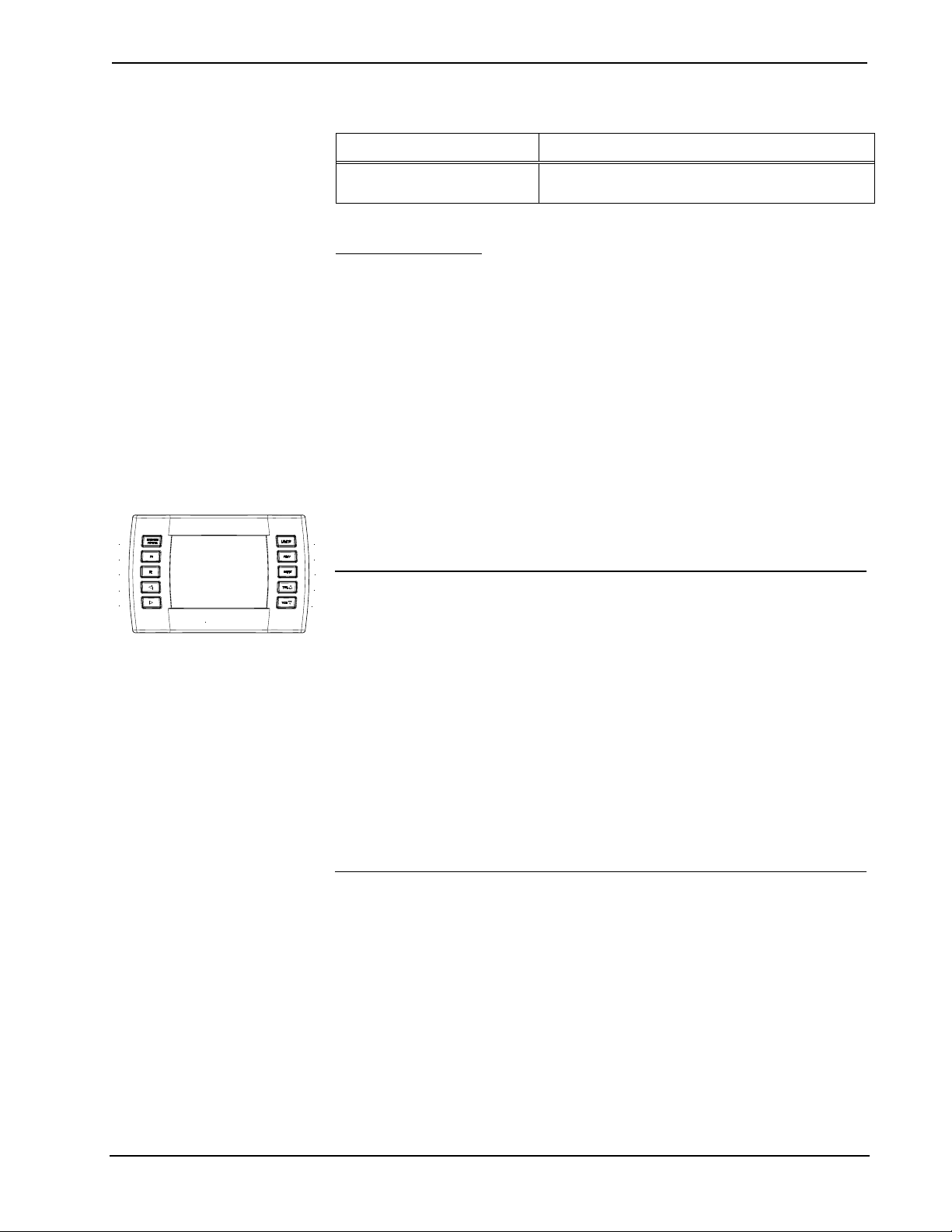

“Quick” Pushbuttons

The STX-1700CXP has ten “quick” pushbuttons, five on each side of the LCD
display. You can use these buttons to access any frequently used commands. Each
button has a permanently fixed digital join number; refer to the illustration shown to
the left. The sequence of digital join numbers is (top to bottom) 1 through 5 on the

6

left side and 6 through 10 on the right side.

7

8

NOTE: A user may not want the LCD display to come on after a pushbutton is

9

pressed when the unit is off. The Startup Preference option allows the user to select

10

whether the touchpanel’s display comes on or stays off after a pushbutton is pressed.
For more information, refer to “Startup Preference” on page 11.

NOTE: To use a quick pushbutton to flip a page (change a screen) on the STX­1700CXP, you would assign the desired button’s digital join number to the page
(Crestron recommends this method) and enable the corresponding feedback from the
control system. Using button 10 as an example, in VT Pro-e you would assign digital

oin number 10 to a page using page properties. In the SIMPL Windows’
Programming Manager view, you would connect the signal at press 10 (output) to
the fb10 (input) of the STX-1700CXP symbol.

NOTE: Assuming that the touchpanel is powered down, pressing a “quick”
pushbutton once “wakes up” the touchpanel but no command is sent. A second
button press sends the command. However, if the touchpanel is actually in standby
mode, the panel is “awake” and the initial button press sends the command.

Programming with VT Pro-e

Control screen variations incorporating two- and three-dimensional graphics and text
are possible and can be created with VT Pro-e, a design and programming
Windows
designed for each application. Each touchpanel can be organized with the ideal,
color-oriented control environment with custom control graphics: icons, two and
three-dimensional buttons, and floor plans. The project is uploaded to the
touchpanel’s flash PROM. The touchpanel uses the project until another is uploaded
from the PC. The PC may be disconnected from the control processor except when
uploading a project.



-based software program. A set of pages, which make up a project, can be

18 • 2-Way RF Wireless Touchpanel: STX-1700CXP Operations Guide - DOC. 6144

Crestron STX-1700CXP 2-Way RF Wireless Touchpanel

For additional software information, refer to the help file provided with the software.
The latest version of VT Pro-e can be obtained from the Downloads | Software
Updates section of the Crestron website (www.crestron.com)

.

Reserved Join Numbers

A reserved join number is a feature of the software that enables a designer to create a
button that completes a predetermined function. The tables below provide lists of
reserved join numbers available within the VT Pro-e software.

NOTE: Many touchpanel configuration “shortcuts” are available via the software.
A button can be created on a page that adjusts brightness, etc., via reserved join
numbers.

Digital Reserved Join Numbers STX-1700CXP

JOIN NUMBER FUNCTION VALUE

17200 Power Off

17216 Brightness Up
17217 Brightness Down

17218 Brightness High
17219 Brightness Medium (Default)
17220 Brightness Low
17230 Standby On

17231 Standby Timeout Up

17232 Standby Timeout Down

17233 Power Timeout Up
17234 Power Timeout Down

17242 Run Setup Off
17302 Keyclick On
17303 Keyclick Off
17304 Key Click Volume Up
17305 Key Click Volume Down
17322 Key Click Short Short (Default)

17323 Key Click Medium Medium
17324 Key Click Long Long
17509 Out of Range* N/A
17532 Send Update Request N/A

* Assigning 17509 (Out of Range) to a page, sub page or button activates the page,
subpage or button when the STX-1700CXP goes out of range.

Analog Reserved Join Numbers for STX-1700CXP

JOIN NUMBER FUNCTION VALUE

17201 LCD Brightness* 1-100%
17202 Power Timeout* 0-120 minutes
17203 Standby Timeout* 0-120 minutes
17300 Key Click Volume* 1-100%
17507 Battery Level 0-100%

* Defaults: LCD Brightness – 50% Standby Timeout – 10 minutes

Power Timeout – 30 minutes Key Click Volume – 50%

Operations Guide – DOC. 6144 2-Way RF Wireless Touchpanel: STX-1700CXP • 19

2-Way RF Wireless Touchpanel Crestron STX-1700CXP

Uploading and Upgrading

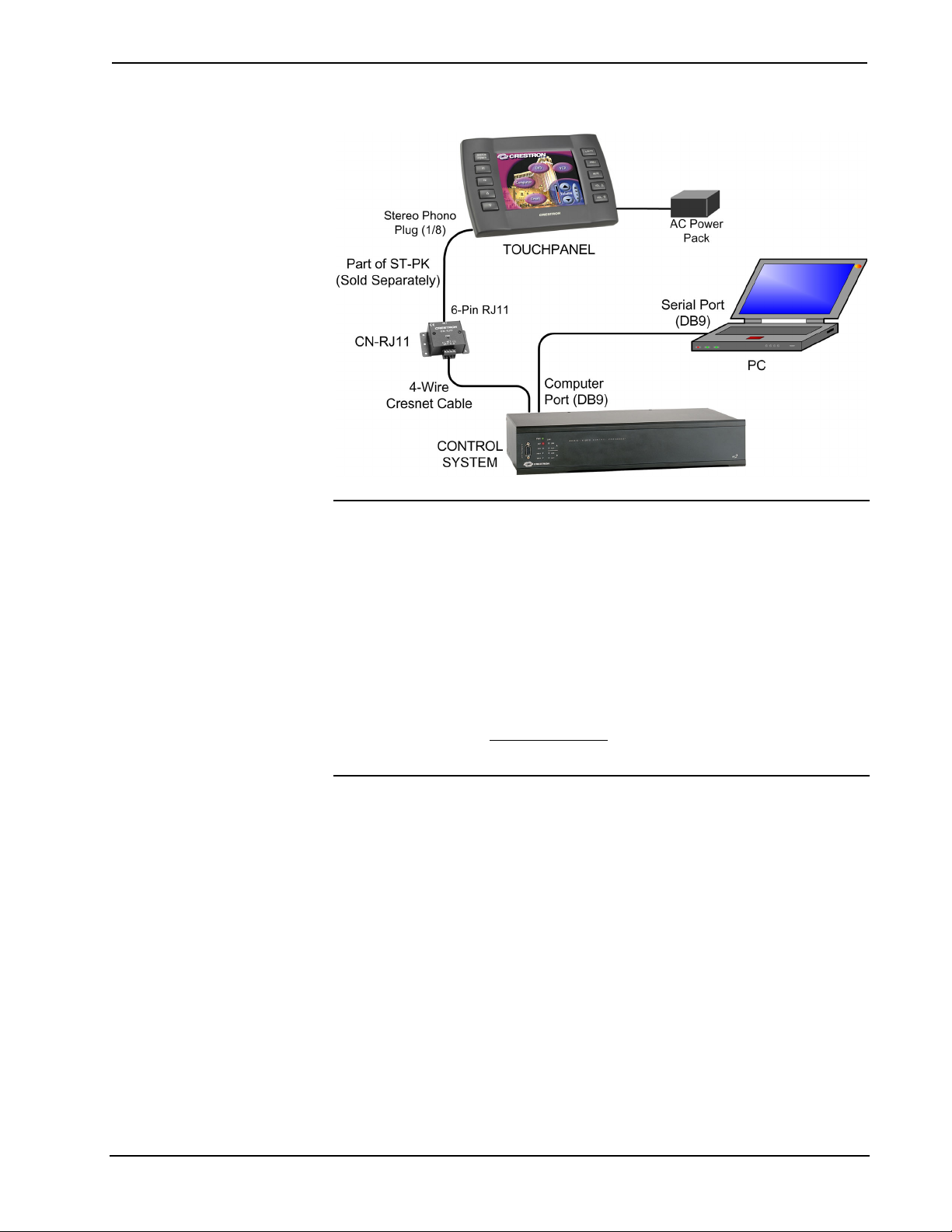

Assuming a PC is properly connected to the entire system, Crestron programming
software allows the programmer to upload programs and projects after their
development to the system and network devices. However, there are times when the
files for the program and projects are compiled and not uploaded. Instead, compiled
files may be distributed from programmers to installers, from Crestron to dealers,
etc. Even firmware upgrades are available from the Crestron website as new features
are developed after product releases. In those instances, one has the option to upload
via the programming software or to upload and upgrade via the Crestron Viewport.

NOTE: The Crestron Viewport utility performs multiple system tasks, primarily via
an RS-232 or TCP/IP connection between the control system and a PC. It is used to
observe system processes, upload new operating systems and firmware, change
system and network parameters, and communicate with network device consoles and
touchpanels, among many other tasks. Viewport can also function as a terminal
emulator for generic file transfer. All of these functions are accessed through the
commands and options in the Viewport menus. Therefore, for its effectiveness as a
support and diagnostic tool, the Crestron Viewport may be preferred over
development tools when uploading programs and projects.

The following sections define how one would upload a VT Pro-e project or upgrade
the firmware of the STX-1700CXP. However, before attempting to upload or
upgrade, it is necessary to establish communications.

Communication Settings

NOTE: For laptops and other PCs without a built-in RS-232 port, Crestron
recommends the use of PCMCIA cards, rather than USB-to-serial adapters. If a
USB-to-serial adapter must be used, Crestron has tested the following devices with
good results:

Belkin (large model) F5U103
I/O Gear GUC232A
Keyspan USA-19QW

Other models, even from the same manufacturer, may not yield the same results.

The procedure in this section provides details for RS-232 communication between
the PC and the control system. If TCP/IP communication is preferred, consult the
latest version of the Crestron e-Control Reference Guide (Doc. 6052) or the
respective Operations Guide for the control system. These documents are available
from the Downloads | Product Manuals section of the Crestron website
(www.crestron.com). Refer to the figure on the next page for a typical connection
diagram when uploading files.

NOTE: Use a standard DB9 male to female “straight-through” cable.

20 • 2-Way RF Wireless Touchpanel: STX-1700CXP Operations Guide - DOC. 6144

Crestron STX-1700CXP 2-Way RF Wireless Touchpanel

Typical Connection Diagram when Uploading

NOTE: If the control system in use has a 4-pin network connector rather than a
modular (RJ11-type) NET connector, use an ST-CBL interface cable (sold
separately).

NOTE: To make a cable for either configuration, refer to the “Programming Cable
Specifications” diagram after these notes.

NOTE: An adapter such as a CN-RJ11 (sold separately) is required when using the
RJ11 cable.

NOTE: The RJ11 (part of ST-PK) and ST-CBL cables can also be found as part
numbers CNSP-585 and CNSP-586, respectively, in the Crestron cable database. The
database can be downloaded from the Downloads/Software Updates/Cables section
of the Crestron website (www.crestron.com

NOTE: The procedure on the next page uses the ST-CBL.

).

Operations Guide – DOC. 6144 2-Way RF Wireless Touchpanel: STX-1700CXP • 21

2-Way RF Wireless Touchpanel Crestron STX-1700CXP

Programming Cable Specifications

(ST-CBL)

- OR -

CONNECTOR, 6 PIN, RJ11

NOTE: Tab is
facing away from
copper pins.

BLACK
RED
SHIELD

1
2
3

Y

4

Z

5

G

6

1. Before making any connections to the touchpanel, verify that the control
system is properly connected to the PC (using an RS-232 DB9 straight­through cable, Crestron P/N CNSP-587) and powered on.

2. Attach the stereo connector end of the ST-CBL to the touchpanel.

3. Attach the network connector end of the ST-CBL to the connector labeled
NET on the control system.

4. Attach the appropriate Crestron external power pack to the touchpanel and
plug it into an outlet. At the PC, make sure that no programs accessing the
COM port of the PC are running.

5. Open the Crestron Viewport.
Either launch the stand-alone version of Viewport, or start SIMPL Windows
or VT Pro-e, and from the menu bar, select Tools | Viewport.

6. From the Viewport menu, select Setup | Communications settings
(alternatively, press Alt+D) to open the “Port Settings” window. Refer to
the figures on the next page.

22 • 2-Way RF Wireless Touchpanel: STX-1700CXP Operations Guide - DOC. 6144

Crestron STX-1700CXP 2-Way RF Wireless Touchpanel

Accessing the “Port Settings” Window

7. Select the RS-232 connection type. Verify the available COM is selected.
Verify that the baud rate is set to 115200 (PRO 2 default), the parity is
None, the data bits is Eight, the stop bits is One, XON/XOFF is not
selected, and RTS/CTS is selected. Click the OK button to save the settings
and close the window.

NOTE: You may need to select a lower baud rate for larger files (38,400 is
recommended). Make sure XModem is selected from Mode for Network Transfers.

“Port Settings” Window

8. Proceed to “Uploading a VT Pro-e Project” on the next page or “Firmware
Upgrade” that begins on page 25 as appropriate.

Operations Guide – DOC. 6144 2-Way RF Wireless Touchpanel: STX-1700CXP • 23

2-Way RF Wireless Touchpanel Crestron STX-1700CXP

Uploading a VT Pro-e Project

A compiled VT Pro-e file has the
extension .vtz

To upload a compiled VT Pro-e project to the STX-1700CXP, complete the
following steps.

1. Make sure that “Communication Settings” that begins on page 20 has been
performed.

2. As shown below, select File Transfer | Send Touchpanel (alternatively,
depress Alt+T) from the Viewport menu.

Select Send Touchpanel

3. As shown below, select the NET ID of the STX-1700CXP and then click
OK. The “Touchpanel Transfer” window appears (refer to graphic below).

“Select Network ID” Window

“Touchpanel Transfer” Window

4. Click Browse. The “Open” window appears as shown on the next page.

5. Select the VT Pro-e (.vtz) file and click Open. The transfer completes
automatically.

24 • 2-Way RF Wireless Touchpanel: STX-1700CXP Operations Guide - DOC. 6144

Crestron STX-1700CXP 2-Way RF Wireless Touchpanel

Select VTZ File

6. Disconnect the programming cable and the external power pack from the
touchpanel.

7. Close the Viewport, exit VT Pro-e, and disconnect the programming cable
from the PC and the control system.

Firmware Upgrade

A firmware upgrade file has the
extension .csf

Firmware upgrade files can be obtained from the Downloads | Software Updates |
Touchpanels section of Crestron’s website (www.crestron.com)
STX-1700CXP firmware, complete the following steps.

. To upgrade the

1. Make sure that “Communication Settings” that begins on page 20 has been
performed. Suggested baud rate is 38400.

2. As shown below, select File Transfer | Update Touchpanel/Keypad
Firmware from the Viewport menu.

Select Update Touchpanel Firmware

3. As shown on the next page, select the NET ID of the STX-1700CXP and
then click OK.

Operations Guide – DOC. 6144 2-Way RF Wireless Touchpanel: STX-1700CXP • 25

2-Way RF Wireless Touchpanel Crestron STX-1700CXP

“Select Network ID” Window

4. As shown below, select the firmware (CSF) file and click Open. The
transfer will complete automatically.

Select CSF File

5. Disconnect the programming cable and the external power pack from the
touchpanel.

26 • 2-Way RF Wireless Touchpanel: STX-1700CXP Operations Guide - DOC. 6144

Crestron STX-1700CXP 2-Way RF Wireless Touchpanel

Problem Solving

Troubleshooting

The table below and continued on the next page provides corrective action for
possible trouble situations. If further assistance is required, please contact a Crestron
customer service representative.

NOTE: To minimize system diagnostics and troubleshooting, Crestron recommends
defining the touchpanel as a wired unit in SIMPL Windows, then test functionality as
a wired network device prior to testing the TPS-XTXRF transceiver operations. This
will help in determining whether there is a programming problem, an RF setting
conflict, or RF interference in the environment.

NOTE: The diagram shown on page 21 is a typical “wired” hookup.

STX-1700CXP Troubleshooting

TROUBLE

Touchpanel does not
function.

Project can not be
uploaded to
touchpanel.

Wrong screens
appear on touchpanel.

Active area does not
coincide with button
on screen.

Touchpanel display is
dark or too light.

Touchpanel exhibits
slow operation.

* You can also use the caltouch command in Viewport to access the Calibration option.

POSSIBLE

CAUSE(S)

No power to the
touchpanel.

Touchpanel is not
communicating to the
control system.

Touchpanel is not
powered up.

Communications
error between PC
and control system.

Incorrect NET ID
setting.

Problem with cable
between control
system and
touchpanel.

Wrong screens
uploaded.

Touchpanel is
incorrectly calibrated.

Screen brightness is
improperly set.

Compressed
graphics take time to
decompress.

CORRECTIVE ACTION

Confirm that battery pack is installed or
external adapter is connected.

Poll the network (F4 in Viewport, VT Pro-e or
SIMPL Windows) to verify communication.

Touch the touchpanel to display a screen.
Verify that the panel has power supplied to it,
either battery or power pack.

Verify upload preferences is set to the COM
port being used to communicate to the control
system.

Verify that panel NET ID matches the NET ID
specified during upload. Refer to "Uploading a
VT Pro-e Project".

Check the cable for damage or bad
connections.

Upload correct screens. Refer to "Uploading a
VT Pro-e Project".

Remove power and then reapply power while
holding finger to touchscreen (for about five
seconds). The MAIN MENU appears. Select

Touch Screen Calibration

CALIBRATION MENU appears. Select

Perform Calibration

Hold a finger to the touchscreen for more than
five seconds from power off. Set brightness
using Setup menu.

If sufficient memory is already available,
decompressed graphics decrease the drawing
time of panel pages.

. The

and follow prompts. *

(continued on next page)

Operations Guide – DOC. 6144 2-Way RF Wireless Touchpanel: STX-1700CXP • 27

2-Way RF Wireless Touchpanel Crestron STX-1700CXP

STX-1700CXP Troubleshooting (continued)

TROUBLE

Touchpanel display is
dark.

One or more "quick"
pushbuttons do not
function as expected.

Touchpanel operation
appears unreliable.

Touchpanel does not
function and SIG LED
on TPS-RFGWX
illuminates, but Rx or
Tx LEDs do not.

SIG LED on TPS­RFGWX does not
illuminate.

Touchpanel screen
changes without
touching screen or
buttons.

POSSIBLE

CAUSE(S)

Standby or power
down timeout has
elapsed.

No power to the
touchpanel.

Unit out of range.
Refer to "Out of
Range Feature" on
page 27.

Wrong SIMPL
Windows program
uploaded.

Touchpanel is out of
range. Refer to "Out
of Range Feature"
below.

RF Interference Test as wired unit. If unit tests OK as wired

Code related issues Test as wired unit. If unit tests OK as wired

Touchpanel RF ID is
not set to match the
RF ID assigned in the
control system
program.

RF channel of
Touchpanel and
channel ID of TPS­RFGWX receiver do
not match.
Touchpanel went out
and then in range
while control system
changed a screen.

Touch screen to reactivate.

Verify the power is properly applied and all
connections are made.

Bring unit in range.

Upload correct SIMPL Windows program.
Refer to the SIMPL Window help file for more
information.

Bring unit within range. Refer to
"Specifications" for details.
Use reserved join number 17509 in SIMPL
Windows program to indicate when touchpanel
is out of range.

Install an additional TPS-RFGWX near the
area of use to accommodate roaming.

touchpanel, and fails as wireless touchpanel,
call Crestron Customer Service.

touchpanel, and fails as wireless touchpanel,
call Crestron Customer Service.

Verify that RF IDs match. Refer to the "Select
Interface" on page 8 for details and RF ID
parameters assigned in the program.

Verify that RF channel matches channel ID of
TPS-RFGWX. Refer to the "Select Interface"
on page 8 for details and RF ID parameters
assigned in the program.

Use reserved join number 17509 in SIMPL
Windows program to indicate when touchpanel
is out of range.

CORRECTIVE ACTION

Out of Range Feature

The out of range feature is always active. It is up to the programmer to provide an
indication on the touchpanel.

When the STX-1700CXP is out of range, it displays an out of range indication of
your choice (refer to “Reserved Join Numbers” on page 19), and the touchpanel does
not respond. Also, the TPS-RFGWX’s Tx (transmit) LED will flash every four to
five seconds for approximately 30 seconds and then the LED stops flashing (the unit
stops transmitting if the touchpanel does not come into range in the allotted time). If
the touchpanel comes into range before the TPS-RFGWX stops transmitting, the
display reverts to whatever screen the control system has active. If the touchpanel
comes into range after the TPS-RFGWX stops transmitting, the user must touch the
screen to activate the gateway and leave the out of range screen.

28 • 2-Way RF Wireless Touchpanel: STX-1700CXP Operations Guide - DOC. 6144

Crestron STX-1700CXP 2-Way RF Wireless Touchpanel

The screen may change if the control system sent a change to the touchpanel during
the time it was out of range.

Further Inquiries

If, after reviewing this Operations Guide for the STX-1700CXP, you cannot locate
specific information or have questions, please take advantage of Crestron's award
winning customer service team in your area. Dial one of the following numbers.

• In the US and Canada, call Crestron’s corporate headquarters at
1-888-CRESTRON [1-888-273-7876].

• In Europe, call Crestron International at [phone].

• In Asia, call Crestron Asia at [phone].

• In Latin America, call Crestron Latin America at [phone].

• In Australia and New Zealand, call Crestron Pacific at [phone].

Future Updates

As Crestron improves functions, adds new features, and extends the capabilities of
the STX-1700CXP, additional information and programming examples may be made
available as manual updates. These updates are solely electronic and serve as
intermediary supplements prior to the release of a complete technical documentation
revision.

Check the Crestron website (www.crestron.com
availability and its subjective value. Updates are available from the Download |
Product Manuals section and are identified as an “Addendum” in the Download
column.

) periodically for manual update

Operations Guide – DOC. 6144 2-Way RF Wireless Touchpanel: STX-1700CXP • 29

2-Way RF Wireless Touchpanel Crestron STX-1700CXP

Appendix A: Engraveable Pushbutton Installation

The STX-1700CXP is supplied with ten pushbuttons, pre-labeled with standard
legends. As an option, custom-engraved buttons can be designed and obtained by
using the Crestron Engraver software. Version 2.0.1.5 or later is available from the
Downloads | Software Updates section of the Crestron website (www.crestron.com

Perform the following to install engraveable pushbuttons on the STX-1700CXP. A
#1 Phillips screwdriver is required. Refer to the illustration below.

1. Remove the battery, and place the touchpanel face down on a clean work
surface.

2. Remove the four screws securing the front bezel to the base, and return the
unit to its normal position (hold the bezel and the base of the unit together at
the sides while turning it over, to prevent the assembly from falling apart).

3. Lift the bezel from the touchpanel, and remove the pushbuttons being
replaced. Note that the pushbutton sets fit snugly on the membrane switch.
(Refer to the following Notes.)

4. Put the new pushbuttons in place (refer to the following Notes), press firmly
to ensure they are seated, and place the bezel back in position.

).

NOTE: The rear of the pushbuttons are marked TOP 1-5 and 6-10 to ensure correct
orientation when installed. Do not remove the plastic frame connecting the buttons
together.

NOTE: Some touchpanels are supplied without any adhesive holding the membrane
switches is place. For these units, after assembling the new pushbuttons to the
membrane switches, carefully position the switch/pushbutton assemblies on the
printed circuit boards–edges should be aligned, and place the bezel over the
pushbuttons to hold them in place.

5. Hold the bezel in position and turn the unit over on its face.

6. Reinstall the four screws to secure the bezel to the base. Tighten the screws,
being careful not to strip the threads.

7. Reinstall the battery and verify that the pushbuttons function properly.

Engraveable Pushbutton Installation Diagram

Bezel

Membrane

Switch

Screw

Bottom view

Screw

5

10

Pushbuttons

Top view with

bezel removed

30 • 2-Way RF Wireless Touchpanel: STX-1700CXP Operations Guide - DOC. 6144

Battery

Crestron STX-1700CXP 2-Way RF Wireless Touchpanel

Appendix B: Optimum RF Reception Guidelines

Many factors can affect the reliability of RF communication between an RF gateway
and an RF touchpanel. While an effort has been made to determine operating
specifications, some specifications are not constant. RF Communication can be
limited by several factors including but not limited to EMI (electromagnetic
interference), intervening objects, antenna orientation and receiver placement. To
obtain maximum reliability and performance, some basic rules for installing RF
transceivers are listed below.

Minimize Interference

RF reception range can be hindered by spurious EMI noise that may interfere with or
mask the desired frequency thereby reducing useable range. EMI is generated by any
electrical device at various RF noise levels depending on the device. Sources of EMI
include computers, video equipment, digital processors, lighting dimmers, lighting
ballasts, motors or any large AC source. Every effort should be made to separate any
RF transceiver from these sources of RF noise including Audio Visual equipment in
racks. If a gateway must be installed in an equipment rack, make sure you have
ample separation between the equipment and the gateway.

NOTE: Check any 802.11b equipment operating near the Cresnet system to see that
it is using only channels that are not being used by the STX-1700CXP touchpanel. If
necessary, change the touchpanel’s band setting to avoid interference. Refer to
“Identity Codes” on page 7 for details.

Gateway Placement

Optimum reception for any RF transceiver is obtained by installing the gateway
transceiver in an open area or shelf with a clear line of sight (no obstructions
between gateway and receiver). Crestron recommends that the gateway is at least
five to six feet high for best results. Avoid placing transceivers or transmitters at a
low height or on the ground. Placing RF equipment near metal objects, walls, corners
or metal enclosures will compromise RF propagation and reception. Try to avoid
installing gateways in equipment racks, service rooms, electrical closets or in rooms
other than that which the panel or transmitter is located.

Antenna Orientation

The antenna orientation on Crestron gateways has considerable effect on range and
reliability. Optimum performance is obtained by setting the antenna horizontally
(parallel to the ground). When absolutely necessary, two alternate orientations are
possible – each will be less effective than the horizontal orientation:

 Point the antenna vertically

 Point the antenna at a right angle to the gateway.

These may allow for rack or equipment closet doors to be shut but these orientations
may also compromise reception. Never point the antenna downward or directly
parallel to the front panel, this will decrease range and reliability. Refer to
illustrations on the next page for examples of the different antenna orientations.

NOTE: RF propagation is best from the sides of the antenna.

Operations Guide – DOC. 6144 2-Way RF Wireless Touchpanel: STX-1700CXP • 31

2-Way RF Wireless Touchpanel Crestron STX-1700CXP

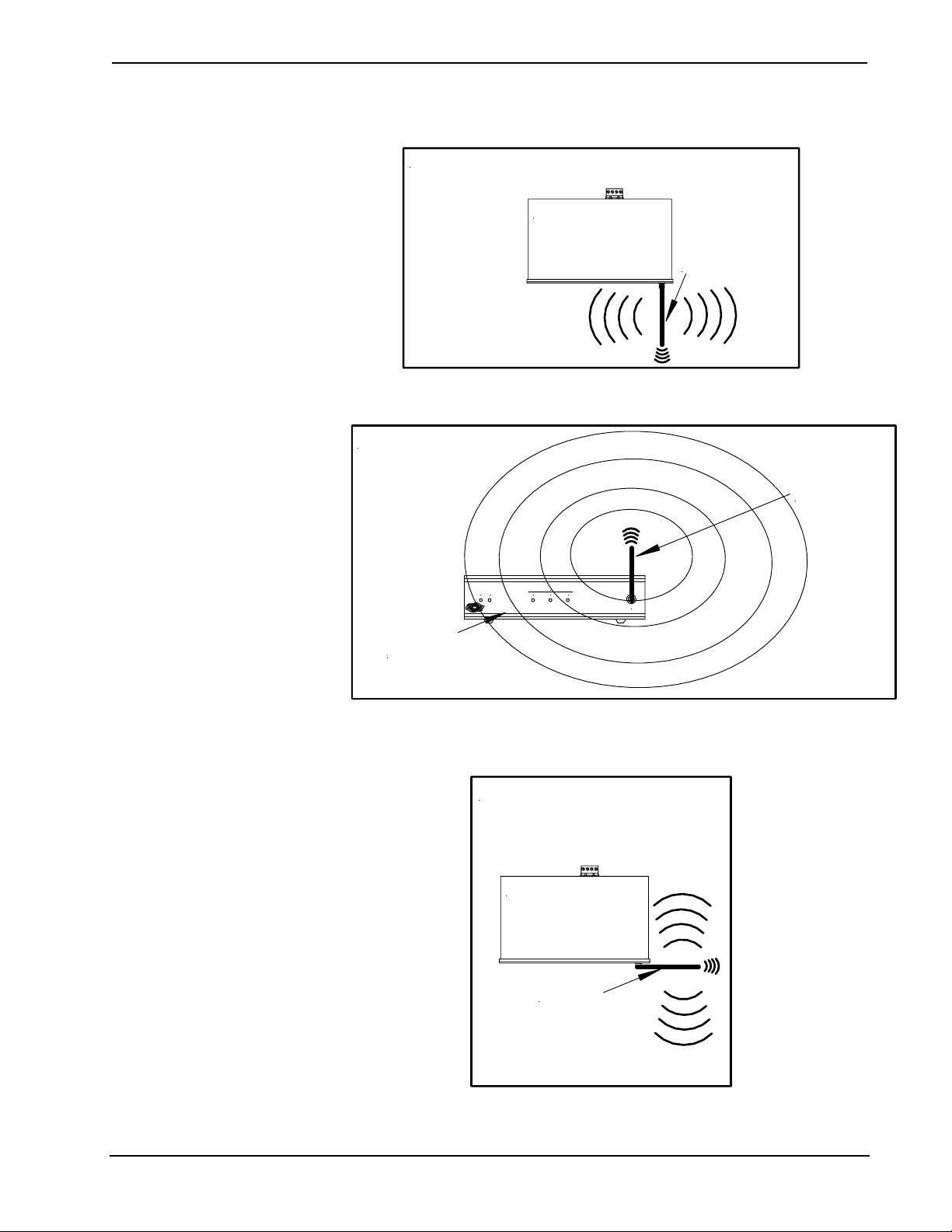

Horizontal Orientation

Building

Top of gateway

Antenna

Vertical Orientation

Building

Antenna

Front of
gateway

Right Angle Orientation

RF GATEWAY - 2 WAY

PWR NET RxSIGRFTx

CRESTRON

Building

Top of gateway

Antenna

ANTENNA

TPS-RFGWX

32 • 2-Way RF Wireless Touchpanel: STX-1700CXP Operations Guide - DOC. 6144

Crestron STX-1700CXP 2-Way RF Wireless Touchpanel

Software License Agreement

This License Agreement (“Agreement”) is a legal contract between you (either an individual or a single business entity) and
Crestron Electronics, Inc. (“Crestron”) for software referenced in this guide, which includes computer software and, as applicable,
associated media, printed materials, and “online” or electronic documentation (the “Software”).

BY INSTALLING, COPYING, OR OTHERWISE USING THE SOFTWARE, YOU REPRESENT THAT YOU ARE AN
AUTHORIZED DEALER OF CRESTRON PRODUCTS OR A CRESTRON AUTHORIZED INDEPENDENT PROGRAMMER
AND YOU AGREE TO BE BOUND BY THE TERMS OF THIS AGREEMENT. IF YOU DO NOT AGREE TO THE TERMS OF
THIS AGREEMENT, DO NOT INSTALL OR USE THE SOFTWARE.

IF YOU HAVE PAID A FEE FOR THIS LICENSE AND DO NOT ACCEPT THE TERMS OF THIS AGREEMENT,
CRESTRON WILL REFUND THE FEE TO YOU PROVIDED YOU (1) CLICK THE DO NOT ACCEPT BUTTON, (2) DO NOT
INSTALL THE SOFTWARE AND (3) RETURN ALL SOFTWARE, MEDIA AND OTHER DOCUMENTATION AND
MATERIALS PROVIDED WITH THE SOFTWARE TO CRESTRON AT: CRESTRON ELECTRONICS, INC., 15 VOLVO
DRIVE, ROCKLEIGH, NEW JERSEY 07647, WITHIN 30 DAYS OF PAYMENT.

LICENSE TERMS

Crestron hereby grants You and You accept a nonexclusive, nontransferable license to use the Software (a) in machine
readable object code together with the related explanatory written materials provided by Crestron (b) on a central processing unit
(“CPU”) owned or leased or otherwise controlled exclusively by You, and (c) only as authorized in this Agreement and the related
explanatory files and written materials provided by Crestron.

If this software requires payment for a license, you may make one backup copy of the Software, provided Your backup copy
is not installed or used on any CPU. You may not transfer the rights of this Agreement to a backup copy unless the installed copy of
the Software is destroyed or otherwise inoperable and You transfer all rights in the Software.

You may not transfer the license granted pursuant to this Agreement or assign this Agreement without the express written
consent of Crestron.

If this software requires payment for a license, the total number of CPU’s on which all versions of the Software are installed
may not exceed one per license fee (1) and no concurrent, server or network use of the Software (including any permitted back-up
copies) is permitted, including but not limited to using the Software (a) either directly or through commands, data or instructions from
or to another computer (b) for local, campus or wide area network, internet or web hosting services; or (c) pursuant to any rental,
sharing or “service bureau” arrangement.

The Software is designed as a software development and customization tool. As such Crestron cannot and does not
guarantee any results of use of the Software or that the Software will operate error free and You acknowledge that any development
that You perform using the Software or Host Application is done entirely at Your own risk.

The Software is licensed and not sold. Crestron retains ownership of the Software and all copies of the Software and
reserves all rights not expressly granted in writing.

OTHER LIMITATIONS

You must be an Authorized Dealer of Crestron products or a Crestron Authorized Independent Programmer to install or use
the Software. If Your status as a Crestron Authorized Dealer or Crestron Authorized Independent Programmer is terminated, Your
license is also terminated.

You may not rent, lease, lend, sublicense, distribute or otherwise transfer or assign any interest in or to the Software.

You may not reverse engineer, decompile, or disassemble the Software.

You agree that the Software will not be shipped, transferred or exported into any country or used in any manner prohibited
by the United States Export Administration Act or any other export laws, restrictions or regulations (“Export Laws”). By downloading
or installing the Software You (a) are certifying that You are not a national of Cuba, Iran, Iraq, Libya, North Korea, Sudan, or Syria or
any country to which the United States embargoes goods (b) are certifying that You are not otherwise prohibited from receiving the
Software and (c) You agree to comply with the Export Laws.

If any part of this Agreement is found void and unenforceable, it will not affect the validity of the balance of the Agreement,
which shall remain valid and enforceable according to its terms. This Agreement may only be modified by a writing signed by an
authorized officer of Crestron. Updates may be licensed to You by Crestron with additional or different terms. This is the entire
agreement between Crestron and You relating to the Software and it supersedes any prior representations, discussions, undertakings,
communications or advertising relating to the Software. The failure of either party to enforce any right or take any action in the event
of a breach hereunder shall constitute a waiver unless expressly acknowledged and set forth in writing by the party alleged to have
provided such waiver.

Operations Guide – DOC. 6144 2-Way RF Wireless Touchpanel: STX-1700CXP • 33

2-Way RF Wireless Touchpanel Crestron STX-1700CXP

If You are a business or organization, You agree that upon request from Crestron or its authorized agent, You will within
thirty (30) days fully document and certify that use of any and all Software at the time of the request is in conformity with Your valid
licenses from Crestron of its authorized agent.

Without prejudice to any other rights, Crestron may terminate this Agreement immediately upon notice if you fail to comply
with the terms and conditions of this Agreement. In such event, you must destroy all copies of the Software and all of its component
parts.

PROPRIETARY RIGHTS

Copyright. All title and copyrights in and to the Software (including, without limitation, any images, photographs,
animations, video, audio, music, text, and “applets” incorporated into the Software), the accompanying media and printed materials,
and any copies of the Software are owned by Crestron or its suppliers. The Software is protected by copyright laws and international
treaty provisions. Therefore, you must treat the Software like any other copyrighted material, subject to the provisions of this
Agreement.

Submissions. Should you decide to transmit to Crestron’s website by any means or by any media any materials or other
information (including, without limitation, ideas, concepts or techniques for new or improved services and products), whether as
information, feedback, data, questions, comments, suggestions or the like, you agree such submissions are unrestricted and shall be
deemed non-confidential and you automatically grant Crestron and its assigns a non-exclusive, royalty-tree, worldwide, perpetual,
irrevocable license, with the right to sublicense, to use, copy, transmit, distribute, create derivative works of, display and perform the
same.

Trademarks. CRESTRON and the Swirl Logo are registered trademarks of Crestron Electronics, Inc. You shall not remove
or conceal any trademark or proprietary notice of Crestron from the Software including any back-up copy.

GOVERNING LAW

This Agreement shall be governed by the laws of the State of New Jersey, without regard to conflicts of laws principles.
Any disputes between the parties to the Agreement shall be brought in the state courts in Bergen County, New Jersey or the federal
courts located in the District of New Jersey. The United Nations Convention on Contracts for the International Sale of Goods, shall
not apply to this Agreement.

CRESTRON LIMITED WARRANTY

CRESTRON warrants that: (a) the Software will perform substantially in accordance with the published specifications for a
period of ninety (90) days from the date of receipt, and (b) that any hardware accompanying the Software will be subject to its own
limited warranty as stated in its accompanying written material. Crestron shall, at its option, repair or replace or refund the license fee
for any Software found defective by Crestron if notified by you within the warranty period. The foregoing remedy shall be your
exclusive remedy for any claim or loss arising from the Software.

CRESTRON shall not be liable to honor warranty terms if the product has been used in any application other than that for
which it was intended, or if it as been subjected to misuse, accidental damage, modification, or improper installation procedures.
Furthermore, this warranty does not cover any product that has had the serial number or license code altered, defaced, improperly
obtained, or removed.

Notwithstanding any agreement to maintain or correct errors or defects Crestron, shall have no obligation to service or
correct any error or defect that is not reproducible by Crestron or is deemed in Crestron’s reasonable discretion to have resulted from
(1) accident; unusual stress; neglect; misuse; failure of electric power, operation of the Software with other media not meeting or not
maintained in accordance with the manufacturer’s specifications; or causes other than ordinary use; (2) improper installation by
anyone other than Crestron or its authorized agents of the Software that deviates from any operating procedures established by
Crestron in the material and files provided to You by Crestron or its authorized agent; (3) use of the Software on unauthorized
hardware; or (4) modification of, alteration of, or additions to the Software undertaken by persons other than Crestron or Crestron’s
authorized agents.

ANY LIABILITY OF CRESTRON FOR A DEFECTIVE COPY OF THE SOFTWARE WILL BE LIMITED
EXCLUSIVELY TO REPAIR OR REPLACEMENT OF YOUR COPY OF THE SOFTWARE WITH ANOTHER COPY OR
REFUND OF THE INITIAL LICENSE FEE CRESTRON RECEIVED FROM YOU FOR THE DEFECTIVE COPY OF THE
PRODUCT. THIS WARRANTY SHALL BE THE SOLE AND EXCLUSIVE REMEDY TO YOU. IN NO EVENT SHALL
CRESTRON BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, SPECIAL OR PUNITIVE DAMAGES OF ANY KIND
(PROPERTY OR ECONOMIC DAMAGES INCLUSIVE), EVEN IF A CRESTRON REPRESENTATIVE HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES OR OF ANY CLAIM BY ANY THIRD PARTY. CRESTRON MAKES NO
WARRANTIES, EXPRESS OR IMPLIED, AS TO TITLE OR INFRINGEMENT OF THIRD-PARTY RIGHTS,
MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, OR ANY OTHER WARRANTIES, NOR
AUTHORIZES ANY OTHER PARTY TO OFFER ANY WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY FOR THIS PRODUCT. THIS WARRANTY STATEMENT SUPERSEDES ALL PREVIOUS
WARRANTIES.

34 • 2-Way RF Wireless Touchpanel: STX-1700CXP Operations Guide - DOC. 6144

Crestron STX-1700CXP 2-Way RF Wireless Touchpanel

Return and Warranty Policies

Merchandise Returns / Repair Service

1. No merchandise may be returned for credit, exchange, or service without prior
authorization from CRESTRON. To obtain warranty service for CRESTRON
products, contact the factory and request an RMA (Return Merchandise
Authorization) number. Enclose a note specifying the nature of the problem, name
and phone number of contact person, RMA number, and return address.

2. Products may be returned for credit, exchange, or service with a CRESTRON Return
Merchandise Authorization (RMA) number. Authorized returns must be shipped
freight prepaid to CRESTRON, Cresskill, N.J., or its authorized subsidiaries, with
RMA number clearly marked on the outside of all cartons. Shipments arriving freight
collect or without an RMA number shall be subject to refusal. CRESTRON reserves
the right in its sole and absolute discretion to charge a 15% restocking fee, plus
shipping costs, on any products returned with an RMA.

3. Return freight charges following repair of items under warranty shall be paid by
CRESTRON, shipping by standard ground carrier. In the event repairs are found to
be non-warranty, return freight costs shall be paid by the purchaser.

CRESTRON Limited Warranty

CRESTRON ELECTRONICS, Inc. warrants its products to be free from manufacturing defects in
materials and workmanship under normal use for a period of three (3) years from the date of
purchase from CRESTRON, with the following exceptions: disk drives and any other moving or
rotating mechanical parts, pan/tilt heads and power supplies are covered for a period of one (1)
year; touchscreen display and overlay components are covered for 90 days; batteries and
incandescent lamps are not covered.

This warranty extends to products purchased directly from CRESTRON or an authorized
CRESTRON dealer. Purchasers should inquire of the dealer regarding the nature and extent of the
dealer's warranty, if any.

CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in
any application other than that for which it was intended, or if it has been subjected to misuse,
accidental damage, modification, or improper installation procedures. Furthermore, this warranty
does not cover any product that has had the serial number altered, defaced, or removed.

This warranty shall be the sole and exclusive remedy to the original purchaser. In no event shall
CRESTRON be liable for incidental or consequential damages of any kind (property or economic
damages inclusive) arising from the sale or use of this equipment. CRESTRON is not liable for
any claim made by a third party or made by the purchaser for a third party.

CRESTRON shall, at its option, repair or replace any product found defective, without charge for
parts or labor. Repaired or replaced equipment and parts supplied under this warranty shall be
covered only by the unexpired portion of the warranty.

Except as expressly set forth in this warranty, CRESTRON makes no other warranties, expressed
or implied, nor authorizes any other party to offer any warranty, including any implied warranties
of merchantability or fitness for a particular purpose. Any implied warranties that may be imposed
by law are limited to the terms of this limited warranty. This warranty statement supercedes all
previous warranties.

Trademark Information

All brand names, product names, and trademarks are the sole property of their respective owners. Windows is a registered
trademark of Microsoft Corporation. Windows95/98/Me/XP and WindowsNT/2000 are trademarks of Microsoft
Corporation.

Operations Guide – DOC. 6144 2-Way RF Wireless Touchpanel: STX-1700CXP • 35

Crestron Electronics, Inc. Operations Guide - DOC. 6144

15 Volvo Drive Rockleigh, NJ 07647 07.03
Tel: 888.CRESTRON
Fax: [phone] Specifications subject to
www.crestron.com change without notice.
