Crestron STS User Manual

Crestron ST-1550 & ST-1550C SmarTouch STS Touchpanels

Contents

SmarTouch STS 1

SmarTouch STS Description 1

Functional Description 1
Physical Description 2

General Use and Safety 2

Recommended Touchpanel Cleaning 3
Applying Power 3

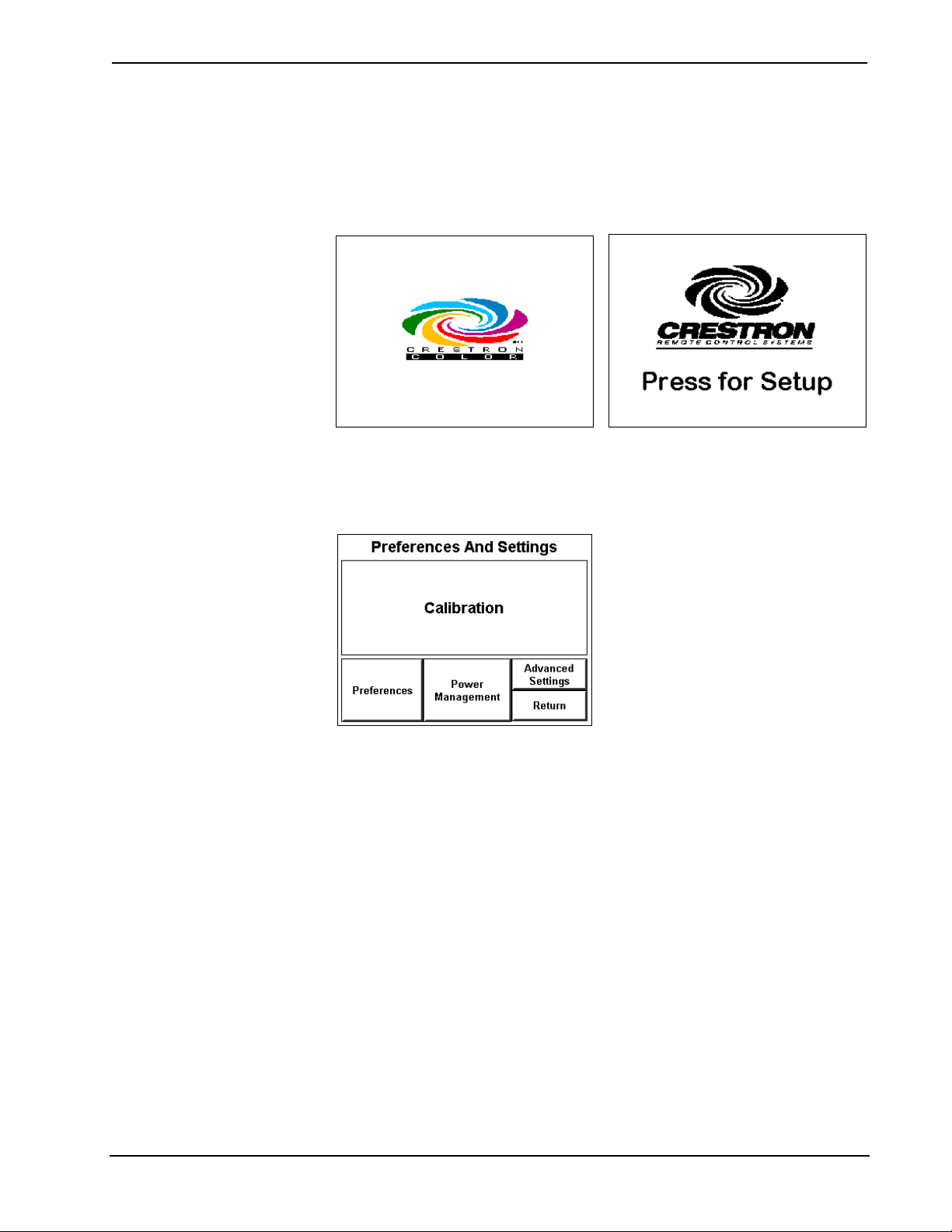

Configuring the Touchpanel 3

Calibration 4

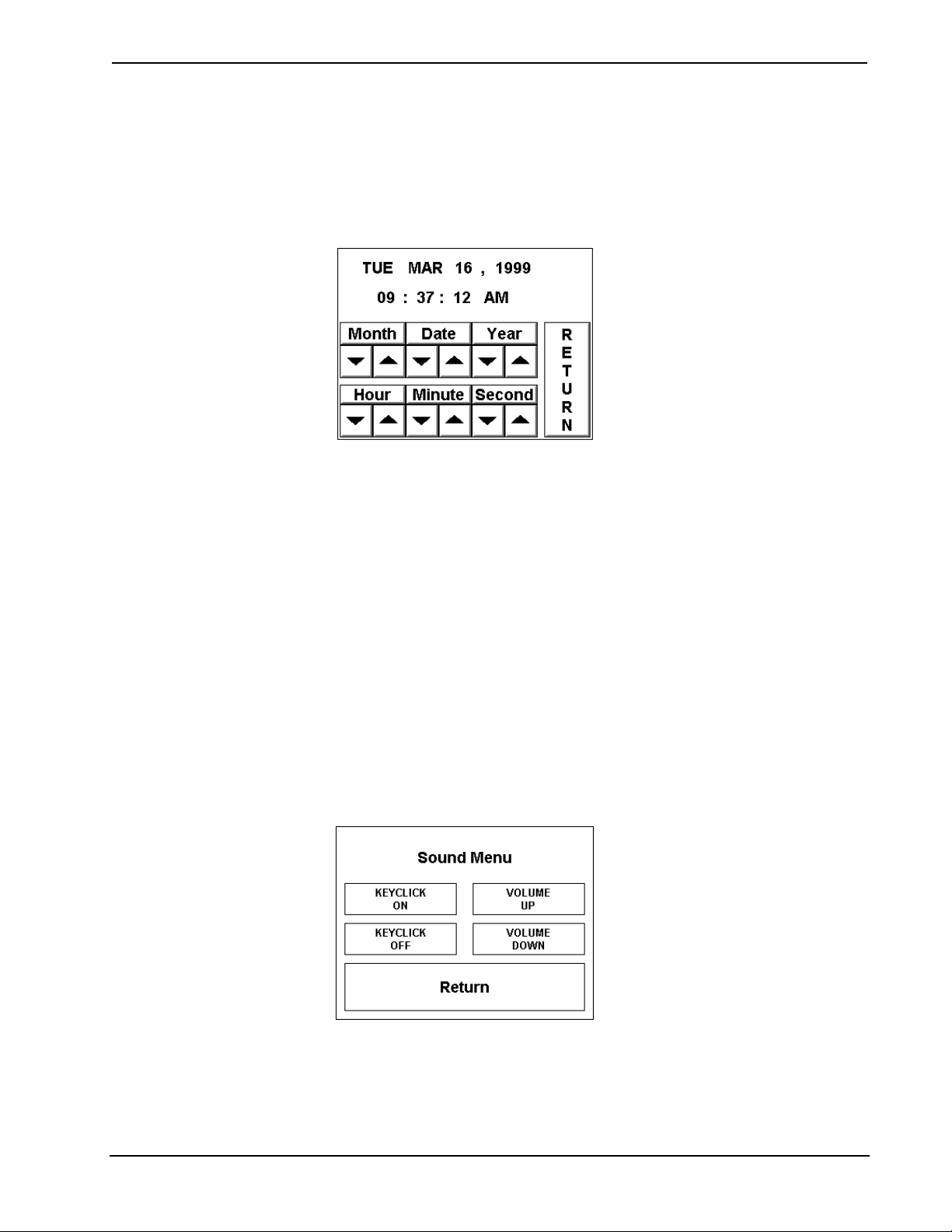

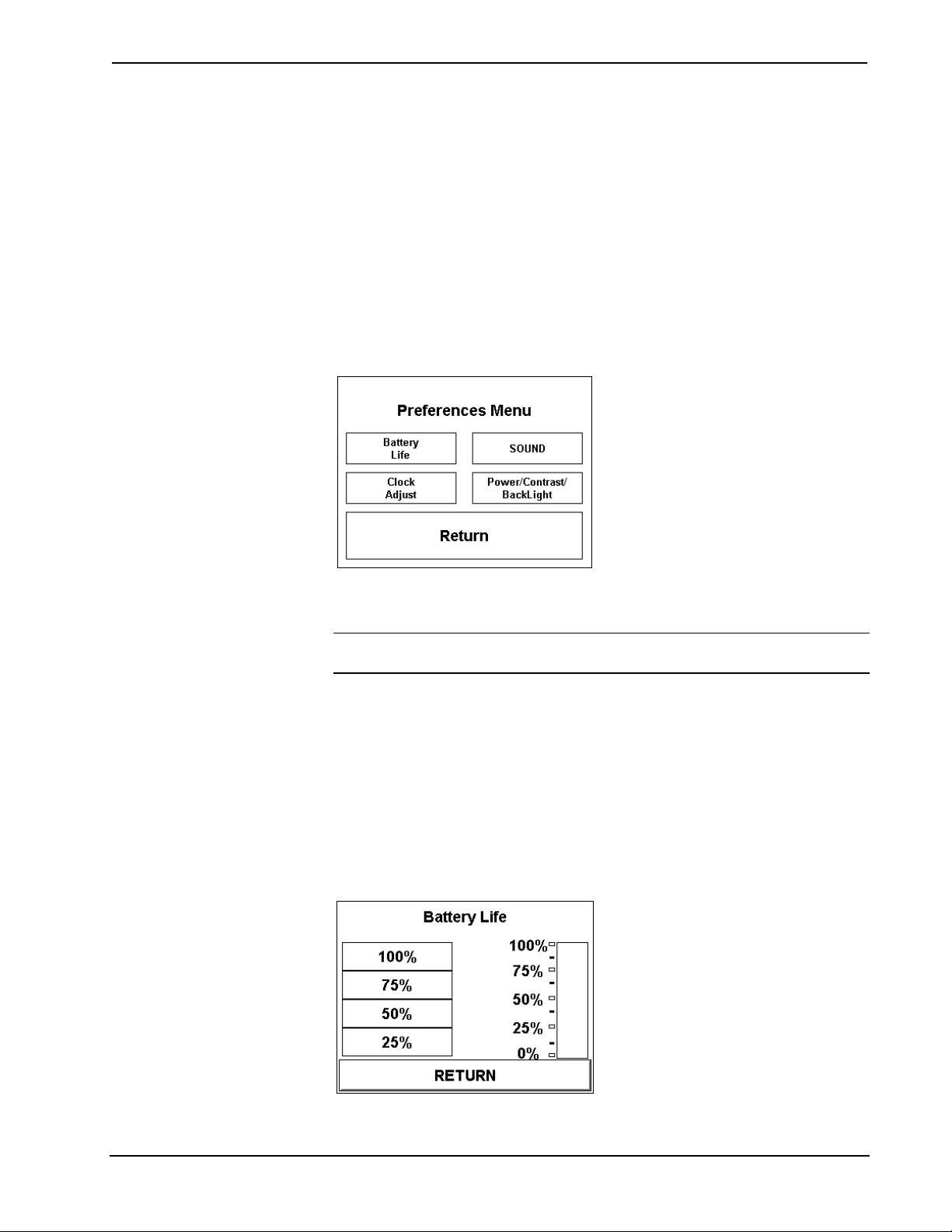

Preferences Menu 5
Power Management 7
Advanced Settings 8

Internal Scheduler 9

Button Sequence Development 9
Scheduling a Sequence/Button Press 10

Touchpanel as Part of SmarTouch STS 11

Introduction 11
SmarTouch STS Hookup 11

Problem Solving 13

Troubleshooting 13
Further Inquiries 13

User's Operations Guide - DOC. 5804 Contents • i

Crestron ST-1550 & ST-1550C SmarTouch STS Touchpanels

S

SmarTouch STS

SmarTouch STS Description

Functional Description

The SmarTouch STS touchpanels are Crestron’s six inch touchscreen control panels
that can be used in either a Cresnet remote control system or as part of the
SmarTouch STS. These touchpanels provide a means of user interface via one-way
RF communication. The type of system employed determines the type of receiver.

There are six SmarTouch STS configurations available. Three offer 256 color
display and are denoted with the suffix “-C”. The three other offer four shades of
grayscale display. Another primary difference between the configurations is the type
of power availability, 120V versus 220V, and the transmission frequency. The table
below provides a breakdown of all six configurations.

Table of SmarTouch STS Configurations

MARTOUCH STS

CONFIGURATION DISPLAY

STS Grayscale 120V AC 433.92 MHz

STS-C Color 120V AC 433.92 MHz

STSI Grayscale 220V AC 433.92 MHz

STSI-C Color 220V AC 433.92 MHz

STSI/UK Grayscale 220V AC 418 MHz

STSI-C/UK Color 220V AC 418 MHz

Since the touchpanel is the only user interface device in the SmarTouch STS, the
bulk of this guide’s content concentrates on this component. The touchpanel
component of the SmarTouch STS is capable of replacing large, complicated panels
with a series of simpler screens, each specific to the control problem at hand. Thus
very large numbers of functions can be made available to the user without the
confusion associated with hardware panels of that complexity. The touchpanel icons,
graphics, and text can dramatically increase any user’s comprehension of the control
environment. Devices, functions, and control zones are quickly organized and more
easily accessed. The touchpanel offers:

POWER

(VOLTAGE)

TRANSMISSION

FREQUENCY

• 256 color display or four shades of grayscale display

• pop-up subpages to reduce memory requirements, providing optimal

speed and performance

User's Operations Guide - DOC. 5804 SmarTouch STS • 1

SmarTouch STS Touchpanels Crestron ST-1550 & ST-1550C

• multiple button and icon configurations

• up to 999 functions and 96 screens

• imported photographs, drawings, and icons

• support for downloadable fonts - proportional and non-proportional

• foreign language text

• printout of screen designs on standard printer

Physical Description

The 6 inch touch sensitive viewing screen is located on the top of each touchpanel.
The electronic hardware is housed in a high impact, black molded plastic enclosure,
shown below. Connectors to power the unit and upload touchscreen projects are
located on opposing sides of the unit.

SmarTouch STS Touchpanel Physical Views

A battery compartment is located on the underside of the unit. The compartment
holds one Crestron ST-BTP, rechargeable power pack. There are also four rubber
feet on the underside of the unit for stability and to prevent slippage.

General Use and Safety

WARNING: To avoid shock hazard and possible damage to the unit, do not use
touchpanel in rain or expose it to unnecessary moisture.

NOTE: Equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. The equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful

2 • SmarTouch STS User's Operations Guide - DOC. 5804
