Crestron HD-EXT4-C-B-SYSTEM Quick Start Guide

HD-EXT4-C
4K HDMI® over HDBaseT® Extender with Analog Audio
Introduction
1
The Crestron® HD-EXT4-C consists of the HD-TX4-C transmitter and the HD-RX4-C receiver. The HD-EXT4-C transmits uncompressed high-definition digital video and audio up to 330 feet (100 meters) over a single CAT5e cable. Analog audio can be transmitted using a second CAT5e cable. 4K video is supported up to 230 feet (70 meters).
2
SW1 DIP Switch Setting (HD-TX4-C Only)
The SW1 DIP switch on the HD-TX4-C
quickstart guide
controls the hot plug detect (HPD) signal. Before installing the HD-TX4-C, locate the SW1 DIP switch on the left side of the unit and observe that the switch is set in the ON position (default setting). When set to ON, the HPD signal is sent from the display device on the HD-RX4-C to the source device on the HD-TX4-C.
ON

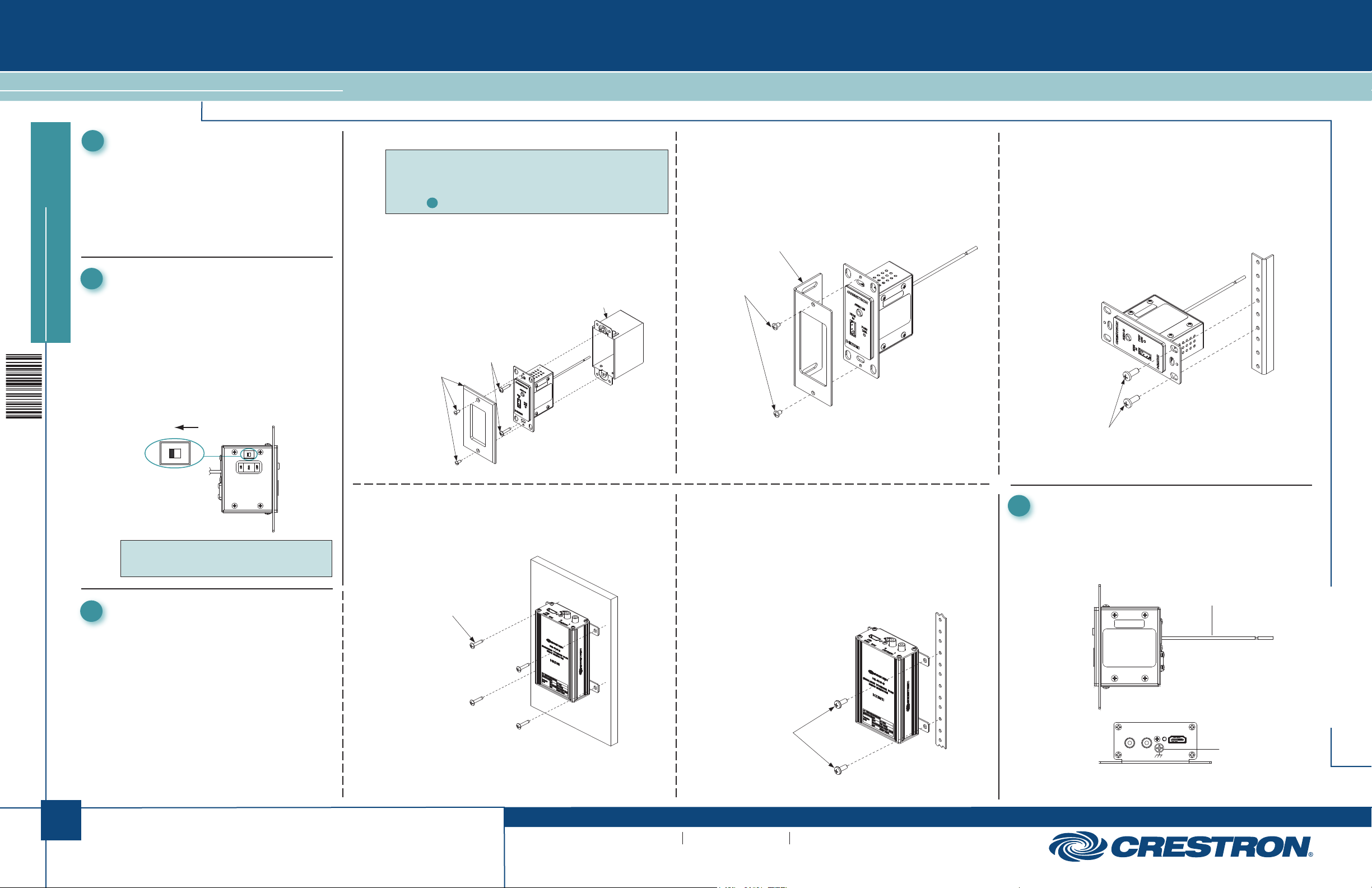

Mounting the HD-TX4-C in a 1-Gang Electrical Box
NOTE: The recommended depth of the electrical box
(not supplied) is a minimum of 2.5 inches (64 mm).
NOTE: Connect the rear of the HD-TX4-C as described in section before mounting the unit in an electrical box.
Do the following:
1. Using two #6-32 x 3/4 inch combo head screws (supplied),
2. Attach the desired decorator style faceplate (not supplied).
4
mount the HD-TX4-C in a 1-gang electrical box.
Electrical Box
(Not Supplied)
#6-32 x 3/4”
Combo Head
Faceplate with
Hardware
(Not Supplied)
Screws
(Supplied)
Mounting the HD-TX4-C on a Flat Surface
Do the following:
1. Using the appropriate hardware (not supplied), attach
the mounting bracket (supplied) to a flat surface.
2. Using two #6-32 x 3/16 inch Phillips head screws
(supplied), attach the transmitter to the bracket.
Mounting Bracket
(Supplied)
#6-32 x 3/16”
Phillips Head Screws
(Supplied)
Mounting the HD-TX4-C on a Rack Rail
Mount the HD-TX4-C on the front or rear rail of a rack
as follows:
1. Position the HD-TX4-C horizontally so that the holes of the left or right mounting flange align with the holes in the
rack (mounting of right mounting flange is shown below).
2. Secure the device to the rack using two rack mounting
screws (not supplied).
Rack Mounting Screws
(Not Supplied)
1
3
Mounting the HD-RX4-C on a Flat Surface
Using four mounting screws (not supplied), attach the HD-RX4-C to a flat surface. Mounting of the HD-RX4-C
on a wall is shown below. NOTE: The OFF position of the SW1 DIP switch is reserved for factory use only.
Mounting
Mount the HD-TX4-C and HD-RX4-C in any of the following ways as appropriate for the installation:
● (HD-TX4-C only) In a 1-gang
electrical box
● On a flat surface
● On a rack rail
For regulatory compliance information, refer to Doc. 7481.
QUICKSTART DOC. 7461B (2035786) 05.14
Mounting Screws (4)
(Not Supplied)
www.crestron.com
Specifications subject to change without notice.
Mounting the HD-RX4-C on a Rack Rail
Mount the HD-RX4-C on the front or rear rail of a rack
as follows:
1. Position either the left or right mounting flanges of the
device so that the holes align with the holes in the rack
(mounting of right mounting flanges is shown below).
2. Secure the device to the rack using two rack mounting
screws (not supplied).
Rack Mounting Screws
(Not Supplied)
888.273.7876 201.767.3400
Connections
4
Connecting to Ground
Connect the ground wire on the HD-TX4-C and the chassis ground lug on the HD-RX4-C to earth ground (building steel).
AUDIO OUT L R
PWR
G
Ground Wire
HDMI OUT
HD-TX4-C
HD-RX4-C
Ground Lug
HD-EXT4-C
HD-EXT4-C
4K HDMI® over HDBaseT® Extender with Analog Audio
Connecting the HD-TX4-C AUDIO IN and HDMI IN Ports
Connecting the AUDIO IN Port. Using an
unbalanced 3.5 mm TRS mini phone jack cable (not supplied), connect the AUDIO IN port to an unbalanced audio source.
Connecting the HDMI IN Port. Using an
®
HDMI
cable (not supplied), connect the HDMI IN port to the HDMI output port of the audio/video source.
Connecting the HD-TX4-C AUDIO OUT and HD-RX4-C AUDIO IN Ports
Using a CAT5e STP (shielded twisted
quickstart guide
pair) or UTP (unshielded twisted pair) cable (not supplied) and the supplied 5-pin connectors, connect the AUDIO OUT port on the HD-TX4-C to the AUDIO IN port on the HD-RX4-C.
NOTE: For improved audio performance and noise immunity, it is recommended that STP cable be used.
Connecting the HD-TX4-C and HD-RX4-C HDBaseT Ports
Connect the HDBaseT
®
OUT port on the HD-TX4-C to the HDBaseT IN port on the HD-RX4-C. For resolutions up to 1600 x 1200 and 1920 x 1200 (including 1080p60 and 2K), maximum wire length is 330 feet (100 meters) using Crestron DM-CBL-8G, DM-CBL, DM-CBL-D, or third-party CAT5e (or better) UTP or STP cable. For higher resolutions (including 4K), maximum wire length is 230 feet (70 meters) using DM-CBL-8G or 165 feet (50 meters) using DM-CBL, DM-CBL-D, or third-party CAT5e cable. (All wire and cables are sold separately.)
NOTE: Shielded cable and connectors are recommended to safeguard against unpredictable environmental electrical noise which may impact performance at resolutions above 1080p.
DM-CBL-8G cable is recommended for optimum performance and ESD (electrostatic discharge) protection.
AUDIO
OUT
+
G
+
OUT
Connecting the HD-RX4-C Power Connector
Using the supplied 24 Vdc power pack, connect the power pack to the 24 Vdc power connector on the HD-RX4-C.
AUDIO IN
+ - G +
R L
PWR
-
POWER
24 V
0.75A
PACK
HDBaseT IN
The power pack connected to the HD-RX4-C powers both the HD-RX4-C and the HD-TX4-C.
Power is transmitted over the cable that connects the
LAPTOP
HDMI
AUDIO IN
IN
PWR/
LINK
Connecting the HD-RX4-C AUDIO OUT and HDMI OUT Ports
Connecting the AUDIO OUT Port. Using an
RCA cable (not supplied), connect the two RCA jacks (L and R) to an audio output device.
Connecting the HDMI OUT Port. Using an
AUDIO OUT L R
HDMI cable (not supplied), connect the HDMI OUT port to the HDMI input of the receiving device.
DISPLAY
PWR
HDMI
OUT
G
HDBaseT ports on the HD-RX4-C and HD-TX4-C.
NOTE: The HD-RX4-C and HD-TX4-C are not Power over HDBaseT (PoH) compatible; that is, the devices cannot be powered by or supply power to another HDBaseT device.
L
-
R
-
AUDIO IN
HDBaseT IN
+ - G +
R L
PWR
-
24 V
0.75A
LED Indicators
5
LED indicators are provided on the HD-TX4-C and HD-RX4-C.
AUDIO IN
HDMI
IN
PWR/
HDBaseT IN
Green
LED
LINK
Amber
LED
PWR/LINK LED
AUDIO IN
PWR
+ - G +
-
R L
24 V
0.75A
Amber LED
Green LED
AUDIO OUT L R
AUDIO
OUT
+
-
G
+
-
OUT
PWR
LED INDICATOR COLOR DESCRIPTION
PWR/LINK
(HD-TX4-C Only)
L
R
HDBaseT OUT HDBaseT IN
HDMI
OUT
G
PWR
LED
PWR (HD-RX4-C Only)
