Quick Start
included)
Drywall
(not included)
HD-DA2-4KZ-E, HD-DA4-4KZ-E, and HD-DA8-4KZ-E
Distribution Amplifiers
The HD-DA2-4KZ-E, HD-DA4-4KZ-E, and HD-DA8-4KZ-E distribution amplifiers split a single
HDMI® signal to feed up to two, four, or eight displays and other device t ypes, respectively.
The distribution amplifiers support UHD and DCI 4K60 4:4:4 HDR video, HDCP 1.4 or 2.2 copy
protection, and high-bitrate 7.1 audio. No control system is required for operation.
Check the Box
Item Qty
HD-DA2-4KZ-E, HD-DA4-4KZ-E, or HD-DA8-4KZ-E 1
Power Pack, 24 Vdc 0.75 A, 100-240 Vac (P/N 2045865) 1

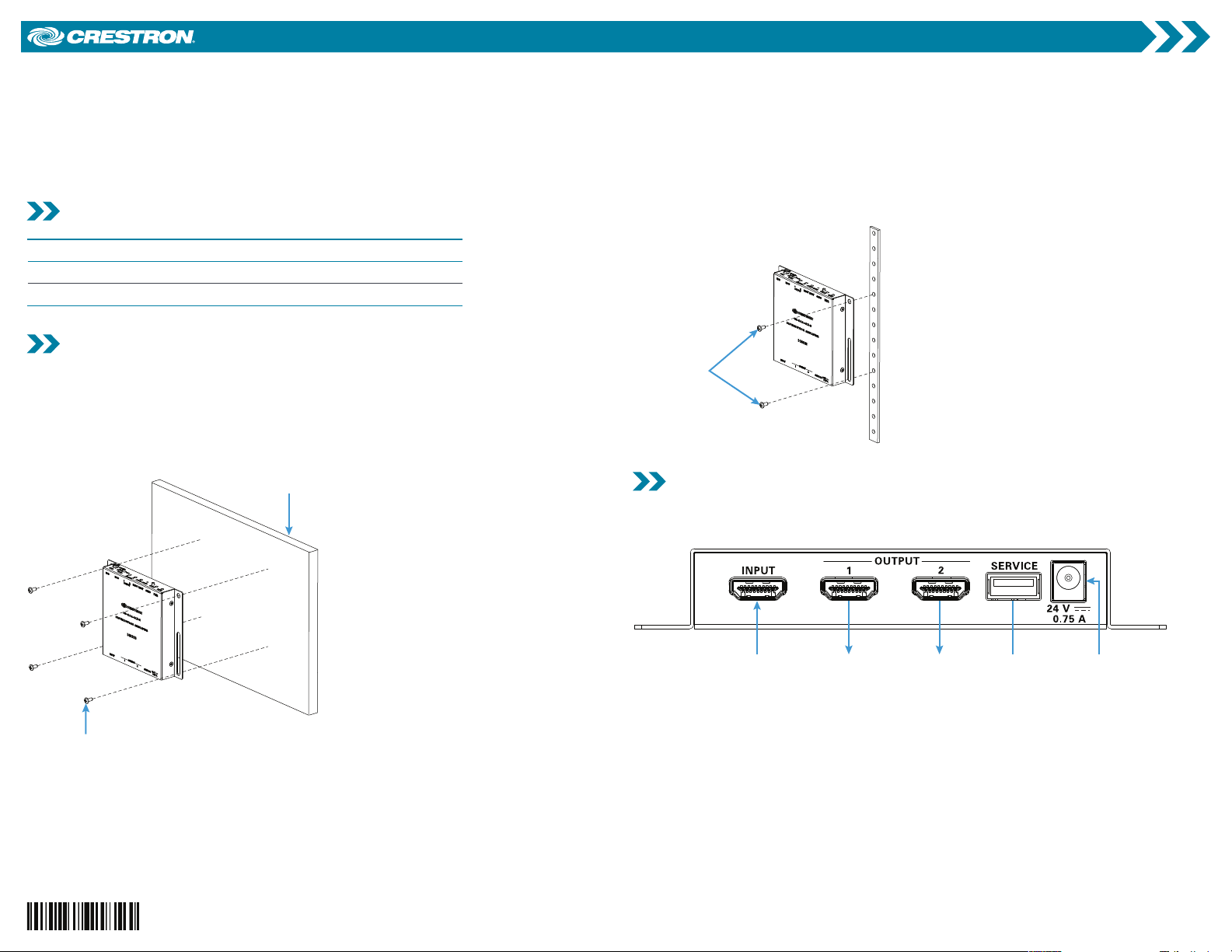

Install the Device
The distribution amplifiers can be mounted onto drywall or onto a rack rail.
Drywall Mounting
Using four 8-18 x 3/4" modified truss head Phillips steel screws (not included), mount the
device onto dr ywall.
Drywall Mounting (HD-DA2-4KZ-E Shown)
Rack Rail Mounting
Mount the device onto the front or rear rail of a rack. Position either the left or right
mounting flange of the device so that the holes align with the holes in the rack. Then, secure
the device to the rack using two rack mounting screws (not included). For more information,
refer to the mounting instructions of the rack manufacturer.
Rack Rail Mounting (HD-DA2-4KZ-E Shown)
Screws
Connect the Device
Connect the rear panel of the device as required for the application.
Rear Panel Connections (HD-DA2-4KZ-E Shown)
(4) Screws, 8-18 x 3/4” modified
truss head Phillips, steel (not
INPUT:
From HDMI®
audio/video
source
OUTPUT 1:
To HDMI
display
OUTPUT 2:
To HDMI
display
SERVICE:
For
firmware
loading
24 V 0.75 A:
From
included
power pack
Select the EDID Mode
Select the EDID (Extended Display Identification Data) mode by moving the EDID switch to
either of the following positions:
• DE FAU LT: (Default setting) The device sends a predefined Crestron EDID to the
input device. The Crestron EDID supports 2-channel LPCM audio and 4K60 444
non-HDR video.
• COPY 1S T: The device copies the EDID of the display connected to OUTPUT 1 and
sends the EDID to the input device.
NOTE: If the display that is connected to OUTPUT 1 is disconnected, the current
EDID is retained. Connecting a different display to OUTPUT 1 does not automatically
update the EDID at the input device. To update the EDID, move the EDID switch to the
DEFAULT position and then back to the COPY 1ST position.
EDID Selection Switch (HD-DA2-4KZ-E Shown)
Select the HDCP Version
Select the HDCP version by moving the HDCP switch to one of the following positions:
• OFF: Disables HDCP support
• 1.4: Sets the HDCP version to 1.4
• 2.2: (Default setting) Sets the HDCP version to 2.2
HDCP Selection Switch (HD-DA2-4KZ-E Shown)
Observe the LEDs
Observe the LEDs on the front panel of the device:
• PWR: Lights amber to indicate that the device is booting, and lights green to indicate
that the device is powered on
• IN PUT: Lights green to indicate that an HDMI signal is detected at the HDMI input
• OUTPUT 1-2, 1- 4, or 1-8: Lights green to indicate that the corresponding HDMI output is
transmitting an HDMI signal
In addition to the LEDs listed above, a SETUP LED is also provided. When the SETUP button
is pressed for 10 seconds, the SETUP LED flashes red ten times to indicate that the default
settings have been restored.
Front Panel LEDs (HD -DA2-4K Z-E Shown)
Additional Information
Scan or click the QR code for detailed product information.
HD-DA2-4KZ-E HD-DA4-4KZ-E HD-DA8-4KZ-E
Compliance and Legal
This pro duct i s Listed to applicabl e UL® Standards an d requi rements tested by
Underwriters Laboratories Inc.
Ce produ it est h omolo gué selon les n ormes et les exi gence s UL applicabl es par
Underwriters Laboratories Inc.
As of the date of ma nufac ture, t he prod uct ha s been te sted and found to
comply w ith sp ecificatio ns for CE marking.
Federal Communications Commission (FCC) Compliance Statement
This dev ice complies with par t 15 of th e FCC Rules. Operation is subj ect to t he
following cond ition s: (1) This device may not cause h armful inter ference and (2)
this dev ice mus t accept a ny inter feren ce recei ved, in cluding inter ference that
may caus e undesired op eration.
CAUTION: Changes or modifications not expressly approved by the
manufa cturer responsible for compliance could vo id the us er’s au thority to
operate the equipment.
NOTE: This e quipm ent has b een tested an d found to comply w ith the limit s
for a Clas s B digita l device, pursu ant to part 15 of t he FCC Rul es. Th ese limits
are designed to provide reasonable protection against harmful interference
in a resid ential installation. Thi s equipment generate s, use s and can ra diate
radio frequency energy and, if not ins talle d and used in accordance w ith
the instructions, may cause harmful interference to radio communications.
However, the re is no guarantee that interfe rence will not occur in a particular
instal latio n. If this equip ment do es caus e harmful inter ference to radi o or
televi sion re ceptio n, which can be de termined by tur ning th e equip ment of f and
on, the user is en courag ed to tr y to correct th e inter feren ce by one or m ore of
the following measures:
• Reorie nt or relocate th e recei ving an tenna.
• Increase the separation between the equipment and receiver.
• Conne ct the e quipm ent into a n outlet on a circuit dif ferent f rom tha t to
which the receiver is connected.
• Consul t the de aler or an exper ience d radio/ TV technician for h elp.
Industry Canada (IC) Compliance Statement
CAN ICE S-3(B)/ NMB-3 (B)
The product wa rrant y can be fo und at www.crestron.com/warranty.
The spe cific patent s that cover Crestron p roduc ts are l isted at
www.crestron.com/legal/patents.
Certa in Cres tron pro ducts conta in open source s oft ware. For speci fic
information, please visit www.crestron.com/opensource.
Crestron and th e Crest ron logo are eit her tra demar ks or registered trademarks
of Crest ron Ele ctronics, Inc. in t he United State s and/or oth er countries .
HDMI and the HD MI log o are eit her tra demar ks or registered trad emark s
of HDMI L icens ing LLC in t he United State s and/or oth er countries . UL and
the UL lo go are ei ther trademarks or registered trademarks of Un derwriter s
Laboratorie s, Inc . in the United Sta tes and /or other countries. Ot her
tradem arks , regis tered t radem arks , and tra de name s may be used in th is
document to refe r to eith er the entities claim ing the m arks and names or thei r
produc ts. Crestron disclaims any proprietar y interest in th e mark s and nam es
of others. Crestron is not responsible for errors in typography or photography.
