Crestron FT-PWR-B &
FT-PWR-BALUM
FlipTop Power Center
Operations & Installation Guide
This document was prepared and written by the Technical Documentation department at:
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
1-888-CRESTRON
All brand names, product names and trademarks are the property of their respective owners.
©2006 Crestron Electronics, Inc.
Crestron FT-PWR-B & FT-PWR-BALUM FlipTop Power Center
Contents
FlipTop Power Center: FT-PWR-B & FT-PWR-BALUM 1
Introduction ...............................................................................................................................1
Features and Functions................................................................................................ 1
Applications.................................................................................................................1
Specifications ..............................................................................................................2
Physical Description.................................................................................................... 2
Industry Compliance ...................................................................................................6
Setup .......................................................................................................................................... 7
Installation................................................................................................................... 7
Hardware Hookup .....................................................................................................11
Operation .................................................................................................................................12
Problem Solving ......................................................................................................................13
Troubleshooting......................................................................................................... 13
Further Inquiries........................................................................................................ 13
Future Updates ..........................................................................................................13
Return and Warranty Policies.................................................................................................. 14
Merchandise Returns / Repair Service ......................................................................14
CRESTRON Limited Warranty.................................................................................14
Operations & Installation Guide – DOC. 6480 Contents • i
Crestron FT-PWR-B & FT-PWR-BALUM FlipTop Power Center
FlipTop Power Center: FT-PWR-B
& FT-PWR-BALUM
Introduction
Features and Functions
• Stylish, flush mount in tabletop surface
• Easy pullout universal cable management
• Eight, grommeted holes for smooth passage of virtually any type of
AV, communication, control or data cables
• AC power receptacle in FlipTop compartment
• Available in black anodized (FT-PWR-B) or brushed aluminum
(FT-PWR-BALUM)
Applications
The FT-PWR-B and FT-PWR-BALUM provide an elegant connectivity solution in a
stylish flush mount tabletop package. Beneath the "FlipTop" lid, the cable storage
compartment keeps installed interface cables (not included) at the ready for plugging
in computers, AV sources, communication, control, or data cable. When not in use,
the user end of each cable stows neatly within the FlipTop compartment while excess
cable simply drops out-of-sight below the box.
Operations & Installation Guide – DOC. 6480 FlipTop Power Center: FT-PWR-B & FT-PWR-BALUM • 1
FlipTop Power Center Crestron FT-PWR-B & FT-PWR-BALUM
Specifications
Specifications for the FT-PWR-B and FT-PWR-BALUM are listed in the following
table.
FT-PWR-B and FT-PWR-BALUM Specifications
SPECIFICATION DETAILS
Environmental
Temperature
Humidity
Enclosure
Dimensions Height: 5.33 in (13.54 cm) with lid closed
Weight 3.75 lbs (1.7 kg) approximate
41° to 104°F (5° to 40°C)
10% to 90% RH (non-condensing)
Black painted metal with black anodized or
brushed aluminum cover; flush tabletop
mountable
Width: 6.75 in (17.15 cm)
Depth: 5.71 in (14.50 cm)
Physical Description
This section provides information on the connections, controls, and indicators
available on your FT-PWR-B and FT-PWR-BALUM.
FT-PWR-B and FT-PWR-BALUM Physical View
NOTE: Cables not included.
2 • FlipTop Power Center FT-PWR-B & FT-PWR-BALUM Operations & Installation Guide – DOC. 6480
Crestron FT-PWR-B & FT-PWR-BALUM FlipTop Power Center
FT-PWR-B and FT-PWR-BALUM Overall Dimensions – Top View
5.08 in
(12.90 cm)
6.61 in
5.71 in
(16.79 cm)
(14.50 cm)
6.75 in
(17.15 cm)
FT-PWR-B and FT-PWR-BALUM Overall Dimensions – Front View
5.38 in
(13.67 cm)
6.25 in
(15.88 cm)
Operations & Installation Guide – DOC. 6480 FlipTop Power Center: FT-PWR-B & FT-PWR-BALUM • 3
FlipTop Power Center Crestron FT-PWR-B & FT-PWR-BALUM

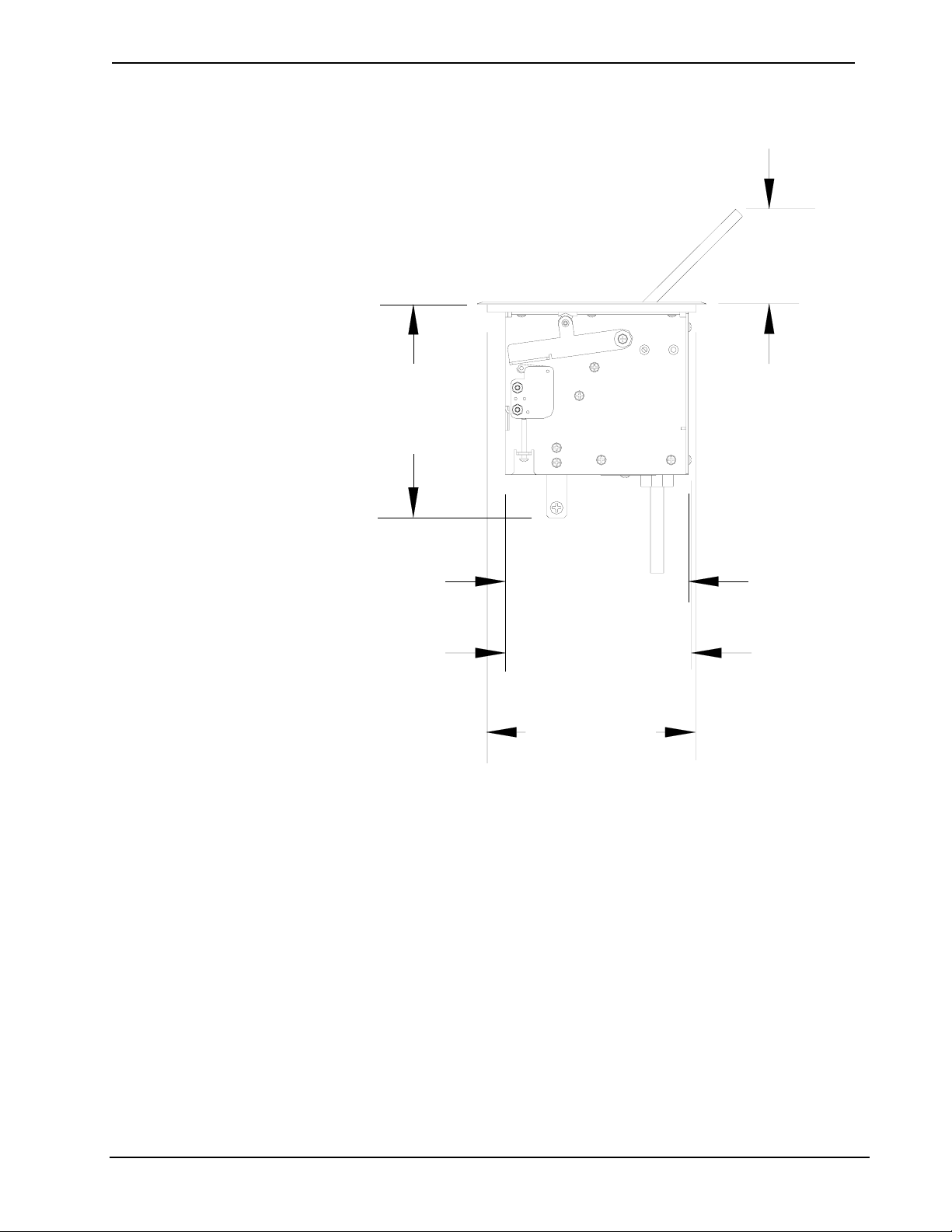

FT-PWR-B and FT-PWR-BALUM Overall Dimensions – Side View
2.38 in
(6.05 cm)
5.33 in
(13.54 cm)
4.56 in
(11.58 cm)
4.64 in
(11.79 cm)
5.21 in
(13.32 cm)
4 • FlipTop Power Center FT-PWR-B & FT-PWR-BALUM Operations & Installation Guide – DOC. 6480
Crestron FT-PWR-B & FT-PWR-BALUM FlipTop Power Center

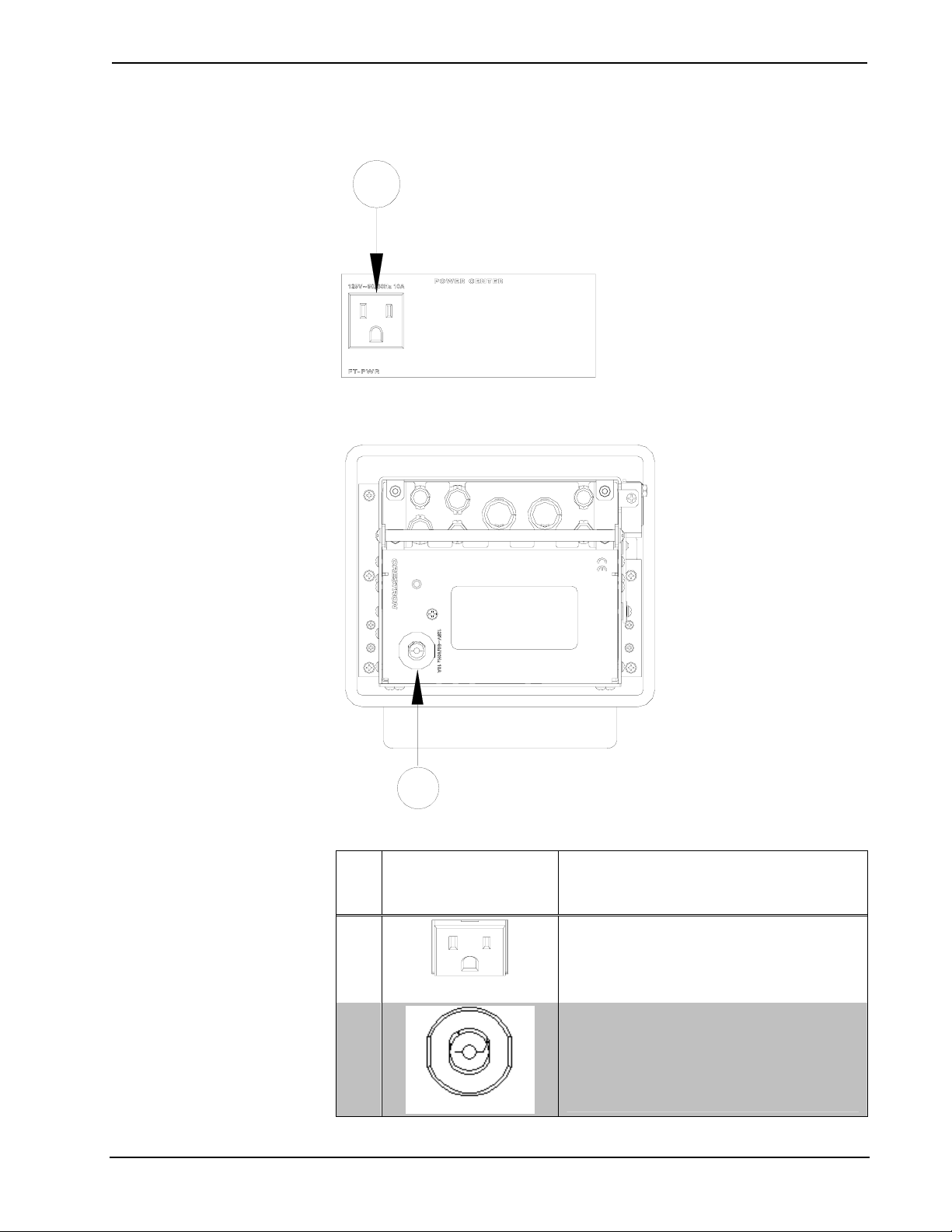

FT-PWR-B and FT-PWR-BALUM Front Face View
1
FT-PWR-B and FT-PWR-BALUM Bottom View
2
Connectors, Controls, & Indicators
# CONNECTORS,
CONTROLS, &
INDICATORS
1
2
Operations & Installation Guide – DOC. 6480 FlipTop Power Center: FT-PWR-B & FT-PWR-BALUM • 5
120 VAC, 50 – 60 Hz., 10 amperes
Maximum Load. This 3-prong grounded AC
input socket is connected to a line cord
located on the bottom side.
This is a grounded AC line cord.
125 VAC at 60 Hz. Connect the six-foot (183
cm) grounded AC line cord to supply AC
power to the outlet on the topside of the
FT-PWR-B and FT-PWR-BALUM.
DESCRIPTION
FlipTop Power Center Crestron FT-PWR-B & FT-PWR-BALUM
Industry Compliance
As of the date of manufacture, the FT-PWR-B and FT-PWR-BALUM have been
tested and found to comply with specifications for CE marking and standards per
EMC and Radiocommunications Compliance Labelling.
NOTE: This device complies with part 15 of the FCC rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
6 • FlipTop Power Center FT-PWR-B & FT-PWR-BALUM Operations & Installation Guide – DOC. 6480
Crestron FT-PWR-B & FT-PWR-BALUM FlipTop Power Center
Setup
Installation
There are two steps to installing the FT-PWR-B and FT-PWR-BALUM.
Cable Management Kit
The FT-PWR-B and FT-PWR-BALUM are shipped with a separate cable
management kit for organizing cables fed into the power center.
Tools required
• Phillips screwdriver
• Appropriate carpentry tools for cutout
Parts Supplied for Cable Management Kit
PART DESCRIPTION QUANTITY
Cable Support Plate 1
Bushing 0.55 inch (1.40cm) ID, 0.80 inch (2.03 cm) OD 2
Bushing 0.39 inch (0.99 cm) ID, 0.64 inch (1.63 cm) OD 2
Bushing 0.31 inch (0.79 cm) ID, 0.50 inch (1.27 cm) OD 4
Screw 04-40, 0.25 inch (0.64 cm) L 4
The cable support plate should be installed before mounting the FT-PWR-B or
FT-PWR-BALUM to a surface. The cables are looped through the cable support
plate.
1. Place bushings on the cables you wish to install in the power center (eight
bushings supplied). Use bushings appropriate to the diameter of each cable.
2. Thread the cables through the cable support plate slots appropriate to the
size of the cable and the bushing you attached in the previous step.
3. Snap the bushings into the slots on the cable support plate.
4. Feed all excess cable through the opening.
5. Attach the cable support plate using the four 4-40 x ¼ LG screws.
6. If desired, any installed cables can be secured to the bottom bar with tie
wraps (not supplied).
Operations & Installation Guide – DOC. 6480 FlipTop Power Center: FT-PWR-B & FT-PWR-BALUM • 7
FlipTop Power Center Crestron FT-PWR-B & FT-PWR-BALUM
Cable Plate Installation
Bushings
Cable Support Plate
(4) 4-40 x 1/4 LG Black Screws
Cables Loops Through the Cable Support Plate
Excess Cable
Loops
Cables Passed Through
Cable Support Plate
Optional Cables
NOTE: Ensure that any cables you install have sufficient clearance to enable smooth
movement.
Mounting to Surface
The FT-PWR-B and FT-PWR-BALUM are designed to mount in a horizontal
surface, such as a desk top, lectern, or podium. The following diagram illustrates the
required opening size to accommodate the FT-PWR-B and FT-PWR-BALUM. Use
the supplied template to make the cutout.
8 • FlipTop Power Center FT-PWR-B & FT-PWR-BALUM Operations & Installation Guide – DOC. 6480
Crestron FT-PWR-B & FT-PWR-BALUM FlipTop Power Center
Cutout Dimensions for FT-PWR-B and FT-PWR-BALUM
6.38 in
(16.21 cm)
5.31 in
(13.49 cm)
Radius .125 in (0.32 cm) Max
NOTE: Be sure to feed the attached power cord through the mounting hole before
inserting the FT-PWR-B or FT-PWR-BALUM.
Mounting Parts Supplied
PART DESCRIPTION QUANTITY
Screw #6-32, 3/16” L, Pan Head, Phillips 8
Screw #10-32, 2” L, Pan Head, Phillips 4
Mounting Bracket 2
1. Install the eight supplied #6-32 screws, but do not tighten (four on the front
side and four on the rear side). These will be used to secure the front and
rear mounting brackets.
2. Position the FT-PWR-B or FT-PWR-BALUM in the mounting hole.
Operations & Installation Guide – DOC. 6480 FlipTop Power Center: FT-PWR-B & FT-PWR-BALUM • 9
FlipTop Power Center Crestron FT-PWR-B & FT-PWR-BALUM
Mounting Bracket Screw Locations
#6-32 Screws
#6-32 Screws
Surface
Cutout
3. Thread a small portion of the two-inch long #10-32 screws into the
mounting brackets (two screws per bracket). Refer to the following
diagram.
4. Slide the mounting brackets over the #6-32 screws and tighten the
#6-32 screws.
Mounting Bracket Installation
5. Turn the four #10 screws equally until they contact the underside of the
mounting surface enough to secure the unit. DO NOT OVER TIGHTEN.
CAUTION: Do not over-tighten the #10 screws as this may damage the surface
and/or the unit.
10 • FlipTop Power Center FT-PWR-B & FT-PWR-BALUM Operations & Installation Guide – DOC. 6480
Crestron FT-PWR-B & FT-PWR-BALUM FlipTop Power Center
Mounting Brackets Installed
7.210 in
FOUR #10-32 2"L
SCREWS
(18.31 cm)
EIGHT #6-32 3/16"L
SCREWS
TWO MOUNTING BRACKETS
Hardware Hookup
Hookup consists of simply plugging the line cord into an appropriate outlet.
NOTE: To prevent overheating, do not operate this product in an area that exceeds
the environmental temperature range listed in the specifications table. Consideration
must be given if installed inside a closed desk or in a closed podium since the
operating ambient temperature of these environments may be greater than the room
ambient. Contact with thermal insulating materials should be avoided on all sides of
the unit.
NOTE: The maximum continuous current from equipment under any external load
conditions shall not exceed a current limit that is suitable for the minimum wire
gauge used in interconnecting cables. The ratings on the connecting unit's supply
input should be considered to prevent overloading the wiring.
Operations & Installation Guide – DOC. 6480 FlipTop Power Center: FT-PWR-B & FT-PWR-BALUM • 11
FlipTop Power Center Crestron FT-PWR-B & FT-PWR-BALUM
Operation
The spring-loaded lid is opened by pressing briefly and releasing it. Cables are stored
neatly beneath the lid when not in use to keep out debris and dust. The lid opens 135
degrees, allowing full access to cables and power inside.
Beneath the lid, a recessed compartment with eight grommeted holes through the
bottom plate allows any type of AV, communication, data or control cables to be
instantly available for connection to your devices. The recessed compartment also
contains a three-pronged, grounded AC socket.
12 • FlipTop Power Center FT-PWR-B & FT-PWR-BALUM Operations & Installation Guide – DOC. 6480
Crestron FT-PWR-B & FT-PWR-BALUM FlipTop Power Center
Problem Solving
Troubleshooting
The following table provides corrective action for possible trouble situations. If
further assistance is required, please contact a Crestron customer service
representative.
FT-PWR-B and FT-PWR-BALUM Troubleshooting
TROUBLE POSSIBLE CAUSE(S) CORRECTIVE ACTION
Device connected
to the AC socket
is not working.
Lack of, or insufficient
power to, AC socket.
Provide appropriate power to
the line cord.
Further Inquiries
If you cannot locate specific information or have questions after reviewing this
guide, please take advantage of Crestron's award winning customer service team by
calling the Crestron corporate headquarters at 1-888-CRESTRON [1-888-273-7876].
For assistance in your local time zone, refer to the Crestron website
(http://www.crestron.com/) for a listing of Crestron worldwide offices.
You can also log onto the online help section of the Crestron website to ask
questions about Crestron products. First-time users will need to establish a user
account to fully benefit from all available features.
Future Updates
As Crestron improves functions, adds new features, and extends the capabilities of
the FT-PWR-B and FT-PWR-BALUM, additional information may be made
available as manual updates. These updates are solely electronic and serve as
intermediary supplements prior to the release of a complete technical documentation
revision.
Check the Crestron website periodically for manual update availability and its
relevance. Updates are identified as an “Addendum” in the Download column.
Operations & Installation Guide – DOC. 6480 FlipTop Power Center: FT-PWR-B & FT-PWR-BALUM • 13
FlipTop Power Center Crestron FT-PWR-B & FT-PWR-BALUM
Return and Warranty Policies
Merchandise Returns / Repair Service
1. No merchandise may be returned for credit, exchange, or service without prior authorization
from CRESTRON. To obtain warranty service for CRESTRON products, contact an
authorized CRESTRON dealer. Only authorized CRESTRON dealers may contact the factory
and request an RMA (Return Merchandise Authorization) number. Enclose a note specifying
the nature of the problem, name and phone number of contact person, RMA number, and
return address.
2. Products may be returned for credit, exchange, or service with a CRESTRON Return
Merchandise Authorization (RMA) number. Authorized returns must be shipped freight
prepaid to CRESTRON, 6 Volvo Drive, Rockleigh, N.J. or its authorized subsidiaries, with
RMA number clearly marked on the outside of all cartons. Shipments arriving freight collect
or without an RMA number shall be subject to refusal. CRESTRON reserves the right in its
sole and absolute discretion to charge a 15% restocking fee, plus shipping costs, on any
products returned with an RMA.
3. Return freight charges following repair of items under warranty shall be paid by CRESTRON,
shipping by standard ground carrier. In the event repairs are found to be non-warranty, return
freight costs shall be paid by the purchaser.
CRESTRON Limited Warranty
CRESTRON ELECTRONICS, Inc. warrants its products to be free from manufacturing defects in materials
and workmanship under normal use for a period of three (3) years from the date of purchase from
CRESTRON, with the following exceptions: disk drives and any other moving or rotating mechanical
parts, pan/tilt heads and power supplies are covered for a period of one (1) year; touchscreen display and
overlay components are covered for 90 days; batteries and incandescent lamps are not covered.
This warranty extends to products purchased directly from CRESTRON or an authorized CRESTRON
dealer. Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if
any.
CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any
application other than that for which it was intended, or if it has been subjected to misuse, accidental
damage, modification, or improper installation procedures. Furthermore, this warranty does not cover any
product that has had the serial number altered, defaced, or removed.
This warranty shall be the sole and exclusive remedy to the original purchaser. In no event shall
CRESTRON be liable for incidental or consequential damages of any kind (property or economic damages
inclusive) arising from the sale or use of this equipment. CRESTRON is not liable for any claim made by a
third party or made by the purchaser for a third party.
CRESTRON shall, at its option, repair or replace any product found defective, without charge for parts or
labor. Repaired or replaced equipment and parts supplied under this warranty shall be covered only by the
unexpired portion of the warranty.
Except as expressly set forth in this warranty, CRESTRON makes no other warranties, expressed or
implied, nor authorizes any other party to offer any warranty, including any implied warranties of
merchantability or fitness for a particular purpose. Any implied warranties that may be imposed by law are
limited to the terms of this limited warranty. This warranty statement supersedes all previous warranties.
Trademark Information
All brand names, product names, and trademarks are the sole property of their respective owners. Windows is a registered trademark
of Microsoft Corporation. Windows95/98/Me/XP and WindowsNT/2000 are trademarks of Microsoft Corporation.
14 • FlipTop Power Center FT-PWR-B & FT-PWR-BALUM Operations & Installation Guide – DOC. 6480
Crestron FT-PWR-B & FT-PWR-BALUM FlipTop Power Center
This page is intentionally left blank.
Operations & Installation Guide – DOC. 6480 FlipTop Power Center: FT-PWR-B & FT-PWR-BALUM • 15
Crestron Electronics, Inc. Operations & Installation Guide – DOC. 6480
15 Volvo Drive Rockleigh, NJ 07647 (2014987)
Tel: 888.CRESTRON 05.06
Fax: 201.767.7576 Specifications subject to
www.crestron.com change without notice.
Loading...
