Crestron FT2A-CBLR-1T-HD Data Sheet

FT2A-CBLR-1T Series
FlipTop™ One-Touch Cable Retractors
l
Connectivity for FT2 ELEC Series FlipTop cable management systems
l
Electrically clutched, spring powered retraction mechanism
l
Cable pulls out smoothly up to 5 ft (1.5m) and retracts gently with the press of a button
l
Control system integration enables remote retraction control
l
Flexible, low friction flat cable construction
l
l
Backlit international symbol icon identifies the connector type
l
Active models support 4K60 4:4:4 digital AV signals
l
Support for HDR and HDCP 2.2
l
4K models available to convert from DisplayPort™ to HDMI® connectivity, Mini DisplayPort to DisplayPort, Mini DisplayPort to HDMI, and USB-C® to HDMI connectivity
l
Power module available for USB-C® to USB-C (60 W)
l
Passive models available for HDMI, VGA, stereo audio, LAN, and USB 2.0
l
Requires two module slots at either end of a FlipTop™ module row
l
Optional mid-row installation using additional brackets
l
Retractor housing snaps onto the side of the FlipTop chassis beneath the table
l
Requires only 11-5/8 in. (295 mm) vertical clearance below the table top surface
l
Provides a 2.75 or 4.75ft (0.8 or 1.4m) long tail below the
1
table
Crestron® One-Touch Cable Retractors (FT2A-CBLR-1T Series) offer a refined cable management solution for use with
Crestron FT2 ELEC Series FlipTops™. Each cable pulls out
smoothly up to 5 ft (1.5 m), and retracts gently back into the FlipTop™ with the touch of a button. The button on each module is backlit for visibility in a darkened room and is labeled with an international symbol icon indicating the connection type.
Automate one-touch retractors by connecting the retractors in a FlipTop to a control system and a switch or to a DMPS via a single Cresnet cable. Custom programming can trigger all the cables to retract after five minutes of no video being detected.
The retractor mechanism allows for a compact design that is ideal for applications where vertical clearance is limited beneath the table.
Each One-Touch Cable Retractor is composed of a retractor enclosure and pass-through module. The enclosure attaches to the FlipTop chassis beneath the table, while the module installs in the top of the FlipTop. A cable tail is provided below the table for connection to a DM® transmitter or similar interface device.
The pass-through module occupies two module slots within the FlipTop. The retractor enclosure slides onto the side of the FlipTop chassis beneath the table and locks into place with a
snap. Retractors normally install at the left and right ends of a module row but may also be installed in the middle of a row by adding an FT2A-CBLR-BRKT series mid-row adapter bracket (one per row, each sold separately).
The following one-touch, retractable HDMI® cable is offered:
FT2A-CBLR-1T-HD: 10.2 Gbps HDMI cable with a male HDMI Type A connector at both ends.
The following 4K compatible cables offered feature a minimum TMDS bandwidth of 18 Gbps to support ultra high-definition digital video signals up to 4K60 4:4:4. Active circuitry is employed for optimal performance.
l FT2A-CBLR-1T-4K-DP: DisplayPort™ cable with a male
DisplayPort connector at both ends.
l FT2A-CBLR-1T-4K-DP-HD: Cable with a male DisplayPort
connector at the source end above the table and a male HDMI Type A connector at the sink end below the table; converts DisplayPort to HDMI to allow connection of a DisplayPort source to an HDMI input.
l FT2A-CBLR-1T-4K-MDP-DP: Cable with a male Mini
1
DisplayPort connector at the source end above the table and a regular-sized male DisplayPort connector at the sink end below the table; converts Mini DisplayPort to standard DisplayPort to allow connection of a Mini DisplayPort source to a DisplayPort input.
l FT2A-CBLR-1T-4K-MDP-HD: Cable with a male Mini
DisplayPort connector at the source end above the table and a male HDMI Type A connector at the sink end below the table; converts Mini DisplayPort to HDMI to allow connection of a Mini DisplayPort source to an HDMI input.
l FT2A-CBLR-1T-4K-USBC-HD: Cable with a male USB
Type-C® connector at the source end above the table and a male HDMI Type A connector at the sink end below the table; converts USB-C to HDMI to allow connection of a USB-C source to an HDMI input.
1
A USB-C power module is available to support charging devices:
FT2A-CBLR-1T-USBC-PWR: USB Type-C cable with a male connector at the source end above the table and a male USB Type-C connector at the sink end connected to a 60 W USB-C adapter below the table (not included).
1
1
FT2A-CBLR-1T Series
FlipTop™ One-Touch Cable Retractors
Additional models are available to support analog and data signals. These cable retractors are passive.
l FT2A-CBLR-1T-VGA: VGA cable with a male HD15
connector at both ends; supports resolutions up to Full HD 1080p.
l FT2A-CBLR-1T-AUDIO: Unbalanced stereo audio cable
with a male 3.5 mm mini-TRS connector at both ends.
l FT2A-CBLR-1T-CAT6: CAT6 LAN cable with a male RJ-45
connector at both ends.
l FT2A-CBLR-1T-USB: USB 2.0 cable USB Type-A male to
USB Type-B male under the table to support connection to a codec or extender.
NOTE: FT2A-CBLR-1T series retractors are only compatible
with FT2 ELEC series FlipTops. They are not compatible with FT2 MECH series FlipTops. See also the FT2A-CBLR-GR Series Gravity Cable Retractors for a lower cost alternative.

Specifications

Cable
Pull-Out Length
Back End Tail Length
Button & Indicator
(1) Pushbutton with blue LED backlit symbol icon indicating the cable connector type, button actuates retraction, LED illuminates constantly or flashes if cable cannot be retracted due to interfering tension or obstruction
Up to 5 ft (1.5 m) above table
4.75ft (1.4m) beneath table except for models FT2A-CBLR-1T-4K-DP-HD, FT2A-CBLR-1T-4K-MDP-HD, FT2A-CBLR-1T-4K-USBC-HD, and FT2A-CBLR-1T-USBC-PWR, which are 2.75ft (0.8m)
Construction
Pass-Through Module
Retractor Enclosure
End-Row Mounting
Mid-Row Mounting
Precision fit plastic drop-in module, 2-slot, black
Plastic, black
l Module requires two consecutive module
slots at the left or right end of any module row within the FlipTop chassis
l Enclosure attaches beneath the table to
mounting slots on the left or right side of the FlipTop chassis;
l Requires 11.6in. (295mm) minimum
vertical clearance beneath the top surface of the table;
l Projects 8.4in. (213mm) from the side of
the FlipTop chassis beneath the table, and requires an additional 0.2in. (5mm) for installation
l Requires an FT2A-CBLR-BRKT Series mid-
row adapter bracket (one per row, each sold separately);
l Module requires two consecutive module
spaces in the middle of any module row within the FlipTop chassis (refer to the relevant FT2A-CBLR-BRKT model spec sheet for additional details);
l Enclosure attaches beneath the table to
mounting slots on the front or rear of the FlipTop chassis (via the bracket);
l Requires 11.6in. (295mm) minimum
vertical clearance beneath the top surface of the table;
l Projects 8.8in. (223mm) from the front
or rear of the FlipTop chassis beneath the table, and requires an additional 0.2in. (5mm) for installation
Communications
Cresnet® Allows connection to a control system via the
Cresnet port on the FlipTop, supports remote actuation of the retraction function
Environmental
Temperature 32° to 113° F (0° to 45° C)
Humidity 10% to 95% RH (non-condensing)

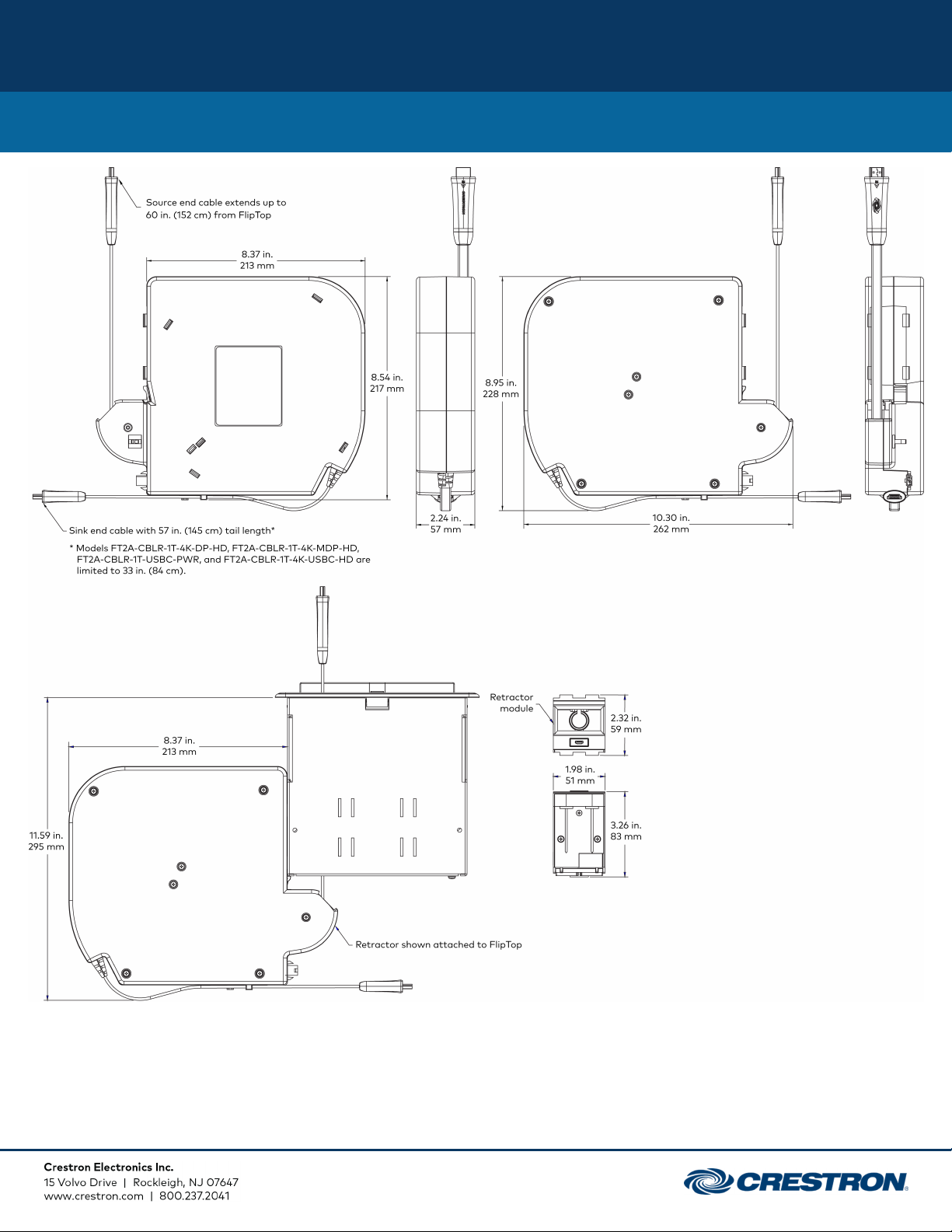

Dimensions
Height 8.95in. (228mm)
Width 10.30in. (262mm)
Depth 2.24in. (57mm)
The dimensions shown are for the retractor enclosure only.
Compliance
CE
FT2A-CBLR-1T Series
FlipTop™ One-Touch Cable Retractors

Models

FT2A-CBLR-1T-HD One-Touch Cable Retractor for FT2 ELEC Series, HDMI® to HDMI, 18Gbps
FT2A-CBLR-1T-4K-DP One-Touch Cable Retractor for FT2 ELEC Series, DisplayPort™ to DisplayPort, 18Gbps
FT2A-CBLR-1T-4K-DP-HD One-Touch Cable Retractor for FT2 ELEC Series, DisplayPort™ to HDMI®, 18Gbps
FT2A-CBLR-1T-4K-MDP-DP One-Touch Cable Retractor for FT2 ELEC Series, Mini DisplayPort™ to DisplayPort, 18Gbps
FT2A-CBLR-1T-4K-MDP-HD One-Touch Cable Retractor for FT2 ELEC Series, Mini DisplayPort™ to HDMI®, 18Gbps
FT2A-CBLR-1T-4K-USBC-HD One-Touch Cable Retractor for FT2 ELEC Series, USB-C® to HDMI®, 18Gbps
FT2A-CBLR-1T-USBC-PWR One-Touch Cable Retractor for FT2 ELEC Series, USB-C® to USB-C, 60W
FT2A-CBLR-1T-VGA One-Touch Cable Retractor for FT2 ELEC Series, HD15 male to HD15 male, VGA, 1080p
FT2A-CBLR-1T-AUDIO One-Touch Cable Retractor for FT2 ELEC Series, 3.5mm Mini­TRS Plug to 3.5mm Mini-TRS Plug, Stereo Audio
FT2A-CBLR-1T-CAT6 One-Touch Cable Retractor for FT2 ELEC Series, RJ-45 to RJ­45, CAT6
FT2A-CBLR-1T-USB One-Touch Cable Retractor for FT2 ELEC Series, USB-A to USB-B, USB 2.0

Available Accessories

FT2A-UTK-CLOAK Under-Table Cloak for FT2 Series Gravity Cable Retractors
FT2A-UTK-CLOAK-1T Under-Table Cloak for FT2 Series One-Touch Cable Retractors
FT2A-UTK-CLOAK-WIDE Under-Table Cloak for FT2-1400 Gravity Cable Retractors
FT2A-UTK-CLOAK-WIDE-1T Under-Table Cloak for FT2-1400 One-Touch Cable Retractors
FT2A-UTK-PWS Power Supply for FT2 ELEC Series
FT2A-UTK-SHELF Under-Table Utility Shelf for FT2 Series
Notes:
1. The cable tail beneath the table is 4 ft (1.2 m) long on all models except for FT2A-CBLR-1T-4K-DP-HD, FT2A-CBLR-1T-4K-MDP-HD, FT2A-CBLR-1T-4K-USBC-HD,and FT2A-CBLR-1T-USBC-PWR which are 2 ft (0.6 m) long.
