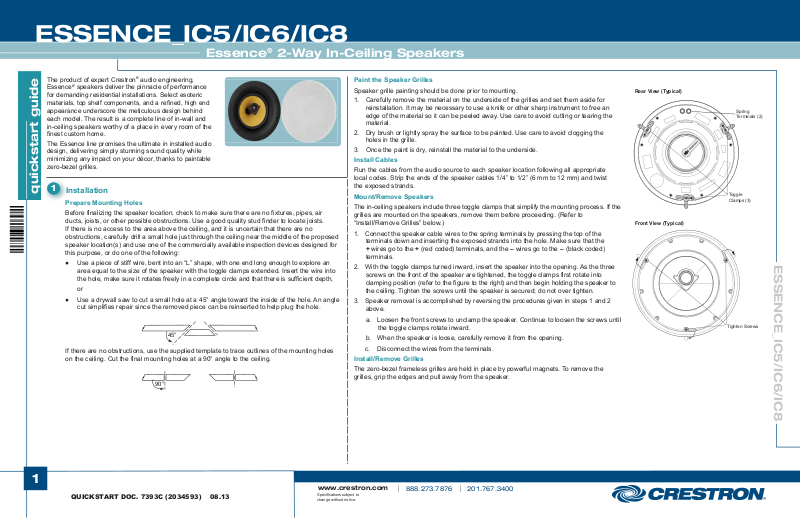

Crestron ESSENCE IC5, ESSENCE IC6, ESSENCE IC8 Quick Start Manual

ESSENCE_IC5/IC6/IC8
Essence® 2-Way In-Ceiling Speakers
The product of expert Crestron® audio engineering, Essence® speakers deliver the pinnacle of performance for demanding residential installations. Select esoteric materials, top shelf components, and a refined, high end appearance underscore the meticulous design behind each model. The result is a complete line of in-wall and in-ceiling speakers worthy of a place in every room of the finest custom home.
The Essence line promises the ultimate in installed audio design, delivering simply stunning sound quality while minimizing any impact on your décor, thanks to paintable zero-bezel grilles.
1
quickstart guide
Installation
Prepare Mounting Holes
Before finalizing the speaker location, check to make sure there are no fixtures, pipes, air ducts, joists, or other possible obstructions. Use a good quality stud finder to locate joists. If there is no access to the area above the ceiling, and it is uncertain that there are no obstructions, carefully drill a small hole just through the ceiling near the middle of the proposed speaker location(s) and use one of the commercially available inspection devices designed for this purpose, or do one of the following:
● Use a piece of stiff wire, bent into an “L” shape, with one end long enough to explore an area equal to the size of the speaker with the toggle clamps extended. Insert the wire into the hole, make sure it rotates freely in a complete circle and that there is sufficient depth,
or
● Use a drywall saw to cut a small hole at a 45° angle toward the inside of the hole. An angle cut simplifies repair since the removed piece can be reinserted to help plug the hole.
45°
If there are no obstructions, use the supplied template to trace outlines of the mounting holes on the ceiling. Cut the final mounting holes at a 90° angle to the ceiling.
90°
Paint the Speaker Grilles
Speaker grille painting should be done prior to mounting.
1. Carefully remove the material on the underside of the grilles and set them aside for reinstallation. It may be necessary to use a knife or other sharp instrument to free an edge of the material so it can be peeled away. Use care to avoid cutting or tearing the material.
2. Dry brush or lightly spray the surface to be painted. Use care to avoid clogging the holes in the grille.
3. Once the paint is dry, reinstall the material to the underside.
Install Cables
Run the cables from the audio source to each speaker location following all appropriate local codes. Strip the ends of the speaker cables 1/4” to 1/2” (6 mm to 12 mm) and twist the exposed strands.
Mount/Remove Speakers
The in-ceiling speakers include three toggle clamps that simplify the mounting process. If the grilles are mounted on the speakers, remove them before proceeding. (Refer to “Install/Remove Grilles” below.)
1. Connect the speaker cable wires to the spring terminals by pressing the top of the terminals down and inserting the exposed strands into the hole. Make sure that the + wires go to the + (red coded) terminals, and the – wires go to the – (black coded) terminals.
2. With the toggle clamps turned inward, insert the speaker into the opening. As the three screws on the front of the speaker are tightened, the toggle clamps first rotate into clamping position (refer to the figure to the right) and then begin holding the speaker to the ceiling. Tighten the screws until the speaker is secured; do not over tighten.
3. Speaker removal is accomplished by reversing the procedures given in steps 1 and 2 above.
a. Loosen the front screws to unclamp the speaker. Continue to loosen the screws until
the toggle clamps rotate inward.
b. When the speaker is loose, carefully remove it from the opening.
c. Disconnect the wires from the terminals.
Install/Remove Grilles
The zero-bezel frameless grilles are held in place by powerful magnets. To remove the grilles, grip the edges and pull away from the speaker.
Rear View (Typical)
Spring Terminals (2)
Toggle Clamps (3)
Front View (Typical)
ESSENCE_IC5/IC6/IC8
Tighten Screws
1
QUICKSTART DOC. 7393C (2034593) 08.13
www.crestron.com
Specifications subject to change without notice.
888.273.7876 201.767.3400
ESSENCE_IC5/IC6/IC8
S
Essence® 2-Way In-Ceiling Speakers
Specifications
2
ESSENCE_IC5/IC6/IC8 Specifications
SPECIFICATION
Features & Performance
Woofer1
Tweeter
Crossovers
Crossover Frequency
Impedance
Frequency Response
Frequency Range
Power Handling
quickstart guide
Sensitivity
Connections Input
Maximum Wire Size
Environmental
Temperature
Humidity
Construction Baffle Grille
Mounting
Dimensions Diameter Depth Minimum Mounting Depth Recommended Cutout
Weight
Available Models
Available Accessories
1. Woven Kevlar® with rubber surround, vented pole piece and cast aluminum basket
2. Advanced synthetic polymer dome, ferrofluid cooling, offset post mounted
3. Dimensions shown are per speaker
2
3
Diameter
3
ESSENCE_IC5
5.25 in (134 mm)
1.10 in (28 mm)
4th order Linkwitz-Riley
2 kHz
8 Ω nominal
55 Hz to 20 kHz (±3 dB)
45 Hz to 20 kHz (-10 dB)
125 watts program
88.5 dB @ (W/m)
(2) spring terminals
10 AWG
41° to 104° F (5° to 40° C)
10% to 90% RH (non-condensing) For indoor use only
ABS plastic, black Steel with textured finish, paintable, round or square (both included), magnetically held
zero bezel frameless Flush ceiling mount using three integral spring-loaded toggle clamps, 1.35 in (34 mm)
maximum surface thickness
8.30 in (211 mm)
4.07 in (104 mm)
3.88 in (99 mm)
7.40 in (188 mm)
4.58 lb (2.1 kg)
ESSENCE_IC5-W-T Essence 5.25” 2-Way In-Ceiling Speakers, Pair, White Textured
SPKA-NCTP-IC500 New-Construction
Speaker Templates
ESSENCE_IC6 ESSENCE_IC8
6.50 in (165 mm)
1.10 in (28 mm)
4th order Linkwitz-Riley
2 kHz
8 Ω nominal
45 Hz to 20 kHz (±3 dB)
35 Hz to 20 kHz (-10 dB)
150 watts program
89.5 dB @ (W/m)
9.28 in (236 mm)
4.27 in (109 mm)
4.08 in (104 mm)
8.40 in (214 mm)
4.85 lb (2.2 kg)
ESSENCE_IC6-W-T Essence 6.5” 2-Way In-Ceiling Speaker, Pair, White Textured
SPKA-NCTP-IC600 New-Construction
Speaker Templates
8.00 in (203 mm)
1.10 in (28 mm)
4th order Linkwitz-Riley
2 kHz
8 Ω nominal
38 Hz to 20 kHz (±3 dB)
30 Hz to 20 kHz (-10 dB)
175 watts program
91.5 dB @ (W/m)
11.64 in (296 mm)
4.94 in (126 mm)
4.75 in (121 mm)
10.80 in (275 mm)
7.09 lb (3.3 kg)
ESSENCE_IC8-W-T Essence 8” 2-Way In-Ceiling Speaker, Pair, White Textured
SPKA-NCTP-IC800 New-Construction
Speaker Templates
Side and Rear Views (Typical)
Depth
Minimum Mounting
Depth
Diameter
Recommended
Cutout
Diameter
Problem Solving
3
Troubleshooting
The following table provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative.
TROUBLE
No sound or intermittent sound from speakers.
Constant noise such as buzz, hum, or hiss from speakers.
Poor low frequency output.
POSSIBLE CAUSE(S)
Cable connection error.
Amplifier not receiving input signal or amplifier malfunction.
Faulty device in system.
System grounding fault.
Incorrect polarity connection at speaker or amplifier.
CORRECTIVE ACTION
Verify cable connections between amplifier and speakers.
Verify amplifier is functioning correctly, that it is receiving an input signal and that correct input source is selected.
Verify all devices in system are functioning properly.
Verify system grounding.
Verify speaker connection polarity (+ on amplifier to + on speaker).
Further Inquiries
To locate specific information or resolve questions after reviewing this guide, contact Crestron's True Blue Support at 1-888-CRESTRON [1-888-273-7876] or, for assistance within a particular geographic region, refer to the listing of Crestron worldwide offices at www.crestron.com/offices.
To post a question about Crestron products, log onto Crestron’s Online Help at www.crestron.com/onlinehelp. First-time users must establish a user account to fully benefit from all available features.
Future Updates
As Crestron improves functions, adds new features and extends the capabilities of the ESSENCE_IC5/IC6/IC8 speakers, additional information may be made available as manual updates. These updates are solely electronic and serve as intermediary supplements prior to the release of a complete technical documentation revision.
Check the Crestron Web site periodically for manual update avail
ability and its
relevance. Updates are identified as an “Addendum” in the Download column.
The specific patents that cover Crestron products are listed at patents.crestron.com.
