Crestron DM-RMC-100
DigitalMedia™ Room Controller
®
& DM
CAT Receiver
Operations & Installation Guide
This document was prepared and written by the Technical Documentation department at:
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
1-888-CRESTRON
Regulatory Compliance
As of the date of manufacture, the DM-RMC-100 has been tested and found to comply with specifications for
CE marking and standards per EMC and Radiocommunications Compliance Labelling.
Federal Communications Commission (FCC) Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions:
(1) This device may not cause harmful interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance
could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
Consult the dealer or an experienced radio/TV technician for help
Industry Canada (IC) Compliance Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
This device includes an aggregation of separate independent works that are each generally copyrighted by Crestron Electronics, Inc.,
with all rights reserved. One of those independent works, Linux Bridge Project, is copyrighted under the GNU GENERAL PUBLIC
LICENSE, Version2, reproduced in “GNU General Public License” on page 37, where the corresponding source code is available at:
ftp://ftp.crestron.com/gpl.
Crestron, the Crestron logo, DigitalMedia, DM, SIMPL Windows, SystemBuilder and Toolbox are trademarks or registered
trademarks of Crestron Electronics, Inc. in the United States and other countries. Windows is either a registered trademark or
trademark of Microsoft Corporation in the United States and/or other countries. Dolby is a registered trademark of Dolby
Laboratories. DTS is a registered trademark DTS, Inc. HDMI is a trademark or registered trademark of HDMI Licensing LLC in the
United States and other countries. Other trademarks and trade names may be used in this document to refer to either the entities
claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others.
©2011 Crestron Electronics, Inc.
Crestron DM-RMC-100 DigitalMedia™ Room Controller, CAT
Contents
DigitalMedia™ Room Controller & DM® CAT Receiver: DM-RMC-100 1
Introduction ...............................................................................................................................1
Features and Functions................................................................................................ 1
Applications.................................................................................................................5
Specifications ..............................................................................................................6
Physical Description.................................................................................................. 10
Setup ........................................................................................................................................ 18
Network Wiring......................................................................................................... 18
Identity Code ............................................................................................................. 19
Installation................................................................................................................. 19
Hardware Hookup .....................................................................................................21
Programming Software............................................................................................................23
Earliest Version Software Requirements for the PC .................................................23
Programming with Crestron SystemBuilder.............................................................. 23
Programming with SIMPL Windows........................................................................ 23
Uploading and Upgrading........................................................................................................ 27
Establishing Communication.....................................................................................27
Firmware ...................................................................................................................30
IP Configuration........................................................................................................ 31
Problem Solving ......................................................................................................................32
Troubleshooting......................................................................................................... 32
Check Network Wiring..............................................................................................34
Reference Documents................................................................................................35
Further Inquiries........................................................................................................ 35
Future Updates ..........................................................................................................35
Return and Warranty Policies.................................................................................................. 36
Merchandise Returns / Repair Service ......................................................................36
CRESTRON Limited Warranty.................................................................................36
GNU General Public License ..................................................................................................37
Operations & Installation Guide – DOC. 6743-1F Contents • i
Crestron DM-RMC-100 DigitalMedia™ Room Controller, CAT
DigitalMedia™ Room Controller &
®
DM
Introduction
CAT Receiver: DM-RMC-100
The DM-RMC-100 provides a convenient one-box interface solution to
support a single display device as part of a complete DigitalMedia™
system. It functions as a DM
providing a single HDMI
compact, low-profile design allows the DM-RMC-100 to be installed
discreetly behind a flat panel display or above a ceiling mounted
projector.
®
CAT receiver and control interface,
®
output along with a variety of control ports. Its
Features and Functions
• DigitalMedia receiver and display controller
1
• DM CAT input supports up to 450 foot (137 meter) cable length
• Low-profile surface mount design
®
• Provides one HDMI
• Handles HD video with Deep Color and 3D
• Includes USB HID keyboard/mouse port
• Enables device control via CEC, RS-232, IR, or Ethernet
(Continued on following page)
1. For DigitalMedia CAT wiring, use DM-CBL DigitalMedia Cable. Up to two DM
Repeaters (model DM-DR, sold separately) may be required. Refer to the latest
version of the Creston DigitalMedia Design Guide (Doc. 4789) for complete
wiring guidelines. It is available from the Crestron Web site at
(www.crestron.com/dmresources
2. HDMI requires an appropriate adapter or interface cable to accommodate a DVI
signal. CBL-HD-DVI interface cable available separately.
or DVI display output2
).
Operations & Installation Guide – DOC. 6743-1F Room Controller, CAT: DM-RMC-100 • 1
DigitalMedia™ Room Controller, CAT Crestron DM-RMC-100
Features and Functions
(Continued)
• Provides relay screen/lift control
• Supports a power current sensor or contact closure
• Affords single-wire connection from a DM switcher or
transmitter
• Provides 10/100 Ethernet connection for display device or
control system
• Easy setup and diagnostics
DigitalMedia
As the leader in HDMI and control system technologies, Crestron® has
developed DigitalMedia, the first complete HD AV distribution system
that takes HDMI to a higher level, and allows virtually any mix of AV
sources to be distributed throughout the home, office, school, or virtually
any other facility.
DigitalMedia distributes uncompressed digital video and audio signals up
to 450 feet (137 meters) using DM cable*. DigitalMedia thoughtfully
manages all of the different signals and devices, matching each source's
output to the capabilities of the selected display(s) without using scaling
or compression. Every signal is preserved in its native video resolution
and audio format, ensuring a pure, lossless signal path throughout.
* For DigitalMedia CAT wiring, use DM-CBL DigitalMedia Cable. Up to two DM
Repeaters (model DM-DR, sold separately) may be required. Refer to the latest
version of the Creston DigitalMedia Design Guide (Doc. 4789) for complete
wiring guidelines.
2 • Room Controller, CAT: DM-RMC-100 Operations & Installation Guide – DOC. 6743-1F
Crestron DM-RMC-100 DigitalMedia™ Room Controller, CAT
Multimedia Display Interface
A single HDMI digital AV output port is provided on the
DM-RMC-100, supporting HDMI with HDCP, Deep Color and 3D,
handling WUXGA computer resolutions and 1080p60 HDTV with
multi-channel HD lossless audio, all through a single connection. The
HDMI output can also handle DVI signals using an appropriate adapter
or interface cable
ports provided for controlling the display device, plus two relays for
screen and lift control, and a SENS input for connection of an optional
current sensor or contact closure.
Multiple DM-RMC-100s may be installed to handle each display in a
multi-room distribution system, all fed from a central DM series switcher
(sold separately). Or, a single DM-RMC-100 can be fed straight from a
DM-TX-100 or other DM CAT transmitter (sold separately) to provide a
simple solution for extending a computer or AV signal to feed a single
display. The connection to the switcher or transmitter requires just one
DigitalMedia cable, with a potential cable length up to 450 feet (137
meters)
2
. In lieu of a central DM switcher, the DM-RMC-100’s LAN port
may be used to connect over Ethernet to a 2-Series control system if
needed.
1
. In addition, there are RS-232, IR, and Ethernet control
1. HDMI requires an appropriate adapter or interface cable to accommodate a DVI
signal. CBL-HD-DVI interface cable available separately.
2. For DigitalMedia CAT wiring, use DM-CBL DigitalMedia Cable. Up to two DM
Repeaters (model DM-DR, sold separately) may be required. Refer to the latest
version of the Creston DigitalMedia Design Guide (Doc. 4789) for complete
wiring guidelines.
Operations & Installation Guide – DOC. 6743-1F Room Controller, CAT: DM-RMC-100 • 3
DigitalMedia™ Room Controller, CAT Crestron DM-RMC-100
Keyboard/Mouse Extender
When connected to a DM series switcher or DM-TX-100 transmitter
(both sold separately), the DM-RMC-100 functions as a keyboard/mouse
extender, allowing a USB HID (Human Interface Device) compliant
keyboard and/or mouse to be connected at the display location, and used
to control a computer or other host device located at the central
equipment rack or some other remote location.
HID devices include mice, keyboards, trackballs and composite devices
(e.g. combination keyboard/trackball devices). These devices do not
require driver installation on most common operating systems (Windows
and Mac OS).
Embedded Device Control
The primary objective of every Crestron system is to enable precisely the
control desired for a seamless user experience. The DM-RMC-100
includes built-in RS-232, IR, and Ethernet control ports to allow
programmable control of the display device connected to it. It can also
provide an alternative to these conventional control methods by
harnessing the CEC (Consumer Electronics Control) signal embedded in
HDMI. Through its connection to the control system, the
DM-RMC-100 provides a gateway for controlling the display device
right through the HDMI connection, potentially eliminating the need for
any dedicated control wires or IR probes.
Low-Profile Installation
The DM-RMC-100 mounts to a standard 2-gang, 4" square, or UK
electrical box, and sticks out only one inch from the wall surface.
Connections to the display are all positioned along the bottom edge of the
receiver, allowing cables to be dressed neatly without obstruction. The
DM and LAN connection are made behind the unit within the electrical
box. An array of indicators on the front of the DM-RMC-100 provide for
easy setup and troubleshooting, verifying the status of connections and
signal activity at a glance.
4 • Room Controller, CAT: DM-RMC-100 Operations & Installation Guide – DOC. 6743-1F
Crestron DM-RMC-100 DigitalMedia™ Room Controller, CAT
Applications
The diagram below shows a DM-RMC-100 in a classroom application.
DM-RMC-100 in a Classroom Application
For more information on this and other DM-RMC-100 applications, refer
to the latest revision of the Crestron DigitalMedia Design Guide
(Doc. 4789).
Operations & Installation Guide – DOC. 6743-1F Room Controller, CAT: DM-RMC-100 • 5
DigitalMedia™ Room Controller, CAT Crestron DM-RMC-100
Specifications
Specifications for the DM-RMC-100 are listed in the following table.
DM-RMC-100 Specifications
SPECIFICATION DETAILS
Video
Input Signal Type DM CAT (DigitalMedia over
twisted-pair copper wire)
Output Signal Types HDMI, DVI1
Formats HDMI with Deep Color & 3D, DVI,
HDCP content protection support
Input Resolutions
Progressive 640 x 480 @ 60 Hz
720 x 480 @ 60 Hz (480p)
720 x 576 @ 50 Hz (576p)
800 x 600 @ 60 Hz
848 x 480 @ 60 Hz
852 x 480 @ 60 Hz
854 x 480 @ 60 Hz
1024 x 768 @ 60 Hz
1024 x 852 @ 60 Hz
1024 x 1024 @ 60 Hz
1280 x 720 @ 50 Hz (720p50)
1280 x 720 @ 60 Hz (720p60)
1280 x 768 @ 60 Hz
1280 x 800 @ 60 Hz
1280 x 960 @ 60 Hz
1280 x 1024 @ 60 Hz
1360 x 768 @ 60 Hz
1365 x 1024 @ 60 Hz
1366 x 768 @ 60 Hz
1400 x 1050 @ 60 Hz
1440 x 900 @ 60 Hz
1600 x 900 @ 60 Hz
1600 x 1200 @ 60 Hz
1680 x 1050 @ 60 Hz
(Continued on following page)
6 • Room Controller, CAT: DM-RMC-100 Operations & Installation Guide – DOC. 6743-1F
Crestron DM-RMC-100 DigitalMedia™ Room Controller, CAT
DM-RMC-100 Specifications (Continued)
SPECIFICATION DETAILS
Video
Input Resolutions
Progressive
(Continued)
1920 x 1080 @ 24 Hz (1080p24)
1920 x 1080 @ 25 Hz (1080p25)
1920 x 1080 @ 50 Hz (1080p50)
1920 x 1080 @ 60 Hz (1080p60)
1920 x 1200 @ 60 Hz
2048 x 1080 @ 24 Hz
2048 x 1152 @ 60 Hz
plus any other resolution allowed
by HDMI up to 165 MHz pixel
clock
Interlaced 720 x 480 @ 30 Hz (480i)
720 x 576 @ 25 Hz (576i)
1920 x 1080 @ 25 Hz (1080i25)
1920 x 1080 @ 30 Hz (1080i30)
plus any other resolution allowed
by HDMI up to 165 MHz pixel
clock
Output Resolutions Matched to input
Audio
Input Signal Type DM CAT
Output Signal Type HDMI
Formats Dolby® Digital, Dolby Digital EX,
Dolby Digital Plus, Dolby True HD,
DTS®, DTS-ES, DTS 96/24, DTSHD High Res, DTS HD Master
Audio™, up to 8ch PCM
Communications
DigitalMedia DM CAT, DMNet, HDCP
management, EDID format
management, CEC
(Continued on following page)
Operations & Installation Guide – DOC. 6743-1F Room Controller, CAT: DM-RMC-100 • 7
DigitalMedia™ Room Controller, CAT Crestron DM-RMC-100
DM-RMC-100 Specifications (Continued)
SPECIFICATION DETAILS
Communications
(Continued)
Ethernet 10BASE-T/100BASE-TX,
auto-switching, auto-negotiating,
auto-discovery, full/half duplex,
TCP/IP, UDP/IP, CIP, DHCP,
RSTP
USB Supports USB HID class devices
Power Requirements
DMNet Power Usage 6 Watts
(0.25 Amps @ 24 Volts DC)
Minimum 2-Series Control
System Update File
2, 3
Version 4.001.1040 or later
Environmental
Temperature 41º to 104º F (5º to 40º C)
Humidity 10% to 90% RH
(non-condensing)
Heat Dissipation 21 BTU/Hr
Enclosure
Chassis Metal, matte black finish
Mounting Surface mount
(mounting bracket included)
Dimensions
Height 4.54 in (116 mm)
Width 5.15 in (131 mm)
Depth 1.41 in (36 mm)
Weight 14 oz (392 g)
(Continued on following page)
8 • Room Controller, CAT: DM-RMC-100 Operations & Installation Guide – DOC. 6743-1F
Crestron DM-RMC-100 DigitalMedia™ Room Controller, CAT
DM-RMC-100 Specifications (Continued)
SPECIFICATION DETAILS
Available Accessories
CBL-HD Crestron Certified HDMI Interface
Cable
CBL-HD-DVI Crestron Certified HDMI to DVI
Interface Cable
CNSP-XX Custom Serial Interface Cable
CNXRMCS Current Sensor
DM-CBL DigitalMedia Cable
DM-CONN DigitalMedia Cable Connector
DM-DR DigitalMedia Repeater
IRP2 IR Emitter Probe
MP-WP140 Media Presentation Wall Plate –
DVI with Mini-TRS Stereo Audio
MP-WP152 Media Presentation Wall Plate –
HDMI
MP-WP185 Media Presentation Wall Plate -
Crestron DigitalMedia CAT with
DMNet
1. HDMI requires an appropriate adapter or interface cable to accommodate a DVI
signal. CBL-HD-DVI interface cable available separately.
2. The latest software versions can be obtained from the Crestron Web site. Refer to
the NOTE following these footnotes.
3. Crestron 2-Series control systems include the AV2 and PRO2. Consult the latest
Crestron Product Catalog for a complete list of 2-Series control systems.
NOTE: Crestron software and any files on the Web site are for
authorized Crestron dealers and Crestron Authorized Independent
Programmers (CAIP) only. New users may be required to register to
obtain access to certain areas of the site (including the FTP site).
Operations & Installation Guide – DOC. 6743-1F Room Controller, CAT: DM-RMC-100 • 9
DigitalMedia™ Room Controller, CAT Crestron DM-RMC-100
Physical Description
This section provides information on the connections, controls and
indicators available on your DM-RMC-100.
DM-RMC-100 Physical View (Front)
10 • Room Controller, CAT: DM-RMC-100 Operations & Installation Guide – DOC. 6743-1F
Crestron DM-RMC-100 DigitalMedia™ Room Controller, CAT
DM-RMC-100 Physical View (Back)
Operations & Installation Guide – DOC. 6743-1F Room Controller, CAT: DM-RMC-100 • 11
DigitalMedia™ Room Controller, CAT Crestron DM-RMC-100
DM-RMC-100 Overall Dimensions (Front View)
5.15 in
(131 mm)
1
2
3
4
4.54 in
(116 mm)
5
DM-RMC-100 Overall Dimensions (Bottom View)
11109876
1.41 in
(36 mm)
12 • Room Controller, CAT: DM-RMC-100 Operations & Installation Guide – DOC. 6743-1F
Crestron DM-RMC-100 DigitalMedia™ Room Controller, CAT
DM-RMC-100 Overall Dimensions (Rear View)
Connectors, Controls & Indicators
# CONNECTORS1,
DESCRIPTION
CONTROLS &
INDICATORS
1 PWR LED (1) Green LED, indicates
operating power supplied via
DMNet
2 DM LINK LED (1) Green LED, indicates
connection to an upstream DM
device
(Continued on following page)
Operations & Installation Guide – DOC. 6743-1F Room Controller, CAT: DM-RMC-100 • 13
DigitalMedia™ Room Controller, CAT Crestron DM-RMC-100
Connectors, Controls & Indicators (Continued)
# CONNECTORS1,
DESCRIPTION
CONTROLS &
INDICATORS
3 VIDEO LED (1) Red/green dual color LED,
indicates video signal presence
and lock status:
Red – indicates no video
Green – indicates the device is
receiving video
Blinking Red/Green –
indicates errors in the video
stream
4 CNTRL LED (1) Red/green dual color LED,
indicates Ethernet connection
and control system
communication status:
Red – indicates no Ethernet
link
Green – indicates Ethernet link
and connection to control
system
Blinking Red/Green –
indicates Ethernet link but no
connection to control system
Blinking Green - The LED
goes out momentarily every
time a control command is sent
or received (i.e. IR, RS-232,
Relay, Sens)
5 SETUP (LED and
Button)
(1) Red LED and (1) miniature
recessed push button, for
Ethernet auto-discovery and
default IP address
(Continued on following page)
14 • Room Controller, CAT: DM-RMC-100 Operations & Installation Guide – DOC. 6743-1F
Crestron DM-RMC-100 DigitalMedia™ Room Controller, CAT
Connectors, Controls & Indicators (Continued)
# CONNECTORS1,
CONTROLS &
INDICATORS
6 SENS
7 HDMI
DESCRIPTION
(1) 2-pin 3.5 mm detachable
terminal block;
Digital/contact closure sensing
input;
Rated for 0-24 Volts DC,
referenced to ground;
Input impedance: 2.2k ohms
pulled up to 5 Volts DC;
Logic threshold: 2.5 Volts DC
nominal with 1 Volt hysteresis
band
(1) 19-pin Type A HDMI
female;
HDMI digital video/audio output
Also supports DVI2
8 USB
14 RELAY (1-2)
15 COM
(1) USB Type A female;
USB 1.1 host port for
connection of a mouse,
keyboard or other USB
HID-compliant device
(1) 4-pin 3.5 mm detachable
terminal block comprising two
normally open, isolated relays;
Rated 1 Amp, 30 Volts AC/DC;
MOV arc suppression across
contacts
(1) 5-pin 3.5 mm detachable
terminal block, bidirectional
RS-232 port;
Up to 115.2k baud, hardware
and software handshaking
support
(Continued on following page)
Operations & Installation Guide – DOC. 6743-1F Room Controller, CAT: DM-RMC-100 • 15
DigitalMedia™ Room Controller, CAT Crestron DM-RMC-100
Connectors, Controls & Indicators (Continued)
# CONNECTORS1,
CONTROLS &
INDICATORS
16 IR (1-2)
Pin 8
Green
LED
4, 5
12 DM INPUT
13 LAN4
Pin 1
Yellow
LED
DESCRIPTION
(1) 4-pin 3.5 mm detachable
terminal block comprising
two IR/Serial ports;
IR output up to 1.1 MHz;
1-way serial TTL/RS-232
(0-5 Volts) up to 19200 baud
(1) DM CAT input composed of
two 8-pin RJ-45 female,
shielded;
Connects to DM CAT output of
a DM switcher, transmitter, or
other DM device via DM-CBL
cable6
(1) 8-wire RJ-45 with two LED
indicators;
10BASE-T/100BASE-TX
Ethernet port;
Green LED indicates link
status;
Yellow LED indicates Ethernet
activity
3
PIN SIGNAL PIN SIGNAL
1 TX + 5 N/C
2 TX - 6 RX 3 RX + 7 N/C
4 N/C 8 N/C
14 24 A B G
7, 8
(1) 4-pin 3.5 mm detachable
terminal block, DMNet port;
Connects to DMNet port of a
DM switcher, transmitter, or
other DM device via DM-CBL
cable6
16 • Room Controller, CAT: DM-RMC-100 Operations & Installation Guide – DOC. 6743-1F
Crestron DM-RMC-100 DigitalMedia™ Room Controller, CAT
1. Interface connectors for 24 A B G, COM, IR, RELAY and SENS ports are
provided with the unit.
2. HDMI requires an appropriate adapter or interface cable to accommodate a DVI
signal. CBL-HD-DVI interface cable sold separately.
3. Maximum string length for IR commands should be no greater than 40 characters.
4. To determine which is pin 1 on the cable, hold the cable so that the end of the
eight pin modular plug is facing away from you, with the clip down and copper
side up. Pin 1 is on the far left.
5. The DM INPUT port consists of two separate RJ-45 connectors, labeled D and
M. The D port carries HDMI signal. The M port carries data. Refer to the
following table for the connector pinouts.
18
PIN # WIRE COLOR PIN # WIRE COLOR
1 Orange/White 5 Blue/White
2 Orange 6 Green
3 Green/White 7 Brown/White
4 Blue 8 Brown
6. For DigitalMedia CAT wiring, use DM-CBL DigitalMedia Cable. Up to two DM
Repeaters (model DM-DR, sold separately) may be required. Refer to the latest
version of the Creston DigitalMedia Design Guide (Doc. 4789) for complete
wiring guidelines.
7. Refer to the following table for the 24 A B G port connector pinouts.
ABG
24
PIN # SIGNAL DESCRIPTION WIRE COLOR
24 24V DC DC Power Red
A DMNet+ DMNet Orange
B DMNet- DMNet Gray
G Ground DC Ground Black
8. DMNet wiring is not compatible with Cresnet® wiring. DMNet wiring cannot be
daisy chained.
Operations & Installation Guide – DOC. 6743-1F Room Controller, CAT: DM-RMC-100 • 17
DigitalMedia™ Room Controller, CAT Crestron DM-RMC-100
Setup
Network Wiring
When wiring the DMNet network, consider the following:
®
NOTE: DMNet wiring and Cresnet
• Use Crestron Certified Wire.
• Use Crestron power supplies for Crestron equipment.
• Provide sufficient power to the system.
CAUTION: Insufficient power can lead to unpredictable results
or damage to the equipment. Please use the Crestron Power
Calculator to help calculate how much power is needed for the
system (www.crestron.com/calculators
wiring are not compatible.
).
• For DigitalMedia CAT wiring, use DM-CBL DigitalMedia Cable.
Up to two DM Repeaters (model DM-DR, sold separately) may be
required. Refer to the latest revision of the Crestron DigitalMedia
Design Guide (Doc. 4789) for complete wiring guidelines.
For more details, refer to “Check Network Wiring” which starts on page
34.
The DM-RMC-100 can also use high-speed Ethernet for communications
between the device and a control system, computer, media server and
other IP-based devices.
For information on connecting Ethernet devices in a Crestron system,
refer to the latest version of the Crestron e-Control
Reference Guide
(Doc. 6052), which is available from the Crestron Web site
(www.crestron.com/manuals
).
18 • Room Controller, CAT: DM-RMC-100 Operations & Installation Guide – DOC. 6743-1F
Crestron DM-RMC-100 DigitalMedia™ Room Controller, CAT
Identity Code
NOTE: In the SIMPL™ Windows program, when the DM-RMC-100 is
dropped onto an output card of a DM switcher, its IP ID is assigned
automatically and does not require additional programming. Use the
information below when the DM-RMC-100 is dropped directly into an
Ethernet slot on the control system in SIMPL Windows, without a DM
switcher.
The IP ID is set within the DM-RMC-100’s table using Crestron
Toolbox™. For information on setting an IP table, refer to the Crestron
Toolbox help file. The IP IDs of multiple DM-RMC-100 devices in the
same system must be unique.
When setting the IP ID, consider the following:
• The IP ID of each unit must match an IP ID specified in the
SIMPL Windows program.
• Each device using IP to communicate with a control system must
have a unique IP ID.
Installation
To prevent overheating, do not operate this product in an area that
exceeds the environmental temperature range listed in the table of
specifications.
The following tools and accessories are required for installation of a
DM-RMC-100:
• DigitalMedia cable (sold separately) terminated with shielded
RJ-45 connectors (DM-CONN, not supplied) for media signals and
mini-phoenix connector for DMNet signals. Refer to “Network
Wiring” on page 18.
• Phillips screwdriver (not supplied)
• Four #06-32 x 1/4" pan head Phillips screws (included)
• Metal mounting plate (included)
• 2-, 4- and 5-pin connector plugs (included)
Operations & Installation Guide – DOC. 6743-1F Room Controller, CAT: DM-RMC-100 • 19
DigitalMedia™ Room Controller, CAT Crestron DM-RMC-100
Use the following procedure to install the DM-RMC-100.
1. Attach supplied connector plugs to the appropriate cables. Refer to
“Hardware Hookup” which starts on page 21.
2. Attach the included metal mounting plate (2019091) to the
mounting surface using four screws (not supplied).
3. Attach the DM-RMC-100 to the mounting plate using the four
included #06-32 x 1/4" Phillips screws (2007215), as shown in the
illustration below.
Mounting DM-RMC-100 to Electrical Box
Metal Mounting Plate
(2019091)
DM-RMC-100
Screws (4) #06-32 X 1/4"
(2007215)
Drywall
20 • Room Controller, CAT: DM-RMC-100 Operations & Installation Guide – DOC. 6743-1F
Crestron DM-RMC-100 DigitalMedia™ Room Controller, CAT
Hardware Hookup
Make the necessary connections as called out in the illustration that
follows this paragraph. Refer to “Network Wiring” on page 18. Apply
power after all connections have been made.
When making connections to the DM-RMC-100, use Crestron power
supplies for Crestron equipment.
Hardware Connections for the DM-RMC-100 (Bottom View)
Operations & Installation Guide – DOC. 6743-1F Room Controller, CAT: DM-RMC-100 • 21
DigitalMedia™ Room Controller, CAT Crestron DM-RMC-100
Hardware Connections for the DM-RMC-100 (Back View)
LAN:
10/100 BASE-T Ethernet
to LAN
DM INPUT:
From Switcher or
Transmitter
From DMNet Port of Switcher,
Receiver or Other DM Device
24 A B G:
NOTE: Ensure the unit is properly grounded by mounting it to a metal
electrical box or connecting a wire from the unit’s ground screw to
building/earth ground.
NOTE: For optimum performance, Crestron strongly recommends using
DM-CBL DigitalMedia cable, available from Crestron.
NOTE: Minimum recommended length for DM-CBL DigitalMedia
cable is 15 feet (~4.6 meters).
22 • Room Controller, CAT: DM-RMC-100 Operations & Installation Guide – DOC. 6743-1F
Crestron DM-RMC-100 DigitalMedia™ Room Controller, CAT
Programming Software
Have a question or comment about Crestron software?
Answers to frequently asked questions (FAQs) can be viewed in the
Online Help section of the Crestron Web site. To post a question or view
questions you have submitted to Crestron’s True Blue Support, log in at
http://support.crestron.com
account.
Earliest Version Software Requirements for the PC
. First-time users will need to establish a user
NOTE: Crestron recommends that you use the latest software to take
advantage of the most recently released features. The latest software is
available from the Crestron Web site (www.crestron.com/software).
Crestron has developed an assortment of Windows-based software tools
to develop a customized system. Use Crestron SystemBuilder™ or
SIMPL Windows to create a program to control the DM-RMC-100.
Programming with Crestron SystemBuilder
Crestron SystemBuilder is the easiest method of programming but does
not offer as much flexibility as SIMPL Windows. For additional details,
download SystemBuilder from the Crestron Web site and examine the
extensive help file.
Programming with SIMPL Windows
NOTE: While SIMPL Windows can be used to program the
DM-RMC-100, it is recommended to use SystemBuilder for configuring
a system.
SIMPL Windows is Crestron’s premier software for programming
Crestron control systems. It is organized into two separate but equally
important “Managers”: Configuration and Program.
Operations & Installation Guide – DOC. 6743-1F Room Controller, CAT: DM-RMC-100 • 23
DigitalMedia™ Room Controller, CAT Crestron DM-RMC-100
Configuration
Manager
Configuration Manager is the view where programmers “build” a
Crestron control system by selecting hardware from the Device Library.
1. To incorporate the DM-RMC-100 into the system, drag the
DM-RMC-100 from the DigitalMedia | DM Receivers folder of the
Device Library and drop it into either of the following System
Views:
• A compatible output card of a DM switcher
• Directly to a card in the Ethernet slot of the control system
(used without a DM switcher)

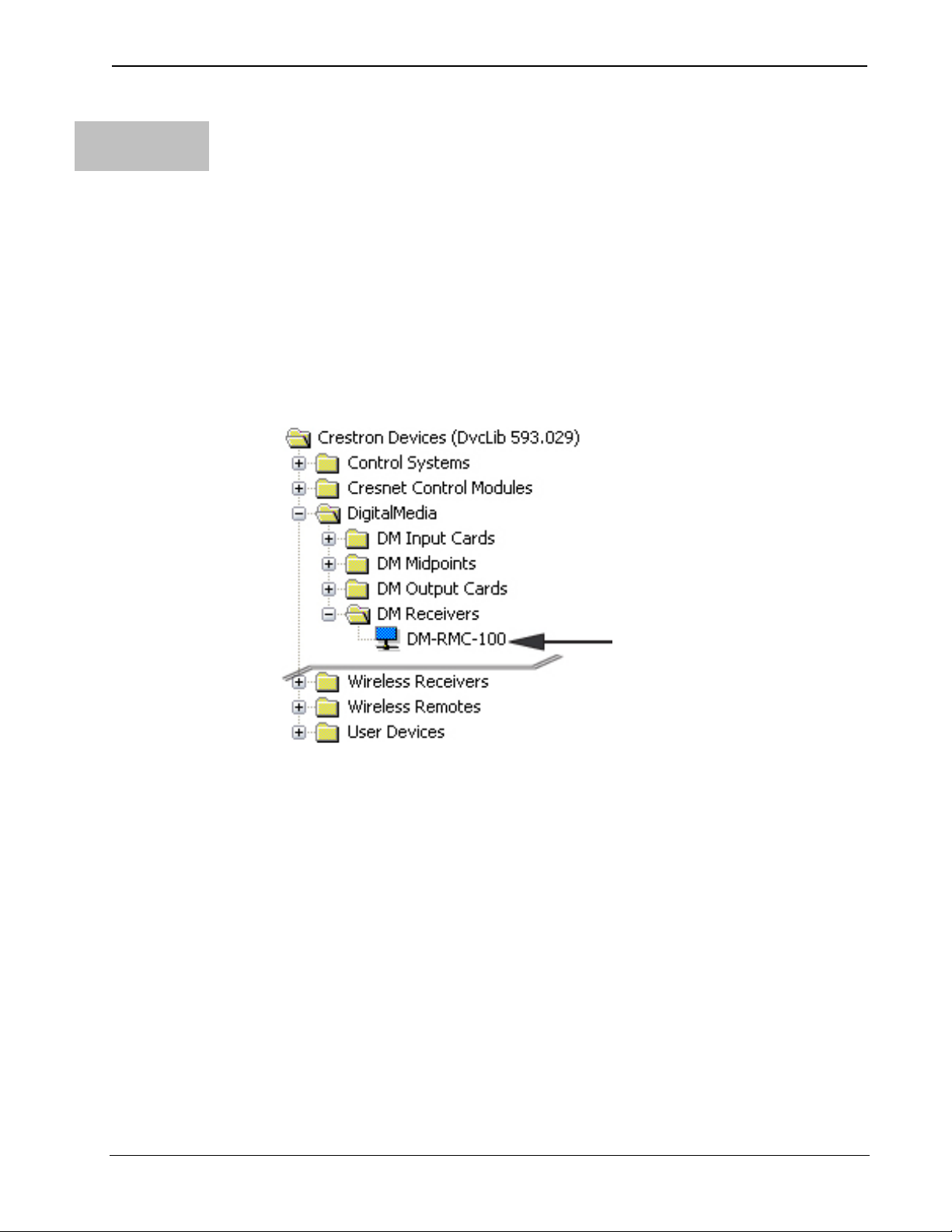

Locating the DM-RMC-100 in the Device Library
The system tree of the control system displays the
DM-RMC-100 in the appropriate slot with a default IP ID or IP ID
as shown in the following illustrations. In the first example, the
DM-RMC-100 is used with the DMCO-22 output card in a
DM-MD8X8 switcher (both sold separately). In the second
example, the DM-RMC-100 is used with the C2ENET-2 card (sold
separately) in an Ethernet slot on the control system.
24 • Room Controller, CAT: DM-RMC-100 Operations & Installation Guide – DOC. 6743-1F
Crestron DM-RMC-100 DigitalMedia™ Room Controller, CAT

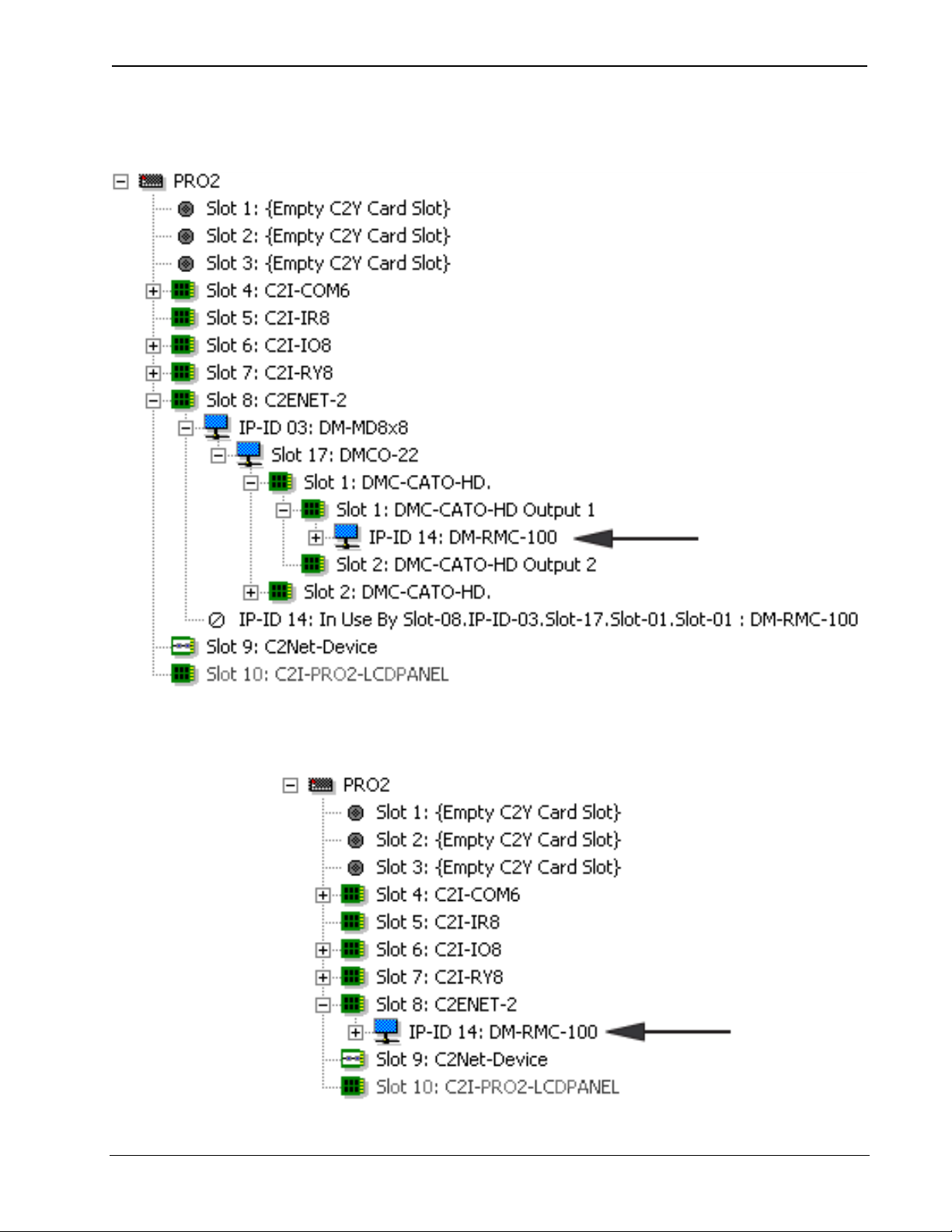

C2ENET-2 Device, Slot 8
(Using Output Card in a DM Switcher)
C2ENET-2 Device, Slot 8
(Using Ethernet Slot on Control System)
Operations & Installation Guide – DOC. 6743-1F Room Controller, CAT: DM-RMC-100 • 25
DigitalMedia™ Room Controller, CAT Crestron DM-RMC-100
2. If additional DM-RMC-100 devices are to be added, repeat step 1
for each device. Each DM-RMC-100 is assigned a different IP ID
number as it is added.
3. If necessary, double click a device to open the “Device Settings”
window and change the IP ID, as shown in the following figure.
“Device Settings: Crestron DM-RMC-100” Window
Program
Manager
NOTE: The ID code specified in the SIMPL Windows program
must match the IP ID of each unit. Refer to “Identity Code” on
page 19.
Program Manager is the view where programmers “program” a Crestron
control system by assigning signals to symbols.
The symbol can be viewed by double clicking on the icon or dragging it
into Detail View. Each signal in the symbol is described in the SIMPL
Windows help file (F1).
26 • Room Controller, CAT: DM-RMC-100 Operations & Installation Guide – DOC. 6743-1F
Crestron DM-RMC-100 DigitalMedia™ Room Controller, CAT
Uploading and Upgrading
Crestron recommends using the latest programming software and that
each device contains the latest firmware to take advantage of the most
recently released features. However, before attempting to upload or
upgrade it is necessary to establish communication. Once communication
has been established, files (for example, firmware) can be transferred to
the device. Finally, program checks can be performed (such as changing
the device ID) to ensure proper functioning.
Establishing Communication
Use Crestron Toolbox for communicating with the DM-RMC-100; refer
to the Crestron Toolbox help file for details.
A PC running Crestron Toolbox communicates with the
DM-RMC-100 in the following ways:
Via DM
Switcher
• Via a DM switcher using TCP/IP or USB communication. TCP/IP
provides a faster method of communication than USB.
• Via the LAN port of the DM-RMC-100 using TCP/IP
communication. In this scenario, the DM-RMC-100 is used in a
standalone configuration (i.e. a DM switcher is not used).
TCP/IP Communication via DM Switcher
PC Running
Crestron Toolbox
LAN
DM Switcher
DM-RMC-100
DMNet
To establish TCP/IP communication between the PC and the
DM-RMC-100 via a DM switcher:
1. Establish communication between the PC and the DM switcher as
described in the latest version of the Digital Media Switchers
Operations Guide (Doc. 6755).
2. Use the Device Discovery Tool in Crestron Toolbox to find the IP
address of the DM-RMC-100. The tool is available in Toolbox
version 1.15.143 or later.
Operations & Installation Guide – DOC. 6743-1F Room Controller, CAT: DM-RMC-100 • 27
DigitalMedia™ Room Controller, CAT Crestron DM-RMC-100
3. Use the Address Book in Crestron Toolbox to create an entry for
the DM-RMC-100 using the TCP connection type and enter the IP
address of the DM-RMC-100.
4. Display the DM-RMC-100’s “System Info” window (click the
icon); communications are confirmed when the device information
is displayed.
USB Communication via DM Switcher
To establish USB communication between the PC and the
DM-RMC-100 via a DM switcher:
1. Use the Address Book in Crestron Toolbox to create an entry using
the expected communication protocol (USB). When multiple USB
devices are connected, identify the DM switcher by entering
“DM-MD8X8”, “DM-MD16X16” or “DM-MD32X32” in the
Model textbox, the unit’s serial number in the Serial textbox or the
unit’s hostname in the Hostname textbox. The hostname can be
sound in the “System Info” window in the Ethernet section of the
window, however, communication must be established in order to
see this information in the “System Info” window.
2. Display the DM-RMC-100’s “System Info” window (click the
icon); communications are confirmed when the device information
is displayed.
28 • Room Controller, CAT: DM-RMC-100 Operations & Installation Guide – DOC. 6743-1F
Crestron DM-RMC-100 DigitalMedia™ Room Controller, CAT
Via LAN Port
TCP/IP Communication via LAN Port of DM-RMC-100
PC Running
Crestron Toolbox
LAN
DM-RMC-100
To establish TCP/IP communication between the PC and the
DM-RMC-100 via the LAN port of the DM-RMC-100:
1. Use the Device Discovery Tool in Crestron Toolbox to find the IP
address of the DM-RMC-100. The tool is available in Toolbox
version 1.15.143 or later.
NOTE: When the DM-RMC-100 is used in a standalone
configuration (i.e. without a DM switcher), DHCP is enabled by
default. If desired, a default IP address (192.168.1.241) can be
assigned by holding down its SETUP button while applying
power. This IP address overwrites any previous settings and
remains until it is changed manually.
2. Use the Address Book in Crestron Toolbox to create an entry for
the DM-RMC-100 using the TCP connection type and enter the IP
address of the DM-RMC-100.
3. Display the DM-RMC-100’s “System Info” window (click the
icon); communications are confirmed when the device information
is displayed.
4. (Optional) If additional changes to TCP/IP settings are desired, do
the following:
a. Assign an IP address, IP mask and default router for the
DM-RMC-100 via Crestron Toolbox (Functions | Ethernet
Addressing).
b. Close the “System Info” window.
c. In Crestron Toolbox, change the Address Book entry for the
DM-RMC-100 so that it uses the IP address assigned in step 4a.
d. Display the DM-RMC-100’s “System Info” window (click the
icon); communications are confirmed when the device
information is displayed.
Operations & Installation Guide – DOC. 6743-1F Room Controller, CAT: DM-RMC-100 • 29
DigitalMedia™ Room Controller, CAT Crestron DM-RMC-100
Firmware
Firmware files may be distributed from programmers to installers or from
Crestron to dealers. Firmware upgrades are available from the Crestron
Web site as new features are developed after product releases. For details
on upgrading, refer to the Crestron Toolbox help file.
Check the Crestron Web site to find the latest firmware. (New users may
be required to register to obtain access to certain areas of the site,
including the FTP site.)
To upgrade DM-RMC-100 firmware:
1. Do either of the following:
• If the DM-RMC-100 is connected to a DM switcher, use the
Device Discovery Tool in Crestron Toolbox to find the IP
address of the switcher.
• If the DM-RMC-100 is being used in standalone configuration
(i.e. without a DM switcher), use the Device Discovery Tool to
find the IP address of the DM-RMC-100.
2. Add the IP address to the Address Book in Toolbox.
3. Download the appropriate .puf file from the Crestron Web site to
your PC.
4. Double-click the .puf file. The Toolbox Address Book will open.
5. From the list in the Address Book, select the DM switcher (if the
DM-RMC-100 is connected to a switcher) or the DM-RMC-100 (if
the DM-RMC-100 is used in a standalone configuration), then
click OK.
Either of the following occurs:
• If the DM switcher was selected, a DM device list is displayed
that allows upgrading all DM devices connected to the
switcher.
• If the DM-RMC-100 was selected, a DM device list is
displayed that allows upgrading of the DM-RMC-100 only.
In the DM device lists that are displayed, the checkbox of any item
that needs to be upgraded is automatically selected.
6. Click Update.
7. After the process is complete, click Recheck to verify the upgrade.
30 • Room Controller, CAT: DM-RMC-100 Operations & Installation Guide – DOC. 6743-1F
Crestron DM-RMC-100 DigitalMedia™ Room Controller, CAT
IP Configuration
If the DM-RMC-100 is used in a standalone configuration (i.e. without a
DM switcher), use Crestron Toolbox to create the IP table entry for the
DM-RMC-100.
NOTE: If the DM-RMC-100 is connected directly to a DM switcher, the
IP table entry for the DM-RMC-100 is created automatically.
1. Use the Device Discovery Tool in Crestron Toolbox to find the IP
address of the DM-RMC-100. Then, display the “System Info”
window (click the
from the Address Book.
2. Select Functions | IP Table Setup.
3. Add, modify or delete entries in the IP table. The DM-RMC-100
can have only one IP table entry.
icon) and select the DM-RMC-100 entry
4. A defined IP table can be saved to a file or sent to the device.
Operations & Installation Guide – DOC. 6743-1F Room Controller, CAT: DM-RMC-100 • 31
DigitalMedia™ Room Controller, CAT Crestron DM-RMC-100
Problem Solving
Troubleshooting
The following table provides corrective action for possible trouble
situations. If further assistance is required, please contact a Crestron
customer service representative.
DM-RMC-100 Troubleshooting
TROUBLE POSSIBLE
CAUSE(S)
Device does not
function.
PWR LED does
not illuminate.
DM LINK LED
does not
illuminate.
Device is not
communicating
with the network.
Device is not
receiving
sufficient power.
Device is not
receiving power.
Device is not
receiving DMNet
signal.
CORRECTIVE
ACTION
Use Crestron Toolbox
to poll the network.
Verify network
connection to the
device.
Use the Crestron
Power Calculator to
help calculate how
much power is needed
for the system.
Verify DMNet
connections are
properly attached.
Verify DMNet
connections are
properly attached.
VIDEO LED is
red.
VIDEO LED
blinks red and
green.
(Continued on following page)
32 • Room Controller, CAT: DM-RMC-100 Operations & Installation Guide – DOC. 6743-1F
Device is not
receiving video
signal.
Device is
receiving video
but unable to lock
onto it.
Ensure proper video
signal is routed to
device.
Verify ‘D’ cable
connection and that the
cable length can
support the video data
rate.
Crestron DM-RMC-100 DigitalMedia™ Room Controller, CAT
DM-RMC-100 Troubleshooting (Continued)
TROUBLE POSSIBLE
CAUSE(S)
VIDEO LED is
green but video
on connected
display is black.
CNTRL LED is
red.
HDCP is blanking
the video output.
Device is not
communicating
with an Ethernet
device.
CORRECTIVE
ACTION
Verify ‘M’ cable
connection.
If source is routed
through DM Switcher,
verify that there are
enough HDCP keys to
support all
destinations.
Verify ‘M’ cable
connections.
If the device is in a
non-DHCP
environment, a default
IP address
(192.168.1.241) can be
assigned by holding
down its SETUP button
while applying power.
This IP address will
overwrite any previous
settings and will remain
until it is changed.
CNTRL LED
flashes
red/green.
Loss of
functionality due
to electrostatic
discharge.
NOTE: For more advanced diagnostics, use the DM tool in Crestron
Toolbox.
Operations & Installation Guide – DOC. 6743-1F Room Controller, CAT: DM-RMC-100 • 33
Device has
Ethernet link but
is not
communicating
with control
system.
Improper
grounding.
Verify IP table entries
match control system.
Check that all ground
connections have been
made properly.
DigitalMedia™ Room Controller, CAT Crestron DM-RMC-100
Check Network Wiring
Use the
Right Wire
Calculate
Power
In order to ensure optimum performance over the full range of your
installation topology, Crestron Certified Wire and only Crestron
Certified Wire may be used. Failure to do so may incur additional
charges if support is required to identify performance deficiencies
because of using improper wire.
CAUTION: Use only Crestron power supplies for Crestron equipment.
Failure to do so could cause equipment damage or void the Crestron
warranty.
CAUTION: Provide sufficient power to the system. Insufficient power
can lead to unpredictable results or damage to the equipment. The EIG
connector on the DM switcher is used to bring in external power.
Additional power is rarely required as switchers provide enough power
for most typical configurations. Please use the DMNet Power Calculator
to help calculate how much power is needed for the system
(www.crestron.com/calculators
).
Refer to the following table for commonly used resolutions and
maximum DM-CBL cable lengths.
Commonly Used Resolutions and Maximum DM-CBL Cable Lengths
RESOLUTION: DM-CBL CABLE LENGTH
Maximum length
without, between,
before or after repeaters
720p, 1080i, 1080p24 200 ft (60 m) 450 ft (137 m)
1024 x 768 @ 75 Hz 200 ft (60 m) 450 ft (137 m)
1080p60 150 ft (45 m) 450 ft (137 m)
1280 x 1024 @ 75 Hz 150 ft (45 m) 450 ft (137 m)
1920 x 1200 @ 60 Hz 150 ft (45 m) 450 ft (137 m)
1600 x 1200 @ 60 Hz 125 ft (38 m) 375 ft (114 m)
1080p60 Deep Color 50 ft (15 m) 150 ft (45 m)
NOTE: 1080p60 is the most common resolution used in residential
installations.
Maximum total
length using up to
2 repeaters
34 • Room Controller, CAT: DM-RMC-100 Operations & Installation Guide – DOC. 6743-1F
Crestron DM-RMC-100 DigitalMedia™ Room Controller, CAT
NOTE: All Crestron certified DMNet wiring must consist of two
twisted pairs. One twisted pair is the +24V conductor and the GND
conductor and the other twisted pair is the A conductor and the B
conductor.
Reference Documents
The latest version of all documents mentioned within the guide can be
obtained from the Crestron Web site.
List of Related Reference Documents
DOCUMENT TITLE
Crestron DigitalMedia Design Guide (www.crestron.com/dmresources)
Crestron e-Control Reference Guide (www.crestron.com/manuals)
DigitalMedia Switchers Operations Guide (www.crestron.com/manuals)
Further Inquiries
If you cannot locate specific information or have questions after
reviewing this guide, please take advantage of Crestron's award winning
customer service team by calling Crestron at 1-888-CRESTRON
[1-888-273-7876].
You can also log onto the online help section of the Crestron Web site
(www.crestron.com/onlinehelp
First-time users will need to establish a user account to fully benefit from
all available features.
) to ask questions about Crestron products.
Future Updates
As Crestron improves functions, adds new features and extends the
capabilities of the DM-RMC-100, additional information may be made
available as manual updates. These updates are solely electronic and
serve as intermediary supplements prior to the release of a complete
technical documentation revision.
Check the Crestron Web site periodically for manual update availability
and its relevance. Updates are identified as an “Addendum” in the
Download column.
Operations & Installation Guide – DOC. 6743-1F Room Controller, CAT: DM-RMC-100 • 35
DigitalMedia™ Room Controller, CAT Crestron DM-RMC-100
Return and Warranty Policies
Merchandise Returns / Repair Service
1. No merchandise may be returned for credit, exchange or service without prior authorization
from CRESTRON. To obtain warranty service for CRESTRON products, contact an
authorized CRESTRON dealer. Only authorized CRESTRON dealers may contact the factory
and request an RMA (Return Merchandise Authorization) number. Enclose a note specifying
the nature of the problem, name and phone number of contact person, RMA number and
return address.
2. Products may be returned for credit, exchange or service with a CRESTRON Return
Merchandise Authorization (RMA) number. Authorized returns must be shipped freight
prepaid to CRESTRON, 6 Volvo Drive, Rockleigh, N.J. or its authorized subsidiaries, with
RMA number clearly marked on the outside of all cartons. Shipments arriving freight collect
or without an RMA number shall be subject to refusal. CRESTRON reserves the right in its
sole and absolute discretion to charge a 15% restocking fee plus shipping costs on any
products returned with an RMA.
3. Return freight charges following repair of items under warranty shall be paid by CRESTRON,
shipping by standard ground carrier. In the event repairs are found to be non-warranty, return
freight costs shall be paid by the purchaser.
CRESTRON Limited Warranty
CRESTRON ELECTRONICS, Inc. warrants its products to be free from manufacturing defects in materials
and workmanship under normal use for a period of three (3) years from the date of purchase from
CRESTRON, with the following exceptions: disk drives and any other moving or rotating mechanical
parts, pan/tilt heads and power supplies are covered for a period of one (1) year; touchscreen display and
overlay components are covered for 90 days; batteries and incandescent lamps are not covered.
This warranty extends to products purchased directly from CRESTRON or an authorized CRESTRON
dealer. Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if
any.
CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any
application other than that for which it was intended or if it has been subjected to misuse, accidental
damage, modification or improper installation procedures. Furthermore, this warranty does not cover any
product that has had the serial number altered, defaced or removed.
This warranty shall be the sole and exclusive remedy to the original purchaser. In no event shall
CRESTRON be liable for incidental or consequential damages of any kind (property or economic damages
inclusive) arising from the sale or use of this equipment. CRESTRON is not liable for any claim made by a
third party or made by the purchaser for a third party.
CRESTRON shall, at its option, repair or replace any product found defective, without charge for parts or
labor. Repaired or replaced equipment and parts supplied under this warranty shall be covered only by the
unexpired portion of the warranty.
Except as expressly set forth in this warranty, CRESTRON makes no other warranties, expressed or
implied, nor authorizes any other party to offer any warranty, including any implied warranties of
merchantability or fitness for a particular purpose. Any implied warranties that may be imposed by law are
limited to the terms of this limited warranty. This warranty statement supersedes all previous warranties.
36 • Room Controller, CAT: DM-RMC-100 Operations & Installation Guide – DOC. 6743-1F
Crestron DM-RMC-100 DigitalMedia™ Room Controller, CAT
GNU General Public License
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA
Everyone is permitted to copy and distribute verbatim copies of this license document but changing it is not allowed.
PREAMBLE
The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public
License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users.
This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors
commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.)
You can apply it to your programs too.
When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that
you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can
get it if you want it, that you can change the software or use pieces of it in new free programs and that you know you can do these
things.
To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights.
These restrictions translate to certain responsibilities for you if you distribute copies of the software or if you modify it.
For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you
have. You must make sure that they too receive or can get the source code. And you must show them these terms so they know their
rights.
We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to
copy, distribute and/or modify the software.
Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free
software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the
original, so that any problems introduced by others will not reflect on the original authors' reputations.
Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free
program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that
any patent must be licensed for everyone's free use or not licensed at all.
The precise terms and conditions for copying, distribution and modification follow.
GNU GENERAL PUBLIC LICENSE
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be
distributed under the terms of this General Public License. The "Program" below refers to any such program or work, and a "work
based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the
Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is
included without limitation in the term "modification".) Each licensee is addressed as "you".
Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of
running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the
Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.
1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you
conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the
notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this
License along with the Program.
Operations & Installation Guide – DOC. 6743-1F Room Controller, CAT: DM-RMC-100 • 37
DigitalMedia™ Room Controller, CAT Crestron DM-RMC-100
You may charge a fee for the physical act of transferring a copy and you may at your option offer warranty protection in exchange for
a fee.
2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and
distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:
a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any
part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.
c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such
interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a
notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under
these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does
not normally print such an announcement, your work based on the Program is not required to print an announcement.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program and
can be reasonably considered independent and separate works in themselves, then this License and its terms do not apply to those
sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work
based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend
to the entire whole and thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to
exercise the right to control the distribution of derivative or collective works based on the Program.
In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a
volume of a storage or distribution medium does not bring the other work under the scope of this License.
3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the
terms of Sections 1 and 2 above provided that you also do one of the following:
a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of
Sections 1 and 2 above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of
physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed
under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is
allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an
offer, in accord with Subsection b above.)
The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete
source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to
control compilation and installation of the executable. However, as a special exception, the source code distributed need not include
anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel and so on) of the
operating system on which the executable runs, unless that component itself accompanies the executable.
If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access
to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to
copy the source along with the object code.
4. You may not copy, modify, sublicense or distribute the Program except as expressly provided under this License. Any attempt
otherwise to copy, modify, sublicense or distribute the Program is void and will automatically terminate your rights under this
License. However, parties who have received copies or rights, from you under this License will not have their licenses terminated so
long as such parties remain in full compliance.
5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or
distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by
38 • Room Controller, CAT: DM-RMC-100 Operations & Installation Guide – DOC. 6743-1F
Crestron DM-RMC-100 DigitalMedia™ Room Controller, CAT
modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so and
all its terms and conditions for copying, distributing or modifying the Program or works based on it.
6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the
original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further
restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to
this License.
7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues),
conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do
not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this
License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent
license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you,
then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended
to apply and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any
such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented
by public license practices. Many people have made generous contributions to the wide range of software distributed through that
system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute
software through any other system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the
original copyright holder who places the Program under this License may add an explicit geographical distribution limitation
excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License
incorporates the limitation as if written in the body of this License.
9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new
versions will be similar in spirit to the present version but may differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it
and "any later version", you have the option of following the terms and conditions either of that version or of any later version
published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any
version ever published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the
author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software
Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all
derivatives of our free software and of promoting the sharing and reuse of software generally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO
THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE
COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY
KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND
PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE
COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT
HOLDER OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED
ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT
NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR
THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH
HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Operations & Installation Guide – DOC. 6743-1F Room Controller, CAT: DM-RMC-100 • 39
Crestron Electronics, Inc. Operations & Installation Guide – DOC. 6743-1F
15 Volvo Drive Rockleigh, NJ 07647 (2027682)
Tel: 888.CRESTRON 02.11
Fax: 201.767.7576 Specifications subject to
www.crestron.com change without notice.
Loading...
