DM-PSU-ULTRA-MIDSPAN
DigitalMedia™ Ultra Midspan PoDM++ Injector
> Powers one or two PoDM-powered DM 8G+® devices
> Supports PoDM+ and PoDM++ powered devices
> Simultaneously supplies up to 45 Watts from each port
> Inserts midspan and supplies power to both endpoints
> Preserves the integrity of 4K video and 10 GB data signals
> Maintains full 300 ft (100 m) cable length end-to-end
> Also functions as a 2-port PoDM++ power supply for
DMC I/O cards
> Compatible with HDBaseT® PoE+ powered devices
> Includes status indicators for basic troubleshooting
> No configuration or programming required
> Surface or under-table mountable
> Attachable to a single rack rail
> 1 RU rack mount kit option sold separately
[2]
[1]
The Crestron® DM-PSU-ULTRA-MIDSPAN provides a single-point, midspan
power injector for one or two PoDM-powered DM 8G+® devices. Its ability
to deliver power in two directions without impacting the video or data
signals passing through is unique in the industry. Its high-output power
capacity of 45 Watts per port enables support for PoDM+ and PoDM++
powered devices including the Crestron TS-1542-C touch screen.
[1]
Bidirectional Power
The DM-PSU-ULTRA-MIDSPAN installs in line between two DM 8G+
devices and provides power to either or both of those devices. This allows
a DM 8G+ transmitter and receiver, such as the DM-TX-4K-302-C and
DM-RMC-4K-SCALER-C-DSP, to be paired together to form a custom
point-to-point 4K signal extender, all powered from a single midspan
power source. The use of a midspan power source with bidirectional
powering capability eliminates the need for separate power supplies or
electrical outlets at either endpoint.
[2]
2-Port PoDM++ Power Supply
For larger systems utilizing a DM-MD8X8, DM-MD16X16, or DM-MD32X32
switcher, the DM-PSU-ULTRA-MIDSPAN can be used to supply PoDM++
power to two DM 8G+ devices via their connections to the switcher.
Instead of installing in line, each port on the DM-PSU-ULTRA-MIDSPAN
can be connected to the POE IN port of a DMC-4K-C input card,
DMC-4K-C-DSP input card, or DMC-4K-CO-HD output card. Doing so
enables the powering of two separate devices, whether transmitters,
receivers, or touch screens, through the DM port on each card. A
maximum of 45 Watts is available at each port.
[1,2]
HDBaseT® Compatible
The DM-PSU-ULTRA-MIDSPAN is compatible with HDBaseT® Alliance
specifications and may be used to supply power to IEEE 802.3at compliant
HDBaseT PoE+ powered devices.
Mounting Options
The DM-PSU-ULTRA-MIDSPAN features integral mounting flanges to allow
for surface mounting under a table, or attachment to a single rack rail. One
or two units may also be installed in a single rack space using the optional
rack mount kit (model ST-RMK, sold separately).
SPECIFICATIONS
Connectors
G: (1) 6-32 screw;
Chassis ground lug
100-240V~ 50/60Hz 1.2-0.6A: (1) IEC 60320 C14 main power inlet;
Mates with removable power cord, included
PoDM++ 1 – 2: (2) 8-pin RJ45 female, shielded;
DM 8G+ pass-through ports (HDBaseT compatible);
PoDM++ PSE ports (HDBaseT PoE+ compatible)
Indicators
PWR: (1 bottom/front, 1 top/rear) Green LEDs, each indicates main AC line
power is connected and the unit is operating
PoDM++ 1 – 2 (bottom/front): (2) Green LEDs, each indicates the
corresponding port is delivering power to the connected device
PORT PWR 1 – 2 (top/rear): (2) Green LEDs, each indicates the
corresponding port is delivering power to the connected device
Power
Main Power: 1.2 Amp @ 100-125 Volts AC or 0.6 Amp @ 220-240 Volts
AC, 50/60 Hz
Power Consumption: 0.7 Watts at idle
[2]
crestron.com | 800.237.2041
DM-PSU-ULTRA-MIDSPAN DigitalMedia
™
Ultra Midspan PoDM++ Injector
Power over DM (PoDM): IEEE 802.3at compliant PoDM++ PSE (Power
Sourcing Equipment); each port supplies up to 45 Watts to power one
PoDM (Class 0-3), PoDM+ (Class 4), or PoDM++ PD (Powered Device)
Power over HDBaseT: IEEE 802.3at PoE+ compliant PSE (Power
Sourcing Equipment); each port supplies up to 30 Watts to power one
HDBaseT PoE or PoE+ PD (Powered Device)
Environmental
[3]
Temperature: 32° to 104° F (0° to 40° C)
Humidity: 10% to 90% RH (non-condensing)
Heat Dissipation: 41 BTU/hr maximum;
8.2 BTU/hr typical;
2.4 BTU/hr idle
Enclosure
Chassis: Metal, black finish, with (2) integral mounting flanges;
vented sides
Mounting: Freestanding, surface mount, attach to a single rack rail, or
1 RU rack mount (ST-RMK rack mount kit sold separately)
Dimensions
Height: 6.06 in (154 mm)
Width: 6.95 in (177 mm)
Depth: 1.64 in (42 mm)
This product may be purchased from an authorized Crestron dealer. To find a dealer, please
contact the Crestron sales representative for your area. A list of sales representatives is available
[1]
online at www.crestron.com/salesreps or by calling 800-237-2041.
The specific patents that cover Crestron products are listed online at: patents.crestron.com.
Certain Crestron products contain open source software. For specific information, please visit
www.crestron.com/opensource.
Crestron, the Crestron logo, DigitalMedia, and DM 8G+ are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. HDBaseT and the
HDBaseT Alliance logo are either trademarks or registered trademarks of the HDBaseT Alliance
in the United States and/or other countries. Other trademarks, registered trademarks, and trade
names may be used in this document to refer to either the entities claiming the marks and names
or their products. Crestron disclaims any proprietary interest in the marks and names of others.
Crestron is not responsible for errors in typography or photography. Specifications are subject to
change without notice. ©2016 Crestron Electronics, Inc.
Weight
2.6 lb (1.2 kg)
MODELS & ACCESSORIES
Available Models
DM-PSU-ULTRA-MIDSPAN: DigitalMedia™ Ultra Midspan PoDM++ Injector
Available Accessories
ST-RMK: Rack Mount Kit
DM-CBL-ULTRA-PC: DigitalMedia™ Ultra Patch Cables
DM-CONN-ULTRA-RECP: DigitalMedia™ Ultra Keystone RJ45 Jack
DM-CBL-ULTRA: DigitalMedia™ Ultra Cable
DM-CONN: Connector for DM-CBL-ULTRA
DM-CBL-8G: DigitalMedia 8G™ Cable
DM-8G-CONN: Connector for DM-CBL-8G
DM-8G-CRIMP: Crimping Tool for DM-8G-CONN
DM-8G-CONN-WG: DigitalMedia Connector with Wire Guide for DM-CBL-8G
DM-8G-CRIMP-WG: Crimping Tool for DM-8G-CONN-WG
Notes:
1. Due to the inherent power loss that occurs over CATx cable, a maximum of 40 Watts is
delivered at the PoDM++ PD (powered device).
2. Any wiring that is connected to a PoDM++ PSE port is for intra-building use only and should
not be connected to a line that runs outside of the building in which the PSE is located.
3. Due to the inherent power loss that occurs over CATx cable, a maximum of 25.5 Watts is
delivered at the HDBaseT PoE+ PD (powered device).
Front/Top View

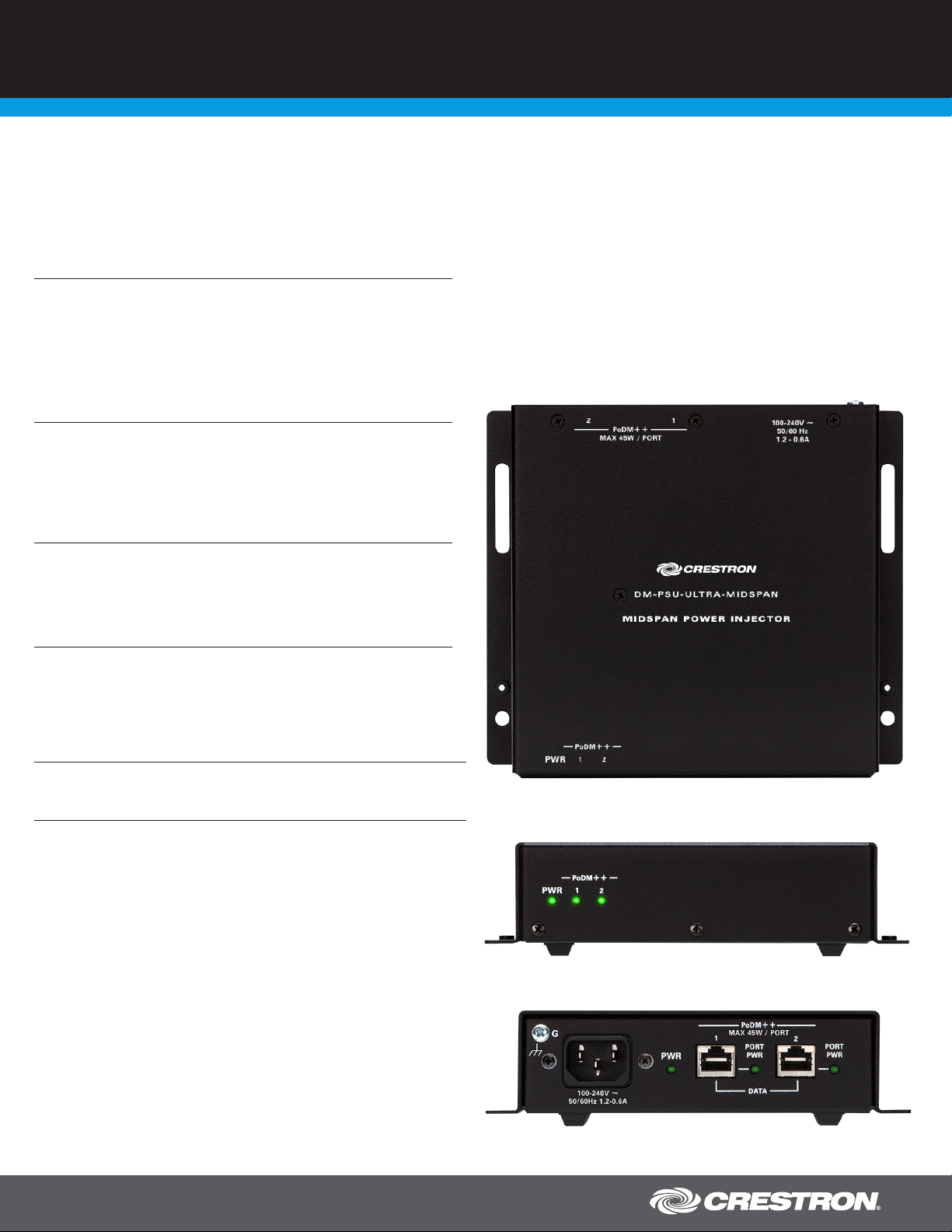

Bottom/Front View
Top/Rear View
