Crestron CN-WP12F and CN-WP12N Source and Numeric Keypads
Source and Numeric Keypads:
CN-WP12F and CN-WP12N
Description
Functional Description
The Source and Numeric Keypads, CN-WP12F and CN-WP12N, are wall-mounted
user-interface devices designed to work with the CNX-PAD8 Professional Audio
Distribution Processor. The keypads are installed into the physical rooms of a building
to control the CNX-PAD8 and its audio source devices.
The CN-WP12F serves as the source keypad. It consists of six source selector buttons,
an ON/OFF button, a MUTE button, device transport control and volume control
buttons. The CN-WP12N is an optional numeric keypad that is used to expand the
capabilities of the source keypad. It contains a CLEAR button, an ENTER button, and
numeric digit buttons 0 through 9. The keypad is ideal for audio device functions such
as selecting a particular track number of a CD or a certain disc of a CD changer.
Both keypads are standard Cresnet devices and may be programmed as desired using
SIMPL Windows. In addition, a set of pre-programmed modules is available from
Crestron to facilitate easier programming of the keypads and the CNX-PAD8. These
modules are referred to as the CrestronHome Programming Kit and can be obtained
from the Downloads page (MACROS Library) of Crestron’s website
(www.crestron.com).
Physical Description
The CN-WP12F and CN-WP12N keypads are shown on the next page. Each keypad
has 12 buttons and on the CN-WP12F, the top eight buttons contain LEDs for user
feedback indicators. The SIMPL™ Windows program determines the state of the
indicators, either off, on, or flashing. The CN-WP12N has an LED for the ENTER
button only.
The CN-WP12F is available in either ivory or white (part numbers CN-WP12FI and
CN-WP12FW, respectively). The CN-WP12N is also available in ivory or white
(CN-WP12NI and CN-WP12NW). Wall-plates are not supplied.
The CN-WP12F has standard source selector switch caps installed and a kit of custom
switch caps is provided.
Operations Guide - DOC. 5788A Source and Numeric Keypads: CN-WP12F and CN-WP12N •• 1
Source and Numeric Keypads Crestron CN-WP12F and CN-WP12N
CN-WP12F and CN-WP12N Source and Numeric Keypads
CN-WP12F
SOURCE
SELECTOR
BUTTONS WITH
LED INDICATORS
ON/OFF AND
MUTE BUTTONS
WITH LED
INDICATORS
TRANSPORT
CONTROL
AND VOLUME
BUTTONS
(WITHOUT LEDs)
ON/OFF MUTE
CD 2 DSS
TAPE AUX
1.74 in
(4.42 cm)
FMCD
4.10 in
(10.41 cm)
(SIDE VIEW OF BOTH
VOL
VOL
CN-WP12F AND CN-WP12N)

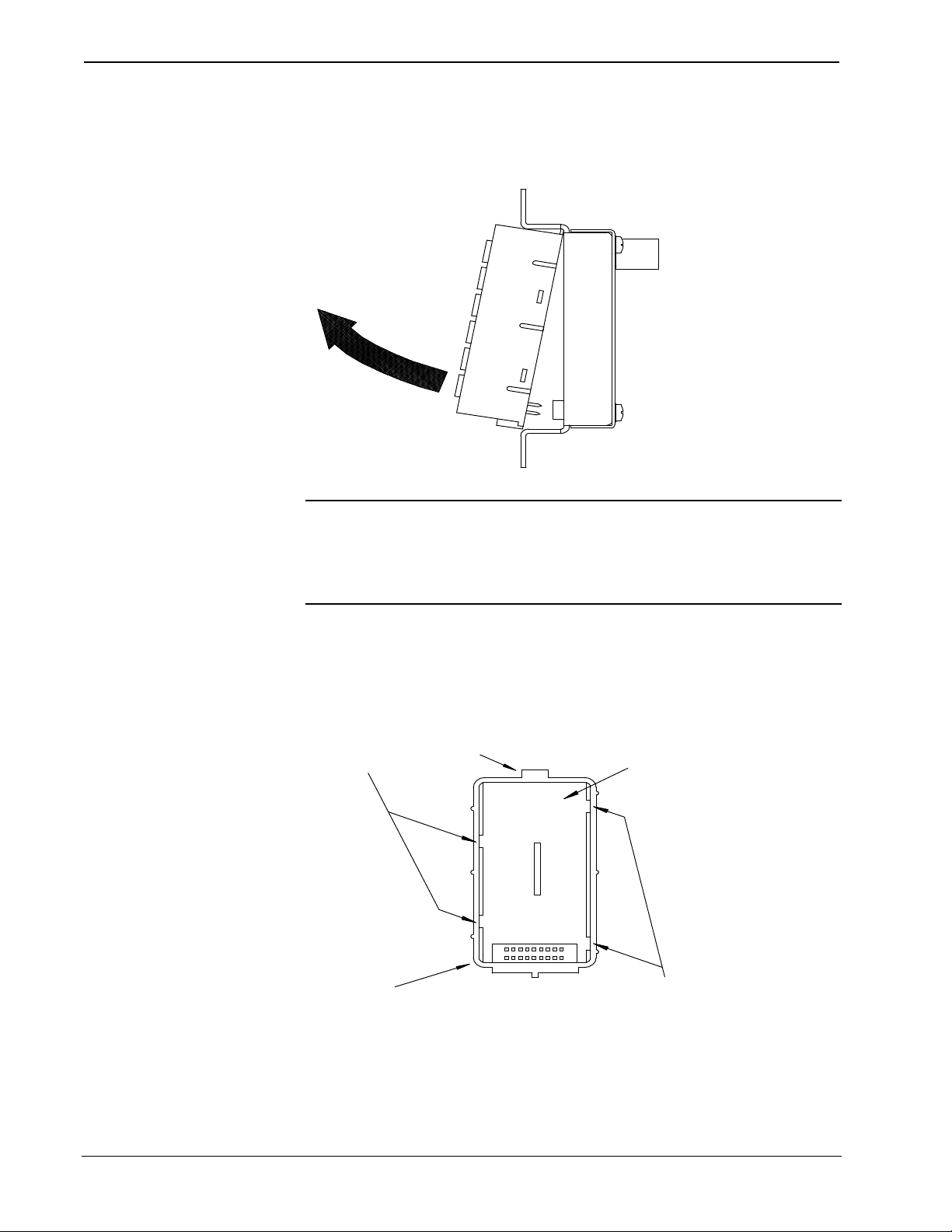

KEYPAD
MOUNTING
KEYPAD
ASSEMBLY
NETWORK
WIRING
CONNECTOR
CLEAR BUTTON
(WITHOUT LED)
AND ENTER
BUTTON WITH
LED INDICATOR
NUMERIC
DIGITS 0
THROUGH 9
BUTTONS
(WITHOUT LEDs)
CN-WP12F Custom Switch Cap Kit
DSS 2DSS 2
TUNERTUNER
SAT 2SAT 2
CN-WP12N
CLEAR
ENTER
3
5
7
9
1.74 in
(4.42 cm)
DVDDVD
1.55 in
(3.94 cm)
21
4
6
8
0
4.10 in
(10.41 cm)
AMAM
(NOT DRAWN
TO SCALE)
1.90 in
(4.83 cm)
SATSAT
TVTV
FM 2FM 2
AUXAUXAUXAUX
2 •• Source and Numeric Keypads: CN-WP12F and CN-WP12N Operations Guide - DOC. 5788A
